基于断面水边线定向的视频测流摄像机标定

张振 姜天生 赵丽君 程泽

张振, 姜天生, 赵丽君, 程泽. 基于断面水边线定向的视频测流摄像机标定[J]. 电子与信息学报, 2024, 46(4): 1428-1437. doi: 10.11999/JEIT230573
引用本文: 张振, 姜天生, 赵丽君, 程泽. 基于断面水边线定向的视频测流摄像机标定[J]. 电子与信息学报, 2024, 46(4): 1428-1437. doi: 10.11999/JEIT230573
ZHANG Zhen, JIANG Tiansheng, ZHAO Lijun, CHENG Ze. Camera Calibration Using Cross-Section Waterline Orientation for Video-based Flow Measurement[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1428-1437. doi: 10.11999/JEIT230573
Citation: ZHANG Zhen, JIANG Tiansheng, ZHAO Lijun, CHENG Ze. Camera Calibration Using Cross-Section Waterline Orientation for Video-based Flow Measurement[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1428-1437. doi: 10.11999/JEIT230573

基于断面水边线定向的视频测流摄像机标定

doi: 10.11999/JEIT230573
基金项目: 国家自然科学基金青年基金 (51709083),国家重点研发计划(2017YFC0405703)
详细信息
    作者简介:

    张振:男,副教授,研究方向为图像法测流及水利智能感知技术

    姜天生:男,硕士生,研究方向为自适应时空测速法测流技术

    赵丽君:女,硕士生,研究方向为多传感器融合测流

    程泽:男,硕士生,研究方向为基于图像法的灌渠测流系统研发

    通讯作者:

    张振 zz_hhuc@hhu.edu.cn

  • 中图分类号: TN911.73; TH815

Camera Calibration Using Cross-Section Waterline Orientation for Video-based Flow Measurement

Funds: The Youth Foundation of National Natural Science Foundation of China (51709083), The National Key Research and Development Program (2017YFC0405703)
  • 摘要: 针对现有基于直接线性变化法(DLT)的图像法测流技术依赖于地面控制点,存在效率低、风险高、宽断面天然河流操作难度大等问题,该文提出一种基于断面水边线定向的摄像机姿态角标定方法(CSWO)。该方法将标定过程分解为实验室内参标定和现场外参标定两步,其中后者又被划分为摄像机定位和定向两个环节。定向环节中首先在摄像机安装时将光轴与断面方向对齐,使方位角置零。然后利用无畸变图像中人工标注的平直断面水边线的斜率计算出横滚角。接下来通过计算水边线与图像纵轴交点作为其亚像素像方坐标。最后依据透视投影成像模型,联合水位与插值断面高程求得的物方坐标解算出俯仰角。该方法应用于时空图像测速法(STIV),实现了200 m宽河流的免像控表面流速测量。结果表明:起点距的最大绝对误差为0.59 m,最大相对误差为0.45%,表面流速的最大相对误差小于6.3%。

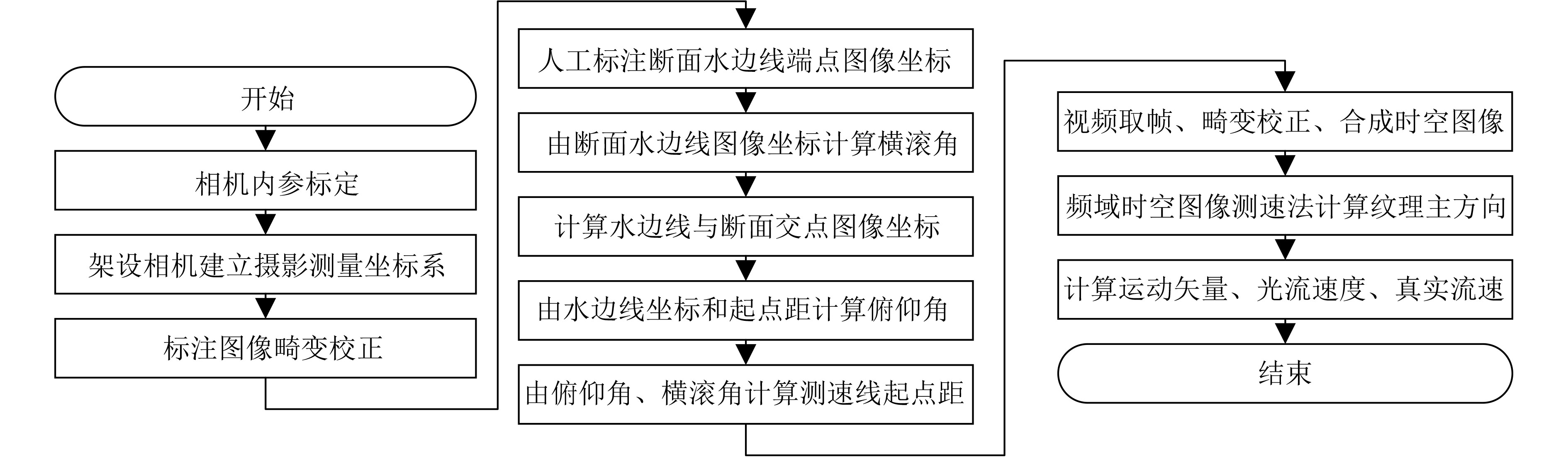

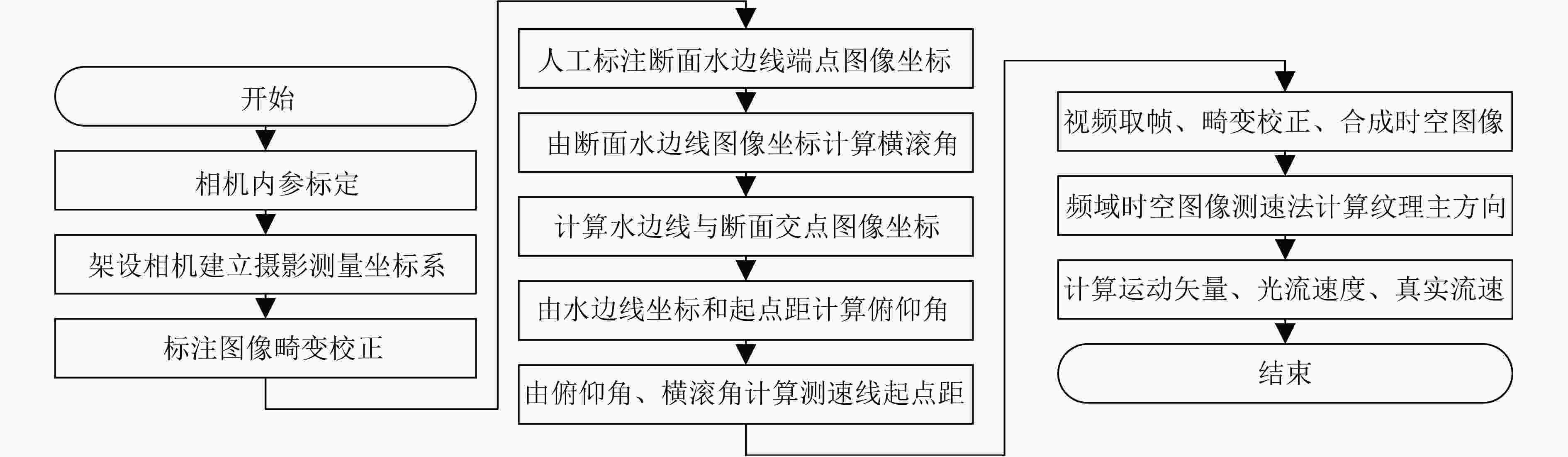

  • 图  1  算法整体流程图

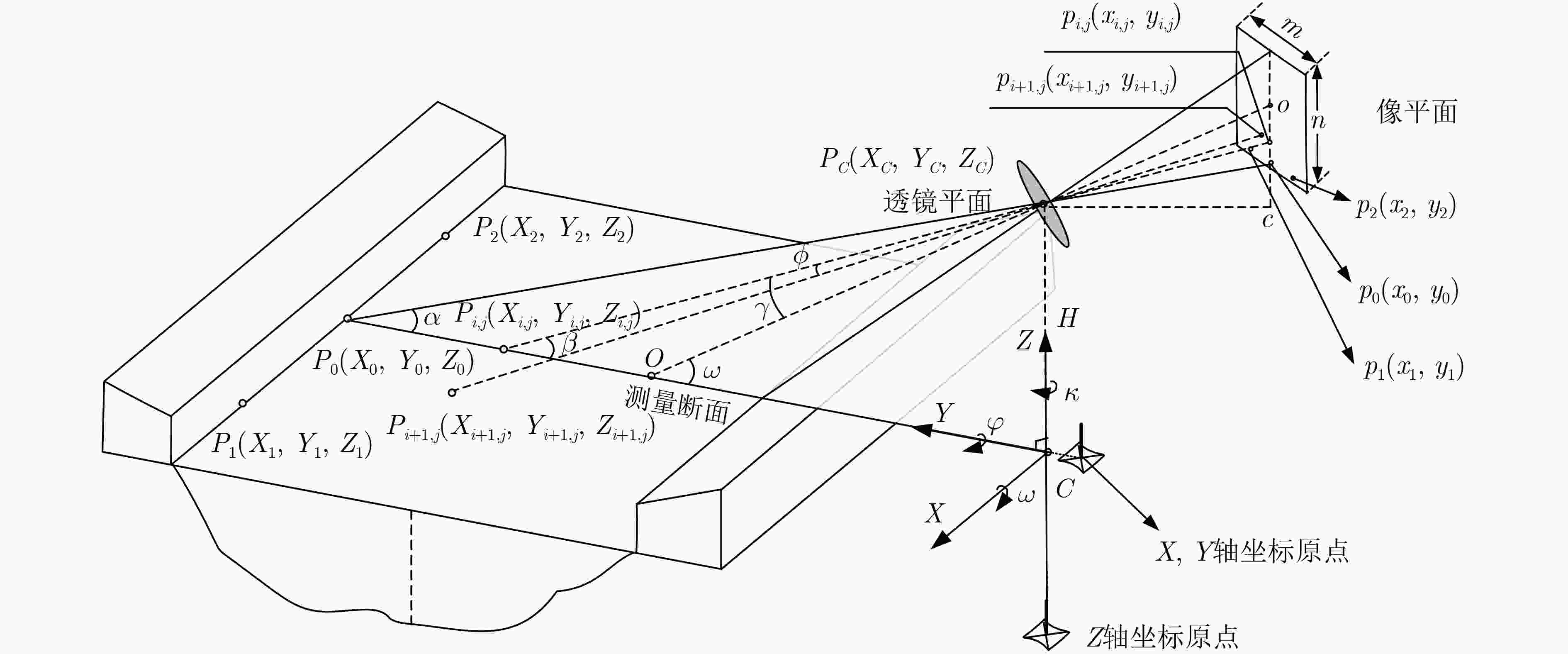

    图  2  系统布设方案示意图

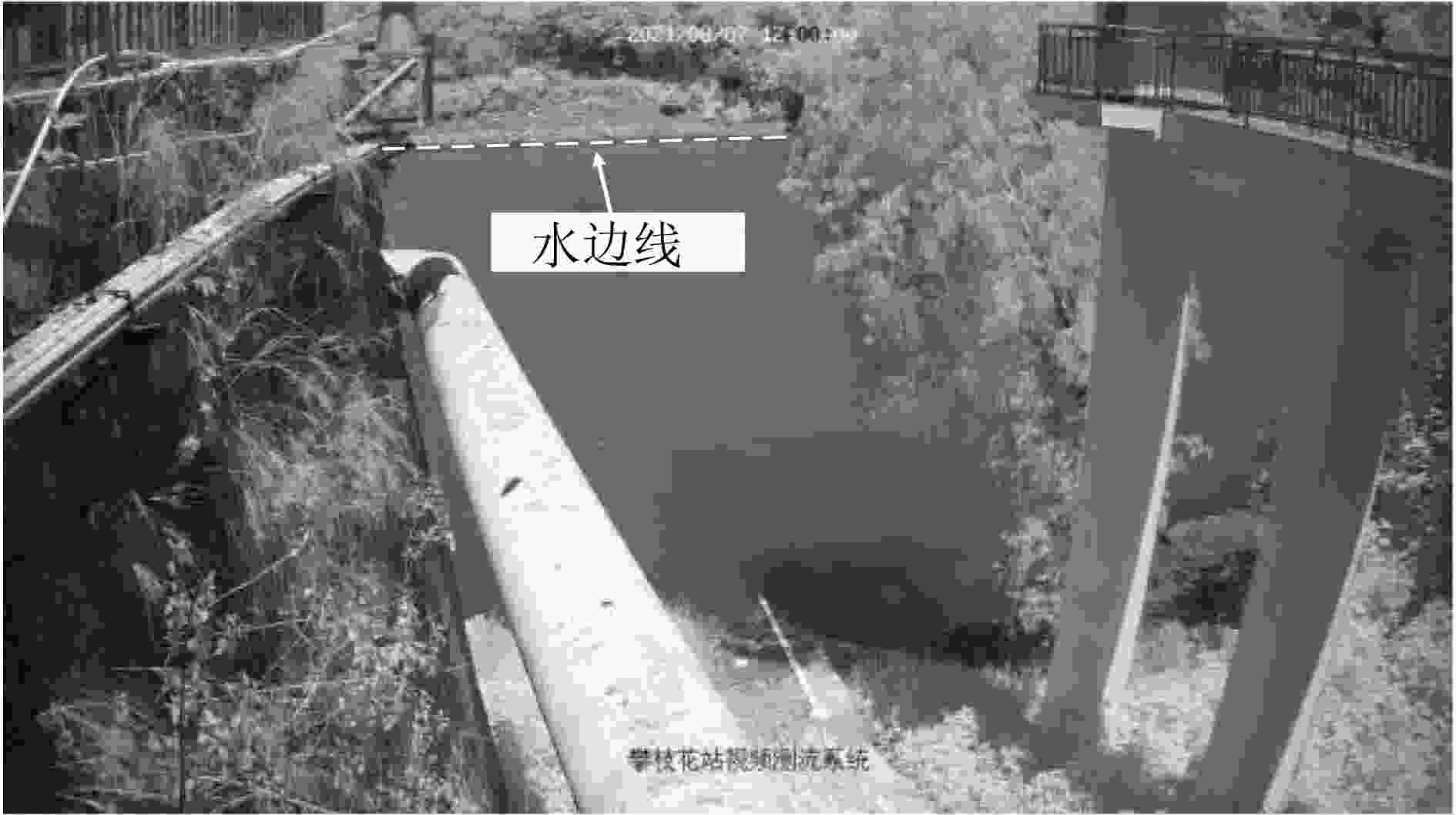

    图  3  水边线及标注点示意

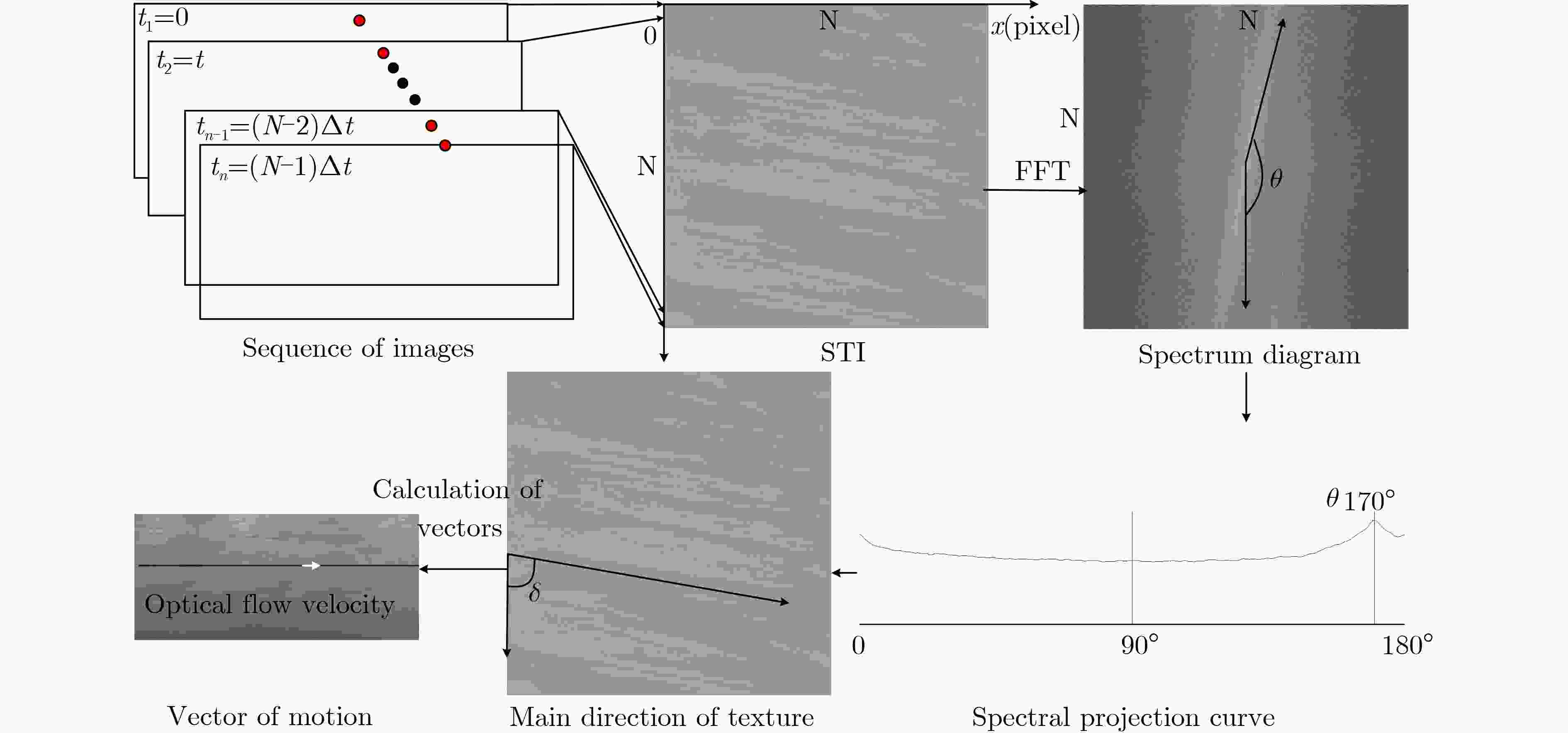

    图  4  FFT-STIV原理示意

    图  5  标注场景示意图

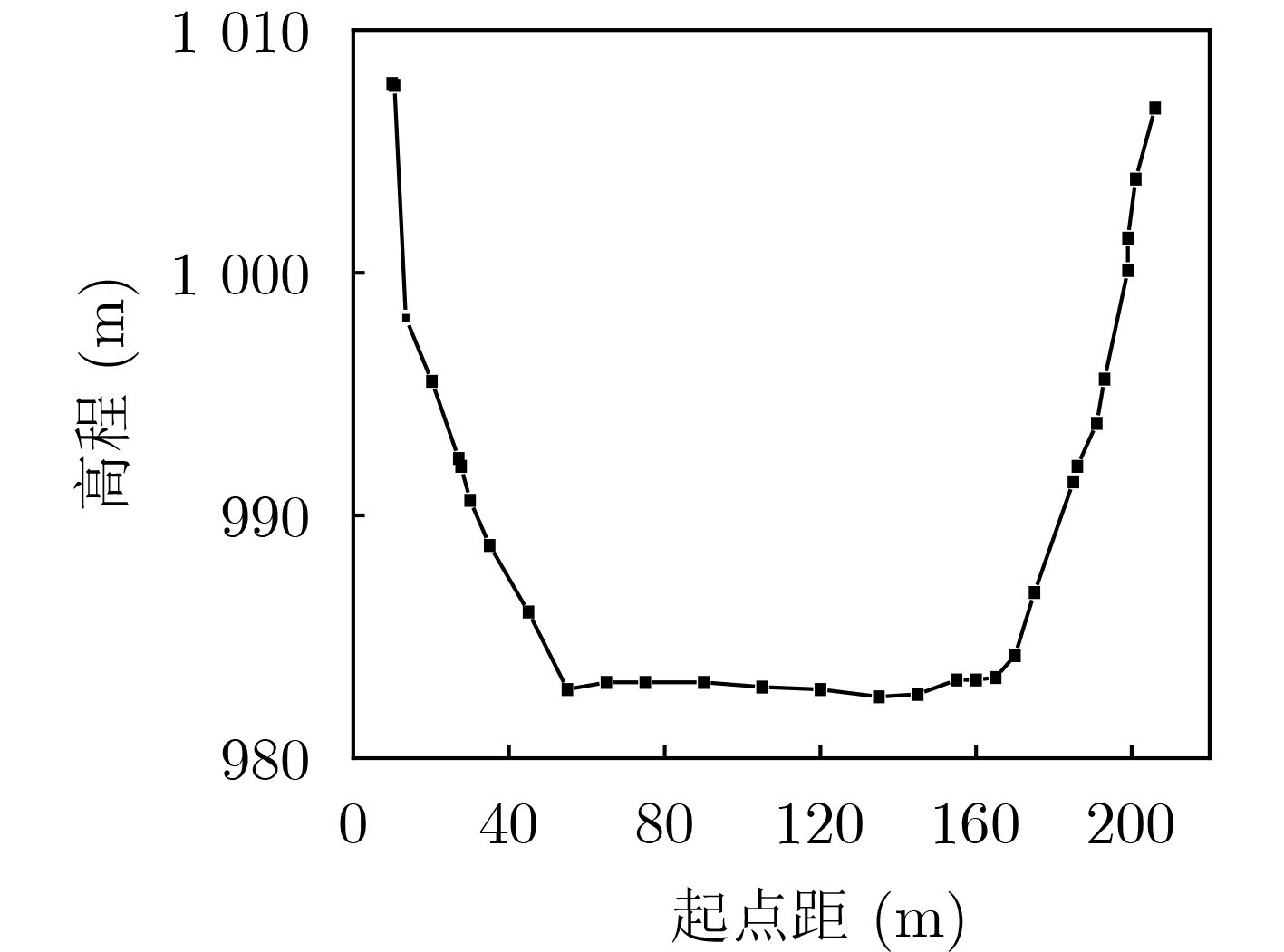

    图  6  攀枝花水文站大断面

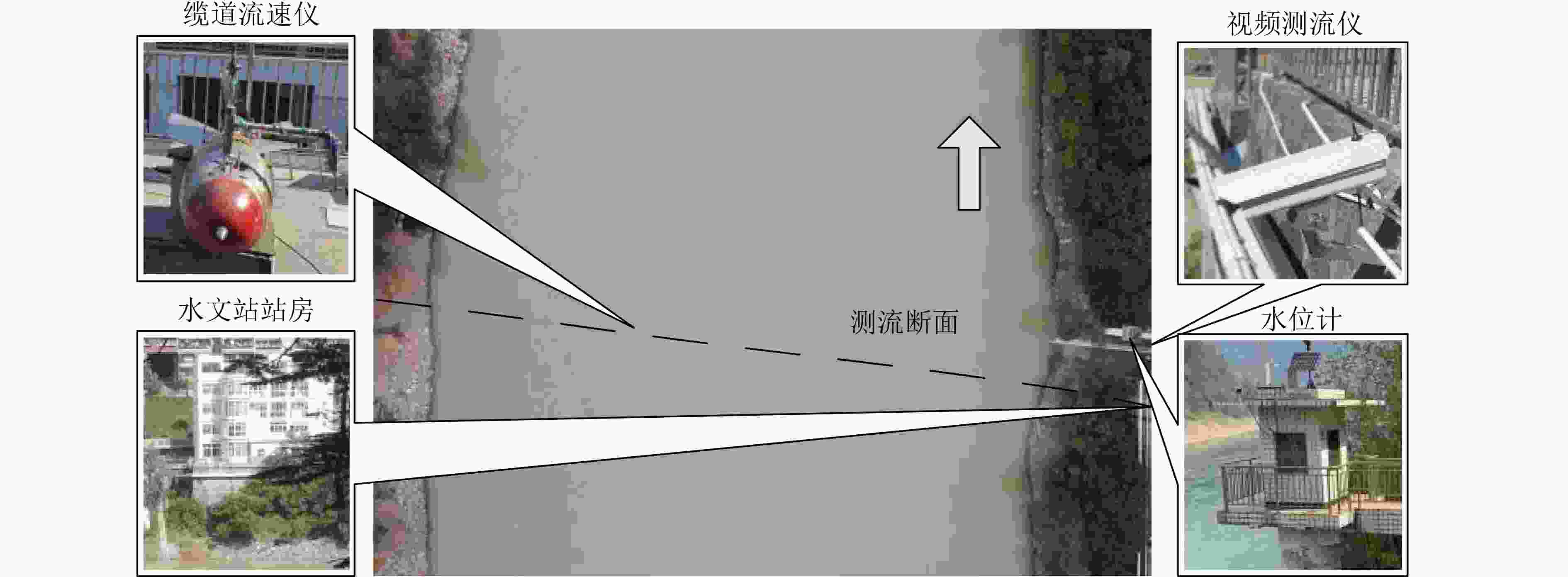

    图  7  测流系统布设示意图

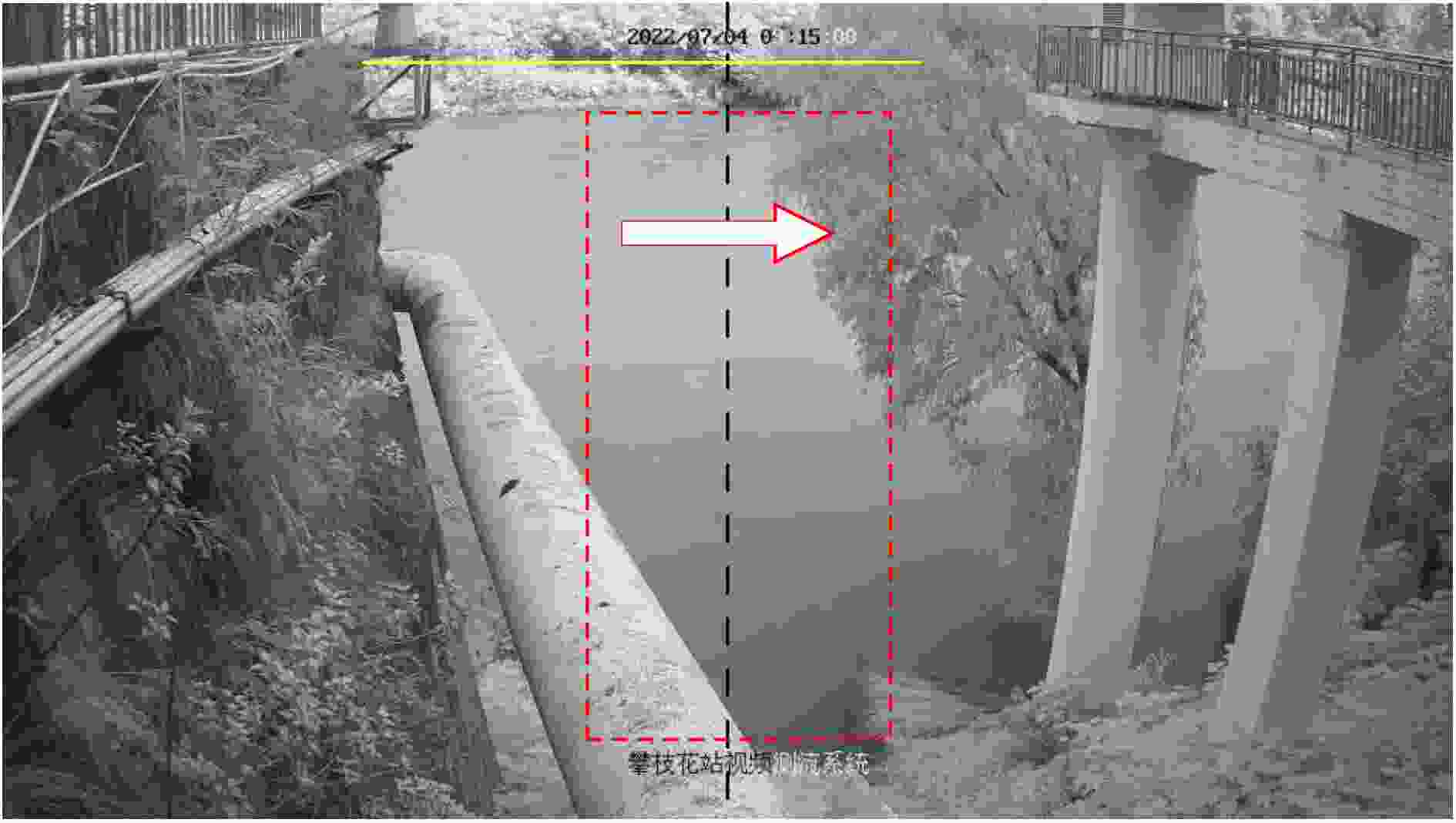

    图  8  断面及流向示意图

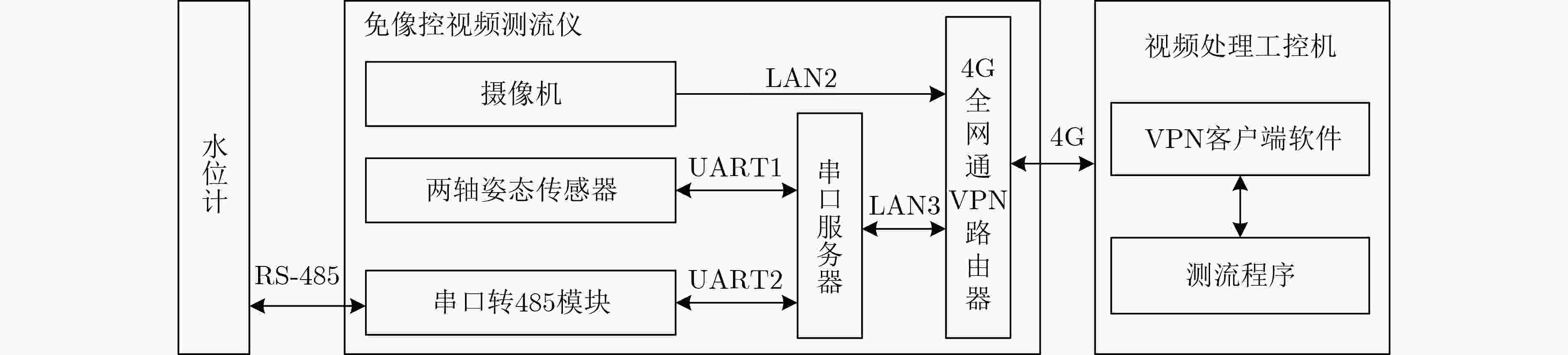

    图  9  硬件系统结构框图

    图  10  测次15测速线起点距对比

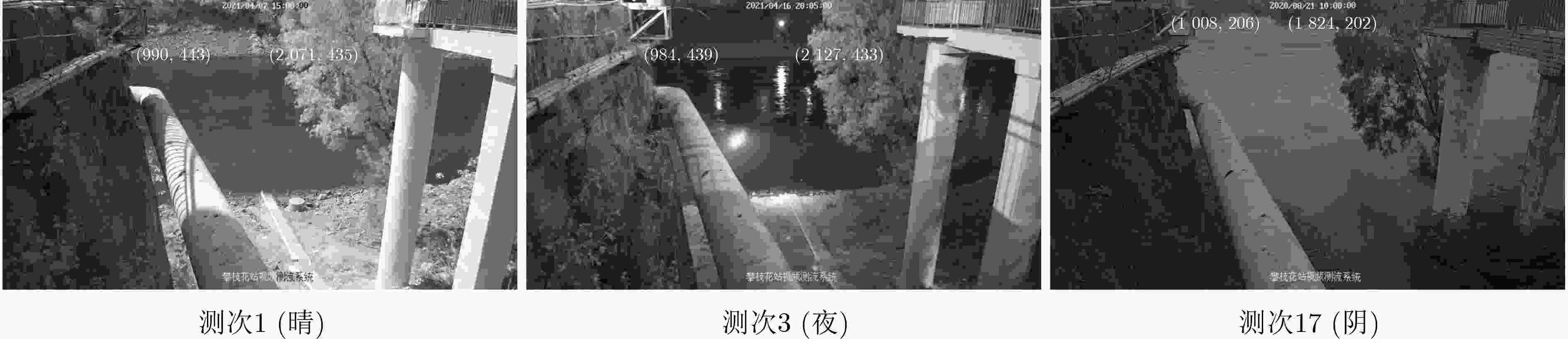

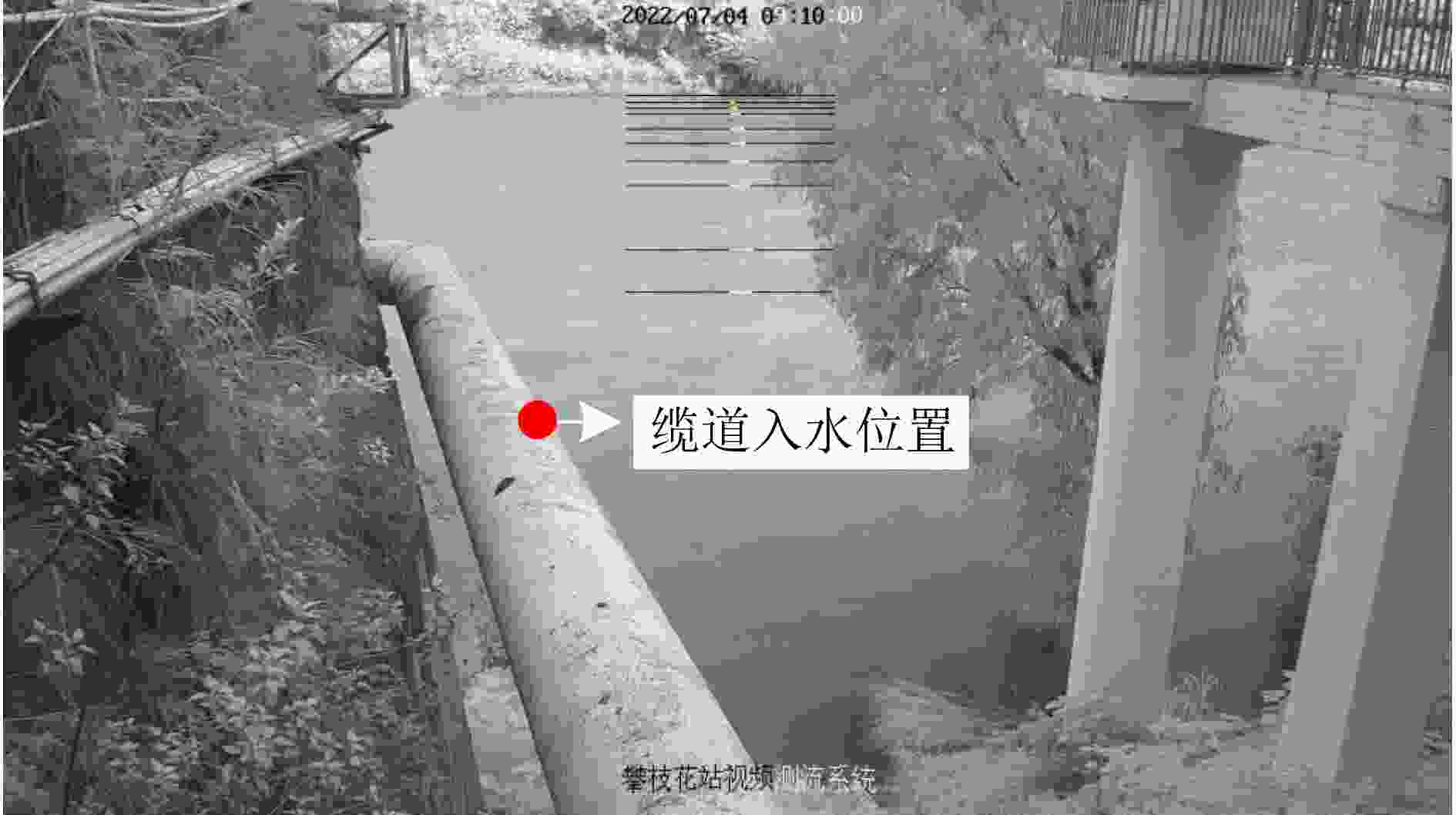

    图  11  比测实验现场状况

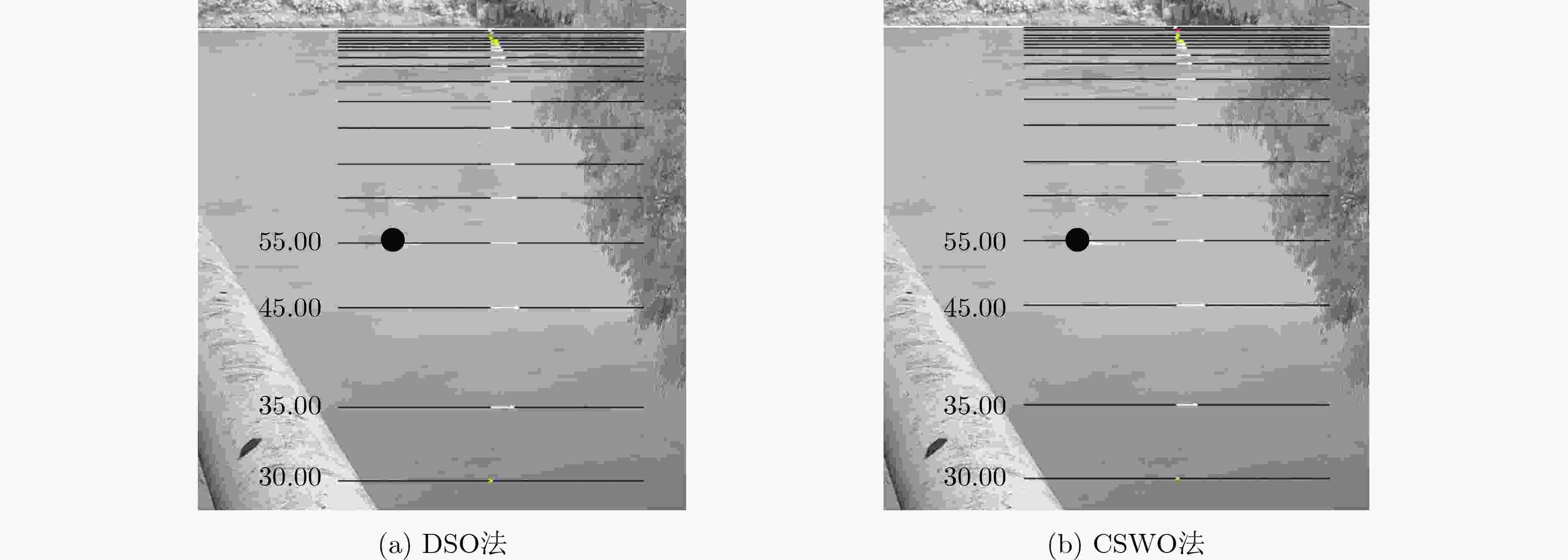

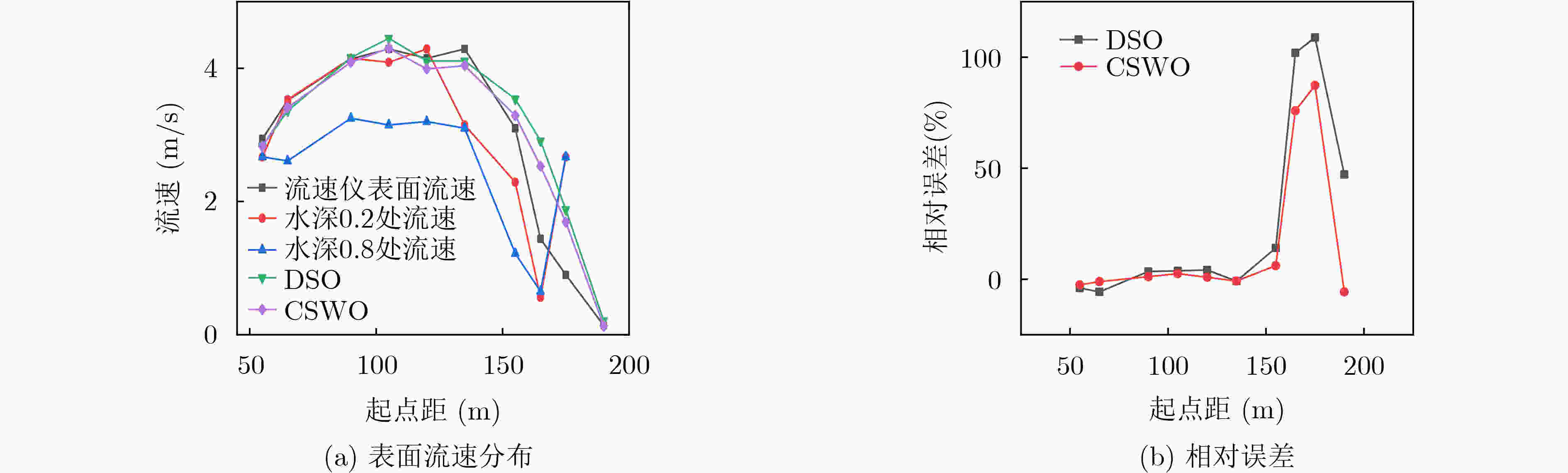

    图  12  表面流速测量结果对比

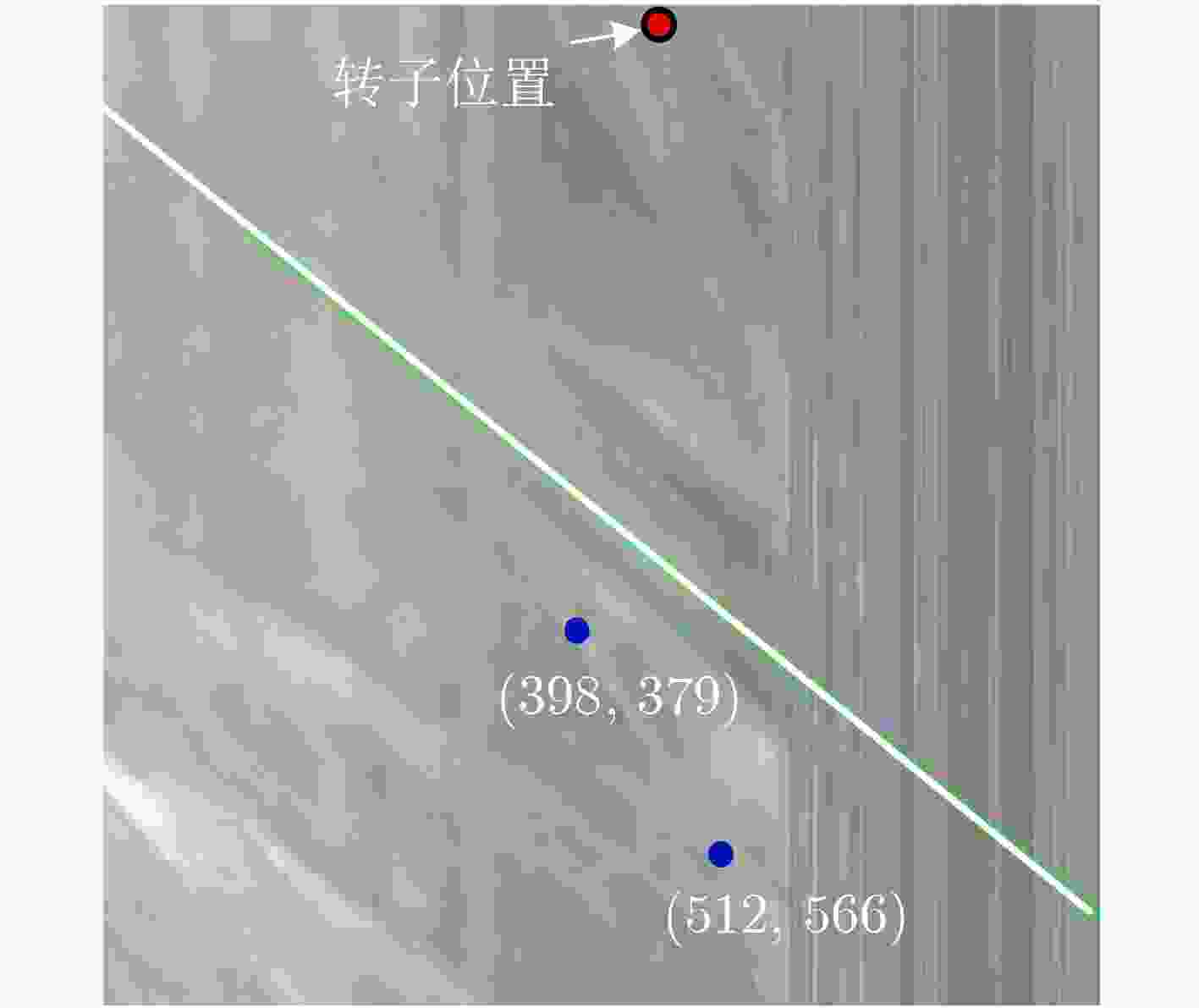

    图  13  测速线9处STI

    表  1  内参矩阵和畸变参数

    $ m $(pixel) $ n $(pixel) $ {f_x} $(pixel) $ {f_y} $(pixel) $ {C_x} $(pixel) $ {C_y} $(pixel) $ {k_1} $ $ {k_2} $ $ {p_1} $ $ {p_2} $
    标定结果 3840 2160 2876.507 2884.631 1947.382 1043.743 –0.407 0.001 0.001 –0.001
    下载: 导出CSV

    表  2  各水位级下俯仰角、横滚角标定结果对比

    测次日期时间场景水位级水位(m)$ R\left(x_{1}, y_{1}\right) $$ R_{2}\left(x_{2}, y_{2}\right) $俯仰角(°)横滚角(°)
    121040715:00985.34(990, 443)(2071, 435)20.160.42
    221020410:30986.19(982, 445)(2125, 441)19.700.20
    321041620:05986.34(984, 439)(2127, 433)19.790.30
    421041620:10986.34(984, 439)(2125, 431)19.810.40
    520111810:30986.37(960, 437)(2151, 429)19.840.39
    620111810:35986.37(966, 437)(2143, 431)19.810.29
    721041514:18986.37(984, 437)(2141, 427)19.870.50
    82103189:00986.40(978, 437)(2027, 427)19.880.55
    921041413:00986.42(984, 437)(2141, 431)19.790.30
    1021040814:00986.42(1006, 439)(2079, 429)19.820.53
    1121040816:00986.62(974, 437)(2187, 431)19.790.28
    122103169:00986.90(978, 427)(2143, 419)19.810.39
    1321022311:00987.03(982, 423)(2095, 415)19.840.41
    142207049:35993.80(1100, 257)(2057, 255)19.910.12
    152207049:20993.84(1096, 257)(2073, 255)19.890.12
    162207049:26993.85(1092, 257)(2071, 255)19.890.12
    1720082110:00997.96(1008, 206)(1824, 202)19.880.28
    下载: 导出CSV

    表  3  DSO法和CSWO法实验结果

    测次 水位(m) 起点距真值(m) 绝对误差(m) 相对误差(%)
    DSO CSWO DSO CSWO
    1 985.34 55.00 0.29 0.02 0.22 0.02
    2 986.19 90.00 0.64 0.12 0.51 0.09
    3 986.34 65.00 0.24 0.18 0.18 0.14
    4 986.34 90.00 0.81 0.02 0.62 0.01
    5 986.37 55.00 0.13 0.17 0.10 0.13
    6 986.37 65.00 0.64 0.23 0.50 0.18
    7 986.37 90.00 0.79 0.01 0.61 0.01
    8 986.40 120.00 1.64 0.27 1.27 0.21
    9 986.42 65.00 0.34 0.09 0.26 0.07
    10 986.42 105.00 0.94 0.13 0.72 0.10
    11 986.62 135.00 1.18 0.59 0.90 0.45
    12 986.90 65.00 0.26 0.28 0.19 0.21
    13 987.03 90.00 0.72 0.19 0.55 0.15
    14 993.80 90.00 0.97 0.29 0.57 0.17
    15 993.84 55.00 0.42 0.05 0.25 0.03
    16 993.85 65.00 0.66 0.00 0.39 0.00
    17 997.96 55.00 0.31 0.28 0.17 0.15
    下载: 导出CSV
