特征反馈机制优化的超声图像病灶检测算法

丁建睿 王凌涛 汤丰赫 宁春平

丁建睿, 王凌涛, 汤丰赫, 宁春平. 特征反馈机制优化的超声图像病灶检测算法[J]. 电子与信息学报, 2024, 46(3): 1013-1021. doi: 10.11999/JEIT230385
引用本文: 丁建睿, 王凌涛, 汤丰赫, 宁春平. 特征反馈机制优化的超声图像病灶检测算法[J]. 电子与信息学报, 2024, 46(3): 1013-1021. doi: 10.11999/JEIT230385
DING Jianrui, WANG Lingtao, TANG Fenghe, NING Chunping. Ultrasound Image Lesion Detection Algorithm Optimized by Feature Feedback Mechanism[J]. Journal of Electronics & Information Technology, 2024, 46(3): 1013-1021. doi: 10.11999/JEIT230385
Citation: DING Jianrui, WANG Lingtao, TANG Fenghe, NING Chunping. Ultrasound Image Lesion Detection Algorithm Optimized by Feature Feedback Mechanism[J]. Journal of Electronics & Information Technology, 2024, 46(3): 1013-1021. doi: 10.11999/JEIT230385

特征反馈机制优化的超声图像病灶检测算法

doi: 10.11999/JEIT230385
基金项目: 国家自然科学基金(U22A2033),山东省自然科学基金(ZR2020MH290)
详细信息
    作者简介:

    丁建睿:男,硕士生导师,副教授,研究方向为模式识别、计算机视觉

    王凌涛:男,硕士生,研究方向为计算机视觉

    汤丰赫:男,硕士生,研究方向为计算机视觉

    宁春平:女,硕士生导师,副主任医师,研究方向为超声医学

    通讯作者:

    丁建睿 jrding@hit.edu.cn

  • 中图分类号: TN911.73; TP391.41

Ultrasound Image Lesion Detection Algorithm Optimized by Feature Feedback Mechanism

Funds: The National Natural Science Foundation of China (U22A2033), The Natural Science Foundation of Shandong Province (ZR2020MH290)
  • 摘要: 该文提出一种基于特征反馈机制的超声图像病灶检测方法,以实现超声病灶的实时精确定位与检测。所提方法由基于特征反馈机制的特征提取网络和基于分治策略的自适应检测头两部分组成。特征反馈网络通过反馈特征选取和加权融合计算,充分学习超声图像的全局上下文信息和局部低级语义细节以提高局部病灶特征的识别能力。自适应检测头对特征反馈网络所提取的多级特征进行分治预处理,通过将生理先验知识与特征卷积相结合的方式对各级特征分别进行病灶形状和尺度特征的自适应建模,增强检测头对不同大小病灶在多级特征下的检测效果。所提方法在甲状腺超声图像数据集上进行了测试,得到了70.3%的AP,99.0%的AP50和88.4%的AP75,实验结果表明,相较于主流检测算法,所提算法能实现更精准的实时超声图像病灶检测和定位。

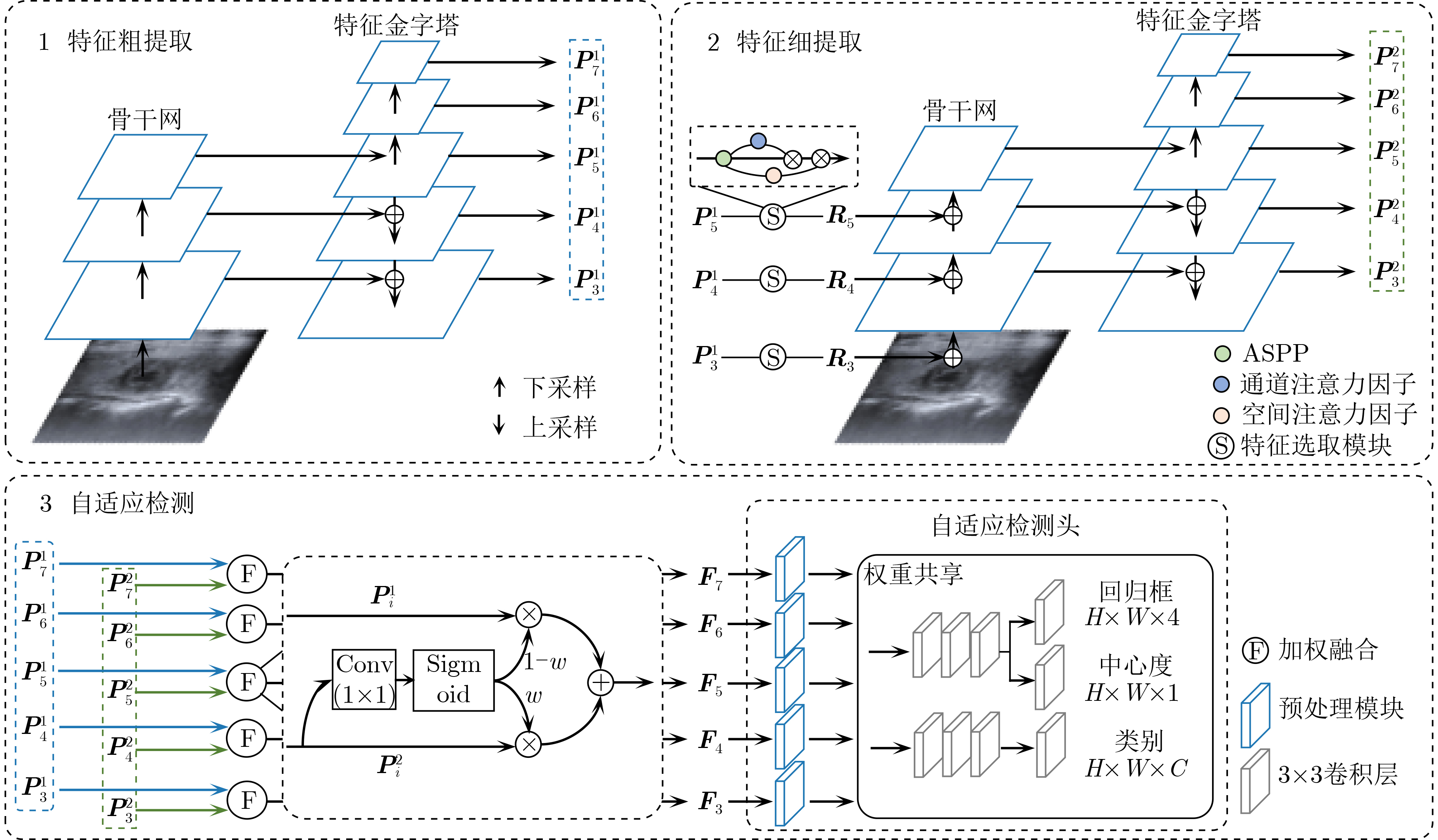

  • 图  1  特征反馈网络结构图

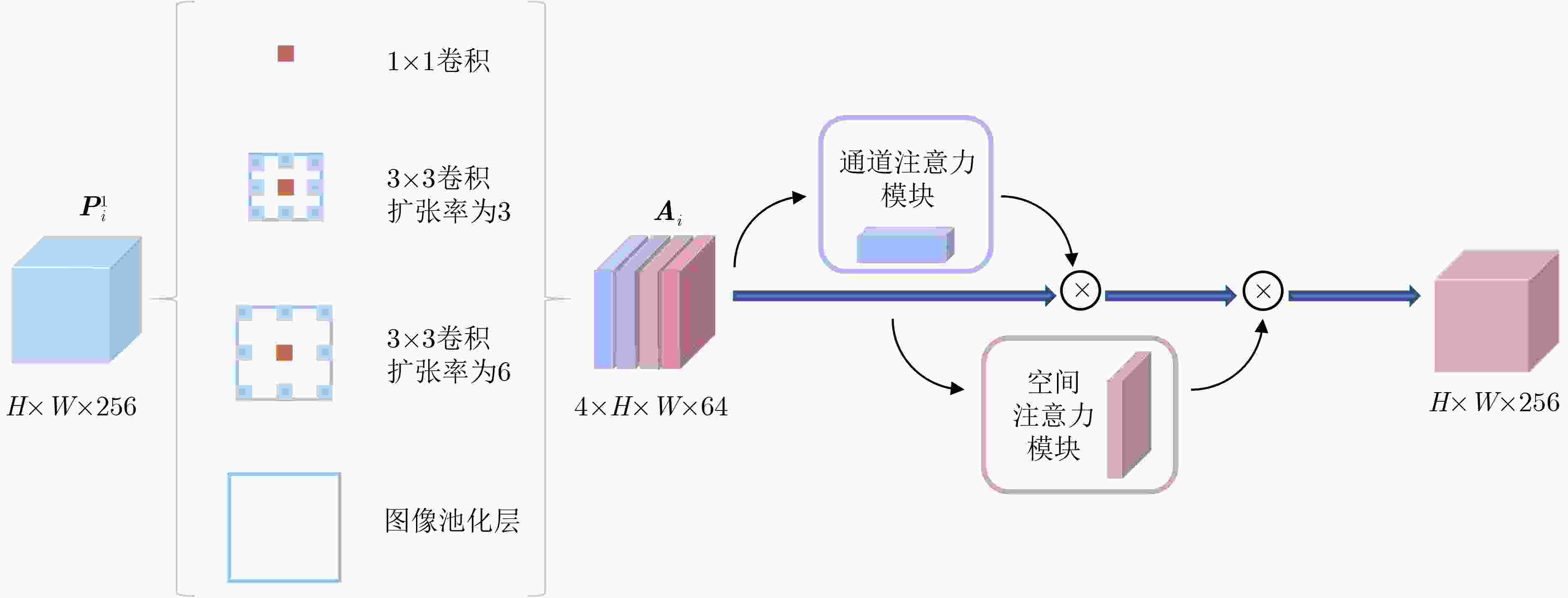

    图  2  反馈特征选取模块

    图  3  ConvNeXt阶段流程改进图

    图  4  预处理块结构图

    图  5  甲状腺超声图像示例

    图  6  病灶检测结果示例

    图  7  梯度热力图

    图  8  特征图仿真示例

    表  1  甲状腺超声病灶检测精度对比(%)

    方法骨干网APAP50AP75AP良性AP恶性
    Faster RCNN[7]ResNet5064.396.679.261.567.1
    RetinaNet[10]ResNet5065.297.680.362.467.9
    Yolov3[11]Darknet5364.795.281.562.566.8
    FCOS[12]ResNet5065.895.580.863.568.2
    EfficientDet[26]EfficientNet-B166.198.777.163.868.5
    VarifocalNet[13]ResNet5064.597.378.564.464.6
    Yolof[14]ResNet5065.999.281.464.866.9
    Yolox[16]Darknet5367.098.183.464.469.5
    Yolov7[17]CBS+ELAN67.398.384.065.369.2
    DETR[20]ResNet5063.493.676.261.265.7
    DAB-DETR[21]ResNet5064.996.378.964.165.8
    DINO[22]ResNet5066.195.883.662.569.7
    本文ResNet5069.699.087.768.271.0
    本文ConvNeXt-tiny70.399.088.468.971.6
    下载: 导出CSV

    表  2  病灶检测精度消融实验(%)

    方法APAP50AP75
    Baseline65.895.580.8
    +ConvNeXt67.598.784.8
    +ConvNeXt+自适应检测头68.598.686.8
    +ConvNeXt+自适应检测头+特征反馈网络70.399.088.4
    下载: 导出CSV

    表  3  不同检测头对比(%)

    方法APAP50AP75
    基线检测头(FCOS)67.598.784.8
    耦合检测头(Yolov3)65.697.182.0
    解耦合检测头(Yolox)67.198.587.0
    自适应检测头(本文)68.598.686.8
    下载: 导出CSV

    表  4  不同反馈方式对比

    方法AP(%)AP50(%)AP75(%)FPS(帧/s)
    无反馈网络68.598.686.846
    $ {\boldsymbol{P}}_3^1 $至$ {\boldsymbol{P}}_5^1 $反馈网络+ASPP69.698.687.440
    $ {\boldsymbol{P}}_3^1 $至$ {\boldsymbol{P}}_7^1 $反馈网络+ASPP69.698.487.834
    $ {\boldsymbol{P}}_3^1 $至$ {\boldsymbol{P}}_5^1 $反馈网络+反馈特征
    选取模块(本文)
    70.399.088.439
    $ {\boldsymbol{P}}_3^1 $至$ {\boldsymbol{P}}_7^1 $反馈网络+反馈特征
    选取模块
    70.198.588.230
    下载: 导出CSV
