基于JAYA算法的紫外光通信无人机编队路由优化

郝锐; 王建萍; 陈丹阳; 路慧敏

doi:10.11999/JEIT230206

基于JAYA算法的紫外光通信无人机编队路由优化

doi: 10.11999/JEIT230206

北京科技大学计算机与通信工程学院北京 100083

基金项目: 广东省基础与应用基础研究基金项目区域联合基金重点项目(2021B1515120086)，北京科技大学青年教师学科交叉研究项目(中央高校基本科研业务费专项资金)(FRF-IDRY-21-019)

详细信息

作者简介:
郝锐：男，博士生，研究方向为光无线通信

王建萍：女，博士，教授，研究方向为光无线通信、光纤通信理论、微波光子学

陈丹阳：女，博士后，研究方向为光无线通信

路慧敏：女，博士，副教授，研究方向为光电子器件和光无线通信

通讯作者:
王建萍　jpwang@ustb.edu.cn

中图分类号: TN929.12
计量
- 文章访问数: 317
- HTML全文浏览量: 148
- PDF下载量: 43
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-29
- 修回日期: 2023-12-22
- 网络出版日期: 2023-12-28
- 刊出日期: 2024-03-27

Routing Optimization of Ultra Violet Light Communication Unmanned Aerial Vehicle Formation Based on JAYA Algorithm

School of Computer and Communication Engineering, University of Science and Technology Beijing, Beijing 100083, China

Funds: Guangdong Province Basic and Applied Basic Research Fund Project Regional Joint Fund Key Project (2021B1515120086), Beijing University of Science and Technology Youth Teacher Interdisciplinary Research Project (Central University Basic Research Business Fee Special Fund) (FRF-IDRY-21-019)

摘要

摘要: 紫外光通信由于其灵活性高、安全性好和全天候工作等优点，被认为是应急通信用无人机编队(UAV)的有潜力通信解决方案。为了提升紫外光通信无人机编队的有效作业时间，该文基于低功耗自适应集簇分层(LEACH)算法，并结合JAYA智能优化算法提出一种新颖的路由优化算法(RJLEACH)。该方法被用来改善紫外光通信无人机编队的有效操作时间。应用该算法对不同结构的紫外光通信无人机编队路由优化，并与其它算法得到的结果进行了比较分析。结果表明，RJLEACH算法在簇首选举阶段降低了无人机节点间的剩余能量方差，并且通过搜索最优路由降低了簇间通信的能量消耗。最终使网络出现第1个死亡节点和出现1/2死亡节点的时间相比经典LEACH算法分别延长了31.8%和13.8%，同时明显提高了能量利用率，能够为灾区救援和应急通信等任务争取宝贵的时间。
- 无线紫外光通信 /
- 分簇协议 /
- 无人机编队 /
- 路由优化算法
Abstract: Due to its high flexibility, good safety and all-weather work, ultraviolet light communication is considered to be a potential communication solution for the emergency communication Unmanned Aerial Vehicle (UAV) formation. Based on the Low Energy Adaptive Clustering Hierarchy (LEACH) algorithm, and combined with JAYA intelligent optimization algorithm, a novel routing optimization algorithm Rcomp JAYA LEACH (RJLEACH) is proposed to improve the effective operation time of the ultraviolet light communication UAV formation. The algorithm is applied to optimize the formation routing of ultraviolet light communication UAVs with different structures, and the results obtained by other algorithms are compared and analyzed. The results show that RJLEACH algorithm reduces the residual energy variance between UAV nodes in the cluster head election stage, and the search for the optimal route reduces the energy consumption of inter-cluster communication. Finally, the time of the first node’s death and half nodes’ death in the network are prolonged by 31.8% and 13.8%, respectively compared with the classic LEACH algorithm, and the energy utilization rate is significantly improved, which can gain valuable time for tasks such as disaster relief and emergency communication.
- Wireless ultraviolet communication /
- Cluster protocol /
- Unmanned Aerial Vehicle(UAV) formation /
- Routing optimization algorithm

HTML全文

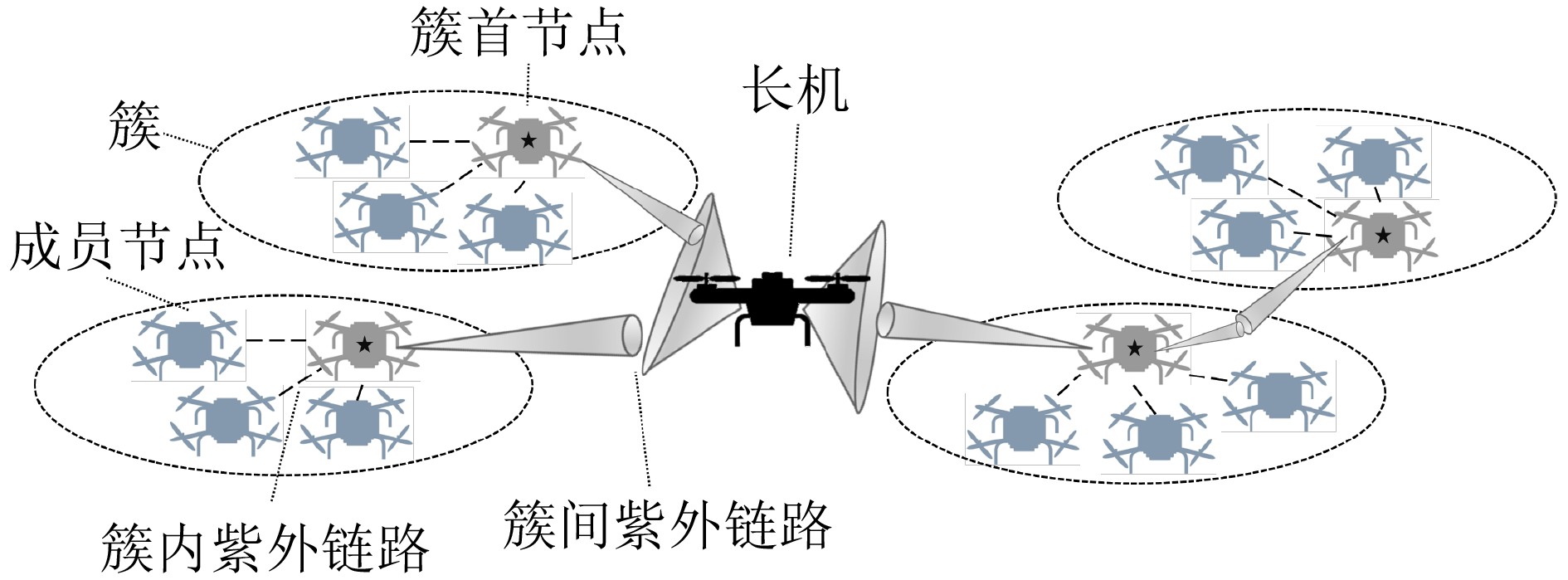

图 1 无人机编队分簇模型

下载: 全尺寸图片幻灯片

图 2 紫外光NLOS散射通信链路模型

下载: 全尺寸图片幻灯片

图 3 距离阈值D_max对系统性能的影响

下载: 全尺寸图片幻灯片

图 4 使用不同中继节点数时的对比

下载: 全尺寸图片幻灯片

图 5 不同节点密度的影响

下载: 全尺寸图片幻灯片

图 6 LEACH算法成簇结果

下载: 全尺寸图片幻灯片

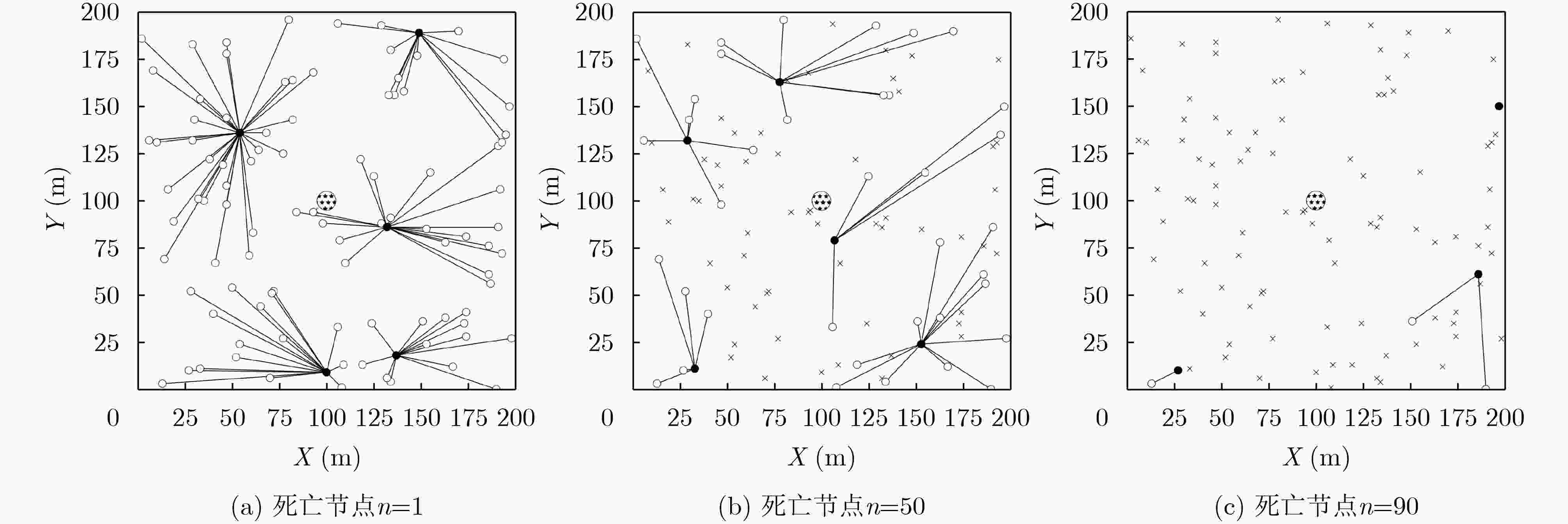

图 7 RJLEACH算法成簇结果

下载: 全尺寸图片幻灯片

图 8 采用LEACH算法和RJLEACH算法时平均簇首数目对比

下载: 全尺寸图片幻灯片

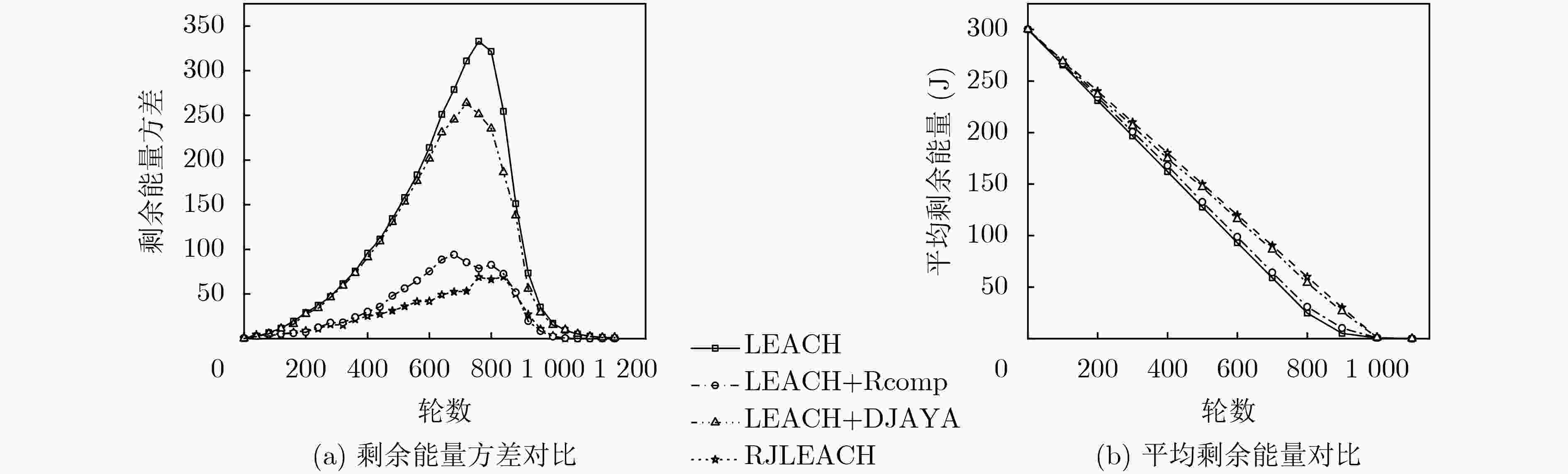

图 9 采用LEACH算法和RJLEACH算法时剩余能量方差和平均剩余能量对比

下载: 全尺寸图片幻灯片

图 10 采用LEACH算法和RJLEACH算法时网络生存期对比

下载: 全尺寸图片幻灯片

图 11 采用LEACH算法和RJLEACH算法时存活节点数对比

下载: 全尺寸图片幻灯片

表 1 仿真实验参数

参数	值
紫外光波长$\lambda $(nm)	266
初始能量${E_0}$(J)	300
${E_{\text{T}}}$,$ {E}_{\text{R}} $(μJ)	8
$ {E}_{\text{DA}} $(μJ)	0.8
${\theta _1}$,${\theta _2}$(°)	40
${\phi _1}$,${\phi _2}$(°)	30
路径损耗因子$\xi $	1.69×10⁸
路径损耗指数$\alpha $	1.349 8
数据包大小DPS(bit/轮)	5 000
控制包大小CPS(bit/轮)	400

下载: 导出CSV
