结合上下文特征融合的虚拟视点图像空洞填充

周洋 蔡毛毛 黄晓峰 殷海兵

周洋, 蔡毛毛, 黄晓峰, 殷海兵. 结合上下文特征融合的虚拟视点图像空洞填充[J]. 电子与信息学报, 2024, 46(4): 1479-1487. doi: 10.11999/JEIT230181
引用本文: 周洋, 蔡毛毛, 黄晓峰, 殷海兵. 结合上下文特征融合的虚拟视点图像空洞填充[J]. 电子与信息学报, 2024, 46(4): 1479-1487. doi: 10.11999/JEIT230181
ZHOU Yang, CAI Maomao, HUANG Xiaofeng, YIN Haibing. Hole Filling for Virtual View Synthesized Image by Combining with Contextual Feature Fusion[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1479-1487. doi: 10.11999/JEIT230181
Citation: ZHOU Yang, CAI Maomao, HUANG Xiaofeng, YIN Haibing. Hole Filling for Virtual View Synthesized Image by Combining with Contextual Feature Fusion[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1479-1487. doi: 10.11999/JEIT230181

结合上下文特征融合的虚拟视点图像空洞填充

doi: 10.11999/JEIT230181
基金项目: 浙江省自然科学基金(LY21F020021),国家自然科学基金(61972123, 61901150)
详细信息
    作者简介:

    周洋:男,副教授,研究方向为沉浸式视频编码

    蔡毛毛:男,硕士生,研究方向为虚拟视点合成技术

    黄晓峰:男,副教授,研究方向为视频编码与深度学习

    殷海兵:男,教授,研究方向为智能视频图像压缩与处理

    通讯作者:

    周洋 zhouyang@hdu.edu.cn

  • 中图分类号: TN911.73; TP391.41

Hole Filling for Virtual View Synthesized Image by Combining with Contextual Feature Fusion

Funds: The Natural Science Foundation of Zhejiang Province (LY21F020021), The National Natural Science Foundation of China (61972123, 61901150)
  • 摘要: 由于参考纹理视图的前景遮挡和不同视点间的视角差异,基于深度图的虚拟视点合成会产生大量空洞,先前的空洞填充方法耗时较长且填充区域与合成图像缺乏纹理一致性。该文首先对深度图进行预处理来减少空洞填充时的前景渗透;然后,针对经3D-warping后输出合成图像中的空洞,设计了一种基于生成对抗网络(GAN)架构的图像生成网络来填充空洞。该网络模型由2级子网络构成,第1级网络生成空洞区域的纹理结构信息,第2级网络采用了一种结合上下文特征融合的注意力模块来提升空洞填充质量。提出的网络模型能有效解决当虚拟视点图像中的前景对象存在快速运动时,空洞填充区易产生伪影的问题。在多视点深度序列上的实验结果表明,提出方法在主客观质量上均优于已有的虚拟视点图像空洞填充方法。

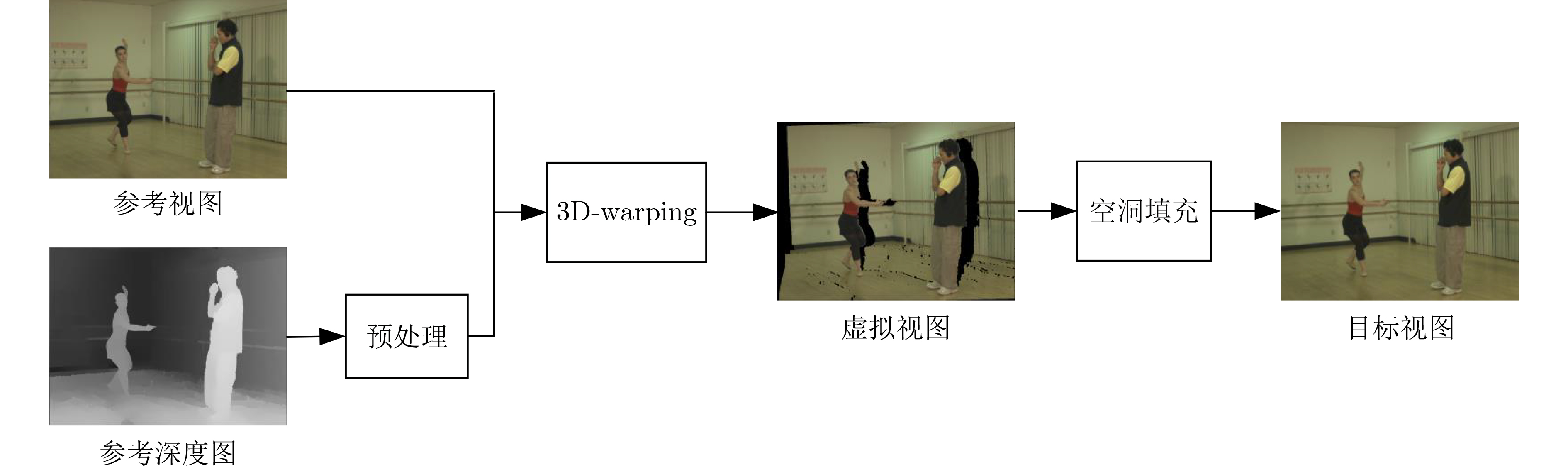

  • 图  1  虚拟视点绘制流程框图

    图  2  深度图前景轮廓膨胀前后的绘制图像对比图

    图  3  CFF-Net组成框图

    图  4  掩膜图制作

    图  5  上下文特征融合注意力模型示意图

    图  6  不同方法的逐帧性能对比结果

    图  7  不同方法主观质量比较

    图  8  不同注意力模块下局部图比较

    表  1  数据集详情

    名称 分辨率 总帧数 基线距离(mm) 修复帧数 训练集:
    测试集
    Ballet 1024×768 800 380 100 9:1
    Breakdance 1024×768 800 370 100 9:1
    下载: 导出CSV

    表  2  不同方法在PSRN上的平均值

    测试序列PSNR↑
    BA41BA43BA52BA54BR56BR57
    Cri[2]22.05728.01923.63930.47129.25827.779
    Anh[6]23.35727.52224.68130.82029.61827.797
    Luo[8]24.07727.99624.66132.10429.55227.955
    VSRS[23]23.03927.61524.36129.08929.43228.177
    Df2[16]22.92329.21424.42132.52429.59328.029
    Gla[22]23.67428.82325.01532.28429.59928.279
    本文23.57629.47225.11133.22729.80228.325
    下载: 导出CSV

    表  3  不同方法在SSIM上的平均值

    测试序列SSIM↑
    BA41BA43BA52BA54BR56BR57
    Cri[2]0.7570.8730.7640.8780.8060.785
    Anh[6]0.7700.8630.7610.8730.7910.791
    Luo[8]0.7920.8710.7730.8810.7900.781
    VSRS[23]0.7820.8670.7870.8790.8100.791
    Df2[16]0.7680.8730.7740.8870.8060.791
    Gla[22]0.7590.8720.7660.8830.8060.792
    本文0.7670.8750.7870.8890.8120.798
    下载: 导出CSV

    表  4  不同注意力模块的性能比较

    Df2GlaE2F本文
    PSNR33.10532.96831.45233.227
    SSIM0.8870.8870.8850.889
    下载: 导出CSV
  • [1] DE OLIVEIRA A Q, DA SILVEIRA T L T, WALTER M, et al. A hierarchical superpixel based approach for DIBR view synthesis[J]. IEEE Transactions on Image Processing, 2021, 30: 6408–6419. doi: 10.1109/TIP.2021.3092817.
    [2] CRIMINISI A, PEREZ P, and TOYAMA K. Region filling and object removal by exemplar-based image inpainting[J]. IEEE Transactions on Image Processing, 2004, 13(9): 1200–1212. doi: 10.1109/TIP.2004.833105.
    [3] ZHU Ce and LI Shuai. Depth image based view synthesis: New insights and perspectives on Hole generation and filling[J]. IEEE Transactions on Broadcasting, 2016, 62(1): 82–93. doi: 10.1109/TBC.2015.2475697.
    [4] CHANG Yuan, CHEN Yisong, and WANG Guoping. Range guided depth refinement and uncertainty-aware aggregation for view synthesis[C]. International Conference on Acoustics, Speech and Signal Processing, Toronto, Canada, 2021: 2290-2294. doi: 10.1109/ICASSP39728.2021.9413981.
    [5] CHENG Cong, LIU Ju, YUAN Hui, et al. A DIBR method based on inverse mapping and depth-aided image inpainting[C]. 2013 IEEE China Summit and International Conference on Signal and Information Processing, Beijing, China, 2013: 518-522. doi: 10.1109/ChinaSIP.2013.6625394.
    [6] ANH I and KIM C. A novel depth-based virtual view synthesis method for free viewpoint video[J]. IEEE Transactions on Broadcasting, 2013, 59(4): 614–626. doi: 10.1109/TBC.2013.2281658.
    [7] RAHAMAN D M M and PAUL M. Virtual view synthesis for free viewpoint video and Multiview video compression using Gaussian mixture modelling[J]. IEEE Transactions on Image Processing, 2018, 27(3): 1190–1201. doi: 10.1109/TIP.2017.2772858.
    [8] LUO Guibo, ZHU Yuesheng, WENG Zhenyu, et al. A disocclusion inpainting framework for depth-based view synthesis[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2020, 42(6): 1289–1302. doi: 10.1109/TPAMI.2019.2899837.
    [9] GOODFELLOW I J, POUGET-ABADIE J, MIRZA M, et al. Generative adversarial nets[C]. Proceedings of the 27th International Conference on Neural Information Processing Systems, Montreal, Canada, 2014: 2672–2680. doi: 10.5555/2969033.2969125.
    [10] RADFORD A, METZ L, and CHINTALA S. Unsupervised representation learning with deep convolutional generative adversarial networks[C]. 4th International Conference on Learning Representations, Puerto Rico, 2016: 1–16.
    [11] IIZUKA S, SIMO-SERRA E, and ISHIKAWA H. Globally and locally consistent image completion[J]. ACM Transactions on Graphics, 2017, 36(4): 107. doi: 10.1145/3072959.3073659.
    [12] LI Jingyuan, WANG Ning, ZHANG Lefei, et al. Recurrent feature reasoning for image inpainting[C]. Conference on Computer Vision and Pattern Recognition, Seattle, USA, 2020: 7757–7765. doi: 10.1109/CVPR42600.2020.00778.
    [13] XU Shunxin, LIU Dong, and XIONG Zhiwei. E2I: Generative inpainting from edge to image[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2021, 31(4): 1308–1322. doi: 10.1109/TCSVT.2020.3001267.
    [14] SHIN Y G, SAGONG M C, YEO Y J, et al. PEPSI++: Fast and lightweight network for image inpainting[J]. IEEE Transactions on Neural Networks and Learning Systems, 2021, 32(1): 252–265. doi: 10.1109/TNNLS.2020.2978501.
    [15] 孙磊, 杨宇, 毛秀青, 等. 基于空间特征的生成对抗网络数据生成方法[J]. 电子与信息学报, 2023, 45(6): 1959–1969. doi: 10.11999/JEIT211285.

    SUN Lei, YANG Yu, MAO Xiuqing, et al. Data Generation based on generative adversarial network with spatial features[J]. Journal of Electronics & Information Technology, 2023, 45(6): 1959–1969. doi: 10.11999/JEIT211285.
    [16] YU Jiahui, LIN Zhe, YANG Jimei, et al. Free-form image inpainting with gated convolution[C]. 2019 IEEE/CVF International Conference on Computer Vision, Seoul, Korea (South), 2019: 4470–4479. doi: 10.1109/ICCV.2019.00457.
    [17] PATHAK D, KRÄHENBÜHL P, DONAHUE J, et al. Context encoders: Feature learning by inpainting[C]. IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 2536–2544. doi: 10.1109/CVPR.
    [18] LIU Guilin, DUNDAR A, SHIH K J, et al. Partial convolution for padding, inpainting, and image synthesis[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45(5): 6096–6110. doi: 10.1109/TPAMI.2022.3209702.
    [19] Microsoft. MSR 3D Video dataset from official microsoft download center[EB/OL]. https://www.microsoft.com/en-us/download/details.aspx?id=52358, 2014.
    [20] JOHNSON J, ALAHI A, and LI Feifei. Perceptual losses for real-time style transfer and super-resolution[C]. 14th European Conference Computer Vision 2016, Amsterdam, Netherlands, 2016: 694–711. doi: 10.1007/978-3-319-46475-6_43.
    [21] YUAN H L and VELTKAMP R C. Free-viewpoint image based rendering with multi-layered depth maps[J]. Optics and Lasers in Engineering, 2021, 147: 106726. doi: 10.1016/j.optlaseng.2021.106726.
    [22] UDDIN S M N and JUNG Y J. Global and local attention-based free-form image inpainting[J]. Sensors, 2020, 20(11): 3204. doi: 10.3390/s20113204.
    [23] STANKIEWICZ O and WEGNER K. Depth estimation reference software and view synthesis reference software[S]. Switzerland: ISO/IEC JTC1/SC29/WG11 MPEG/M16027, 2009.
    [24] LI Zhen, LU Chengze, QIN Jianhua, et al. Towards an end-to-end framework for flow-guided video inpainting[C]. Conference on Computer Vision and Pattern Recognition, New Orleans, USA, 2022: 17541–17550. doi: 10.1109/CVPR52688.2022.01704.
