基于超球面三元组编码的干扰模式开集识别

高玉龙 王国强 王钢

高玉龙, 王国强, 王钢. 基于超球面三元组编码的干扰模式开集识别[J]. 电子与信息学报, 2024, 46(3): 895-905. doi: 10.11999/JEIT230145
引用本文: 高玉龙, 王国强, 王钢. 基于超球面三元组编码的干扰模式开集识别[J]. 电子与信息学报, 2024, 46(3): 895-905. doi: 10.11999/JEIT230145
GAO Yulong, WANG Guoqiang, WANG Gang. Jamming Pattern Open Set Recognition Based on Hyperspherical Triplet Coding[J]. Journal of Electronics & Information Technology, 2024, 46(3): 895-905. doi: 10.11999/JEIT230145
Citation: GAO Yulong, WANG Guoqiang, WANG Gang. Jamming Pattern Open Set Recognition Based on Hyperspherical Triplet Coding[J]. Journal of Electronics & Information Technology, 2024, 46(3): 895-905. doi: 10.11999/JEIT230145

基于超球面三元组编码的干扰模式开集识别

doi: 10.11999/JEIT230145
基金项目: 国家自然科学基金(62171163, 62271167)
详细信息
    作者简介:

    高玉龙:男,教授,博士生导师,研究方向为智能信号处理和智能通信

    王国强:男,硕士生,研究方向为干扰信号识别技术

    王钢:男,教授,博士生导师,研究方向为数据通信和移动通信

    通讯作者:

    高玉龙 ylgao@hit.edu.cn

  • 中图分类号: TN972

Jamming Pattern Open Set Recognition Based on Hyperspherical Triplet Coding

Funds: The National Natural Science Foundation of China (62171163, 62271167)
  • 摘要: 干扰模式识别是现代军事通信对抗中必不可少的一环,随着复杂电磁环境当中各种新型恶意干扰样式层出不穷,对于未知型干扰的判决也变得愈发重要。因此,要求干扰模式识别算法保持对于已知型干扰高精度识别的同时,也能够完成对于未知型干扰的判决,以排除未知型恶意干扰的影响。基于此,该文将未知型干扰存在时的干扰模式识别问题建模为开集识别问题,并提出一种基于超球面3元组编码的干扰模式开集识别方法。所提方法基于超球面3元组对输入的时频图像进行降维编码以提高识别精度,然后采用元识别分类器准确地完成干扰模式开集识别任务。通过仿真试验证明该算法在干信比大于–2 dB时能够高效地完成开放空间中的干扰模式识别任务。

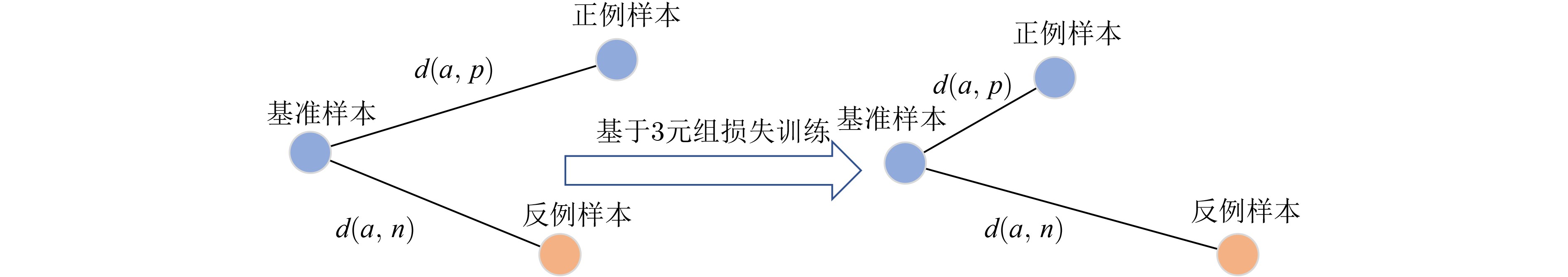

  • 图  1  3元组损失原理图

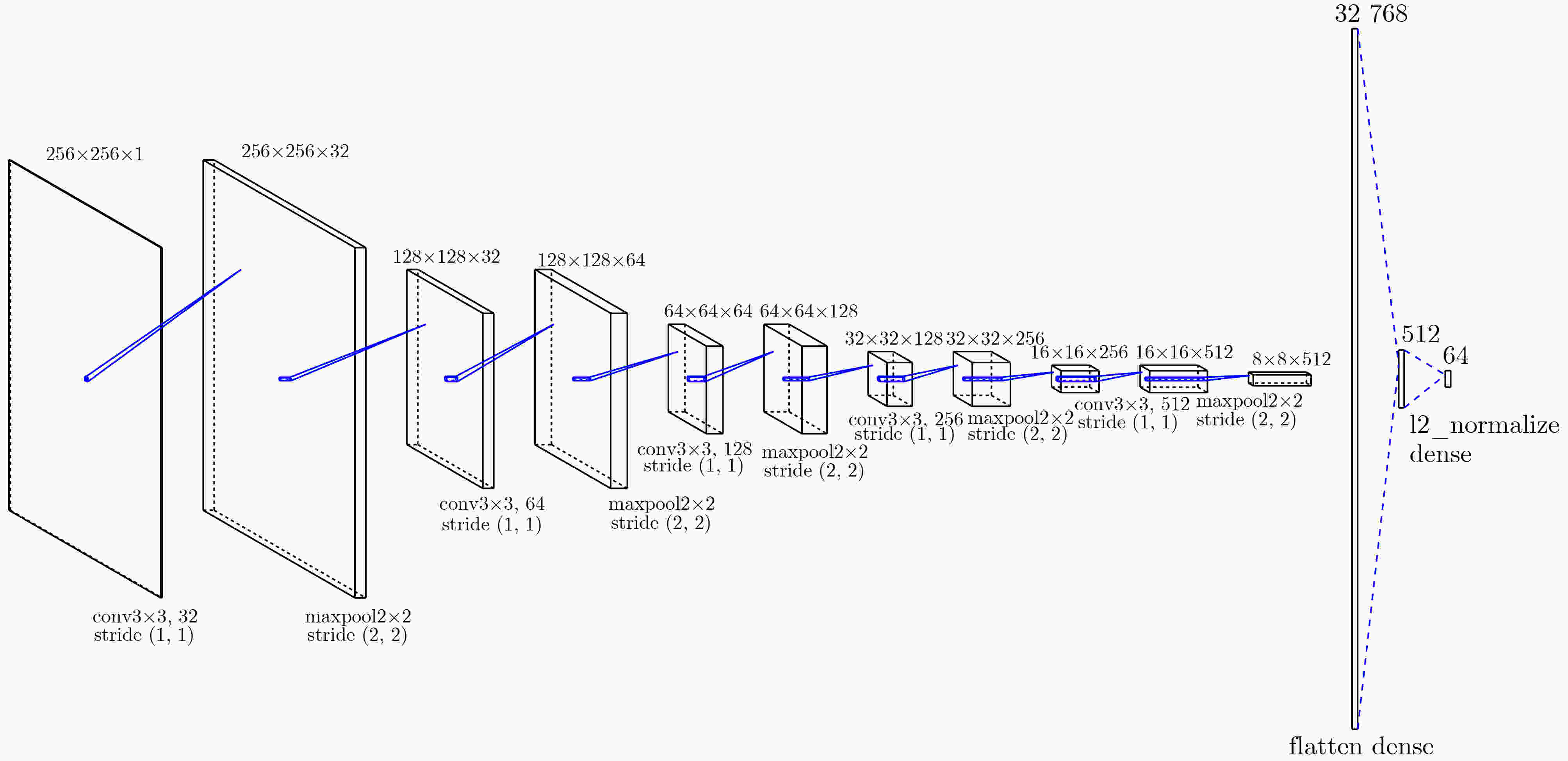

    图  2  超球面3元组编码器结构图

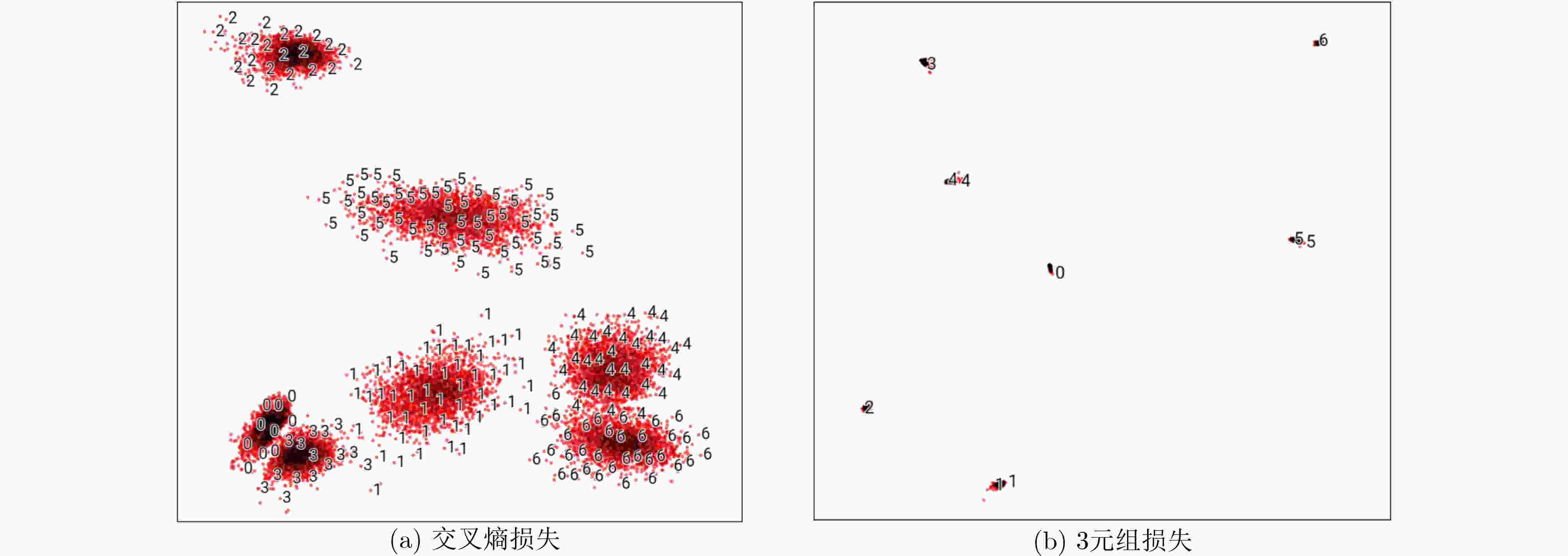

    图  3  试验数据组合1训练集编码数据CUSTOM降维效果图

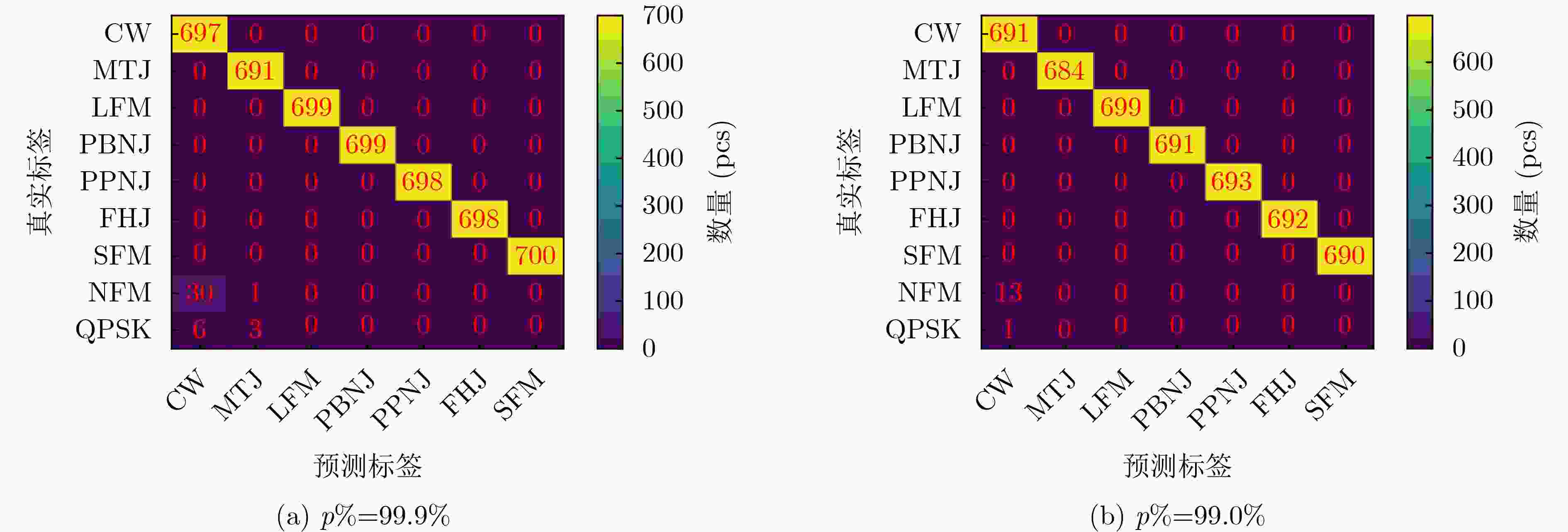

    图  4  试验数据组合1基于元识别分类器干扰模式开集识别混淆矩阵

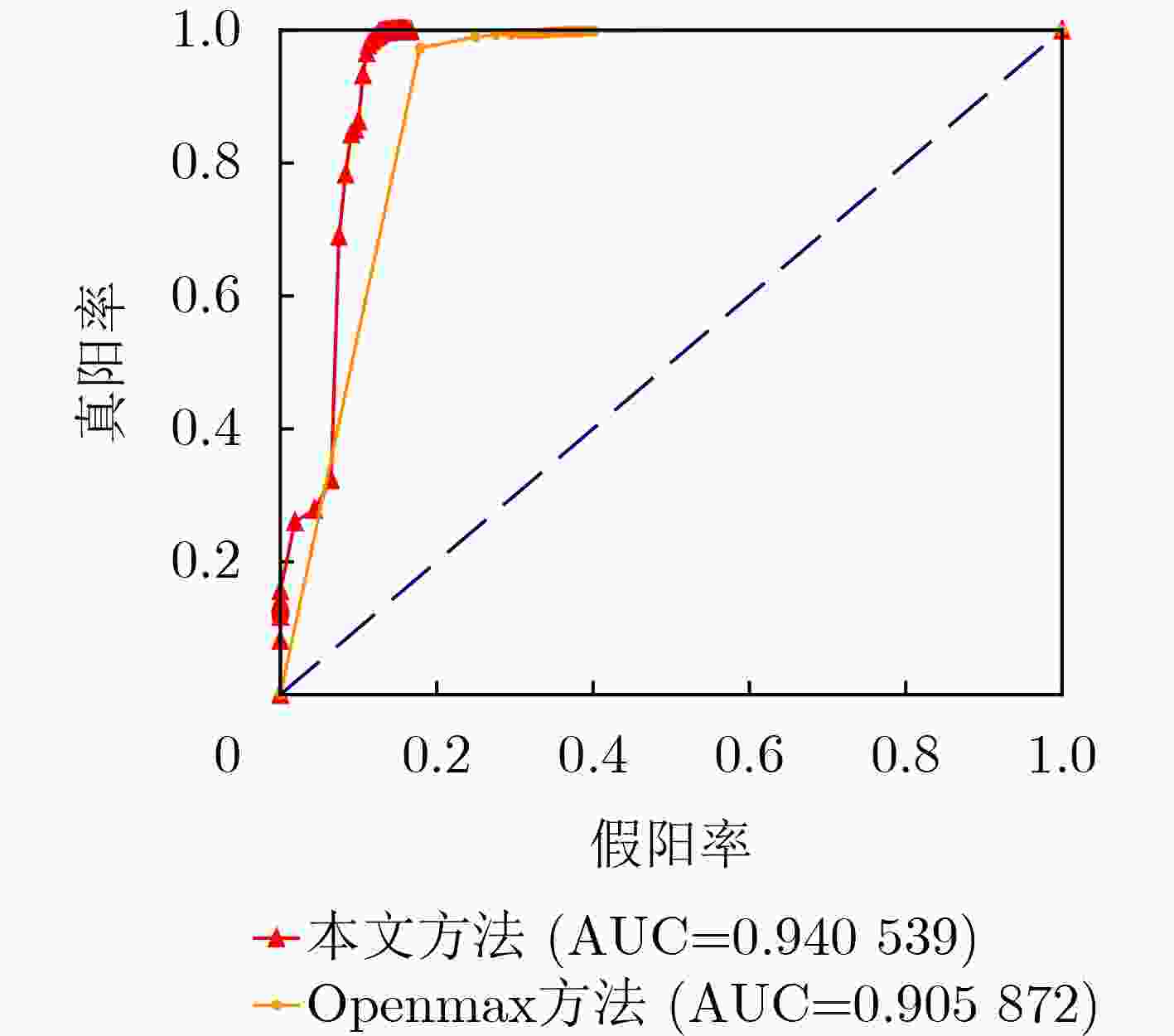

    图  5  试验数据组合2下不同干扰模式开集识别算法ROC曲线图

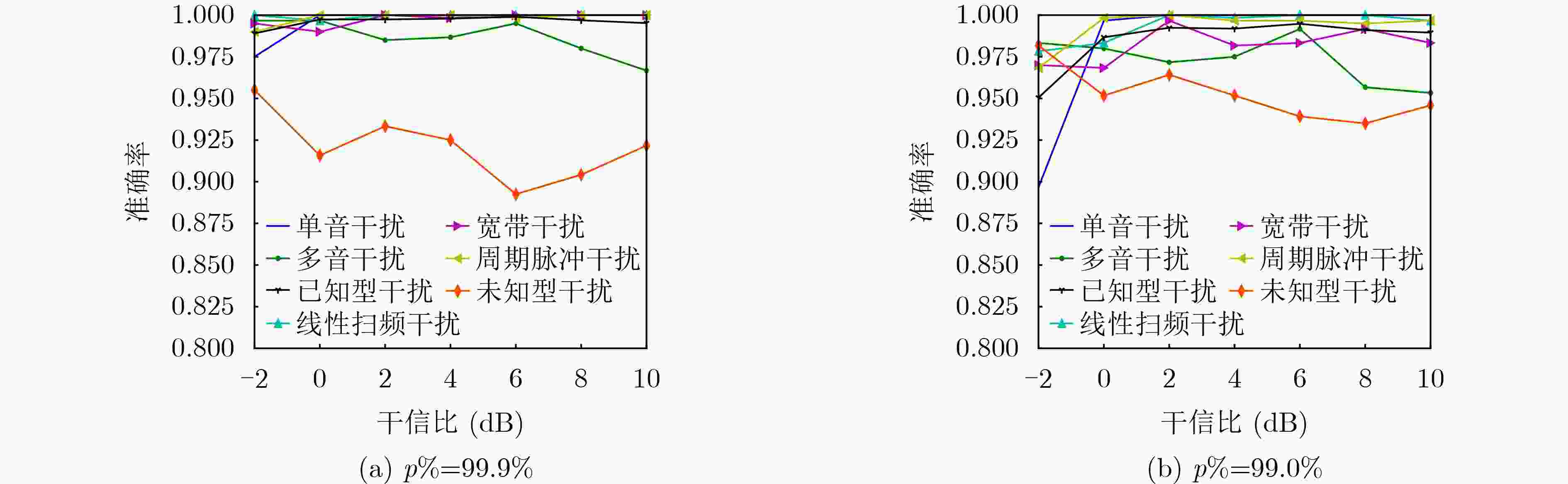

    图  6  基于超球面3元组编码的干扰模式开集识别算法准确率曲线图

    算法1 基于超球面3元组编码的干扰模式开集识别算法
     准备通过基于3元组损失训练的编码器后的训练集编码数据集合$ {X^{{\text{train}}}}{\text{:\{ }}{Z_1}{\text{,}}{Z_2}{\text{,}} \cdots {\text{,}}{Z_K}{\text{\} }} $和测试集编码数据集合$ {X^{{\text{test}}}} $,其中
     $ {Z_{i \in 1, 2,\cdots ,K}}:\{ {z_1},{z_2}, \cdots ,{z_{{n_i}}}\} $表示训练集第$ i $类已知型干扰样本数据集合且样本数为$ {n_i} $,样本数据为$ {z_j} $,设定阈值相关常数$ C $(通过率)。
     (1)拟合各已知型干扰Weibull模型;
     for $ \left\{{Z}_{i}\right\},\;i=1,2,\cdots ,K $ do
      根据$ {\text{MA}}{{\text{V}}_i} = {\text{mean}}({Z_i}) $计算质心坐标$ {\text{MA}}{{\text{V}}_i} $;
      for $ {z_j} \in {Z_i} $ do
       选择距离类型并计算$ {z_j} $到质心$ {\text{MA}}{{\text{V}}_i} $的距离$ {d_j} $以构成距离合集$ {D_i}:\{ {d_1},{d_2}, \cdots ,{d_{{n_i}}}\} $;
      end for
      $ {D_i} $中的极大值分布按照Weibull分类来拟合,得到第$ i $类的$ {\text{Weibul}}{{\text{l}}_i} $分布模型。
     end for
     (2)各已知型干扰Weibull模型信心分数阈值设置;
     for $ \left\{i\right\},\;i=1,2,\cdots ,K $ do
      for $ {z_j} \in {Z_i} $ do
       根据$ {\text{Weibul}}{{\text{l}}_i} $模型计算$ {z_j} $的信心分数$ {c_j} = 1 - {\text{Weibul}}{{\text{l}}_i}({d_j}) $以构成信心分数合集$ {C_i}:\{ {c_1},{c_2}, \cdots ,{c_{{n_i}}}\} $;
      end for
      将信心分数集合降序排列得$ {C'_i} :\{ {c'_1},{c'_2}, \cdots ,{c'_{{n_i}}}\} $;
      将第$ i $类训练集样本数$ {n_i} $与通过率$ p\% $相乘得通过样本数$ {\text{nu}}{{\text{m}}_i} = {n_i} \times p\% $;
      第$ i $类信心分数阈值$ {\xi _i} = {c'_{{\text{nu}}{{\text{m}}_i}}} $,即$ {C'_i} $中第$ {\text{nu}}{{\text{m}}_i} $个数值。
     end for
     (3)测试样本$ {x_t} \in {X^{{\text{test}}}} $开集识别,设置未知型干扰标志$ {\text{flag}} = 0 $;
     for $ \left\{i\right\},\; i=1,2,\cdots ,K $ do
      计算$ {x_t} $到质心$ {\text{MA}}{{\text{V}}_i} $的距离$ {d_{ti}} $;
      计算$ {x_t} $属于第$ i $类的信心分数$ {c_{ti}} = 1 - {\text{Weibul}}{{\text{l}}_i}({d_{ti}}) $;
      if $ {c_{ti}} \gt {\xi _i} $ do
       判断类别为第$ i $类已知型干扰信号并设置$ {\text{flag}} = 1 $;
      Break
     end if
     end for
     if $ {\text{flag}} = 0 $ do
      判断类别为未知型干扰信号。
     end if
    下载: 导出CSV

    表  1  干扰信号参数设置

    干扰样式 干扰参数 JSR
    干扰个数 干扰带宽因子 中心频率 初始相位
    单音干扰(CW) 10~20 MHz 0~2π –2:2:10 dB
    多音干扰(MTJ) 3~6 10~20 MHz
    宽带干扰(PBNJ) 干扰带宽因子
    0.2~0.8
    线性扫频干扰(LFM) 带宽因子 扫频周期 依赖于带宽因子的大小,保证信号
    带宽完整地位于感知带宽内。
    0.2~0.8 0.05~0.25 ms
    正弦调频干扰(SFM) 带宽因子 扫频周期
    0.2~0.8 0.05~0.25 ms
    周期脉冲噪声干扰(PPNJ) 脉冲周期 脉冲周期内占空比 脉冲干扰触发时间
    0.05~0.25 ms 0.1~0.5 0~0.5 ms
    跳频干扰(FHJ) 驻留时间 跳变频率集 信号带宽
    0.1 ms 10.5:1:19.5 MHz 1 MHz
    噪声调频干扰(NFM) 调频因子 中心频率
    0.7~1.5 10~20 MHz
    QPSK数字调频干扰 信息速率 信号带宽 中心频率
    1 Mbit/s 1 MHz 10~20 MHz
    样本数 每种干扰样式在每个JSR下分别生成500个样本,并且每个样本的干扰参数取值均服从
    给定参数范围内的均匀分布,其中训练集样本数:测试集样本数=4:1。
    下载: 导出CSV

    表  2  干扰模式开集识别试验数据组合

    试验数据组合序号 已知型干扰 未知型干扰
    组合1 CW MTJ LFM PBNJ PPNJ FHJ SFM NFM QPSK
    组合2 CW MTJ LFM PBNJ PPNJ FHJ NFM SFM QSPK
    组合3 CW MTJ LFM PBNJ PPNJ FHJ QPSK SFM NFM
    组合4 CW MTJ LFM PBNJ PPNJ SFM NFM FHJ QPSK
    组合5 CW MTJ LFM PBNJ PPNJ SFM QPSK FHJ NFM
    组合6 CW MTJ LFM PBNJ PPNJ NFM QPSK FHJ SFM
    下载: 导出CSV

    表  3  不同分类方法的干扰模式开集识别整体性能对比(%)

    分类方法 TNR TPR(Recall) Precision F1-score
    SVDD 89.4762 99.0748 97.0876 98.0628
    OCSVM 88.4762 98.9932 96.8261 97.8820
    余弦距离 80.1191 99.8708 94.6819 97.1910
    元识别方法($ p\% = 99.9\% $) 92.1072 99.6123 97.8179 98.6988
    下载: 导出CSV

    表  4  不同干扰模式开集识别算法整体性能对比(%)

    参数 TNR TPR(Recall) Precision F1-score
    本文方法($ p\% = 99.9\% $) 92.1072 99.6123 97.8179 98.6988
    本文方法($ p\% = 99.0\% $) 95.2738 98.5408 98.6626 98.5982
    文献[15]方法 59.5714 99.9184 90.1224 94.6436
    openmax方法 84.0238 99.7619 95.7828 97.6917
    下载: 导出CSV

    表  5  已知型干扰与未知型干扰混合情况下该文方法的判决准确率(%)

    本文方法 组合1 组合2 组合3 组合4 组合5 组合6 平均值
    $ p\% = 99.9\% $ 65.7143 66.5306 66.3265 69.7449 66.3265 58.9796 65.6037
    $ p\% = 99.0\% $ 79.9490 77.0918 77.6020 80.5102 75.9184 71.9388 77.1684
    下载: 导出CSV
