无人车集群协同围捕发展现状分析

徐友春; 郭宏达; 娄静涛; 叶鹏; 苏致远

doi:10.11999/JEIT230122

无人车集群协同围捕发展现状分析

doi: 10.11999/JEIT230122

陆军军事交通学院天津 300161

详细信息

作者简介:
徐友春：男，博士生导师，教授，研究方向为无人系统架构、机器学习等

郭宏达：男，博士生，研究方向为多无人车路径规划、车间通信等

娄静涛：男，博士，工程师，研究方向为机器视觉、智能无人系统等

叶鹏：男，硕士，高级工程师，研究方向为智能无人系统等

苏致远：男，博士，工程师，研究方向为车间通信、无人系统构架等

通讯作者:
叶鹏　jjxykjjl@163.com

中图分类号: TN929.5; T249
计量
- 文章访问数: 776
- HTML全文浏览量: 356
- PDF下载量: 196
- 被引次数: 0
出版历程
- 收稿日期: 2023-09-19
- 修回日期: 2023-12-01
- 网络出版日期: 2023-12-12
- 刊出日期: 2024-02-29

Analysis on Current Development Situation of Unmanned Ground Vehicle Clusters Collaborative Pursuit

Army Military Transportation University, Tianjin 300161, China

摘要

摘要: 无人车集群具有成本低、安全性好、自主程度高等优点，已成为无人驾驶领域的研究热点。基于无人车集群，研究人员提出多种不同协同策略以完成各类任务，其中协同围捕作为重要的应用方向，无论是在军用还是民用领域都受到了广泛关注。针对此问题，该文首先基于无人车集群的相关应用和架构，对协同围捕的策略机理进行了系统分析，并将协同围捕策略划分为搜索、追踪和围堵3个子模式。然后，从博弈论、概率分析和机器学习等角度梳理了协同围捕的关键方法，并对这些算法的优缺点进行了比较。最后，对未来研究提出了意见建议，为进一步提高无人车集群协同围捕的效率和性能提供参考和思路。
- 无人车集群 /
- 协同围捕 /
- 策略机理 /
- 搜索 /
- 追踪 /
- 围堵
Abstract: In recent years, there has been a growing interest in unmanned ground vehicle clustering as a research topic in the unmanned driving field for its low cost, good secuity, and high autonomy. Various collaborative strategies have been proposed for unmanned vehicle clusters, with collaborative pursuit being a particularly important application direction that has garnered significant attention in various fields. A systematic analysis of the strategy mechanism for collaborative pursuit in unmanned vehicle clusters is provided, considering relevant applications and architectures. The collaborative pursuit strategy is divided into three sub-modes: search, tracking, and roundup. The key methods for unmanned vehicle cluster collaborative pursuit are compared from the perspectives of game theory, probabilistic analysis, and machine learning, the advantages and disadvantages of these algorithms are highlighted. Finally, comments and suggestions are provided for future research, considering offer references and ideas for further improving the efficiency and performance of collaborative pursuit in unmanned vehicle clusters.
- Unmanned ground vehicle clusters /
- Collaborative pursuit /
- Strategy mechanism /
- Search /
- Tracking /
- Roundup

HTML全文

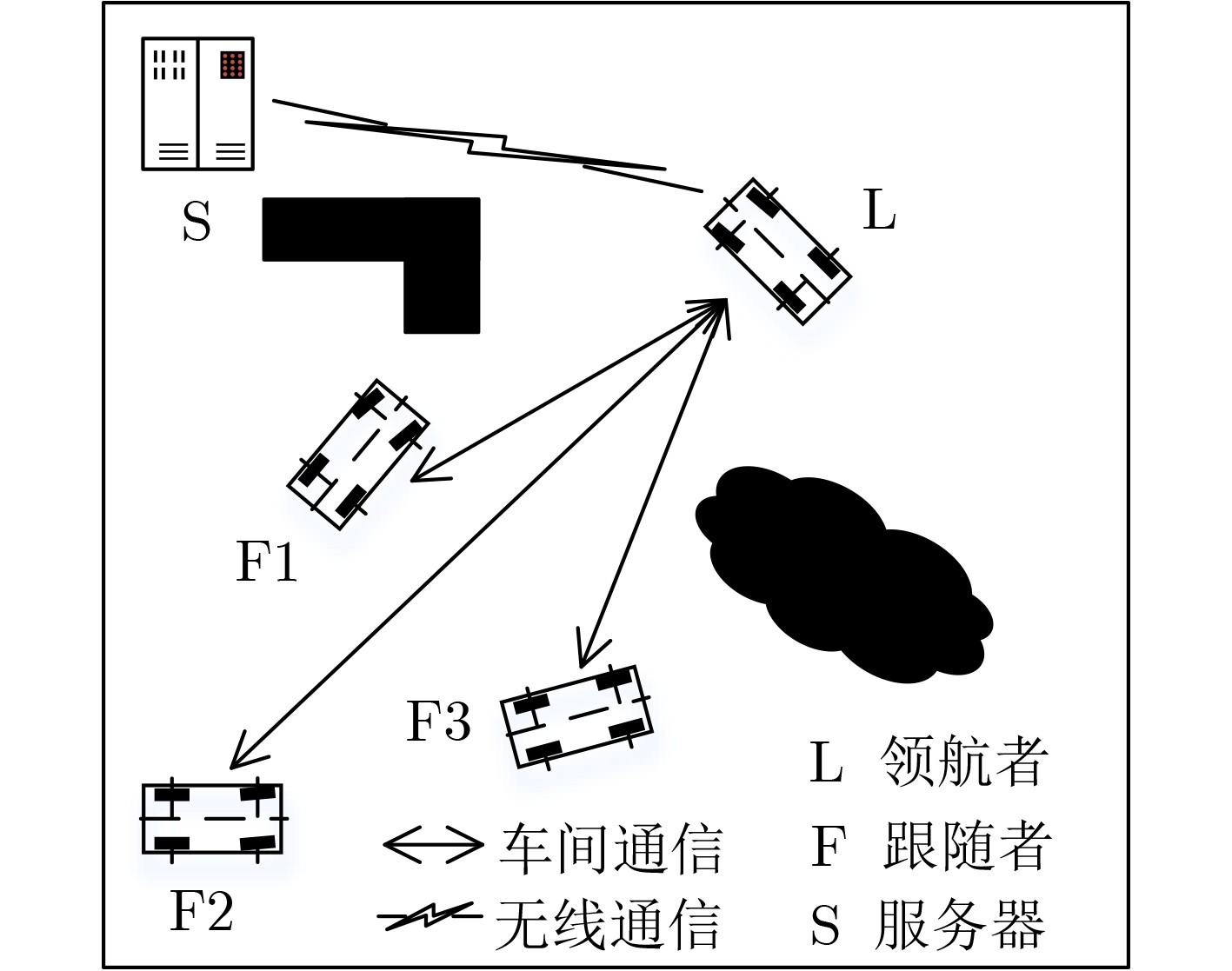

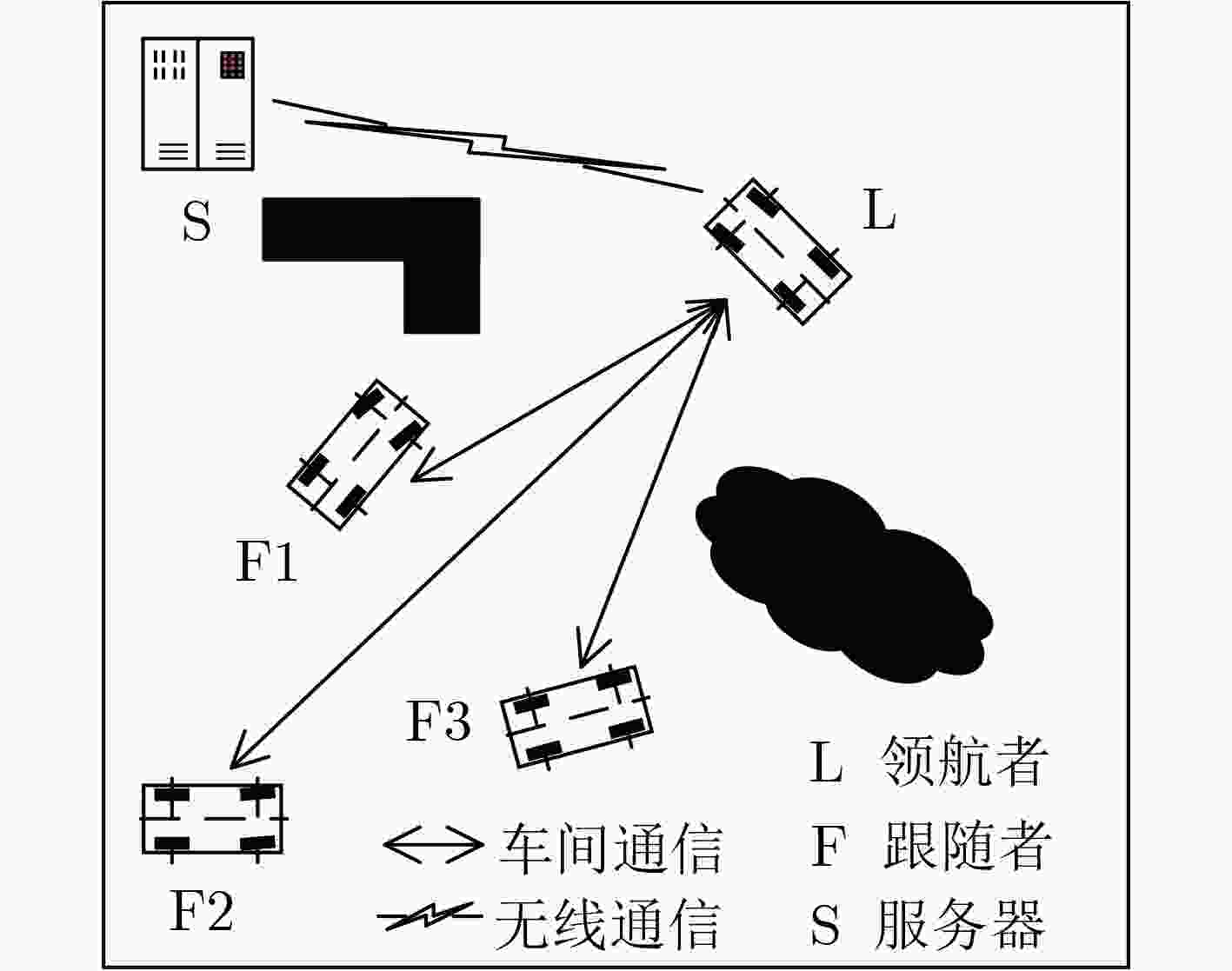

图 1 无人车集群集中式结构

下载: 全尺寸图片幻灯片

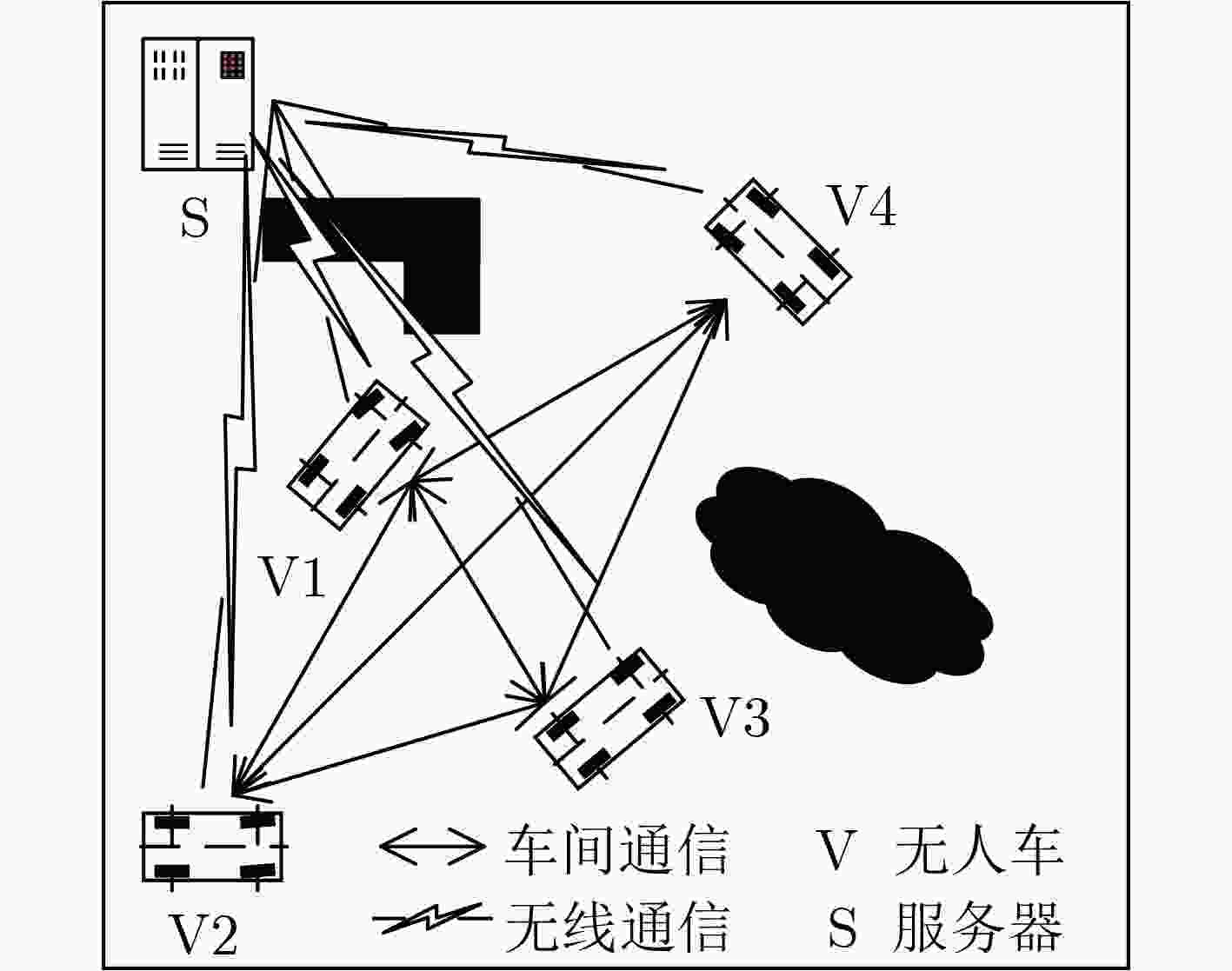

图 2 无人车集群分布式结构

下载: 全尺寸图片幻灯片

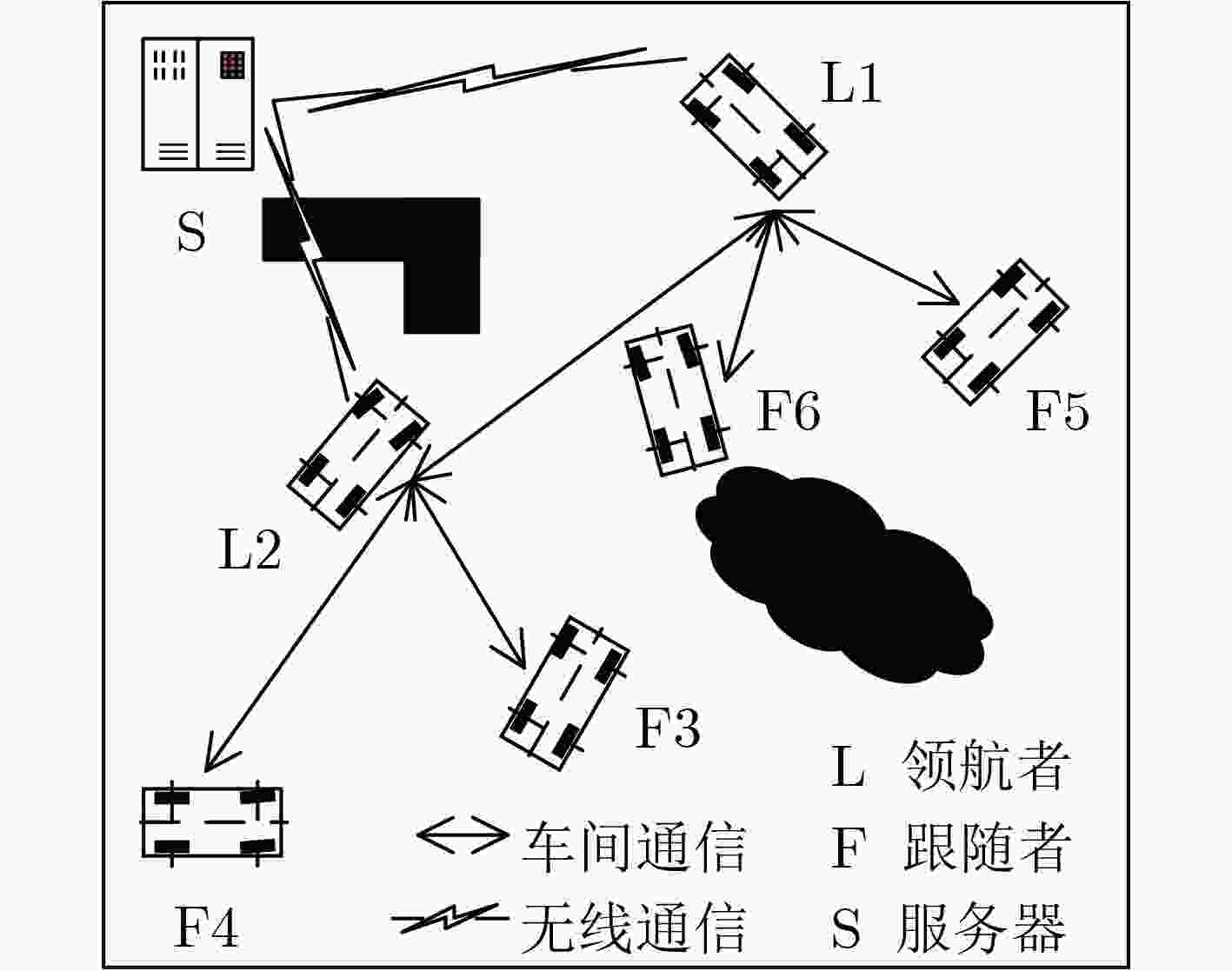

图 3 无人车集群分层式结构

下载: 全尺寸图片幻灯片

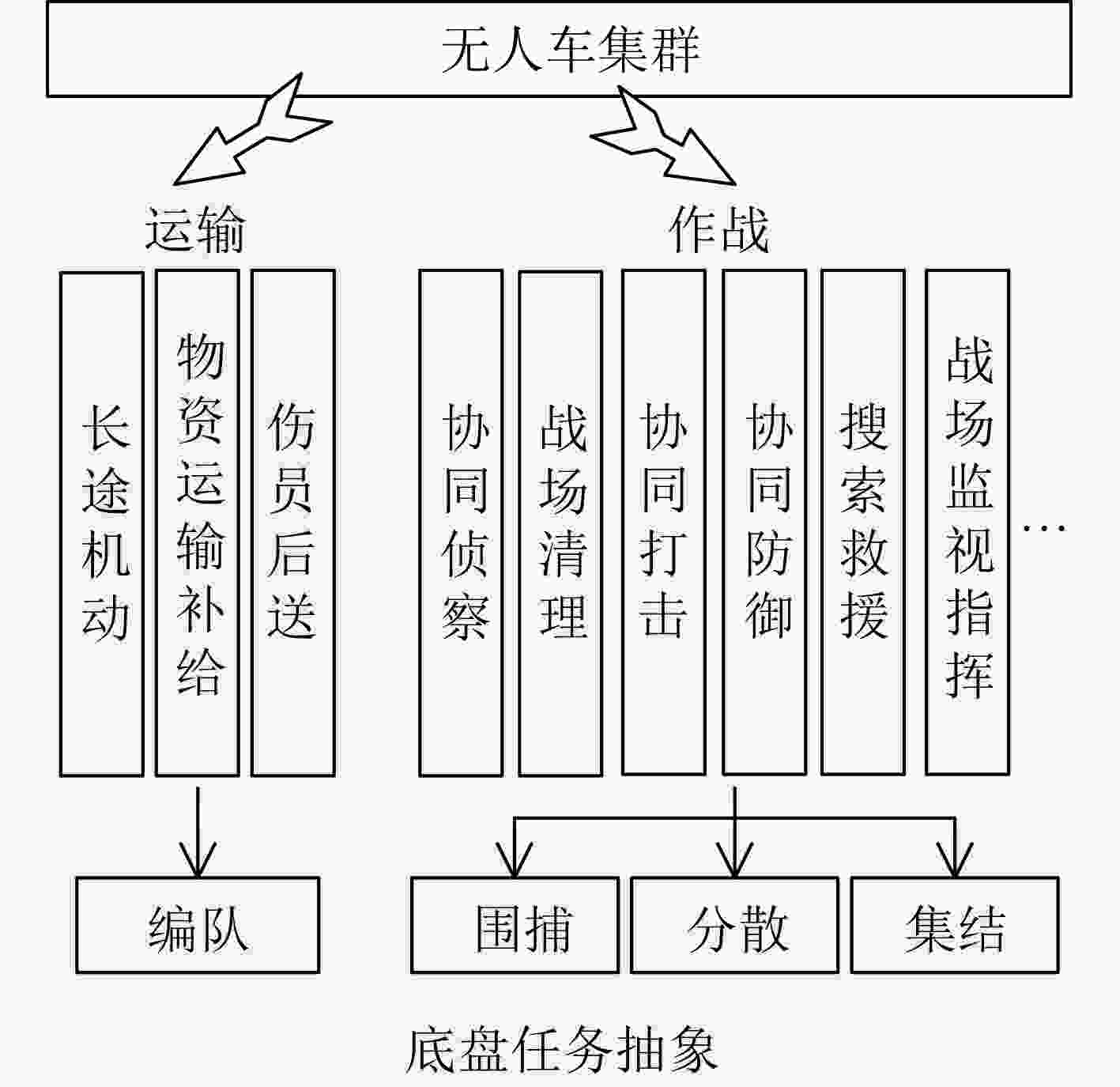

图 4 无人车集群表现形式

下载: 全尺寸图片幻灯片

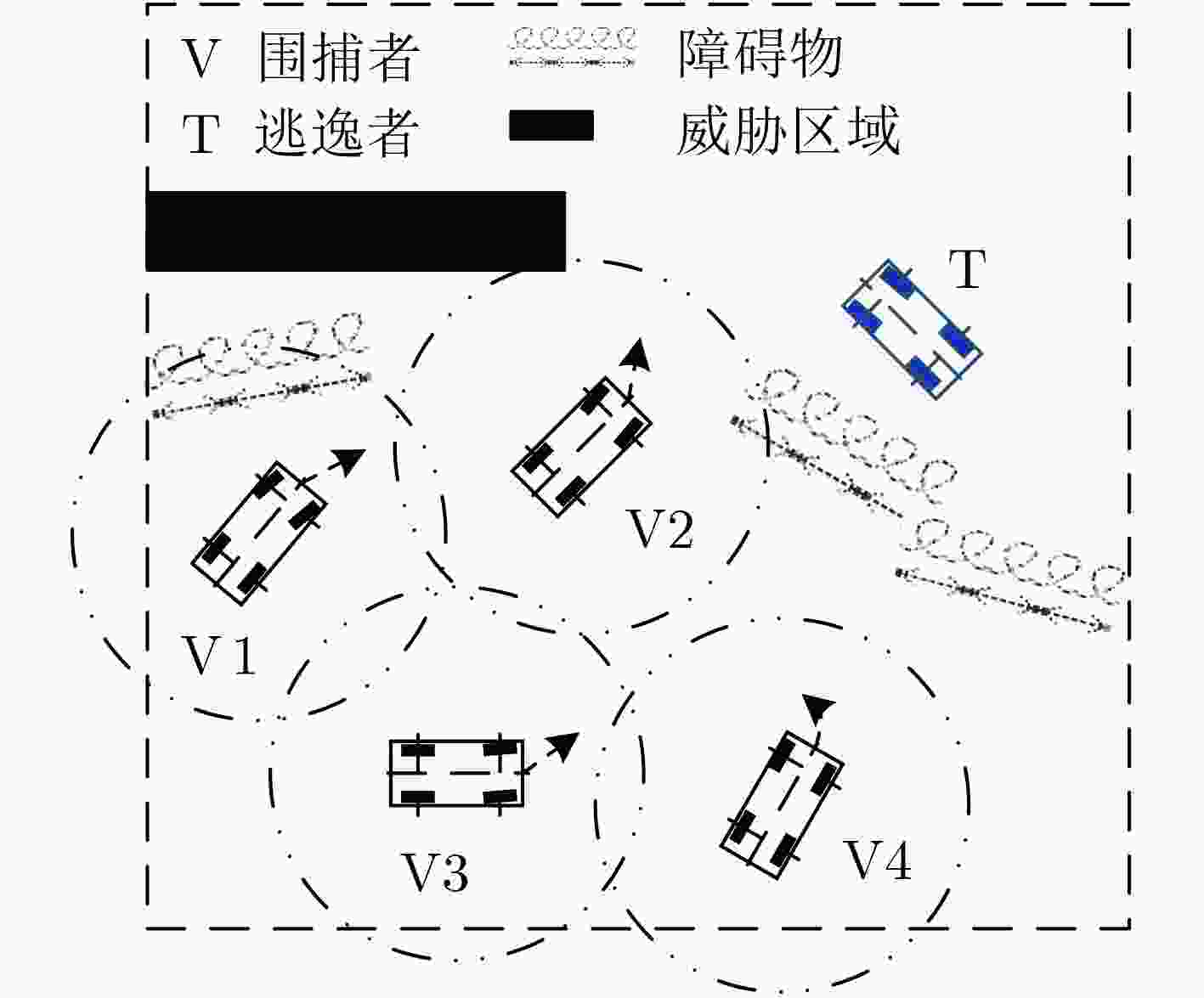

图 5 无人车集群围捕示意图

下载: 全尺寸图片幻灯片

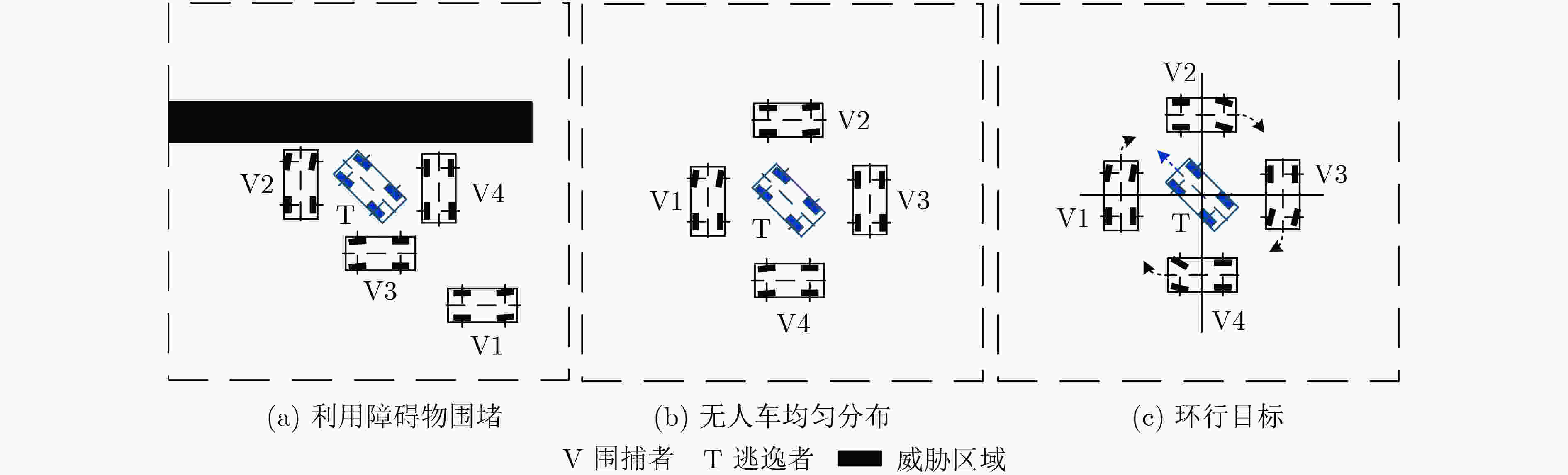

图 6 围捕成功示意图

下载: 全尺寸图片幻灯片

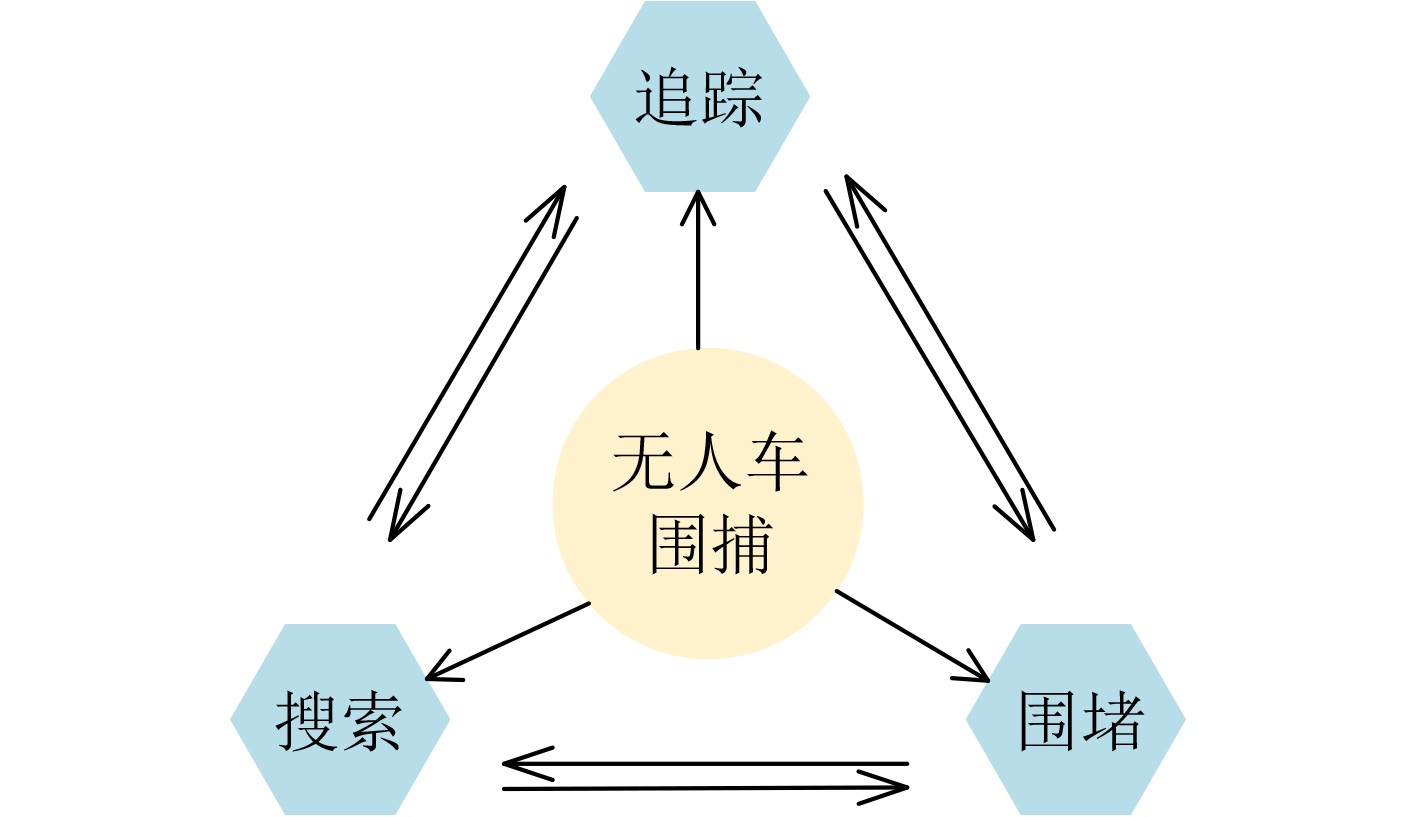

图 7 围捕模式切换

下载: 全尺寸图片幻灯片

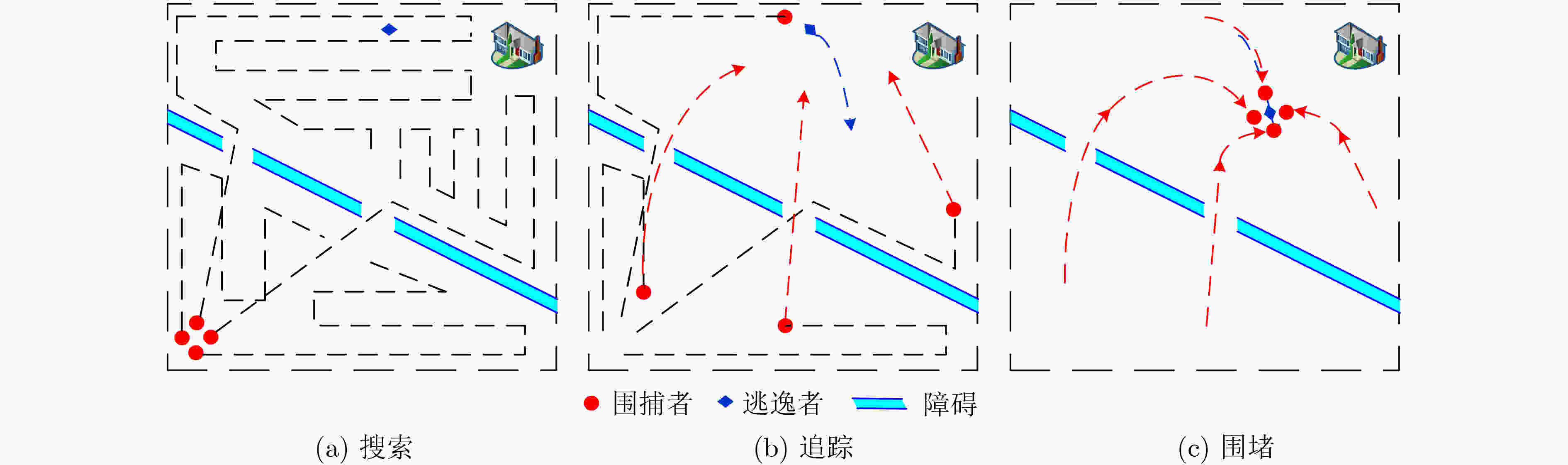

图 8 围捕过程示意图

下载: 全尺寸图片幻灯片

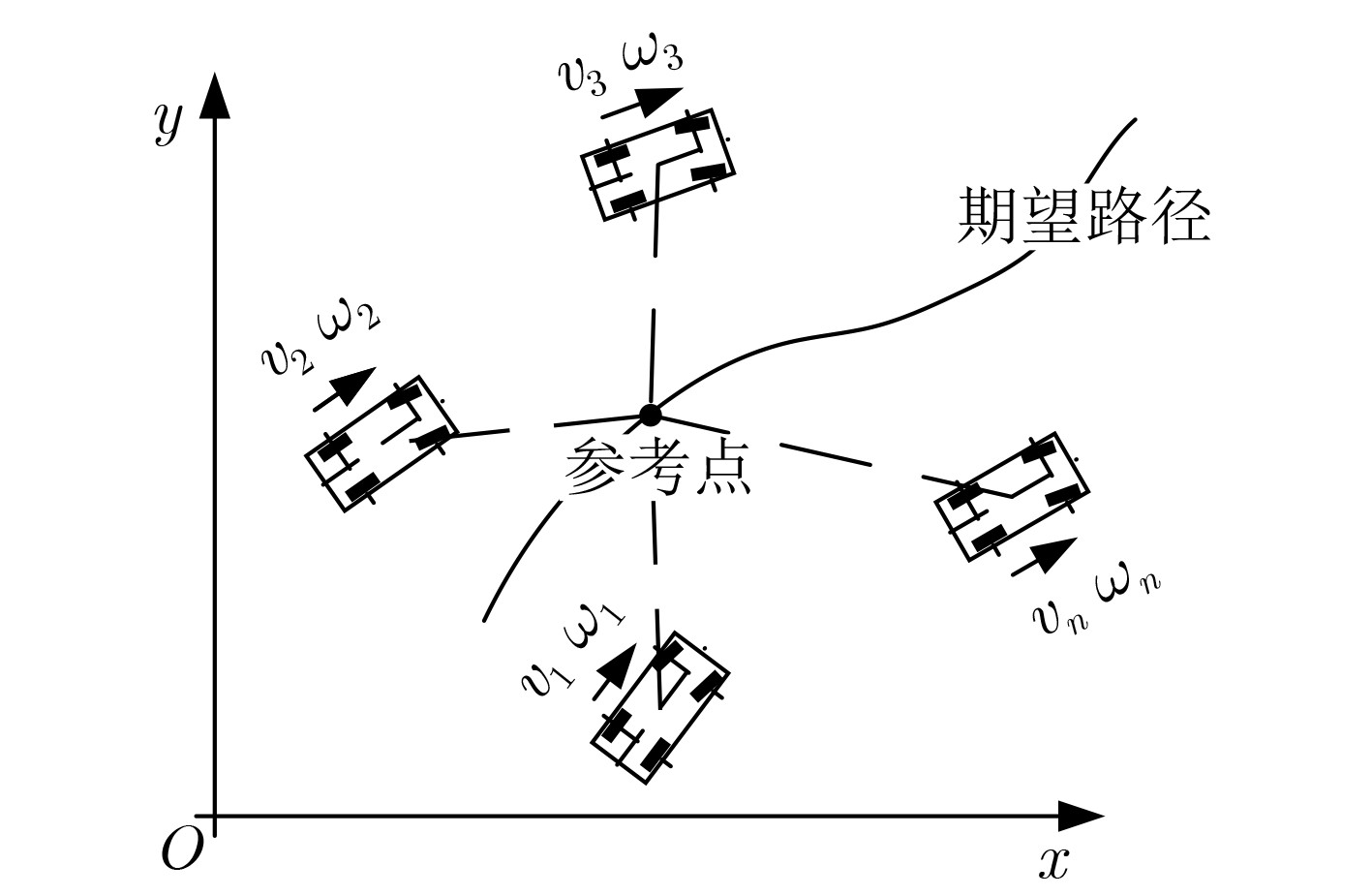

图 9 虚拟结构法

下载: 全尺寸图片幻灯片

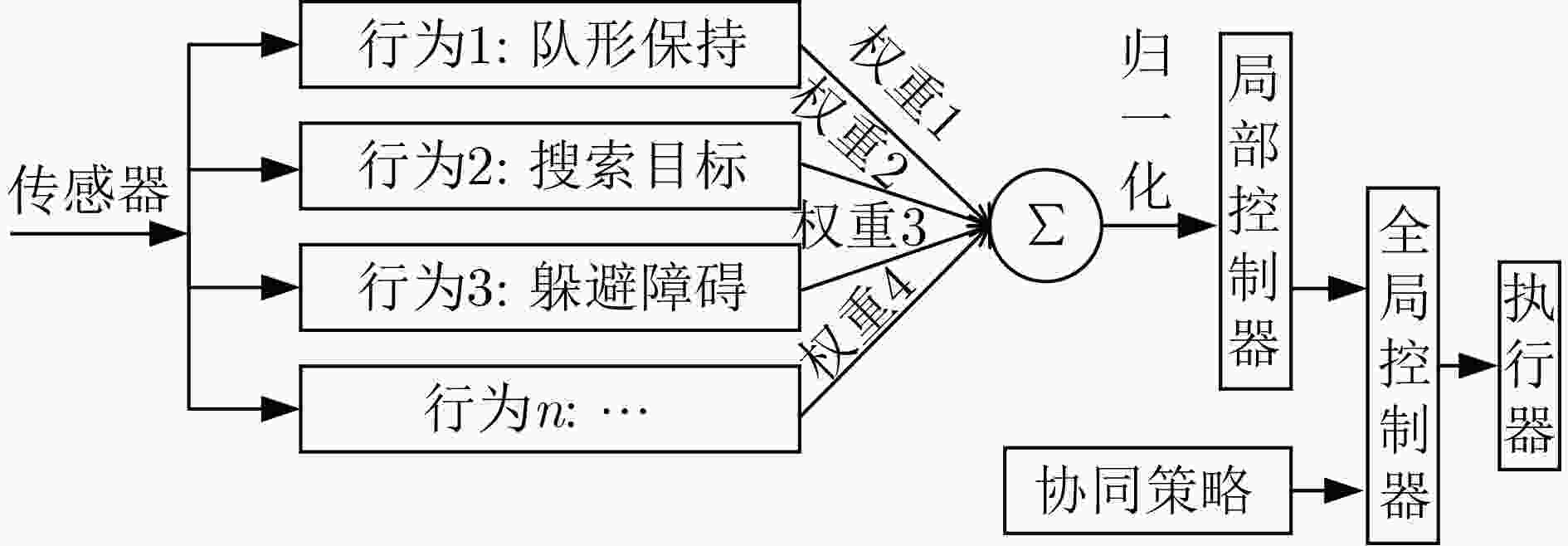

图 10 基于行为法

下载: 全尺寸图片幻灯片

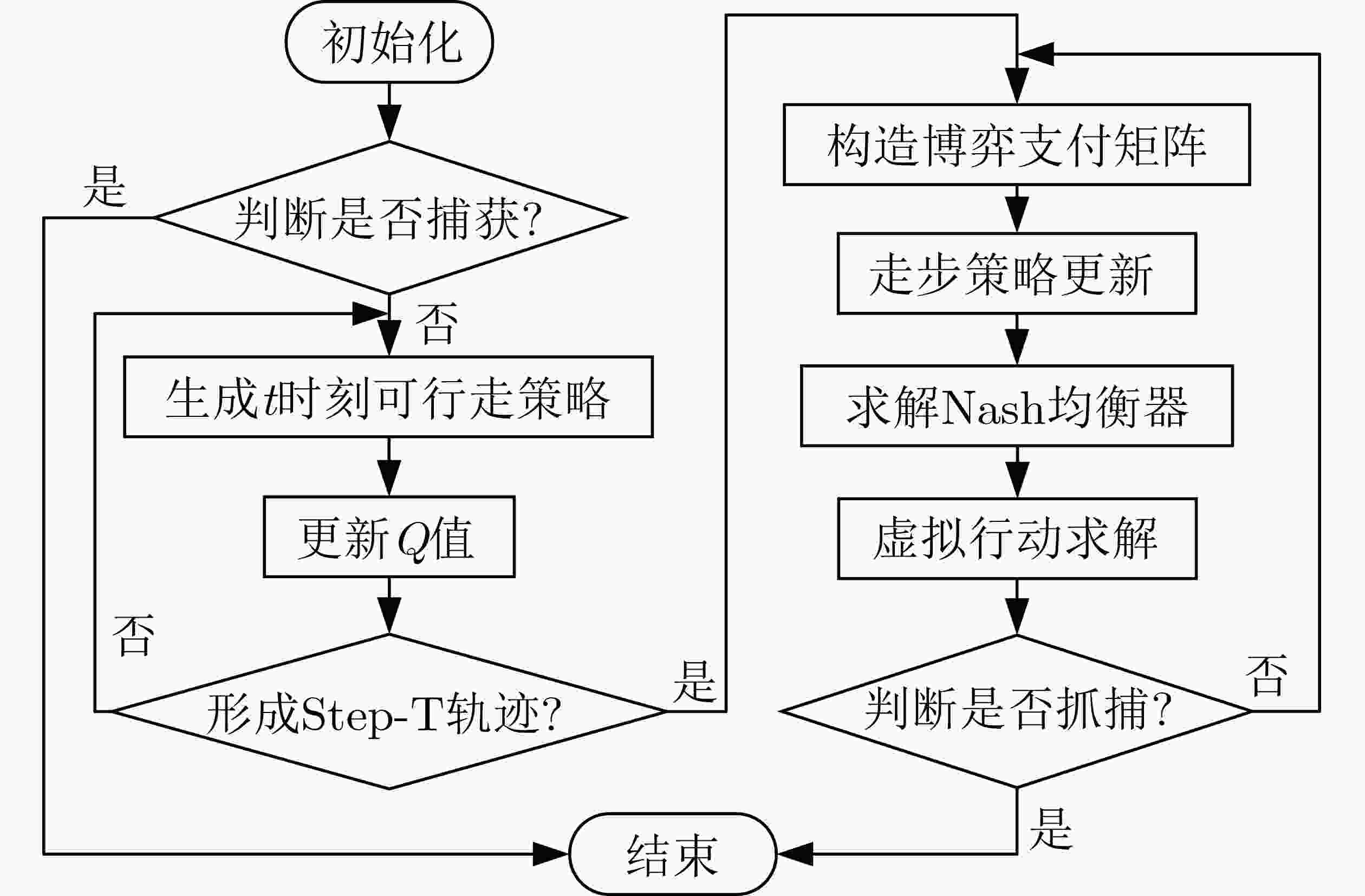

图 11 基于博弈论围捕

下载: 全尺寸图片幻灯片

表 1 无人车集群围捕常规方法

算法	文献	应用	集群规模	协同结构	优点	局限
领航—跟随法	[56](2023年)	追踪	小	集中式	实现单目标及多目标的围捕	灵活性差
虚拟结构法	[57](2019年)	追踪	小	集中式	计算简单高效，易于实现.	在理论上进行验证，未考虑实车情况
基于行为法	[58](2020年)	围捕	小/大	分布式	解决目标比围捕者移动得快的情况	空间需提前限定
快速搜索随机树	[59](2020年)	搜索追踪	小	集中式	兼容静态环境和动态环境	未考虑移动中任务分配
蚁群算法	[60](2017年)	搜索围堵	大	分布式	区域覆盖性能好	不同场景下模型参数的自适应调节差
链阵法	[61](2009年)	围捕	小	集中式	根据实际需求动态调整围捕者数	未考虑复杂障碍环境
反步法	[62](2021年)	围堵	小	集中式	系统整体鲁棒性强	避碰效果有待提高
Voronoi 图	[63](2022年)	搜索	小/大	集中式	降低整个区域不确定度	未考虑通信约束
分布式控制	[64](2019年)	围堵	小/大	分布式	解决无人车退出/加入围堵过程的问题	未考虑无人车间碰撞

下载: 导出CSV

表 2 无人车集群围捕优化方法探微

算法		文献	应用	目标数量	集群规模	协同结构	优点	局限
博弈论		[77](2019年)	追踪	单/多	小/大	集中式	实现围捕者在线路径规划	只在理论上进行验证，未考虑实车情况
概率分析		[78](2021年)	追踪	单	小	集中式	解决有限数量围捕者故障问题	鲁棒性不强
机器学习	强化学习	[79](2019年)	追踪围堵	单	小/大	集中式	实现围捕算法的解耦	未考虑地形、障碍物对通信影响
	强化学习	[80](2020年)	围堵	多	小/大	集中式	对相似的目标进行聚类，有效聚集和包围相互靠近的目标	目标过于独立时，算法有效性低
	深度强化学习	[75](2022年)	追踪	单	小	集中式训练分布式执行	数据效率和概括能力提高	只适用于单目标
		[81](2021年)	追踪	单	小/大	分布式	适用于非完整性围捕者	需要为每一个目标训练一个网络
		[82](2023年)	追踪围堵	多	小	集中式训练分布式执行	提高了策略迭代效率及泛化能力	目标数量增多时对结果影响较大
		[66](2020年)	追踪	单	小	集中式训练分布式执行	复杂性大大降低	扩展能力有待加强
		[83](2020年)	追踪	单	小	集中式训练分布式执行	围捕者和目标同时被训练，更适合与具有一定智力水平的目标	方法只适用于离散空间，未扩展到连续动作空间
		[9](2020年)	围堵	单	小	分布式	在连续空间中协同完成目标围堵	收敛性有缺陷；只研究了2维有限连续空间
	深度 Q 网络	[84](2022年)	搜索	单/多	小/大	分布式	效果稳定，具有泛化能力	不能保证收敛，智能体间缺乏协同合作
	深度 Q 网络	[85](2018年)	围堵	单	小/大	集中式	考虑目标从围捕者包围中逃脱	未考虑多个目标和围捕者环境
	深度确定性策略梯度	[86](2021年)	围捕	多	小	集中式训练分布式执行	缩短训练总时间，提高了算法稳定性、鲁棒性	只在仿真环境中运行，未考虑实际情况
		[87](2019年)	追踪	单	小	集中式训练分布式执行	解决训练测试智能体数量不同的问题	-
		[88](2021年)	追踪	单	小/大	集中式训练分布式执行	降低模型与真实场景间误差	场景简单，围捕者、障碍物数量少
		[14](2021年)	编队	单	小	集中式训练分布式执行	有效完成不同队形之间转换	智能体规模较大时效果有待提高
		[89](2021年)	搜索追踪	单	小/大	集中式训练分布式执行	提出新型混合编队控制，以随机行为捕捉动态目标	未考虑到多动态目标以及比围捕运动更快的目标
		[90](2018年)	追踪围堵	单	小	集中式训练分布式执行	避障效果好	未包含机器人的顶层决策

下载: 导出CSV
