区块链隐私众包中的数据验证与可控匿名方案

薛开平; 范茂; 王峰; 罗昕怡

doi:10.11999/JEIT230106

区块链隐私众包中的数据验证与可控匿名方案

doi: 10.11999/JEIT230106

薛开平^{1, 2},
范茂¹,
王峰^2, ,,
罗昕怡¹

1.
中国科学技术大学网络空间安全学院合肥 230027
2.
中国科学技术大学网络信息中心合肥 230026

基金项目: 安徽省重点研发计划(2022a05020050)，中国科学院青年创新促进会优秀会员支持项目(Y202093)

详细信息

作者简介:
薛开平：男，教授，研究方向为下一代网络体系结构与网络安全

范茂：男，硕士生，研究方向为区块链与信息安全

王峰：男，中级实验师，研究方向为身份认证和授权管理、访问控制、区块链系统

罗昕怡：女，博士生，研究方向为隐私计算和区块链技术

通讯作者:
王峰　wf0229@ustc.edu.cn

中图分类号: TN918; TP309
计量
- 文章访问数: 273
- HTML全文浏览量: 190
- PDF下载量: 84
- 被引次数: 0
出版历程
- 收稿日期: 2023-02-27
- 修回日期: 2023-06-30
- 网络出版日期: 2023-07-06
- 刊出日期: 2024-02-10

Privacy Crowdsourcing on Blockchain with Data Verification and Controllable Anonymity

XUE Kaiping^{1, 2},
FAN Mao¹,
WANG Feng^{2
, ,},
LUO Xingyi¹

1.
School of Cyber Science and Technology, University of Science and Technology of China, Hefei 230027, China
2.
Network and Information Center, University of Science and Technology of China, Hefei 230026, China

Funds: Anhui Province Key Technologies Research & Development Program (2022a05020050), Youth Innovation Promotion Association of the Chinese Academy of Sciences (CAS) (Y202093)

摘要

摘要: 针对隐私众包场景下出现的数据验证、匿名作恶检测和跨平台资源交互等需求，该文基于区块链技术，并结合零知识证明与环签名技术，提出一种联盟链架构下的隐私众包方案。该方案依靠零知识证明实现对加密数据的验证，依靠链接可撤销环签名改进方案实现工人身份的可控匿名，引入联盟链架构实现众包实体之间的资源交互。在完成众包完整流程的同时，实现隐私众包所需的数据保护与身份保护。安全性分析表明，该方案具有隐私性、可验证性、可控匿名性与公平性。实验结果验证了方案在效率与性能方面的有效性。
- 区块链 /
- 众包 /
- 隐私保护 /
- 环签名 /
- 零知识证明
Abstract: Considering the requirements of data verification, anonymous malicious behavior detection and cross-platform resource interaction in privacy crowdsourcing, a scheme under the consortium chain architecture is proposed, basing on blockchain technology with zero-knowledge proof and ring signature technology. The proposed scheme relies on zero-knowledge proof to achieve encrypted data verification, relies on improved revocable-iff-linked ring signature to achieve controllable anonymity of workers, introduces consortium chain to realize resource interaction between crowdsourcing entities. In addition to completing the crowdsourcing process, the scheme also implements data protection and identity protection required for privacy crowdsourcing. Security analysis shows that the proposed scheme satisfies privacy, verifiability, controllable anonymity and fairness. Experimental results verify the advantages of the proposed scheme in efficiency and performance.
- Blockchain /
- Crowdsourcing /
- Privacy protection /
- Ring signature /
- Zero-knowledge proof

HTML全文

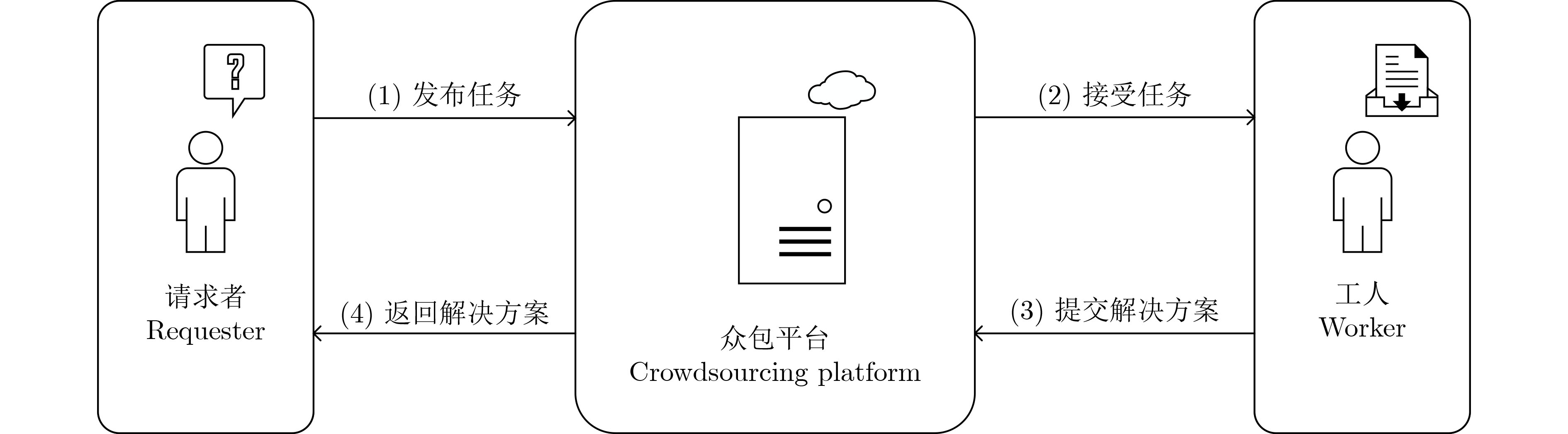

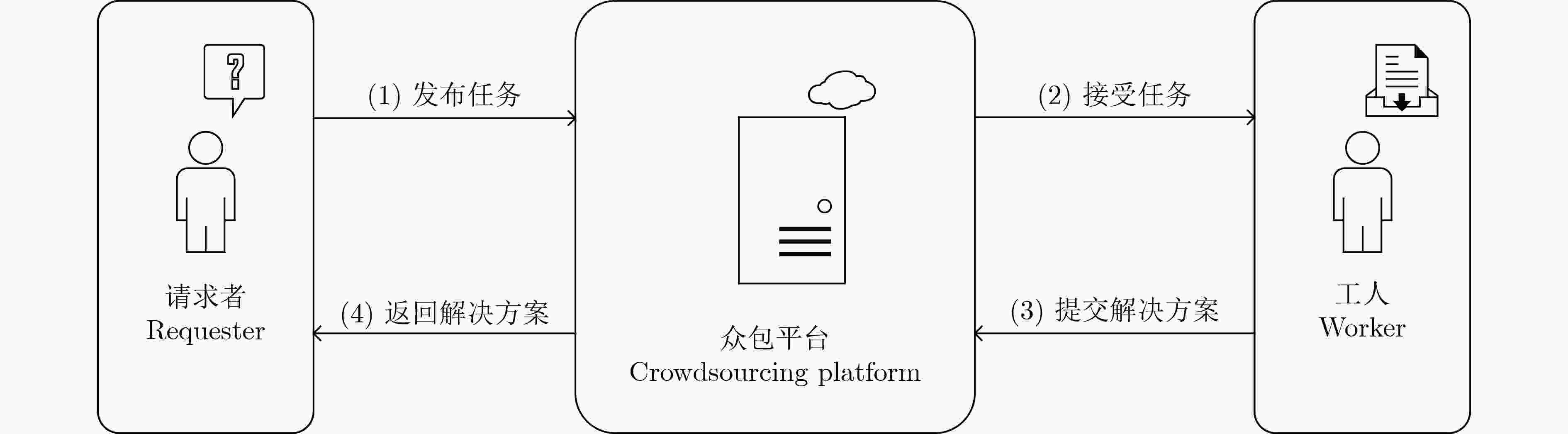

图 1 经典的中心化的众包模型

下载: 全尺寸图片幻灯片

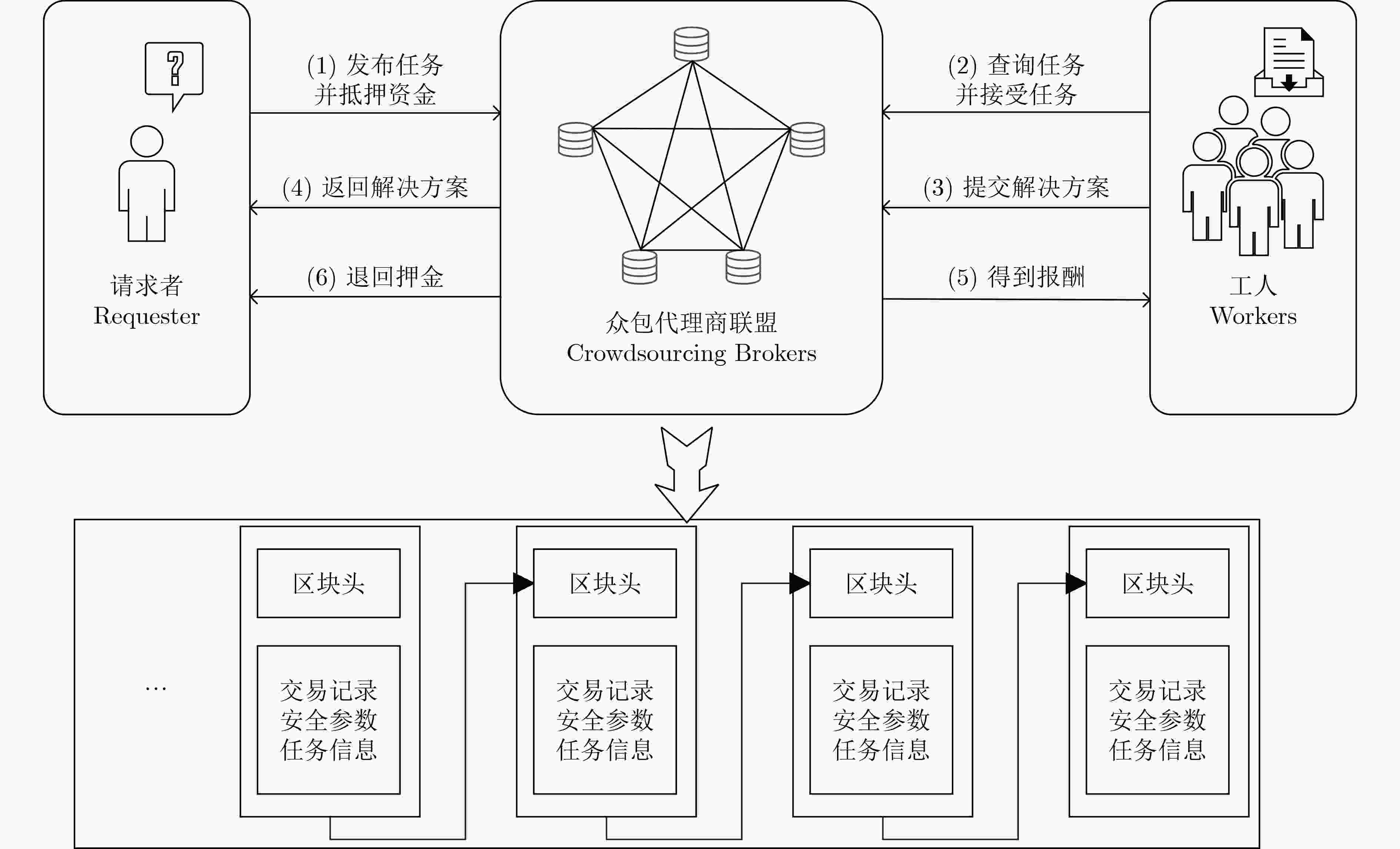

图 2 联盟链众包模型

下载: 全尺寸图片幻灯片

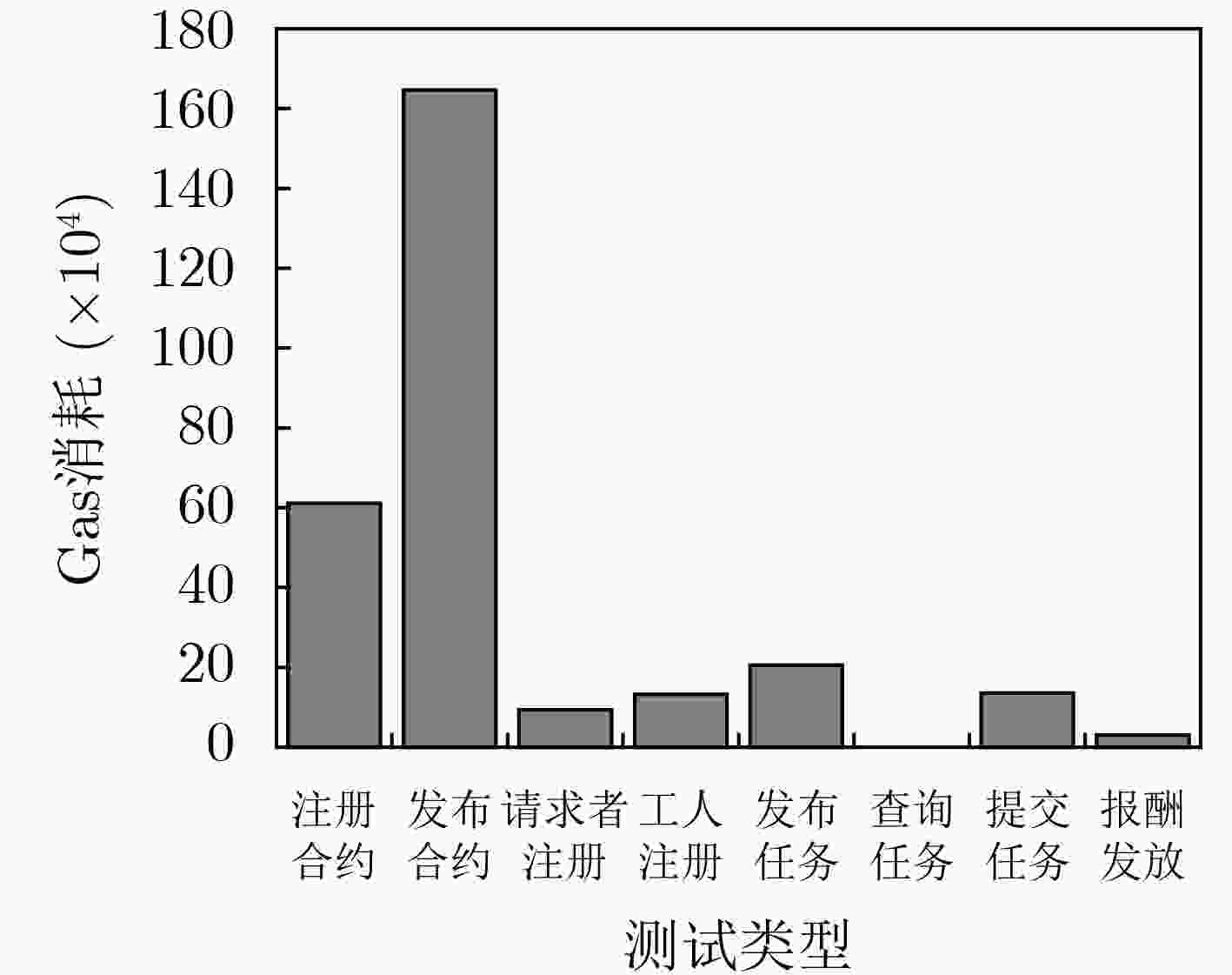

图 3 合约部署与合约调用过程的gas消耗

下载: 全尺寸图片幻灯片

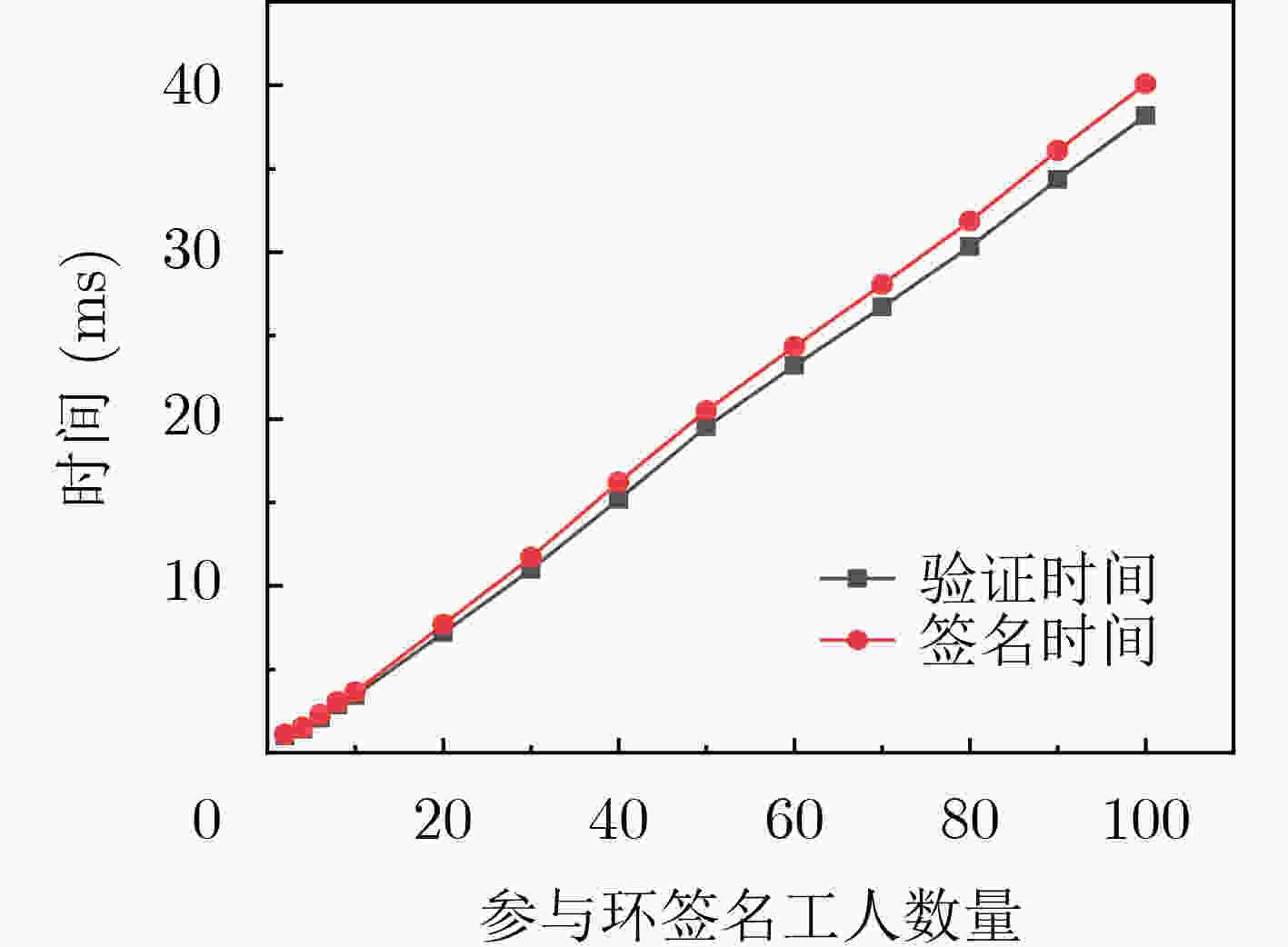

图 4 环签名的验证时间与签名时间开销

下载: 全尺寸图片幻灯片

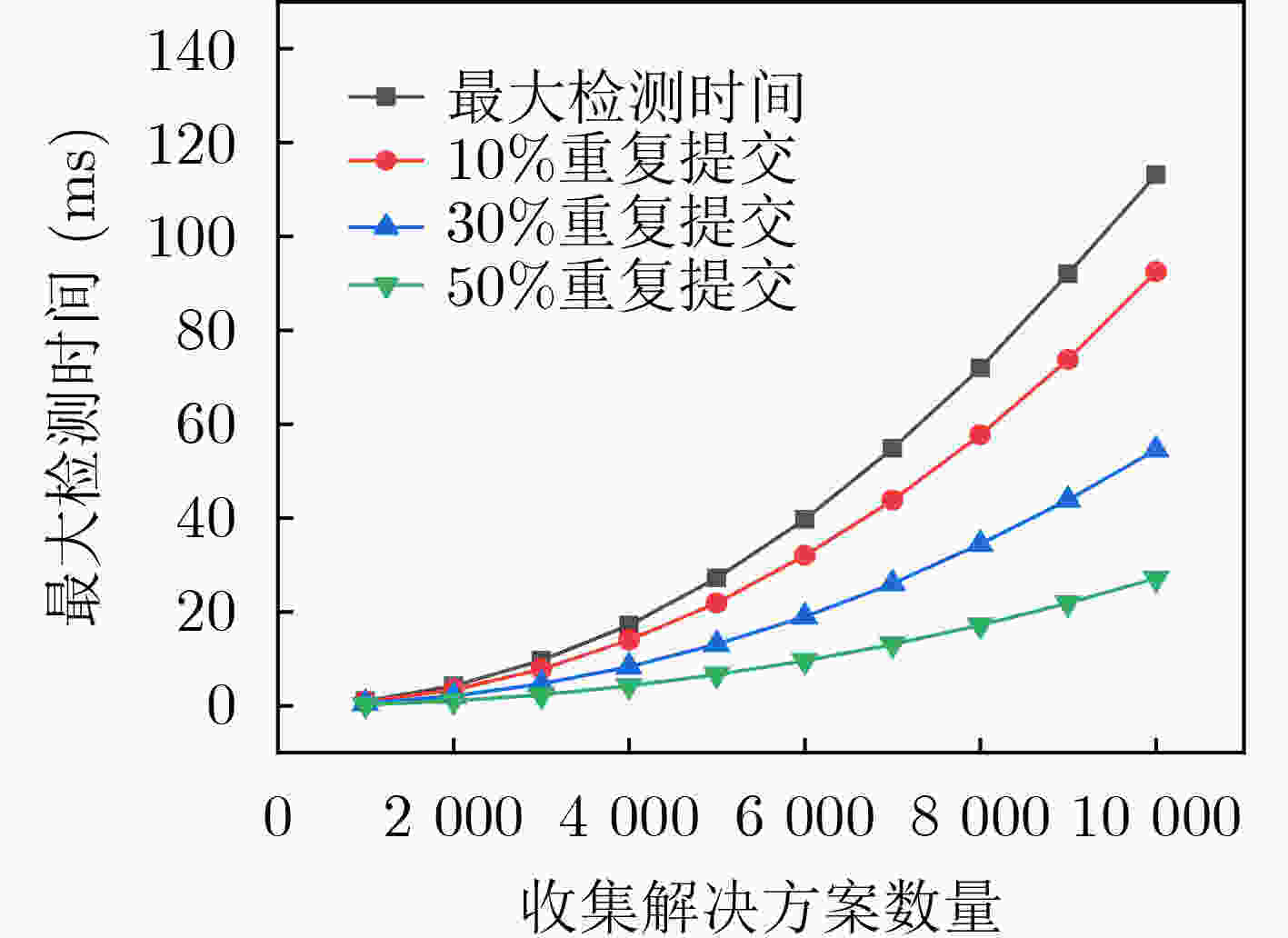

图 5 检测重复提交方案的时间开销

下载: 全尺寸图片幻灯片

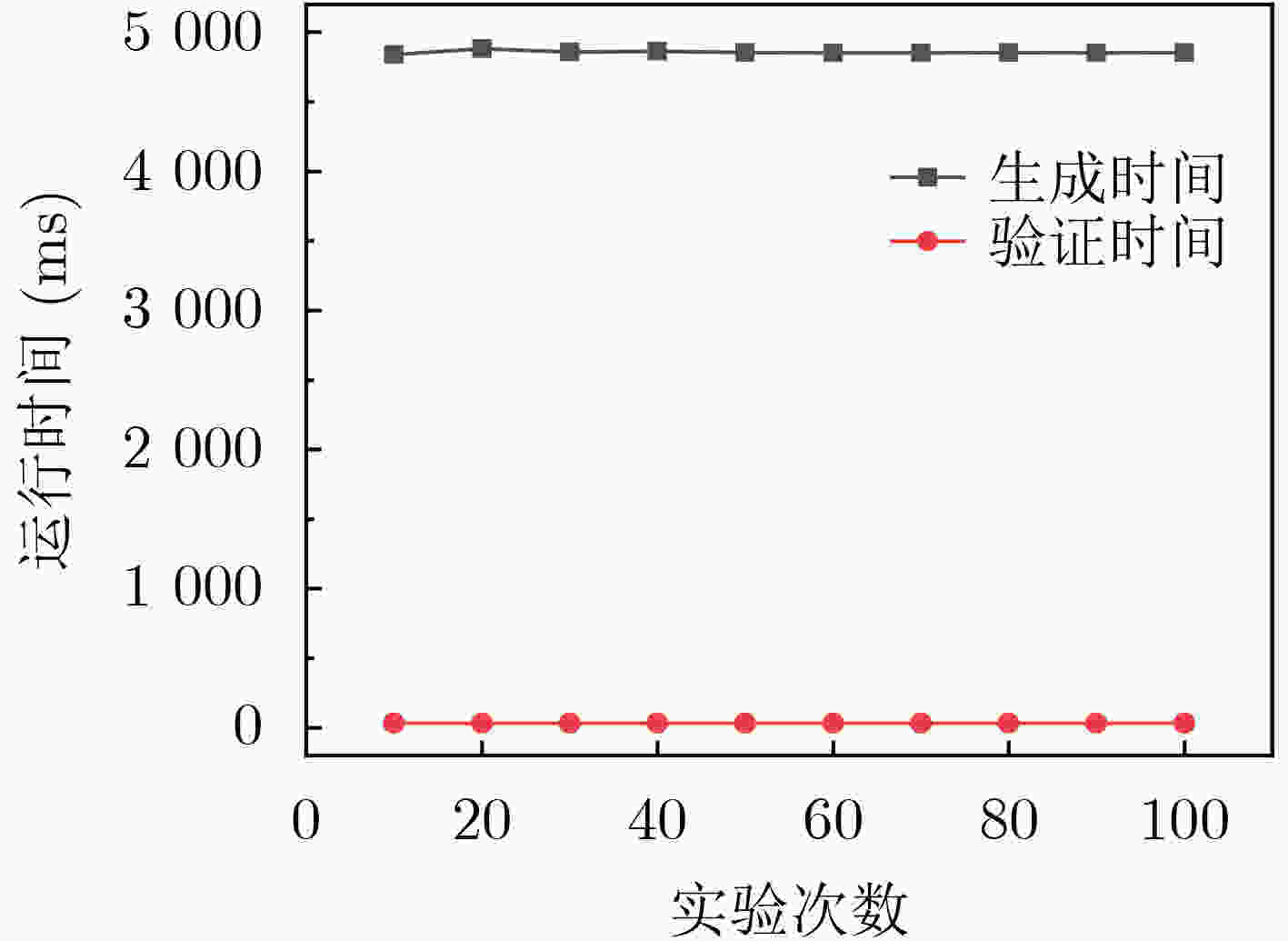

图 6 零知识证明的生成时间与验证时间开销

下载: 全尺寸图片幻灯片

表 1 相关方案安全性能对比

安全性能文献[8] 文献[11] 文献[12] 本文方案

隐私性否是是是
可控匿名性否否否是
可验证性是否否是
公平性是是是是

下载: 导出CSV

参考文献(21)

[1]	HOWE J. The rise of crowdsourcing[J]. Wired, 2006, 14(6): 1–4.
[2]	ZHANG Xiang, XUE Guoliang, YU Ruozhou, et al. Keep your promise: Mechanism design against free-riding and false-reporting in crowdsourcing[J]. IEEE Internet of Things Journal, 2015, 2(6): 562–572. doi: 10.1109/JIOT.2015.2441031.
[3]	ZHANG Chen, GUO Yu, DU Hongwei, et al. PFcrowd: Privacy-preserving and federated crowdsourcing framework by using blockchain[C]. 2020 IEEE/ACM 28th International Symposium on Quality of Service, Hang Zhou, China, 2020: 1–10.
[4]	ZHANG Yu and VAN DER SCHAAR M. Reputation-based incentive protocols in crowdsourcing applications[C]. 2012 Proceedings IEEE INFOCOM, Orlando, USA, 2012: 2140–2148.
[5]	JACYNYCZ V, CALVO A, HASSAN S, et al. Betfunding: A distributed bounty-based crowdfunding platform over ethereum[M]. OMATU S, SEMALAT A, BOCEWICZ G, et al. Distributed Computing and Artificial Intelligence, 13th International Conference. Cham: Springer, 2016: 403–411.
[6]	ZHU Huasheng and ZHOU Z Z. Analysis and outlook of applications of blockchain technology to equity crowdfunding in China[J]. Financial Innovation, 2016, 2(1): 29. doi: 10.1186/s40854-016-0044-7.
[7]	MA Haiying, HUANG E X, and LAM K Y. Blockchain-based mechanism for fine-grained authorization in data crowdsourcing[J]. Future Generation Computer Systems, 2020, 106: 121–134. doi: 10.1016/j.future.2019.12.037.
[8]	LI Ming, WENG Jian, YANG Anjia, et al. CrowdBC: A blockchain-based decentralized framework for crowdsourcing[J]. IEEE Transactions on Parallel and Distributed Systems, 2019, 30(6): 1251–1266. doi: 10.1109/tpds.2018.2881735.
[9]	TAN Liang, XIAO Huan, YU Keping, et al. A blockchain-empowered crowdsourcing system for 5G-enabled smart cities[J]. Computer Standards & Interfaces, 2021, 76: 103517. doi: 10.1016/j.csi.2021.103517.
[10]	TONG Wei, DONG Xuewen, SHEN Yulong, et al. CHChain: Secure and parallel crowdsourcing driven by hybrid blockchain[J]. Future Generation Computer Systems, 2022, 131: 279–291. doi: 10.1016/j.future.2022.01.023.
[11]	LU Yuan, TANG Qiang, and WANG Guiling. ZebraLancer: Private and anonymous crowdsourcing system atop open blockchain[C]. 2018 IEEE 38th International Conference on Distributed Computing Systems, Vienna, Austria, 2018: 853–865.
[12]	ZHANG Chen, GUO Yu, JIA Xiaohua, et al. Enabling proxy-free privacy-preserving and federated crowdsourcing by using blockchain[J]. IEEE Internet of Things Journal, 2021, 8(8): 6624–6636. doi: 10.1109/JIOT.2021.3051295.
[13]	SZABO N. Formalizing and securing relationships on public networks[J]. First Monday, 1997, 2(9).
[14]	ANDROULAKI E, BARGER A, BORTNIKOV V, et al. Hyperledger fabric: A distributed operating system for permissioned blockchains[C]. The Thirteenth EuroSys Conference, Porto, Portugal, 2018: 30.
[15]	RIVEST R L, SHAMIR A, and TAUMAN Y. How to leak a secret[C]. The 7th International Conference on the Theory and Application of Cryptology and Information Security, Security Gold Coast, Australia, 2001: 552–565.
[16]	LIU J K, WEI V K, and WONG D S. Linkable spontaneous anonymous group signature for ad hoc groups[C]. The 9th Australasian Conference on Information Security and Privacy, Sydney, Australia, 2004: 325–335.
[17]	LIU D Y W, LIU J K, MU Yi, et al. Revocable ring signature[J]. Journal of Computer Science and Technology, 2007, 22(6): 785–794. doi: 10.1007/s11390-007-9096-5.
[18]	ZHANG Xinyu, LIU J K, STEINFELD R, et al. Revocable and linkable ring signature[C]. The 15th International Conference on Information Security and Cryptology, Nanjing, China, 2019: 3–27.
[19]	AU M H, LIU J K, SUSILO W, et al. Secure ID-based linkable and revocable-iff-linked ring signature with constant-size construction[J]. Theoretical Computer Science, 2013, 469: 1–14. doi: 10.1016/j.tcs.2012.10.031.
[20]	GOLDWASSER S, MICALI S, and RACKOFF C. The knowledge complexity of interactive proof-systems[M]. GOLDREICH O. Providing Sound Foundations for Cryptography: On the Work of Shafi Goldwasser and Silvio Micali. New York: ACM, 2019: 203–225.
[21]	GROTH J. On the size of pairing-based non-interactive arguments[C]. The 35th Annual International Conference on the Theory and Applications of Cryptographic Techniques, Vienna, Austria, 2016: 305–326.
