Cross-operator Cognitive Workload Recognition Based on Convolutional Neural Network and Domain Generalization

1.
College of Computer Science and Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2.
MIIT Key Laboratory of Pattern Analysis and Machine Intelligence, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
3.
Key Laboratory of Brain-Machine Intelligence Technology, Ministry of Education, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China

Funds: The National Natural Science Foundation of China (62136004, 61876082, 61732006), The National Key R&D Program of China (2018YFC2001600, 2018YFC2001602), The Fundamental Research Funds for the Central Universities (NP2022451)

摘要

摘要: 基于脑电信号(EEG)的操作员认知负荷识别(CWR)在人机交互系统和被动式脑机接口中有重要价值，然而EEG的非稳态性和被试差异性极大阻碍了跨操作员CWR这一现实场景的快速应用。该文针对跨操作员CWR精度低等问题，提出一种基于卷积神经网络(CNN)和领域泛化(DG)的联合共享特征优化方法(CNN_DG)。该方法通过使用已有操作员(源域)的数据提高未知操作员(目标域)的CWR性能，其主要包括3个模块：深度特征提取器、标签分类器和领域泛化器。深度特征提取器学习可迁移的源域之间的共享知识表征；标签分类器进一步学习深层表征并预测负荷级别；领域泛化器通过与特征提取器进行对抗训练来减少源域间的数据分布差异，从而保证学习特征的共享性。该文在多属性任务组(MATB II)模拟飞行任务竞赛数据集1和2上进行两个三分类的跨操作员CWR实验，并采用留一被试交叉验证策略验证模型识别性能。实验结果表明所提CNN_DG方法显著优于比较方法，验证了其在跨操作员CWR领域的有效性和泛化性。
- 人机交互 /
- 认知负荷 /
- 跨操作员 /
- 卷积神经网络 /
- 领域泛化
Abstract: ElectroEncephaloGraphy (EEG)-based Cognitive Workload Recognition (CWR) is valuable for human-robot interaction systems and passive brain-computer interfaces. However, the none-stationary of EEG and the difference between subjects hinder the rapid application of cross-operator CWR, a realistic scenario. To deal with the above problem, a jointly shared feature optimization method based on the Convolutional Neural Network (CNN) and Domain Generalization (DG) is proposed, denoted as CNN_DG. The data of existing operators (source domains) is used to improve the CWR performance of unknown operators (target domain). It includes three modules: EEG feature extractor, label classifier, and domain generalizer. The EEG feature extractor learns the transferable shared knowledge representation between source domains. The label classifier learns further the deep representation and predicted the workload levels. By adversarial training with the feature extractor, the domain generalizer reduces the difference in source domain distribution and ensures further the sharing of learned features. Two three-categories cross-operator CWR experiments are conducted on the Multi-attribute Task Battery (MATB II) simulated flight competition datasets 1 and 2, and the model performance is verified by using leave-one-subject-out cross-validation. Experimental results showed the CNN_DG performed significantly better than comparing methods, indicating its effectiveness and generalization in the field of cross-operator CWR.
- Human-robot interaction /
- Cognitive workload /
- Cross-operator /
- Convolutional Neural Network (CNN) /
- Domain Generalization (DG)

HTML全文

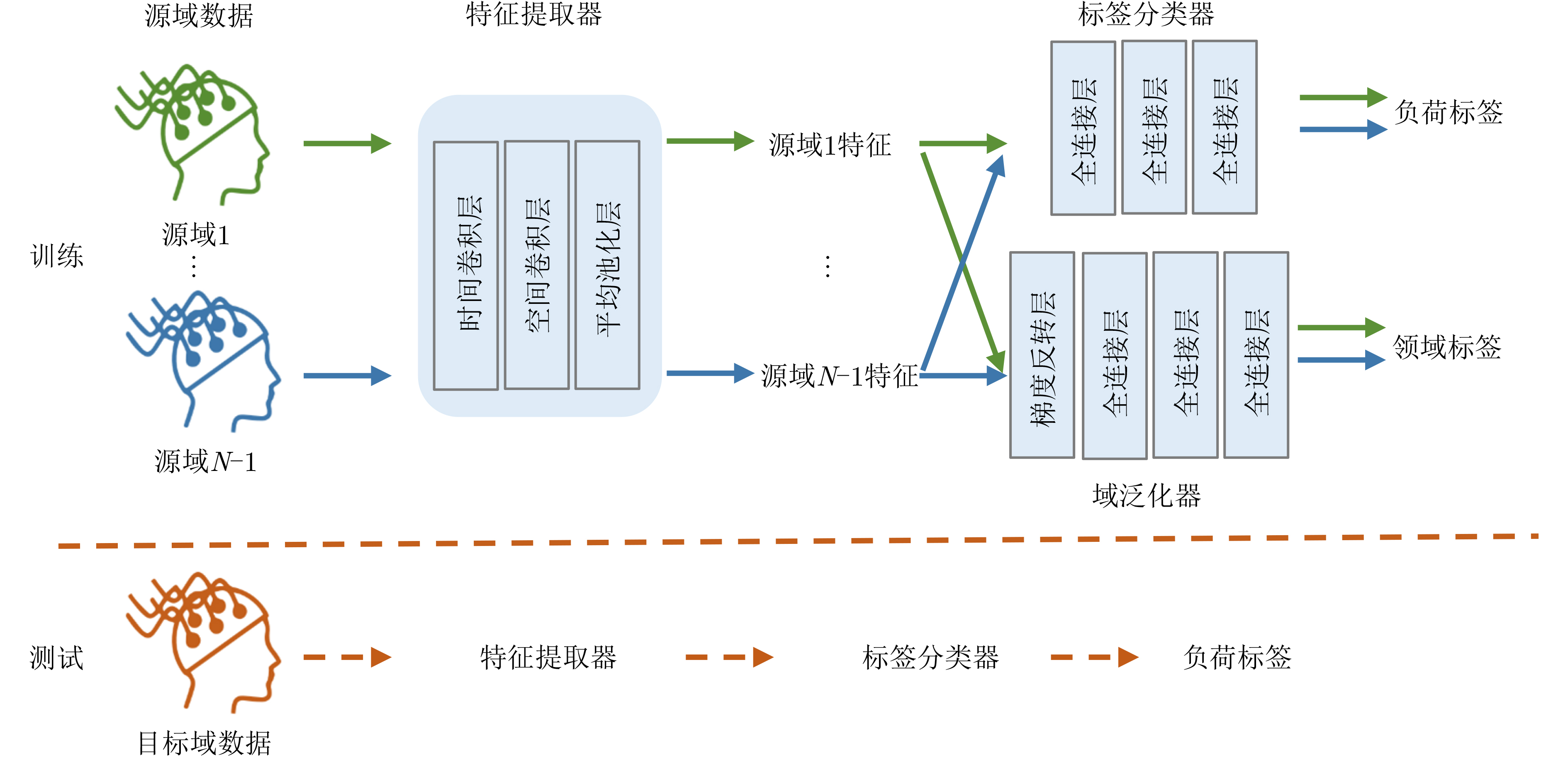

图 1 跨操作员认知负荷识别整体流程

下载: 全尺寸图片幻灯片

图 2 MATB II实验任务

下载: 全尺寸图片幻灯片

图 3 单个被试准确性

下载: 全尺寸图片幻灯片

图 4 不同方法识别性能

下载: 全尺寸图片幻灯片

图 5 不同方法识别性能

下载: 全尺寸图片幻灯片

图 6 被试数据分布

下载: 全尺寸图片幻灯片

表 1 特征提取器的结构

卷积层	类型	滤波器	核	输出
1	输入			(C, T, 1)
	卷积层	F₁=40	(1, K₁=25)	(C,T–K₁+1, F₁)
	批处理层
	ELU激活层
2	卷积层	F₂=40	(K₂=C, 1)	(1, T–K₁+1, F₂)
	批处理层
	平方激活层
	平均池化层	窗口(1, 75)	步长(1, 15)	(1,(T–K₁+1–75)// 15, F₂)
	对数激活层
	丢弃层
	铺平			(T–K₁+1–75)//15*F₂

下载: 导出CSV

表 2 每类F1和总体指标

方法	数据集1							数据集2
	每类F1 (%)			总体				每类 F1 (%)			总体
	低	中	高	ACC	MF1	K	Mgm	低	中	高	ACC	MF1	K	Mgm
SVM	60.51	41.90	52.62	51.86	51.68	0.28	62.57	56.93	34.33	50.44	47.77	47.23	0.22	58.95
LDA	54.30	37.93	45.58	45.95	45.94	0.19	57.83	49.05	36.95	46.21	44.06	44.07	0.16	56.30
KNN	50.43	39.07	32.74	41.54	40.75	0.12	54.23	47.89	37.32	35.69	40.48	40.30	0.11	53.25
RG	56.54	33.85	51.30	48.07	47.23	0.22	59.15	56.07	25.06	49.23	45.80	43.45	0.19	57.05
TJM	66.39	42.87	59.04	56.81	56.10	0.35	66.38	61.23	34.62	57.21	52.21	51.02	0.28	62.42
LSTM	37.41	38.20	39.20	38.31	38.27	0.07	51.64	43.02	33.59	40.39	39.33	39.00	0.09	52.31
DeepCNN	68.27	36.34	58.33	56.75	54.31	0.35	66.75	64.86	34.57	56.72	53.93	52.05	0.31	64.09
EEGNet	66.87	39.29	54.75	54.85	53.64	0.32	64.75	65.95	34.35	57.79	54.26	52.70	0.31	64.00
CNN_SE	67.70	44.87	57.55	57.23	56.71	0.36	66.78	63.90	38.85	57.79	54.51	53.51	0.32	64.52
CNN_rank1	62.78	47.75	54.75	55.48	55.10	0.33	65.37	61.01	37.37	45.05	49.72	47.81	0.25	58.84
TCN	66.87	42.75	56.17	55.38	55.26	0.33	65.42	67.18	39.00	56.03	54.97	54.07	0.32	64.73
CNN_DG	70.80	49.99	60.54	60.60	60.44	0.41	69.63	66.80	42.63	58.29	56.23	55.91	0.34	66.01

下载: 导出CSV

表 3 CNN_DA方法的混淆矩阵和每类结果

数据集1									数据集2
	预测				每类结果(%)						预测			每类结果(%)
真实		低	中	高	pre	sen	spe	F1	真实		低	中	高	pre	sen	spe	F1
	低	1589	435	230	71.10	70.50	85.49	70.80		低	1503	543	219	67.25	66.36	83.51	66.80
	中	379	1072	603	47.96	52.19	74.99	49.99		中	433	898	647	40.18	45.40	71.72	42.63
	高	267	728	1402	62.73	58.49	80.66	60.54		高	299	794	1369	61.25	55.61	79.59	58.29

下载: 导出CSV
