Adaptive Signal Detection in Complex Mine Environment Based on Transfer Learning
-

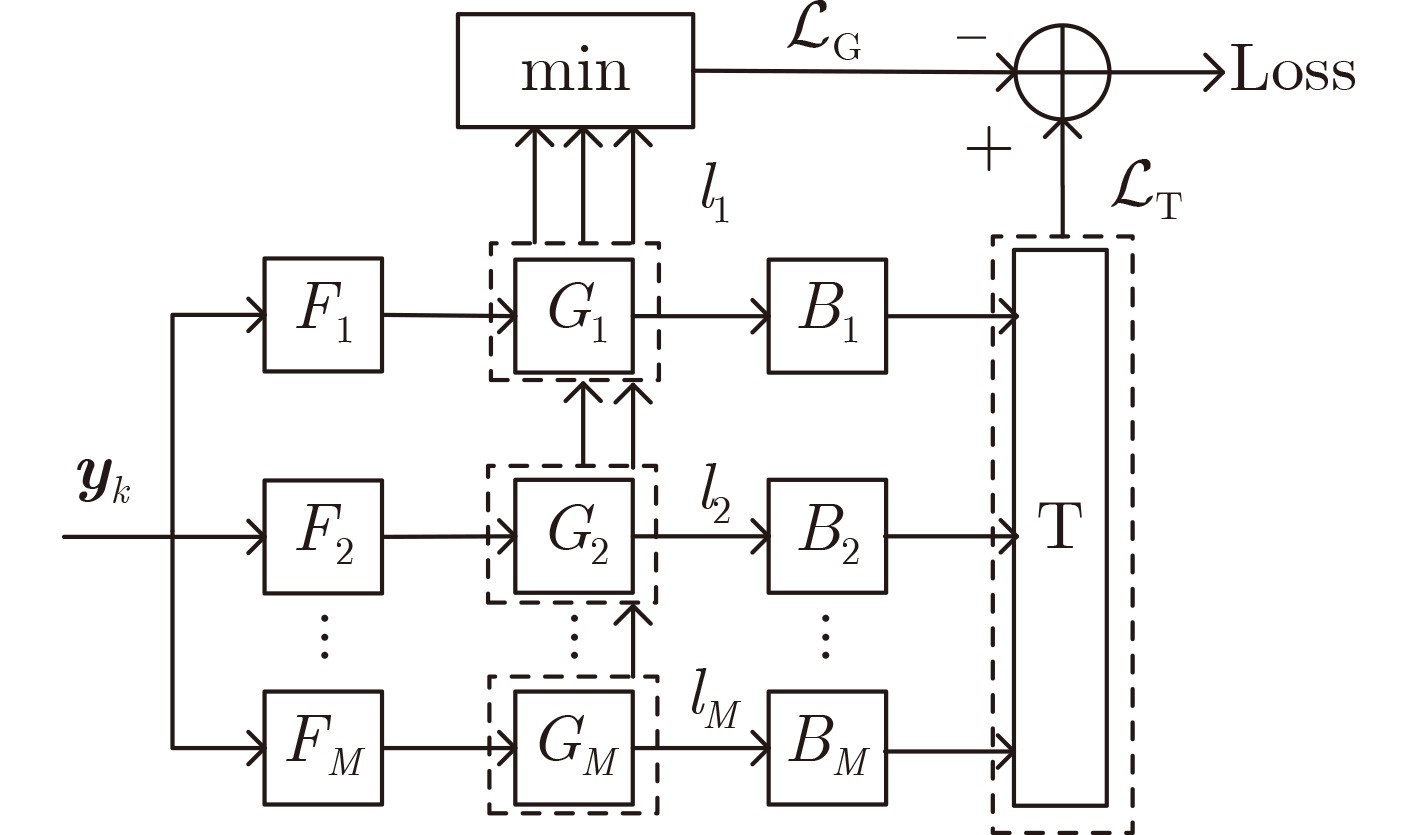

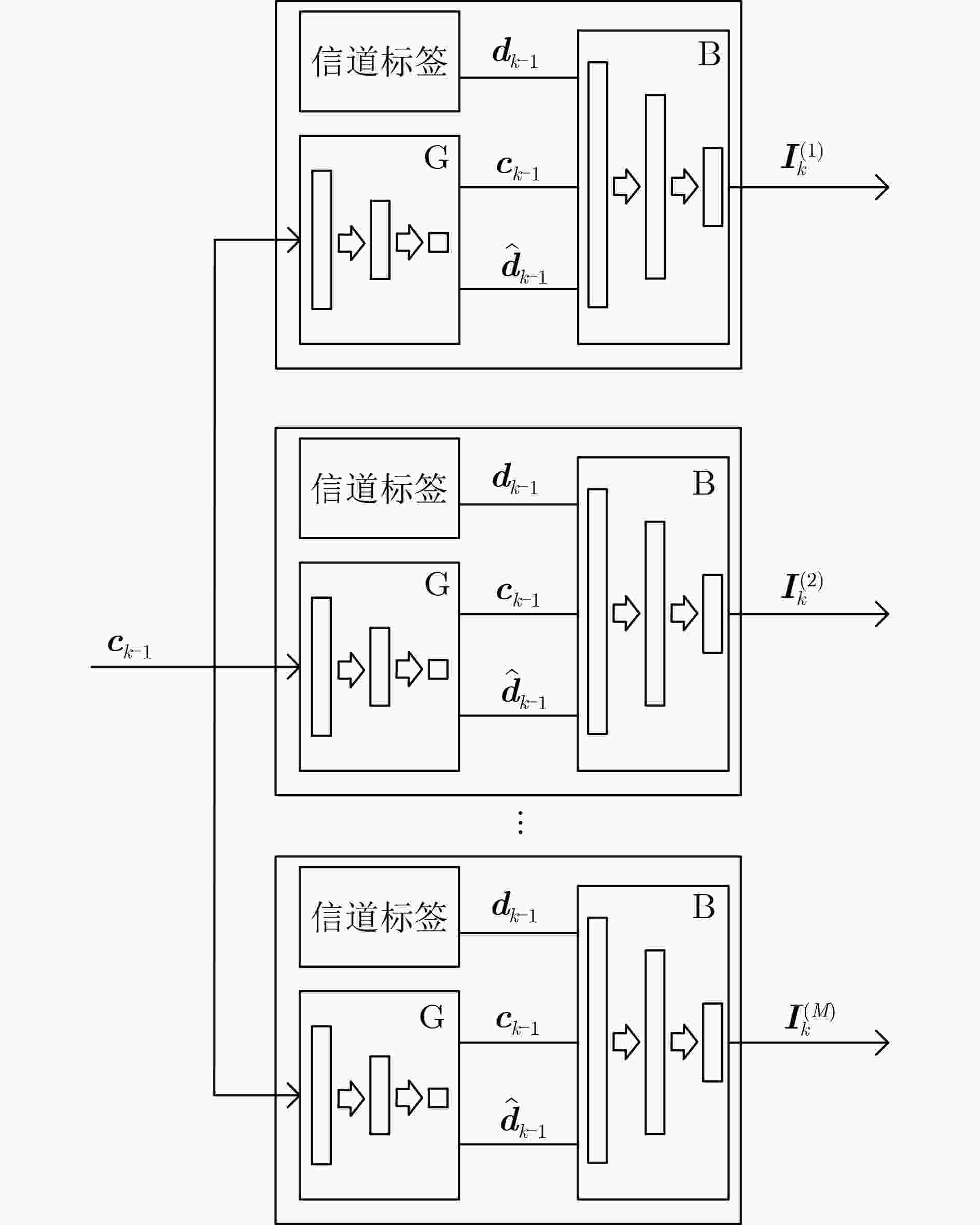

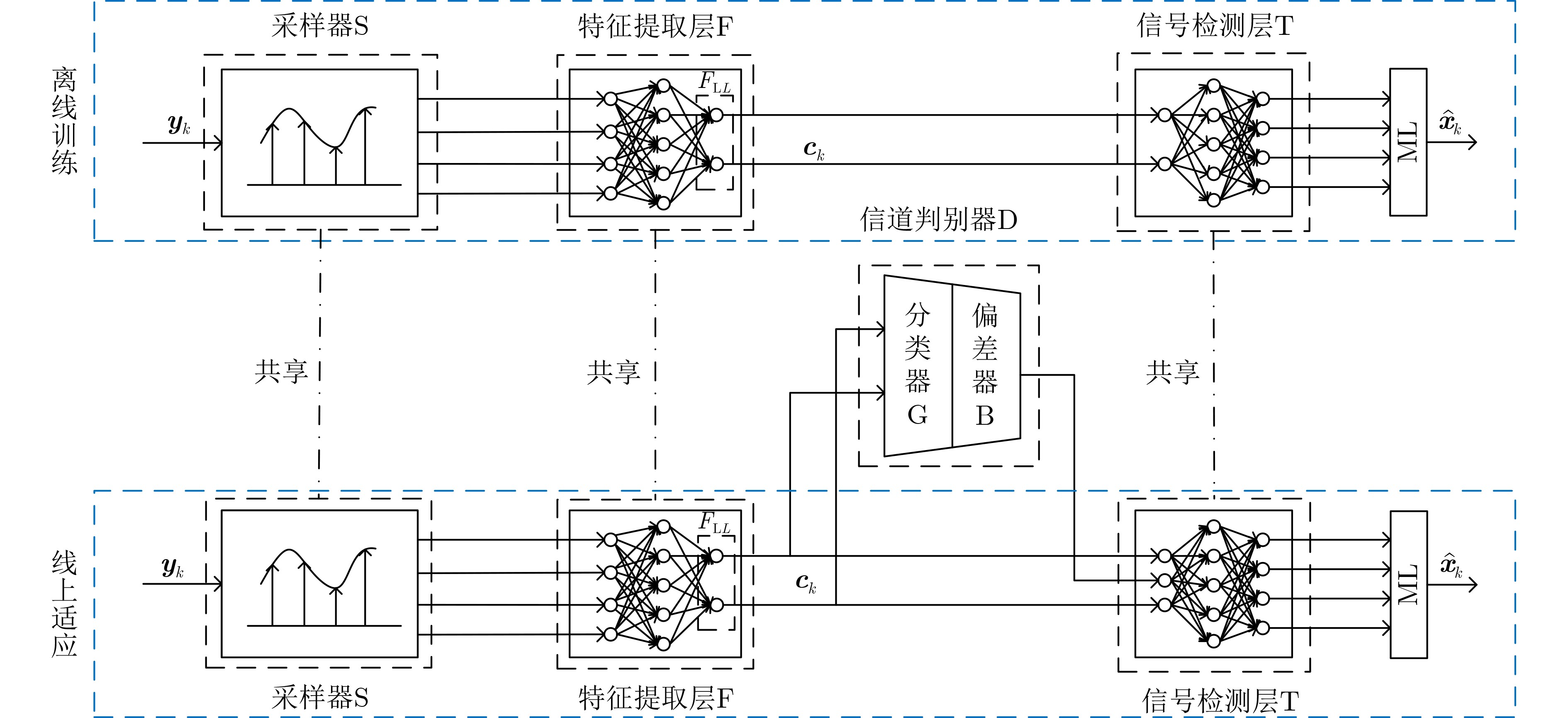

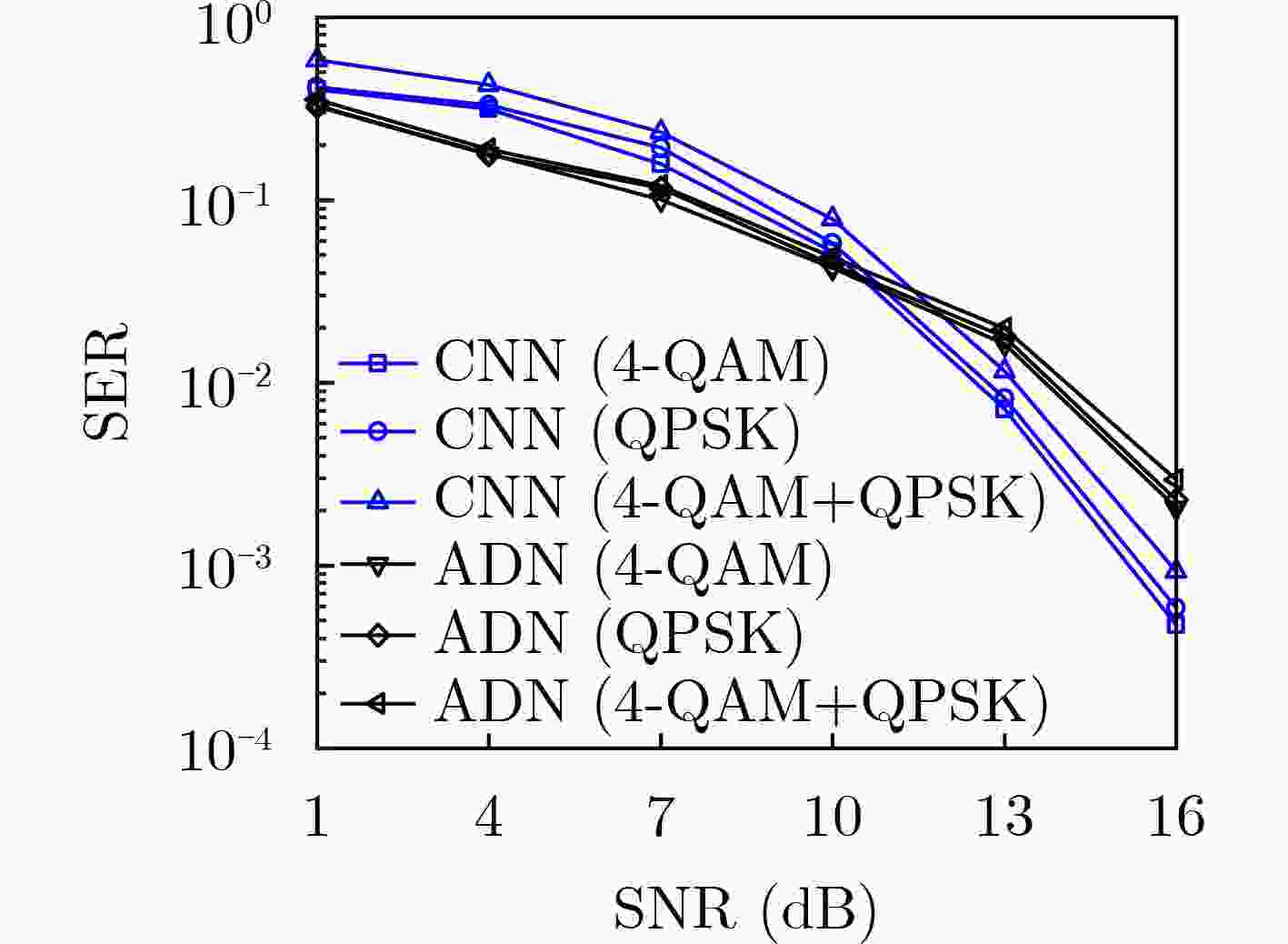

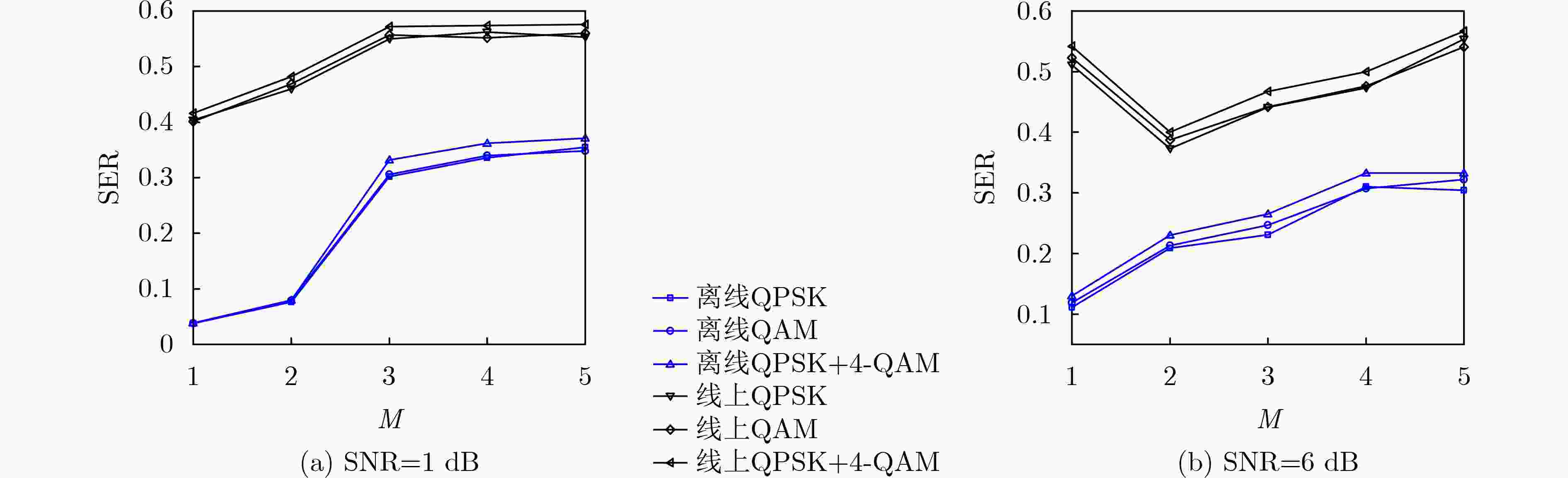

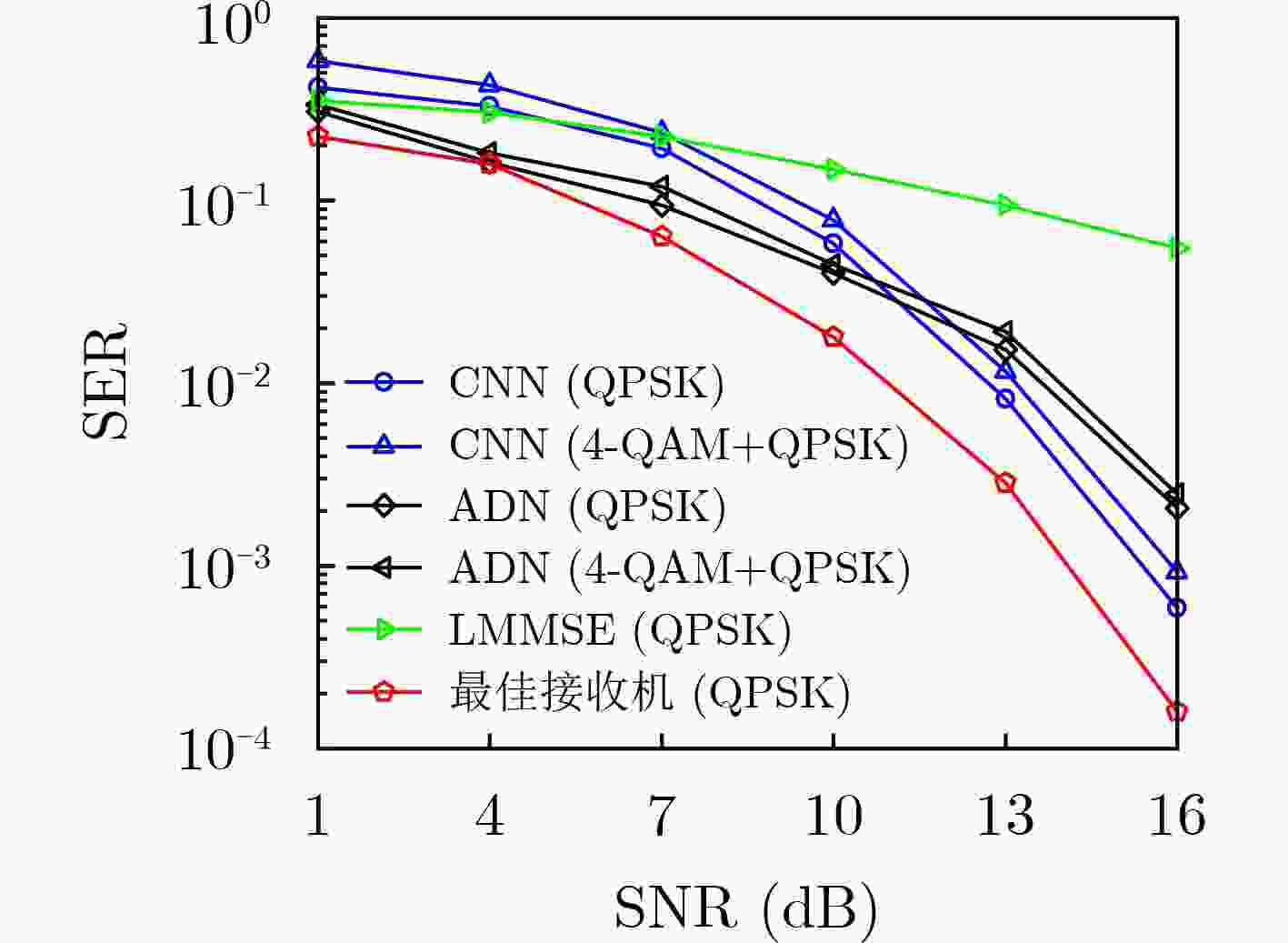

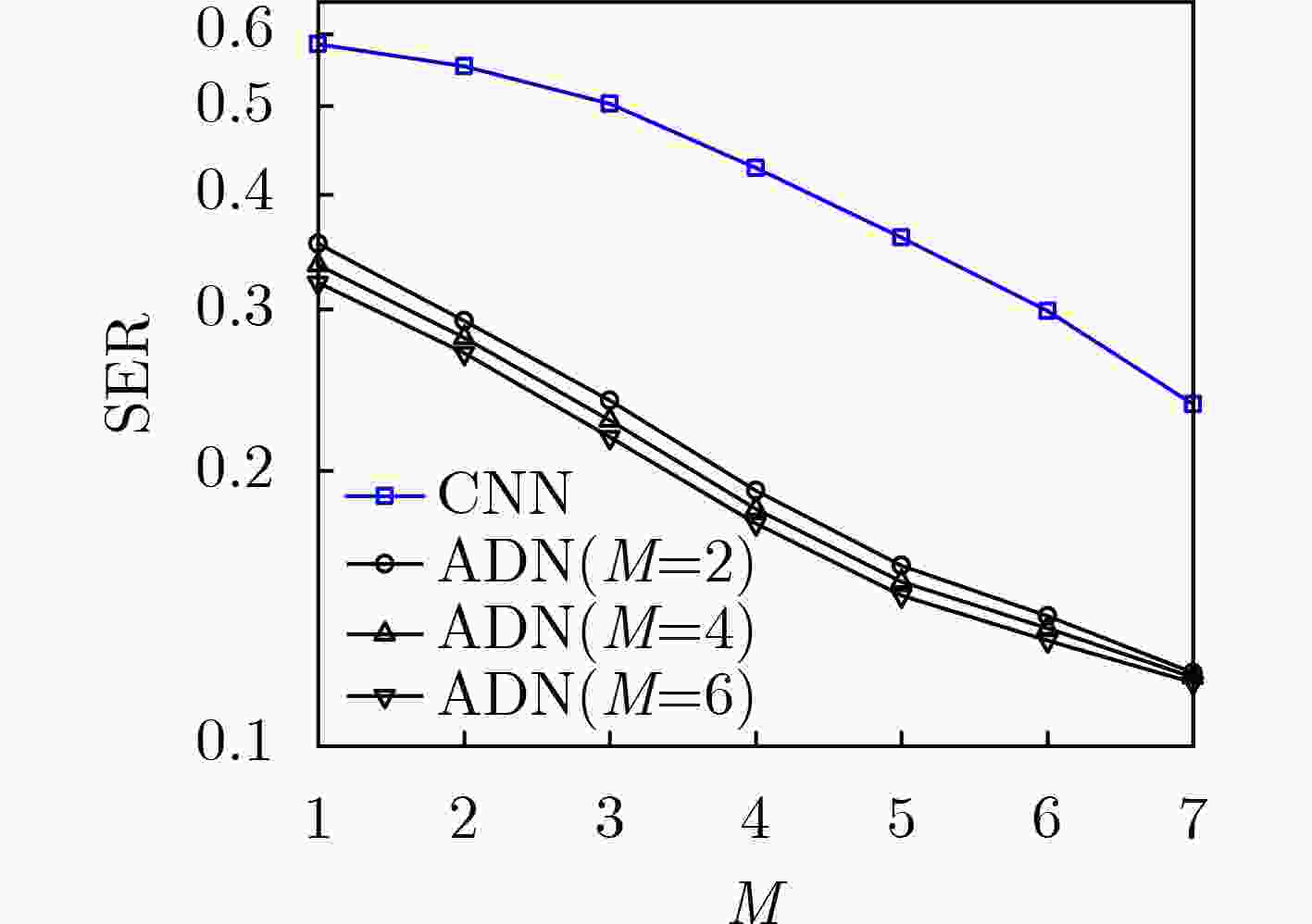

摘要: 针对矿井复杂环境下无线信道的衰落动态变化时，离线模型的线上检测表现会遭遇性能下降的问题，该文研究了基于迁移学习的自适应信号检测网络(ADN)。ADN的主要改进是使用并行网络对动态信道离散化以提高网络泛化能力；对线上接收端信号采取域对抗训练神经网络(DANN)的无监督学习方式，从而将离线训练知识迁移到线上矿井复杂环境中并且实时调整网络参数以适应信道的变化，从而实现矿井复杂环境下的自适应信号检测。实验表明对正交相移键控(QPSK)和正交幅度调制(QAM)信号，在动态变化的矿井Nakagami-m衰落信道中，随着离散信道的增加，ADN获得信道间的分集效益，性能逐渐提高。在高信噪比(SNR)时，其性能接近卷积神经网络(CNN)，低信噪比时显著提高深度检测网络的鲁棒性和线上检测效果。Abstract: Considering the problem that the online detection performance of the offline model will experience performance degradation when the fading dynamics of the wireless channel in the complex environment of the mine are changed, the Adaptive Detection Network (ADN) based on transfer learning is studied. The main improvement of ADN is the use of parallel networks to discretize dynamic channels to improve network generalization capabilities. The unsupervised learning method of Domain Adversarial training of Neural Network (DANN) is adopted for the online receiver signal, so as to transfer the offline training knowledge to the complex environment of the online mine and adjust the network parameters in real time to adapt to the change of channel. Finally, it realizes the adaptive signal detection in the complex environment of the mine. Experiments show that ADN obtains the diversity benefit between channels for Quadrature Phase Shift Keying (QPSK) and Quadrature Amplitude Modulation (QAM) signals in the dynamically changing Nakagami-m fading channel. The performance gradually improves with the increase of discrete channels. At high Signal-to-Noise Ratio (SNR), its performance is close to that of Convolutional Neural Network (CNN). The robustness and online detection effect of deep detection networks are significantly improved at low SNR.
-
Key words:
- Signal detection /
- Adaptive /
- Deep Learning (DL) /
- Transfer learning
-
[1] FOROOSHANI A E, BASHIR S, MICHELSON D G, et al. A survey of wireless communications and propagation modeling in underground mines[J]. IEEE Communications Surveys & Tutorials, 2013, 15(4): 1524–1545. doi: 10.1109/SURV.2013.031413.00130 [2] CAI Meifeng, LI Peng, TAN Wenhui, et al. Key engineering technologies to achieve green, intelligent, and sustainable development of deep metal mines in China[J]. Engineering, 2021, 7(11): 1513–1517. doi: 10.1016/j.eng.2021.07.010 [3] ALBREEM M A, ALHABBASH A H, SHAHABUDDIN S, et al. Deep learning for massive MIMO uplink detectors[J]. IEEE Communications Surveys & Tutorials, 2022, 24(1): 741–766. doi: 10.1109/COMST.2021.3135542 [4] YE Hao, LI G Y, and JUANG B H. Power of deep learning for channel estimation and signal detection in OFDM systems[J]. IEEE Wireless Communications Letters, 2018, 7(1): 114–117. doi: 10.1109/LWC.2017.2757490 [5] SAMUEL N, DISKIN T, and WIESEL A. Deep MIMO detection[C]. 2017 IEEE 18th International Workshop on Signal Processing Advances in Wireless Communications (SPAWC), Sapporo, Japan, 2017: 1–5. [6] JEON C, GHODS R, MALEKI A, et al. Optimality of large MIMO detection via approximate message passing[C]. 2015 IEEE International Symposium on Information Theory (ISIT), Hong Kong, China, 2015: 1227–1231. [7] JIN Xianglan and KIM H N. Parallel deep learning detection network in the MIMO channel[J]. IEEE Communications Letters, 2020, 24(1): 126–130. doi: 10.1109/LCOMM.2019.2950201 [8] SAMUEL N, DISKIN T, and WIESEL A. Learning to detect[J]. IEEE Transactions on Signal Processing, 2019, 67(10): 2554–2564. doi: 10.1109/TSP.2019.2899805 [9] SUN Li, WANG Yuwei, SWINDLEHURST A L, et al. Generative-adversarial-network enabled signal detection for communication systems with unknown channel models[J]. IEEE Journal on Selected Areas in Communications, 2021, 39(1): 47–60. doi: 10.1109/JSAC.2020.3036954 [10] LI Yongbin, WANG Bin, SHAO Gaoping, et al. Blind detection of underwater acoustic communication signals based on deep learning[J]. IEEE Access, 2020, 8: 204114–204131. doi: 10.1109/ACCESS.2020.3036883 [11] VAN HUYNH N and LI G Y. Transfer learning for signal detection in wireless networks[J]. IEEE Wireless Communications Letters, 2022, 11(11): 2325–2329. doi: 10.1109/LWC.2022.3202117 [12] GANIN Y, USTINOVA E, AJAKAN H, et al. Domain-adversarial training of neural networks[J]. The Journal of Machine Learning Research, 2016, 17(1): 2096–2030. [13] 臧文华. 基于生成对抗网络的迁移学习算法研究[D]. [硕士论文], 电子科技大学, 2018.ZANG Wenhua. Research on transfer learning based on generative adversarial networks[D]. [Master dissertation], University of Electronic Science and Technology of China, 2018. [14] BAEK M S, KWAK S, JUNG J Y, et al. Implementation methodologies of deep learning-based signal detection for conventional MIMO transmitters[J]. IEEE Transactions on Broadcasting, 2019, 65(3): 636–642. doi: 10.1109/TBC.2019.2891051 [15] WANG Shengyao, YAO Rugui, TSIFTSIS T A, et al. Signal detection in uplink time-varying OFDM systems using RNN with bidirectional LSTM[J]. IEEE Wireless Communications Letters, 2020, 9(11): 1947–1951. doi: 10.1109/LWC.2020.3009170 [16] ZHANG Yiqing, SUN Jianyong, XUE Jiang, et al. Deep expectation-maximization for joint MIMO channel estimation and signal detection[J]. IEEE Transactions on Signal Processing, 2022, 70: 4483–4497. doi: 10.1109/TSP.2022.3205478 [17] WANG Anyi, FENG Zhiyuan, LI Xuhong, et al. Mine intelligent receiver: MIMO-OFDM intelligent receiver for mine information recovery[J]. Energies, 2022, 15(18): 6550. doi: 10.3390/en15186550 [18] PAN S J, TSANG I W, KWOK J T, et al. Domain adaptation via transfer component analysis[J]. IEEE Transactions on Neural Networks, 2011, 22(2): 199–210. doi: 10.1109/TNN.2010.2091281 [19] 蒋伊琳, 尹子茹, 宋宇. 基于卷积神经网络的低截获概率雷达信号检测算法[J]. 电子与信息学报, 2022, 44(2): 718–725. doi: 10.11999/JEIT210132JIANG Yilin, YIN Ziru, and SONG Yu. Low probability of intercept radar signal detection algorithm based on convolutional neural networks[J]. Journal of Electronics &Information Technology, 2022, 44(2): 718–725. doi: 10.11999/JEIT210132 [20] SHIN H C, ROTH H R, GAO Mingchen, et al. Deep convolutional neural networks for computer-aided detection: CNN architectures, dataset characteristics and transfer learning[J]. IEEE Transactions on Medical Imaging, 2016, 35(5): 1285–1298. doi: 10.1109/TMI.2016.2528162 -
