一种基于光混沌和图像预处理机制的加密算法

周雪芳; 孙乐; 陈伟浩; 郑宁

doi:10.11999/JEIT221332

一种基于光混沌和图像预处理机制的加密算法

doi: 10.11999/JEIT221332

周雪芳^{1, 2},
孙乐²,
陈伟浩²,
郑宁^1, ,

1.
杭州电子科技大学网络空间安全学院杭州 310018
2.
杭州电子科技大学通信工程学院杭州 310018

基金项目: 国家自然科学基金 (61705055)，浙江省重点研发计划 (2019C01G1121168)，浙江省数据存储传输及应用技术研究重点实验室基金

详细信息

作者简介:
周雪芳：女，副教授，研究方向为光混沌图像加密、光混沌通信和光纤激光器技术

郑宁：男，教授，研究方向为网络空间安全技术、图像加密算法和人工智能算法等

通讯作者:
郑宁　nzheng@hdu.edu.cn

中图分类号: TN911.73; TP309.7; TN918.4
计量
- 文章访问数: 478
- HTML全文浏览量: 284
- PDF下载量: 116
- 被引次数: 0
出版历程
- 收稿日期: 2022-10-24
- 修回日期: 2023-02-20
- 网络出版日期: 2023-03-14
- 刊出日期: 2023-12-26

An Encryption Algorithm Based on Optical Chaos and Image Quotient and Residue Preprocessing

ZHOU Xuefang^{1, 2},
SUN Le²,
CHEN Weihao²,
ZHENG Ning^{1
, ,}

1.
School of Cyberspace, Hangzhou Dianzi University, Hangzhou 310018, China
2.
School of Communication and Engineering, Hangzhou Dianzi University, Hangzhou 310018, China

Funds: The National Natural Science Foundation of China (61705055), The Key Research and Development Program of Zhejiang Province (2019C01G1121168), The Key Laboratory Foundation of Data Storage and Transmission Technology of Zhejiang Province

摘要

摘要: 随着现代科学技术的发展，人们对图像信息传输的安全性要求越来越高，以混沌理论为基础的图像加密方案更加受到重视。该文提出一种新型的光混沌图像加密传输系统以及图像“自加密”算法，该系统的主激光器(ML)经全光反馈后分别注入到3个半导体激光器(SLs)中，从而产生3个同步的混沌序列。在图像加密之前，先对明文图像进行预处理，得到两幅图像，一幅是明文图像取商的图像，另一幅是明文图像取余的图像。利用发送端的混沌序列对预处理的两幅图像进行多次加密、隐写以及扩散等操作，得到密文图像。实验结果表明：该文的密文图像像素值分布均匀，各像素间的相关性被打破，NPCR和UACI均接近理想值。该图像预处理的方法能够有效地使图像像素值更为集中、分布更加均匀，同时结合光混沌对图像进行加密，大大地提高传输图像的安全性。
- 半导体激光器 /
- 光混沌 /
- 图像加密 /
- 图像预处理
Abstract: With the development of modern science and technology, people have higher and higher requirements for the security of image information transmission, and the image encryption scheme based on chaos theory has attracted more and more attention. In this paper, a novel optical chaotic image encryption transmission system and a “self-encryption” algorithm for images are proposed and demonstrated. The Master Laser (ML) of the system is injected into the other three Semiconductor Lasers (SLs) respectively after full-optical feedback, then three synchronous chaotic sequences are generated. Before encrypting the image, the plaintext image is preprocessed, and two images are obtained, one is the image after the quotient of the plain image, the other is the image after the redundancy of the plain image. The chaotic sequence of the sender is used to encrypt, steganograph and spread the two preprocessed images for many times, and then the ciphertext image is obtained. The experimental results show that the pixel values of the ciphertext images obtained in this paper are evenly distributed, the correlation between each pixel is broken, and both NPCR and UACI are close to the ideal value. The image preprocessing method proposed in this paper can effectively make the image pixel value more concentrated, more uniform distribution. Combining with the optical chaos to encrypt the image, it greatly improves the security of the transmitted image.
- Semiconductor Laser (SL) /
- Optical chaos /
- Image encryption /
- Image processing

HTML全文

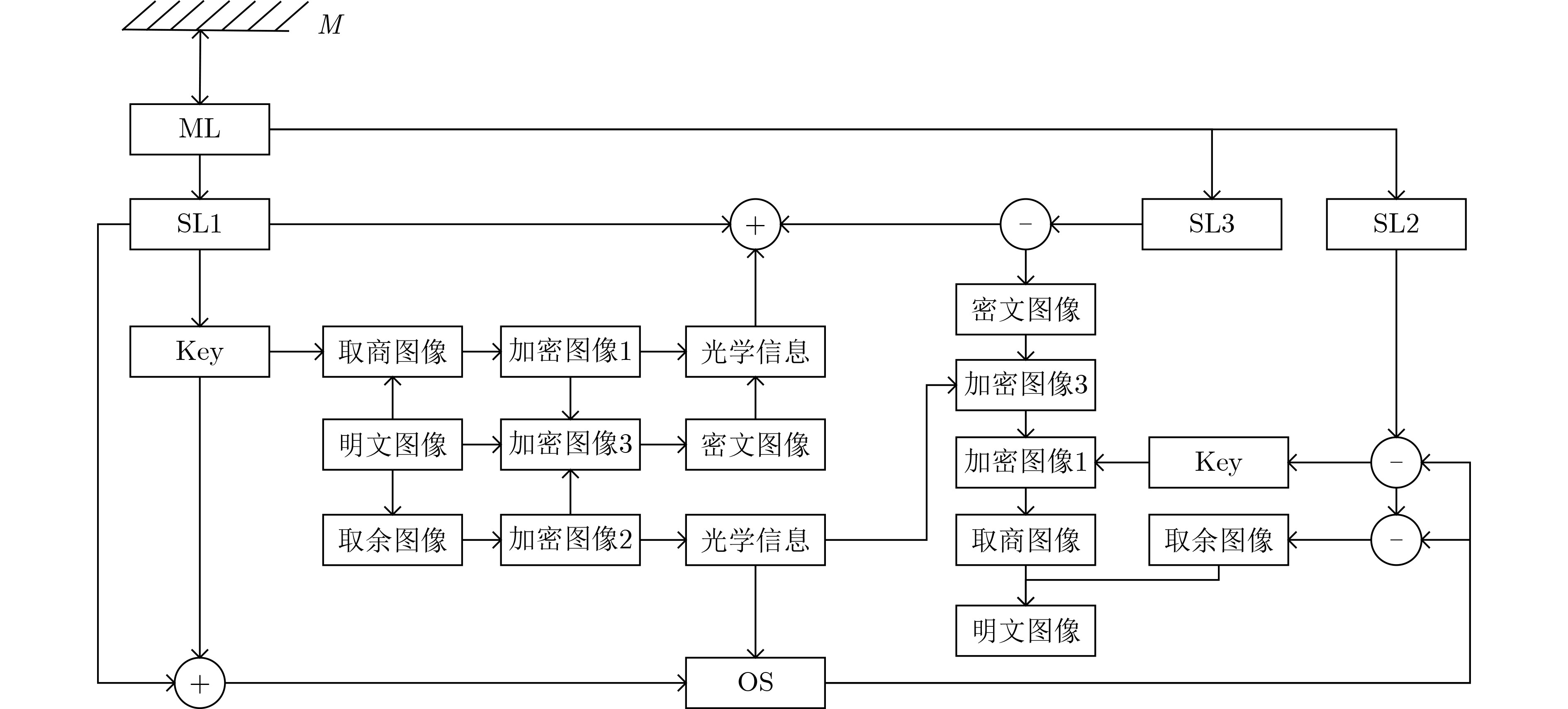

图 1 加密系统模型

下载: 全尺寸图片幻灯片

图 2 图像的预处理

下载: 全尺寸图片幻灯片

图 3 加密过程中产生的图像

下载: 全尺寸图片幻灯片

图 4 SL1和SL2, SL3的互相关系数

下载: 全尺寸图片幻灯片

图 5 明文图像、密文图像与解密图像

下载: 全尺寸图片幻灯片

图 6 明文与密文图像直方图

下载: 全尺寸图片幻灯片

7 明文与密文图像的像素值分布图

下载: 全尺寸图片幻灯片

图 8 密钥敏感性分析

下载: 全尺寸图片幻灯片

图 9 裁剪攻击分析

下载: 全尺寸图片幻灯片

表 1 激光器的参数

参数	数值	参数	数值
$ \partial $	3	$ {C} $	3×10⁸
$ {{K}_{f}} $	30 ns	$ {g} $	1.2×10^–5
$ {\tau _{f}} $	1.2 ns	$ {{N}_0} $	1.25×10⁸
$ {{K}_{{inj}}} $	50	$ {s} $	5×10^–7
${{e} }$	1.6×10^–19	$ \gamma $	496
$ {\gamma _{e}} $	0.65

下载: 导出CSV

表 2 直方图检测

图像	$ \chi _{{\text{test}}}^2 $	结果
明文Lena	30665.7031	不通过
密文Lena	243.7188	通过
明文Baboo	42256.0859	不通过
密文Baboo	232.8672	通过
明文Boat	100313.132	不通过
密文Boat	226.4297	通过
明文Camera	109020.992	不通过
密文Camera	247.4375	通过

下载: 导出CSV

表 3 相关性检测

算法	水平	垂直	对角线	反对角线
明文Lena	0.9699	0.9399	0.9163	0.9378
密文Lena	–0.0030	–0.0028	0.0069	0.0211
文献[18]	0.00057	0.0028	–0.0014	–
文献[19]	0.0017	0.00092	0.0011	–
文献[20]	0.0052	–0.00011	–0.0022	–
文献[21]	0.00043	0.0048	–0.0040	–
文献[22]	0.00012	0.00011	0.00178	–
文献[23]	–0.0015	0.0018	0.0018	–

下载: 导出CSV

表 4 不同图像的NPCR和UACI

算法	NPCR	UACI
本文(Lena)	99.6292	33.5504
文献[24]	99.5144	32.7495
文献[25]	99.6114	33.5499
文献[26]	99.6101	33.4583
文献[27]	99.6140	33.5463
文献[28]	99.64652	33.46289

下载: 导出CSV

表 5 信息熵

算法	明文图像	密文图像
本文Lena	7.5683	7.9976
文献[29]	7.3814	7.9564
文献[30]	7.4425	7.9975
文献[31]	7.44557	7.99935
文献[32]	7.445077	7.99933
文献[33]	7.5827	7.9995

下载: 导出CSV
