利用多路选择器熵源的高移植性轻量级物理不可克隆函数研究

姚亮 梁华国 杨世豪 章宏 鲁迎春

姚亮, 梁华国, 杨世豪, 章宏, 鲁迎春. 利用多路选择器熵源的高移植性轻量级物理不可克隆函数研究[J]. 电子与信息学报, 2023, 45(1): 68-77. doi: 10.11999/JEIT221263
引用本文: 姚亮, 梁华国, 杨世豪, 章宏, 鲁迎春. 利用多路选择器熵源的高移植性轻量级物理不可克隆函数研究[J]. 电子与信息学报, 2023, 45(1): 68-77. doi: 10.11999/JEIT221263
YAO Liang, LIANG Huaguo, YANG Shihao, ZHANG Hong, LU Yingchun. Research on Highly Portable Lightweight Physical Unclonable Functions Using Multiplexer Entropy Sources[J]. Journal of Electronics & Information Technology, 2023, 45(1): 68-77. doi: 10.11999/JEIT221263
Citation: YAO Liang, LIANG Huaguo, YANG Shihao, ZHANG Hong, LU Yingchun. Research on Highly Portable Lightweight Physical Unclonable Functions Using Multiplexer Entropy Sources[J]. Journal of Electronics & Information Technology, 2023, 45(1): 68-77. doi: 10.11999/JEIT221263

利用多路选择器熵源的高移植性轻量级物理不可克隆函数研究

doi: 10.11999/JEIT221263
基金项目: 国家自然科学基金(62174048)
详细信息
    作者简介:

    姚亮:男,博士生,研究方向为硬件安全及集成电路设计

    梁华国:男,教授,博士生导师,研究方向为集成电路测试、数字系统设计自动化及硬件安全

    杨世豪:男,硕士生,研究方向为硬件安全及高速数据传输

    章宏:女,博士生,研究方向为集成电路测试及电路模型构建

    鲁迎春:男,副教授,硕士生导师,研究方向为硬件安全

    通讯作者:

    鲁迎春 luyingchun@hfut.edu.cn

  • 中图分类号: TN402

Research on Highly Portable Lightweight Physical Unclonable Functions Using Multiplexer Entropy Sources

Funds: The National Natural Science Foundation of China (62174048)
  • 摘要: SR锁存器物理不可克隆函数 (Physical Unclonable Function, PUF) 是基于 FPGA 实现的最流行加密应用,在轻量级物联网设备中拥有广阔的市场。为了实现对称无偏SR锁存PUF,研究人员提出了不同的实现方法,这些方法增加了面积消耗。该文提出一种新型的基于MUX单元的延迟门来构成M_SR PUF单元,并将稳定状态下SR锁存器的输出提取作为PUF的响应。为了验证所提出的 M_SR PUF,该文在 Xilinx Virtex-6,Virtex-7 和 Kintex-7 3个系列的 FPGA 上进行了实现。值得一提的是,对称布局通过“硬宏”实现相对简单,保证了PUF更好的性能。实验结果表明,所提出的M_SR PUF可以在超宽范围的环境变化(温度:0°C~80°C;电压:0.8~1.2 V)下稳定工作,平均唯一性为50.125%。此外,所提出的 M_SR PUF 单元具有低开销的特点,仅消耗 4个 MUX 和 2个 DFF,并产生适合硬件安全应用的高熵响应。

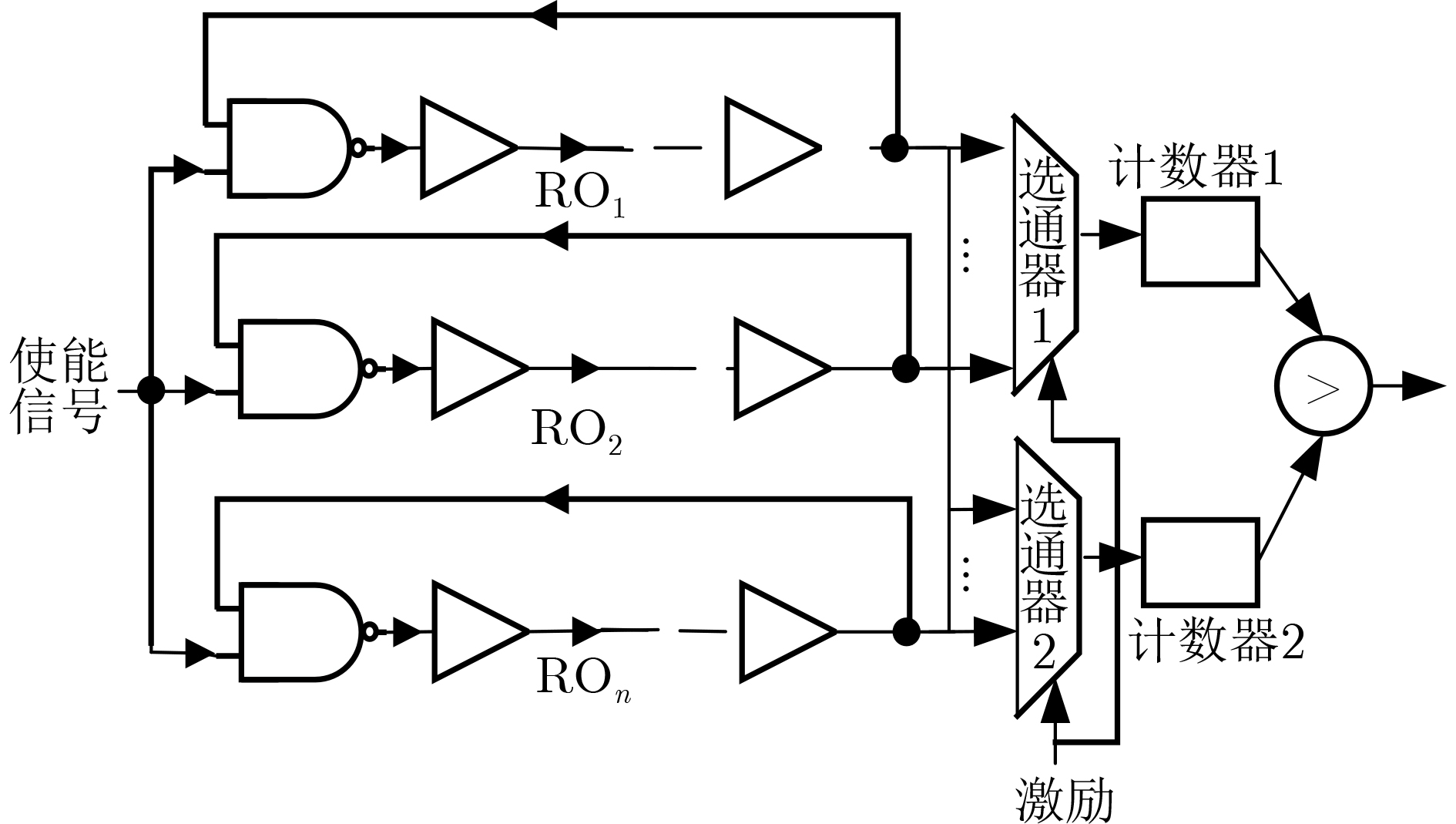

  • 图  1  传统RO PUF

    图  2  基于与非门的SR锁存器

    图  3  基于 MUX 单元的延迟门 M_NAND 设计

    图  4  提出的M_SR PUF单元

    图  5  对称比较策略

    图  6  提出的 M_SR PUF 评估系统

    图  7  22×128 bit PUF 输出序列的灰度图

    图  8  序列输出的空间特征

    图  9  Xilinx Virtex-6开发板下PUF输出序列的NIST测试

    图  10  22×128 bit PUF 输出序列的自相关测试

    图  11  3种系列 FPGA 实现的 PUF 芯片间汉明距离

    图  12  3种系类FPGA的片间汉明距离

    图  13  PUF输出响应的位翻转率

    表  1  相关PUF的性能比较

    PUF 设计FPGA平台PUF 响应唯一性(%)可靠性(%)资源消耗
    不同电压不同温度
    文献[8]Spartan-312849.20080.000*435×CLB
    文献[16]Artix12851.70094.500*
    文献[27]Kintex-725647.30096.650
    Artix-725640.10094.00096.000
    文献[9]Spartan-312846.000>87.0002×128 SLICEs
    文献[17]Virtex-612848.43898.24298.326256×CLB
    本文 M_SR PUFVirtex-612850.42394.87997.1184×128 MUXs
    2×128 DFF
    Virtex-749.90294.01096.806
    Kintex-750.05191.88494.861
    注1:*表示文献没有说明获得可靠性结果的情况.
    注2:1个CLB包含2 SLICEs, 1个SLICE包含4个LUTs和8个DFFs.
    下载: 导出CSV
  • [1] SUNAR B, MARTIN W J, and STINSON D R. A provably secure true random number generator with built-in tolerance to active attacks[J]. IEEE Transactions on Computers, 2007, 56(1): 109–119. doi: 10.1109/TC.2007.250627
    [2] TANEJA S, RAJANNA V K, and ALIOTO M. 36.1 Unified in-memory dynamic TRNG and multi-bit static PUF entropy generation for ubiquitous hardware security[C]. Proceedings of 2021 IEEE International Solid-State Circuits Conference (ISSCC), San Francisco, USA, 2021: 498–500.
    [3] SURAGANI R, NAZARENKO E, ANAGNOSTOPOULOS N A, et al. Identification and classification of corrupted PUF responses via machine learning[C]. Proceedings of 2022 IEEE International Symposium on Hardware Oriented Security and Trust (HOST), McLean, USA, 2022: 137–140.
    [4] KROEGER T, CHENG Wei, GUILLEY S, et al. Cross-PUF attacks on arbiter-PUFs through their power side-channel[C]. Proceedings of 2020 IEEE International Test Conference (ITC), Washington, USA, 2020: 1–5.
    [5] CHANG Zhengtai, SHI Shanshan, SONG Binwei, et al. Modeling attack resistant arbiter PUF with time-variant obfuscation scheme[C]. Proceedings of 2021 31st International Conference on Field-Programmable Logic and Applications (FPL), Dresden, Germany, 2021: 60–63.
    [6] YAO Liang, LIANG Huaguo, HAN Qian, et al. M-RO PUF: A portable pure digital RO PUF based on MUX unit[J]. Microelectronics Journal, 2022, 119: 105314. doi: 10.1016/j.mejo.2021.105314
    [7] OKUMURA S, YOSHIMOTO S, KAWAGUCHI H, et al. A 128-bit chip identification generating scheme exploiting load transistors' variation in SRAM bitcells[J]. IEICE Transactions on Fundamentals of Electronics, Communications and Computer Sciences, 2012, E95.A(12): 2226–2233. doi: 10.1587/transfun.E95.A.2226
    [8] ARDAKANI A and SHOKOUHI S B. A secure and area-efficient FPGA-based SR-Latch PUF[C]. Proceedings of 2016 8th International Symposium on Telecommunications (IST), Tehran, Iran, 2016: 94–99.
    [9] YAMAMOTO D, SAKIYAMA K, IWAMOTO M, et al. Uniqueness enhancement of PUF responses based on the locations of random outputting RS latches[C]. Proceedings of the 13th International Workshop on Cryptographic Hardware and Embedded Systems, Nara, Japan, 2011: 390–496.
    [10] DANGER J L, YASHIRO R, GRABA T, et al. Analysis of mixed PUF-TRNG circuit based on SR-latches in FD-SOI technology[C]. Proceedings of the 21st Euromicro Conference on Digital System Design (DSD), Prague, Czech Republic, 2018: 508–515.
    [11] XU Xiumin, LIANG Huaguo, HUANG Zhengfeng, et al. A highly reliable butterfly PUF in SRAM-based FPGAs[J]. IEICE Electronics Express, 2017, 14(14): 20170551. doi: 10.1587/elex.14.20170551
    [12] LOTFY A, KAVEH M, MARTÍN D, et al. An efficient design of anderson PUF by utilization of the xilinx primitives in the SLICEM[J]. IEEE Access, 2021, 9: 23025–23034. doi: 10.1109/ACCESS.2021.3056291
    [13] NOZAKI Y, TAKEMOTO S, IKEZAKI Y, et al. Performance evaluation of unrolled cipher based glitch PUF implemented on virtex-7[C]. Proceedings of 2021 International Symposium on Devices, Circuits and Systems (ISDCS), Higashihiroshima, Japan, 2021: 1–4.
    [14] ZHOU Kai, LIANG Huaguo, JIANG Yue, et al. FPGA-based RO PUF with low overhead and high stability[J]. Electronics Letters, 2019, 55(9): 510–513. doi: 10.1049/el.2019.0451
    [15] CUI Yijun, CHEN Yunpeng, WANG Chenghua, et al. Programmable ring oscillator PUF based on switch matrix[C]. Proceedings of 2020 IEEE International Symposium on Circuits and Systems (ISCAS), Seville, Spain, 2020: 1–4.
    [16] ZHOU Ting, JI Yuxin, CHEN Mingyi, et al. PL-MRO PUF: High speed pseudo-LFSR PUF based on multiple ring oscillators[C]. Proceedings of 2020 IEEE International Symposium on Circuits and Systems (ISCAS), Seville, Spain, 2020: 1–5.
    [17] YAO Liang, LIANG Huaguo, HUANG Zhengfeng, et al. A lightweight configurable XOR RO-PUF design based on xilinx FPGA[C]. Proceedings of 2021 IEEE 4th International Conference on Electronics Technology (ICET), Chengdu, China, 2021: 83–88.
    [18] YAMAMOTO D, SAKIYAMA K, IWAMOTO M, et al. Variety enhancement of PUF responses using the locations of random outputting RS latches[J]. Journal of Cryptographic Engineering, 2013, 3(4): 197–211. doi: 10.1007/s13389-012-0044-0
    [19] CHALLA R P, ISLAM S A, and KATKOORI S. An SR flip-flop based physical unclonable functions for hardware security[C]. Proceedings of the 62nd International Midwest Symposium on Circuits and Systems (MWSCAS), Dallas, USA, 2019: 574–577.
    [20] WANG Jiadong, CUI Aijiao, LI Mengyang, et al. An ultra-low overhead LUT-based PUF for FPGA[C]. Proceedings of 2016 IEEE Asian Hardware-oriented Security and Trust, Yilan, China, 2016: 1–6.
    [21] 孙子文, 叶乔. 利用震荡环频率特性提取多位可靠信息熵的物理不可克隆函数研究[J]. 电子与信息学报, 2021, 43(1): 234–241. doi: 10.11999/JEIT191013

    SUN Ziwen and YE Qiao. Study on the physical unclonable function of the reliable information entropy extracted by the frequency characteristic of oscillating ring[J]. Journal of Electronics &Information Technology, 2021, 43(1): 234–241. doi: 10.11999/JEIT191013
    [22] HATA H and ICHIKAWA S. FPGA implementation of metastability-based true random number generator[J]. IEICE Transactions on Information and Systems, 2012, E95.D(2): 426–436. doi: 10.1587/transinf.E95.D.426
    [23] XILINX Corporation. 7 series FPGAs configurable logic block user guide[EB/OL]. https://www.xilinx.com/content/dam/xilinx/support/documentation/user_guides/ug474_7Series_CLB.pdf, 2020.
    [24] GE Lulu and PARHI K K. Molecular MUX-based physical unclonable functions[C]. Proceedings of 2020 IEEE Computer Society Annual Symposium on VLSI (ISVLSI), Limassol, Cyprus, 2020: 482–487.
    [25] RAMANUJAM S and BURLESON W. Reconfiguring the mux-based arbiter PUF using FeFETs[C]. Proceedings of the 22nd International Symposium on Quality Electronic Design (ISQED), Santa Clara, USA, 2021: 257–262.
    [26] RUKHIN A, SOTO J, NECHVATAL J, et al. A statistical test suite for random and pseudorandom number generators for cryptographic applications[R]. NIST Special Publication 800-220, 2001.
    [27] CUI Yijun, GU Chongyan, MA Qingqing, et al. Lightweight modeling attack-resistant multiplexer-based multi-PUF (MMPUF) design on FPGA[J]. Electronics, 2020, 9(5): 815. doi: 10.3390/electronics9050815
