Channel Estimation Algorithm for Reconfigurable Intelligent Surface Aided Millimeter Wave Systems
-

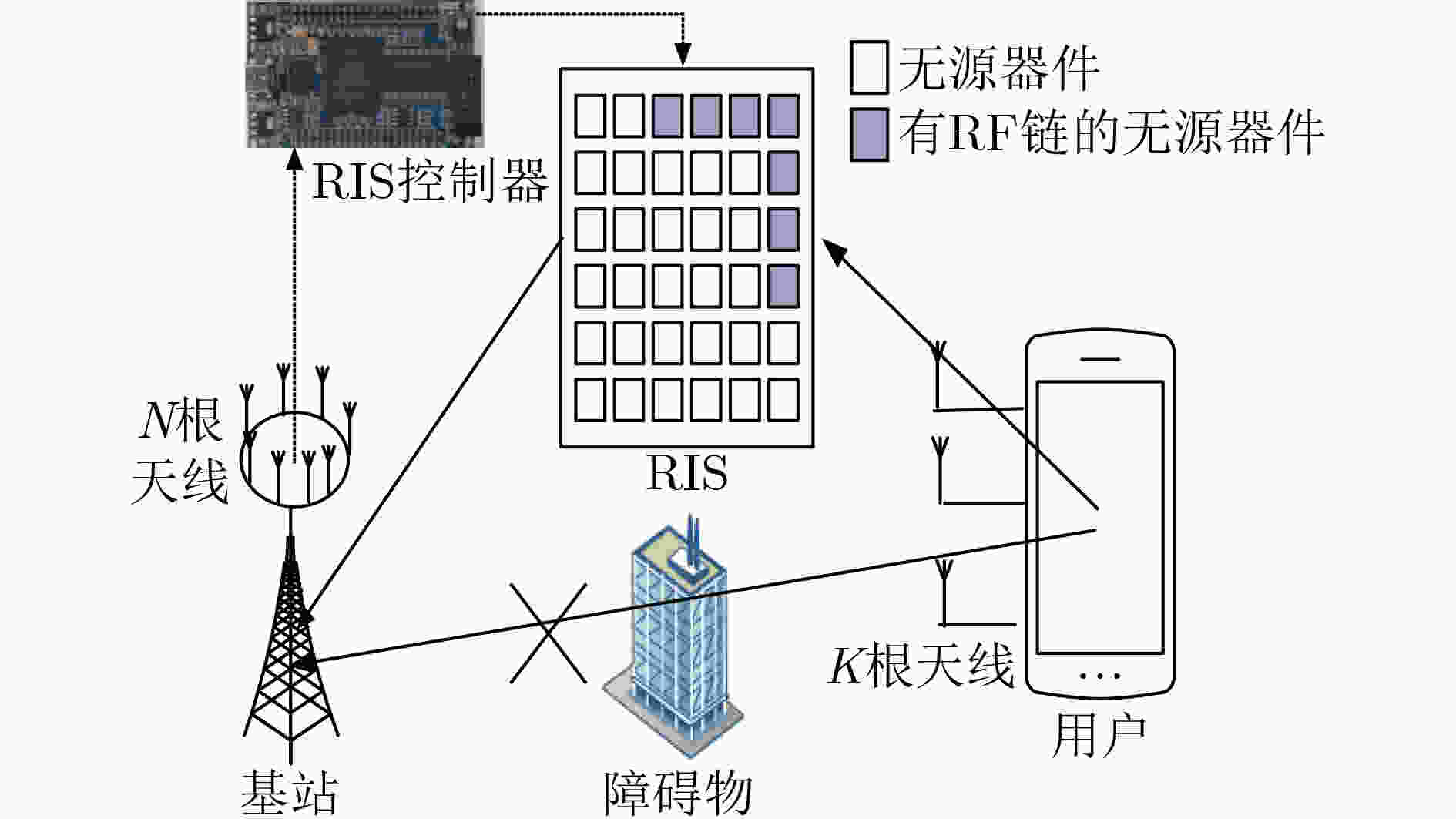

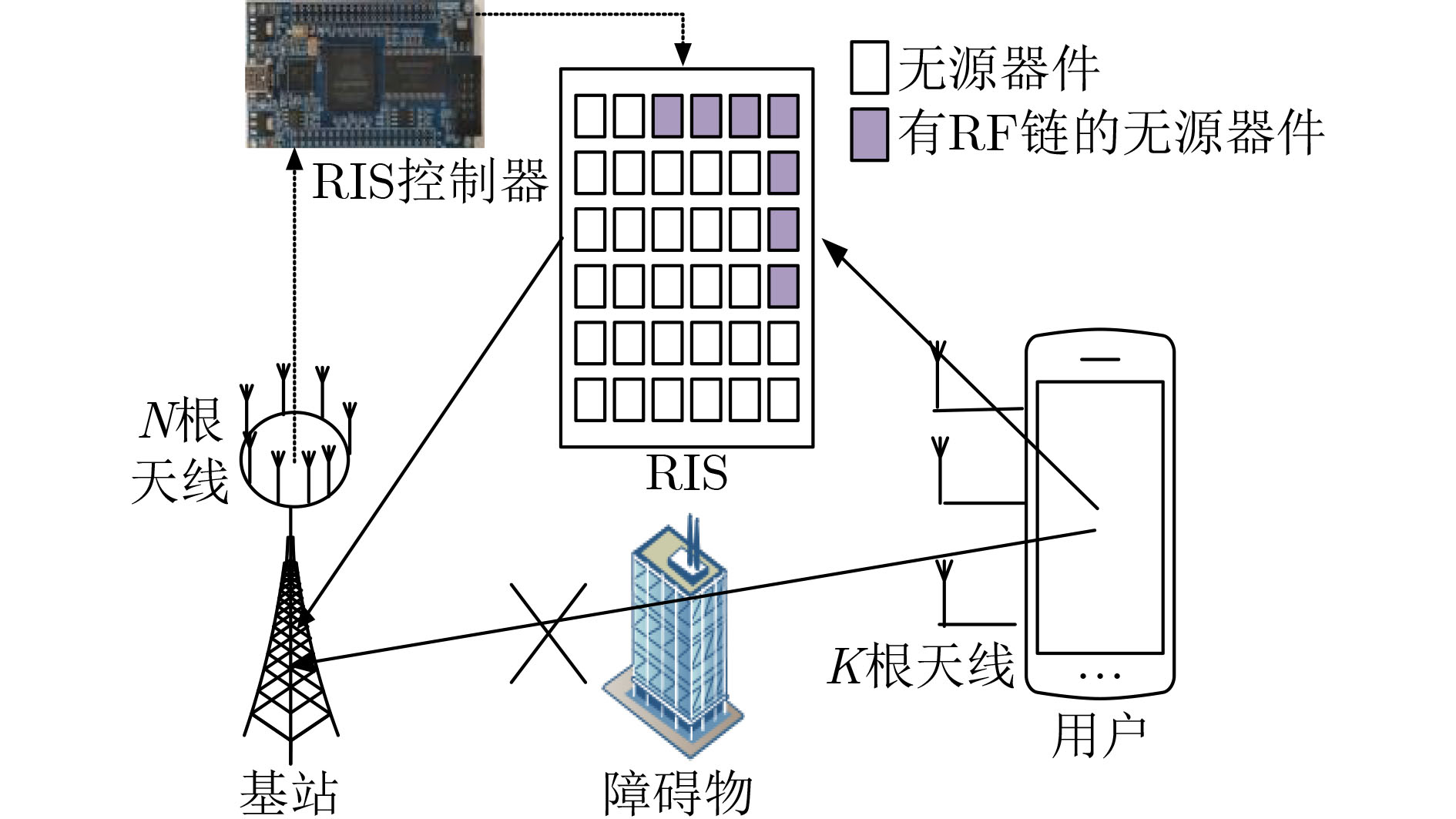

摘要: 针对可重构智能表面(RIS)辅助的毫米波通信中信道状态信息难以获取问题，该文给RIS的部分器件配备射频链，以分开估计基站(BS)/用户(UE)到RIS之间的信道。根据该结构，提出一种低复杂度的信道估计算法。该算法首先采用解耦原子范数最小化(ANM)方法将信道的离开角和到达角的2维角度估计问题转化为两个1维的角度估计的半正定规划(SDP)问题；其次，利用交替方向乘子算法(ADMM)对该SDP问题进行求解，采用动量梯度下降法对信道矩阵参数进行更新以避免矩阵求逆运算，并通过对迭代步长和信道矩阵参数的联合优化以获得更加精准的信道估计值；最后利用信号的2维角度和信道矩阵参数得到路径增益估计。仿真结果表明，该算法达到了优良的信道估计性能，且在确保信道估计性能的系统参数设置下，该算法的复杂度较低。Abstract: As the channel status information is difficult to obtain in Reconfigurable Intelligent Surface(RIS) aided millimeter wave communication. The radio frequency chain is provided in some passive elements of RIS to assist channel estimation and estimate the channel between Base Station(BS)/User Equipment(UE) and RIS. Inspired by the structure, a low complexity channel estimation method is proposed. First, the two-dimensional angle estimation problem is transformed into two one-dimensional angle estimation Semi-positive definite programming (SDP) problem by the Atomic Norm Minimization(ANM) method.Second, an Alternating Direction Method of Multipliers(ADMM) algorithm is proposed to solve the Semi-Definite Programming (SDP) problem. Based on the ADMM algorithm, the algorithm applies momentum gradient descent method to avoid the inverse operation of the matrix, and improves the channel estimation accuracy by joint optimizing between a iteration step and channel parameters. Finally, the path gain estimation is obtained by using the signal angle and channel matrix. Simulation results show that the proposed algorithm has better channel estimation performance, and based on the system parameter set, the proposed algorithm has a low complexity.
-
算法1 联合优化迭代步长和信道参数算法 输入：初始化$ {{\boldsymbol{H}}}_1^x $, $\beta = 0.5$, $\xi = 0.2$，容许误差$\varepsilon $, $t = 1$； (1)计算${ {\boldsymbol{g} } }_t^{} = {{\text{∇}} _{ { {({ {\boldsymbol{H} } }_{ {\rm{1} } }^x{ {\rm{)} } } }^t} } }{ {\boldsymbol{L} } }$，如果$ \left\| {{{{\boldsymbol{g}}}_t}} \right\| \le \varepsilon $，输出$ {({{\boldsymbol{H}}}_1^x)^t} $作为最优解； (2)令${{{\boldsymbol{d}}}_t}{{\boldsymbol{ = }}} - {{{\boldsymbol{g}}}_t}$； (3)根据式(14)确定迭代步长$ {\beta ^{{m_t}}} $； (4)计算式(15)，$t = t + 1$，转步骤(1)。 输出：$ {({{\boldsymbol{H}}}_1^x)^t} $, $ {\beta ^{{m_t}}} $。
下载: 导出CSV
算法2 D-ANM+改进ADMM信道估计算法 输入：BS, RIS, UE处的天线数目、导频信号、RIS射频链接收
的信号、噪声的功率，最大迭代次数${s_{\max }}$；计算UE-RIS的信道矩阵$ {{\boldsymbol{H}}}_1^{} $： (1)根据式(11)求解得到RIS水平射频链路接收信号的协方差矩阵； (2)根据解耦原子范数最小化方法，并采用改进的ADMM算法求
解式(17)，其信道参数的迭代过程如下：While $s \lt {s_{\max }}$ (a)根据算法1更新$ {({{\boldsymbol{H}}}_1^x)^t} $, $ {\beta ^{{m_t}}} $； (d)根据式(16)更新$({{{\boldsymbol{u}}}_x}, {{{\boldsymbol{u}}}_y})$； (e)根据式(17)更新${{\boldsymbol{U}}}$； (f)根据式(12c)更新${{\boldsymbol{\varLambda }}}$； (g)$s = s + 1$ End while (3)根据步骤(2)求解得到信道的估计值$ {{\boldsymbol{\tilde H}}}_1^x $, $ {{\boldsymbol{\tilde T}}}({{{\boldsymbol{u}}}_x}) $, $ {{\boldsymbol{\tilde T}}}({{{\boldsymbol{u}}}_y}) $； (4)采用Root-MUSIC算法求解角度和matrix pencil进行角度匹配
求解信道矩阵$ {{\boldsymbol{H}}}_1^{} $的UE端的离开角估计值$\tilde {{\boldsymbol{\varphi}}} $和RIS端的水平射频
链的AOA的方位角估计值$ {\boldsymbol{\tilde \theta}} $；并以相同的思路估计得到RIS端垂
直射频链的AOA的仰角估计值${{\boldsymbol{\tilde \phi}}} $；(5)根据式(19)，求解信道矩阵$ {{\boldsymbol{H}}}_1^{} $的路径增益${{\boldsymbol{\tilde \alpha}}} $； (6)根据以上得到的信道参数值$ ({\boldsymbol{\tilde \theta}} , {{\boldsymbol{\tilde \phi}}} , {{\boldsymbol{\tilde \varphi}}} , {{\boldsymbol{\tilde \alpha}}} ) $，得到估计的信道矩
阵$ {{\boldsymbol{\tilde H}}}_1^{} $；RIS-BS的信道矩阵${{{\boldsymbol{H}}}_2}$的估计参照步骤(1)～(6)的思路。 输出：UE-RIS估计的信道矩阵$ {{\boldsymbol{\tilde H}}}_1^{} $，RIS-BS估计的信道矩阵
${{{\boldsymbol{\tilde H}}}_2}$。
下载: 导出CSV
-

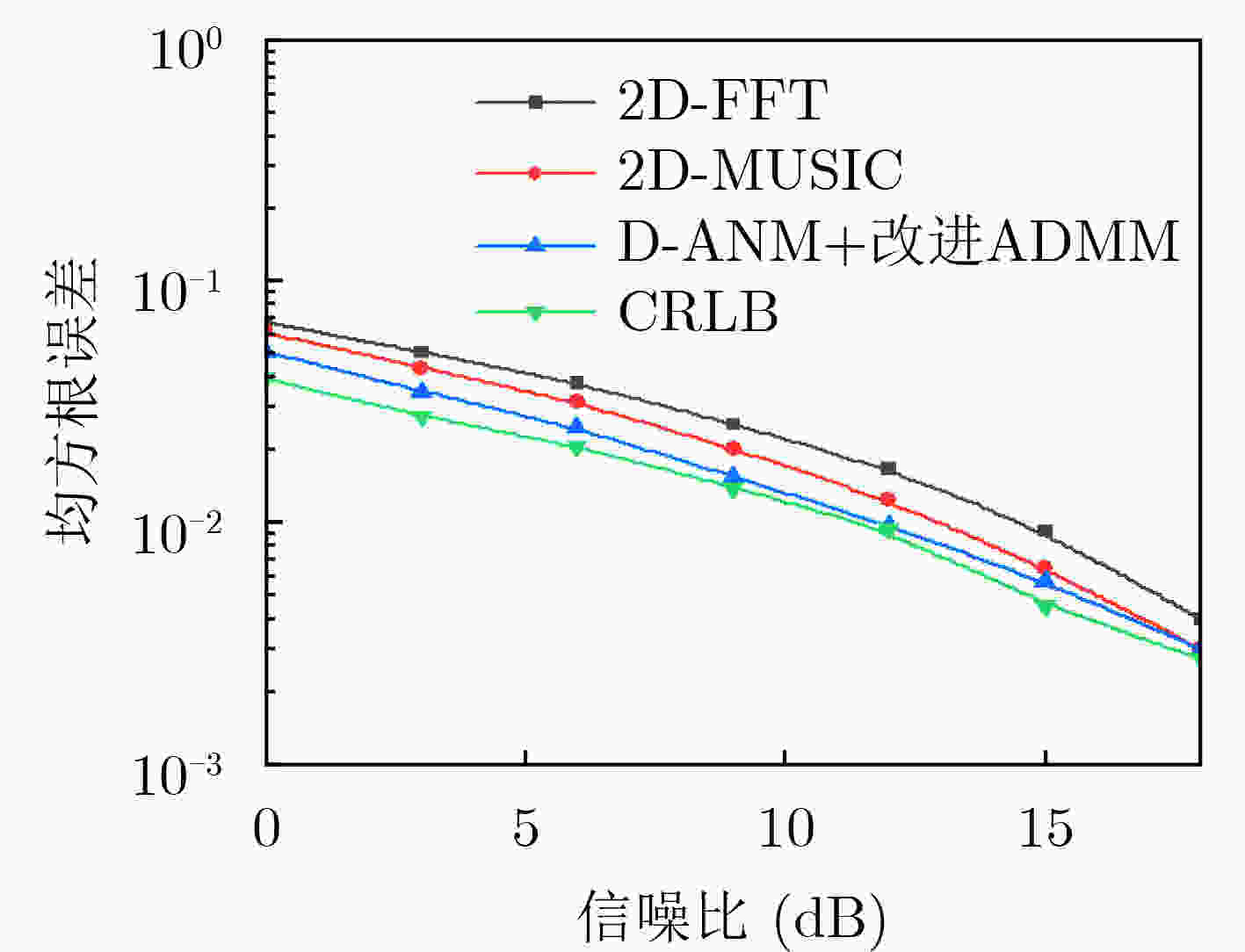

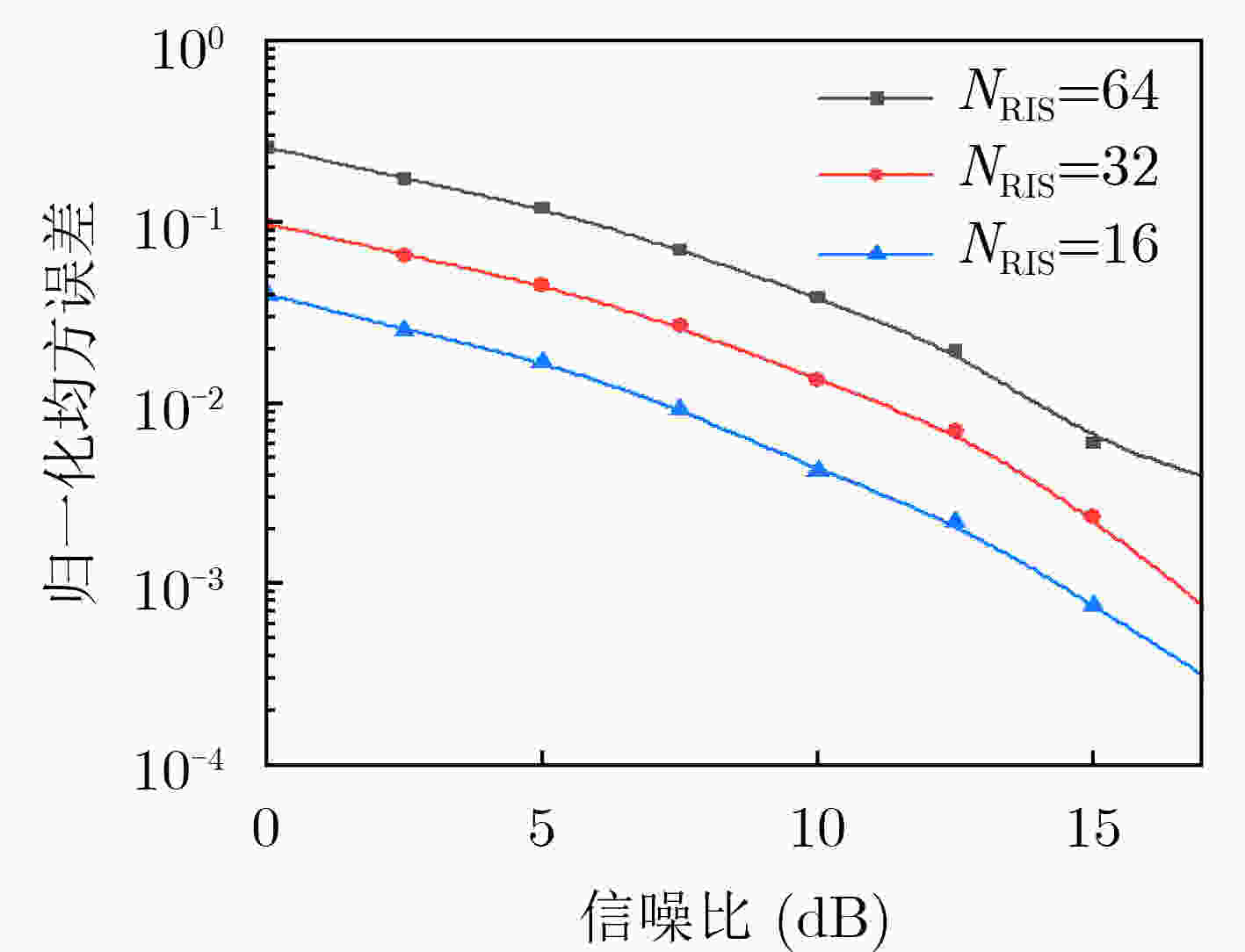

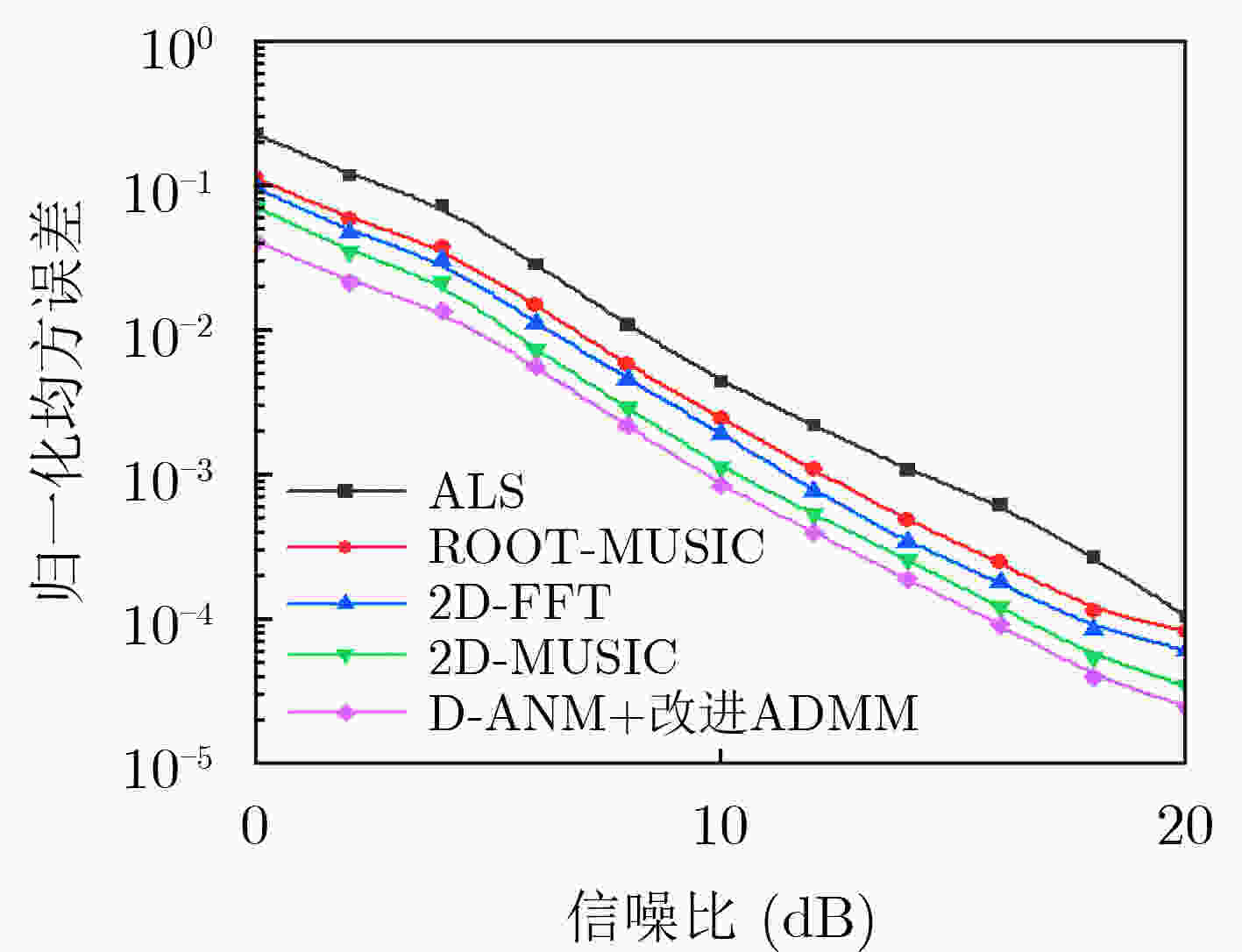

[1] LI Lianming, WANG Dongming, NIU Xiaokang, et al. mmWave communications for 5G: Implementation challenges and advances[J]. Science China Information Sciences, 2018, 61(2): 021301. doi: 10.1007/s11432-017-9262-8 [2] WU Qingqing, ZHANG Shuowen, ZHENG Beixiong, et al. Intelligent reflecting surface-aided wireless communications: A tutorial[J]. IEEE Transactions on Communications, 2021, 69(5): 3313–3351. doi: 10.1109/TCOMM.2021.3051897 [3] YANG Liang, MENG Fanxu, ZHANG Jiayi, et al. On the performance of RIS-assisted dual-hop UAV communication systems[J]. IEEE Transactions on Vehicular Technology, 2020, 69(9): 10385–10390. doi: 10.1109/TVT.2020.3004598 [4] HUANG Chongwen, ZAPPONE A, ALEXANDROPOULOS G C, et al. Reconfigurable intelligent surfaces for energy efficiency in wireless communication[J]. IEEE Transactions on Wireless Communications, 2019, 18(8): 4157–4170. doi: 10.1109/TWC.2019.2922609 [5] HUANG Chongwen, HU Sha, ALEXANDROPOULOS G C, et al. Holographic MIMO surfaces for 6G wireless networks: Opportunities, challenges, and trends[J]. IEEE Wireless Communications, 2020, 27(5): 118–125. doi: 10.1109/MWC.001.1900534 [6] YU Xianghao, XU Dongfang, SUN Ying, et al. Robust and secure wireless communications via intelligent reflecting surfaces[J]. IEEE Journal on Selected Areas in Communications, 2020, 38(11): 2637–2652. doi: 10.1109/JSAC.2020.3007043 [7] WANG Xinyi, FEI Zesong, ZHENG Zhong, et al. Joint waveform design and passive beamforming for RIS-assisted dual-functional radar-communication system[J]. IEEE Transactions on Vehicular Technology, 2021, 70(5): 5131–5136. doi: 10.1109/TVT.2021.3075497 [8] WEI Li, HUANG Chongwen, ALEXANDROPOULOS G C, et al. Channel estimation for RIS-empowered multi-user MISO wireless communications[J]. IEEE Transactions on Communications, 2021, 69(6): 4144–4157. doi: 10.1109/TCOMM.2021.3063236 [9] WANG Peilan, FANG Jun, DUAN Huiping, et al. Compressed channel estimation for intelligent reflecting surface-assisted millimeter wave systems[J]. IEEE Signal Processing Letters, 2020, 27: 905–909. doi: 10.1109/LSP.2020.2998357 [10] HU Chen, DAI Linglong, HAN Shuangfeng, et al. Two-timescale channel estimation for reconfigurable intelligent surface aided wireless communications[J]. IEEE Transactions on Communications, 2021, 69(11): 7736–7747. doi: 10.1109/TCOMM.2021.3072729 [11] HE Jiguang, WYMEERSCH H, and JUNTTI M. Channel estimation for RIS-aided mmWave MIMO systems via atomic norm minimization[J]. IEEE Transactions on Wireless Communications, 2021, 20(9): 5786–5797. doi: 10.1109/TWC.2021.3070064 [12] 傅友华, 陈栋. 混合智能反射表面结构辅助的毫米波通信信道估计[J]. 通信学报, 2021, 42(10): 189–196. doi: 10.11959/j.issn.1000-436x.2021197FU Youhua and CHEN Dong. Channel estimation for hybrid intelligent reflecting surface structure assisted mmWave communications[J]. Journal on Communications, 2021, 42(10): 189–196. doi: 10.11959/j.issn.1000-436x.2021197 [13] CHEN Xiao, SHI Jianfeng, YANG Zhaohui, et al. Low-complexity channel estimation for intelligent reflecting surface-enhanced massive MIMO[J]. IEEE Wireless Communications Letters, 2021, 10(5): 996–1000. doi: 10.1109/LWC.2021.3054004 [14] 蒲旭敏, 孙致南, 李静洁, 等. 可重构智能表面中低复杂度毫米波信道估计算法[J]. 电子与信息学报, 2022, 44(7): 2281–2288. doi: 10.11999/JEIT211602PU Xumin, SUN Zhinan, LI Jingjie, et al. A low complexity millimeter wave channel estimation algorithm in reconfigurable intelligent surface[J]. Journal of Electronics &Information Technology, 2022, 44(7): 2281–2288. doi: 10.11999/JEIT211602 [15] BHASKAR B N, TANG Gongguo, and RECHT B. Atomic norm denoising with applications to line spectral estimation[J]. IEEE Transactions on Signal Processing, 2013, 61(23): 5987–5999. doi: 10.1109/TSP.2013.2273443 [16] GRANT M and BOYD S. CVX: MATLAB software for disciplined convex programming[EB/OL]. http://cvxr.com/cvx, 2020. [17] WANG Qianli, ZHAO Zhiqin, and CHEN Zhuming. Fast compressive sensing DOA estimation via ADMM solver[C]. 2017 IEEE International Conference on Information and Automation (ICIA), Macao, China, 2017: 53–57. [18] WANG Yue, XU Ping, and TIAN Zhi. Efficient channel estimation for massive MIMO systems via truncated two-dimensional atomic norm minimization[C]. 2017 IEEE International Conference on Communications (ICC), Paris, France, 2017: 1–6. [19] CHEN Zhimin, CHEN Peng, GUO Ziyu, et al. A RIS-based passive DOA estimation method for integrated sensing and communication system[EB/OL]. https://doi.org/10.48550/arXiv.2204.11626, 2022. -
