一种基于合同理论的可激励联邦学习模型

王鑫; 李美庆; 王黎明; 余芸; 杨漾; 孙凌云

doi:10.11999/JEIT221081

一种基于合同理论的可激励联邦学习模型

doi: 10.11999/JEIT221081

王鑫^{1, 4, 5, ,},
李美庆²,
王黎明²,
余芸³,
杨漾³,
孙凌云^{4, 5}

1.
浙江工业大学计算机科学与技术学院杭州 310023
2.
西安电子科技大学计算机科学与技术学院西安 710071
3.
南方电网数字电网研究院有限公司广州 510663
4.
浙江大学南方电网人工智能创新联合研究中心杭州 310058
5.
浙江大学计算机科学与技术学院杭州 310058

基金项目: 国家重点研发计划 (2020YFB0906000, 2020YFB0906004)

详细信息

作者简介:
王鑫：男，副教授，硕士生导师，研究方向为数字孪生、智能电网、联邦学习等

李美庆：女，硕士生，研究方向为联邦学习、智能电网等

王黎明：男，副教授，研究方向为人工智能机器诊疗技术、工业智能视觉检测、航天系统软件关键技术

余芸：女，硕士，副高级工程师，研究方向为数字电网信息系统软件架构

杨漾：女，博士，高级经理，研究方向为数字电网信息系统软件架构

孙凌云：男，博士，教授，博士生导师，研究方向为人工智能、设计智能、信息与交互设计

通讯作者:
王鑫　xinw@zjut.edu.cn

中图分类号: TP181
计量
- 文章访问数: 598
- HTML全文浏览量: 197
- PDF下载量: 168
- 被引次数: 0
出版历程
- 收稿日期: 2022-08-16
- 修回日期: 2023-03-02
- 网络出版日期: 2023-03-03
- 刊出日期: 2023-03-10

An Incentivized Federated Learning Model Based on Contract Theory

WANG Xin^{1, 4, 5
, ,},
LI Meiqing²,
WANG Liming²,
YU Yun³,
YANG Yang³,
SUN Lingyun^{4, 5}

1.
College of Computer Science and Technology, Zhejiang University of Technology, Hangzhou 310023, China
2.
College of Computer Science and Technology, Xidian University, Xi’an 710071, China
3.
Digital Grid Research Institute Co. Ltd, China Southern Power Grid, Guangzhou 510663, China
4.
Zhejiang University-China Southern Power Grid Joint Research Centre on AI, Hangzhou 310058, China
5.
College of Computer Science and Technology, Zhejiang University, Hangzhou 310058, China

Funds: The National Key Research and Development Program of China(2020YFB0906000, 2020YFB0906004)

摘要

摘要: 针对目前较少研究去中心化联邦学习中的激励机制设计，且已有联邦学习激励机制较少以全局模型效果为出发点的现状，该文为去中心化联邦学习加入了基于合同理论的联邦学习激励机制，提出一种新的可激励的联邦学习模型。使用区块链与星际文件系统(IPFS)取代传统联邦学习的中央服务器，用于模型参数存储与分发，在此基础上使用一个合同发布者来负责合同的制定和发布，各个联邦学习参与方结合本地数据质量选择签订合同。每轮本地训练结束后合同发布者将对各个本地训练模型进行评估，若满足签订合同时约定的奖励发放条件则发放相应的奖励，同时全局模型的聚合也基于奖励结果进行模型参数的聚合。通过在MNIST数据集以及行业用电量数据集上进行实验验证，相比于传统联邦学习，加入激励机制后的联邦学习训练得到的全局模型效果更优，同时去中心化的结构也提高了联邦学习的鲁棒性。
- 联邦学习 /
- 激励机制 /
- 合同理论 /
- 去中心化 /
- 电力大数据
Abstract: In view of the fact that there is rare research on the incentive mechanism design in decentralized federated learning, and the existing incentive mechanisms for federated learning are seldom based on the global model effect, an incentive mechanism based on contract theory, is added into decentralized federated learning and a new incentivized federated learning model is proposed. A blockchain and an InterPlanetary File System (IPFS) are used to replace the central server of traditional federated learning for model parameter storage and distribution, based on which a contract publisher is responsible for contract formulation and distribution, and each federated learning participant chooses to sign a contract based on its local data quality. The contract publisher evaluates each local training model after each round of local training and issues a reward based on the agreed-upon conditions in the contract. The global model aggregation also aggregates model parameters based on the reward results. Experimental validation on the MNIST dataset and industry electricity consumption dataset show that the proposed incentivized federated learning model outperforms traditional federated learning and its decentralized structure improves its robustness.
- Federated learning /
- Incentive mechanism /
- Contract theory /
- Decentralization /
- Power big data

HTML全文

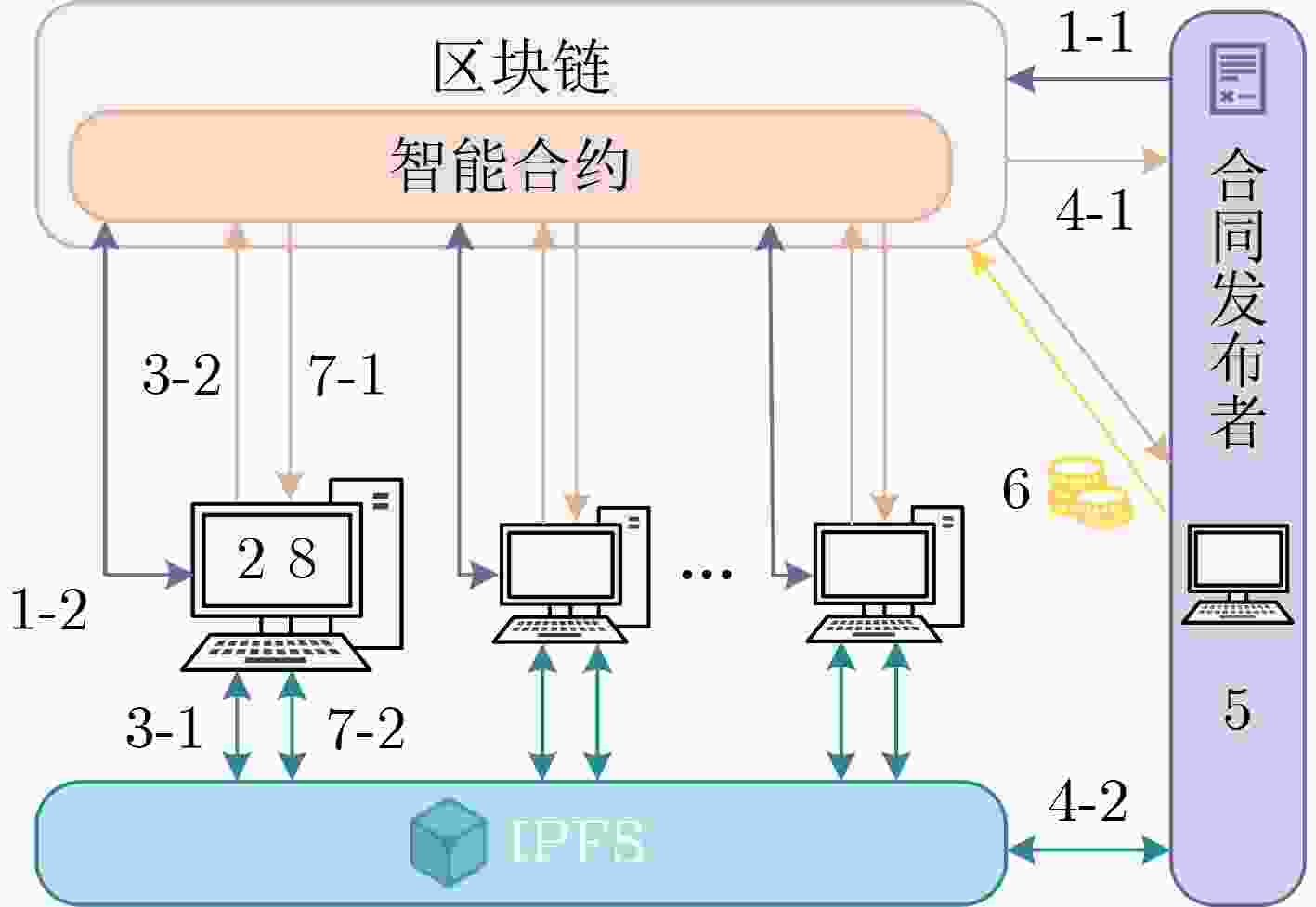

图 1 基于合同理论的可激励联邦学习模型训练步骤图

下载: 全尺寸图片幻灯片

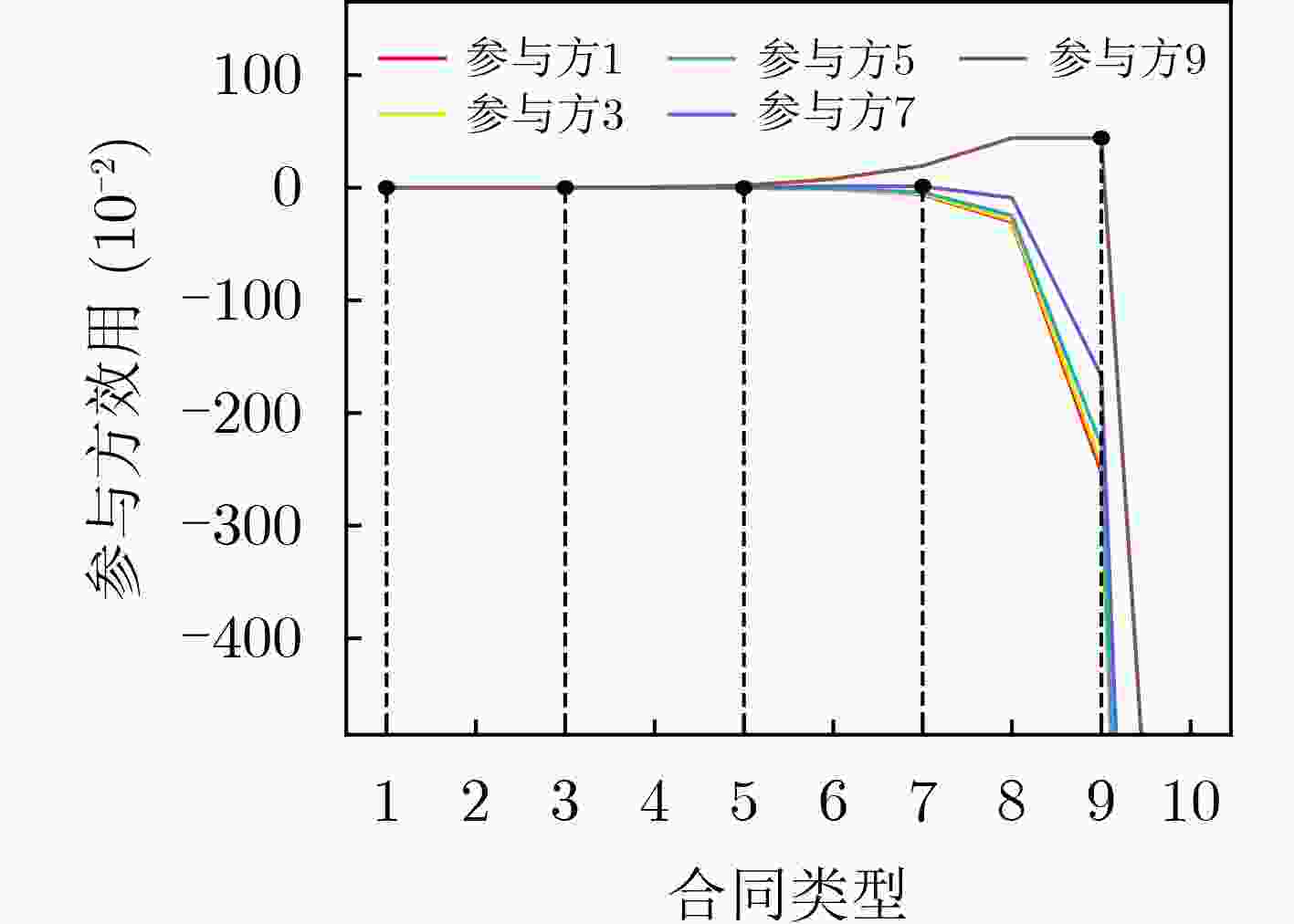

图 2 基于MNIST数据集实验参与方效用展示图

下载: 全尺寸图片幻灯片

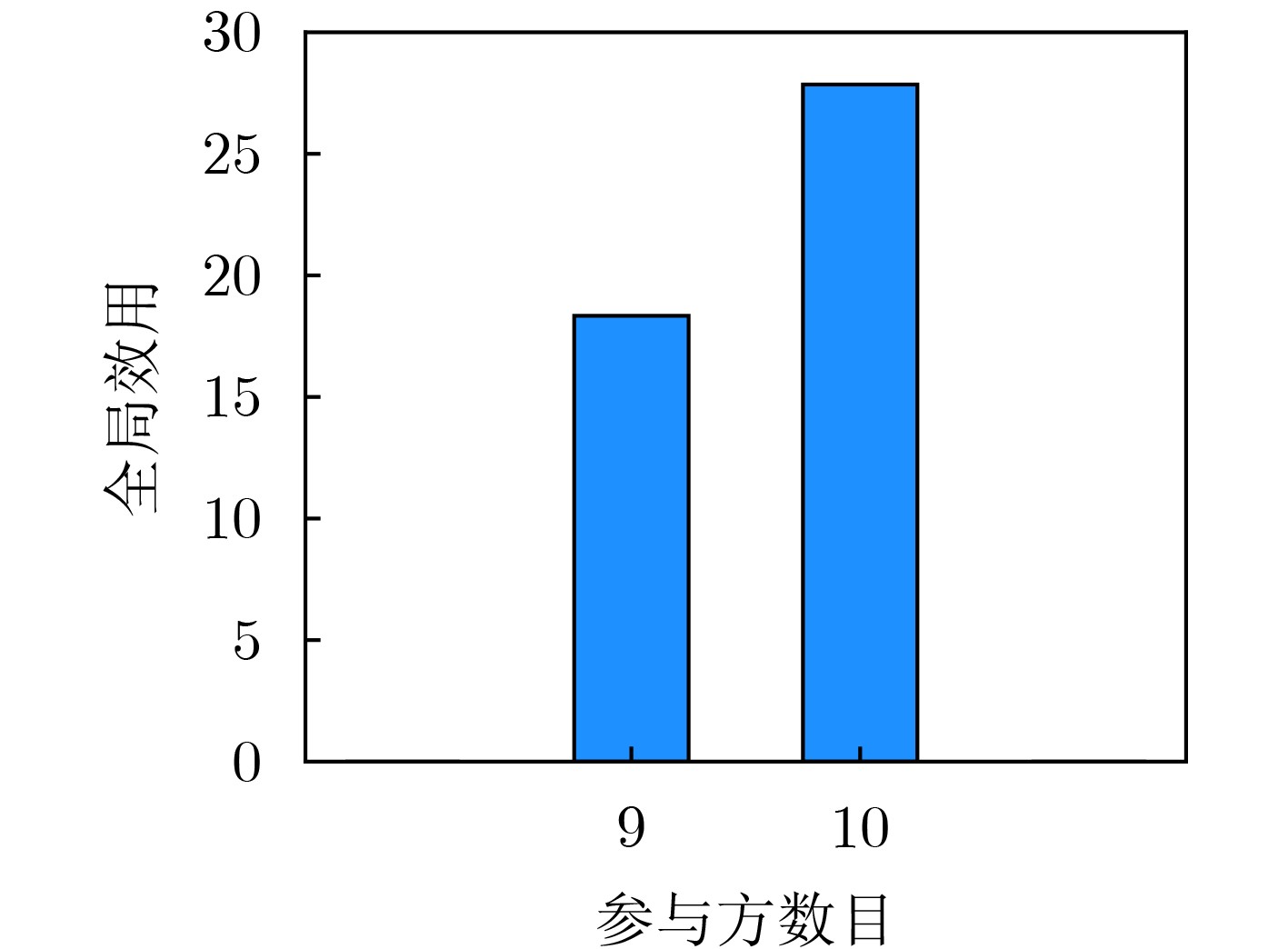

图 3 基于MNIST数据集实验全局效用展示图

下载: 全尺寸图片幻灯片

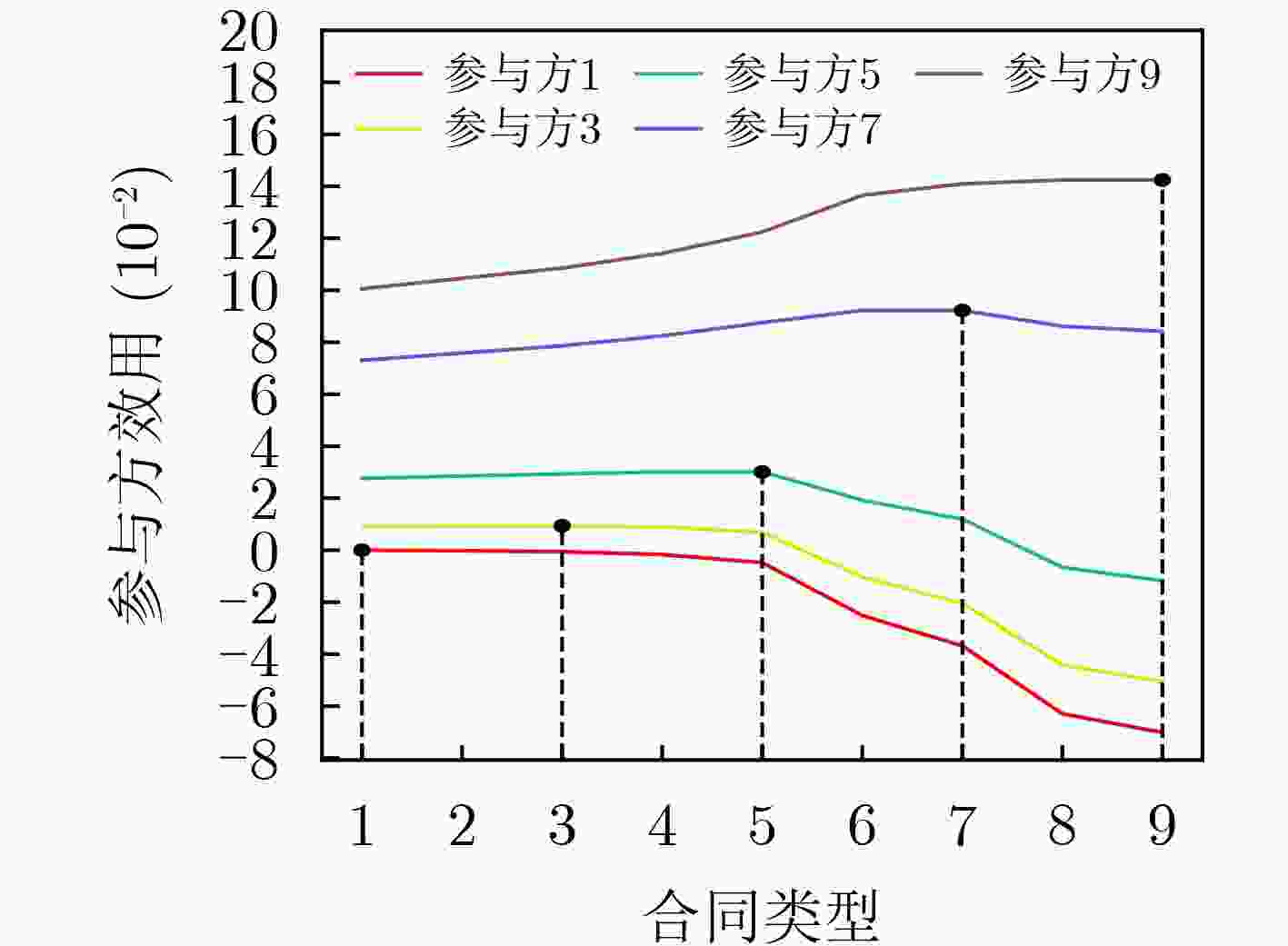

图 4 基于行业用电量数据实验参与方效用展示图

下载: 全尺寸图片幻灯片

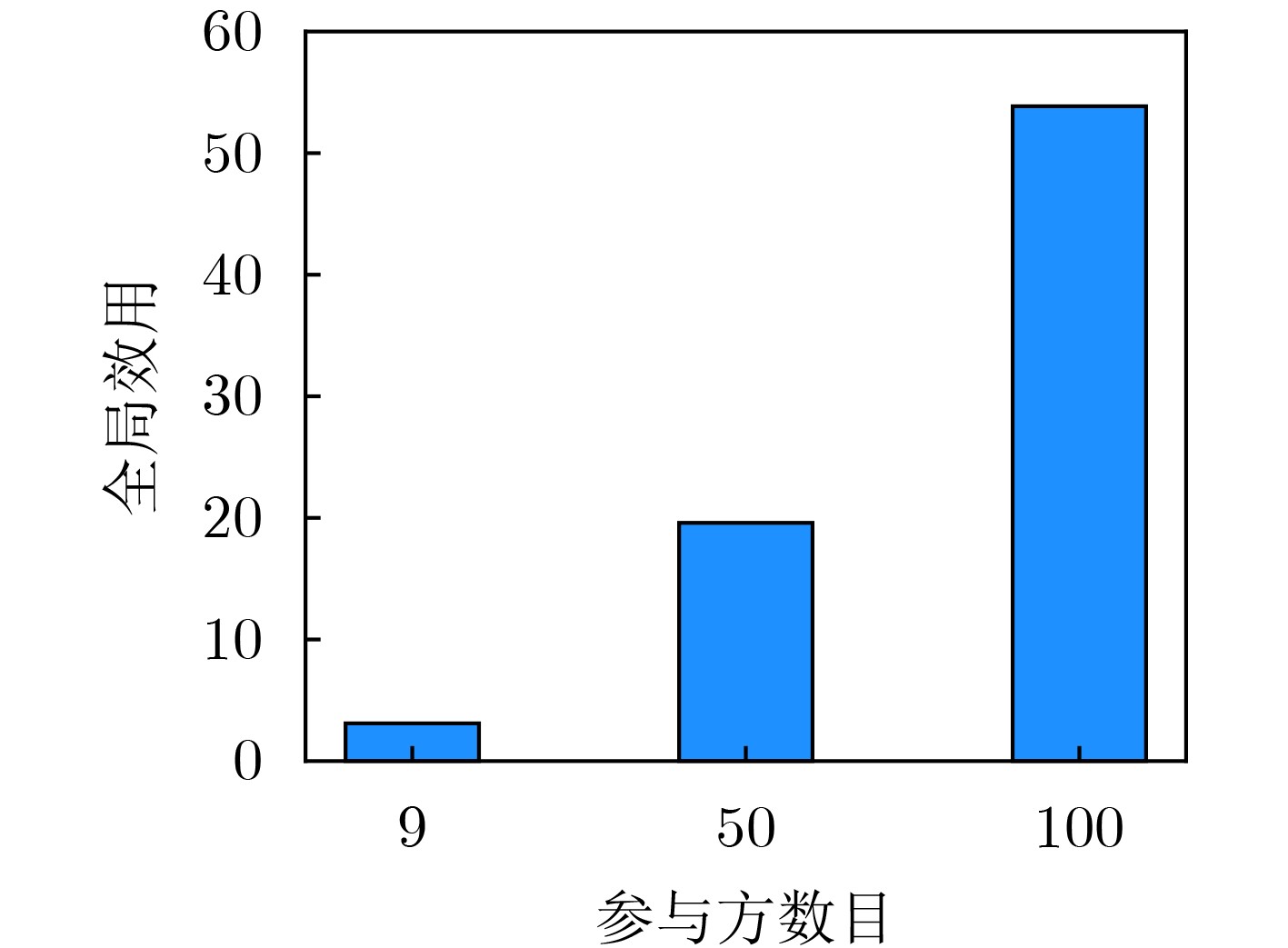

图 5 基于行业用电量数据实验全局效用展示图

下载: 全尺寸图片幻灯片

表 1 MNIST数据各组实验参与方数据设置情况表

实验编号	参与方数目	数据不均匀比例	数据数量
1	9	0.8	[1500, 2000, 2500, 3500, 5000, 7000, 9500, 13000, 16000]
2	10	0.8	[1000, 1500, 2000, 2500, 3500, 5000, 6500, 8500, 12000, 17500]
3	10	0.9	[1000, 1500, 2000, 2500, 3500, 5000, 6500, 8500, 12000, 17500]

下载: 导出CSV

表 2 MNIST数据各组实验合同设置情况表

实验编号	合同数目	参与方数据质量	模型准确率标准线	合同注册费	合同奖励
1	9	[0.1500, 0.2000, 0.2500, 0.3500, 0.5000, 0.7000, 0.9500, 1.3000, 1.6000]	[0.0075, 0.0100, 0.0125, 0.0175, 0.0250, 0.0350, 0.0475, 0.0650, 0.0800]	[0.00001, 0.00006, 0.00020, 0.00156, 0.01343, 0.10045, 0.61885, 4.06914, 13.53474]	[0.2250, 0.4000, 0.6250, 1.2250, 2.5000, 4.9000, 9.0250, 16.9000, 25.6000]
2	10	[0.1000, 0.1500, 0.2000, 0.2500, 0.3500, 0.5000, 0.6500, 0.8500, 1.2000, 1.7500]	[0.0050, 0.0075, 0.0100, 0.0125, 0.0175, 0.0250, 0.0325, 0.0425, 0.0600, 0.0875]	[0.000001, 0.00001, 0.00005, 0.00019, 0.00155, 0.01342, 0.06243, 0.31061, 2.54491, 24.91741]	[0.1000, 0.2250, 0.4000, 0.6250, 1.2250, 2.5000, 4.2250, 7.2250, 14.4000, 30.6250]
3	10	[0.1000, 0.1500, 0.2000, 0.2500, 0.3500, 0.5000, 0.6500, 0.8500, 1.2000, 1.7500]	[0.0050, 0.0075, 0.0100, 0.0125, 0.0175, 0.0250, 0.0325, 0.0425, 0.0600, 0.0875]	[0.000001, 0.00001, 0.00005, 0.00019, 0.00155, 0.01342, 0.06243, 0.31061, 2.54491, 24.91741]	[0.1000, 0.2250, 0.4000, 0.6250, 1.2250, 2.5000, 4.2250, 7.2250, 14.4000, 30.6250]

下载: 导出CSV

表 3 MNIST数据各组实验结果对照表

实验编号	传统联邦学习(FedAvg聚合)全局模型准确率	传统联邦学习(FedProx聚合)全局模型准确率	传统联邦学习(SCAFFOLD聚合)全局模型准确率	本文可激励联邦学习(奖励比例聚合)全局模型准确率
1	0.8945	0.8958	0.8971	0.9031
2	0.8933	0.8961	0.8973	0.9003
3	0.7790	0.78310.7905	0.7905	0.8022

下载: 导出CSV

表 4 行业用电量数据各组实验合同设置情况表

实验编号	合同数目	参与方数据质量	模型测试标准线	合同注册费	合同奖励
1	9	[0.7766, 0.7855, 0.7944, 0.8055, 0.8251, 0.8757, 0.8967, 0.9297, 0.9386]	[0.0388, 0.0393, 0.0397, 0.0403, 0.0413, 0.0438, 0.0448, 0.0465, 0.0469]	[0.2187, 0.2305, 0.2405, 0.2564, 0.2860, 0.3806, 0.4253, 0.5148, 0.5378]	[6.0218, 6.1780, 6.3044, 6.4964, 6.8228, 7.6738, 8.0282, 8.6490, 8.7984]
2	50	[0.5074, 0.5076, 0.5206, 0.6992, 0.7312, 0.7550, 0.7812, 0.8709, 0.8723, 0.8750, ···]	[0.0254, 0.0254, 0.0260, 0.0350, 0.0366, 0.0378, 0.0391, 0.0435, 0.0436, 0.0438, ···]	[0.0171, 0.0171, 0.0189, 0.1005, 0.1256, 0.1481, 0.1770, 0.3279, 0.3319, 0.3401, ···]	[2.5806, 2.5806, 2.7040, 4.9000, 5.3582, 5.7154, 6.1152, 7.5690, 7.6038, 7.6738, ···]
3	100	[0.5460, 0.5460, 0.6424, 0.7820, 0.7881, 0.8711, 0.8749, 0.8860, 0.8971, 0.9042, ···]	[0.0273, 0.0273, 0.0321, 0.0391, 0.0394, 0.0436, 0.0437, 0.0443, 0.0449, 0.0452, ···]	[0.0265, 0.0265, 0.0599, 0.1847, 0.1919, 0.3381, 0.3422, 0.3679, 0.3953, 0.4097, ···]	[2.9812, 2.9812, 4.1216, 6.1152, 6.2094, 7.6038, 7.6388, 7.8500, 8.0640, 8.1722, ···]

下载: 导出CSV

表 5 行业用电量数据各组实验设置与结果对照表

实验编号	参与方数目	传统联邦学习(FedAvg聚合)全局模型RMSE	传统联邦学习(FedProx聚合)全局模型RMSE	传统联邦学习(SCAFFOLD聚合)全局模型RMSE	本文可激励联邦学习(奖励比例聚合)全局模型RMSE
1	9	0.143608	0.140512	0.139842	0.135423
2	50	0.135517	0.135411	0.135375	0.135252
3	100	0.135652	0.135508	0.135419	0.135396

下载: 导出CSV
