面向遥感图像场景分类的双知识蒸馏模型

李大湘 南艺璇 刘颖

李大湘, 南艺璇, 刘颖. 面向遥感图像场景分类的双知识蒸馏模型[J]. 电子与信息学报, 2023, 45(10): 3558-3567. doi: 10.11999/JEIT221017
引用本文: 李大湘, 南艺璇, 刘颖. 面向遥感图像场景分类的双知识蒸馏模型[J]. 电子与信息学报, 2023, 45(10): 3558-3567. doi: 10.11999/JEIT221017
LI Daxiang, NAN Yixuan, LIU Ying. A Double Knowledge Distillation Model for Remote Sensing Image Scene Classification[J]. Journal of Electronics & Information Technology, 2023, 45(10): 3558-3567. doi: 10.11999/JEIT221017
Citation: LI Daxiang, NAN Yixuan, LIU Ying. A Double Knowledge Distillation Model for Remote Sensing Image Scene Classification[J]. Journal of Electronics & Information Technology, 2023, 45(10): 3558-3567. doi: 10.11999/JEIT221017

面向遥感图像场景分类的双知识蒸馏模型

doi: 10.11999/JEIT221017
基金项目: 国家自然科学基金(62071379),陕西省自然科学基金(2017KW-013), 西安邮电大学创新基金(CXJJYL2021055, YJGJ201902)
详细信息
    作者简介:

    李大湘:男,博士,副教授,研究方向为遥感图像分类、目标检测与跟踪、医学图像识别、多实例学习与深度学习等

    南艺璇:女,硕士生,研究方向为遥感图像分类、图像分割、图像检索、机器学习与模式识别

    刘颖:女,博士,高级工程师,研究方向为图像识别与机器学习等

    通讯作者:

    南艺璇 1010367243@qq.com

  • 中图分类号: TN911.73; TP751

A Double Knowledge Distillation Model for Remote Sensing Image Scene Classification

Funds: The National Natural Science Foundation of China (62071379), The Natural Science Foundation of Shaanxi Province (2017KW-013), The Innovation Foundation of Xi’an University of Posts and Telecommunications (CXJJYL2021055, YJGJ201902)
  • 摘要: 为了提高轻型卷积神经网络(CNN)在遥感图像(RSI)场景分类任务中的精度,该文设计一个双注意力(DA)与空间结构(SS)相融合的双知识蒸馏(DKD)模型。首先,构造新的DA模块,将其嵌入到ResNet101与设计的轻型CNN,分别作为教师与学生网络;然后,构造DA蒸馏损失函数,将教师网络中的DA知识迁移到学生网络之中,从而增强其对RSI的局部特征提取能力;最后,构造SS蒸馏损失函数,将教师网络中的语义提取能力以空间结构的形式迁移到学生网络,以增强其对RSI的高层语义表示能力。基于两个标准数据集AID和NWPU-45的对比实验结果表明,在训练比例为20%的情况下,经知识蒸馏之后的学生网络性能分别提高了7.69%和7.39%,且在参量更少的情况下性能也优于其他方法。
  • 图  1  设计的DKD模型框架结构示意图

    图  2  双注意力(DA)模块架构示意图

    图  3  教师网络训练3元孪生框架示意图

    图  4  SS知识蒸馏

    图  5  AID数据集训练比例为20%时的混淆矩阵

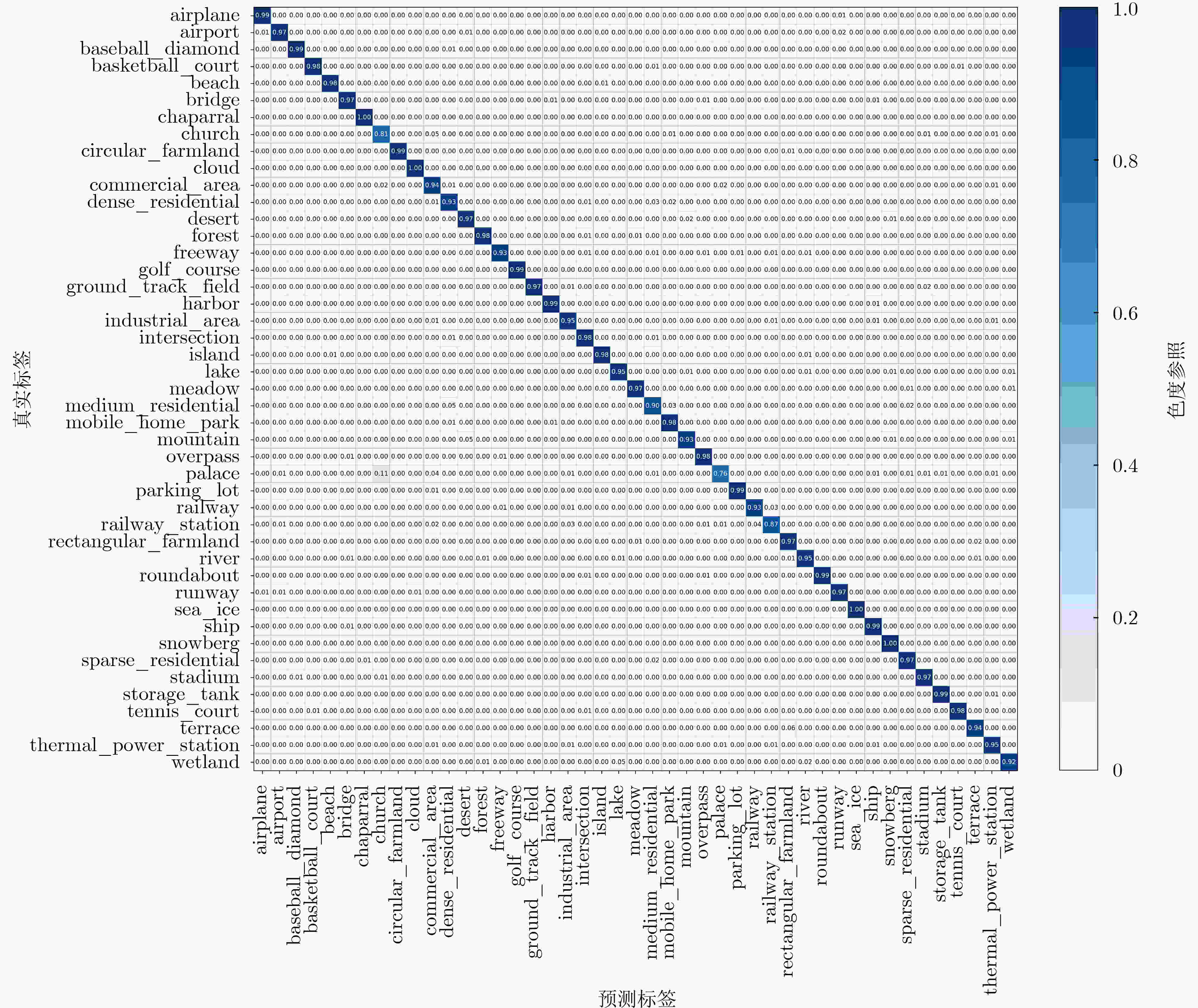

    图  6  NWPU-45数据集训练比例为20%时的混淆矩阵

    图  7  使用Grad-CAM进行可视化对比

    表  1  学生网络具体参数设计

    网络层名输出尺寸计算方法
    Conv1112×1127×7,64,stride=2
    DA112×112DA模块
    Conv2_x56×563×3 max pool, stride=2
    [3×3, 64; 3×3,64]
    Conv3_x28×28[3×3, 128; 3×3,64]
    Conv4_x14×14[3×3, 256; 3×3,64]
    Conv5_x7×7[3×3, 512; 3×3,64]
    1×1average pool,45-d fc, softmax
