基于电磁能量收集的无源WiFi物联网散射通信

刘鑫 谢桂辉 唐晓庆

刘鑫, 谢桂辉, 唐晓庆. 基于电磁能量收集的无源WiFi物联网散射通信[J]. 电子与信息学报. doi: 10.11999/JEIT220951
引用本文: 刘鑫, 谢桂辉, 唐晓庆. 基于电磁能量收集的无源WiFi物联网散射通信[J]. 电子与信息学报. doi: 10.11999/JEIT220951
LIU Xin, XIE Guihui, TANG Xiaoqing. Passive WiFi Internet of Things Backscatter Communication Based on Electromagnetic Energy Harvesting[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT220951
Citation: LIU Xin, XIE Guihui, TANG Xiaoqing. Passive WiFi Internet of Things Backscatter Communication Based on Electromagnetic Energy Harvesting[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT220951

基于电磁能量收集的无源WiFi物联网散射通信

doi: 10.11999/JEIT220951
基金项目: 湖北省自然科学基金(2022CFB379),中山市科技计划项目(2019AG032)
详细信息
    作者简介:

    刘鑫:女,工程师,研究方向为物联网通信、低功耗传感

    谢桂辉:男,讲师,研究方向为射频隐身通信、物联网、保密通信

    唐晓庆:男,副教授,研究方向为无源物联网系统、低功耗物联网散射通信

    通讯作者:

    刘鑫 1163021312@qq.com

  • 中图分类号: TN92

Passive WiFi Internet of Things Backscatter Communication Based on Electromagnetic Energy Harvesting

Funds: The Natural Science Foundation of Hubei Province (2022CFB379), Zhongshan Science and Technology Plan Project (2019AG032)
  • 摘要: 为解决传统的物联网(IoT)通信设备功耗大、需要人工定期维护、频繁更换电池等问题,该文提出一种基于电磁波能量收集的无源WiFi物联网散射通信方法。该方法基于低功耗微处理器实现WiFi反向散射通信,同时利用自身收集的电磁波能量实现系统自供电,具有功耗低、无需电池、体积小、成本低、免人工维护、容易大量部署等诸多优势,可广泛用于物联网领域。

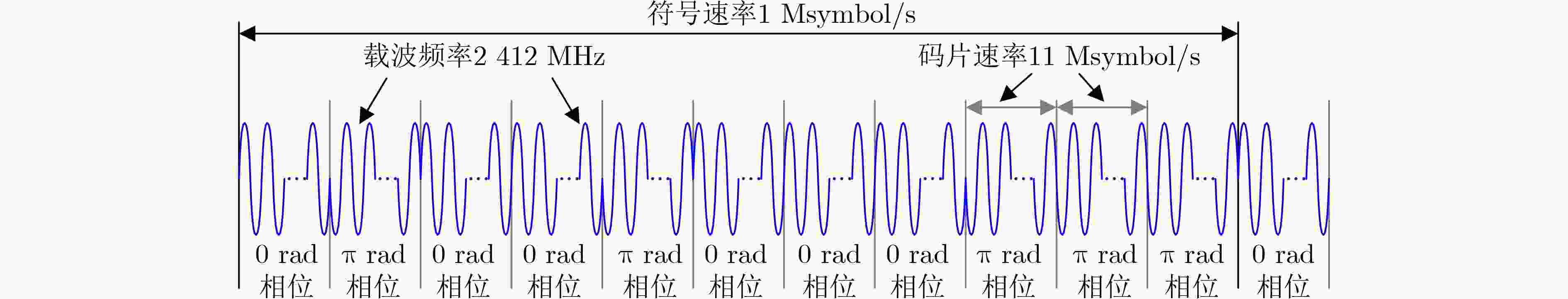

  • 图  1  典型的WiFi信号时域波形

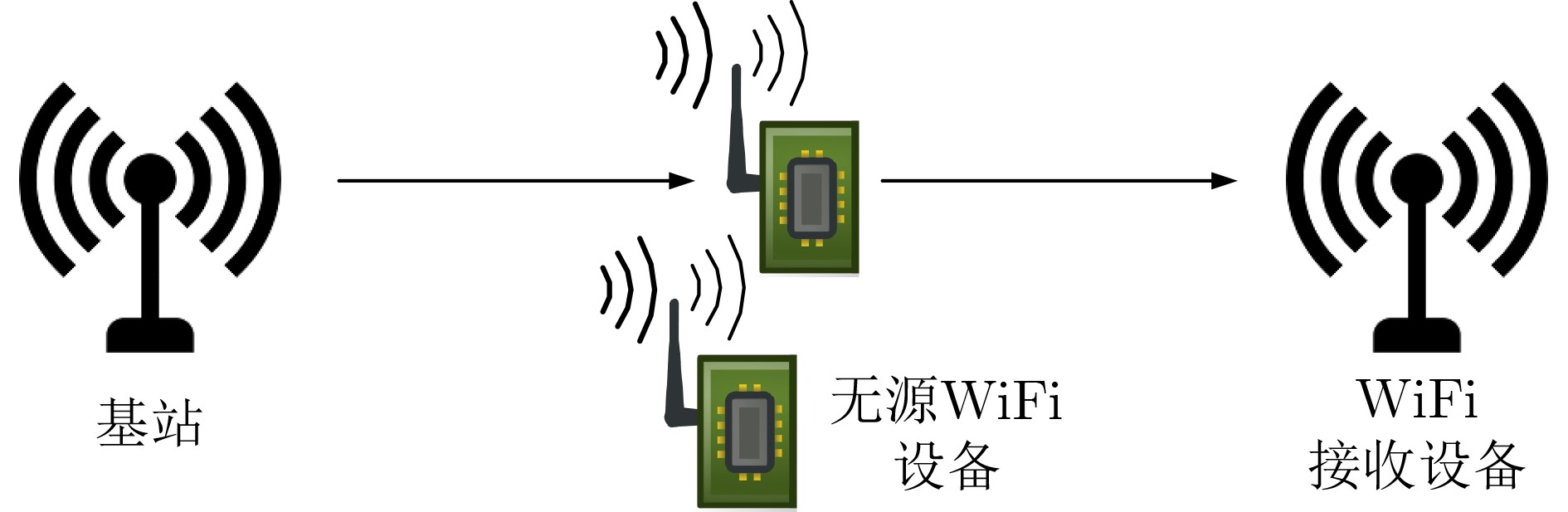

    图  2  基于MCU的无源WiFi通信系统组成

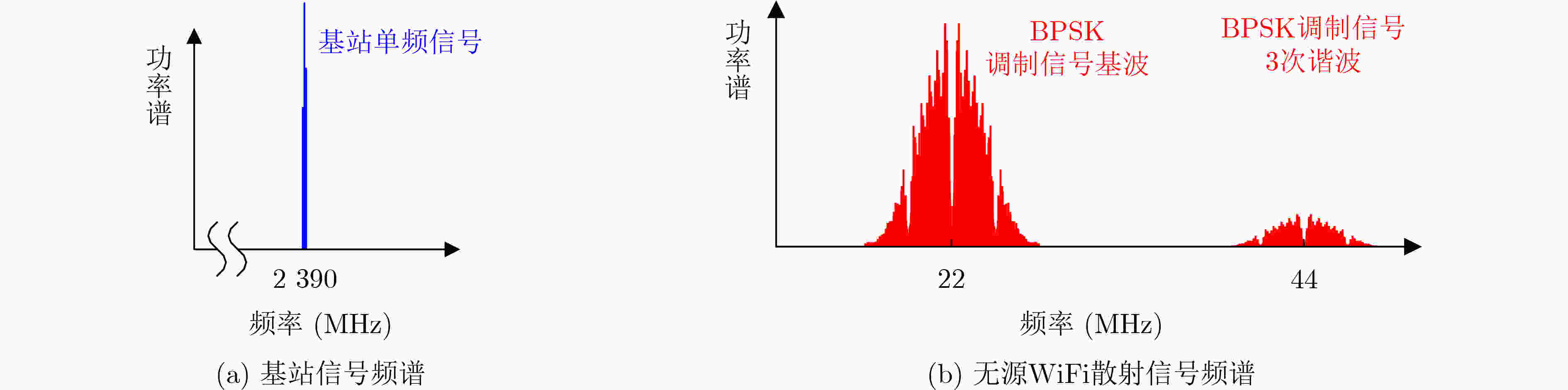

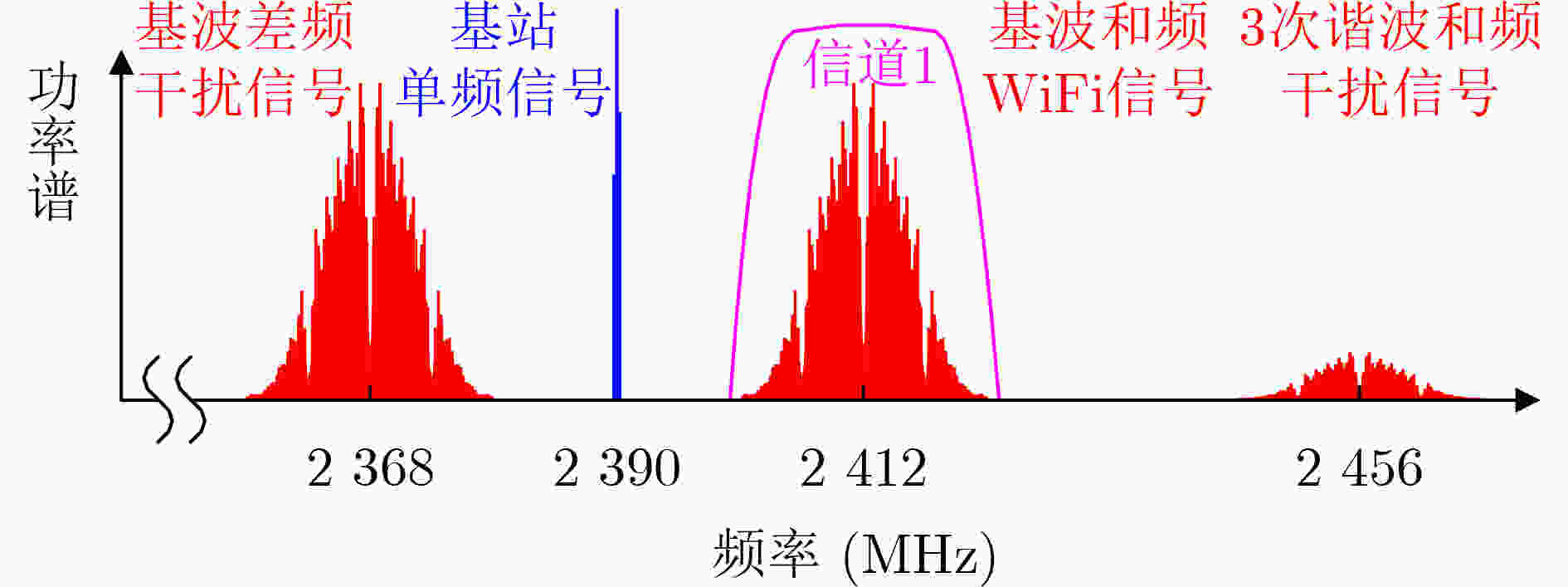

    图  3  无源WiFi发射端信号频谱

    图  4  无源WiFi接收端信号频谱

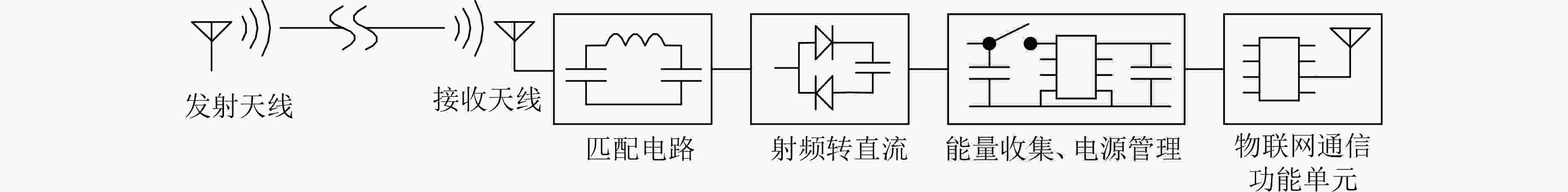

    图  5  典型的基于射频能量收集的无源物联网通信设备组成框图

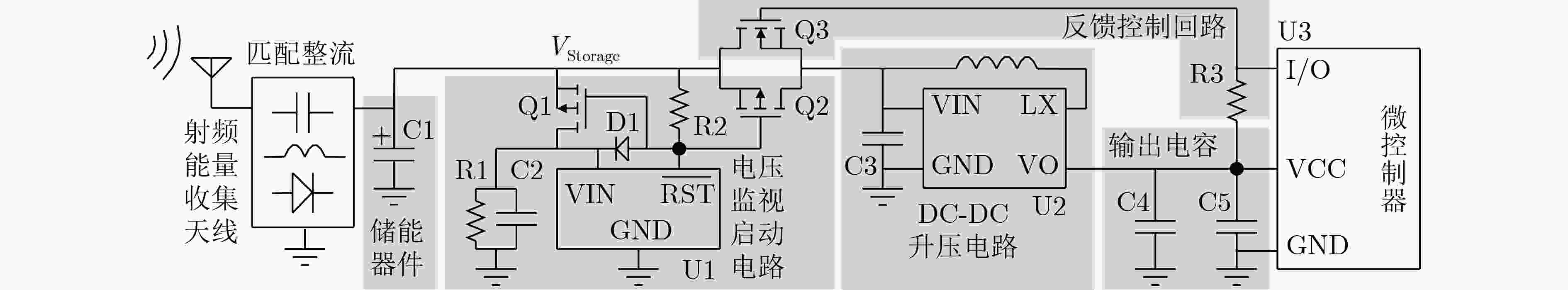

    图  6  低功耗启动和电源管理电路方案

    图  7  WiFi散射通信流程

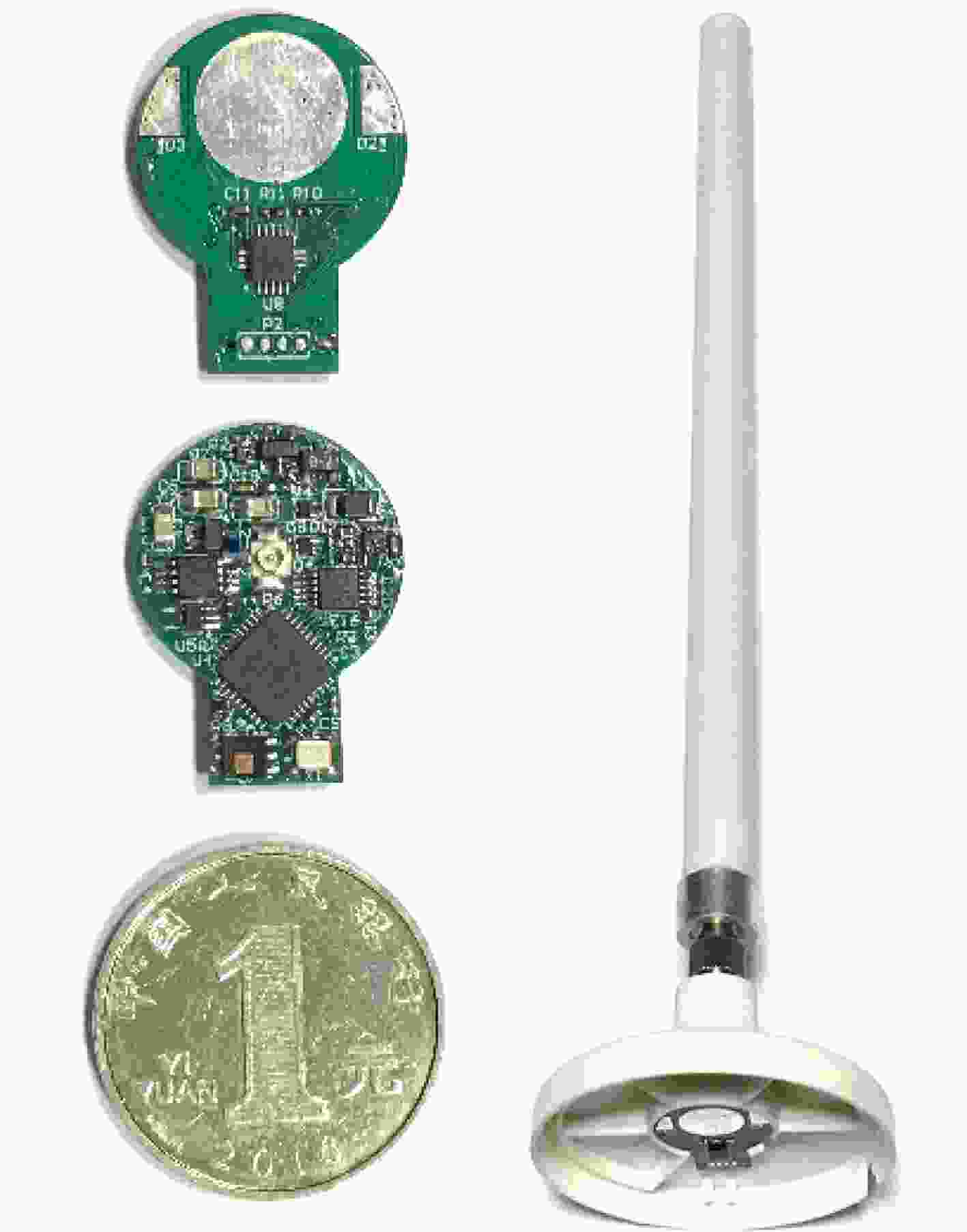

    图  8  无源WiFi通信设备原型样机

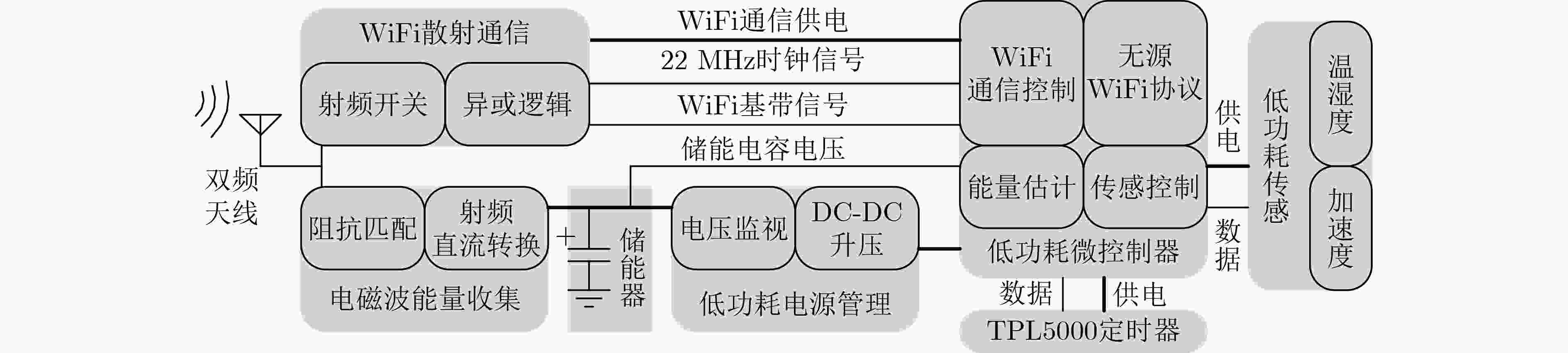

    图  9  无源WiFi通信设备核心板的组成及原理框图

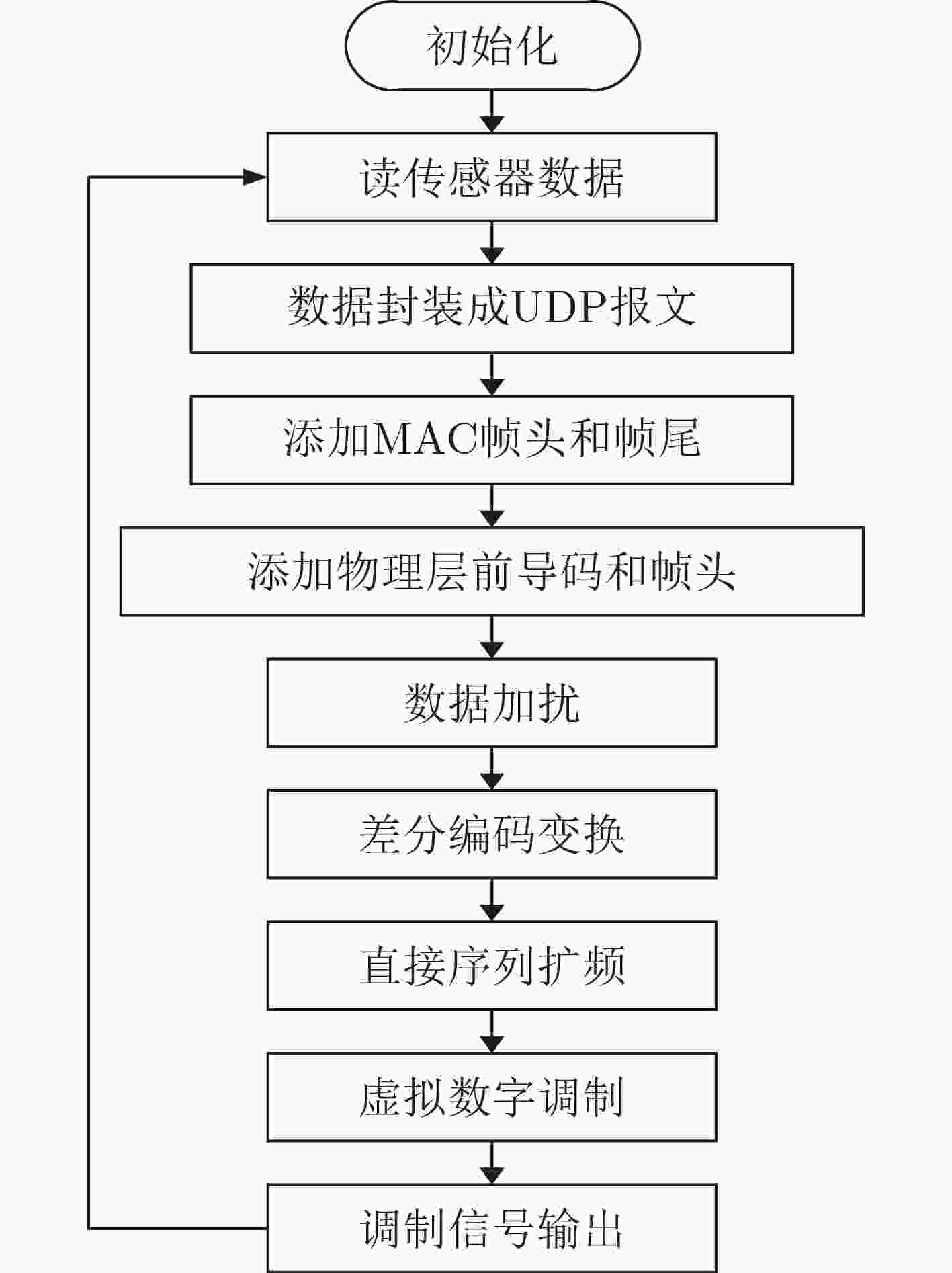

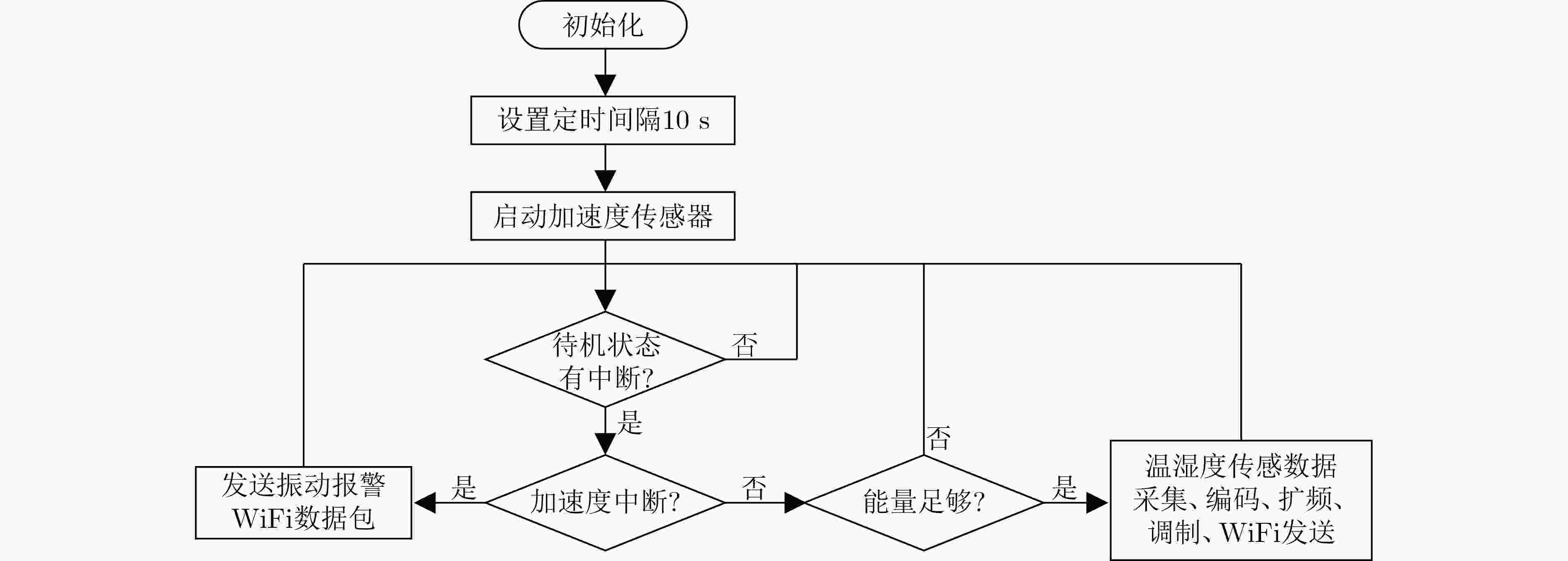

    图  10  无源WiFi传感节点的程序流程图

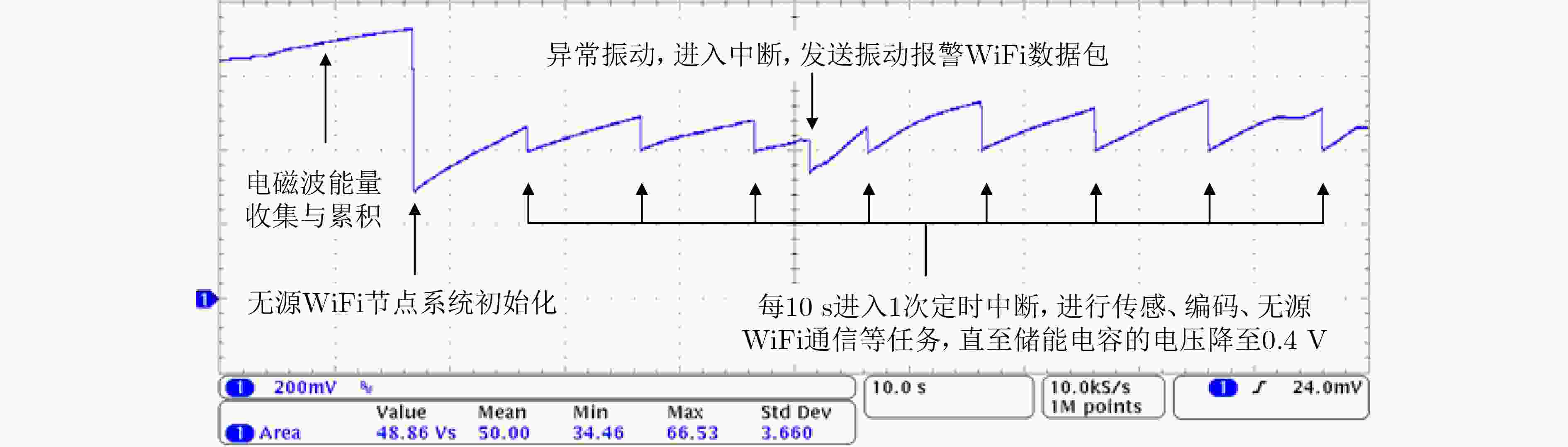

    图  11  无源WiFi传感节点的能量收集和电源管理功能测试

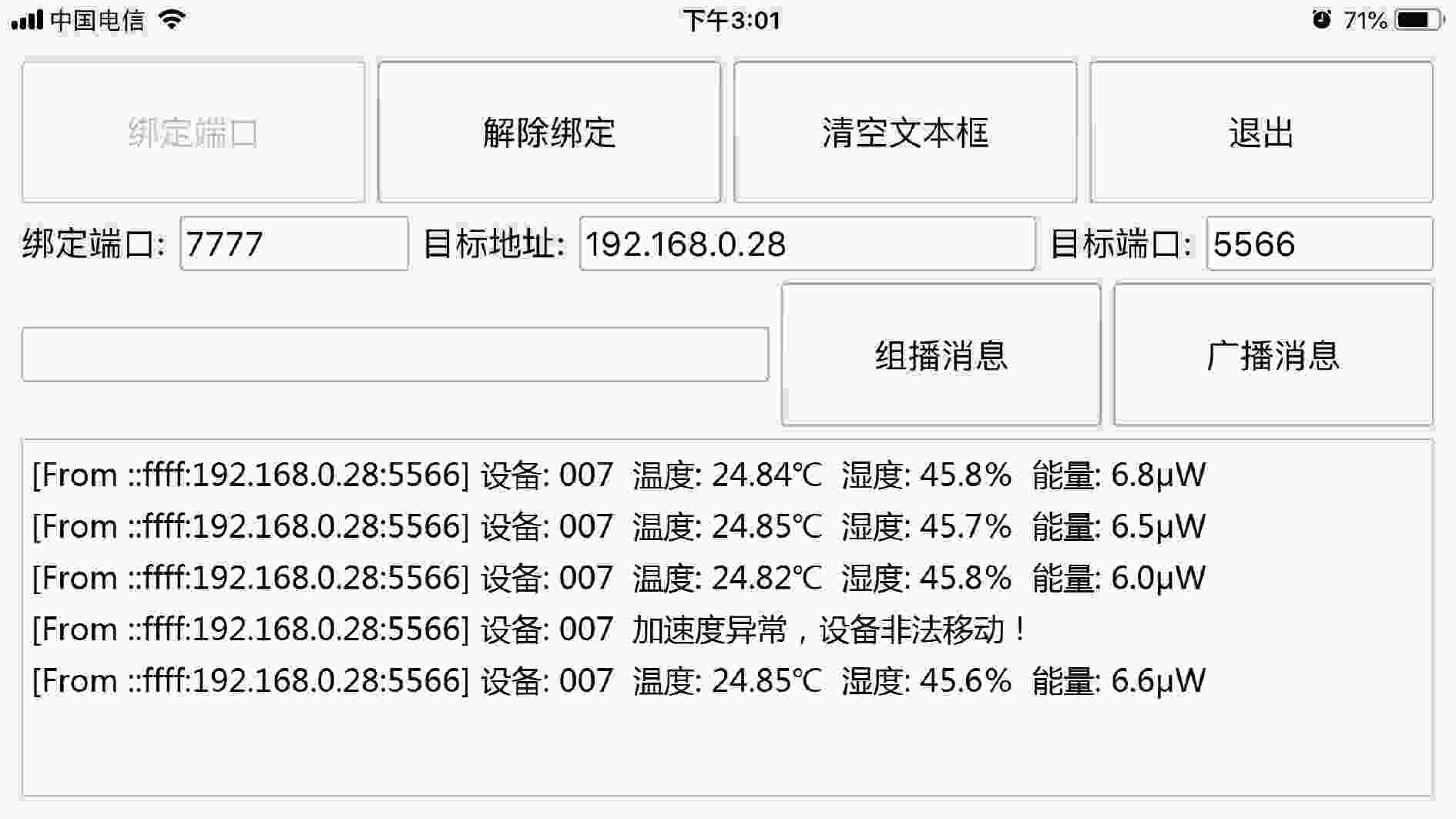

    图  12  无源WiFi散射通信功能测试

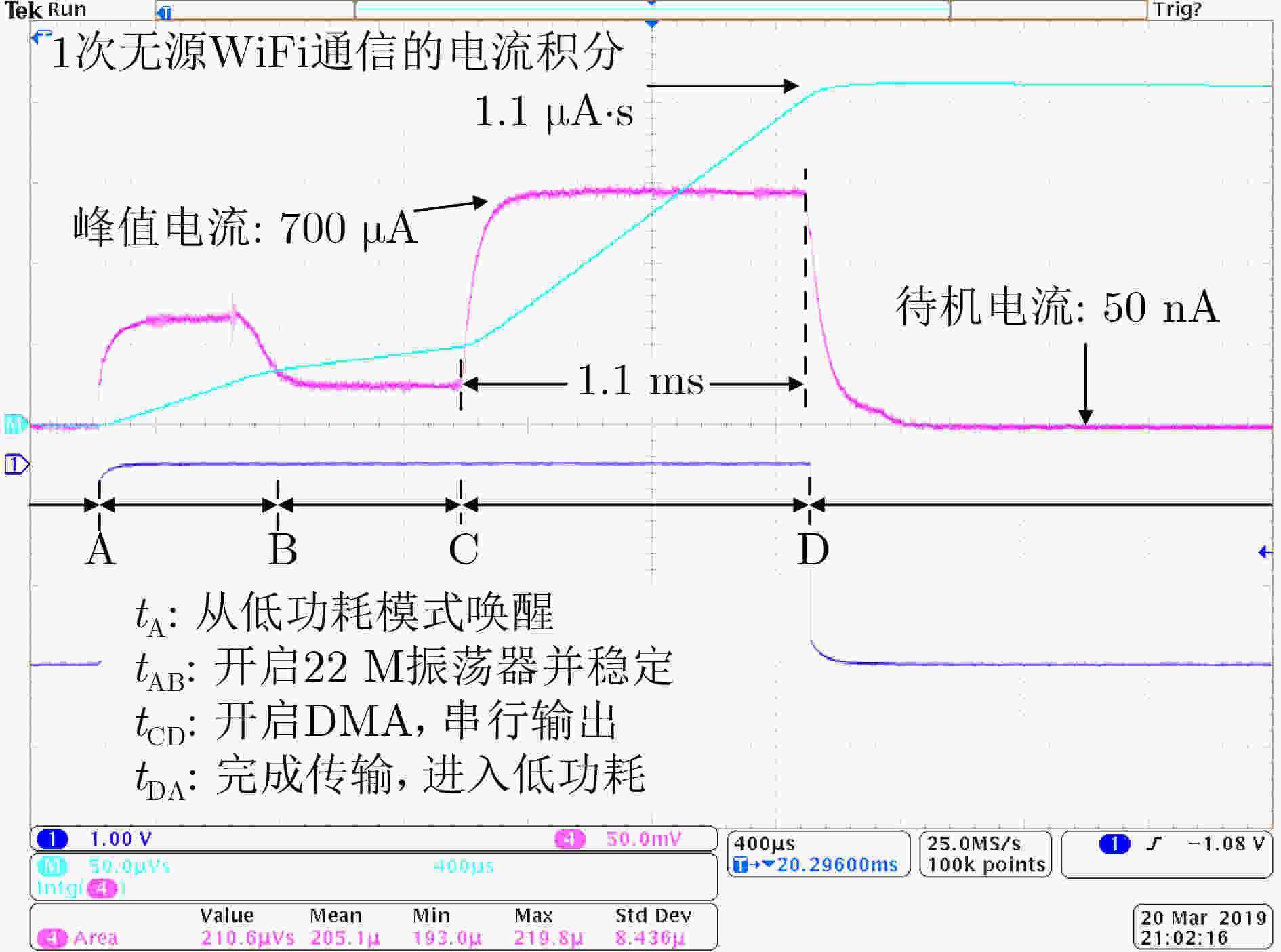

    图  13  无源WiFi散射通信功耗的测试结果

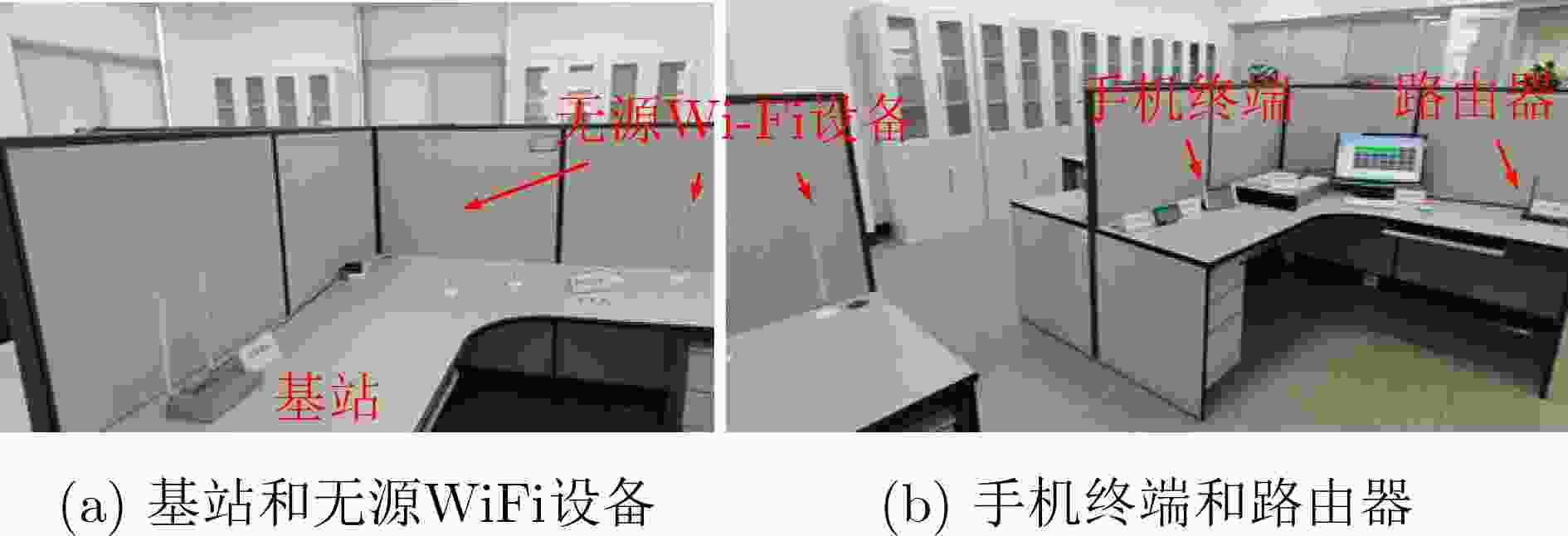

    图  14  无源WiFi散射通信测试现场

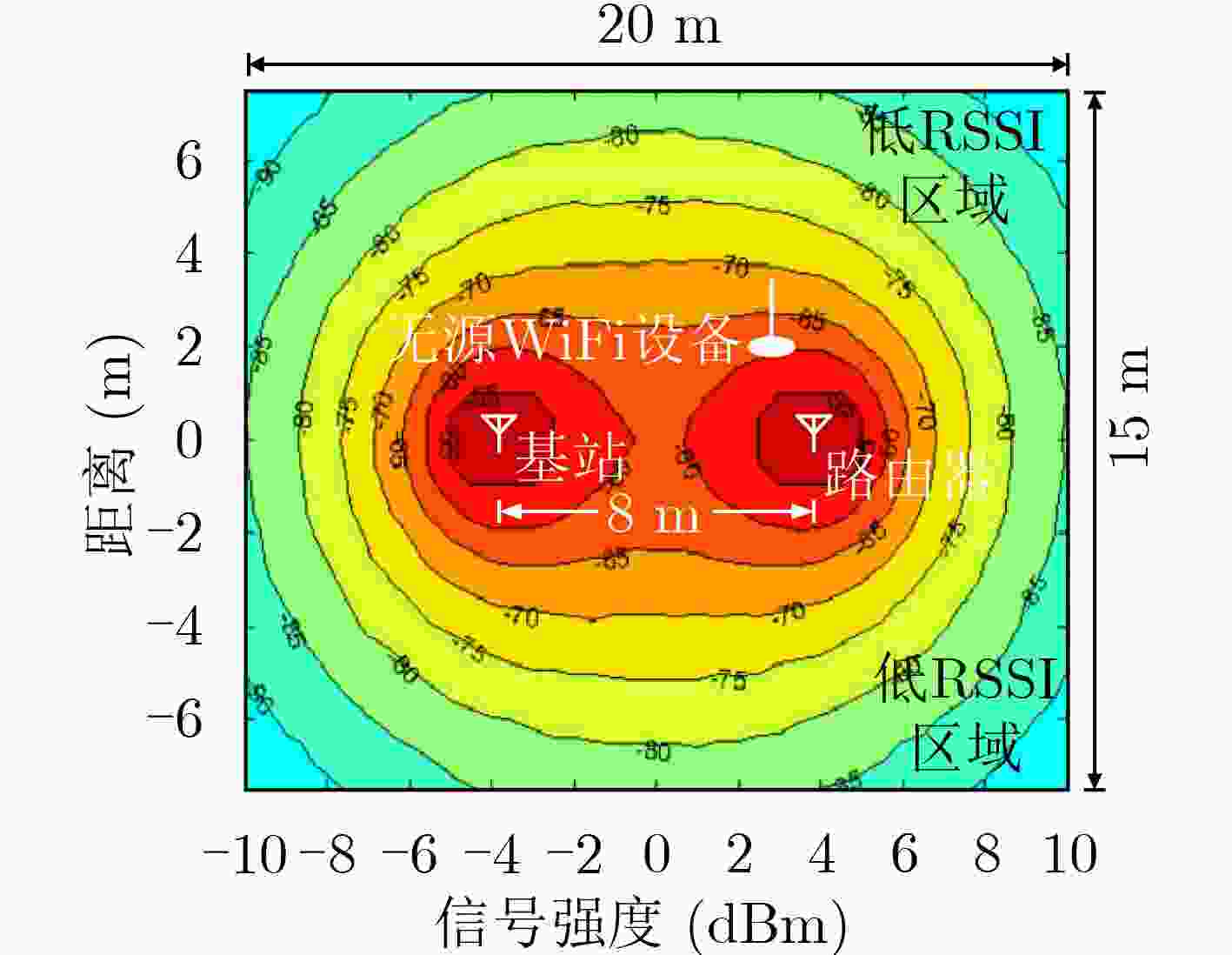

    图  15  无源WiFi散射通信范围测试结果

    表  1  散射通信技术性能对比

    散射通信技术样机供电样机处理器通信功耗通信速率通信距离(m)
    2016 Passive WiFi [10]市电ASIC/FPGA15~59 μW(仿真)1~11 Mbps9~30
    2017 BLE Backscatter[15]纽扣电池MCU623 μA(样机)1 Mbps13~30
    2020 PV-RFID[21]无源EM432510~45 μW(样机)64~320 kbps4
    2021 RBLE[16]市电ASIC/FPGA37 μW(仿真)17.4 kbps56
    2022 TD FM[22]纽扣电池MCU150 μW(样机)1 kbps20
    本文无源MCU700 μA(样机)1 Mbps15
    下载: 导出CSV
