采用单水听器匀速直线运动直升机三维参数估计算法

张华霞 王惠刚 孙伟涛 古清月 荣少巍

张华霞, 王惠刚, 孙伟涛, 古清月, 荣少巍. 采用单水听器匀速直线运动直升机三维参数估计算法[J]. 电子与信息学报, 2023, 45(6): 2180-2187. doi: 10.11999/JEIT220693
引用本文: 张华霞, 王惠刚, 孙伟涛, 古清月, 荣少巍. 采用单水听器匀速直线运动直升机三维参数估计算法[J]. 电子与信息学报, 2023, 45(6): 2180-2187. doi: 10.11999/JEIT220693
ZHANG Huaxia, WANG Huigang, SUN Weitao, GU Qingyue, RONG Shaowei. 3D Parameters Estimation of Helicopter with Constant Speed Using Single Hydrophone[J]. Journal of Electronics & Information Technology, 2023, 45(6): 2180-2187. doi: 10.11999/JEIT220693
Citation: ZHANG Huaxia, WANG Huigang, SUN Weitao, GU Qingyue, RONG Shaowei. 3D Parameters Estimation of Helicopter with Constant Speed Using Single Hydrophone[J]. Journal of Electronics & Information Technology, 2023, 45(6): 2180-2187. doi: 10.11999/JEIT220693

采用单水听器匀速直线运动直升机三维参数估计算法

doi: 10.11999/JEIT220693
基金项目: 水声对抗技术国家重点实验室项目(JZX7Y201911SY003401),深圳市科技创新委员会基金(CYJ20190806150003606),中央高校基本科研业务费专项资金(D5000220158)
详细信息
    作者简介:

    张华霞:女,博士生,研究方向为阵列信号处理

    王惠刚:男,教授,博士生导师,研究方向为目标检测、参数估计、自适应信息处理

    孙伟涛:男,博士生,研究方向为时频估计、目标检测

    古清月:女,博士生,研究方向为阵列信号处理

    荣少巍:男,博士生,研究方向为目标检测、自适应控制

    通讯作者:

    王惠刚 wanghg74@nwpu.edu.cn

  • 中图分类号: TN911.7

3D Parameters Estimation of Helicopter with Constant Speed Using Single Hydrophone

Funds: The National Key Laboratory Project of Science and Technology on Underwater Acoustic Antagonizing (JZX7Y201911SY003401), The Science, Technology and Innovation Project of Shenzhen Municipality (CYJ20190806150003606), The Fundamental Research Funds for the Central Universities (D5000220158)
  • 摘要: 针对空中匀速飞行运动目标所激发的水声信号特征,该文将传统的2维平面内估计目标飞行高度、速度等参数的问题扩展到3维空间,可以求解飞行时偏航距离,更符合实际情况,解决了空中快速飞行目标状态3维参数估计问题。该文首先以直升机离散线谱为特征声源,建立其在空气-水两层介质中声学多普勒的3维传播模型,考虑了目标的飞行速度、高度和偏离水听器的偏航距离。然后根据多普勒频移曲线及其1阶、2阶导数的不对称性,推导出水下探空应用中飞行器的3维参数估计方法。最后,通过分析单水听器接收的实测信号,验证了文章构建3维空间多普勒频移飞行参数估计模型的合理性及APP-LMS算法相较于短时傅里叶瞬时频率估计算法能够更准确反演直升机的航行参数。

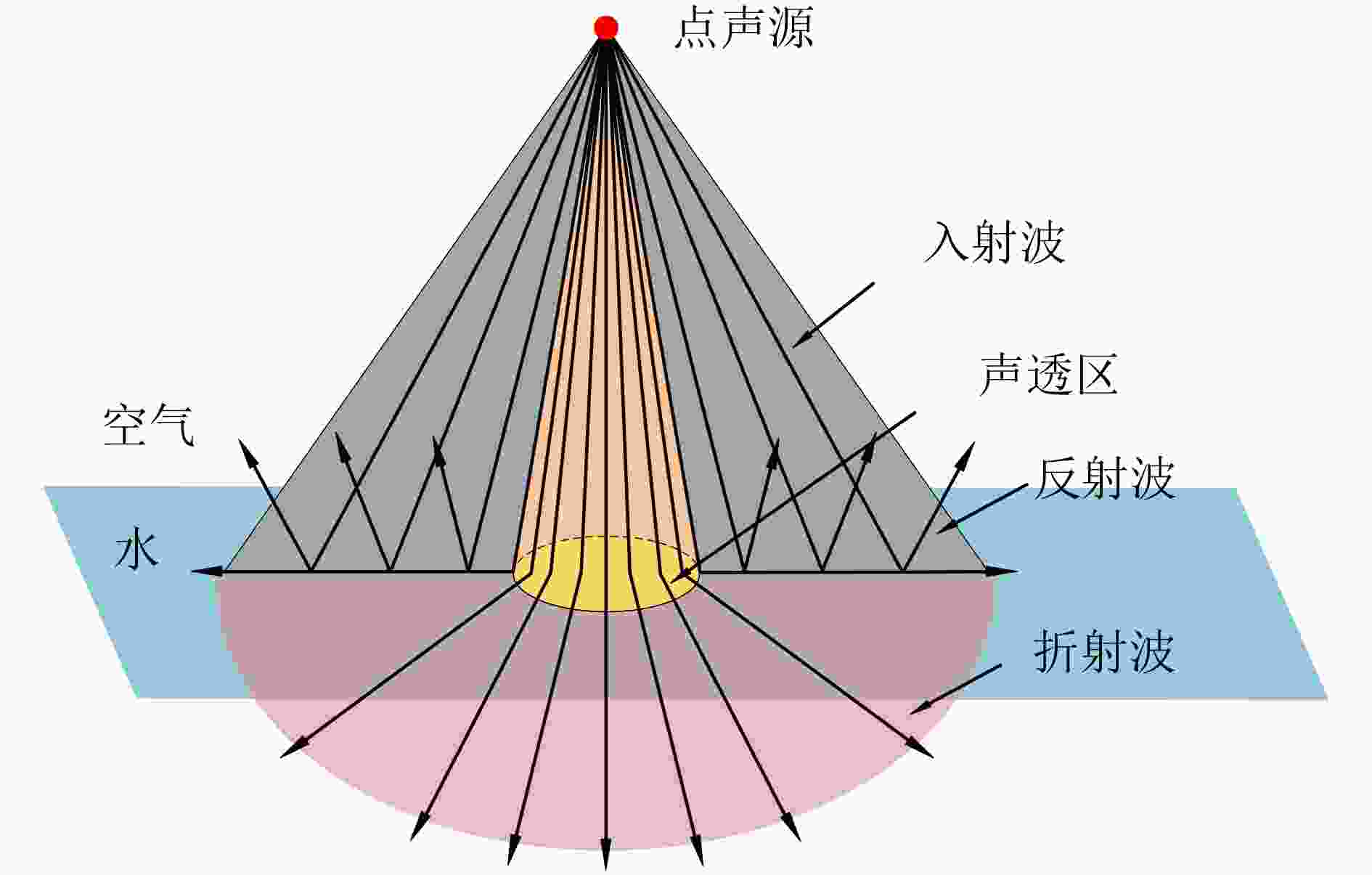

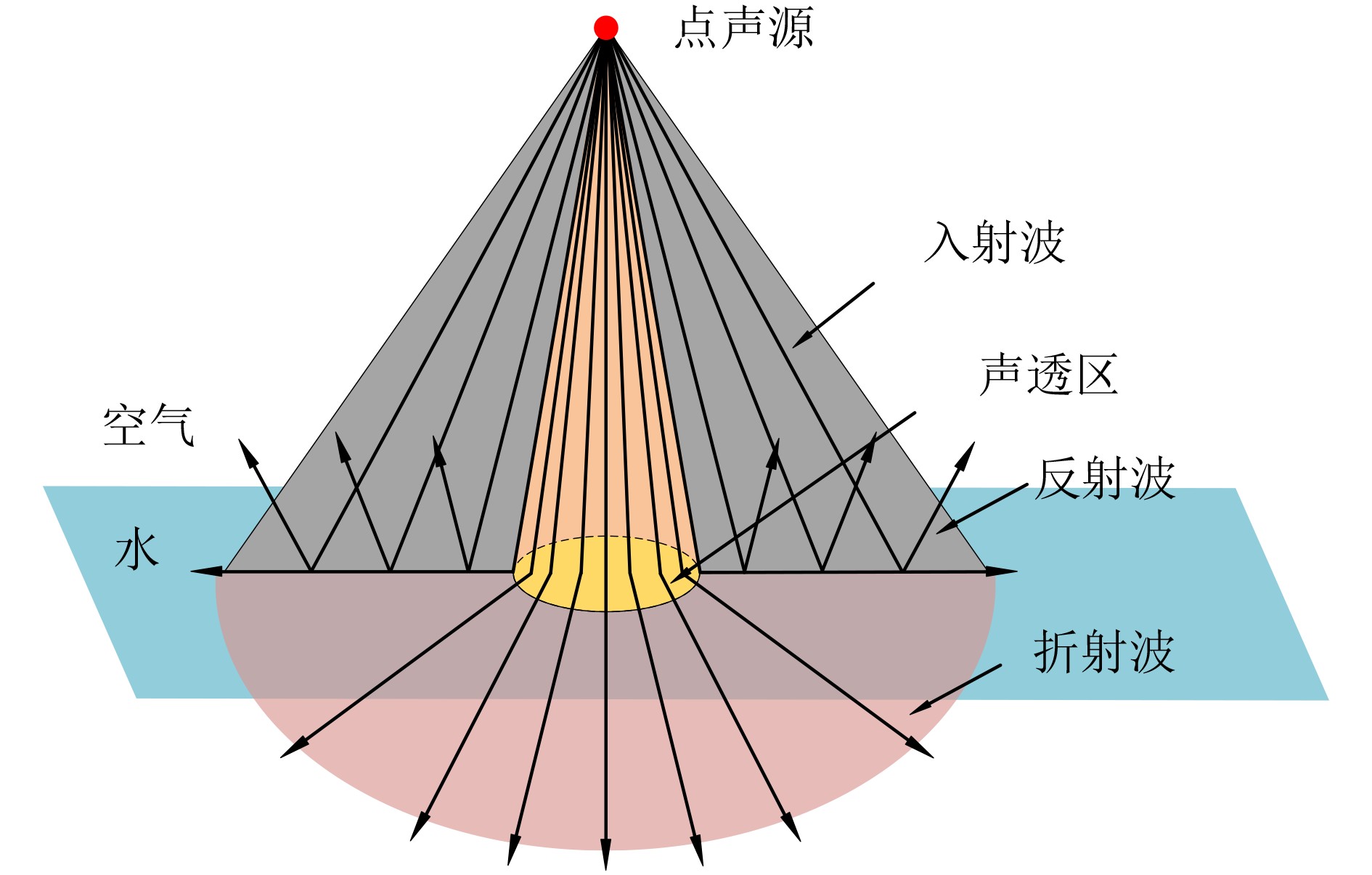

  • 图  1  球面波在空气—水界面的透射示意图

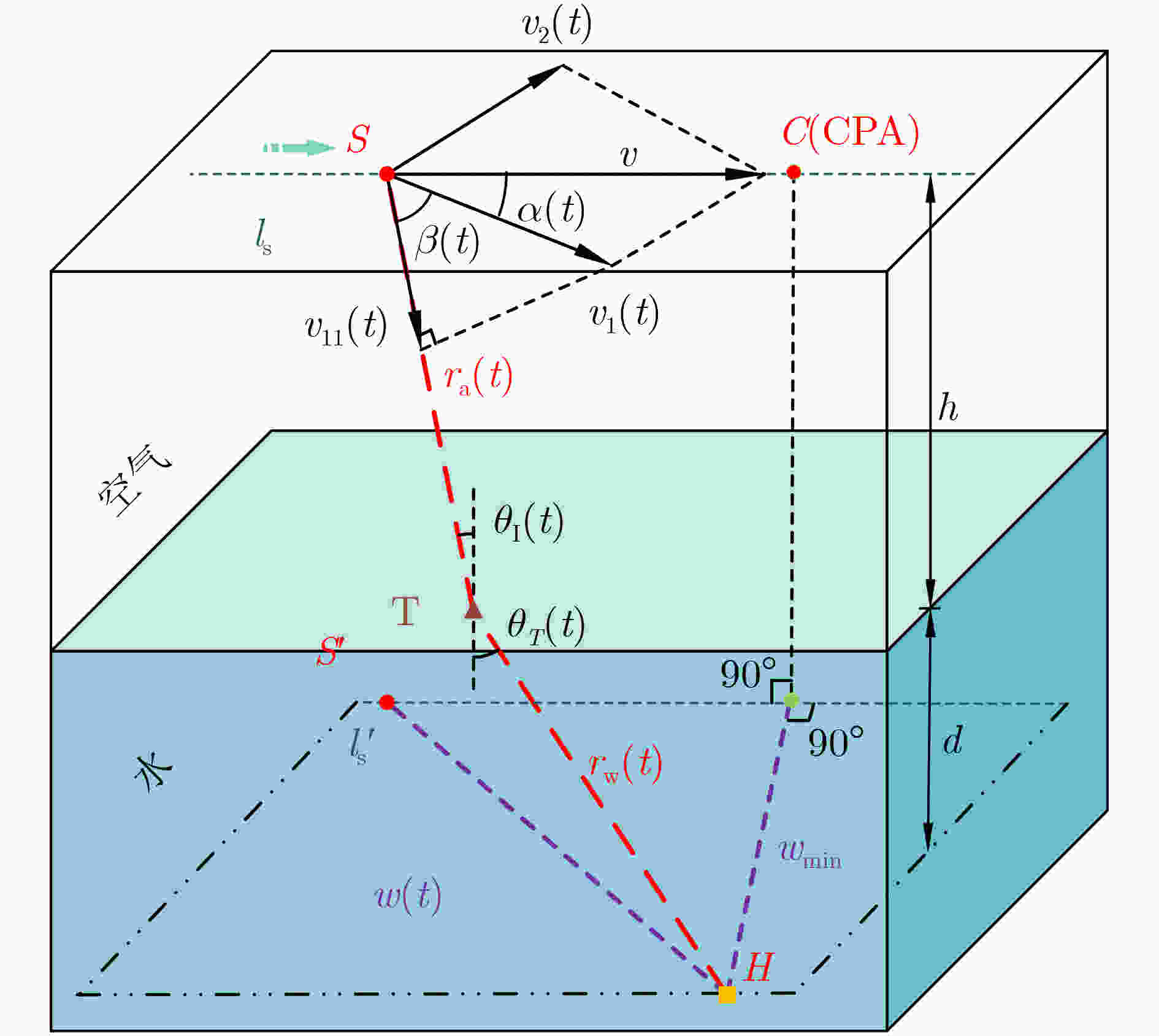

    图  2  空中沿直线运动的点声源与静止水听器节点的3维图

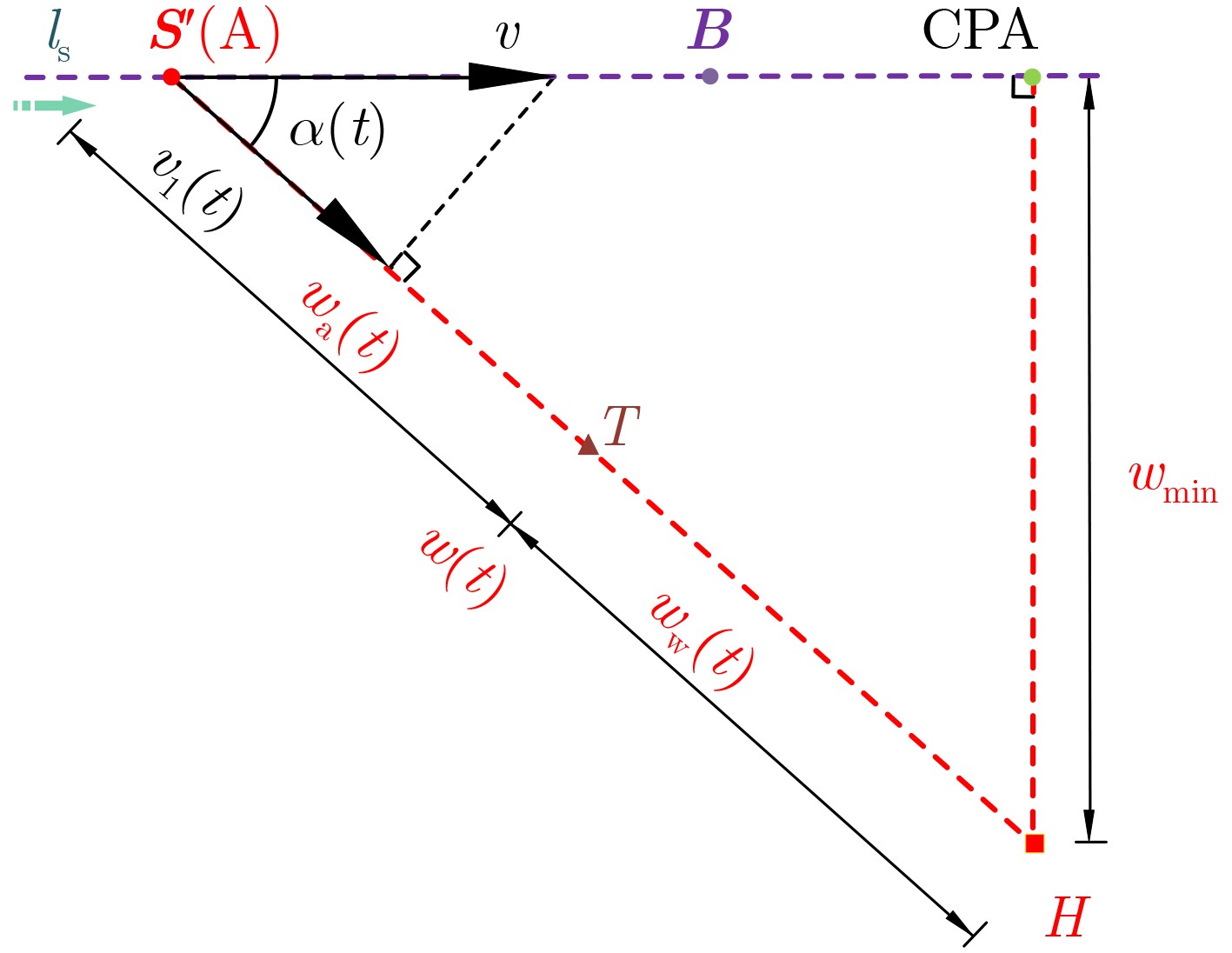

    图  3  空中动点声源与静止水听器节点的几何俯视图

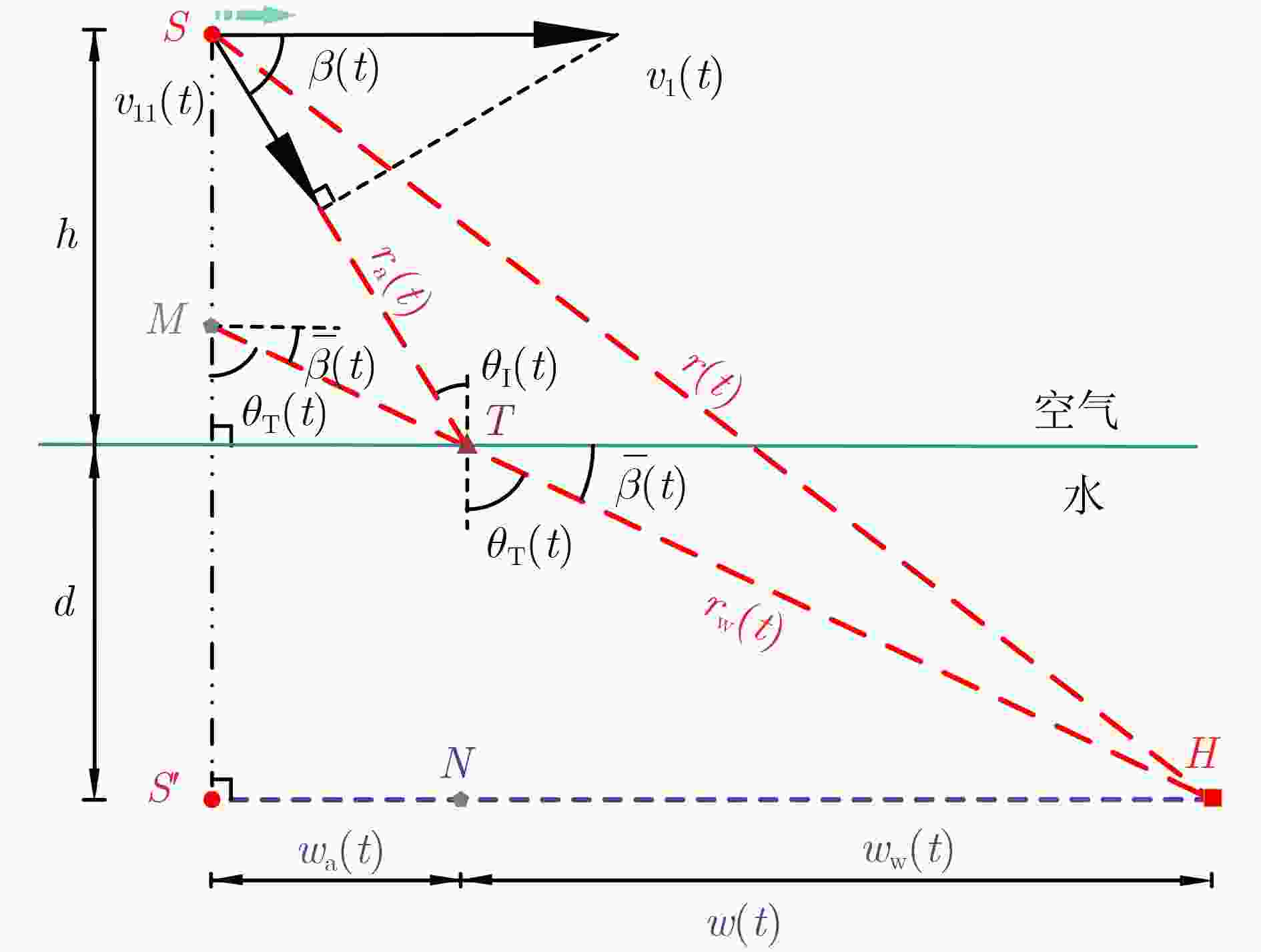

    图  4  声波在两层介质中传播路径的侧视图

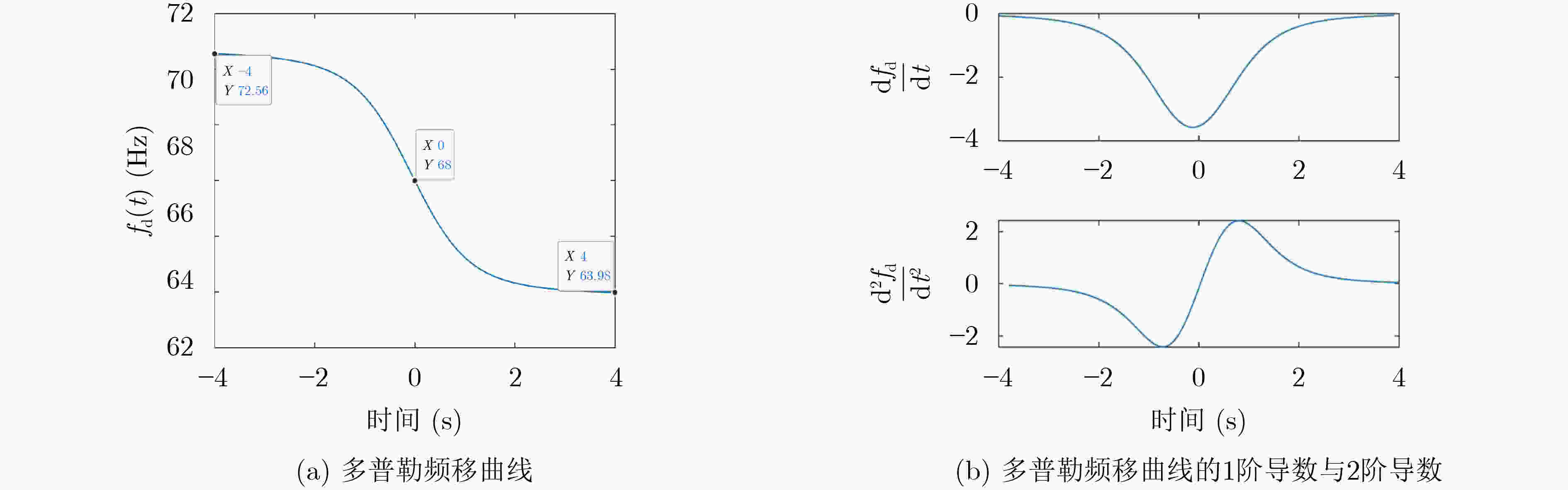

    图  5  多普勒频移曲线及其导数的理论结果

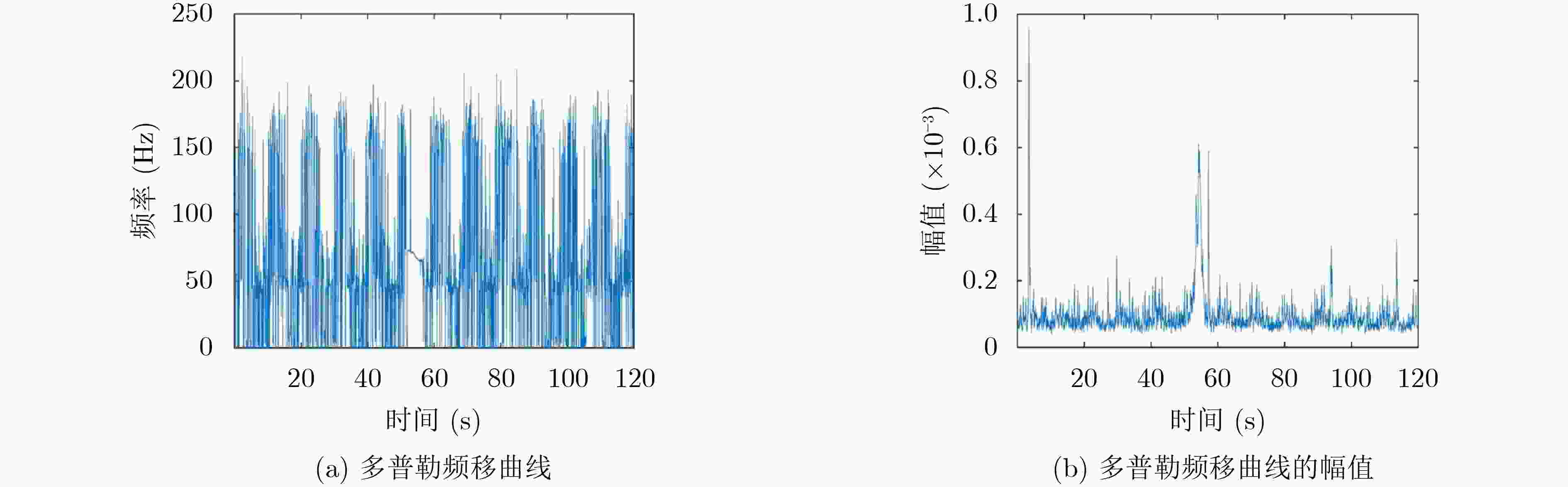

    图  6  窗内补零短时傅里叶变换算法估计的多普勒频移曲线及其幅值

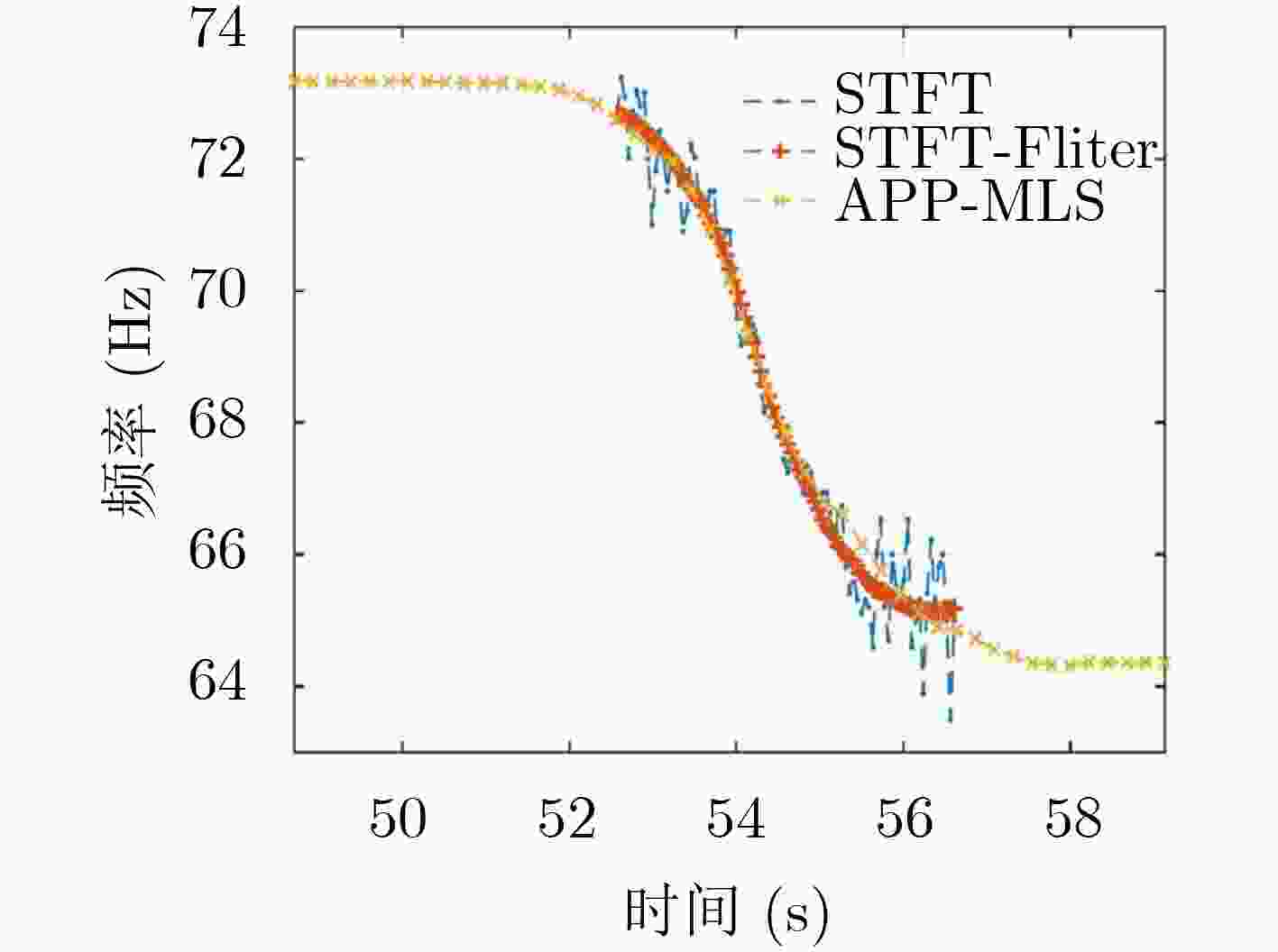

    图  7  不同方法所得瞬时频率曲线结果的对比图

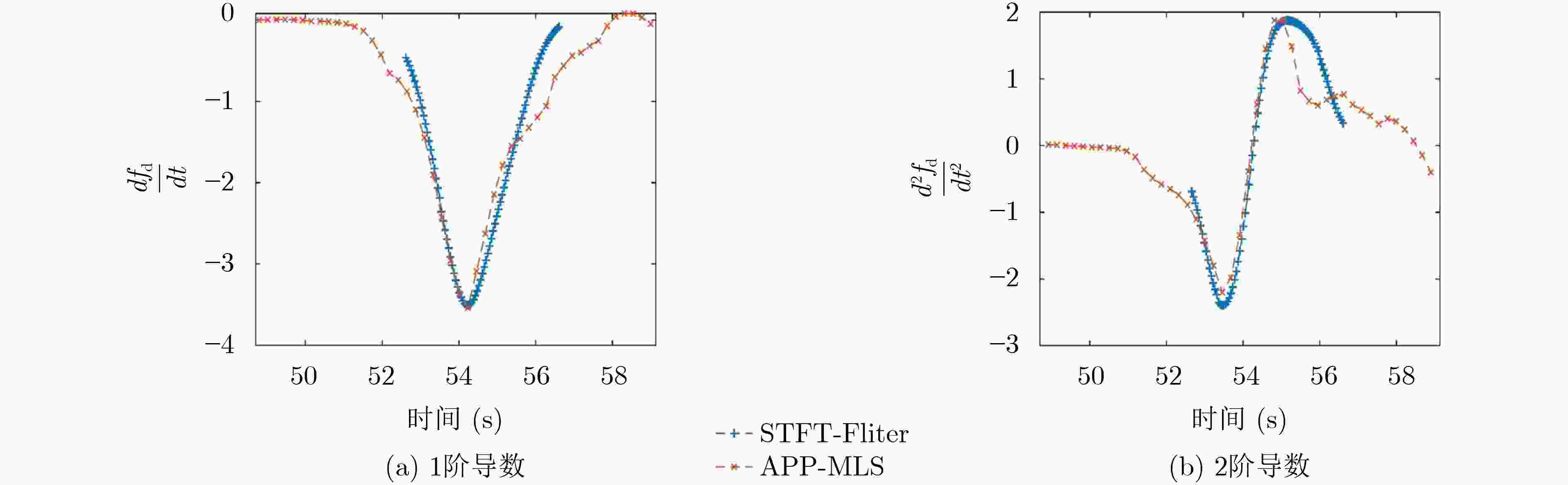

    图  8  多普勒频移导数曲线

    表  1  各参数在穿过CPA点前后的变化规律

    位置从负无穷至CPACPA从CPA至正无穷
    $ t $(s)$ - \infty \to 0 $0$ 0 \to + \infty $
    $ \alpha \left( t \right) $(s)$ 0 \to {{\pi} \mathord{\left/ {\vphantom {{\pi} 2}} \right. } 2} $$ {{\pi} \mathord{\left/ {\vphantom {{\pi} 2}} \right. } 2} $$ {{\pi} \mathord{\left/ {\vphantom {{\pi} 2}} \right. } 2} \to {\pi} $
    $ {\theta _{\text{I}}}\left( t \right) $(s)$ \arcsin {\text{n}} \to \dfrac{{\pi}}{{\text{2}}} - \arctan \dfrac{h}{{{w_{{\text{amin}}}}}} $$ \dfrac{{\pi}}{2} - \arctan \dfrac{h}{{{w_{{\text{amin}}}}}} $$\dfrac{ {\pi} }{2} - \arctan \dfrac{h}{ { {w_{ {\text{amin} } } } } } \to \arcsin {{n} }$
    $ {\theta _{\text{T}}}\left( t \right) $(s)$ \dfrac{{\pi}}{2} \to \dfrac{{\pi}}{2} - \arctan \dfrac{d}{{{w_{{\text{wmin}}}}}} $$ \dfrac{{\pi}}{2} - \arctan \dfrac{d}{{{w_{{\text{wmin}}}}}} $$ \dfrac{{\pi}}{2} - \arctan \dfrac{d}{{{w_{{\text{wmin}}}}}} \to \dfrac{{\pi}}{2} $
