基于路径特征和支持向量机算法的硬件木马检测技术

冯燕; 陈岚

doi:10.11999/JEIT220500

基于路径特征和支持向量机算法的硬件木马检测技术

doi: 10.11999/JEIT220500

冯燕,
陈岚^,

中国科学院微电子研究所北京 100029

详细信息

作者简介:
冯燕：女，正高级工程师，研究方向为集成电路硬件安全、IP/SoC设计等

陈岚：女，研究员，研究方向为计算机系统架构与集成电路设计等

通讯作者:
陈岚　chenlan@ime.ac.cn

中图分类号: TN406
计量
- 文章访问数: 500
- HTML全文浏览量: 168
- PDF下载量: 161
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-22
- 修回日期: 2022-09-22
- 网络出版日期: 2022-09-29
- 刊出日期: 2023-06-10

Hardware Trojan Detection Based on Path Feature and Support Vector Machine

FENG Yan,
CHEN Lan^,

Institute of Microelectronics of Chinese Academy of Sciences, Beijing 100029, China

摘要

摘要: 硬件木马攻击成为当前集成电路(IC)面临的严重威胁。针对硬件木马电路具有隐蔽、不易触发以及数据集不均衡等特点，该文提出对门级网表进行静态分析的硬件木马检测技术。基于电路可测性原理建立涵盖节点扇入数、逻辑门距离、路径数、节点扇出数的硬件木马路径特征，简化特征分析流程；基于提取的路径特征，使用支持向量机(SVM)算法区分电路中的木马节点和正常节点。提出训练集双重加权技术，解决数据集不均衡问题，提升分类器的性能。实验结果表明，分类器可以用于电路中的可疑节点检测，准确率(ACC)达到99.85%；训练集静态加权有效提升分类器性能，准确率(ACC)提升5.58%；与现有文献相比，以36%的特征量，真阳性率(TPR)降低1.07%，真阴性率(TNR)提升2.74%，准确率(ACC)提升2.92%。该文验证了路径特征和SVM算法在硬件木马检测中的有效性，明确了数据集均衡性与检测性能的关系。
- 硬件木马 /
- 路径特征 /
- 支持向量机 /
- 静态加权
Abstract: Hardware Trojan attack has become a serious threat to Integrated Circuit(IC). Hardware Trojans are hidden, rare triggered and the data-sets of Trojan benchmarks are unbalanced, a hardware Trojan detection method that performs a static analysis in gate-level netlist is presented. The path-feature based on the principle of design-for-test is proposed to simplify the analysis of feature. Based on the path-feature extracted in a circuit, the nets are classified into two groups with the Support Vector Machine (SVM) machine learning. It uses the double-weighting method of training-set to improve the performance of the classifier. Experimental results demonstrate that this method can be used to detect the suspicious nets in circuits and the ACCuracy (ACC) can achieve up to 99.85%.The static weighting method improves the performance of the classifier and the improvement of accuracy can achieve up 5.58%. Compared with the existing reference, the size of feature is only 36%, True Positive Rate (TPR) is decreased by 1.07%, True Negative Rate (TNR) is increased by 2.74% and ACC is increased by 2.92% respectively. This work verifies the efficiency of path-feature and SVM machine learning for Hardware Trojan detection and clarifies the relationship between the balance of data-sets and the detection performance.
- Hardware Trojan /
- Path feature /
- Support Vector Machine (SVM) /
- Static weighting

HTML全文

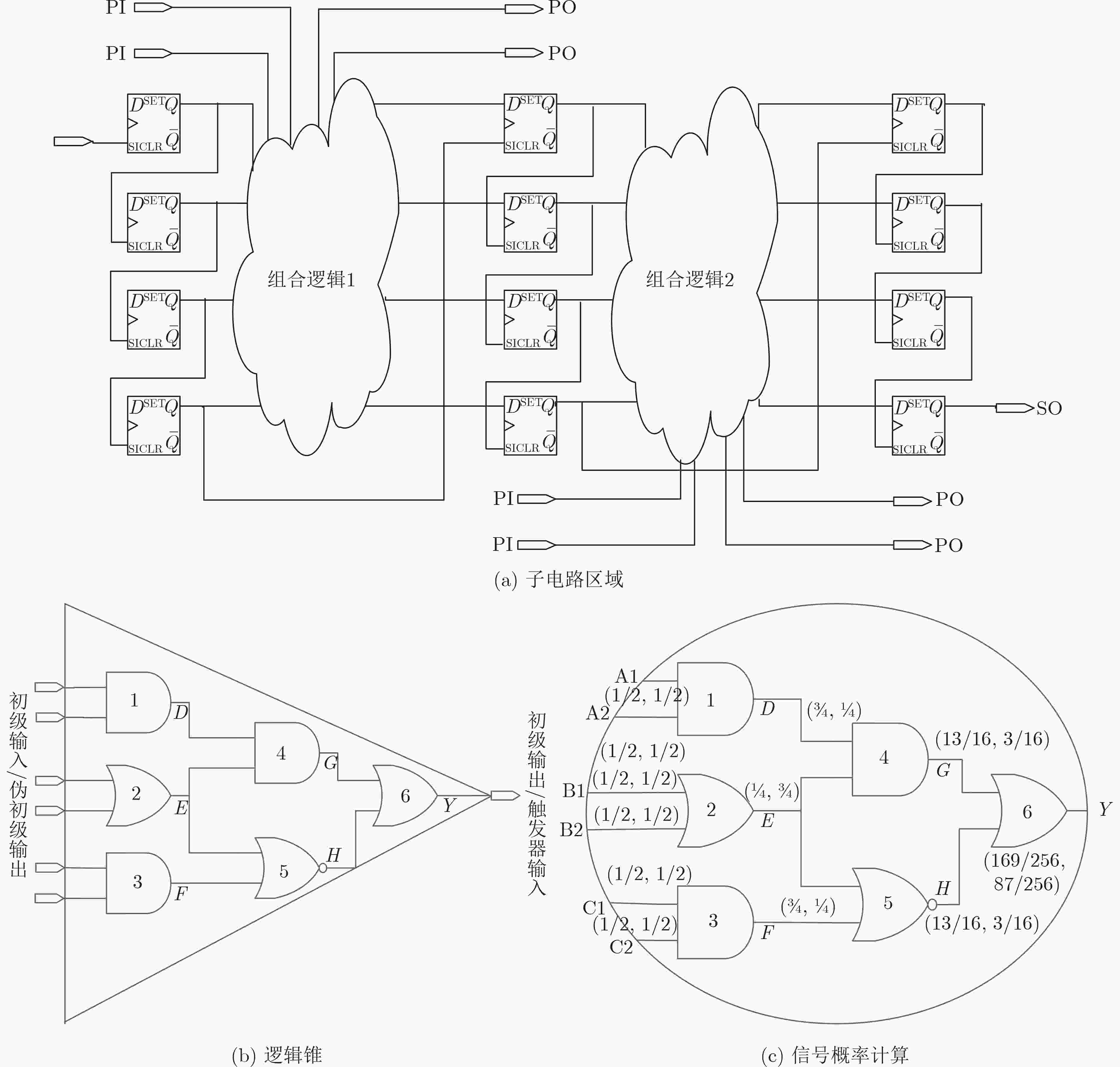

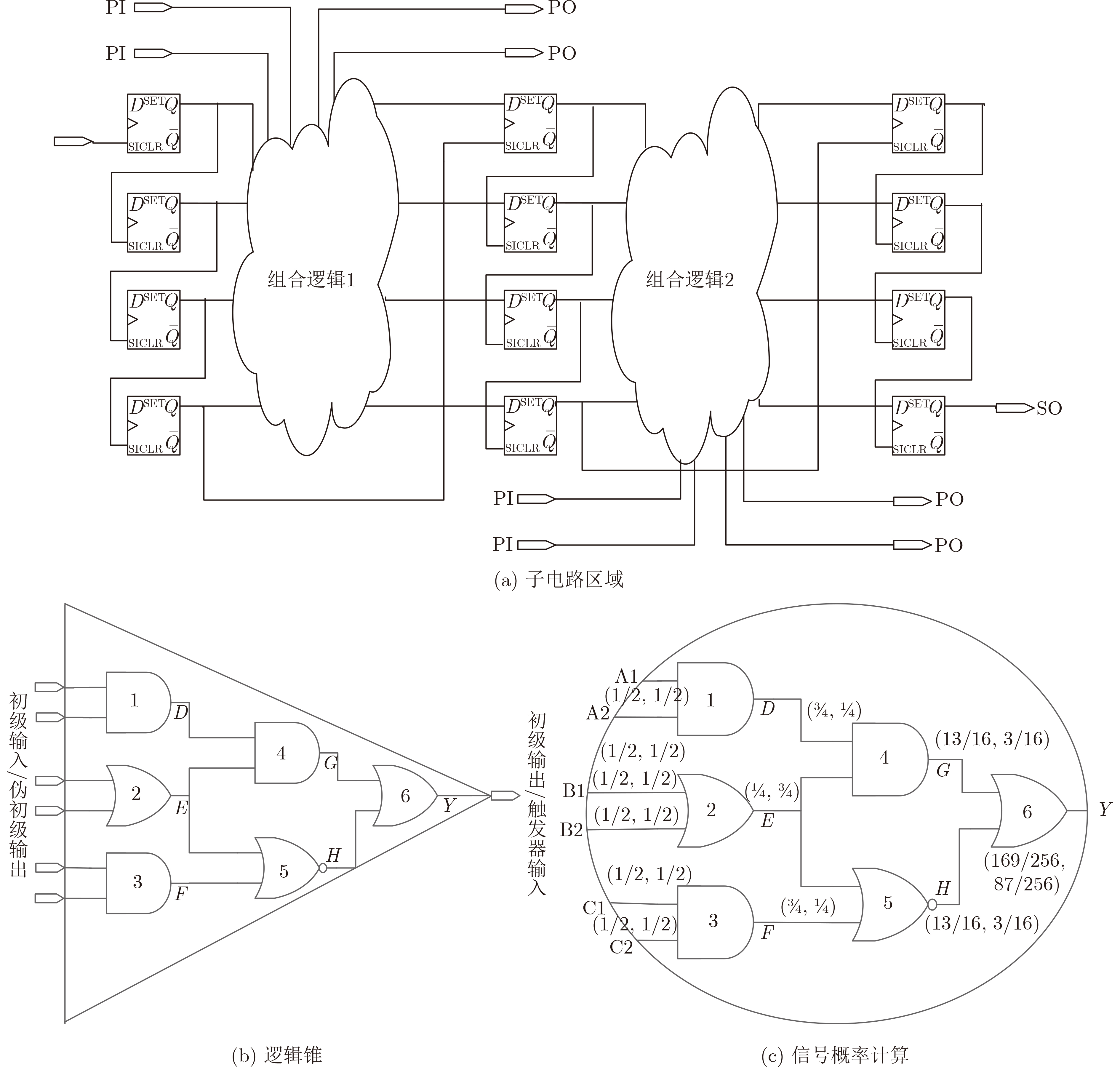

图 1 子电路区域和逻辑锥示意图

下载: 全尺寸图片幻灯片

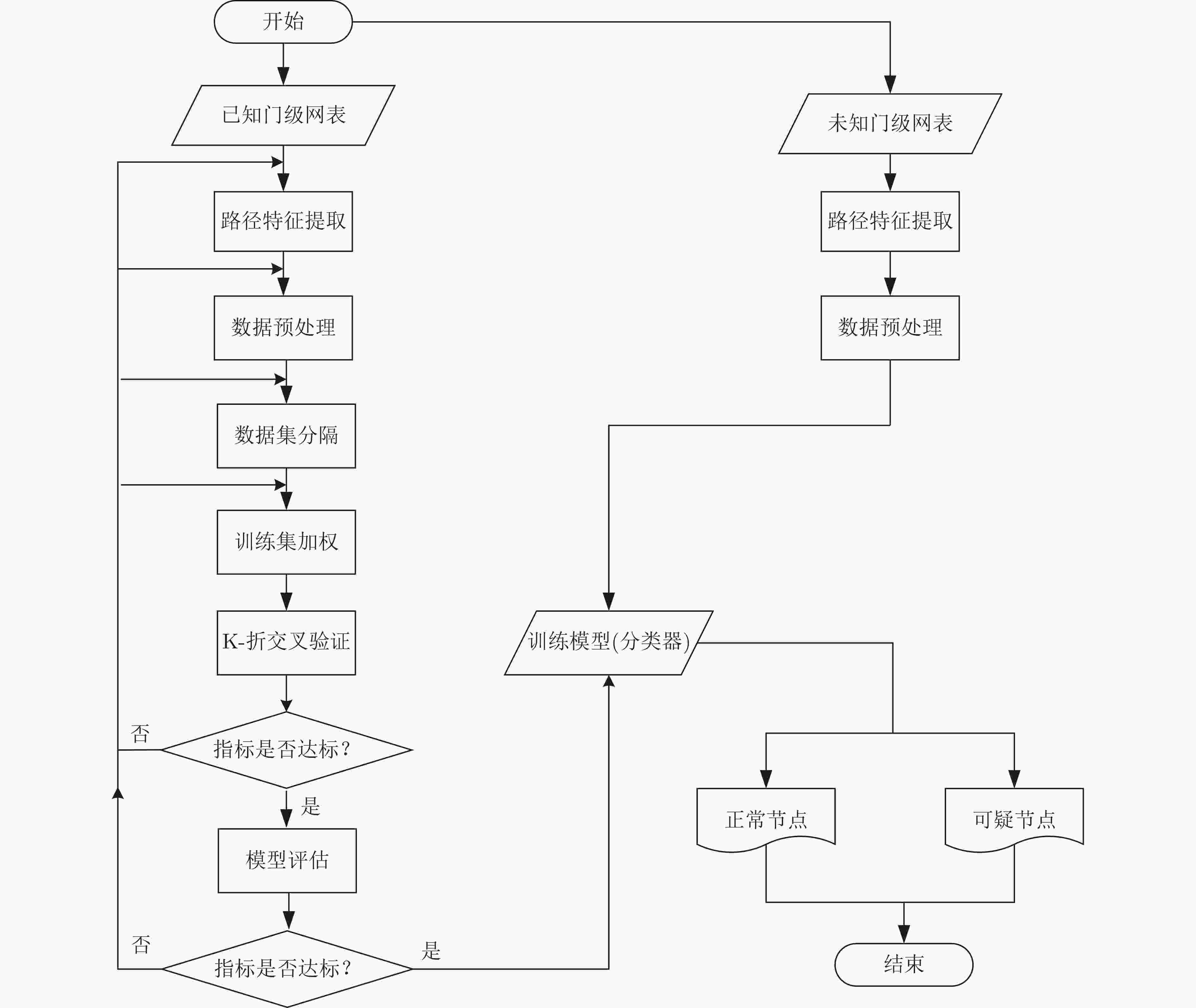

图 2 硬件木马检测流程

下载: 全尺寸图片幻灯片

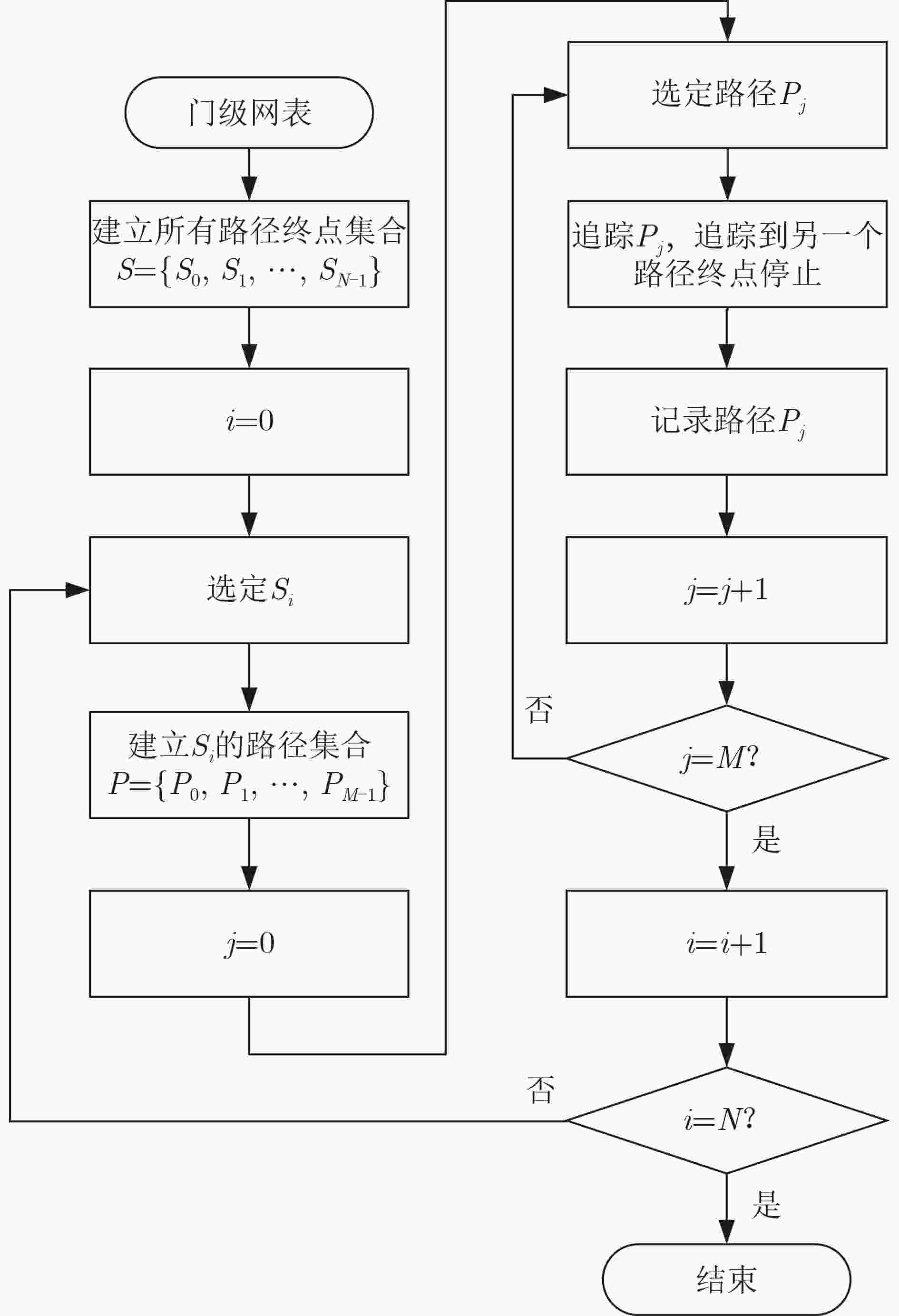

图 3 路径提取流程

下载: 全尺寸图片幻灯片

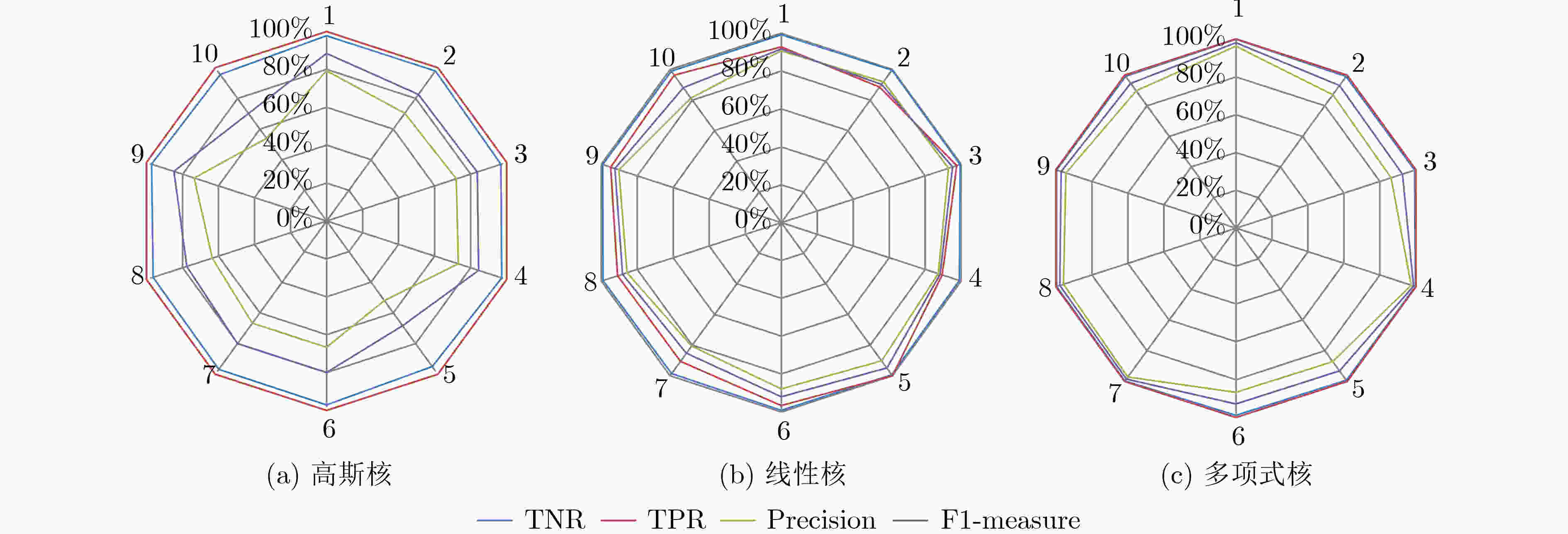

图 4 不同内核函数进行K-折交叉验证的结果

下载: 全尺寸图片幻灯片

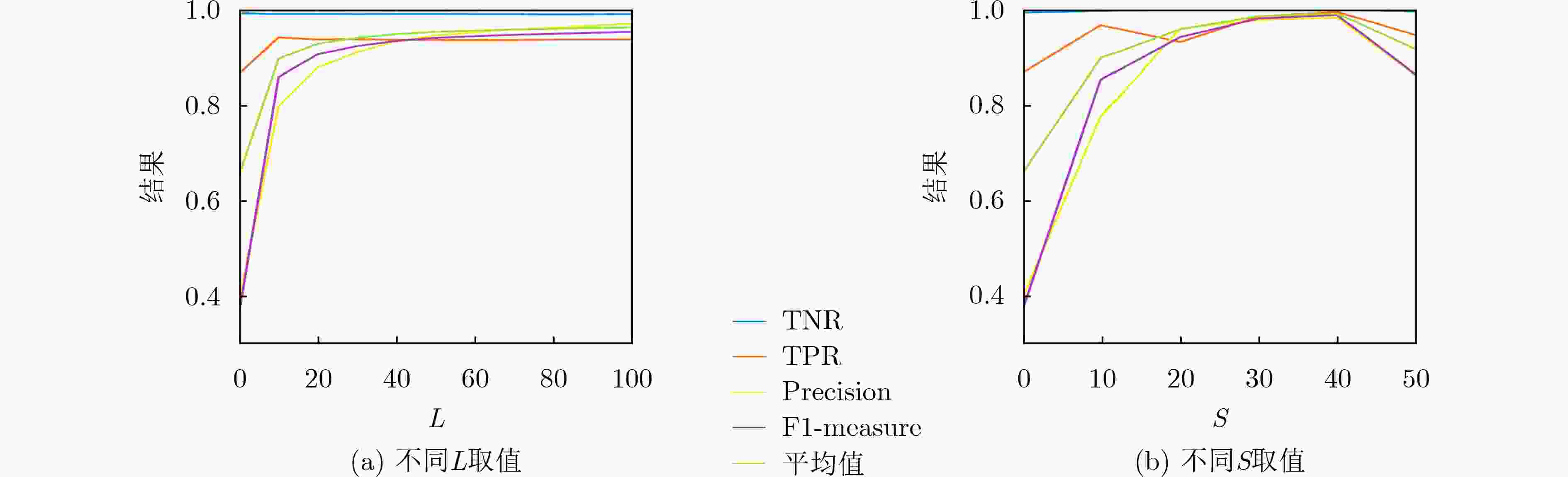

图 5 静态加权情况下的K-折交叉验证结果

下载: 全尺寸图片幻灯片

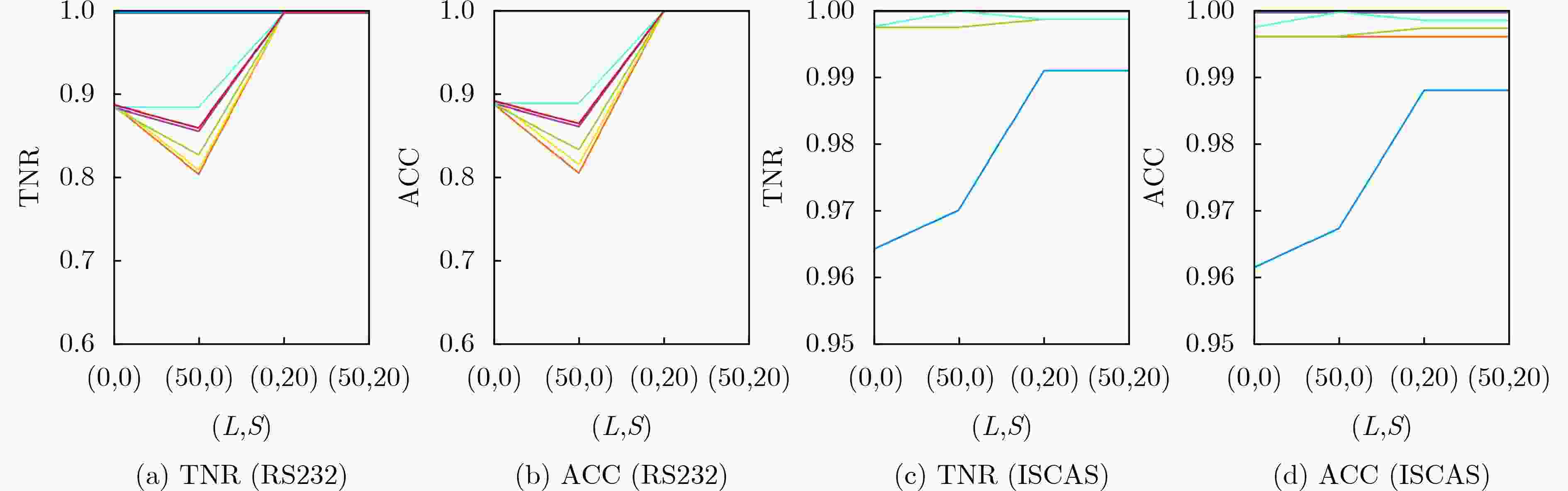

图 6 不同(L,S)组合下的模型效果评估结果

下载: 全尺寸图片幻灯片

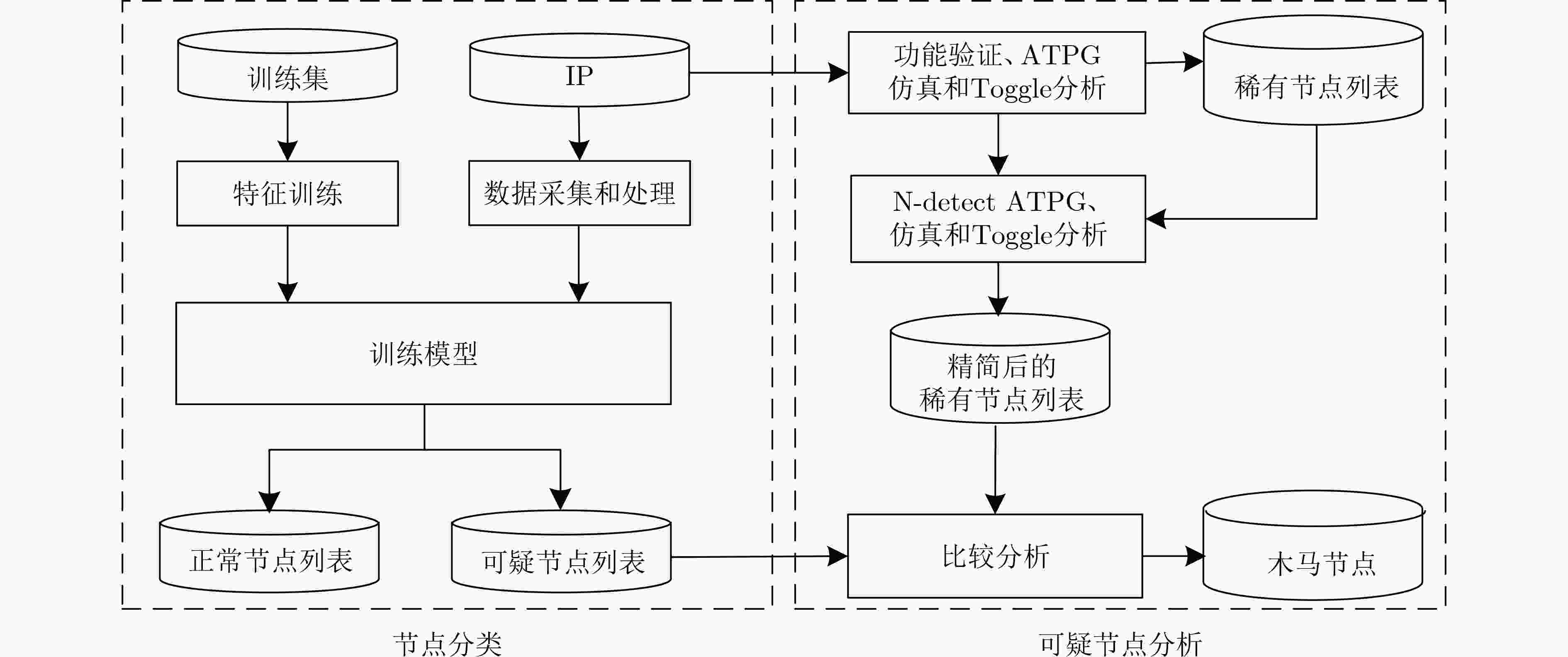

图 7 可疑节点分析

下载: 全尺寸图片幻灯片

表 1 木马特征

序号	特征	描述
1	fan_in	节点Y的扇入数目
2	max_dis	Y的所有扇入中逻辑门距离的最大值
3	max_in	L=max_dis的路径数目
4	max_1_in	L=max_dis-1的路径数目
5	max_2_in	L=max_dis-2的路径数目
6	max_3_in	L=max_dis-3的路径数目
7	max_4_in	L=max_dis-4的路径数目
8	fan_out	节点Y的扇出数目

下载: 导出CSV

表 2 基准电路

电路	面积@ SMIC130nm(μm²)	正常节点数(GN)			木马节点数(GP)			木马电路占比(%)
电路	面积@ SMIC130nm(μm²)	本文	文献[11]	文献[19]	本文	文献[11]	文献[19]	木马电路占比(%)
RS232-T1000	3352	65	283	229	5	36	13	3.09
RS232-T1100	3466	70	284	232	1	36	12	2.60
RS232-T1200	3500	73	289	229	1	34	14	3.51
RS232-T1300	3447	68	287	231	2	29	9	2.07
RS232-T1400	3518	70	273	230	1	45	13	4.05
RS232-T1500	3523	69	283	229	2	39	14	4.19
RS232-T1600	3540	69	292	229	2	29	12	4.65
S15850-T100	24632	674	2429	2404	1	27	28	0.72
S35932-T200	84647	2144	6405	5987	4	12	12	0.11
S38417-T100	73707	1769	5798	5665	1	12	12	0.14
S38417-T200	72572	1766	5798	5665	4	15	15	0.16
S38584-T100	70851	1678	7343	7017	1	19	9	0.09
S38584-T200	73502	1710	–	–	1	–	–	1.60
总和	–	10225	29764	28347	26	333	163	–

下载: 导出CSV

表 3 不同数据标签加权情况下的K-折交叉验证结果

L	GN	GP	TNR(%)	TPR(%)	Precision(%)	F1-measure(%)	平均值(%)
0	5107	16	99.30	86.67	39.46	36.87	65.58
10	5107	176	99.14	94.22	79.73	85.93	89.76
20	5107	336	99.16	93.77	87.89	90.67	92.87
30	5107	496	99.12	93.83	91.17	92.40	94.13
40	5107	656	99.14	93.69	93.36	93.48	94.92
50	5107	816	99.14	93.68	94.62	94.12	95.39
60	5107	976	99.12	93.67	95.32	94.48	95.65
70	5107	1136	99.12	93.67	95.94	94.77	95.88
80	5107	1296	99.06	93.75	96.24	94.97	96.01
90	5107	1456	99.10	93.78	96.72	95.19	96.20
100	5107	1616	99.12	93.76	97.10	95.39	96.34

下载: 导出CSV

表 4 不同模块尺寸加权情况下的K-折交叉验证结果

S	GN	GP	GP/(GP+GN)(%)	TNR(%)	TPR(%)	Precision(%)	F1-measure(%)	平均值(%)
0	5107	16	0.31	99.30	86.67	39.46	36.87	65.58
10	6920	65	0.93	99.71	96.67	77.59	85.32	89.82
20	8967	128	1.41	99.94	93.15	96.02	94.19	95.83
30	10931	274	2.45	99.95	98.53	97.79	98.10	98.59
40	13031	284	2.13	99.96	99.47	98.26	98.84	99.13
50	15121	304	1.97	99.58	94.58	86.13	86.27	91.64

下载: 导出CSV

表 5 (L,S)=(50,20)时的K-折交叉验证结果

K	GN	GP	TN	TP	FN	FP	TNR(%)	TPR(%)	Precision(%)	F1-measure(%)
1	871	679	870	646	33	1	99.89	95.14	99.85	97.44
2	880	669	877	642	27	3	99.66	95.96	99.53	97.72
3	895	655	895	616	39	0	100.00	94.05	100.00	96.93
4	937	612	937	585	27	0	100.00	95.59	100.00	97.74
5	852	697	852	657	40	0	100.00	94.26	100.00	97.05
6	915	634	915	606	28	0	100.00	95.58	100.00	97.74
7	884	666	884	638	28	0	100.00	95.80	100.00	97.85
8	876	674	876	647	27	0	100.00	95.99	100.00	97.96
9	944	605	944	579	26	0	100.00	95.70	100.00	97.80
10	913	637	912	606	31	1	99.89	95.13	99.84	97.43
平均值	-	-	-	-	-	-	99.94	95.32	99.92	97.57

下载: 导出CSV

表 6 不同(L,S)组合下的K-折交叉验证结果

序号	L	S	GN	GP	GP/(GN+GP) (%)	TNR(%)		TPR(%)		Precision(%)		F1-measure(%)
1	0	0	5107	16	0.31	99.30	–	86.67	–	39.46	–	36.87	–
2	50	0	5107	816	13.78	99.14	0.16↓	93.68	8.09↑	94.62	139.79↑	94.12	155.28↑
3	0	20	8967	128	1.41	99.94	0.64↑	93.15	7.48↑	96.02	143.34↑	94.19	155.47↑
4	50	20	8967	6528	42.13	99.94	0.64↑	95.32	9.98↑	99.92	153.22↑	97.57	164.63↑

下载: 导出CSV

表 7 (L,S)=(50,20)时的模型效果评估结果

测试集	GN	GP	TN	TP	FN	FP	TNR(%)	TPR¹(%)	ACC(%)
RS232-T1000	35	1	35	1	0	0	100.00	100.00	100.00
RS232-T1100	36	0	36	0	0	0	100.00	100.00	100.00
RS232-T1200	37	1	37	1	0	0	100.00	100.00	100.00
RS232-T1300	35	1	35	1	0	0	100.00	100.00	100.00
RS232-T1400	35	1	35	1	0	0	100.00	100.00	100.00
RS232-T1500	35	1	35	1	0	0	100.00	100.00	100.00
RS232-T1600	36	1	36	1	0	0	100.00	100.00	100.00
S15850-T100	337	1	334	0	1	3	99.11	0	98.82
S35932-T200	1071	4	1071	0	4	0	100.00	0	99.63
S38417-T100	886	0	886	0	0	0	100.00	100.00	100.00
S38417-T200	883	3	883	3	0	0	100.00	100.00	100.00
S38584-T100	839	1	838	0	1	1	99.88	0	99.76
S38584-T200	856	0	855	0	0	1	99.88	100.00	99.88
平均值	–	–	–	–	–	–	99.91	76.92	99.85
注¹：GP=0且TP=0时，TRP=100%；GP!=0但TP=0时，TRP=0%

下载: 导出CSV

表 8 不同(L,S)组合下的模型效果评估结果(%)

测试集	(L,S)=(0,0)		(L,S)=(50,0)		(L,S)=(0,20)		(L,S)=(50,20)
测试集	TNR	ACC	TNR	ACC	TNR	ACC	TNR	ACC
RS232-T1000	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00
RS232-T1100	88.89	88.89	80.56	80.56	100.00	100.00	100.00	100.00
RS232-T1200	89.19	89.47	81.08	81.58	100.00	100.00	100.00	100.00
RS232-T1300	88.57	88.89	85.71	86.11	100.00	100.00	100.00	100.00
RS232-T1400	88.57	88.89	82.86	83.33	100.00	100.00	100.00	100.00
RS232-T1500	88.57	88.89	88.57	88.89	100.00	100.00	100.00	100.00
RS232-T1600	88.89	89.19	86.11	86.49	100.00	100.00	100.00	100.00
s15850-T100	96.44	96.15	97.03	96.75	99.11	98.82	99.11	98.82
s35932-T200	100.00	99.63	100.00	99.63	100.00	99.63	100.00	99.63
s38417-T100	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00
s38417-T200	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00
s38584-T100	99.76	99.64	99.76	99.64	99.88	99.76	99.88	99.76
s38584-T200	99.77	99.77	100.00	100.00	99.88	99.88	99.88	99.88
平均值	94.51	94.57	92.44	92.54	99.91	99.85	99.91	99.85
提升百分比	–	–	2.19↓	2.15↓	5.71↑	5.58↑	5.71↑	5.58↑

下载: 导出CSV

表 9 与现有文献检测结果对比

文献	样本数 (GN+GP)	学习算法	训练时间	TPR (%)	TNR (%)	ACC (%)
[11]	30097	RF	–	68.32	99.71	99.10
[19]	28510	SVM	–	77.75	97.25	97.02
[22]¹	18334559	DL	72 min	79.29	99.97	99.91
本文	10225	SVM	5.5 s	76.92	99.91	99.85
注¹：LEDA library-based Trust-HUB Benchmarks, 40个组合型木马在搜索深度=4、过采样、LSTM, 5 epochs条件下的检测结果。

下载: 导出CSV
