一种考虑预测电价和碳排放成本的大规模机组检修决策方法

梅竞成; 齐冬莲; 张建良; 王震宇; 陈郁林

doi:10.11999/JEIT220491

一种考虑预测电价和碳排放成本的大规模机组检修决策方法

doi: 10.11999/JEIT220491

梅竞成¹,
齐冬莲^{1, 2, ,},
张建良¹,
王震宇¹,
陈郁林³

1.
浙江大学电气工程学院杭州 310027
2.
海南浙江大学研究院三亚 572024
3.
澳门大学智慧城市物联网国家重点实验室澳门 999078

基金项目: 国家自然科学基金(62127803)

详细信息

作者简介:
梅竞成：男，博士生，研究方向为电力系统运行优化

齐冬莲：女，教授，研究方向为控制理论与控制工程、电气工程

张建良：男，教授级高级工程师，研究方向为电气工程、分布式优化与博弈论

王震宇：男，博士生，研究方向为电力系统状态估计

陈郁林：男，博士，研究方向为分布式控制在电网中应用、电气工程

通讯作者:
齐冬莲　qidl@zju.edu.cn

中图分类号: O157
计量
- 文章访问数: 493
- HTML全文浏览量: 224
- PDF下载量: 74
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-21
- 修回日期: 2022-07-28
- 录用日期: 2022-08-02
- 网络出版日期: 2022-08-05
- 刊出日期: 2022-11-14

A Decision Method of the Large-scale Unit Maintenance Scheduling Considering Predicted Electricity Price and Carbon Emission Cost

1.
College of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
2.
Hainan Institute, Zhejiang University, Sanya 572024, China
3.
Key Laboratory of Wave Scattering and Remote Sensing Information, University of Macao, Macao 999078, China

Funds: The National Natural Science Foundation of China (62127803)

摘要

摘要: 随着国内电力市场和碳市场改革的持续深入，发电机组检修决策对于保证电力系统安全可靠运行和发电厂商经济收益的影响越来越深，同时机组检修优化问题的整数变量规模和约束条件规模急剧增加对优化问题的求解带来巨大挑战。对此，该文在考虑电力系统可靠性机组检修优化模型上，提出通过贝叶斯优化的方法训练检修优化模型，进而获得最佳分支打分因子值，然后加速整数规划中分支定界求解过程的方法，适用于大规模电力系统机组检修问题。此外，进一步剖析了发电机组发电收益和碳排放成本核算机理，提出一种电力市场环境下考虑碳排放成本的发电机组检修协调机制，在保证电力系统安全运行基础上，最大化各发电厂商检修机组的电能量市场和碳市场利益。最后，通过IEEE-118节点标准算例验证了该方法的有效性和工程实用性。
- 机组检修 /
- 碳排放成本 /
- 电价 /
- 贝叶斯优化
Abstract: With the increasing scale of domestic power system and the continuous deepening of the reform of domestic power market and carbon emission market, the reasonable arrangement of the unit maintenance scheduling has a more and more important impact on the reliability of the power system and the profits of generator manufacturers from the power market and the carbon emission market. On the other hand, the scale of integer variables and constraints of unit maintenance optimization problem also increases sharply. Considering the above problems, a unit maintenance optimization model considering power system reliability is proposed. In addition, with a method based on the Bayesian optimization proposed, to the solution progress of the model obtains the best branch scoring factor value to accelerate the branch-and-bound solution process in integer programming, which is more suitable for the application of the large-scale power system maintenance models. Moreover, a unit maintenance coordination mechanism considering the carbon emission cost and the predicted electricity price is advanced, which maximizing the generation profits in both electric energy market and carbon emission market during the annual unit maintenance scheduling with the safe operation of the power system. Finally, the effectiveness and the practicability of the above model are verified on the IEEE-118 bus system.
- Unit maintenance scheduling /
- Carbon emission cost /
- Electricity price /
- Bayesian optimization

HTML全文

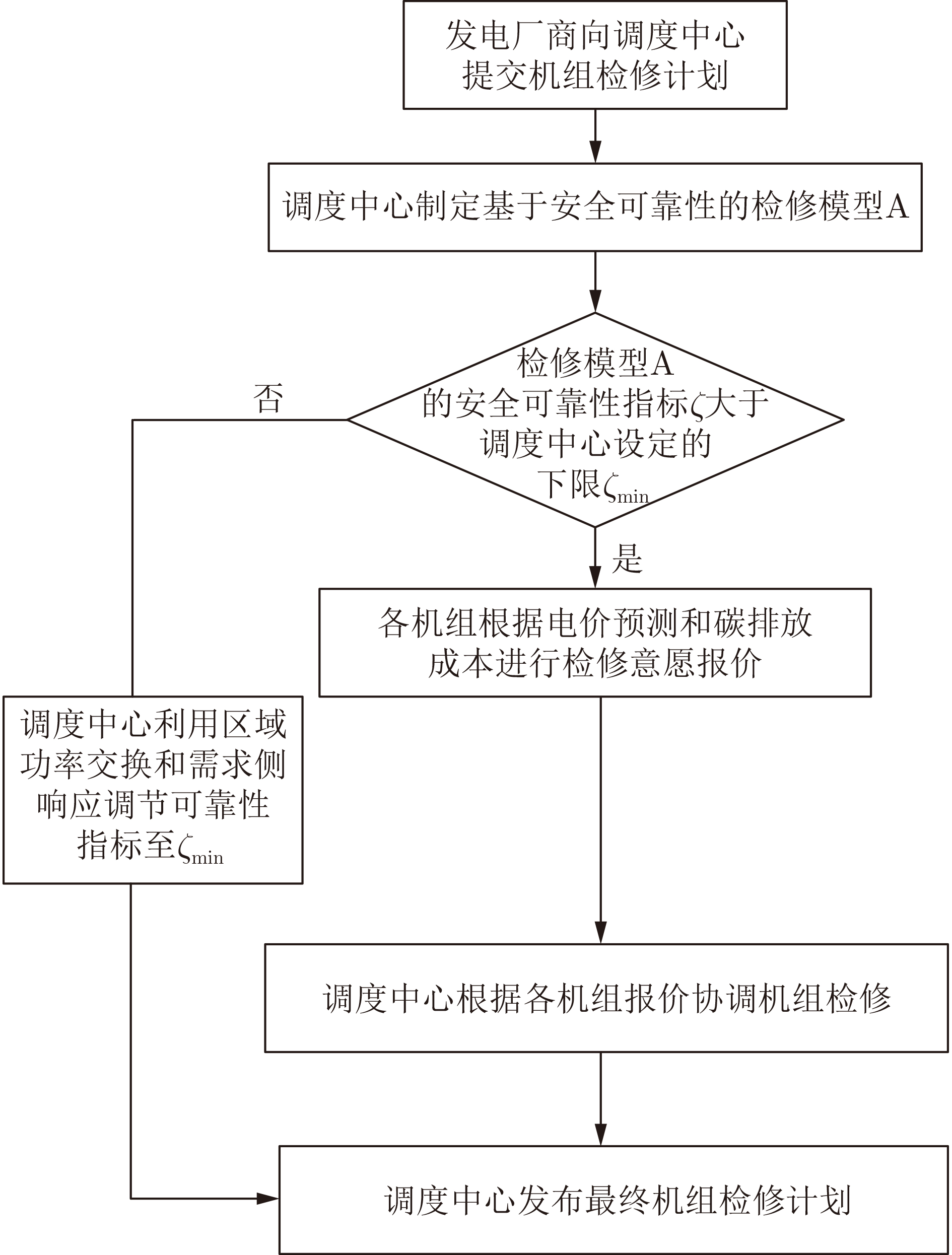

图 1 机组检修协调机制

下载: 全尺寸图片幻灯片

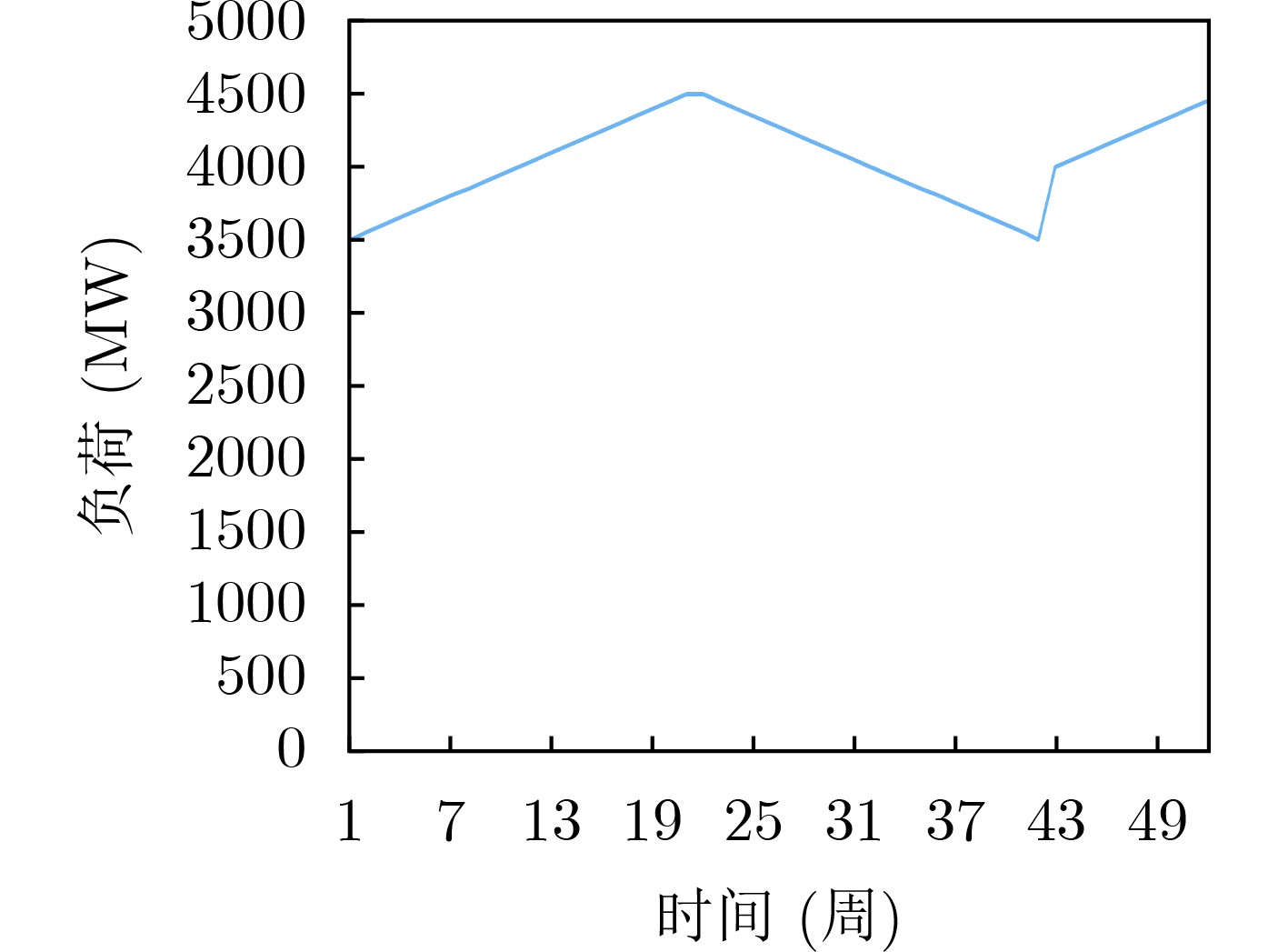

图 2 年度系统负荷线

下载: 全尺寸图片幻灯片

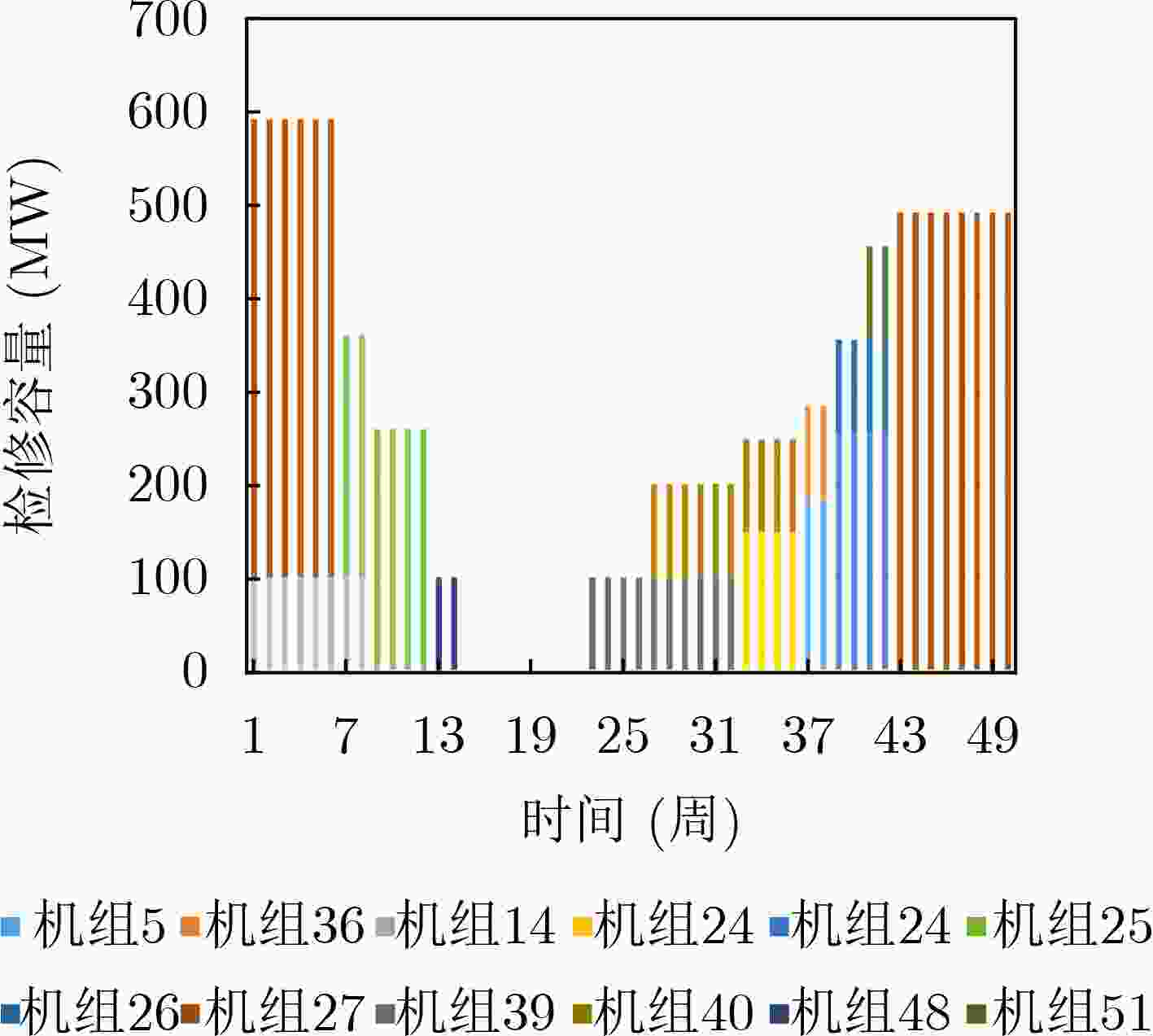

图 3 基于安全可靠性的机组检修计划

下载: 全尺寸图片幻灯片

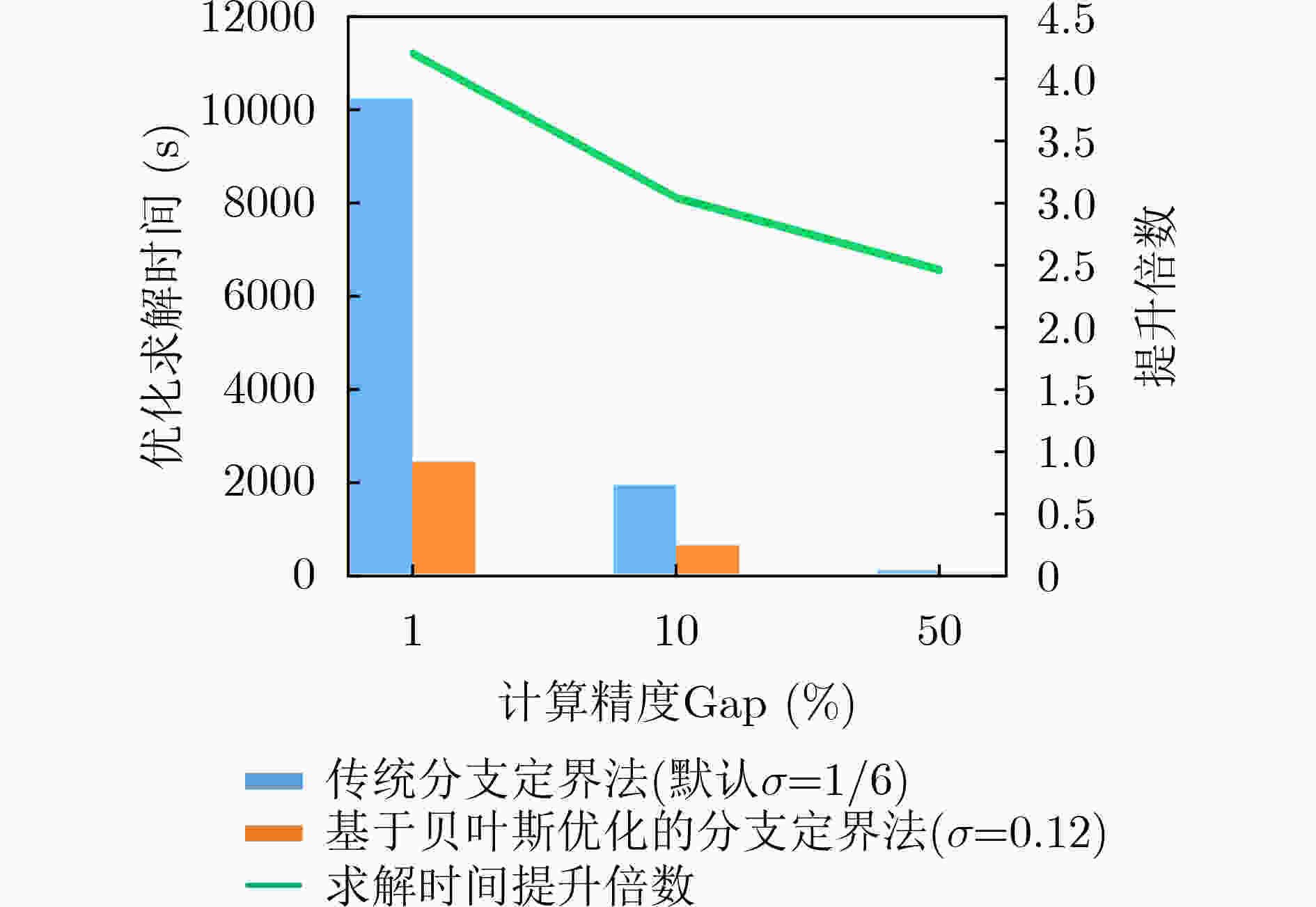

图 4 不同计算精度不同算法下的机组检修模型求解对比时间图

下载: 全尺寸图片幻灯片

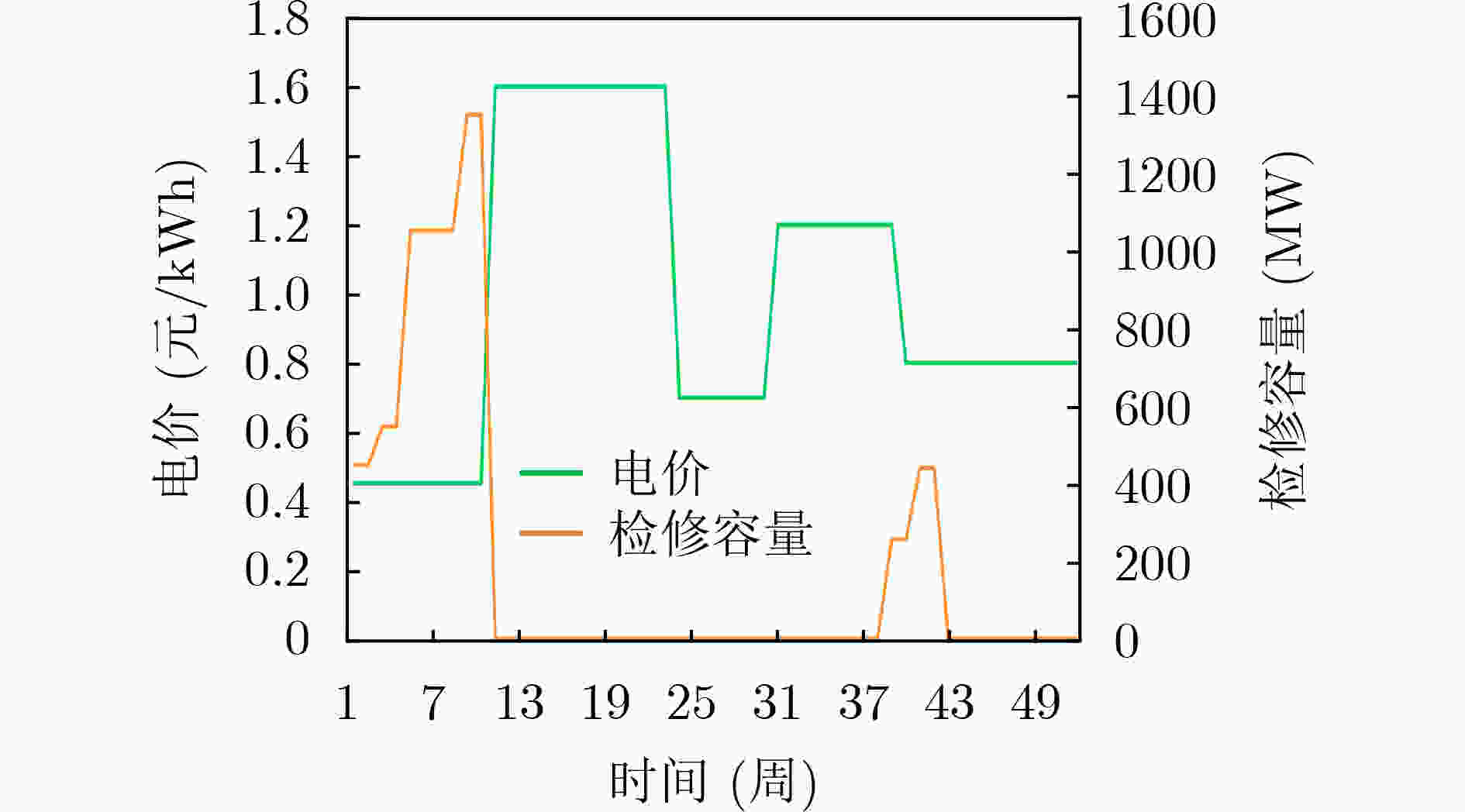

图 5 只考虑电价预测时机组检修容量分布

下载: 全尺寸图片幻灯片

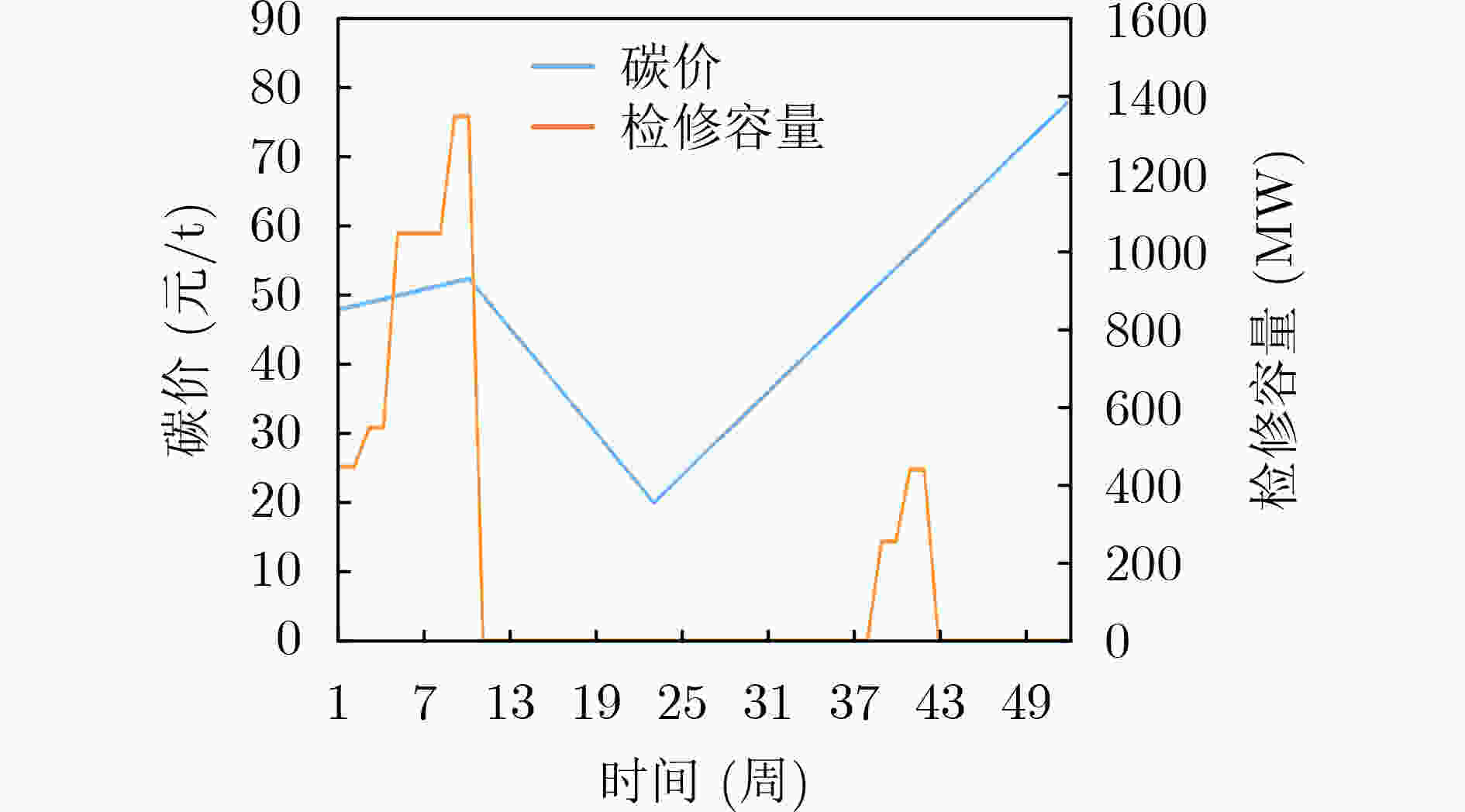

图 6 只考虑碳排放成本的机组检修容量分布

下载: 全尺寸图片幻灯片

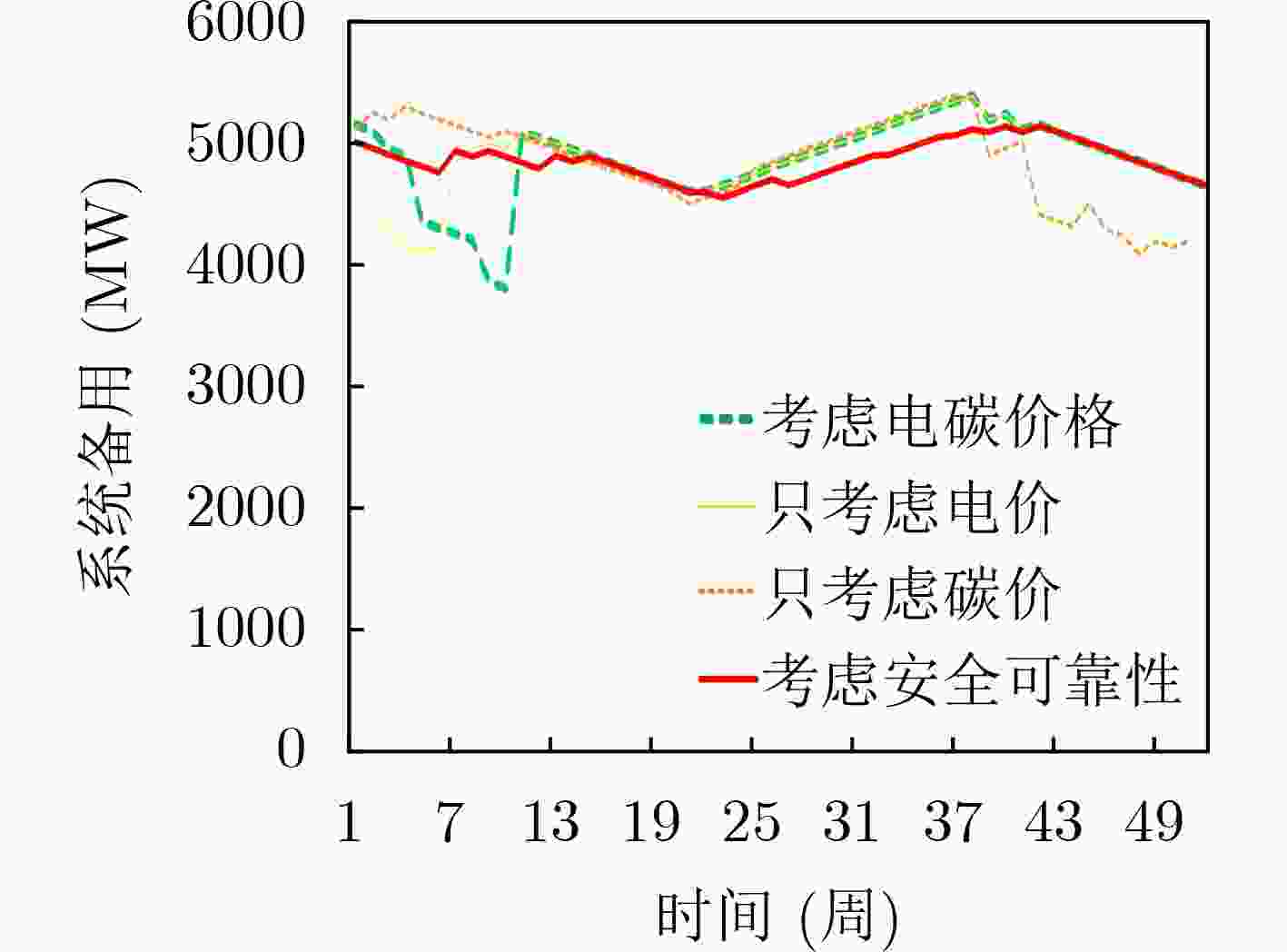

图 7 不同检修优化模型对应的系统备用

下载: 全尺寸图片幻灯片

表 1 发电机组检修参数表

	5	14	21	24	25	26	27	36	39	40	48	51
检修时间(周)	2	8	4	4	6	4	6	2	10	10	2	2
容量(MW)	185	100	148	255	260	100	491	100	100	100	100	100

下载: 导出CSV

表 2 发电机组碳排放情况

机组	发电成本$ c(t) $(元/MWh)	CO₂排放率(tCO₂/MWh)	历史基准发电量(GWh)	平均历史碳排放率(tCO₂/MWh)
5	320	0.80	555	0.8
14	348	1.00	300
21	400	0.9	444
24	390	1.2	765
25	360	1.3	780
26	360	1.1	300
27	400	0.7	1473
36	420	1.2	300
39	420	1.2	300
40	350	0.8	300
48	360	1.1	300
51	360	1.1	300

下载: 导出CSV
