高性能YOLOv5：面向嵌入式平台高性能目标检测算法研究

刘乔寿; 赵志源; 王均成; 皮胜文

doi:10.11999/JEIT220413

高性能YOLOv5：面向嵌入式平台高性能目标检测算法研究

doi: 10.11999/JEIT220413

1.
重庆邮电大学通信与信息工程学院重庆 400065
2.
先进网络与智能互联技术重庆市高校重点实验室重庆 400065
3.
泛在感知与互联重庆市重点实验室重庆 400065

详细信息

作者简介:
刘乔寿：男，副教授，博士，研究方向为5G超密集网络干扰协调、云边协同智能计算、FPGA智能算法加速、物联网系统及终端设备开发

赵志源：男，硕士生，研究方向为目标检测和云边协同智能计算

王均成：男，硕士生，研究方向为目标检测和图像处理

皮胜文：男，硕士生，研究方向为分布式深度学习与通算融合

通讯作者:
赵志源　804311347@qq.com

中图分类号: TN911.73
计量
- 文章访问数: 1584
- HTML全文浏览量: 1598
- PDF下载量: 394
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-07
- 修回日期: 2022-07-07
- 网络出版日期: 2022-07-08
- 刊出日期: 2023-06-10

High Performance YOLOv5: Research on High Performance Target Detection Algorithm for Embedded Platform

1.
School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Advanced Network and Intelligent Connection Technology Key Laboratory of Chongqing Education Commission of China, Chongqing 400065, China
3.
Chongqing Key Laboratory of Ubiquitous Sensing and Networking, Chongqing 400065, China

摘要

摘要: 针对目前深度学习单阶段检测算法综合性能不平衡以及在嵌入式设备难以部署等问题，该文提出一种面向嵌入式平台的高性能目标检测算法。基于只看1次5代 (YOLOv5)网络，改进算法首先在主干网络部分采用设计的空间颈块代替原有的焦点模块，结合改进的混洗网络2代替换原有的跨级局部暗网络，减小空间金字塔池化 (SPP)的内核尺寸，实现了主干网络的轻量化。其次，颈部采用了基于路径聚合网络 (PAN)设计的增强型路径聚合网络 (EPAN)，增加了P6大目标输出层，提高了网络的特征提取能力。然后，检测头部分采用以自适应空间特征融合 (ASFF)为基础设计的自适应空洞空间特征融合 (A-ASFF)来替代原有的检测头，解决了物体尺度变化问题，在少量增加额外开销情况下大幅提升检测精度。最后，函数部分采用高效交并比 (EIoU)代替完整交并比 (CIoU)损失函数，采用S型加权线性单元 (SiLU)代替HardSwish激活函数，提升了模型的综合性能。实验结果表明，与YOLOv5-S相比，该文提出的同版本算法在mAP@.5，mAP@.5:.95上分别提高了4.6%和6.3%，参数量降低了43.5%，计算复杂度降低了12.0%，在Jetson Nano平台上使用原模型和TensorRT加速模型进行速度评估，分别减少了8.1%和9.8%的推理延迟。该文所提算法的综合指标超越了众多优秀的目标检测网络，对嵌入式平台更为友好，具有实际应用意义。
- 目标检测 /
- YOLOv5 /
- 混洗网络2代 /
- 自适应空间特征融合 /
- 嵌入式设备 /
- TensorRT加速
Abstract: Considering the problems of imbalanced comprehensive performance of the current deep learning single-stage detection algorithms and difficult deployment in embedded devices, one High-Performance object detection algorithm for embedded platforms is proposed in this paper. Based on the You Only Look Once v5 (YOLOv5) network, in the backbone network part of the improved algorithm firstly, the original focus module and original Cross Stage Partial Darknet are replaced by a designed space stem block and an improved ShuffleNetv2, respectively. The kernel size of Space Pyramid Pooling (SPP) is reduced to lighten the backbone network. Secondly, in the neck, an Enhanced Path Aggregation Network (EPAN) based on Path Aggregation Network (PAN) design is adopted, a P6 large target output layer is added, and the feature extraction ability of the network is improved. And then, in the head, an Adaptive-Atrous Spatial Feature Fusion (A-ASFF) based on Adaptive Spatial Feature Fusion (ASFF) is used to replace the original detection head, the object scale change problem is solved, and the detection accuracy is greatly improved with a small amount of additional overhead. Finally, in the function section, a Complete Intersection over Union (CIoU) loss function is replaced by the Efficient Intersection over Union (EIoU), a HardSwish activation function is replaced by a Sigmoid weighted Linear Unit (SiLU), and model synthesis ability has been improved. The experimental results show that compared to YOLOv5-S, the mAP@.5 and mAP@.5:95 of the same version of the algorithm proposed in this paper are increased by 4.6% and 6.3% while the number of parameters and the computational complexity are reduced by 43.5% and 12.0%, respectively. Using the original model and the TensorRT accelerated model for speed evaluation on the Jetson Nano platform, the inference latency is reduced by 8.1% and 9.8%, respectively. The comprehensive indicators of many excellent object detection networks and their friendliness to embedded platforms are surpassed by the algorithm proposed in this paper and the practical meaning is generated.
- Object detection /
- YOLOv5 /
- ShuffleNetv2 /
- Adaptive Spatial Feature Fusion (ASFF) /
- Embedded device /
- TensorRT acceleration

HTML全文

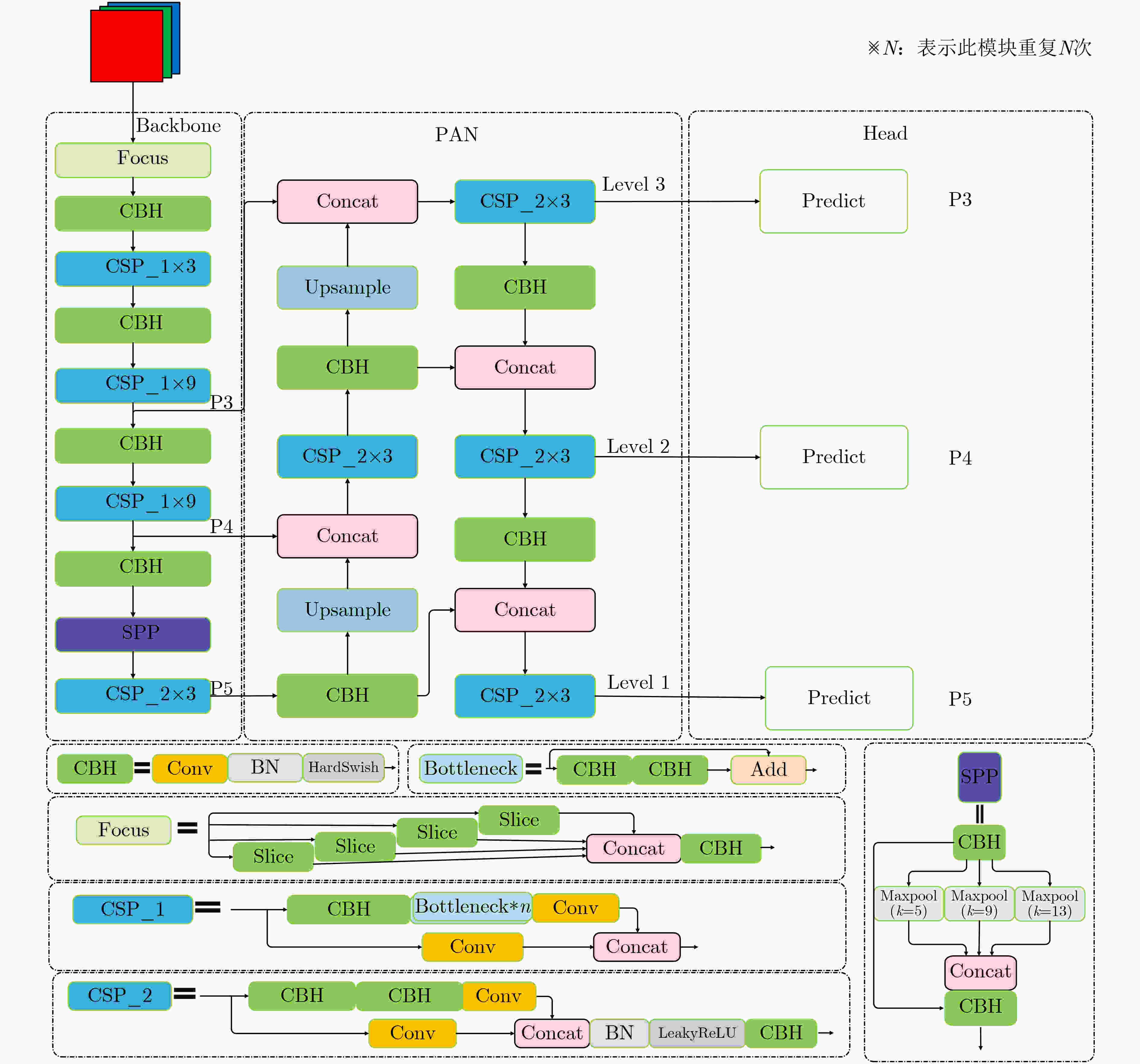

图 1 YOLOv5整体架构图

下载: 全尺寸图片幻灯片

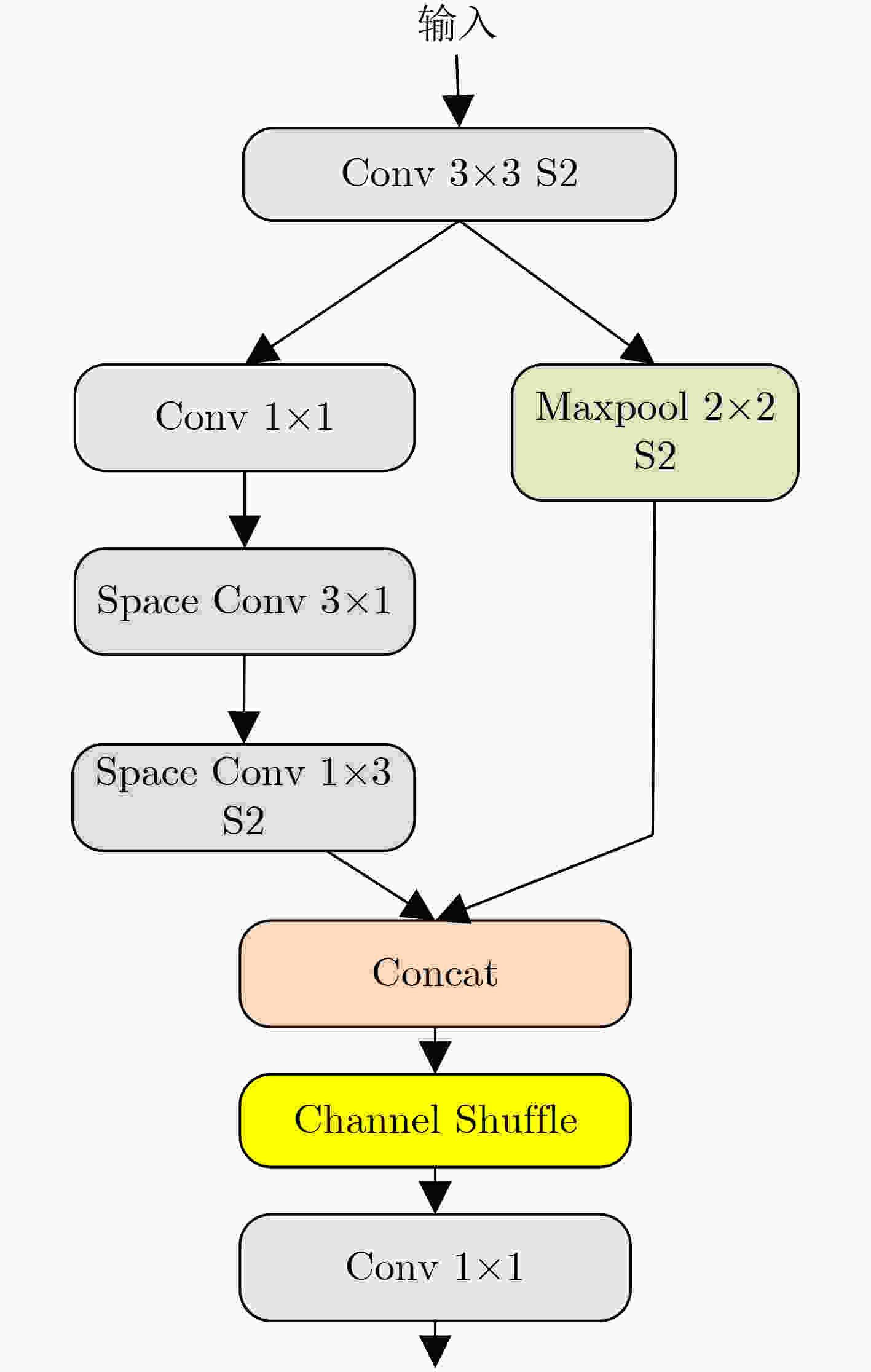

图 2 Space Stem架构图

下载: 全尺寸图片幻灯片

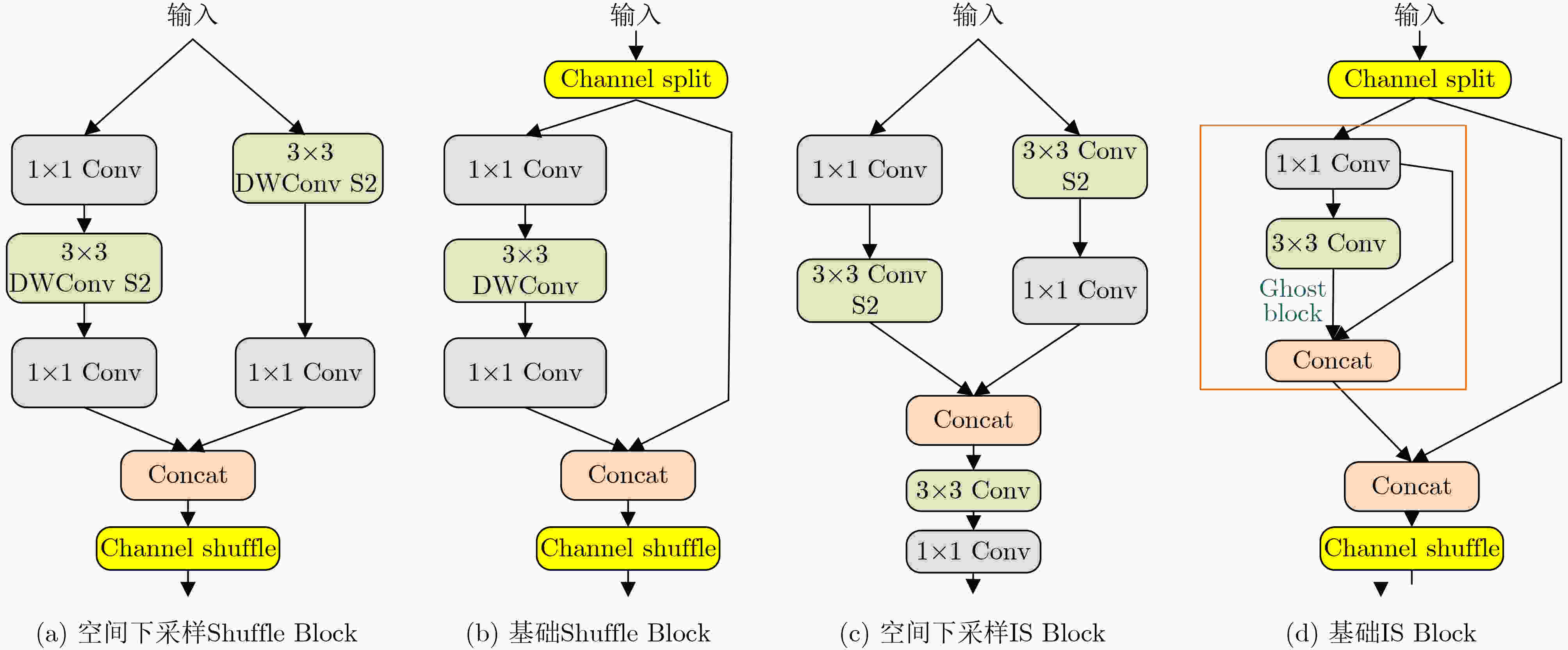

图 3 Shuffle Block和IS Block的模块对比图

下载: 全尺寸图片幻灯片

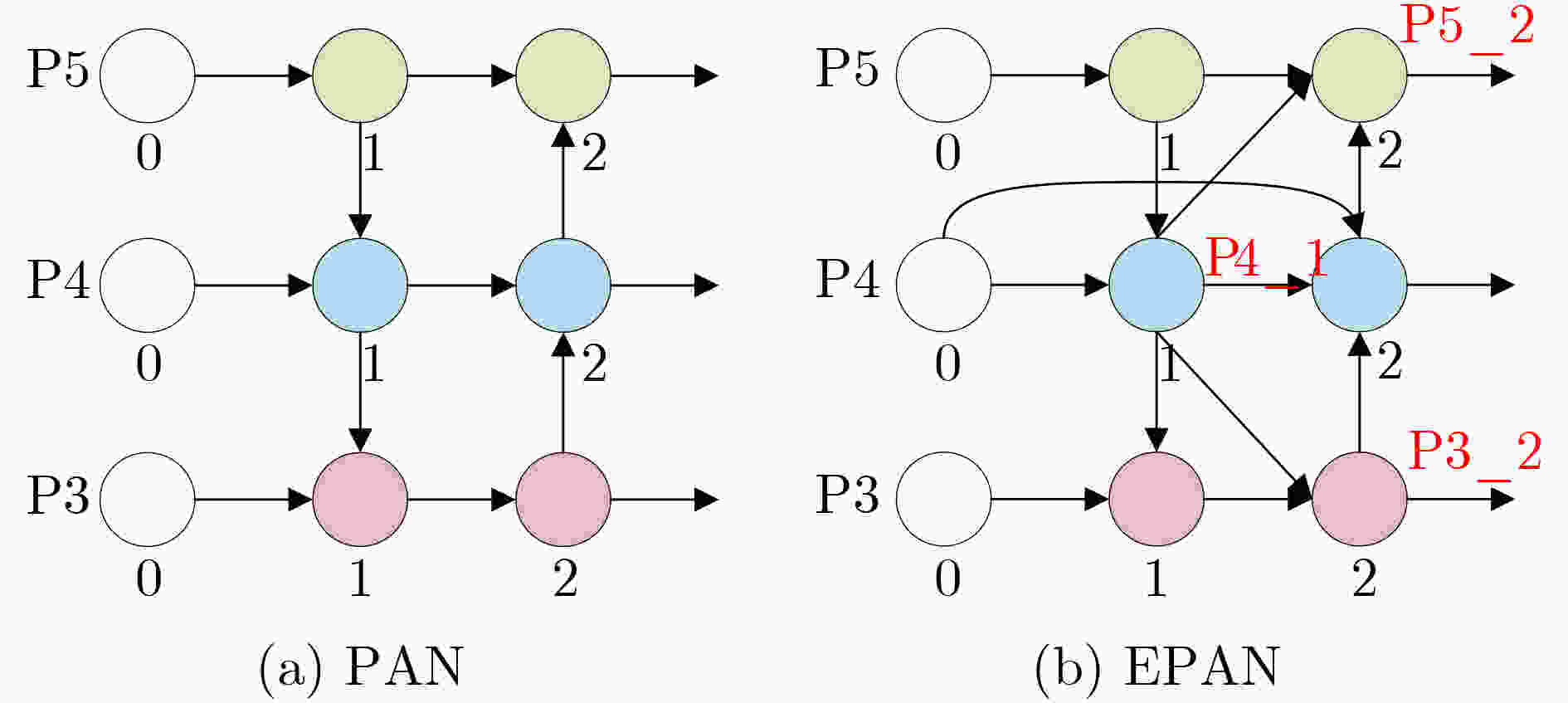

图 4 PAN与EPAN的模块对比图

下载: 全尺寸图片幻灯片

图 6 A-ASFF Head结构

下载: 全尺寸图片幻灯片

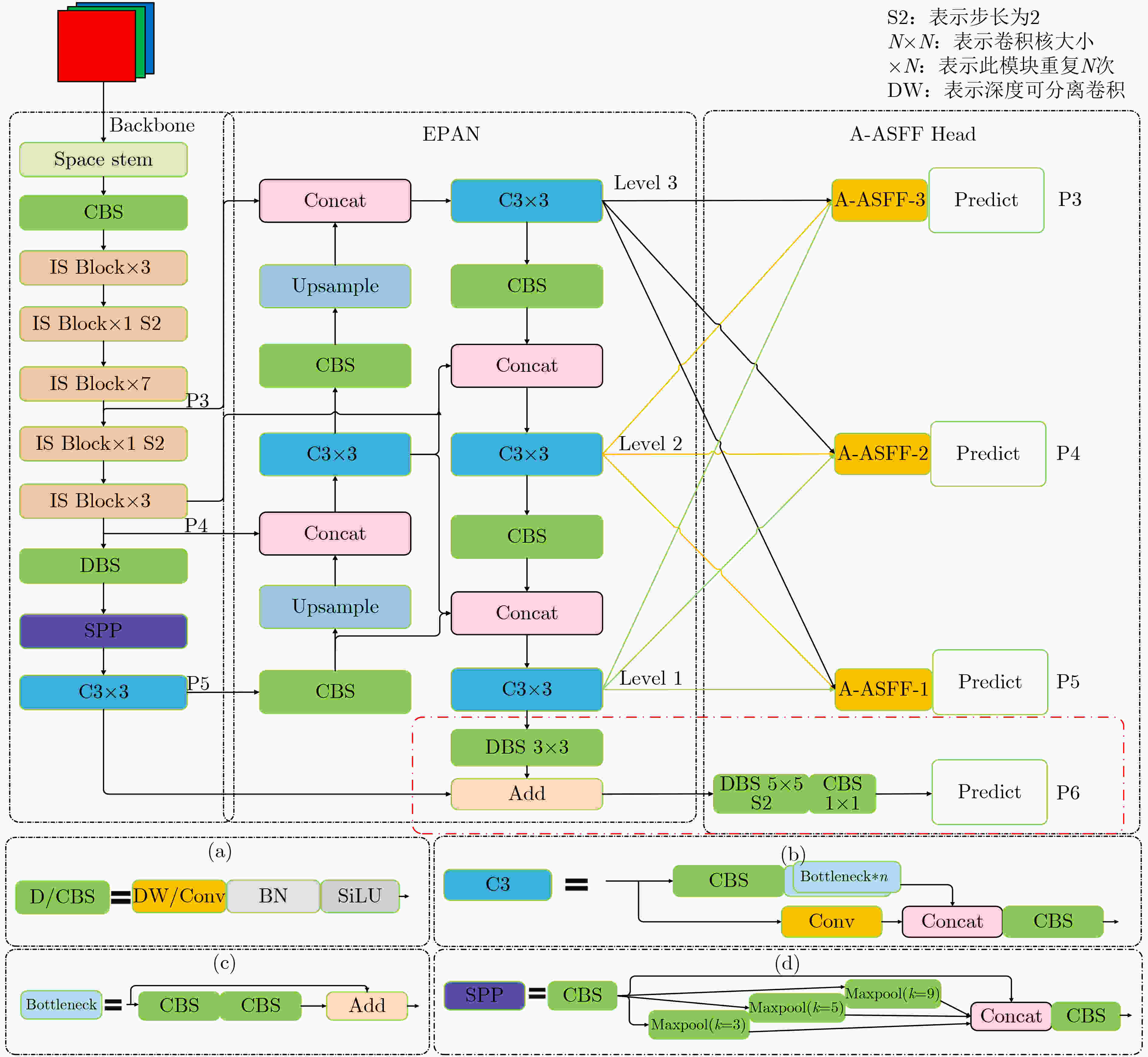

图 5 HP-YOLOv5整体架构图

下载: 全尺寸图片幻灯片

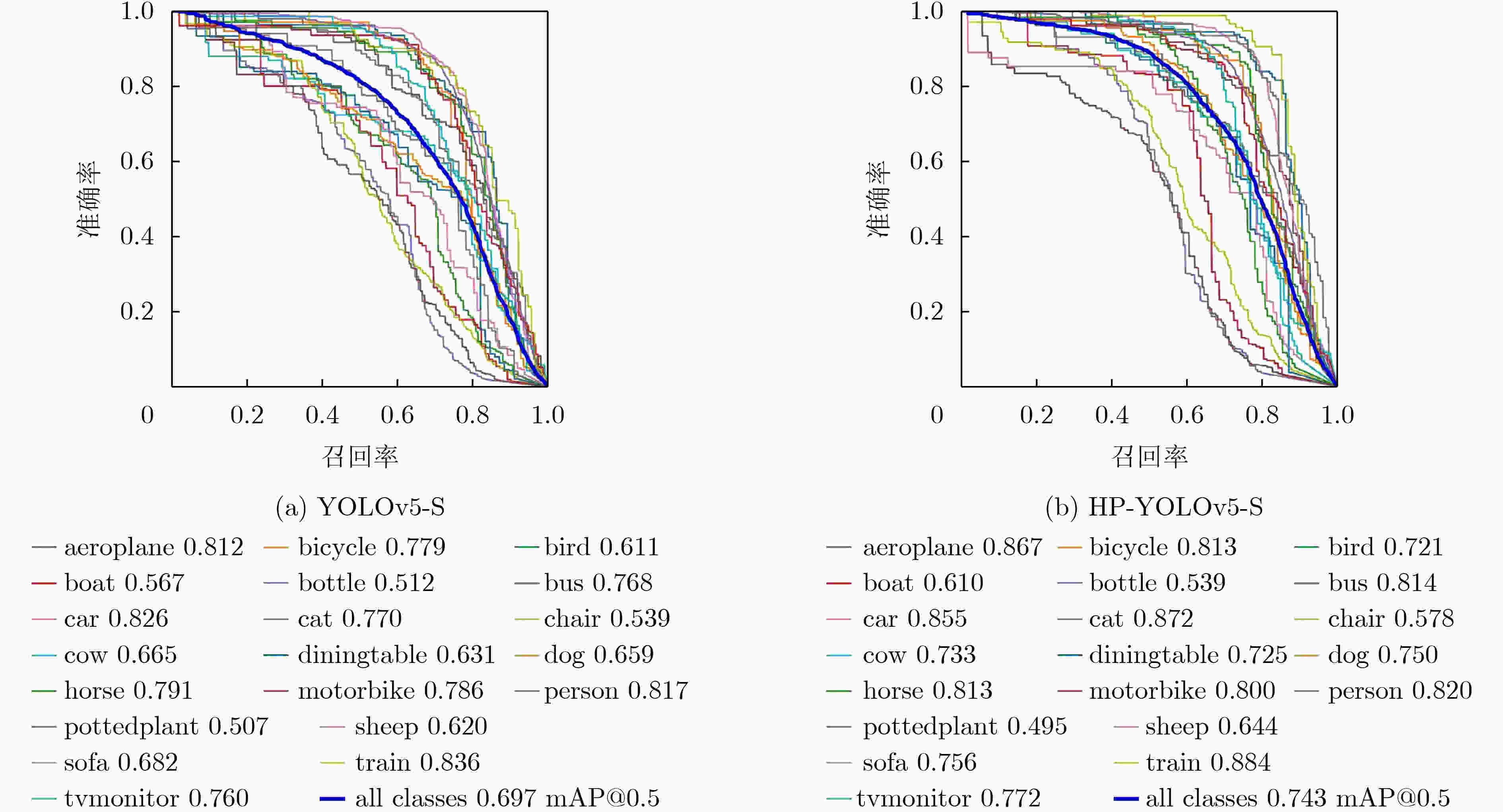

图 7 YOLOv5-S和 HP-YOLOv5-S的平均精度和召回率对比图

下载: 全尺寸图片幻灯片

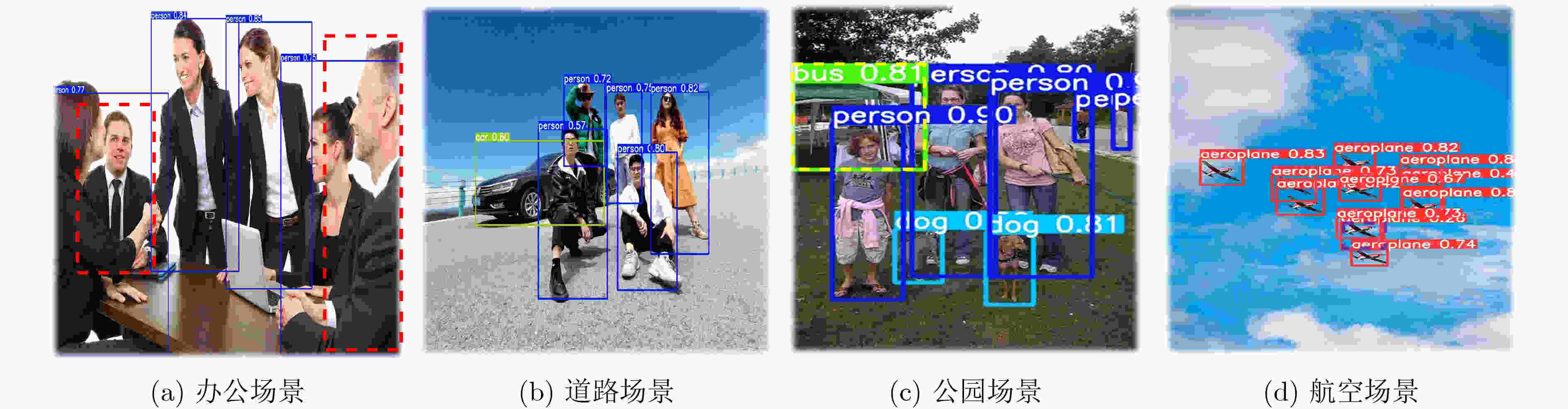

图 8 YOLOv5-S不同场景检测效果图

下载: 全尺寸图片幻灯片

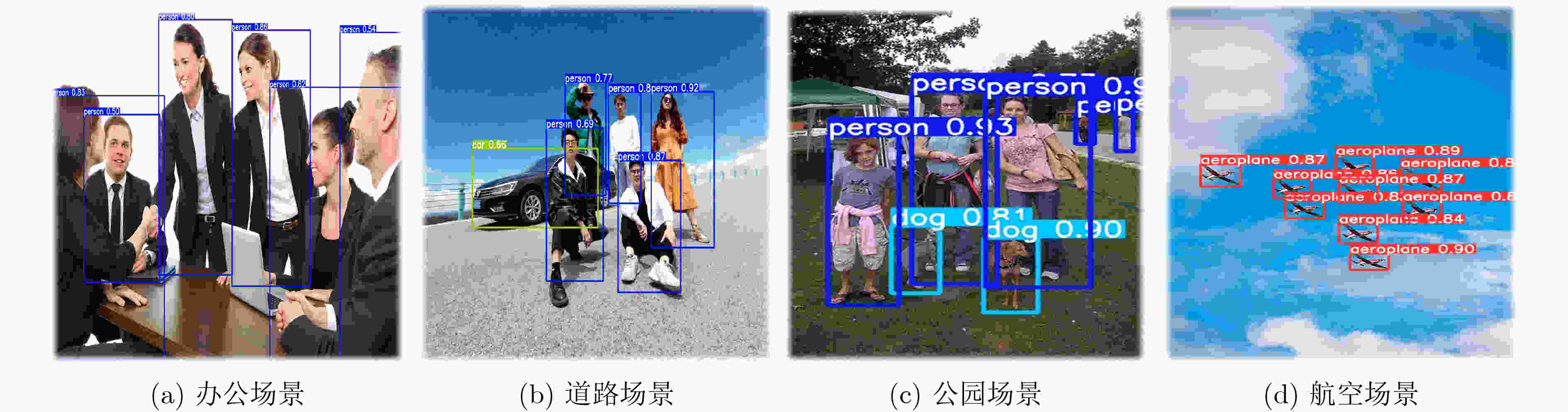

图 9 HP-YOLOv5-S不同场景检测效果图

下载: 全尺寸图片幻灯片

表 1 网络叠加优化研究结果

方法	mAP@.5(%)	mAP@.5:.95(%)	Params(M)	FLOPs(G)	Latency (ms)
YOLOv5	69.7	42.1	7.3	8.3	11.2
替换SiLU	70.2(+0.5)	42.4(+0.3)	7.3	8.3	10.8(–0.4)
修改SPP(3,5,9)	70.2	42.4	7.3	8.3	10.3(–0.5)
替换Space Stem	71.5(+1.3)	44.1(+1.7)	7.3	8.4	10.5(+0.2)
替换IS Block	70.8(–0.7)	43.2(–0.9)	3.8	7.0	8.3(–2.2)
替换EPAN	71.8(+1.0)	44.0(+0.8)	3.9	7.1	8.7(+0.4)
增添P6 Block	73.0(+1.2)	45.5(+1.5)	4.0	7.1	8.9(+0.2)
替换A-ASFF/ASFF	74.1/74.3(+1.1/+1.3)	47.6/47.7(+2.1/+2.2)	4.1/6.6	7.3/10.1	10.1/11.7(+1.2/2.8)
替换EIoU	74.3(+0.2)	48.4(+0.8)	4.1	7.3	10.1

下载: 导出CSV

表 2 本文方法与基线各模块的对比实验结果

原始方法/本文方法	Params(修改前/后)	MFLOPs(修改前/后)	mAP@.5(修改前/后)(%)
SPP(5,9,13) / SPP(3,5,9)	656896.0/656896.0	257.8/257.8	69.7/69.7
Focus / Space Stem	44032.0/67968.0(+54.0%)	1643.0/2497.0(+51.9%)	69.7/71.3(+1.6)
CSP Block / IS Block	986112.0/882432.0(–10.5%)	1549.0/71.3(–95.4%)	69.7/69.4(–0.3)
PAN / EPAN	193654200.0/200566200.0(+3.6%)	5838.6/5841.4(+0.1%)	69.7/70.8(+1.1)
Head / A-ASFF Head	158300900.0/175772300.0(+11.0%)	1442.7/1719.3(+19.2%)	69.7/71.6(+1.9)

下载: 导出CSV

表 3 本文方法与基线消融对比实验结果

SiLU	Space Stem	IS Block	SPP (3,5,9)	EPAN	P6	A-ASFF	EIOU	mAP@.5(%)	mAP@.5:.95(%)	Params(M)	FLOPs(G)	Latency (ms)
								69.7	42.1	7.3	8.3	11.2
√								70.2↑	42.4↑	7.3	8.3	10.8↑
	√							71.3↑	43.9↑	7.3	8.4↓	11.5↓
		√						69.4↓	41.3↓	3.8↑	6.9↑	8.9↑
			√					69.7	42.1	7.3	8.3	10.7↑
				√				70.8↑	43.3↑	7.4↓	8.4↓	11.6↓
					√			71.6↑	44.9↑	7.5↓	8.4↓	11.4↓
						√		71.6↑	45.3↑	7.6↓	8.7↓	12.5↓
							√	70.0↑	42.9↑	7.3	8.3	11.2
	√		√					71.3↑	43.9↑	7.3	8.4↓	11.1↑
		√	√					69.4↓	41.3↓	3.8↑	6.9↑	8.4↑
	√	√						70.8↑	43.2↑	3.8↑	7.0↑	9.1↑
	√	√	√					70.8↑	43.2↑	3.8↑	7.0↑	8.6↑
				√	√			72.5↑	45.7↑	7.6↓	8.4↓	11.7↓
√	√	√	√	√	√	√	√	74.3↑	48.4↑	4.1↑	7.3↑	10.1↑

下载: 导出CSV

表 4 在PASCAL VOC 2012数据集上不同算法性能比较

算法	Params(M)	FLOPs(G)	mAP@.5(%)	mAP@.5:.95(%)	Latency/(ms)			模型大小 (MB)
算法	Params(M)	FLOPs(G)	mAP@.5(%)	mAP@.5:.95(%)	PC	Nano	TRT	模型大小 (MB)
YOLOv3-Tiny	8.7	6.4	47.9	21.5	–	–	–	33.1
YOLOv4-Tiny	5.9	8.0	54.8	25.6	–	–	–	23.7
NanoDet	0.9	1.4	54.4	25.2	8.5	–	–	1.7
NanoDet-Plus	1.2	1.8	57.1	29.3	9.0	–	–	2.3
YOLOv5-N	1.9	2.2	61.9	34.2	9.2	115.2	25.8	4.0
YOLOv5-S	7.3	8.3	69.7	42.1	11.3	152.8	45.7	14.9
YOLOv5-M	21.6	25.3	75.1	49.8	13.2	315.6	97.4	43.5
HP-YOLOv5-N	1.1	1.9	67.2	39.6	8.9	108.4	23.9	3.1
HP-YOLOv5-S	4.1	7.3	74.3	48.4	10.1	140.4	41.2	11.4
HP-YOLOv5-M	11.0	19.1	76.7	52.7	12.5	284.5	86.1	35.6

下载: 导出CSV
