非完美条件下的非正交多址接入星地融合网络性能分析

帅海峰 郭克锋 安康 朱诗兵 李长青

帅海峰, 郭克锋, 安康, 朱诗兵, 李长青. 非完美条件下的非正交多址接入星地融合网络性能分析[J]. 电子与信息学报, 2023, 45(2): 427-435. doi: 10.11999/JEIT220377
引用本文: 帅海峰, 郭克锋, 安康, 朱诗兵, 李长青. 非完美条件下的非正交多址接入星地融合网络性能分析[J]. 电子与信息学报, 2023, 45(2): 427-435. doi: 10.11999/JEIT220377
SHUAI Haifeng, GUO Kefeng, AN Kang, ZHU Shibing, LI Changqing. On the Performance of Non-Orthogonal Multiple Access Integrated Satellite-Terrestrial Networks in Imperfect Constraints[J]. Journal of Electronics & Information Technology, 2023, 45(2): 427-435. doi: 10.11999/JEIT220377
Citation: SHUAI Haifeng, GUO Kefeng, AN Kang, ZHU Shibing, LI Changqing. On the Performance of Non-Orthogonal Multiple Access Integrated Satellite-Terrestrial Networks in Imperfect Constraints[J]. Journal of Electronics & Information Technology, 2023, 45(2): 427-435. doi: 10.11999/JEIT220377

非完美条件下的非正交多址接入星地融合网络性能分析

doi: 10.11999/JEIT220377
基金项目: 国家自然科学基金(61901502,62001517),国家创新人才博士后计划(BX20200101),航天工程大学项目(2020XXAQ01, 2019XXAQ05)
详细信息
    作者简介:

    帅海峰:男,博士生,研究方向为航天通信及非正交多址接入技术等

    郭克锋:男,讲师,研究方向为卫星通信、非正交多址接入技术和物理层安全等

    安康:男,高级工程师,研究方向为B5G/6G无线通信、可重构智能表面和通信抗干扰等

    朱诗兵:男,教授,研究方向为航天通信、自组网及网络安全等

    李长青:男,副教授,研究方向为航天通信及无线通信优化等

    通讯作者:

    郭克锋 guokefeng.cool@163.com

  • 中图分类号: TN929.5

On the Performance of Non-Orthogonal Multiple Access Integrated Satellite-Terrestrial Networks in Imperfect Constraints

Funds: The National Natural Science Foundation of China (61901502,62001517), The National Postdoctoral Program for Innovative Talents (BX20200101), The Project of Space Engineering University (2020XXAQ01,2019XXAQ05)
  • 摘要: 随着星地融合网络(ISTNs)的快速发展,大量的传感器和无线设备都有无线服务的接入需求,从而对星地融合网络的频谱效率和服务质量提出了新的挑战。不同于传统的正交多址接入技术,非正交多址接入(NOMA)技术可在相同的频率下传输不同用户的信号,其被认作为提高星地融合网络频谱效率的有效方法,从而被广泛研究。目前,针对NOMA和星地融合网络的研究大多都是在理想条件下进行的,由此该文研究更加实际的情况,即在非完美串行干扰消除(SIC)、信道估计误差和同频干扰下,对星地融合网络的性能进行研究。该文在假设卫星端和地面端均采用多天线的前提下,推导了系统遍历容量的闭式表达式,验证了非完美条件对于系统性能的影响。同时蒙特卡罗仿真验证了理论分析和推导的正确性。

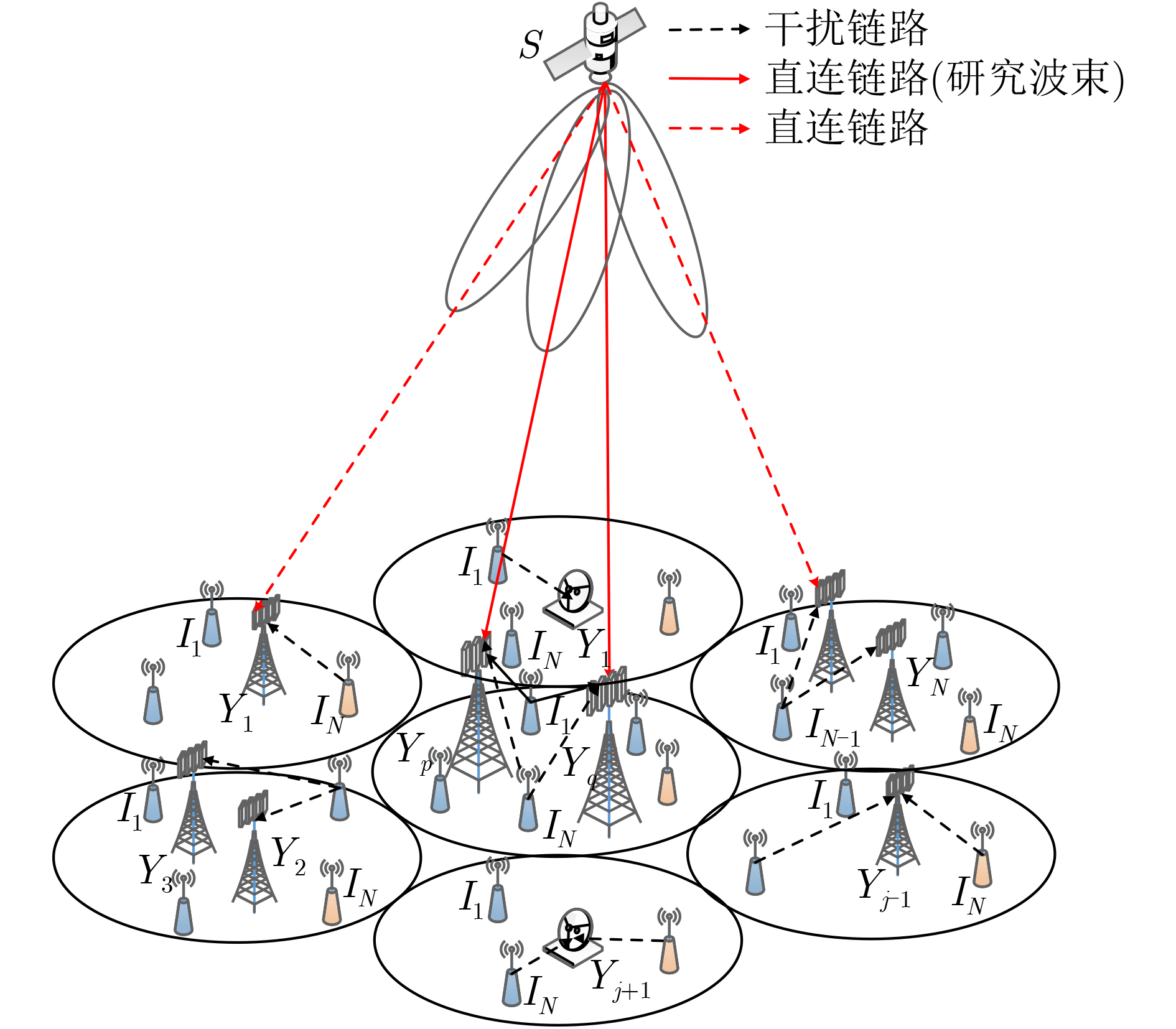

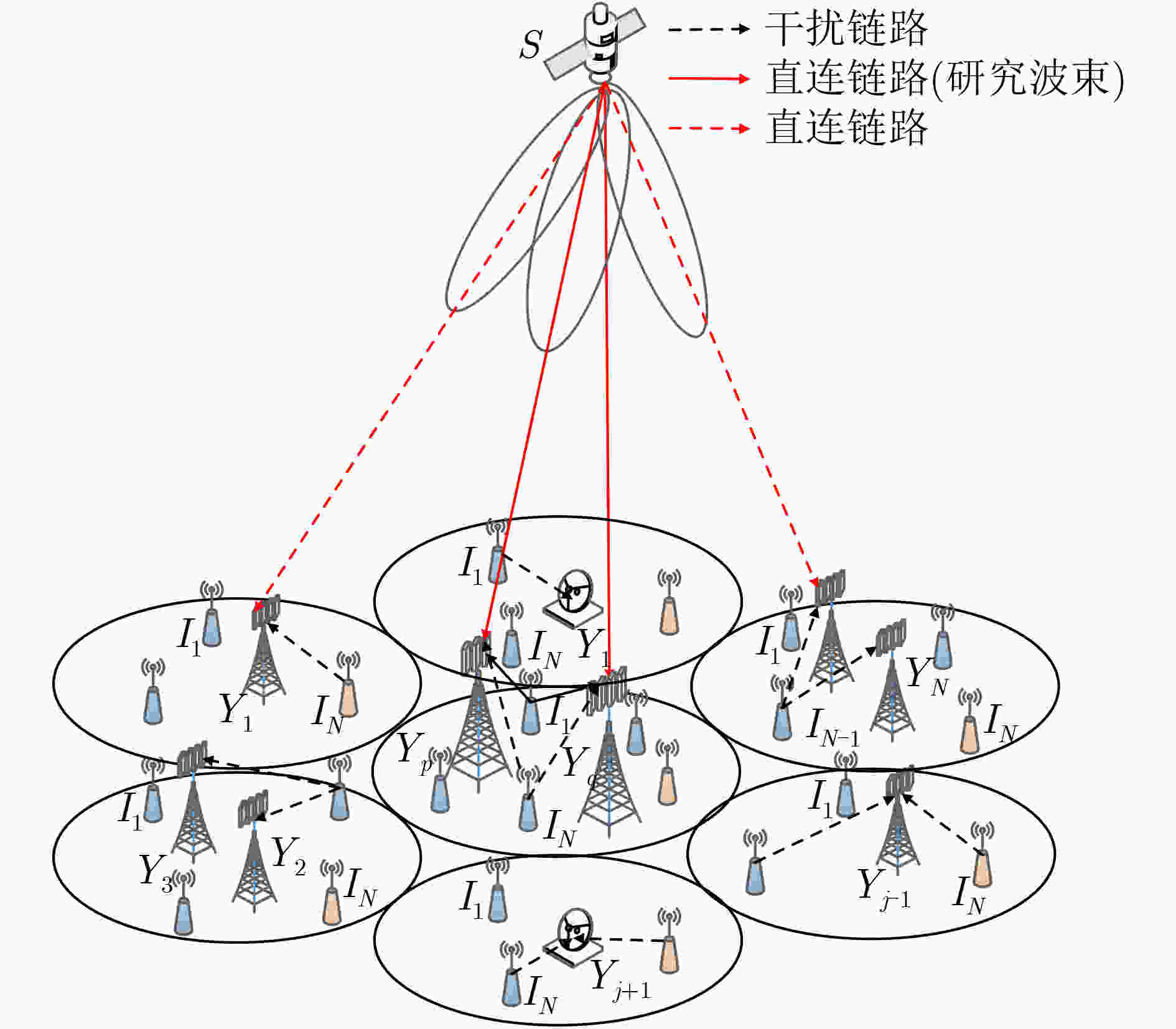

  • 图  1  多天线星地融合NOMA网络

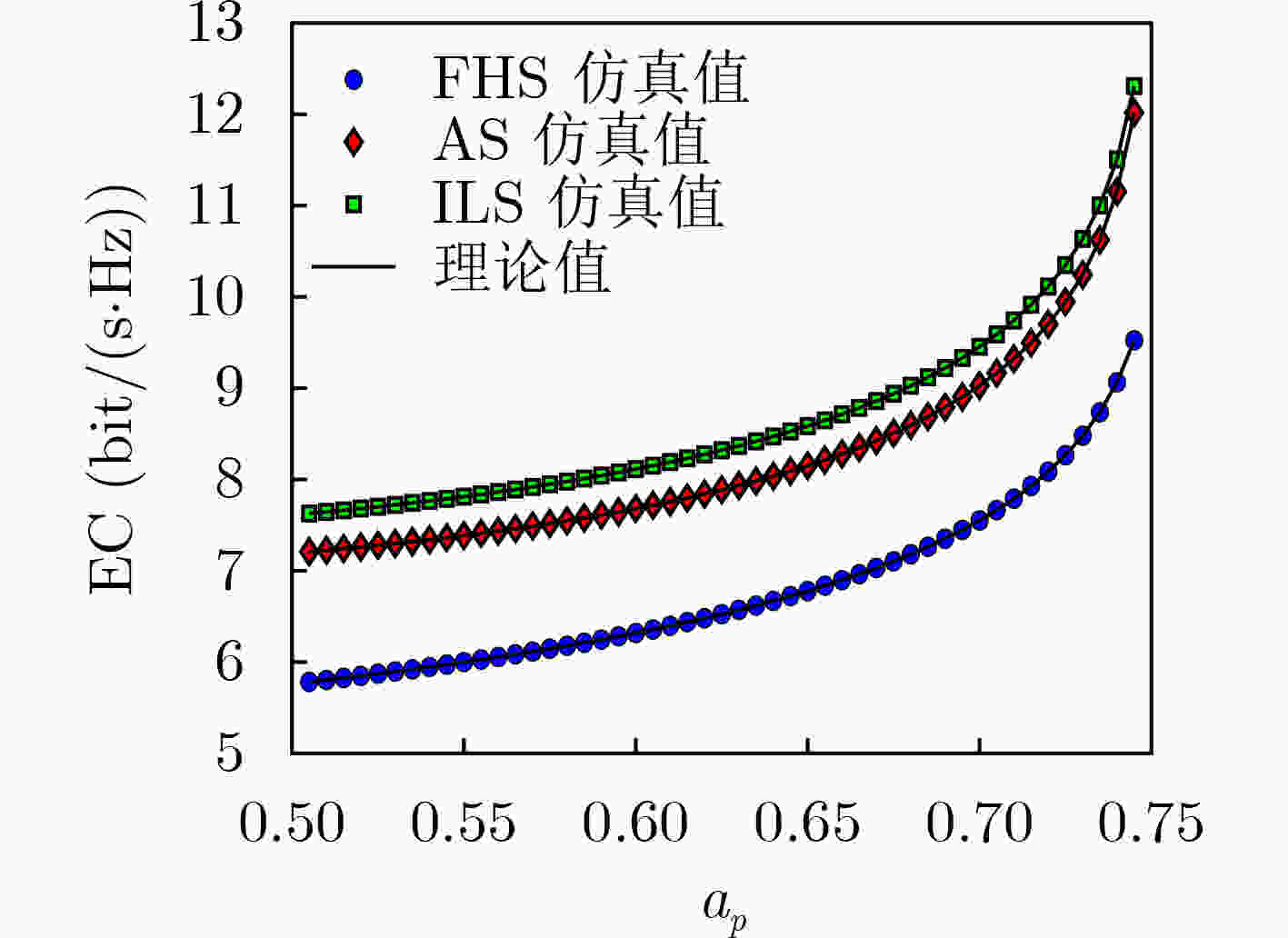

    图  2  遍历容量随功率分配因子的变化

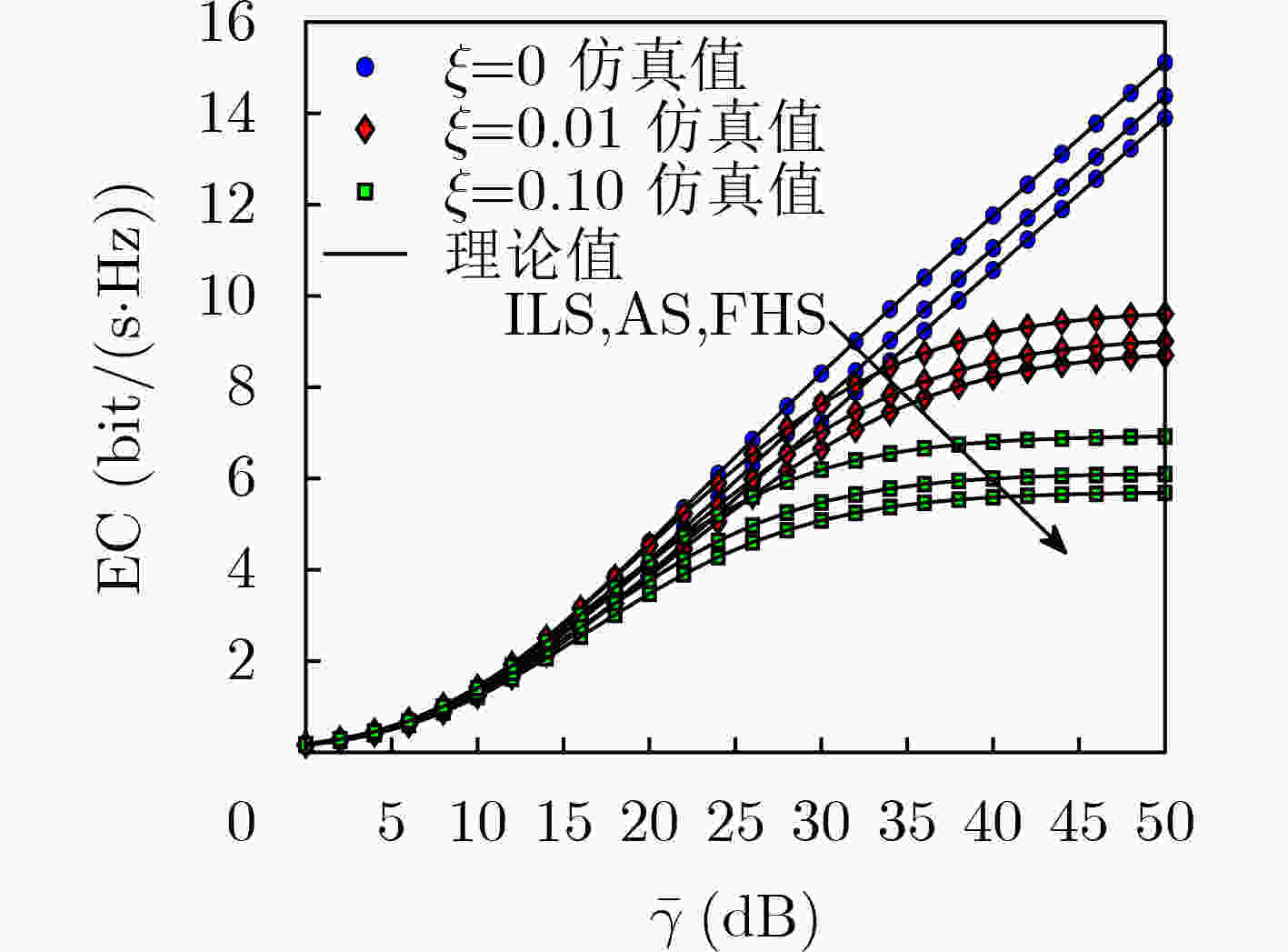

    图  3  遍历容量随非完美SIC的变化

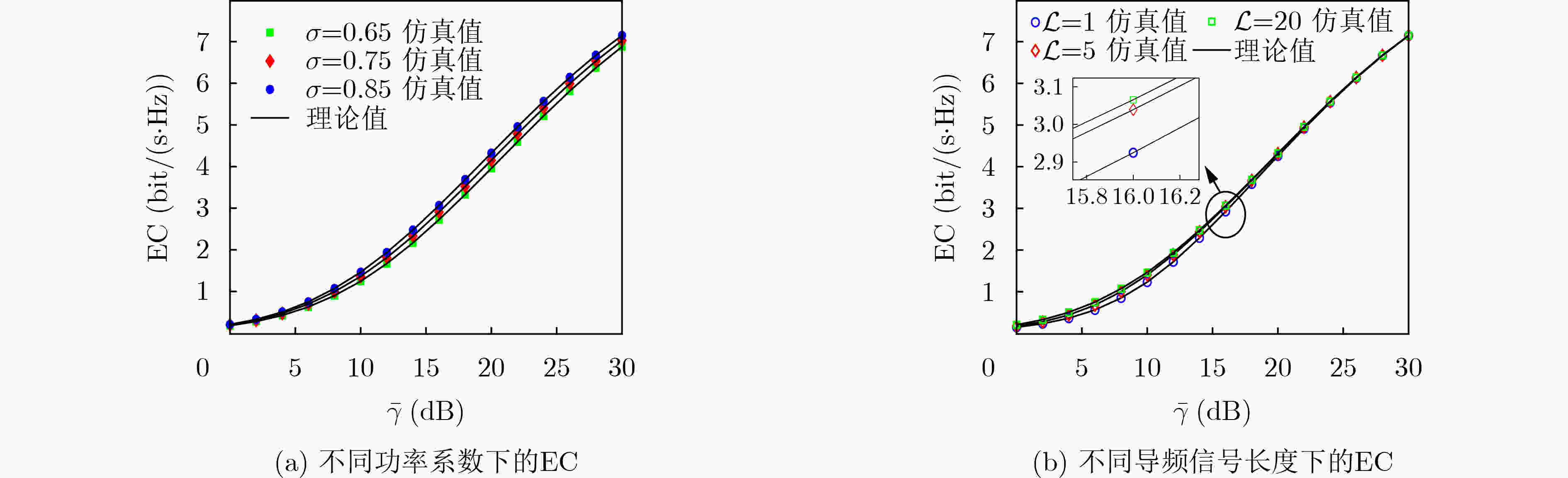

    图  4  遍历容量随信道估计误差的变化

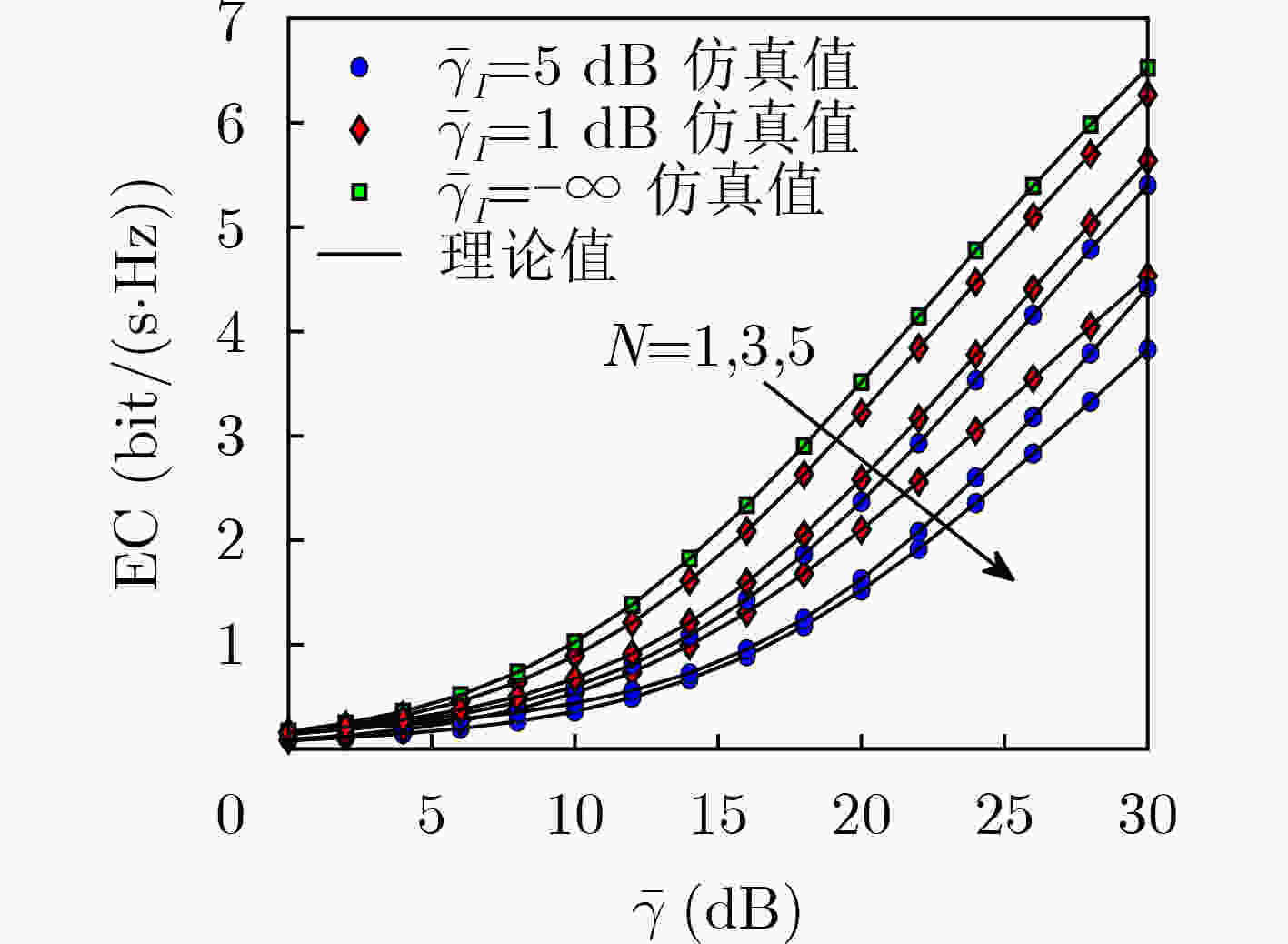

    图  5  遍历容量随同频干扰的变化

    表  1  系统参数

    参数数值
    卫星轨道GEO
    载波频率18 GHz
    载波带宽50 MHz
    3 dB角度0.4°
    最大波束增益48 dB
    接收天线增益4 dB
    噪声温度300 K
    雨衰$\mu = - 3.125 $, $\delta _\zeta ^2 = 1.591$
    下载: 导出CSV

    表  2  信道参数

    衰落程度${m_j}$ ${b_j}$ ${\varOmega _j}$
    重度衰落(Frequent Heavy Shadowing, FHS)10.0630.0007
    中度衰落(Average Shadowing, AS)50.2510.2790
    轻度衰落(Infrequent Light Shadowing, ILS)100.1501.2900
    下载: 导出CSV
  • [1] GUO Kefeng, AN Kang, ZHANG Bangning, et al. Physical layer security for multiuser satellite communication systems with threshold-based scheduling scheme[J]. IEEE Transactions on Vehicular Technology, 2020, 69(5): 5129–5141. doi: 10.1109/TVT.2020.2979496
    [2] LIN Min, HUANG Qingquan, DE COLA T, et al. Integrated 5G-satellite networks: a perspective on physical layer reliability and security[J]. IEEE Wireless Communications, 2020, 27(6): 152–159. doi: 10.1109/MWC.001.2000143
    [3] 胡晗, 鲍楠, 凌章, 等. 基于NOMA的移动边缘计算系统公平能效调度算法[J]. 电子与信息学报, 2021, 43(12): 3563–3570. doi: 10.11999/JEIT200898

    HU Han, BAO Nan, LING Zhang, et al. Fair energy efficiency scheduling in NOMA-based mobile edge computing[J]. Journal of Electronics &Information Technology, 2021, 43(12): 3563–3570. doi: 10.11999/JEIT200898
    [4] 吴广富, 邓天垠, 苏开荣, 等. 基于非正交多址接入系统的多用户分组优化算法[J]. 电子与信息学报, 2018, 40(9): 2080–2087. doi: 10.11999/JEIT171220

    WU Guangfu, DENG Tianyin, SU Kairong, et al. Multi-user grouping optimization algorithm based on non-orthogonal multiple access systems[J]. Journal of Electronics &Information Technology, 2018, 40(9): 2080–2087. doi: 10.11999/JEIT171220
    [5] SINGH V, UPADHYAY P K, and LIN Min. On the performance of NOMA-assisted overlay multiuser cognitive satellite-terrestrial networks[J]. IEEE Wireless Communications Letters, 2020, 9(5): 638–642. doi: 10.1109/LWC.2020.2963981
    [6] LIN Zhi, LIN Min, WANG Junbo, et al. Joint beamforming and power allocation for satellite-terrestrial integrated networks with non-orthogonal multiple access[J]. IEEE Journal of Selected Topics in Signal Processing, 2019, 13(3): 657–670. doi: 10.1109/JSTSP.2019.2899731
    [7] ZHANG Xiaokai, ZHANG Bangning, AN Kang, et al. On the performance of hybrid satellite-terrestrial content delivery networks with non-orthogonal multiple access[J]. IEEE Wireless Communications Letters, 2021, 10(3): 454–458. doi: 10.1109/LWC.2020.3029621
    [8] LIN Zhi, LIN Min, CHAMPAGNE B, et al. Secrecy-energy efficient hybrid beamforming for satellite-terrestrial integrated networks[J]. IEEE Transactions on Communications, 2021, 69(9): 6345–6360. doi: 10.1109/TCOMM.2021.3088898
    [9] AN Kang, LIN Min, LIANG Tao, et al. Performance analysis of multi-antenna hybrid satellite-terrestrial relay networks in the presence of interference[J]. IEEE Transactions on Communications, 2015, 63(11): 4390–4404. doi: 10.1109/TCOMM.2015.2474865
    [10] GUO Kefeng, LIN Min, ZHANG Bangning, et al. Performance analysis of hybrid satellite-terrestrial cooperative networks with relay selection[J]. IEEE Transactions on Vehicular Technology, 2020, 69(8): 9053–9067. doi: 10.1109/TVT.2020.2999752
    [11] FAMORIJI O J and XU Zhiwei. Antenna feed array synthesis for efficient communication systems[J]. IEEE Sensors Journal, 2020, 20(24): 15085–15098. doi: 10.1109/JSEN.2020.3012444
    [12] GUO Kefeng, AN Kang, ZHANG Bangning, et al. On the performance of cognitive satellite-terrestrial relay networks with channel estimation error and hardware impairments[J]. Sensors, 2018, 18(10): 3292. doi: 10.3390/s18103292
    [13] SOLANKI S, UPADHYAY P K, DA COSTA D B, et al. Joint impact of RF hardware impairments and channel estimation errors in spectrum sharing multiple-relay networks[J]. IEEE Transactions on Communications, 2018, 66(9): 3809–3824. doi: 10.1109/TCOMM.2018.2832623
    [14] HUANG Qingquan, LIN Min, ZHU Weiping, et al. Uplink massive access in mixed RF/FSO satellite-aerial-terrestrial networks[J]. IEEE Transactions on Communications, 2021, 69(4): 2413–2426. doi: 10.1109/TCOMM.2021.3049364
    [15] RUAN Yuhan, JIANG Lijuan, LI Yongzhao, et al. Energy-efficient power control for cognitive satellite-terrestrial networks with outdated CSI[J]. IEEE Systems Journal, 2021, 15(1): 1329–1332. doi: 10.1109/JSYST.2020.2975025
    [16] 王夕予, 许晓明, 陈亚军. 非理想连续干扰消除下非正交多址接入上行传输系统性能分析[J]. 电子与信息学报, 2019, 41(12): 2795–2801. doi: 10.11999/JEIT181165

    WANG Xiyu, XU Xiaoming, and CHEN Yajun. Performances analysis in uplink non-orthogonal multiple access system with imperfect successive interference cancellation[J]. Journal of Electronics &Information Technology, 2019, 41(12): 2795–2801. doi: 10.11999/JEIT181165
    [17] LI Xingwang, LIU Meng, DENG Chao, et al. Full-duplex cooperative NOMA relaying systems with I/Q imbalance and imperfect SIC[J]. IEEE Wireless Communications Letters, 2020, 9(1): 17–20. doi: 10.1109/LWC.2019.2939309
    [18] YUE Xinwei, LIU Yuanwei, YAO Yuanyuan, et al. Outage behaviors of NOMA-based satellite network over shadowed-Rician fading channels[J]. IEEE Transactions on Vehicular Technology, 2020, 69(6): 6818–6821. doi: 10.1109/TVT.2020.2988026
    [19] RUAN Yuhan, LI Yongzhao, WANG Chengxiang, et al. Energy efficient power allocation for delay constrained cognitive satellite terrestrial networks under interference constraints[J]. IEEE Transactions on Wireless Communications, 2019, 18(10): 4957–4969. doi: 10.1109/TWC.2019.2931321
    [20] GUO Kefeng, AN Kang, ZHANG Bangning, et al. On the performance of the uplink satellite multiterrestrial relay networks with hardware impairments and interference[J]. IEEE Systems Journal, 2019, 13(3): 2297–2308. doi: 10.1109/JSYST.2019.2901800
    [21] GRADSHTEYN I S and RYZHIK I M. Table of Integrals, Series, and Products[M]. 7th ed. Amsterdam: Elsevier, 2007.
    [22] KÖLBIG K S. Reviewed Work: Integrals and series of special functions. by A. P. Prudnikov, Yu. A. Bryčkov, O. I. Maričev[J]. Mathematics of Computation, 1985, 44(170): 573–574. doi: 10.2307/2007975
