基于比较器的四值电流型CMOS加减电路设计

姚茂群 刘志强

姚茂群, 刘志强. 基于比较器的四值电流型CMOS加减电路设计[J]. 电子与信息学报, 2023, 45(5): 1852-1858. doi: 10.11999/JEIT220360
引用本文: 姚茂群, 刘志强. 基于比较器的四值电流型CMOS加减电路设计[J]. 电子与信息学报, 2023, 45(5): 1852-1858. doi: 10.11999/JEIT220360
YAO Maoqun, LIU Zhiqiang. Design of Quaternary Logic Current Mode CMOS Add-subtract Circuit Based on Comparator[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1852-1858. doi: 10.11999/JEIT220360
Citation: YAO Maoqun, LIU Zhiqiang. Design of Quaternary Logic Current Mode CMOS Add-subtract Circuit Based on Comparator[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1852-1858. doi: 10.11999/JEIT220360

基于比较器的四值电流型CMOS加减电路设计

doi: 10.11999/JEIT220360
基金项目: 国家自然科学基金(61771179)
详细信息
    作者简介:

    姚茂群:女,教授,研究方向为低功耗数字集成电路设计

    刘志强:男,硕士生,研究方向为低功耗数字集成电路设计

    通讯作者:

    姚茂群 yaomaoqun@163.com

  • 中图分类号: TN432

Design of Quaternary Logic Current Mode CMOS Add-subtract Circuit Based on Comparator

Funds: The National Natural Science Foundation of China (61771179)
  • 摘要: 该文通过对电流型CMOS电路的阈值控制引入了多值电流型比较器。与2值逻辑电路相比,多值逻辑电路的单条导线允许更多的信息传输。相较于电压信号,电流信号易实现加、减等算术运算,在多值逻辑的设计上更加方便。同时提出了基于比较器的4值基本单元设计方法,实现了4值取大、取小以及反向器的设计,在此基础上设计实现了加法器和减法器。该设计方法在2值、3值以及n值逻辑上同样适用。实验结果表明所设计的电路具有正确的逻辑功能,较之相关文献电流型CMOS全加器有更低的功耗和更少的晶体管数。

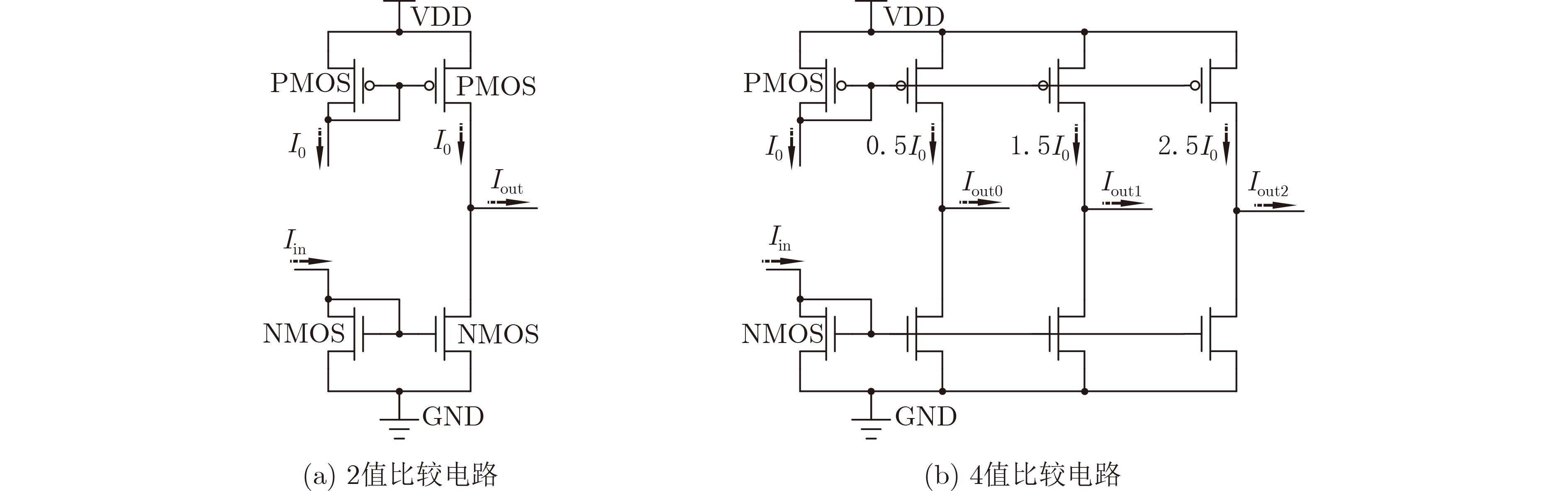

  • 图  1  电流比较器示意图

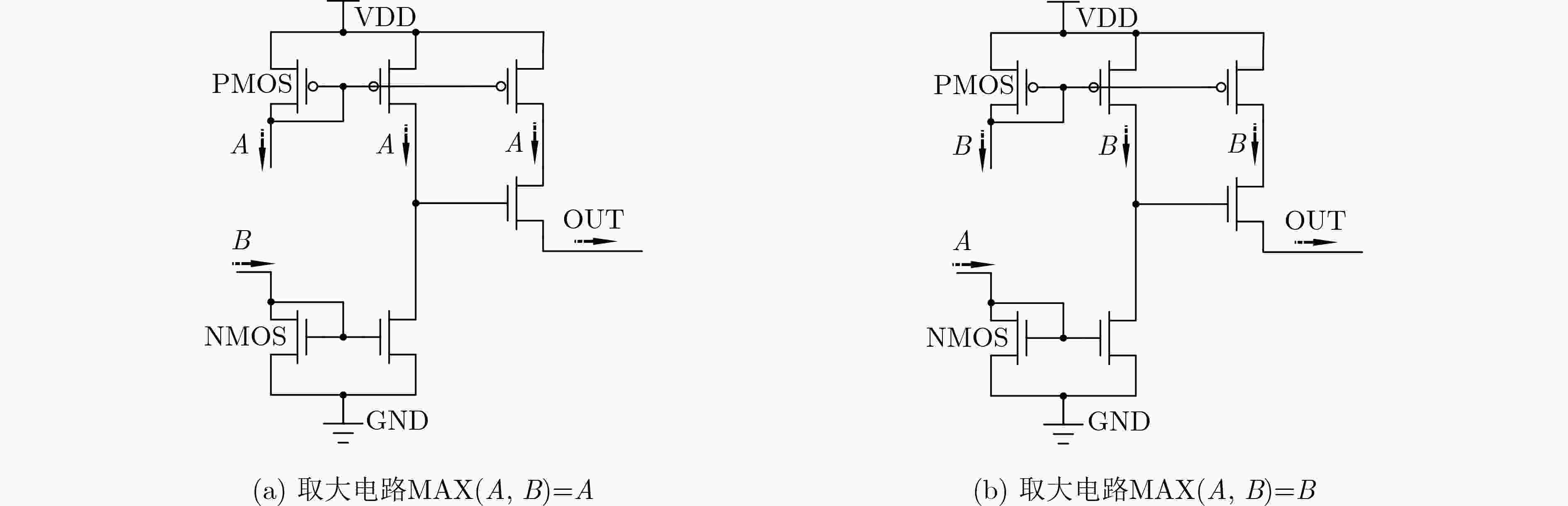

    图  2  取大电路两部分晶体管电路图

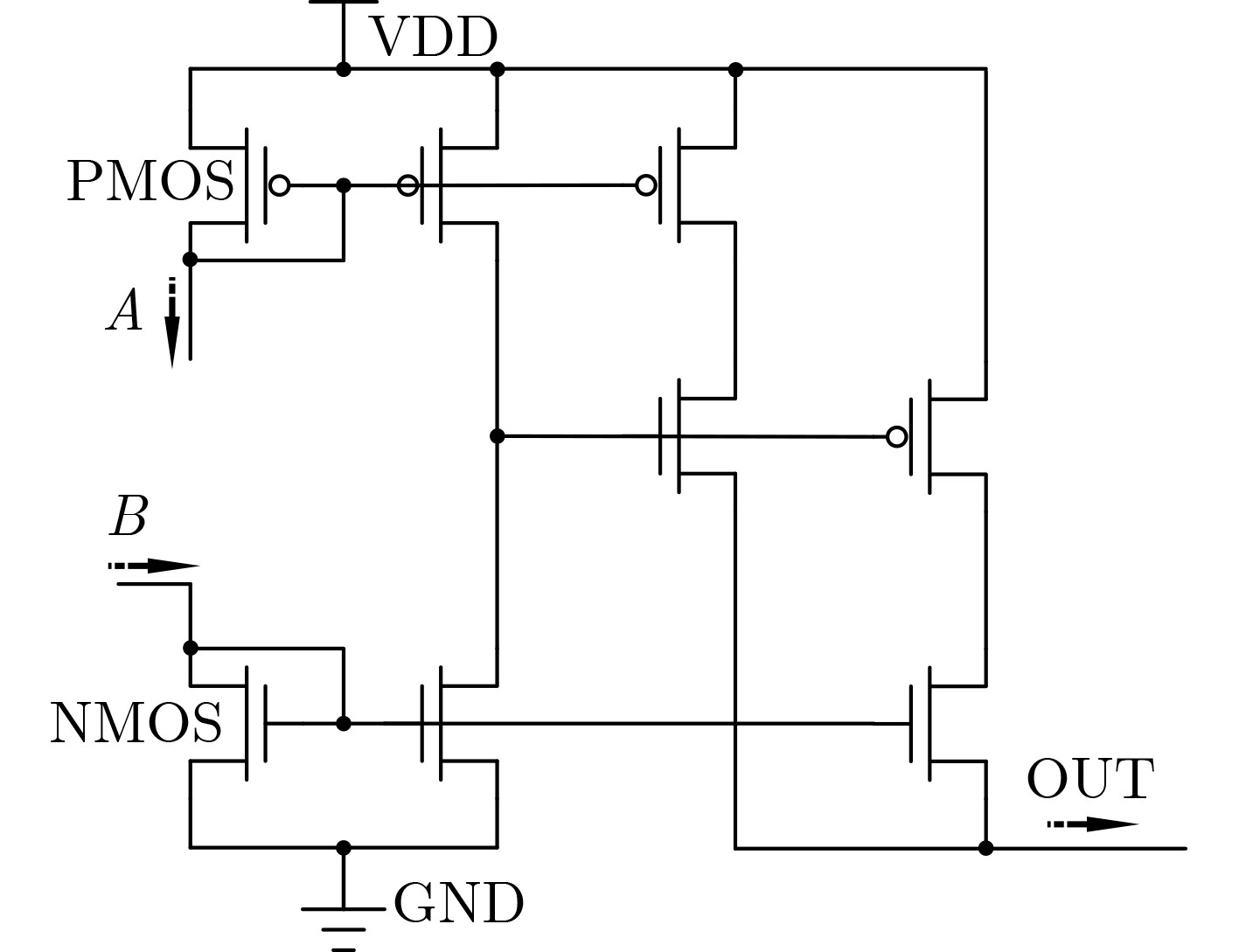

    图  3  取大电路

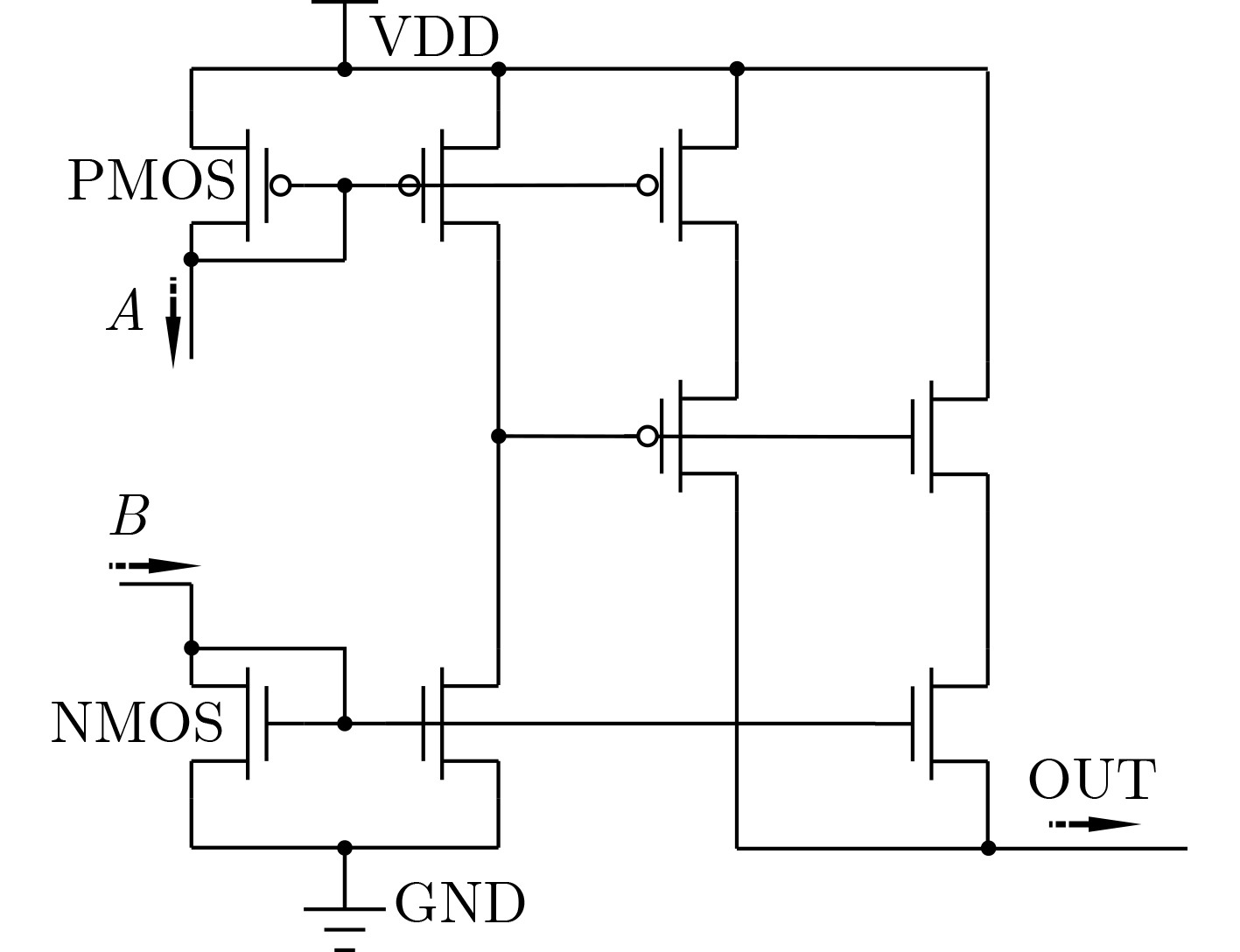

    图  4  取小电路

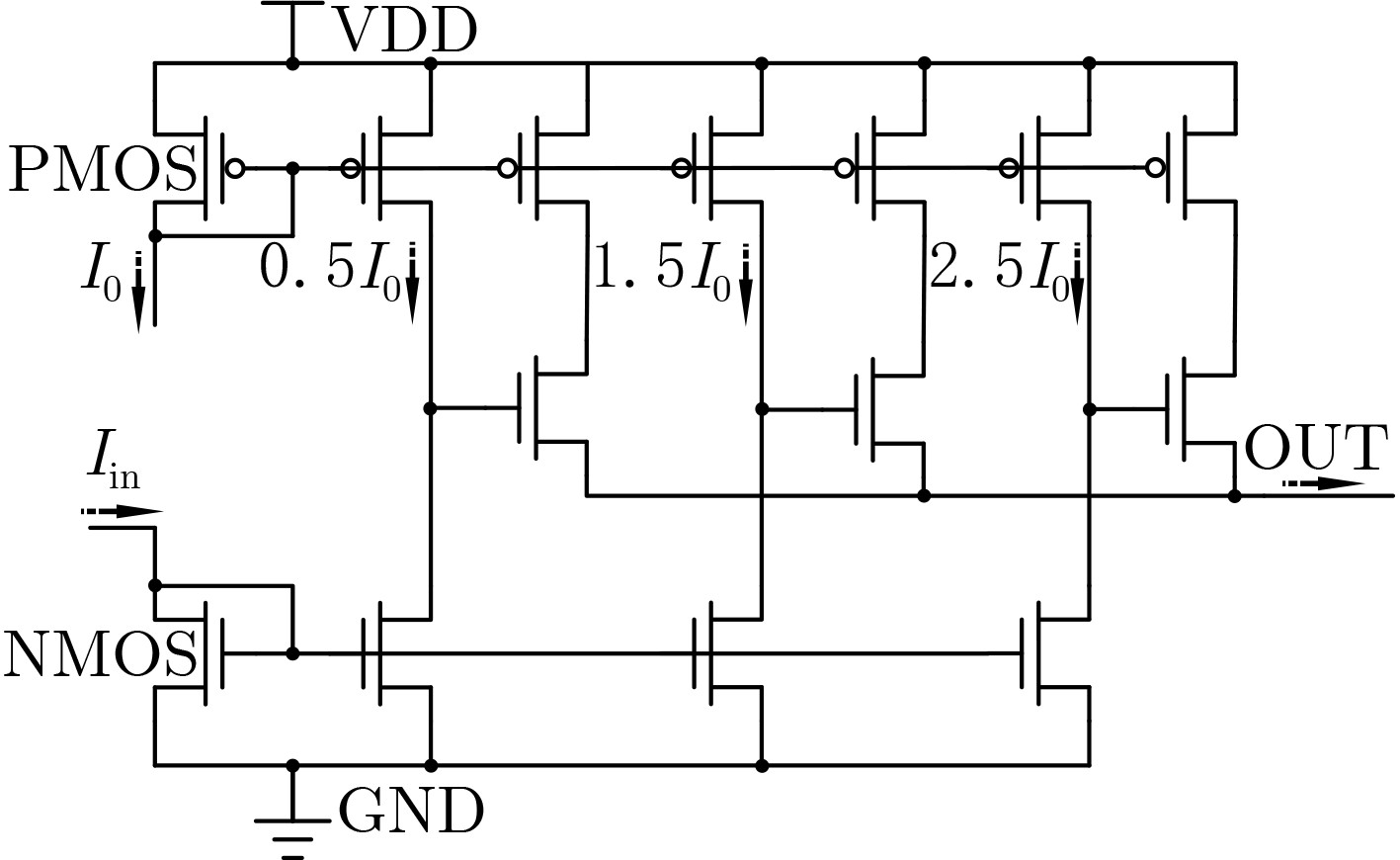

    图  5  4值电流型CMOS反相器

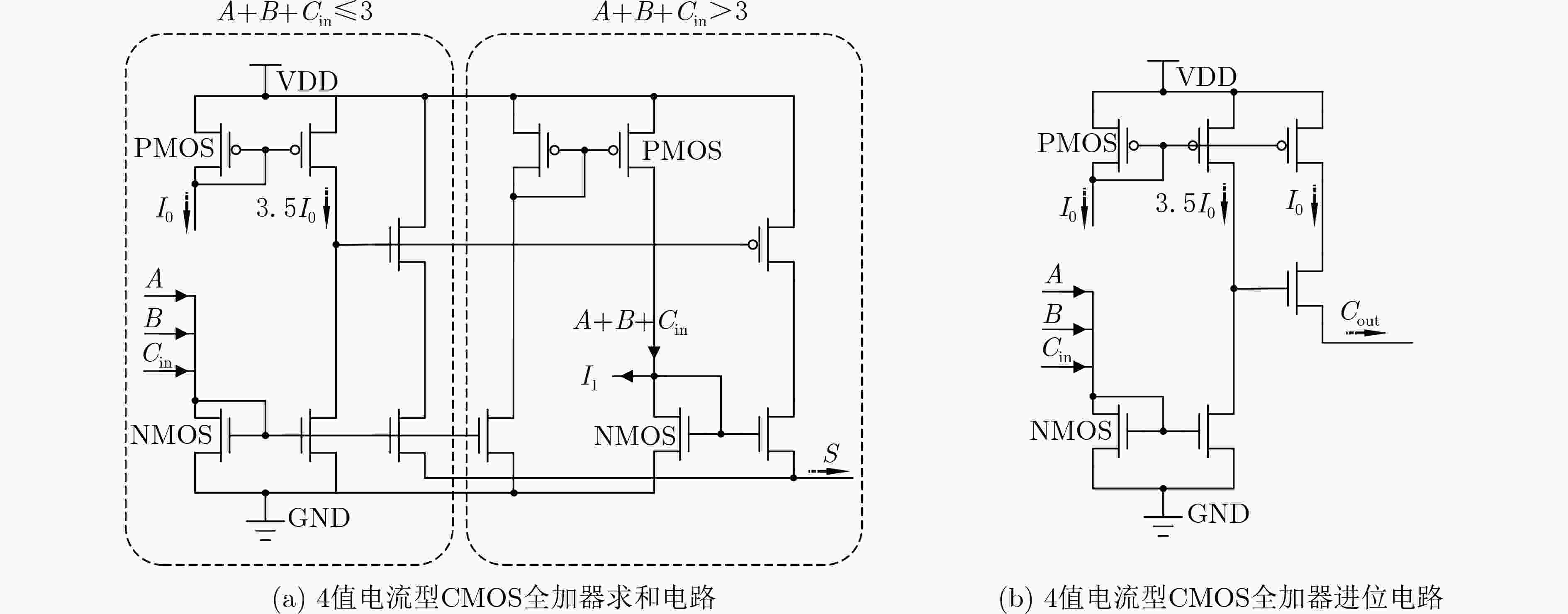

    图  6  4值电流型全加器求和及进位部分

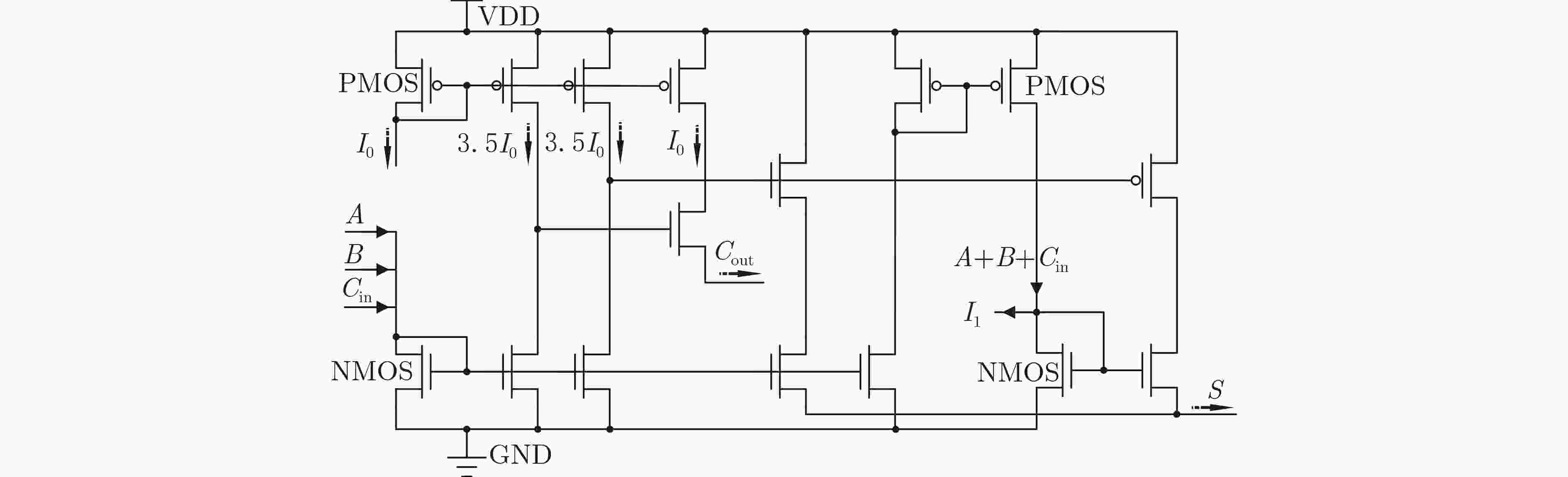

    图  7  4值电流型CMOS全加器

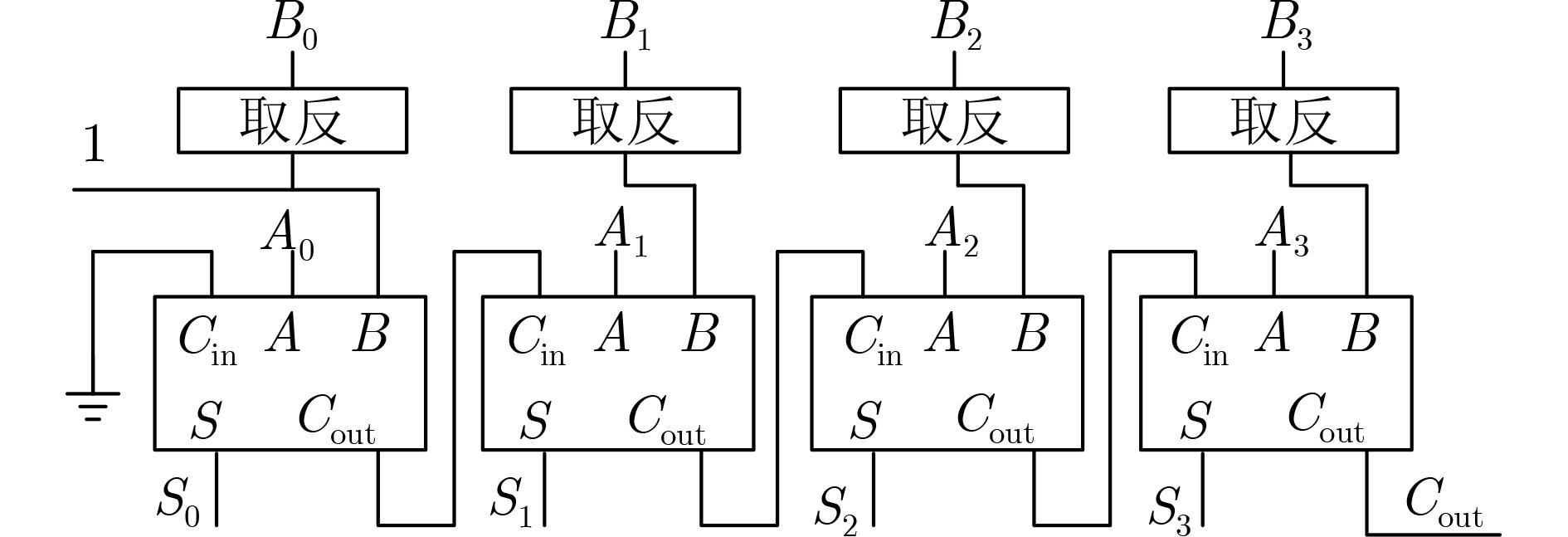

    图  8  减法器框图

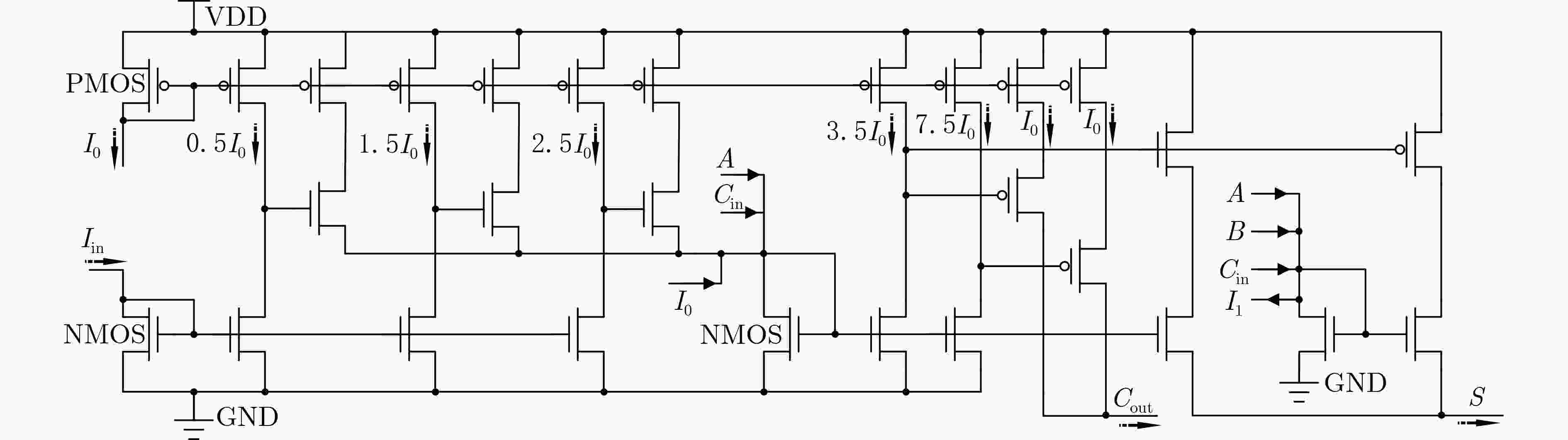

    图  9  4值电流型CMOS减法器电路

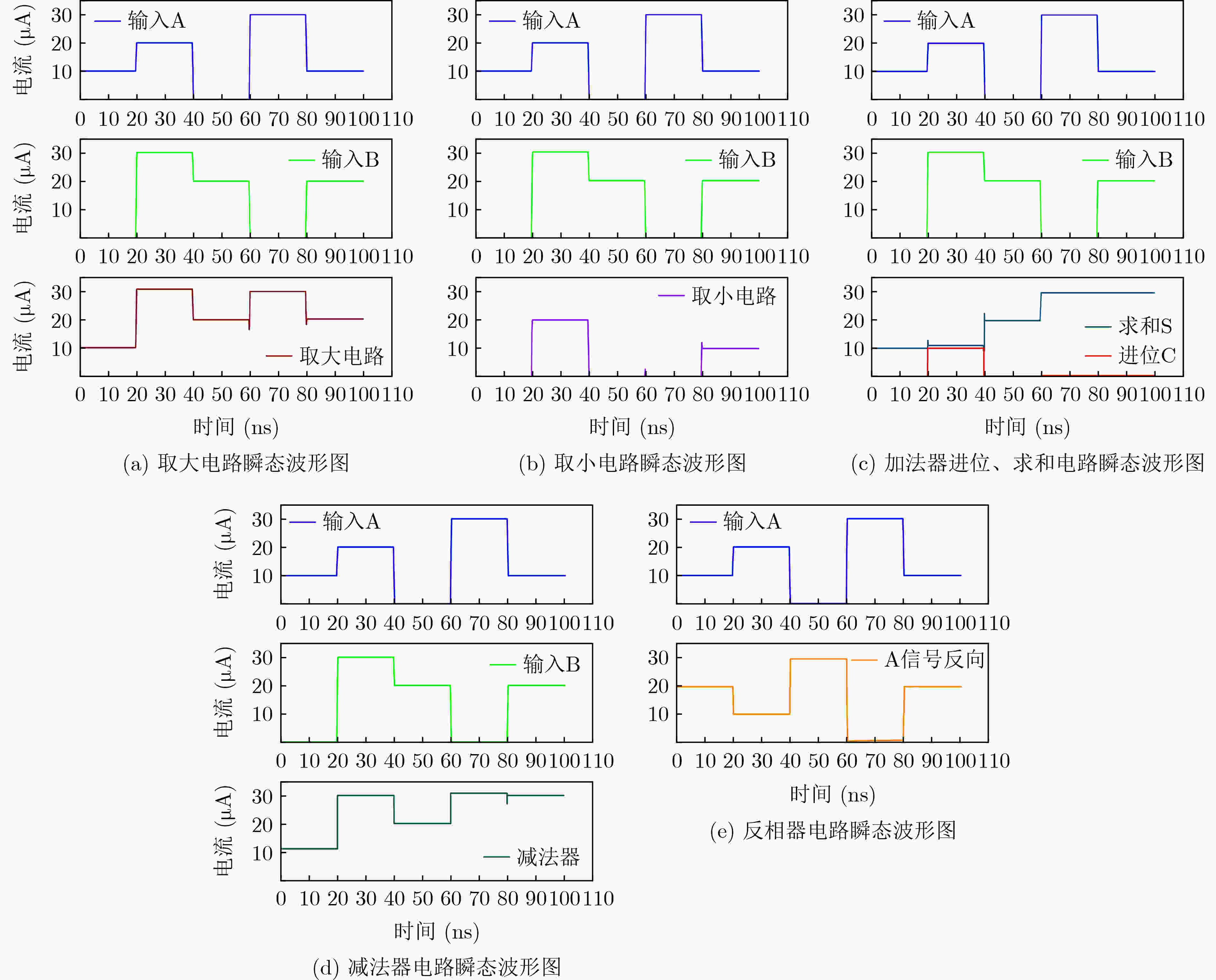

    图  10  4值电流型CMOS逻辑单元瞬态波形图

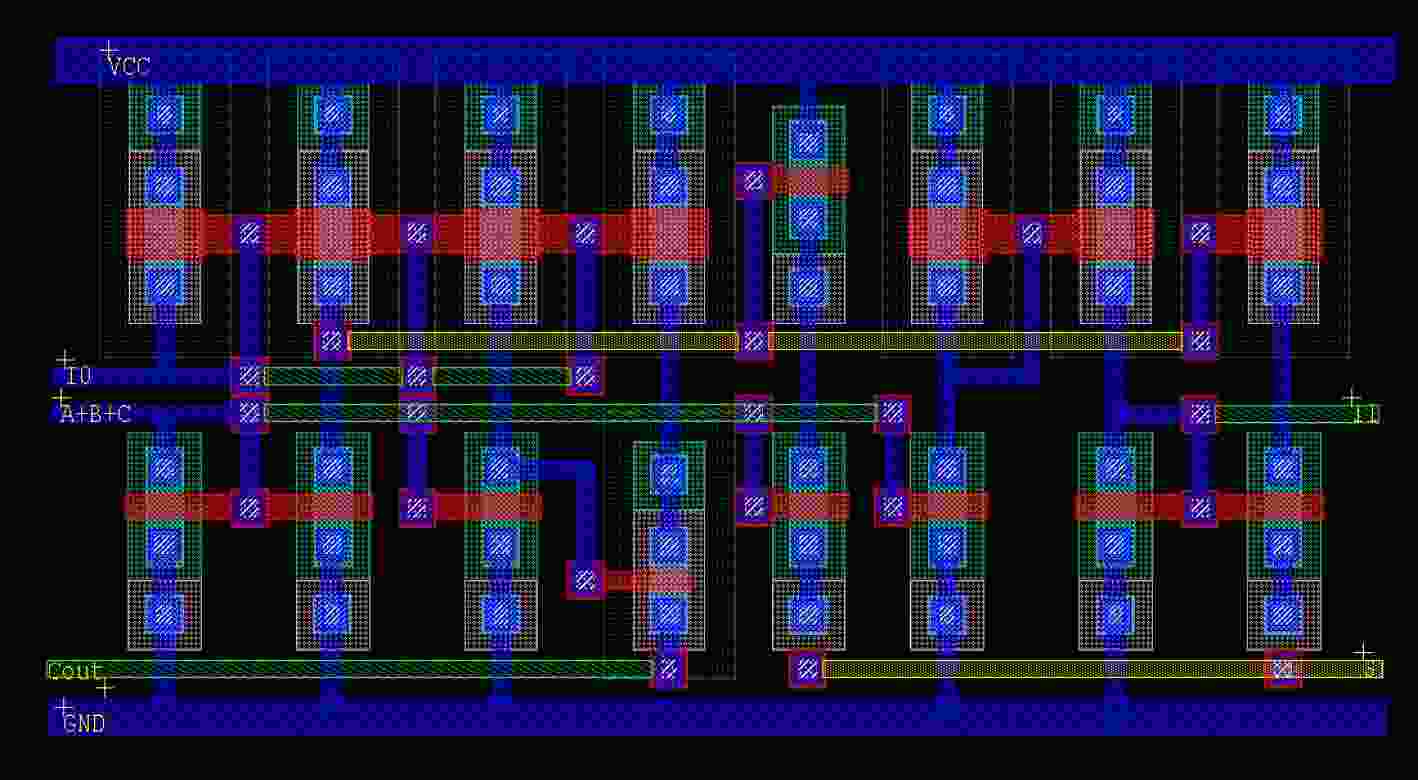

    图  11  4值电流型CMOS全加器版图

    表  1  4值逻辑水平

    逻辑电平参考电流(μA)
    00
    110
    220
    330
    下载: 导出CSV

    表  2  4值反相器逻辑表

    输入电平输出电平
    03
    12
    21
    30
    下载: 导出CSV

    表  3  全加器的平均功耗

    序号Tarun等人[16]Kim[17]杭国强 [18]本文
    参考电压(V)晶体管数量(只)平均延迟(ns)平均功耗(μW)1.2 72.0 173.81.8 192.4 197.81.8 252.4287.81.8 162.1 164.4
    下载: 导出CSV
  • [1] TAKBIRI M, MIRZAEE R F, and NAVI K. Analytical review of noise margin in MVL: Clarification of a deceptive matter[J]. Circuits, Systems, and Signal Processing, 2019, 38(9): 4280–4301. doi: 10.1007/s00034-019-01063-8
    [2] CHATURVEDI B, MOHAN J, KUMAR A, et al. Current-mode first-order universal filter and its voltage-mode transformation[J]. Journal of Circuits, Systems and Computers, 2020, 29(9): 2050149. doi: 10.1142/S0218126620501492
    [3] AGRAWAL D and MAHESHWARI S. Design and implementation of current mode circuit for digital modulation[J]. Integration, 2021, 78: 118–123. doi: 10.1016/j.vlsi.2021.02.002
    [4] PARK S H, LEE J H, JEONG H G, et al. Design of a CMOS current-mode squaring circuit for training analog neural networks[C]. 2020 International SoC Design Conference (ISOCC), Yeosu, Korea (South), 2020: 250–251.
    [5] ALJANABI W and ALBAYRAK M. Design and implementation 4-Bit quaternary MVL arithmetic and logic unit[J]. Tehnički Vjesnik, 2018, 25(S2): 330–338. doi: 10.17559/TV-20170210143503
    [6] KIM J B. Current mode CMOS quaternary logic full-adder[J]. Journal of Circuits, Systems, and Computers, 2009, 18(1): 199–208. doi: 10.1142/S0218126609005022
    [7] NIEMANN P and DRECHSLER R. Synthesis of asymptotically optimal adders for multiple-valued logic[C]. 2021 IEEE 51st International Symposium on Multiple-Valued Logic (ISMVL), Nur-sultan, Kazakhstan, 2021: 178–182.
    [8] BRITO D, RABUSKE T G, FERNANDES J R, et al. Quaternary logic lookup table in standard CMOS[J]. IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 2015, 23(2): 306–316. doi: 10.1109/TVLSI.2014.2308302
    [9] MANE S C, HAJARE S P, and DAKHOLE P. Current mode quaternary logic circuit[C]. 2017 International Conference on Communication and Signal Processing (ICCSP), Chennai, India, 2017: 825–829.
    [10] CUNHA R, BOUDINOV H, and CARRO L. Quaternary look-up tables using voltage-mode CMOS logic design[C]. The 37th International Symposium on Multiple-Valued Logic (ISMVL'07), Oslo, Norway, 2007: 56.
    [11] BUTYRLAGIN N V, CHERNOV N I, PROKOPENKO N N, et al. CMOS current logic elements: Application features for processing analog and digital signals[C]. 2018 XIV International Scientific-Technical Conference on Actual Problems of Electronics Instrument Engineering (APEIE), Novosibirsk, Russia, 2018: 196–199.
    [12] 张立彬, 姚茂群, 王彤. 高性能电流型CMOS显性脉冲触发器设计[J]. 浙江大学学报:理学版, 2013, 40(4): 428–432,436. doi: 10.3785/j.issn.1008-9497.2013.04.014

    ZHANG Libin, YAO Maoqun, and WANG Tong. Design of novel high-performance current-mode CMOS explicit-pulsed flip-flops[J]. Journal of Zhejiang University:Science Edition, 2013, 40(4): 428–432,436. doi: 10.3785/j.issn.1008-9497.2013.04.014
    [13] 姚茂群, 张官志, 施锦河. 阈算术代数系统及多值电流型CMOS电路设计[J]. 电子与信息学报, 2012, 34(7): 1773–1778. doi: 10.3724/SP.J.1146.2011.01185

    YAO Maoqun, ZHANG Guanzhi, and SHI Jinhe. Threshold—arithmetic algebraic system and design of multiple-valued CMOS circuits[J]. Journal of Electronics &Information Technology, 2012, 34(7): 1773–1778. doi: 10.3724/SP.J.1146.2011.01185
    [14] CHAUHAN A, MAHOR L, and TIWARI P. Low power quaternary adder using CNFET[C]. 2020 IEEE VLSI Device Circuit and System (VLSI DCS), Kolkata, India, 2020: 109–114.
    [15] PRIYA N S and RADHA N. Design and implementation of primitive cells, full adder, full subtractor, and multiplier using modified gate diffusion input logic[C]. 2020 International Conference on Electronics and Sustainable Communication Systems (ICESC), Coimbatore, India, 2020: 1032–1038.
    [16] TARUN K and HASHMI M S. Multiple valued current mode logic circuits[C]. 2017 International Conference on Multimedia, Signal Processing and Communication Technologies (IMPACT), Aligarh, India, 2017.
    [17] KIM J B. An area efficient multiplier using current-mode quaternary logic technique[C]. 2010 10th IEEE International Conference on Solid-State and Integrated Circuit Technology, Shanghai, China, 2010.
    [18] 杭国强. 基于控阈技术的电流型CMOS全加器的通用设计方法[J]. 电子学报, 2004, 32(8): 1367–1369. doi: 10.3321/j.issn:0372-2112.2004.08.033

    HANG Guoqiang. Universal design method for current-mode CMOS adders based on threshold-controllable technique[J]. Acta Electronica Sinica, 2004, 32(8): 1367–1369. doi: 10.3321/j.issn:0372-2112.2004.08.033
