基于事件触发的通信有效联邦学习算法

高慧敏; 杨磊; 朱军龙; 张明川; 吴庆涛

doi:10.11999/JEIT220131

基于事件触发的通信有效联邦学习算法

doi: 10.11999/JEIT220131

1.
河南科技大学信息工程学院洛阳 471023
2.
中信重工机械股份有限公司信息技术管理中心洛阳 471003

基金项目: 国家自然科学基金(61871430, 61976243)，中原科技创新领军人才(214200510012，224200510004)，河南省高校科技创新人才(22HASTIT014)

详细信息

作者简介:
高慧敏：女，博士生，研究方向为分布式优化、联邦学习

杨磊：男，高级工程师，研究方向为工业互联网、5G应用

朱军龙：男，副教授，研究方向为人工智能、机器学习、新型网络

张明川：男，教授，研究方向为物联网、下一代网络、机器学习

吴庆涛：男，教授，研究方向为云计算、物联网、下一代网络

通讯作者:
吴庆涛　wqt8921@haust.edu.cn

中图分类号: TP181
计量
- 文章访问数: 234
- HTML全文浏览量: 153
- PDF下载量: 68
- 被引次数: 0
出版历程
- 收稿日期: 2022-02-15
- 修回日期: 2022-08-11
- 录用日期: 2023-08-09
- 网络出版日期: 2023-08-11
- 刊出日期: 2023-10-31

Communication-Efficient Federated Learning Algorithm Based on Event Triggering

1.
School of Information Engineering, Henan University of Science and Technology, Luoyang 471023, China
2.
Information Technology Management Center, CITIC Heavy Industries Corporation Limited, Luoyang 471003, China

Funds: The National Natural Science Foundation of China (61871430, 61976243), The Leading Talents of Science & Technology in the Central Plain of China (214200510012, 224200510004), The Science & Technology Innovation Talents in the University of Henan Province (22HASTIT014)

摘要

摘要: 由于实际网络的带宽是有限的，因此客户端和中心服务器之间的通信成为联邦学习的一个主要瓶颈。为了减小通信开销，该文引入事件触发机制，提出一个通信有效的联邦学习算法(FedET)。首先，客户端利用事件触发机制判断是否需要向中心服务器发送当前模型。然后，中心服务器基于收到的信息进行模型聚合。具体地，在每个通信轮次，客户端完成本地模型训练之后，将模型更新和触发阈值进行比较，若触发通信，则将信息进行压缩后发送给中心服务器。进一步地，分别对满足凸的、PL(Polyak-Łojasiewicz)条件的和非凸的光滑目标函数，该文分析了所提算法的收敛性并给出了证明。最后，在两个标准的数据集上进行仿真实验。实验结果验证了所提算法的可行性和有效性。
- 联邦学习 /
- 通信有效 /
- 事件触发 /
- 压缩 /
- 收敛性
Abstract: Due to the limited actual network bandwidth, the communication between clients and the central server is a main bottleneck of federated learning. To reduce the communication cost, a communication-efficient Federated learning algorithm is proposed by introducing the Event Triggered mechanism (FedET). Firstly, the clients determine whether to send the current model to the central server through using the event-triggered mechanism. Then, the central server aggregates models based on the information received. In particular, at each communication round, after finishing the local model training, the clients compare the model update with the trigger threshold, and if the communication is triggered, the transmitted information is compressed and sent to the central server. Furthermore, for smooth objective functions which satisfy convex, PL (Polyak-Łojasiewicz) condition and non-convex, respectively, this paper analyzes the convergence of the proposed algorithm and presents the proof. Finally, simulation experiments are implemented on two standard datasets. Simulation results verify the feasibility and effectiveness of the proposed algorithm.
- Federated learning /
- Communication-efficient /
- Event triggering /
- Compression /
- Convergence

HTML全文

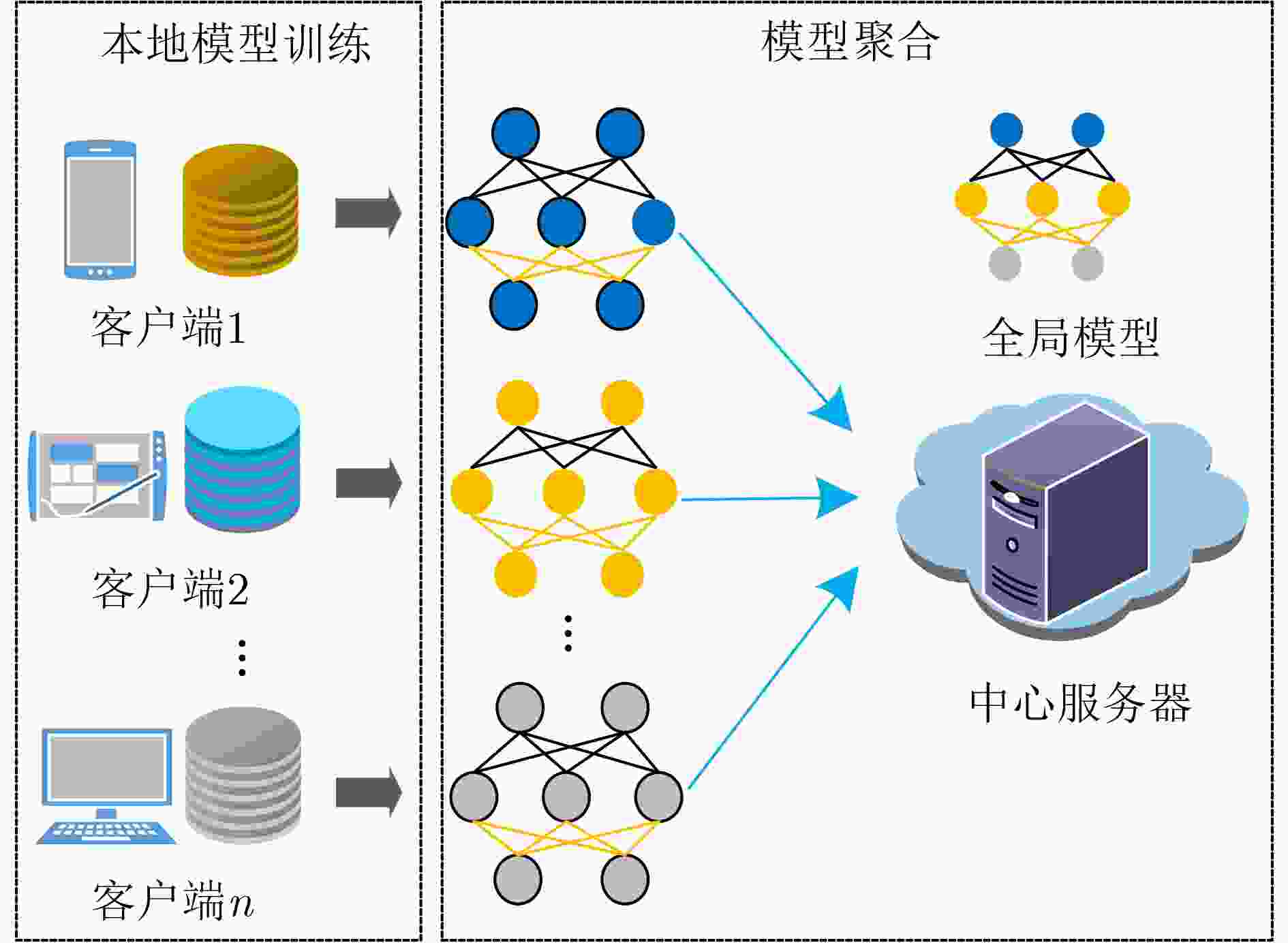

图 1 联邦学习的系统架构

下载: 全尺寸图片幻灯片

图 2 不同阈值对算法性能的影响

下载: 全尺寸图片幻灯片

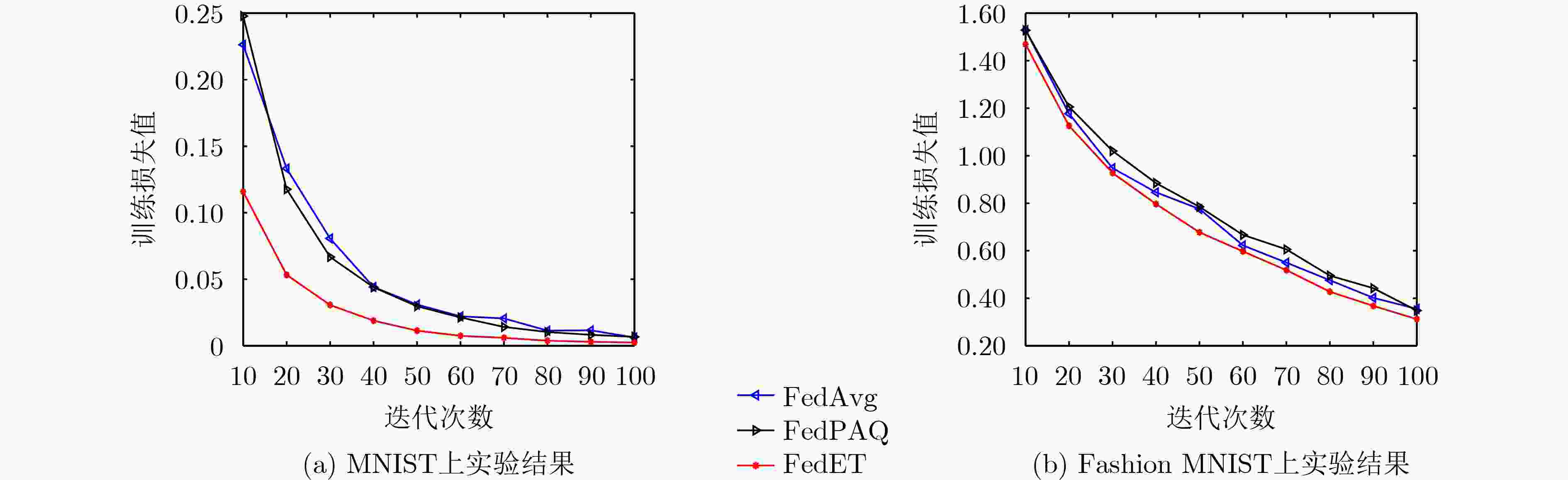

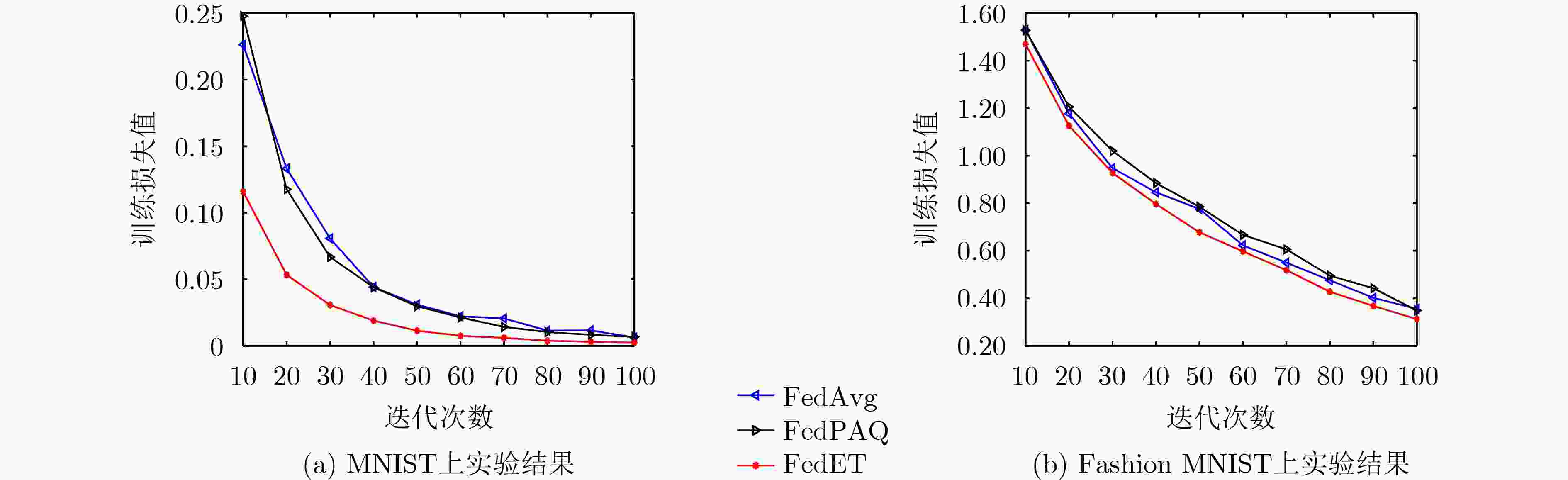

图 3 训练损失和迭代次数之间的关系

下载: 全尺寸图片幻灯片

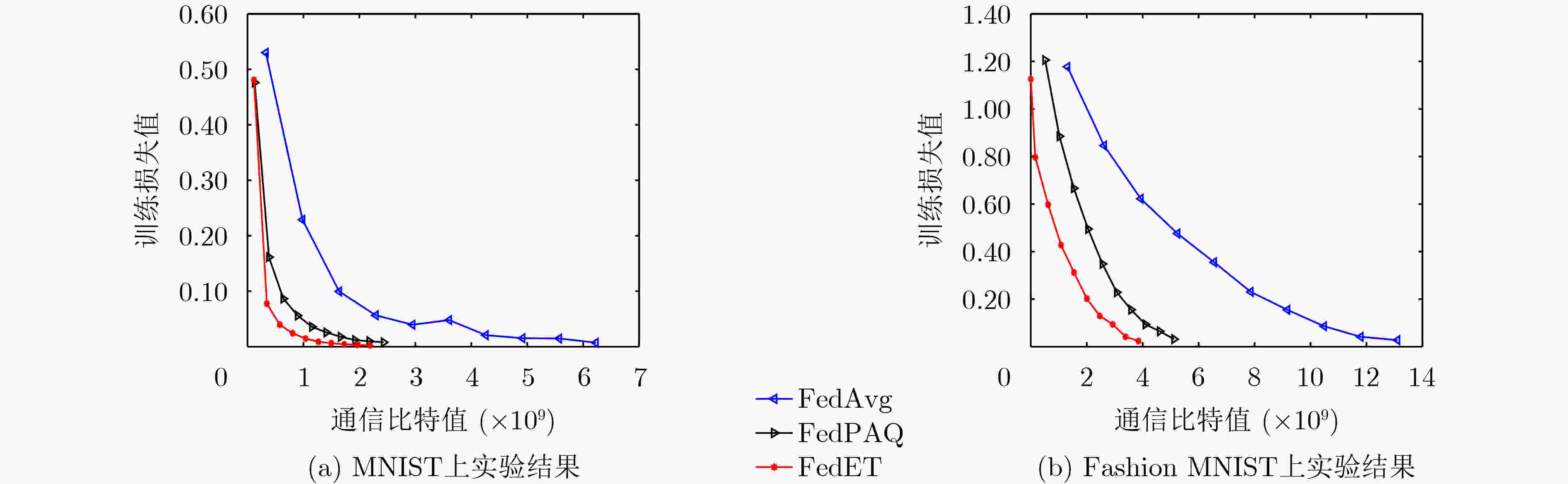

图 4 训练损失和通信量之间的关系

下载: 全尺寸图片幻灯片

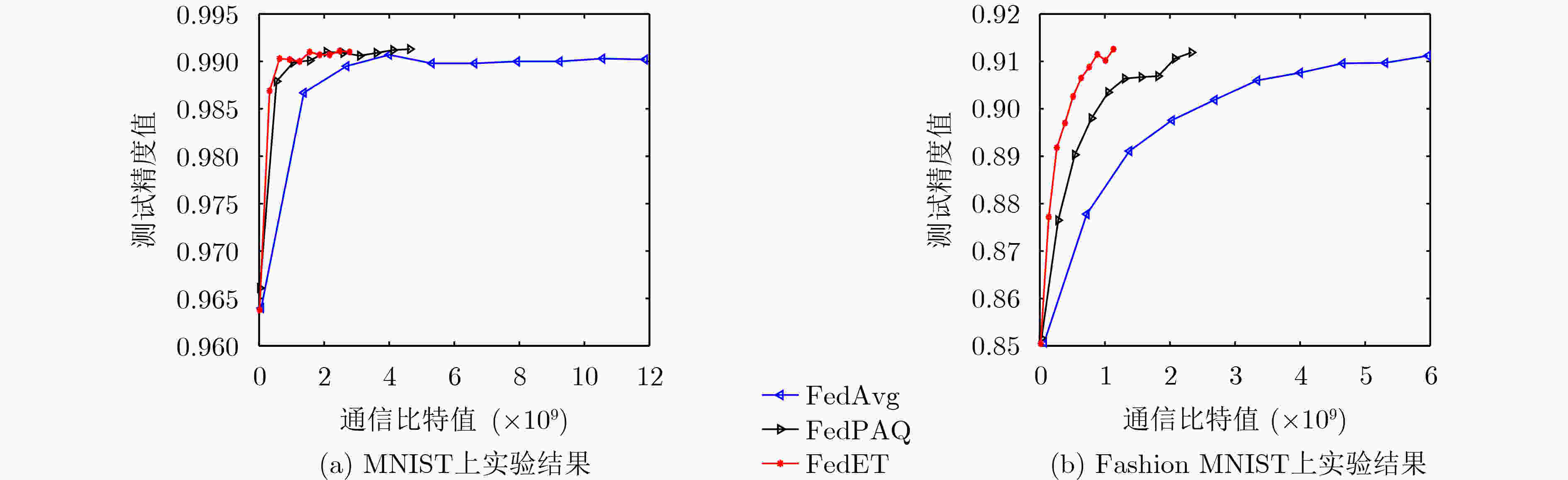

图 5 测试精度和通信量之间的关系

下载: 全尺寸图片幻灯片

算法1 FedET算法
输入：全局模型迭代次数$K$，本地模型更新次数$\tau $，学习率$\gamma $和　　　　$\eta $，全局模型初始值${x^0}$
输出：模型参数${x^K}$
(1) for $k = 0,1, \cdots ,K - 1$ do
(2) 　for 每一个客户端 $i \in \{ 0,1, \cdots ,n\} $ do
(3) 　　设置${\boldsymbol{x}}_i^{k,0} = {{\boldsymbol{x}}^k}$；
(4) 　　for $h = 0,1, \cdots ,\tau - 1$ do
(5) 　　　　采样最小批数据并计算随机梯度${\tilde g_i}({\boldsymbol{x}}_i^{k,h},\xi _i^{k,h})$；
(6) 　　　　${\boldsymbol{x}}_i^{k,h + 1} = {\boldsymbol{x}}_i^{k,h} - \eta {\tilde g_i}({\boldsymbol{x}}_i^{k,h},\xi _i^{k,h})$；
(7) 　　end for
(8) 　　根据式(2)计算${e_i}(k)$；
(9) 　　if $\parallel {e_i}(k){\parallel _1} \ge {\alpha _k}$ then
(10) 　　　发送$\mathcal{C}(\varDelta _i^k)$给服务器，并设置$\hat {\boldsymbol{x}}_i^{k + 1} = {\boldsymbol{x}}_i^{k,\tau }$；
(11) 　　end if
(12) 　end for
(13) 中心服务器根据式(3)更新全局模型${{\boldsymbol{x}}^{k + 1} }$，并将其广播给所　　　有客户端；
(14) end for

下载: 导出CSV

参考文献(21)

[1]	MCMAHAN B, MOORE E, RAMAGE D, et al. Communication-efficient learning of deep networks from decentralized data[C]. The 20th International Conference on Artificial Intelligence and Statistics, Fort Lauderdale, USA, 2017: 1273–1282.
[2]	WEN Guanghui, FU Junjie, DAI Pengcheng, et al. DTDE: A new cooperative multi-agent reinforcement learning framework[J]. The Innovation, 2021, 2(4): 100162. doi: 10.1016/j.xinn.2021.100162
[3]	YANG Qiang, LIU Yang, CHENG Yong, et al. Federated Learning[M]. Cham, Germany: Springer, 2020: 82–85.
[4]	LIM W Y B, LUONG N C, HOANG D T, et al. Federated learning in mobile edge networks: A comprehensive survey[J]. IEEE Communications Surveys & Tutorials, 2020, 22(3): 2031–2063. doi: 10.1109/COMST.2020.2986024
[5]	PFITZNER B, STECKHAN N, and ARNRICH B. Federated learning in a medical context: A systematic literature review[J]. ACM Transactions on Internet Technology, 2021, 21(2): 50. doi: 10.1145/3412357
[6]	TAN Kang, BREMNER D, LE KERNEC J, et al. Federated machine learning in vehicular networks: A summary of recent applications[C]. 2020 International Conference on UK-China Emerging Technologies, Glasgow, United Kingdom, 2020: 1–4.
[7]	AJI A F and HEAFIELD K. Sparse communication for distributed gradient descent[C]. The 2017 Conference on Empirical Methods in Natural Language Processing, Copenhagen, Denmark, 2017: 440–445.
[8]	REISIZADEH A, MOKHTARI A, HASSANI H, et al. FedPAQ: A communication-efficient federated learning method with periodic averaging and quantization[C]. The 23rd International Conference on Artificial Intelligence and Statistics, Palermo, Italy, 2020: 2021–2031.
[9]	王长城, 戚国庆, 李银伢, 等. 量化状态信息下多智能体Gossip算法及分布式优化[J]. 电子与信息学报, 2014, 36(1): 128–134. doi: 10.3724/SP.J.1146.2013.00297 WANG Changcheng, QI Guoqing, LI Yinya, et al. Multi-agent gossip consensus algorithm with quantized data and distributed optimizing[J]. Journal of Electronics &Information Technology, 2014, 36(1): 128–134. doi: 10.3724/SP.J.1146.2013.00297
[10]	BASU D, DATA D, KARAKUS C, et al. Qsparse-local-SGD: Distributed SGD with quantization, sparsification, and local computations[J]. IEEE Journal on Selected Areas in Information Theory, 2020, 1(1): 217–226. doi: 10.1109/JSAIT.2020.2985917
[11]	LI Zhize, KOVALEV D, QIAN Xun, et al. Acceleration for compressed gradient descent in distributed and federated optimization[C/OL]. The 37th International Conference on Machine Learning, 2020: 547.
[12]	HADDADPOUR F, KAMANI M M, MOKHTARI A, et al. Federated learning with compression: Unified analysis and sharp guarantees[C/OL]. Proceedings of the 24th International Conference on Artificial Intelligence and Statistics, 2021: 2350–2358.
[13]	GAO Huimin, WANG Lin, ZHU Junlong, et al. Federated optimization based on compression and event-triggered communication[C]. The 36th Youth Academic Annual Conference of Chinese Association of Automation, Nanchang, China, 2021: 517–522.
[14]	TGEORGE J and GURRAM P. Distributed stochastic gradient descent with event-triggered communication[C]. The 34th AAAI Conference on Artificial Intelligence, New York, USA, 2020: 7169–7178.
[15]	HSIEH K, HARLAP A, VIJAYKUMAR N, et al. Gaia: Geo-distributed machine learning approaching LAN speeds[C]. The 14th USENIX Conference on Networked Systems Design and Implementation, Boston, USA, 2017: 629–647.
[16]	SINGH N, DATA D, GEORGE J, et al. SQuARM-SGD: Communication-efficient momentum SGD for decentralized optimization[J]. IEEE Journal on Selected Areas in Information Theory, 2021, 2(3): 954–969. doi: 10.1109/JSAIT.2021.3103920
[17]	BOTTOU L, CURTIS F E, and NOCEDAL J. Optimization methods for large-scale machine learning[J]. SIAM Review, 2018, 60(2): 223–311. doi: 10.1137/16M1080173
[18]	KARIMI H, NUTINI J, and SCHMIDT M. Linear convergence of gradient and proximal-gradient methods under the polyak-łojasiewicz condition[C]. The Joint European Conference on Machine Learning and Knowledge Discovery in Databases, Riva del Garda, Italy, 2016: 795–811.
[19]	LECUN Y, BOTTOU L, BENGIO Y, et al. Gradient-based learning applied to document recognition[J]. Proceedings of the IEEE, 1998, 86(11): 2278–2324. doi: 10.1109/5.726791
[20]	XIAO Han, RASUL K, and VOLLGRAF R. Fashion-MNIST: A novel image dataset for benchmarking machine learning algorithms[J]. arXiv: 1708.07747, 2017.
[21]	PASZKE A, GROSS S, MASSA F, et al. PyTorch: An imperative style, high-performance deep learning library[C]. The 32th International Conference on Neural Information Processing Systems, Vancouver, Canada, 2019: 8024–8035.
