基于对比层级相关性传播的由粗到细的类激活映射算法研究

孙辉 史玉龙 王蕊

孙辉, 史玉龙, 王蕊. 基于对比层级相关性传播的由粗到细的类激活映射算法研究[J]. 电子与信息学报, 2023, 45(4): 1454-1463. doi: 10.11999/JEIT220113
引用本文: 孙辉, 史玉龙, 王蕊. 基于对比层级相关性传播的由粗到细的类激活映射算法研究[J]. 电子与信息学报, 2023, 45(4): 1454-1463. doi: 10.11999/JEIT220113
SUN Hui, SHI Yulong, WANG Rui. Study of Coarse-to-Fine Class Activation Mapping Algorithms Based on Contrastive Layer-wise Relevance Propagation[J]. Journal of Electronics & Information Technology, 2023, 45(4): 1454-1463. doi: 10.11999/JEIT220113
Citation: SUN Hui, SHI Yulong, WANG Rui. Study of Coarse-to-Fine Class Activation Mapping Algorithms Based on Contrastive Layer-wise Relevance Propagation[J]. Journal of Electronics & Information Technology, 2023, 45(4): 1454-1463. doi: 10.11999/JEIT220113

基于对比层级相关性传播的由粗到细的类激活映射算法研究

doi: 10.11999/JEIT220113
基金项目: 天津市自然科学基金(18JCYBJC42300)
详细信息
    作者简介:

    孙辉:男,讲师,主要研究方向为无线传感器网络、智慧机场、机场驱鸟、认知无线电、多智能体

    史玉龙:男,硕士生,研究方向为图像处理、机场驱鸟、系统辩识、无线传感器网络

    王蕊:女,教授,主要研究方向为机场驱鸟、分布式系统、无线传感网络、混沌系统、多智能体、系统辨识

    通讯作者:

    王蕊 ruiwang@cauc.edu.cn

  • 中图分类号: TP183

Study of Coarse-to-Fine Class Activation Mapping Algorithms Based on Contrastive Layer-wise Relevance Propagation

Funds: The Natural Science Foundation of Tianjin (18JCYBJC42300)
  • 摘要: 以卷积神经网络为代表的深度学习算法高度依赖于模型的非线性和调试技术,在实际应用过程中普遍存在黑箱属性,严重限制了其在安全敏感领域的进一步发展。为此,该文提出一种由粗到细的类激活映射算法(CF-CAM),用于对深度神经网络的决策行为进行诊断。该算法重新建立了特征图和模型决策之间的关系,利用对比层级相关性传播理论获取特征图中每个位置对网络决策的贡献生成空间级的相关性掩码,找到影响模型决策的重要性区域,再与经过模糊化操作的输入图像进行线性加权重新输入到网络中得到特征图的目标分数,从空间域和通道域实现对深度神经网络进行由粗到细的解释。实验结果表明,相较于其他方法该文提出的CF-CAM在忠实度和定位性能上具有显著提升。此外,该文将CF-CAM作为一种数据增强策略应用于鸟类细粒度分类任务,对困难样本进行学习,可以有效提高网络识别的准确率,进一步验证了CF-CAM算法的有效性和优越性。

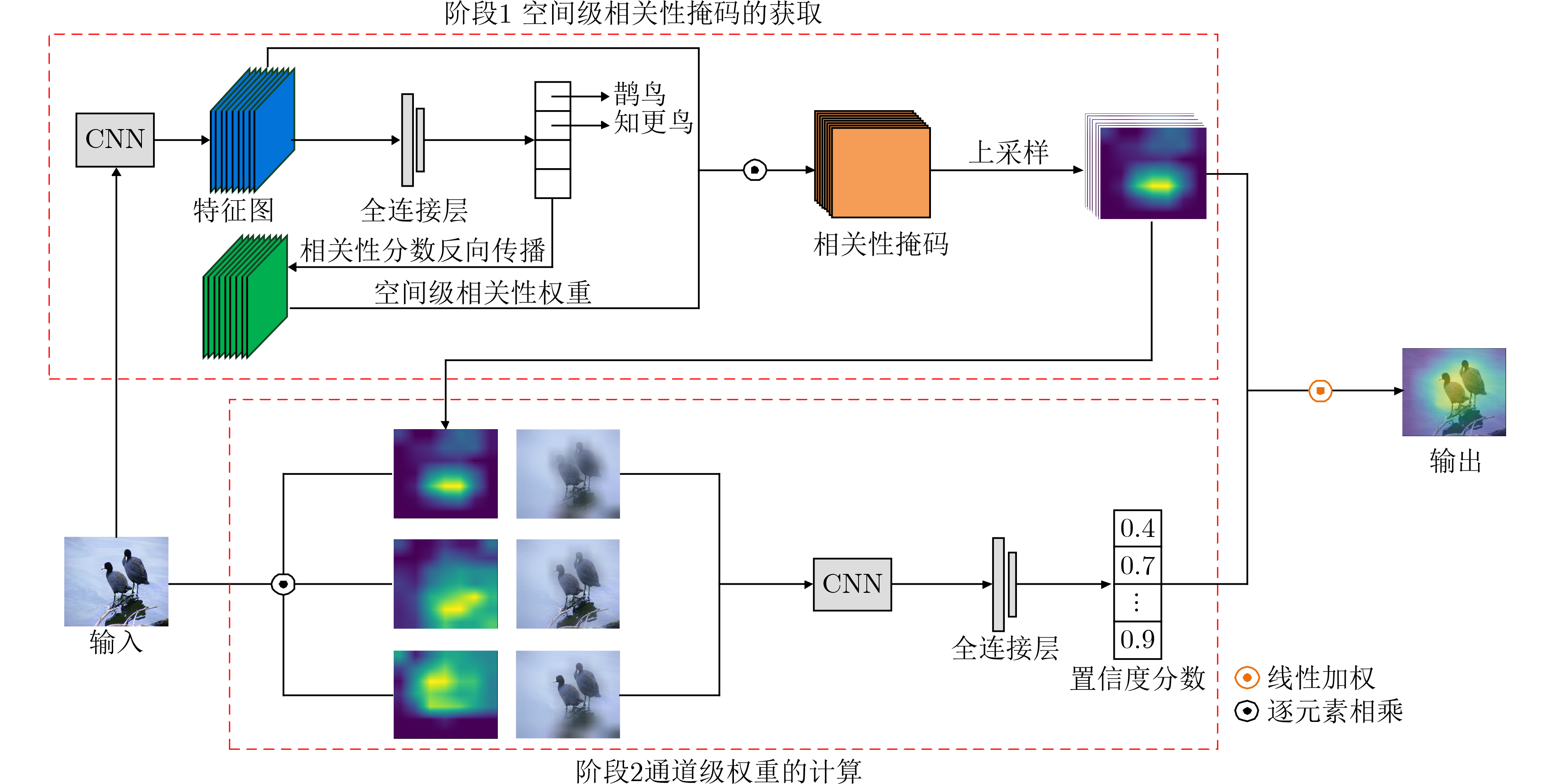

  • 图  1  CF-CAM算法计算流程图

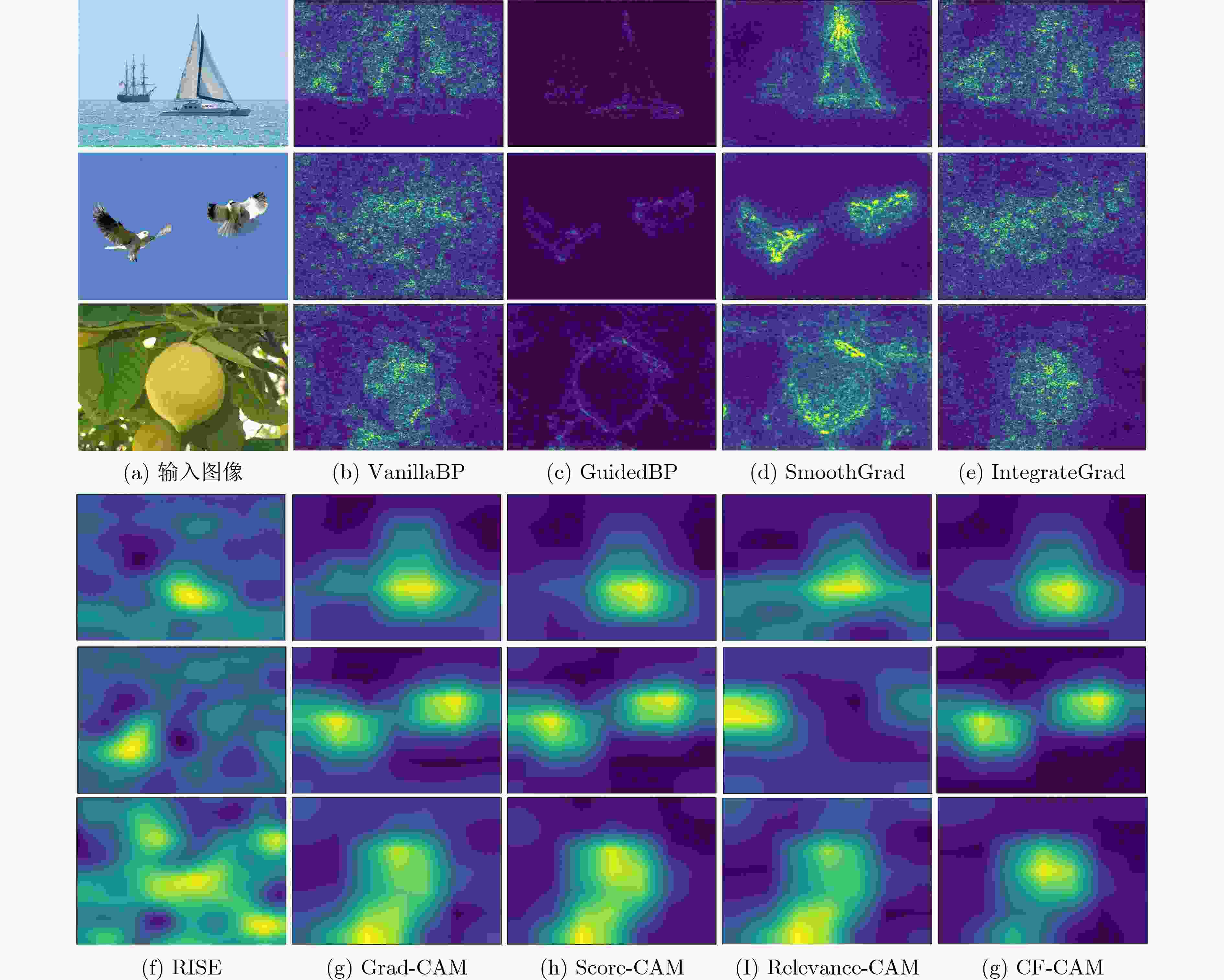

    图  2  CF-CAM的结果对比

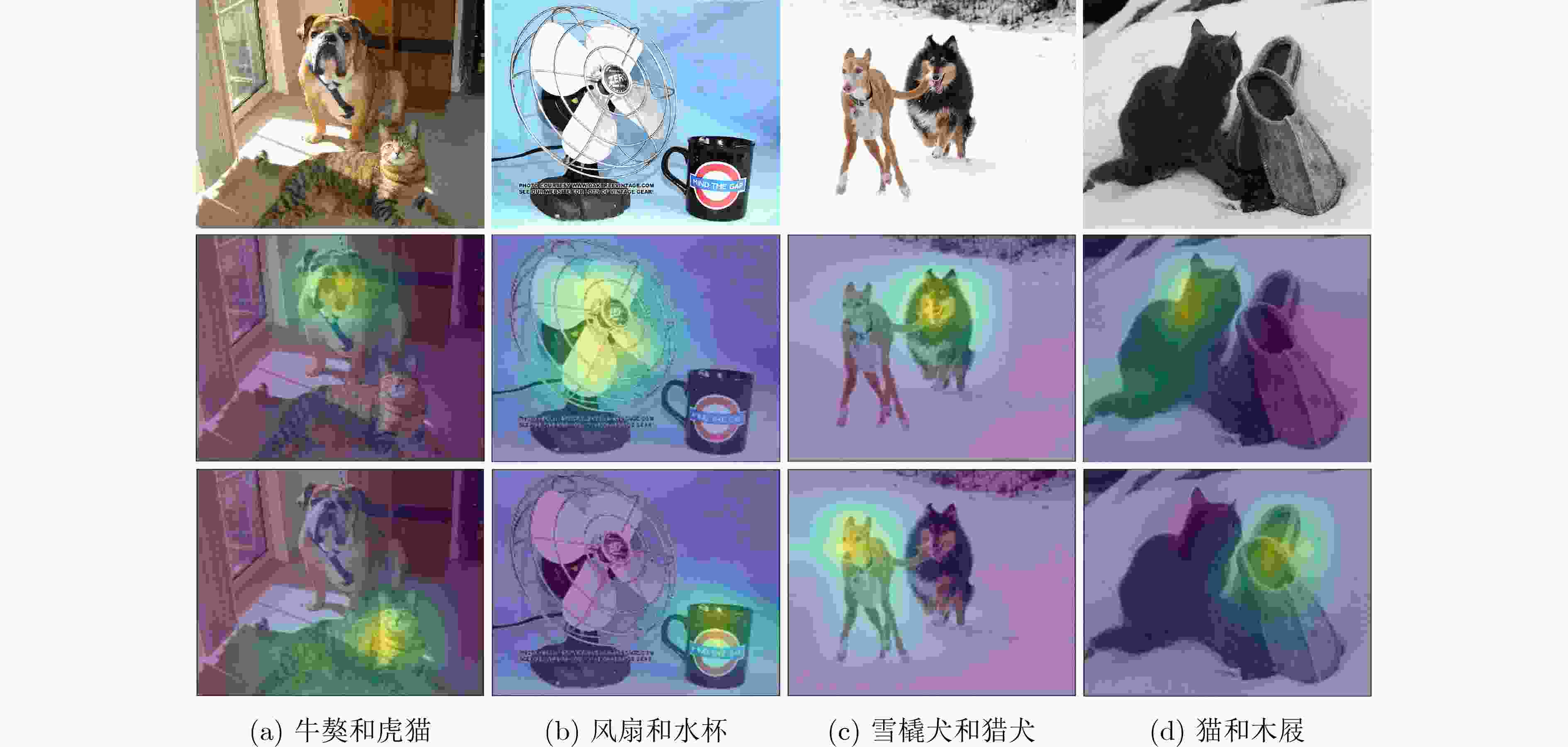

    图  3  CF-CAM的类别可分性结果

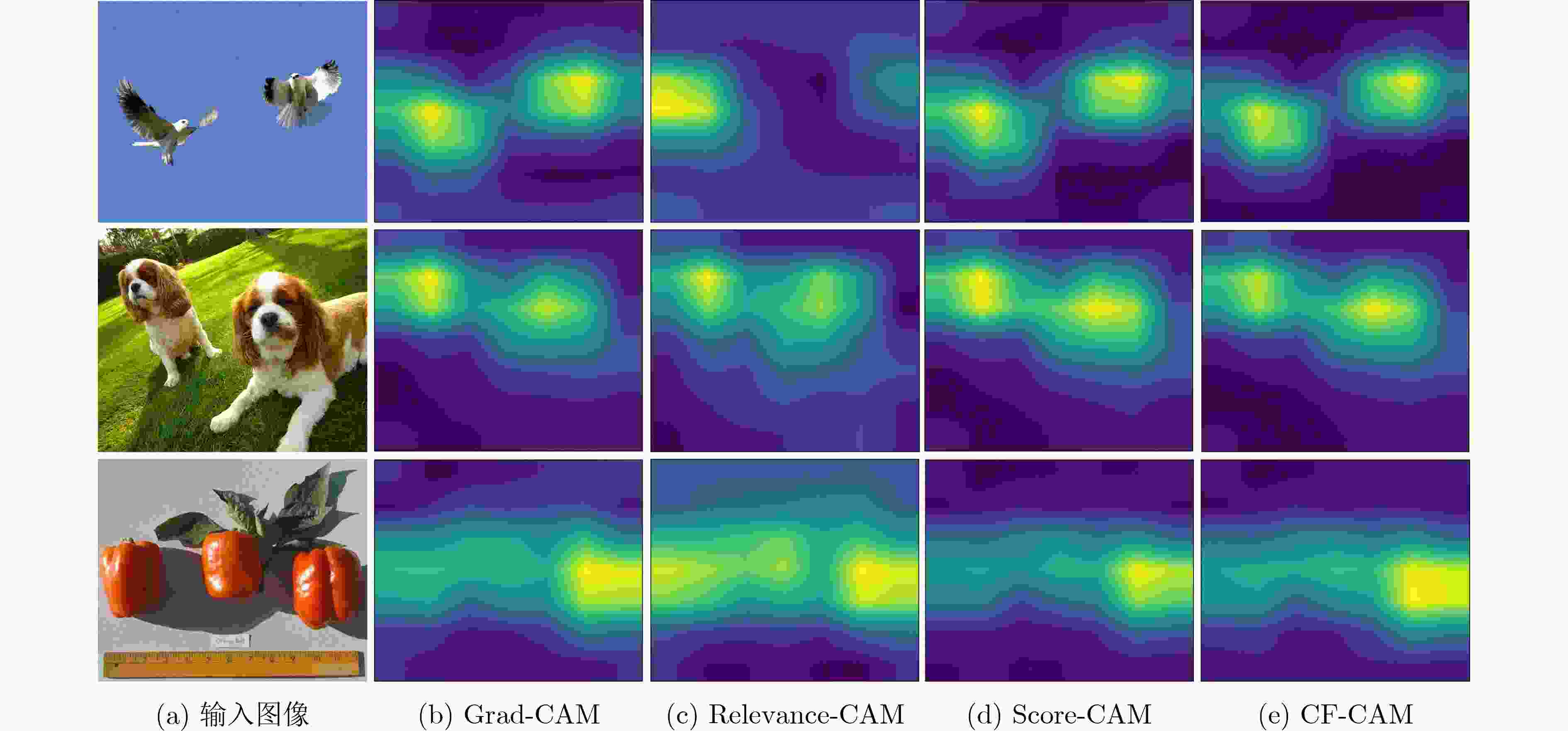

    图  4  CF-CAM的多目标可视化结果

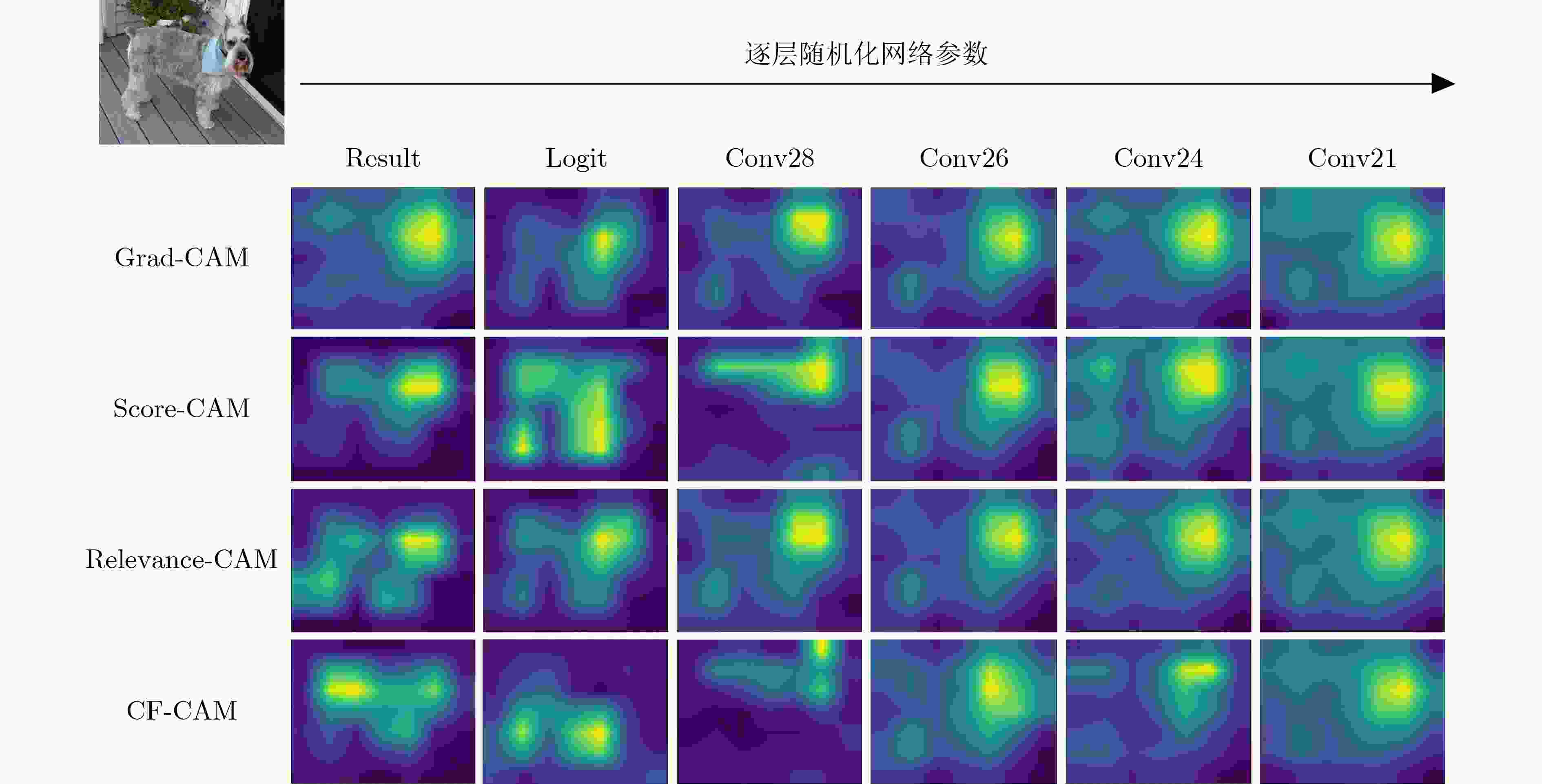

    图  5  CF-CAM模型参数敏感性检查结果

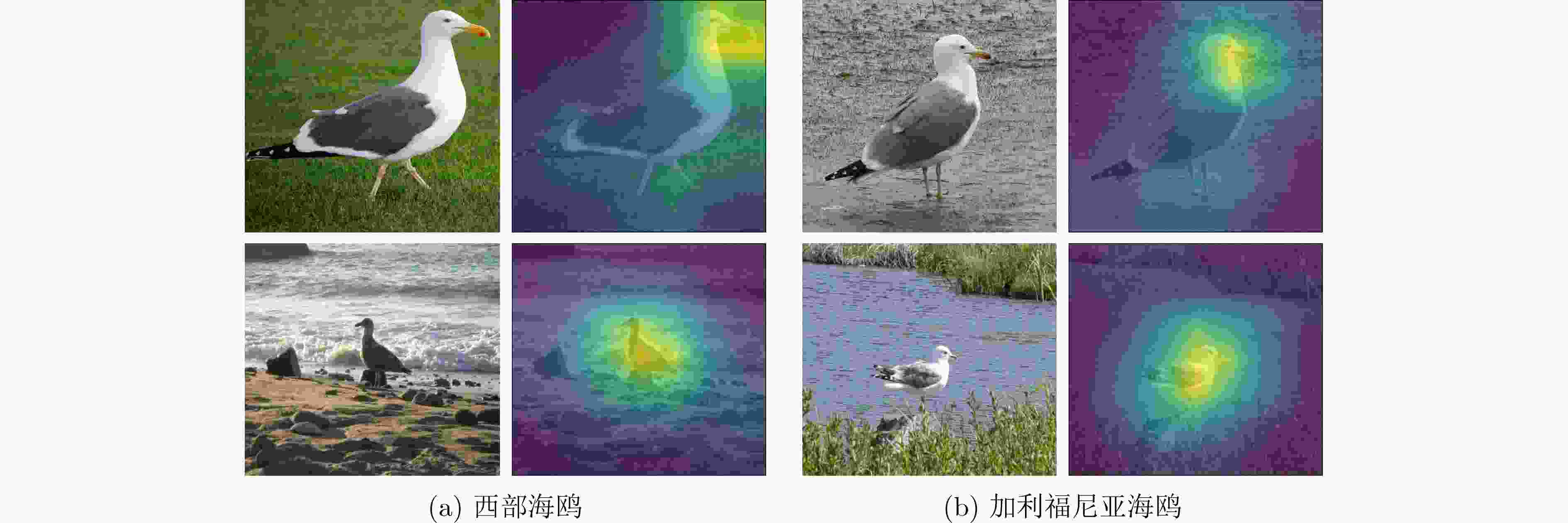

    图  6  CF-CAM模型诊断结果

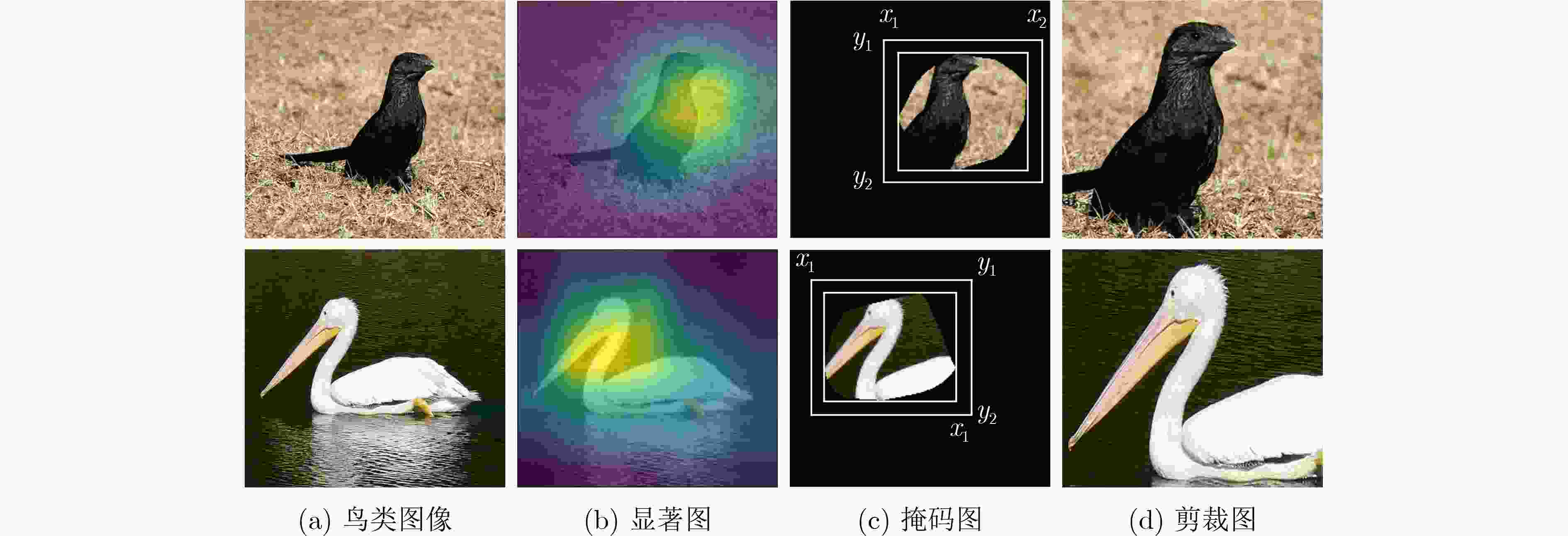

    图  7  基于显著图数据增强过程

    算法1 CF-CAM算法
     输入: Image I, Baseline Image Ib, Class c, Model f(x), target
        layer l, Gaussian blur parameters: ksize, sigma.
     (1) Initialization: Initial Lc CF-CAM←0, αc←[ ], Baseline
       Input ${I_b} = {\text{Guassian\_blur2d} }(I,{\text{ksize,sigma} })$;
     (2) Get feature maps of target layer Ak, C is the number of
       channels in Ak, Relevance weights Rc;
     (3) for k in [0, 1, ···, C–1] do
       $ M_k^c = {\text{upsample}}(R_k^c{A_k}) $;
       $ I' = I \odot M_k^c + {I_b} \odot (1 - M_k^c) $;
       $ \alpha _k^c = {f^c}(I') - {f^c}({I_b}) $;
       $ L_{{\text{CF - CAM}}}^c = L_{{\text{CF - CAM}}}^c + \alpha _k^cM_k^c $;
     end
     (4) Return Lc CF-CAM
     输出:Saliency map Lc CF-CAM
    下载: 导出CSV

    表  1  CF-CAM忠实度评估结果(%)

    RISEGrad-CAMGrad-CAM++Score-CAMRelevance-CAMCF-CAM
    A.D.57.446.343.941.445.239.8
    A.I.8.715.218.620.517.521.3
    下载: 导出CSV

    表  2  CF-CAM的定位性能评估结果

    方法RISEGrad-CAMGrad-CAM++Score-CAMRelevance-CAMCF-CAM
    比例40.552.354.661.853.962.7
    下载: 导出CSV
