基于智能超表面的室内覆盖增强技术研究与实验验证

费丹 陈晨 郑鹏 游明博 丁建文 王玮 章嘉懿 艾渤 金石 崔铁军

费丹, 陈晨, 郑鹏, 游明博, 丁建文, 王玮, 章嘉懿, 艾渤, 金石, 崔铁军. 基于智能超表面的室内覆盖增强技术研究与实验验证[J]. 电子与信息学报, 2022, 44(7): 2374-2381. doi: 10.11999/JEIT220068
引用本文: 费丹, 陈晨, 郑鹏, 游明博, 丁建文, 王玮, 章嘉懿, 艾渤, 金石, 崔铁军. 基于智能超表面的室内覆盖增强技术研究与实验验证[J]. 电子与信息学报, 2022, 44(7): 2374-2381. doi: 10.11999/JEIT220068
FEI Dan, CHEN Chen, ZHENG Peng, YOU Mingbo, DING Jianwen, WANG Wei, ZHANG Jiayi, AI Bo, JIN Shi, CUI Tiejun. Research and Experimental Verification of Reconfigurable Intelligent Surface in Indoor Coverage Enhancement[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2374-2381. doi: 10.11999/JEIT220068
Citation: FEI Dan, CHEN Chen, ZHENG Peng, YOU Mingbo, DING Jianwen, WANG Wei, ZHANG Jiayi, AI Bo, JIN Shi, CUI Tiejun. Research and Experimental Verification of Reconfigurable Intelligent Surface in Indoor Coverage Enhancement[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2374-2381. doi: 10.11999/JEIT220068

基于智能超表面的室内覆盖增强技术研究与实验验证

doi: 10.11999/JEIT220068
基金项目: 国家自然科学基金 (62171021), 国防科技工业海洋防务技术创新中心创新基金(2021-40),江苏省前沿引领技术基础研究专项(BK20212002-3),中国国家铁路集团有限公司科技研究开发计划项目(SY2021G001)
详细信息
    作者简介:

    费丹:男,1988年生,实验师,研究方向为无线信道测量、建模及模拟

    陈晨:男,1985年生,博士,研究方向为无线信道测量及模拟

    郑鹏:男,1998年生,硕士生,研究方向为无线信道测量与建模、智能超表面等

    游明博:男,1998年生,硕士生,研究方向为智能超表面

    丁建文:男,1980年生,副研究员,研究方向为轨道交通专用移动通信系统、无线电波传播、智能+轨道交通等

    王玮:男,1982年生,高级工程师,研究方向为轨道交通专用移动通信系统

    章嘉懿:男,1986年生,教授,研究方向为大规模MIMO技术、智能超表面等

    艾渤:男,1974年生,教授,研究方向为宽带移动通信系统与专用移动通信、无线电波传播与信道建模、6G关键技术等

    金石:男,1974年生,教授,研究方向为5G、6G移动通信理论与关键技术、现代信号处理及其在移动通信中应用、智能超表面等

    崔铁军:男,1965年生,教授,研究方向为毫米波通信、智能超表面、计算电磁学和理论电磁学等

    通讯作者:

    陈晨 98940301@bjtu.edu.cn

  • 中图分类号: TN911

Research and Experimental Verification of Reconfigurable Intelligent Surface in Indoor Coverage Enhancement

Funds: The National Natural Science Foundation of China (62171021), The National Defense Technology Industry Marine Defense Technology Innovation Center Innovation Fund (2021-40), The Frontier Leading Technology Basic Research Project of Jiangsu Province (BK20212002-3), The Project of China State Railway Group (SY2021G001)
  • 摘要: 智能超表面(RIS)通过打造可重构主动智能无线环境,打破了无线通信系统中被动电波传播的局限性,为5G-Adv和6G发展创造了新的契机。该文介绍了RIS系统架构与工作原理,包括硬件设计与波束聚合原理等。搭建了RIS辅助的无线通信实验测试系统,通过对比无RIS、随机码本RIS及赋形码本RIS 3种情况下的测试结果,验证了RIS通过反射波束赋形实现覆盖增强的能力。

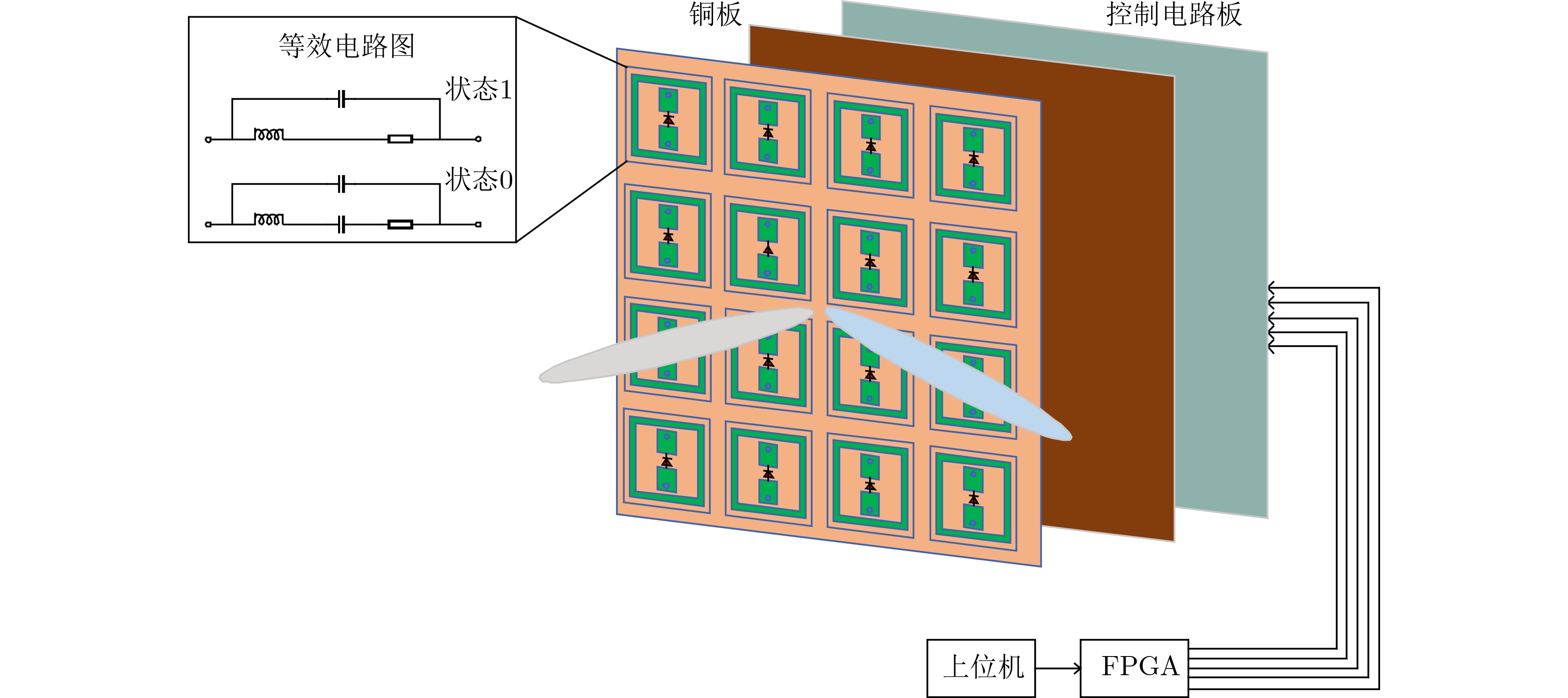

  • 图  1  RIS面板结构图

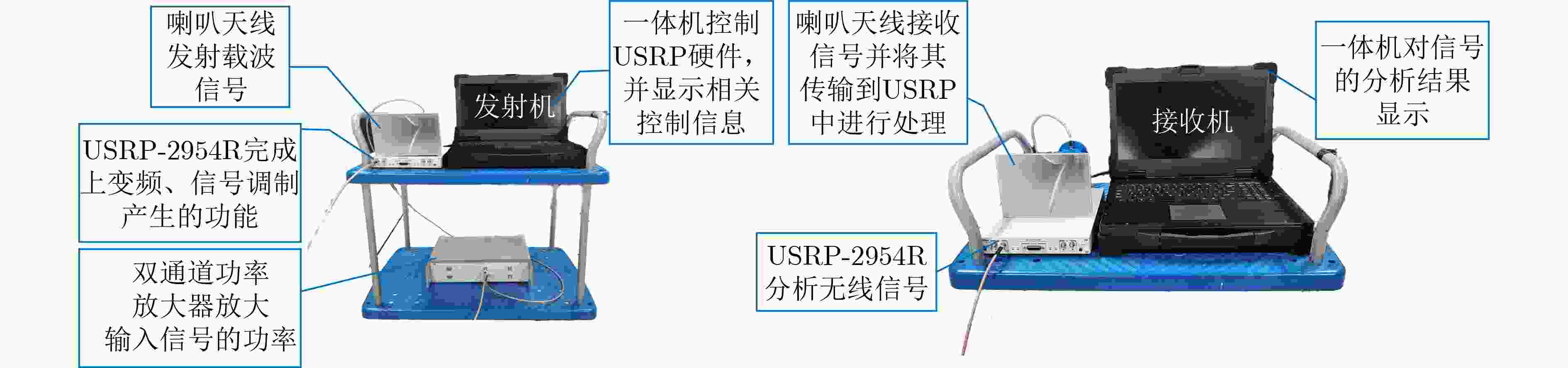

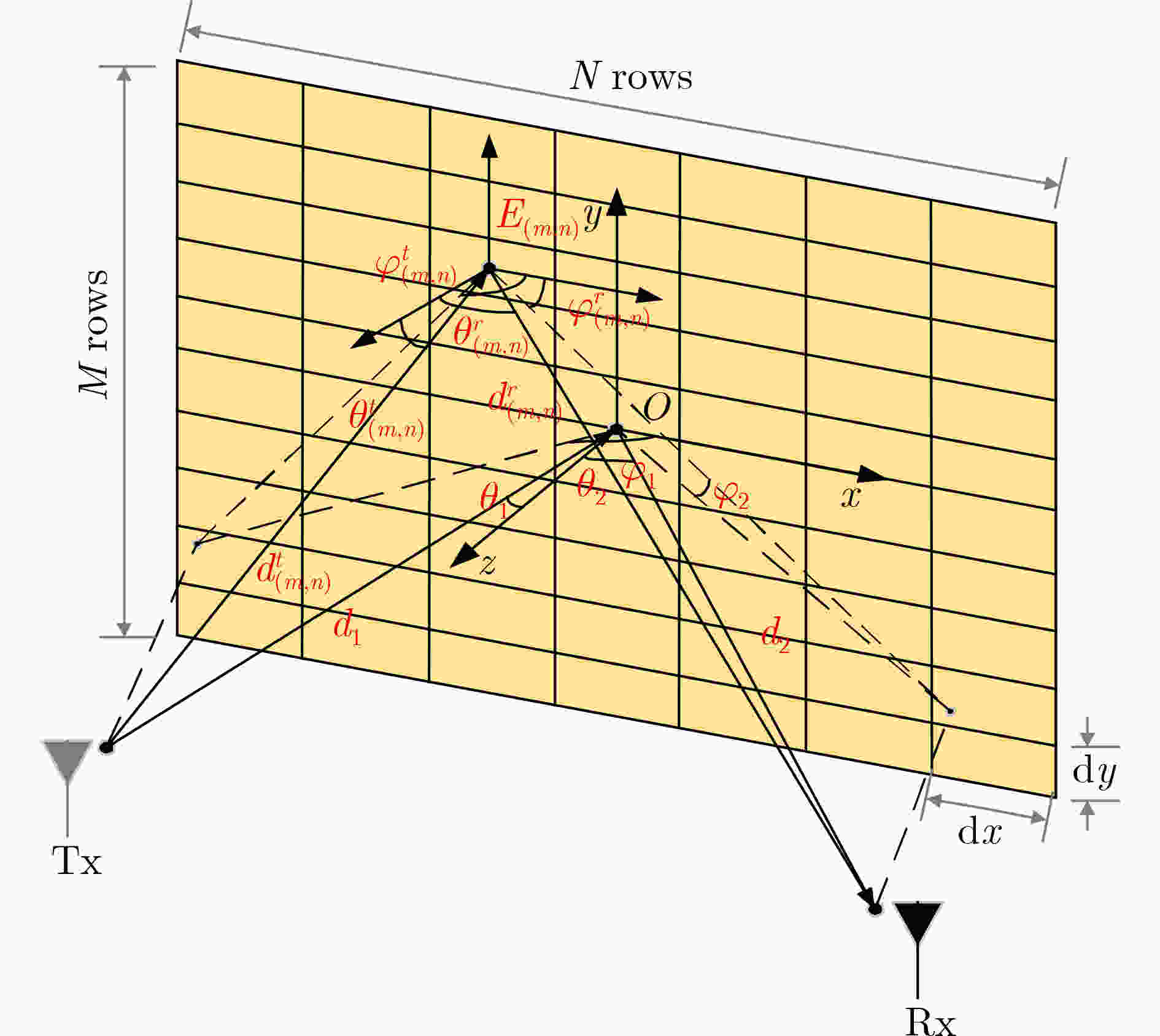

    图  2  RIS测试系统示意图

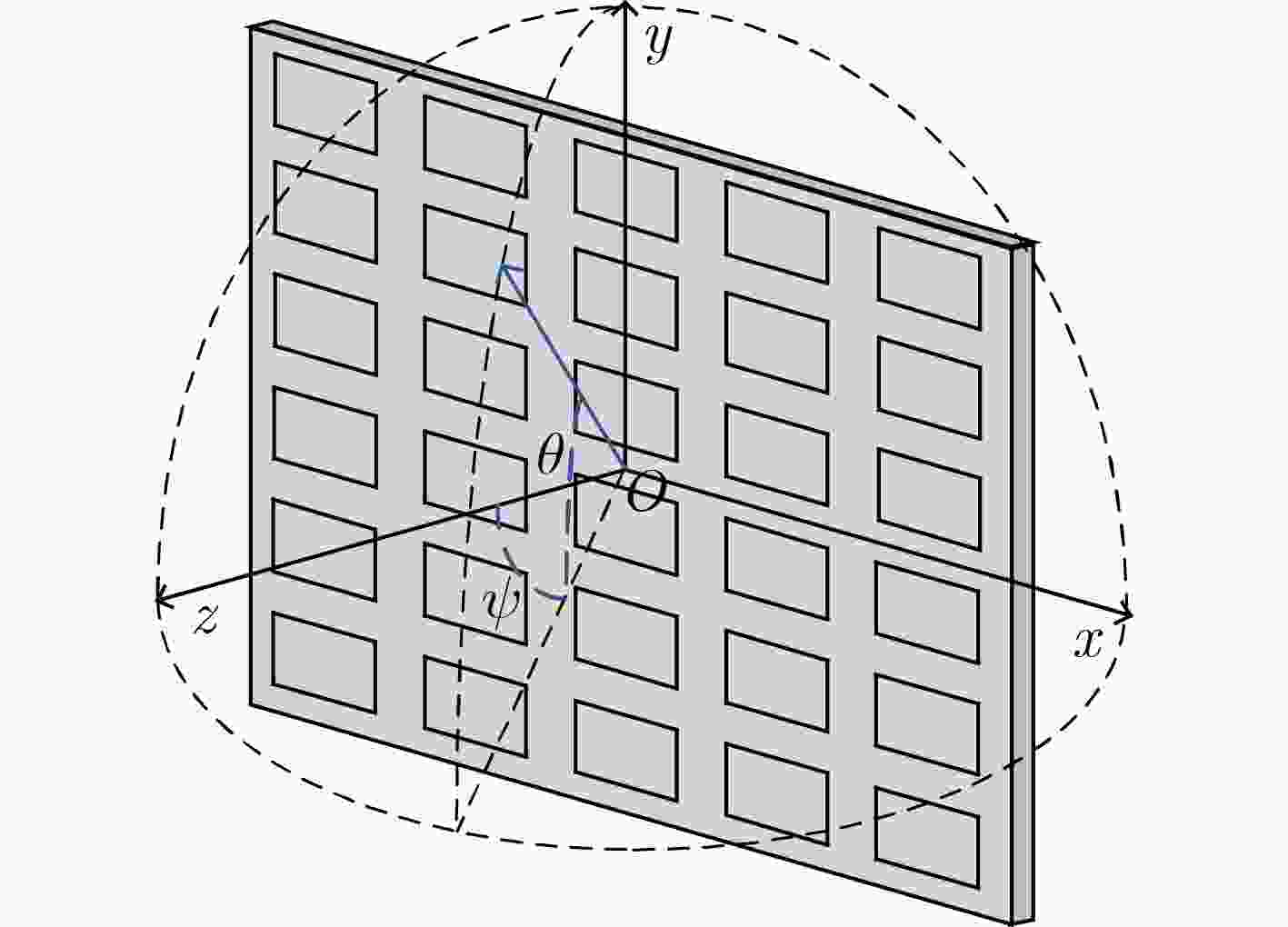

    图  3  RIS 3维坐标系

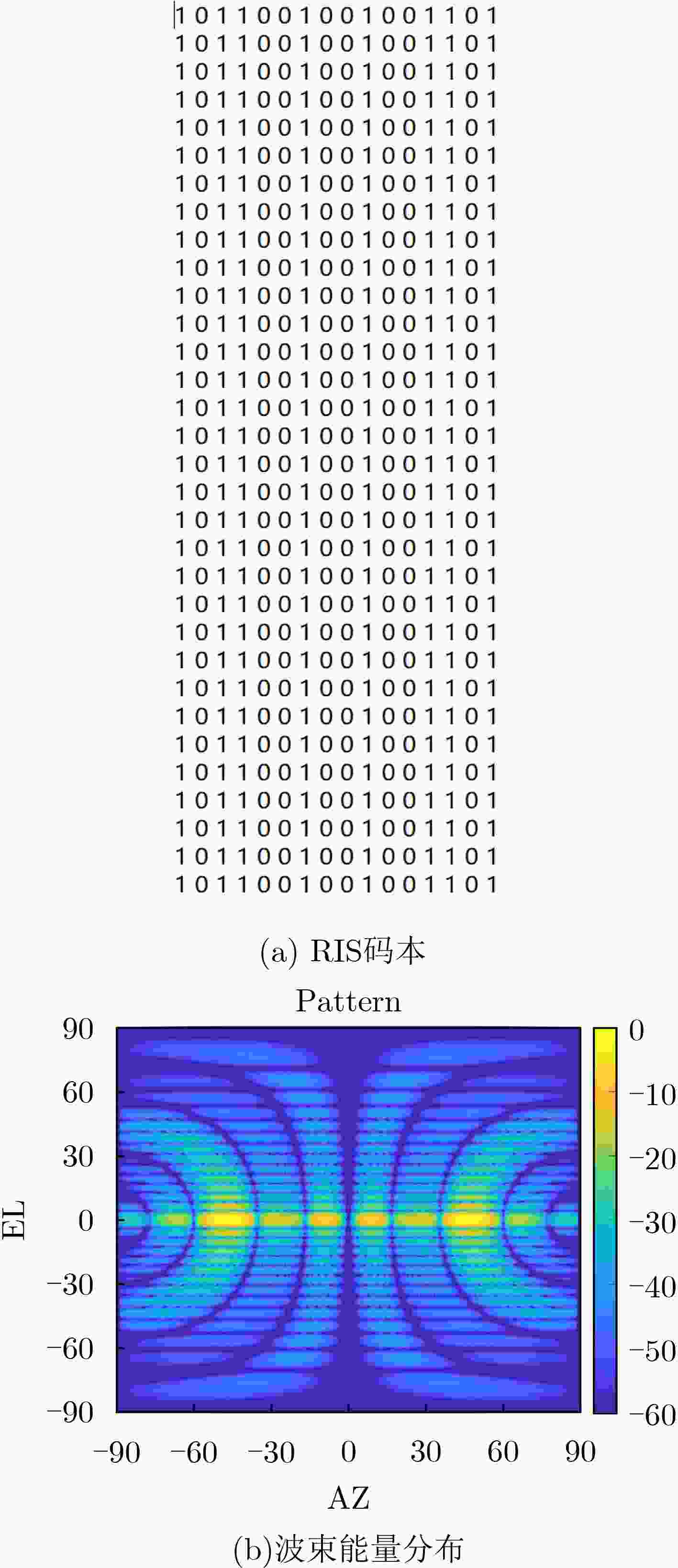

    图  4  RIS码本以及出射波束的能量图(入射角0°,出射角45°)

    图  5  RIS辅助无线通信系统示意图

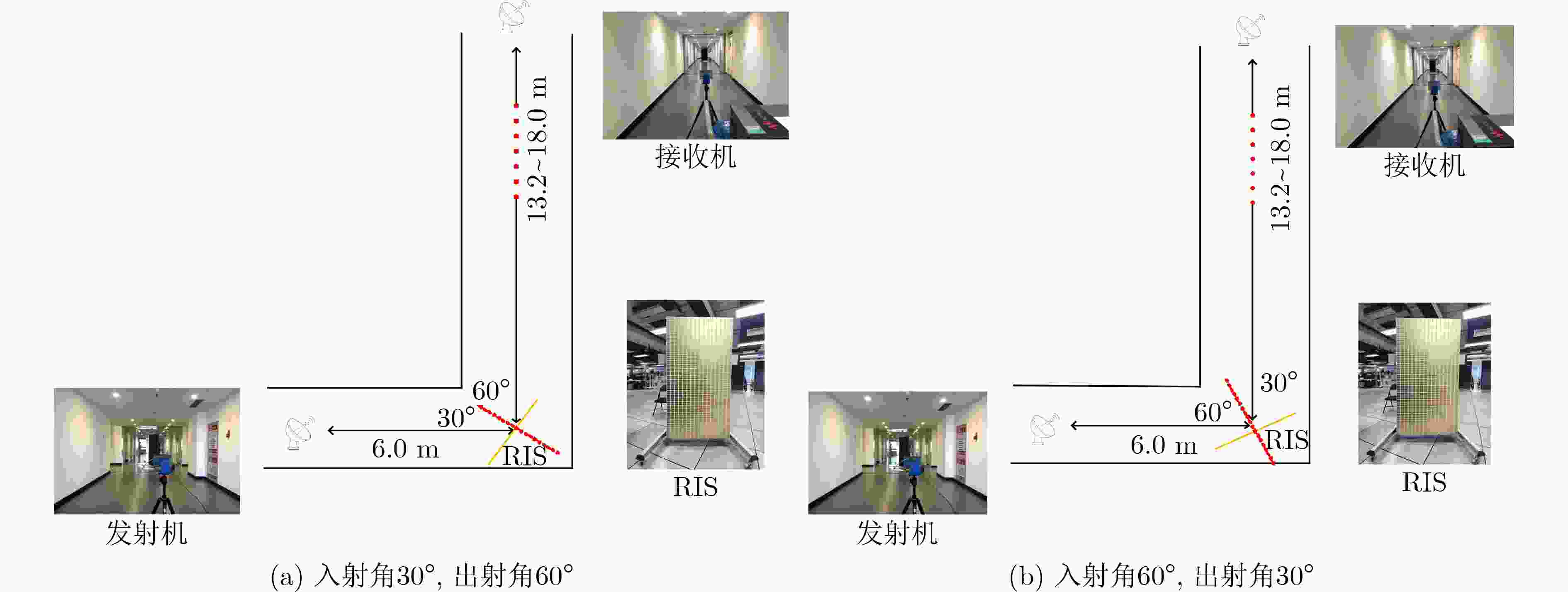

    图  6  室内RIS测试场景

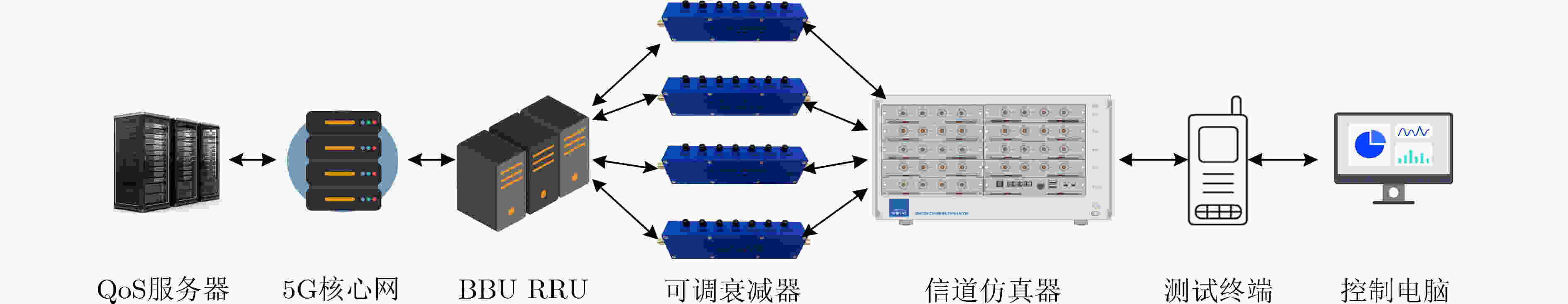

    图  7  RIS网络性能分析平台

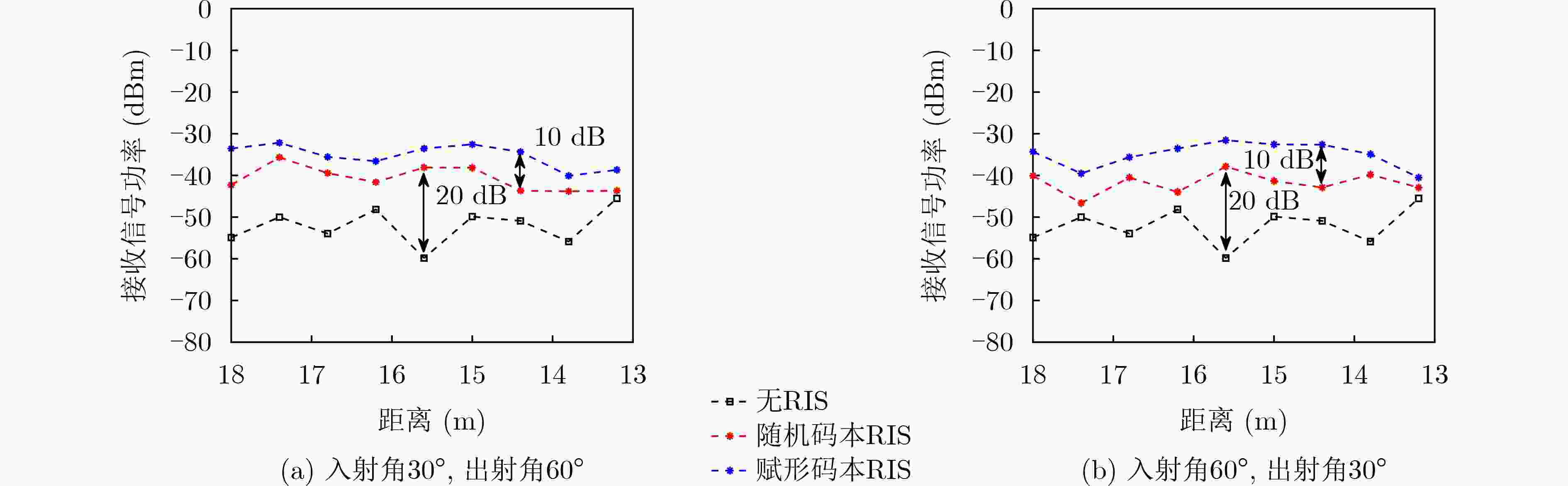

    图  8  基于RIS室内测试性能对比

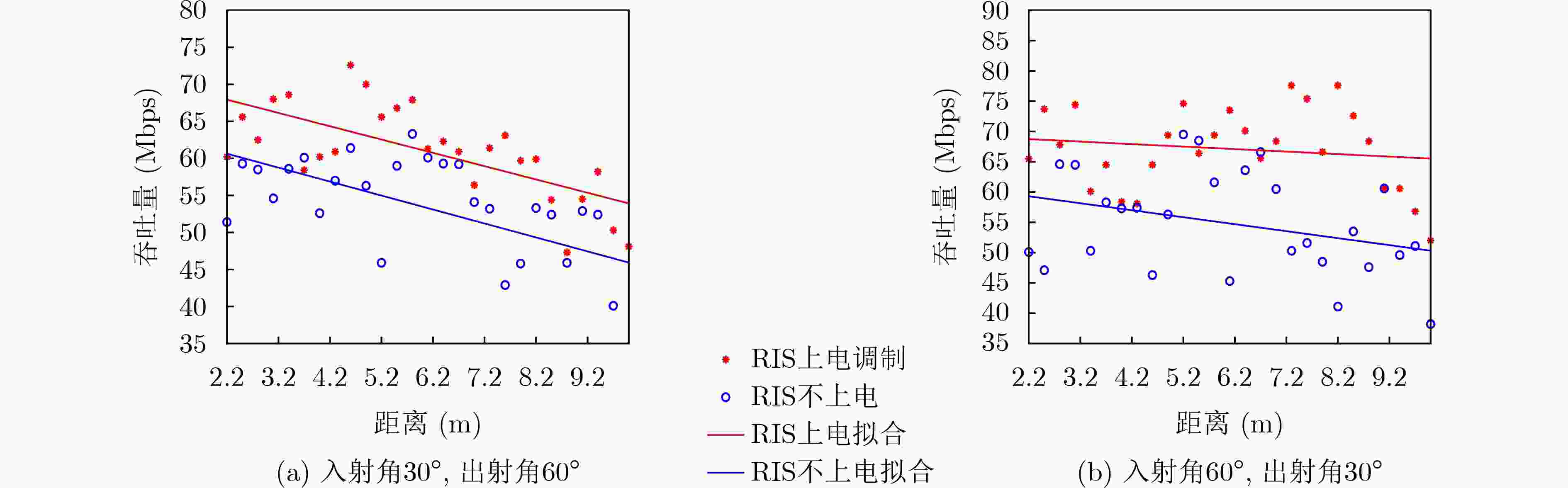

    图  9  基于RIS的网络吞吐量仿真测试性能对比

    表  1  RIS相关参数

    参数取值
    可调信号频率范围(GHz)2.515~2.675
    可调俯仰角度范围±60°
    可调方位角度范围±60°
    波束宽度E面:7°,H面:3.5°
    码本更新率(s)0.01
    下载: 导出CSV

    表  2  室内场景实验参数

    参数取值
    信号频率(GHz)2.64
    入射角度30° \ 60°
    出射角度60° \ 30°
    发射端距离(m)6
    接收端距离(m)13.2~18.0
    信号带宽(MHz)40
    俯仰角
    天线增益(dBi)12.5
    功放增益(dBm)35
    下载: 导出CSV
