针对eLORAN系统窄带干扰的权函数陷波算法

刘时尧 华宇 张首刚

刘时尧, 华宇, 张首刚. 针对eLORAN系统窄带干扰的权函数陷波算法[J]. 电子与信息学报, 2023, 45(3): 996-1005. doi: 10.11999/JEIT220045
引用本文: 刘时尧, 华宇, 张首刚. 针对eLORAN系统窄带干扰的权函数陷波算法[J]. 电子与信息学报, 2023, 45(3): 996-1005. doi: 10.11999/JEIT220045
LIU Shiyao, HUA Yu, ZHANG Shougang. Weight-Function Notch Filter Algorithm for Narrow-band Interference in eLORAN System[J]. Journal of Electronics & Information Technology, 2023, 45(3): 996-1005. doi: 10.11999/JEIT220045
Citation: LIU Shiyao, HUA Yu, ZHANG Shougang. Weight-Function Notch Filter Algorithm for Narrow-band Interference in eLORAN System[J]. Journal of Electronics & Information Technology, 2023, 45(3): 996-1005. doi: 10.11999/JEIT220045

针对eLORAN系统窄带干扰的权函数陷波算法

doi: 10.11999/JEIT220045
基金项目: 国家自然科学基金(11803040),中国科学院前沿科学重点研究项目(QYZDJ-SSW-JSC034)
详细信息
    作者简介:

    刘时尧:男,博士生,研究方向为无线电导航与授时技术

    华宇:男,博士,研究员,研究方向为无线电导航与授时技术

    张首刚:男,博士,研究员,研究方向为原子钟及其导航应用技术

    通讯作者:

    刘时尧 liushiyao@ntsc.ac.cn

  • 中图分类号: TN961

Weight-Function Notch Filter Algorithm for Narrow-band Interference in eLORAN System

Funds: The National Natural Science Foundation of China (11803040), The Key Research Program of Frontier Sciences of CAS (QYZDJ-SSW-JSC034)
  • 摘要: 针对增强型罗兰(eLORAN)系统的带内干扰问题,该文基于陷波滤波器(NF)原理提出一种抗带内窄带干扰的自适应权函数陷波算法(WF-NF)。首先,该文分析讨论了NF算法在eLORAN系统中的适用性及检测频差引起的伪收敛问题;之后通过增加频差权函数,推导出新的WF-NF算法,解决了固有频差导致的陷波逻辑缺陷;随后,提出梯度跳跃收敛优化技术,改进了权系数收敛速度过慢的问题;最后,通过多种环境下的实验验证了算法的稳定性、多元适用性及实用性。分析结果表明,WF-NF算法能够克服检测频差的实际问题,实现高效的干扰跟踪及滤除,同时也可以补偿干扰检测精度,进而为后续的信号处理流程提供保障。

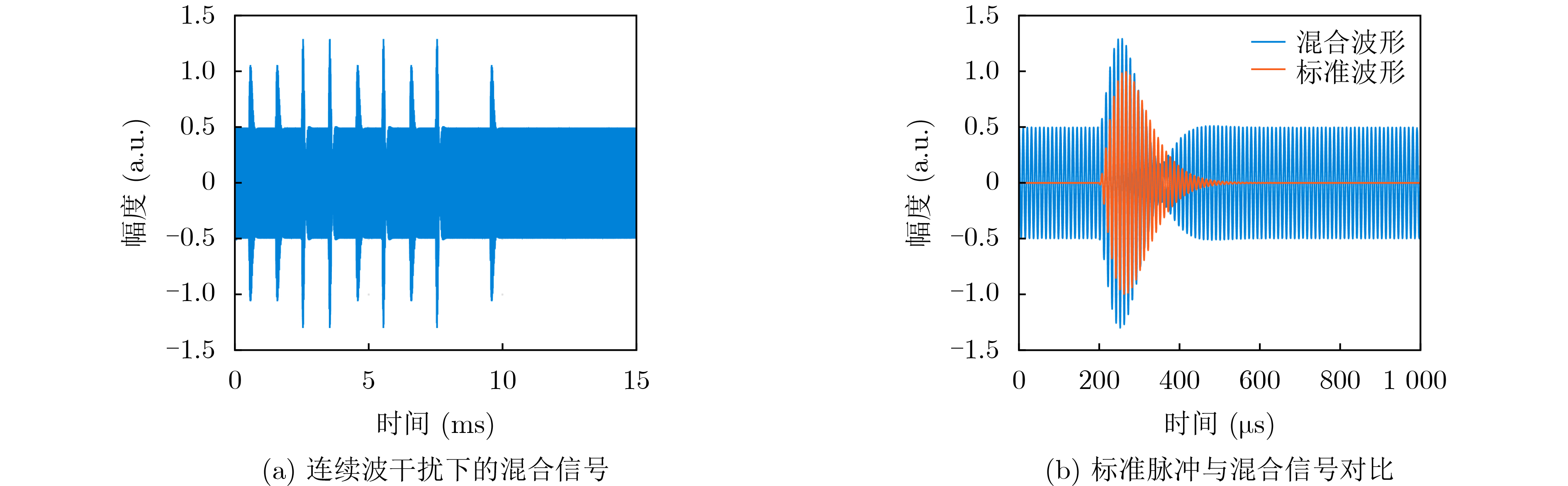

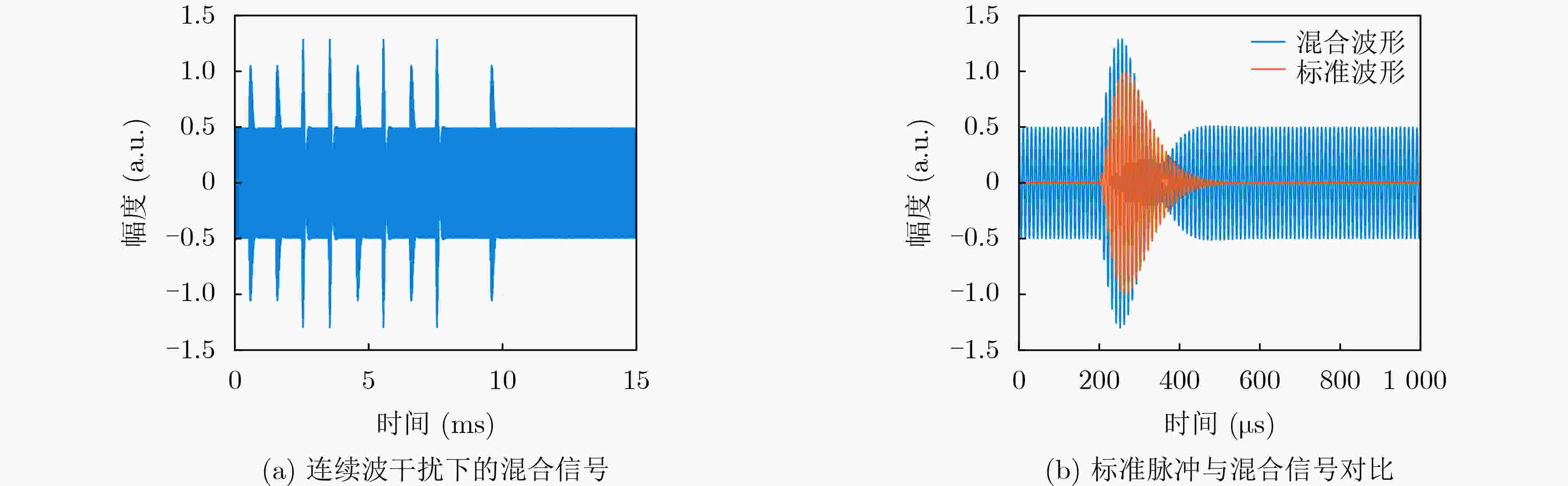

  • 图  1  连续波干扰下的eLORAN脉冲组

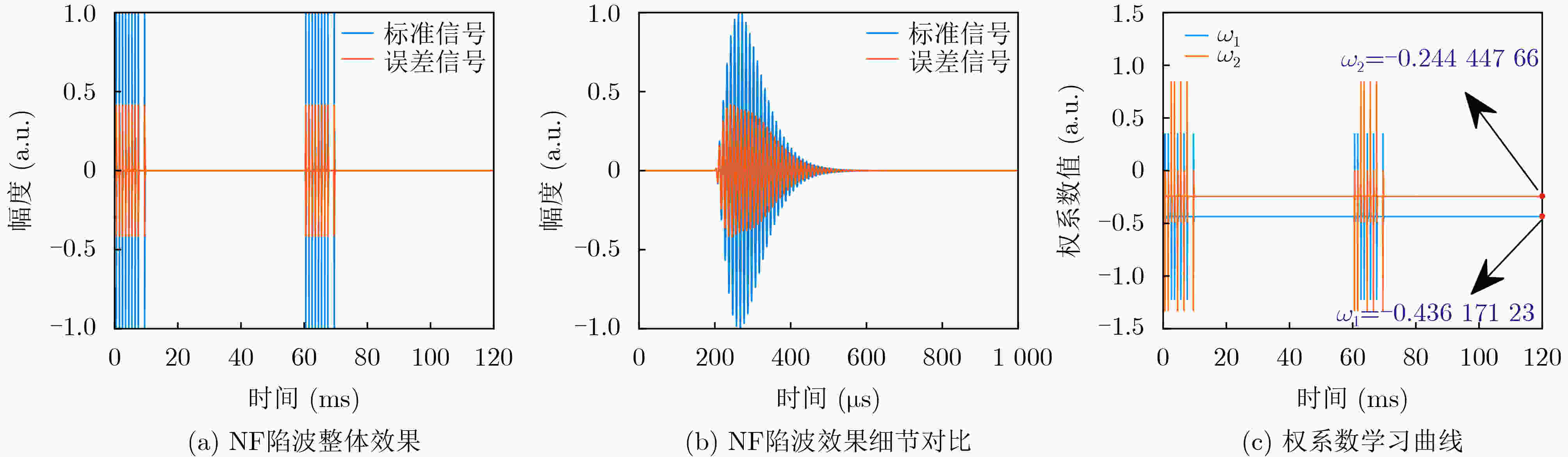

    图  2  NF陷波效果及权系数学习曲线

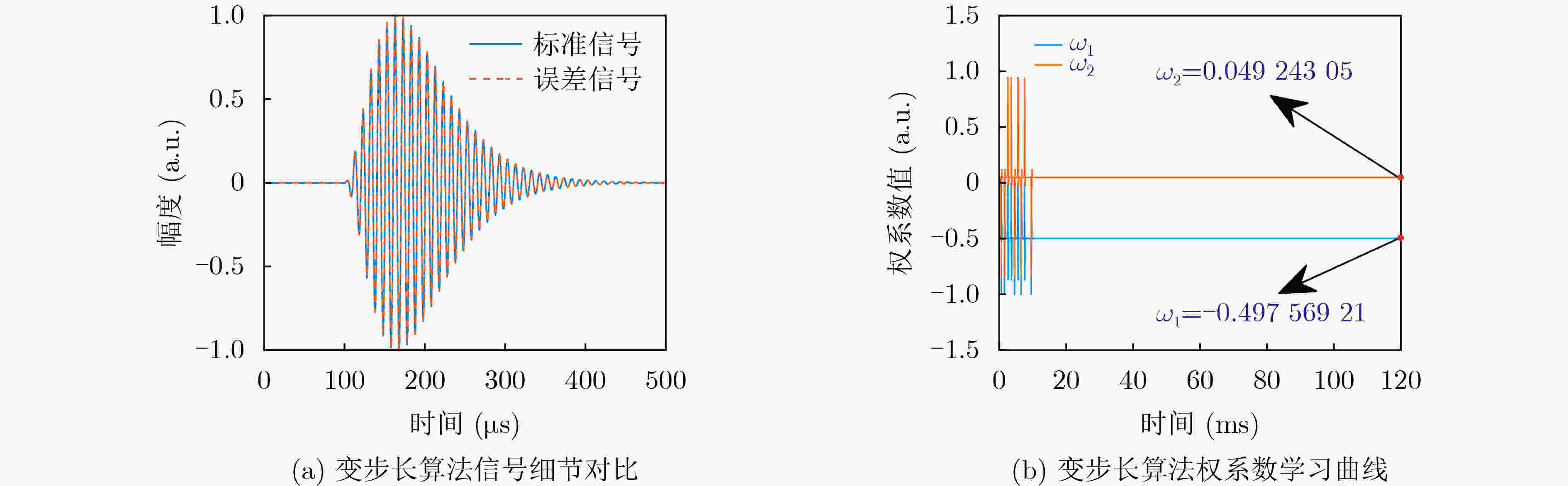

    图  3  变步长改进后NF陷波效果及学习曲线

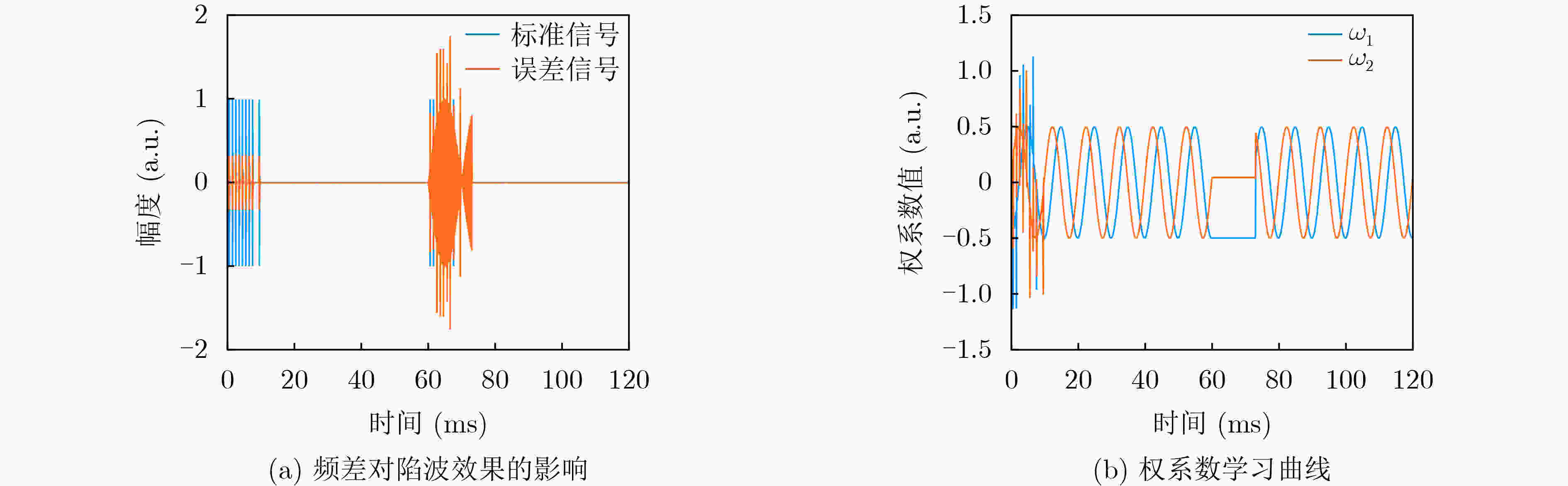

    图  4  考虑频差影响时陷波效果及学习曲线

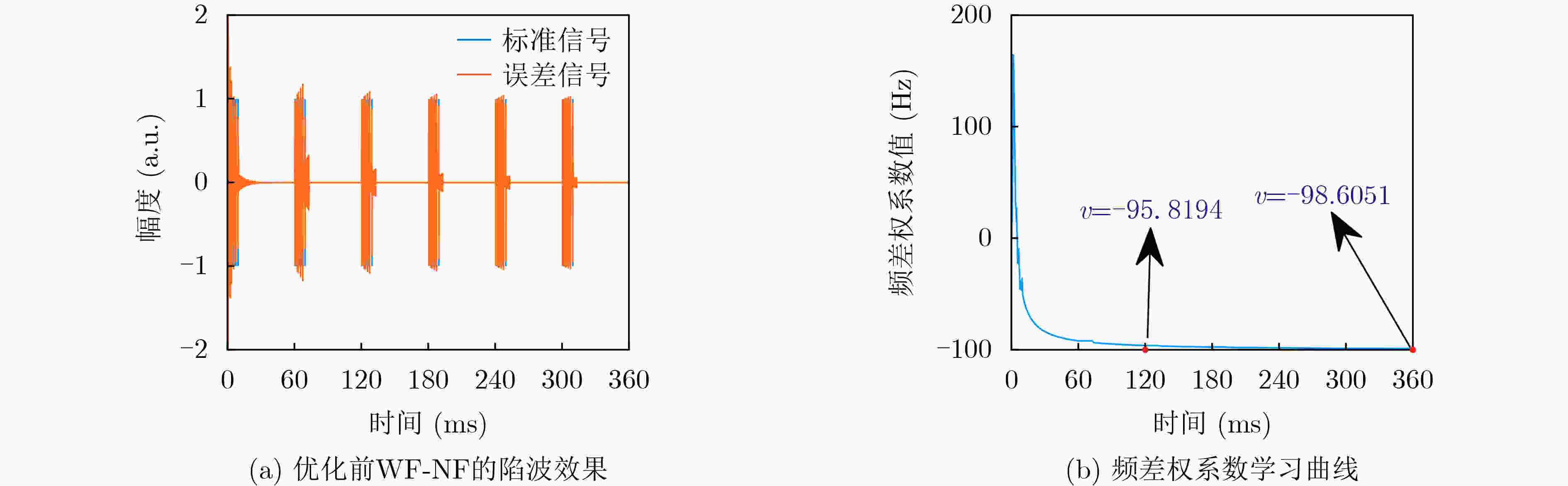

    图  5  初期WF-NF算法的频差跟踪效果

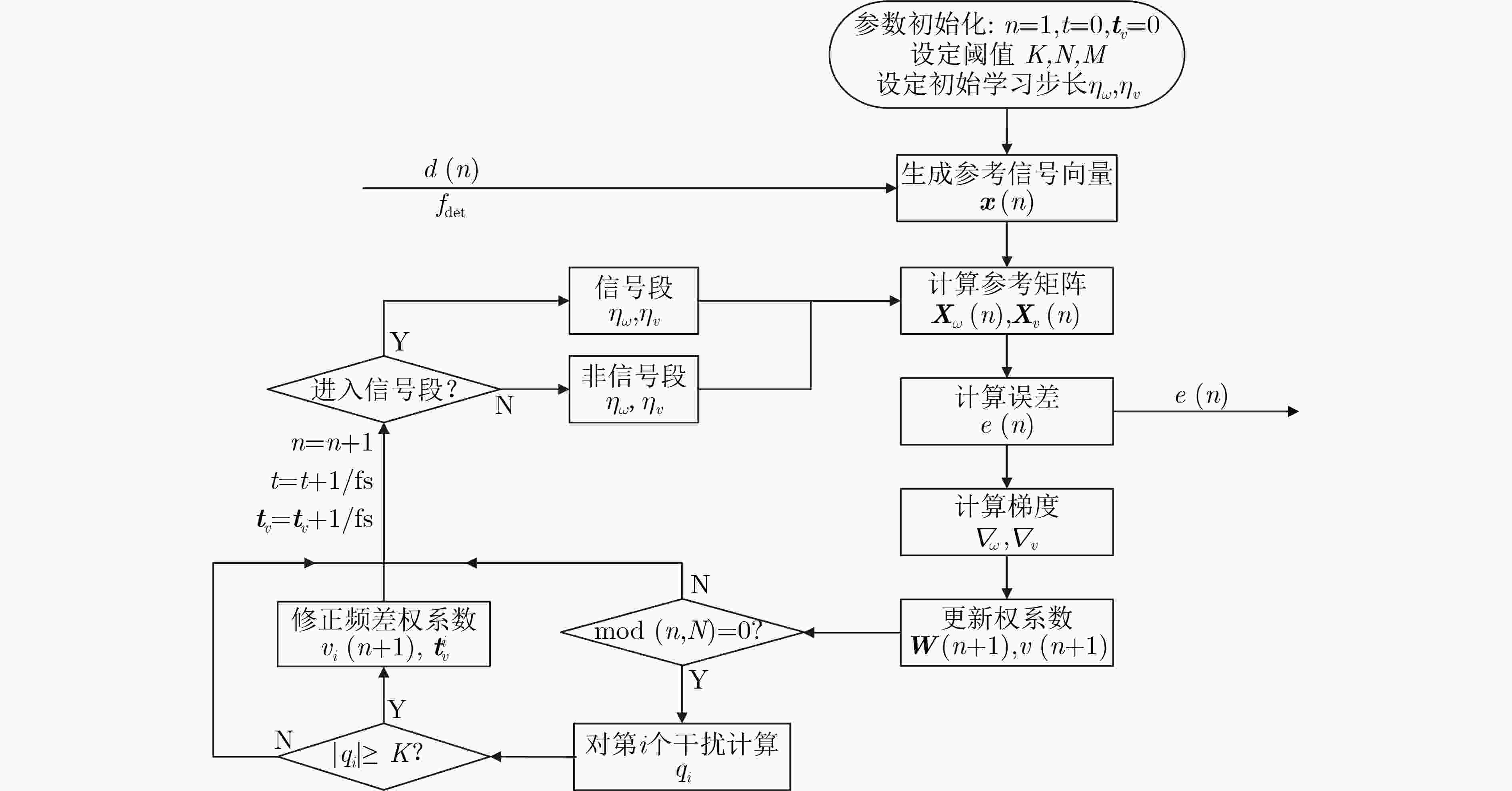

    图  6  WF-NF算法工作流程图

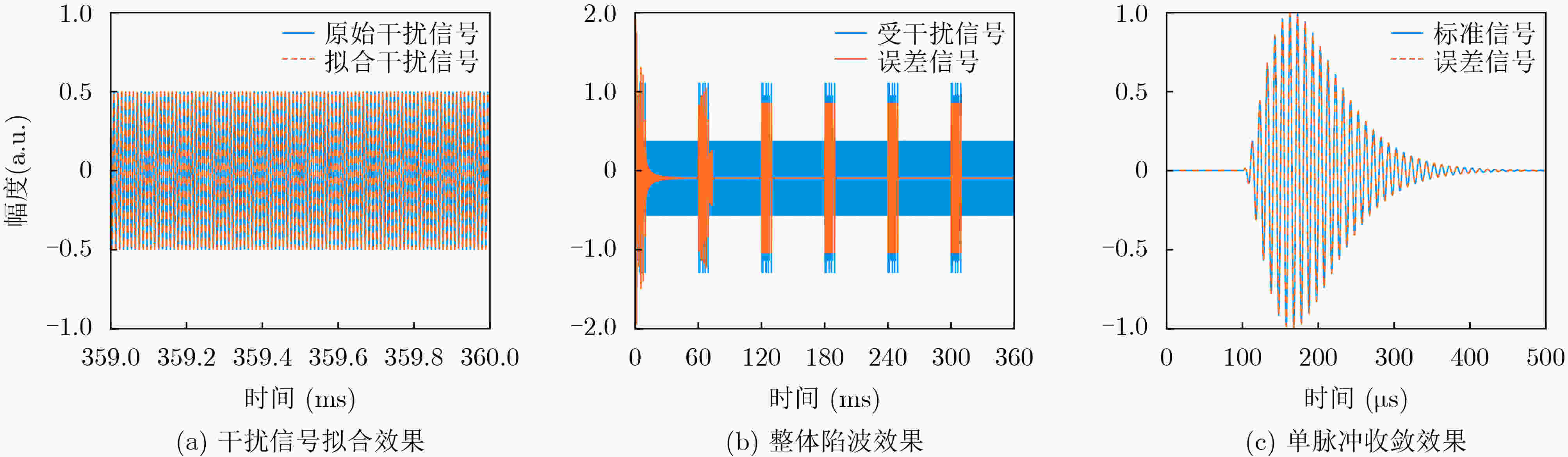

    图  7  1个干扰下WF-NF算法的陷波效果

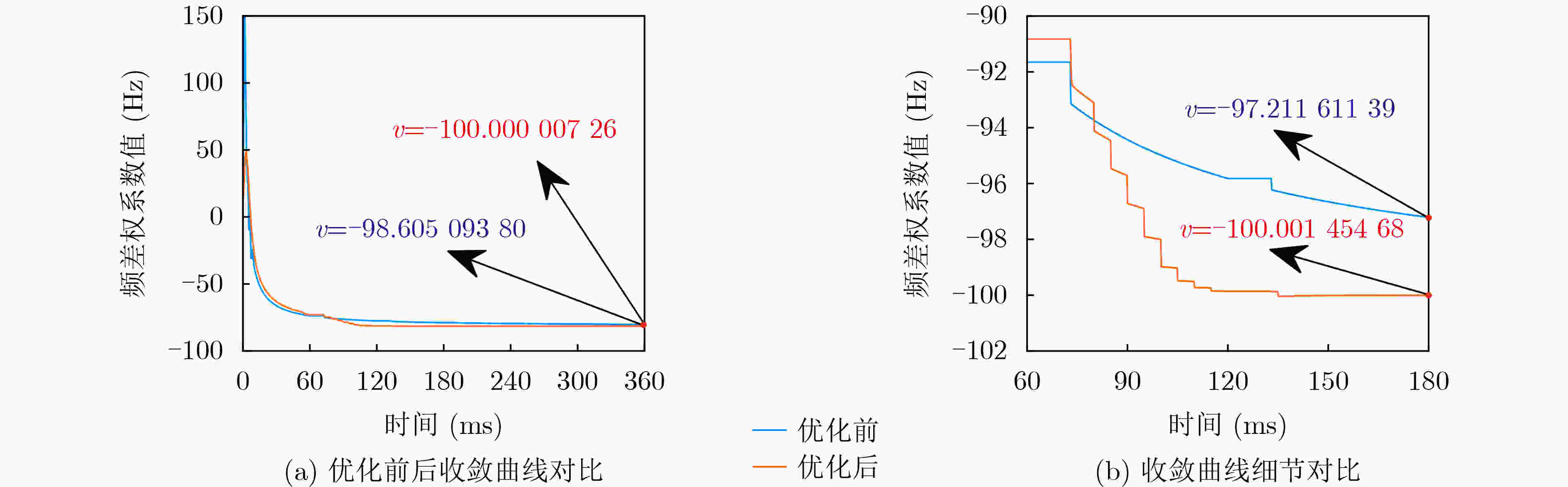

    图  8  1个干扰下WF-NF算法的频差权系数收敛曲线

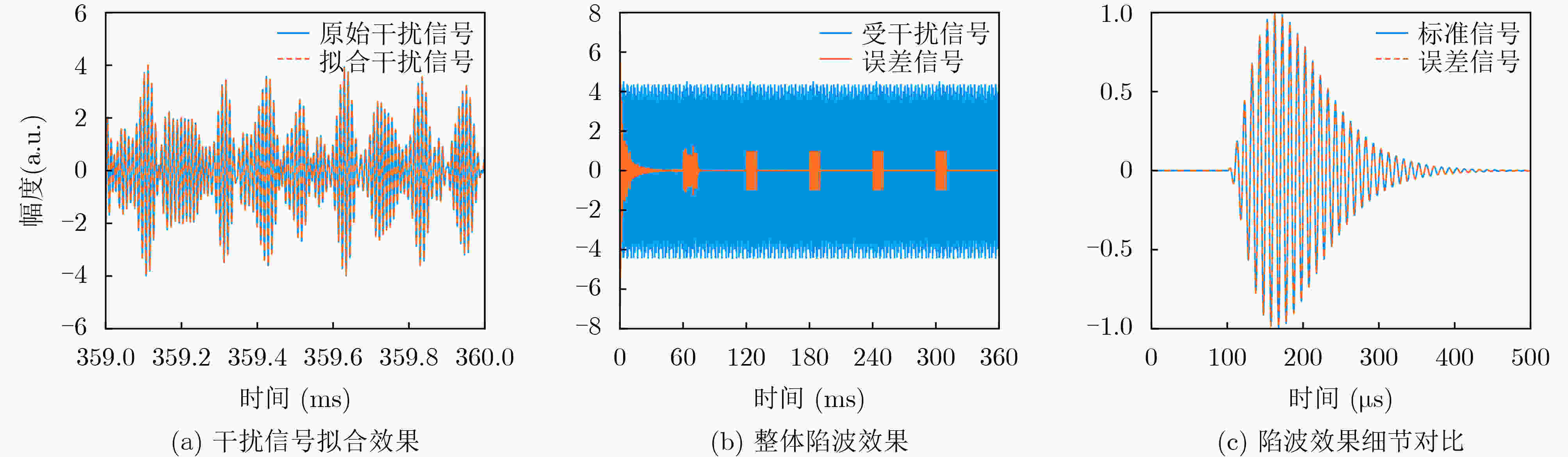

    图  9  多干扰下WF-NF算法的陷波效果

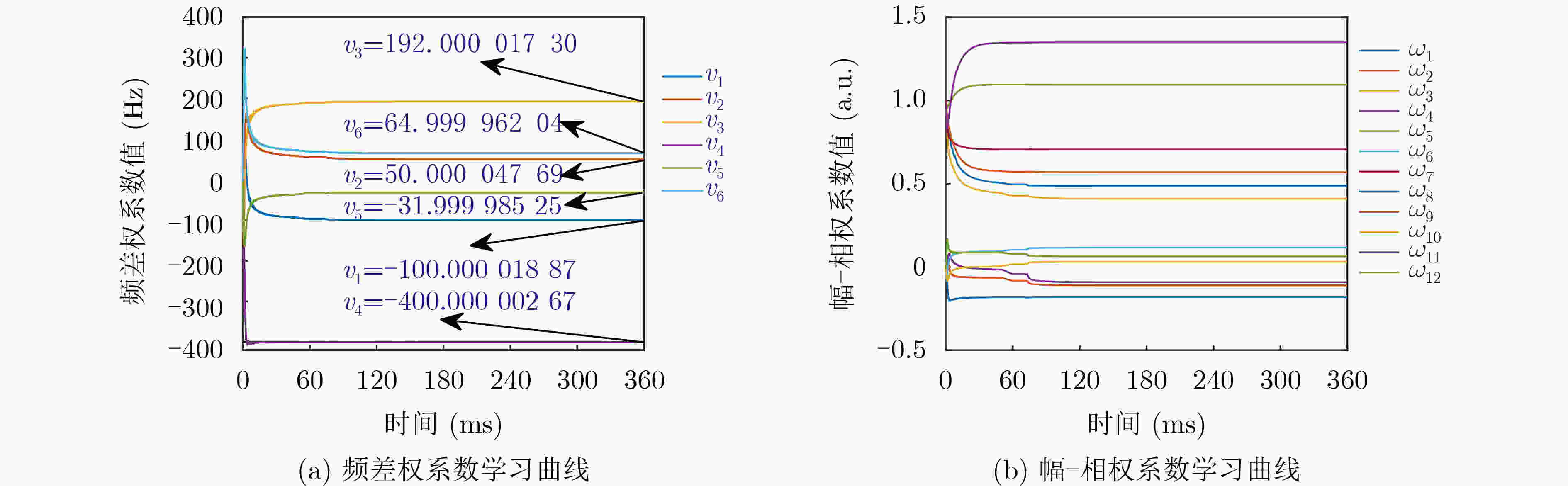

    图  10  多个干扰下WF-NF算法的权系数收敛曲线

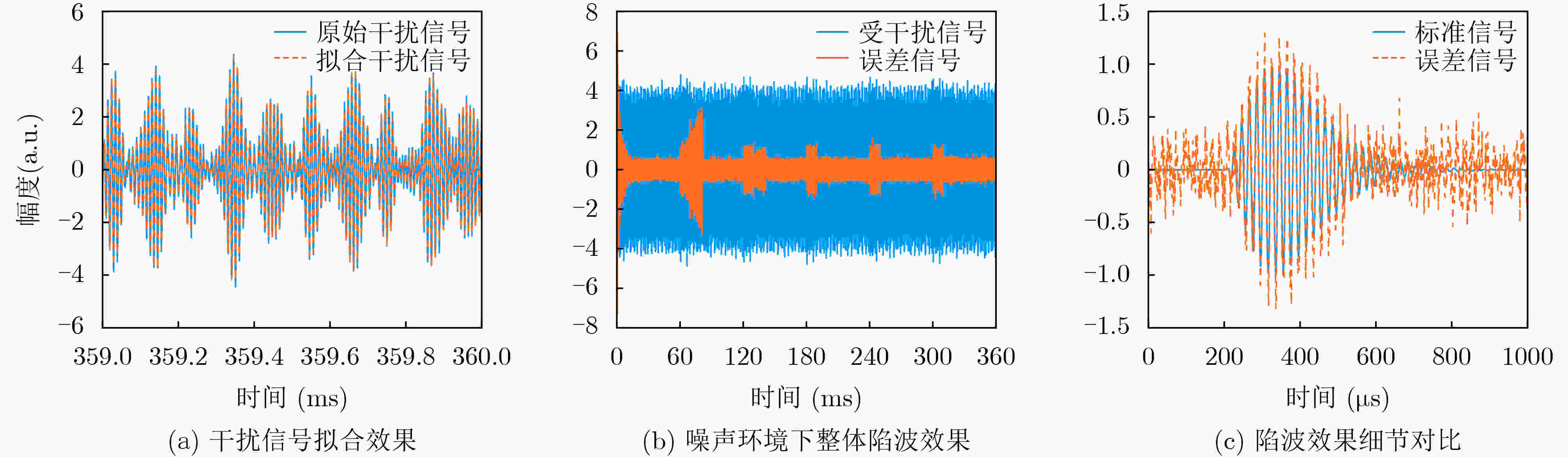

    图  11  多干扰加白噪声环境WF-NF算法的陷波效果

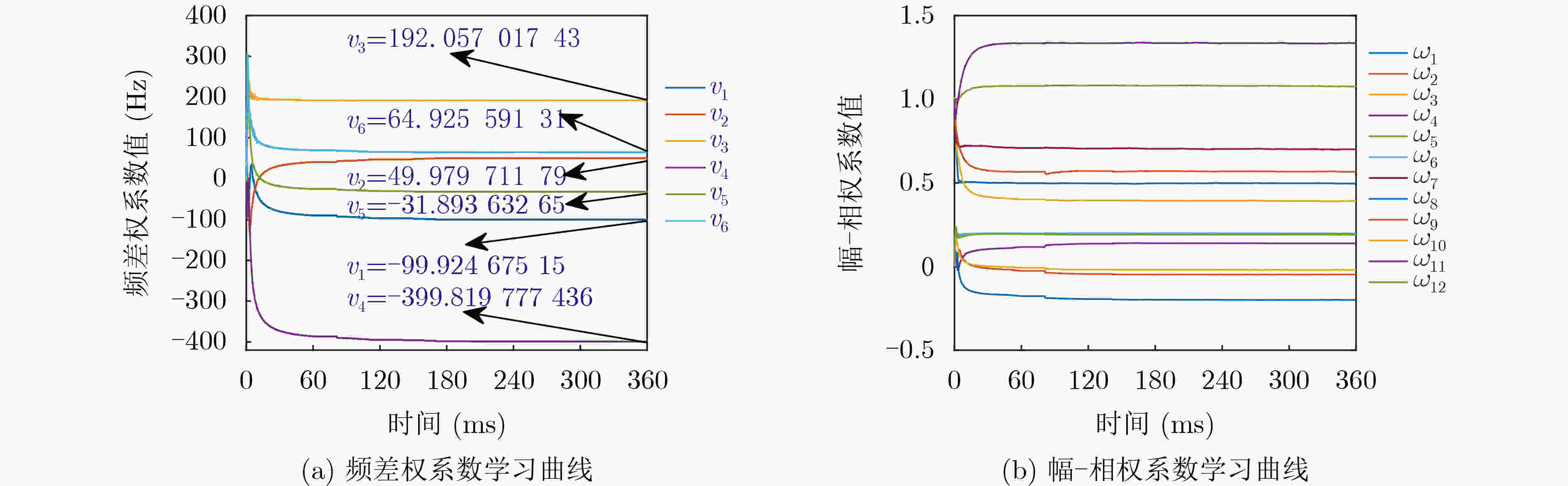

    图  12  多干扰加白噪声环境下WF-NF算法的权系数收敛曲线

    表  1  无噪声环境6个干扰及WF-NF滤波统计(360 ms处)

    干扰频率(kHz)干扰幅度检测频率(kHz)频差(Hz)频差权系数(Hz)频差误差(Hz)幅-相权系数跟踪幅度幅度误差
    970.597.1–100–100.000018871.887e-50.48757903–0.110755110.50000000<1e-8
    1060.42105.955050.000047694.769e-50.40969754–0.092455140.42000003<3e-8
    931.192.808192192.000017301.730e-51.093862170.116041181.10000000<1e-8
    112.30.73112.7–400–400.000002672.67e-60.70671391–0.182908320.73000000<1e-8
    87.20.5787.232–32–31.999985251.475e-50.569164820.030844740.57000000<1e-8
    102.51.35102.4356564.999962043.796e-51.348538100.062809191.35000000<1e-8
    下载: 导出CSV

    表  2  6个干扰+10 dB白噪声环境WF-NF滤波统计(360 ms处)

    干扰频率(kHz)干扰幅度检测频率(kHz)频差(Hz)频差权系数(Hz)频差误差(Hz)幅-相权系数跟踪幅度幅度误差
    970.597.1–100–99.924675150.075324850.49562550
    –0.04787083
    0.497931970.00206803
    1060.42105.955049.979711790.020288210.39140512
    0.13824263
    0.415101180.00489882
    931.192.808192192.057017430.057017431.07620635
    0.19766220
    1.094207680.00579232
    112.30.73112.7–400–399.919777360.080222640.69925836
    –0.19905053
    0.727037390.00296261
    87.20.5787.232–32–31.893632650.106367350.56605044
    –0.02030129
    0.566414380.00358562
    102.51.35102.4356564.925591310.074408691.33417085
    0.19034451
    1.347680560.00231944
    下载: 导出CSV
  • [1] FANG T H, KIM Y, PARK S G, et al. GPS and eLoran integrated navigation for marine applications using augmented measurement equation based on range domain[J]. International Journal of Control, Automation and Systems, 2020, 18(9): 2349–2359. doi: 10.1007/s12555-019-0287-y
    [2] VAN WILLIGEN D, OFFERMANS G W A, and HELWIG A W S. EUROFIX: Definition and current status[C]. IEEE 1998 Position Location and Navigation Symposium, Palm Springs, USA, 1998: 101–108.
    [3] 闫温合. eLoran干扰误差模型及抗干扰接收方法研究[D]. [博士论文], 中国科学院大学(国家授时中心), 2021: 2–4.

    WU Haitao. Study on the independent time service and date communication over Loran-C[D]. [Ph. D. dissertation], University of Chinese Academy of Sciences (National Time Service Center), 2002: 11–23.
    [4] 熊伟. Loran-C数字信号处理的关键技术研究[D]. [博士论文], 中国科学院研究生院(国家授时中心), 2008: 37–38.

    XIONG Wei. Study on the crucial techniques of Loran-C digital signal processing[D]. [Ph. D. dissertation], University of Chinese Academy of Sciences (National Time Service Center), 2008: 37–38.
    [5] 徐永亮, 华宇, 李实锋. BPL接收机中连续波干扰的DSP抑制方法[J]. 仪器仪表学报, 2008, 29(8): 324–327.

    XU Yongliang, HUA Yu, and LI Shifeng. A method based on DSP to suppress continuous wave interference of BPL receiver[J]. Chinese Journal of Scientific Instrument, 2008, 29(8): 324–327.
    [6] ŠAFÁŘ J. Analysis, modelling and mitigation of cross-rate interference in enhanced loran[D]. [Ph. D. dissertation], Czech Technical University in Prague, 2014: 54–55.
    [7] PELGRUM W J. New potential of low-frequency radionavigation in the 21st century[D]. [Ph. D. dissertation], Delft University of Technology, 2006: 77–78.
    [8] ZHANG Shuoyu. The design and implementation of notch filter based on least mean square[C]. 2019 International Conference on Artificial Intelligence, Control and Automation Engineering (AICAE 2019), Wuhan, China, 2019: 198–202.
    [9] 刘丙伟. 罗兰C接收机抗干扰技术研究[D]. [硕士论文], 电子科技大学, 2012: 41–75.

    LIU Bingwei. Study on anti-interference technology in Loran-C receiver[D]. [Master dissertation], University of Electronic Science and Technology of China, 2012: 41–75.
    [10] DINIZ P S R, 刘郁林, 景晓军, 谭刚兵, 译. 自适应滤波算法与实现[M]. 2版. 北京: 电子工业出版社, 2014: 55–57.

    DINIZ P S R, LIU Yulin, JING Xiaojun, TAN Gangbing, translation. Adaptive Filtering: Algorithms and Practical Implementation[M]. 2nd ed. Beijing: Publishing House of Electronics Industry, 2014: 55–57.
    [11] 吕晓德, 孙正豪, 刘忠胜, 等. 基于二阶统计量盲源分离算法的无源雷达同频干扰抑制研究[J]. 电子与信息学报, 2020, 42(5): 1288–1296. doi: 10.11999/JEIT190178

    LU Xiaode, SUN Zhenghao, LIU Zhongsheng, et al. Research on suppressing co-channel interference of passive radar based on blind source separation using second order statistics[J]. Journal of Electronics &Information Technology, 2020, 42(5): 1288–1296. doi: 10.11999/JEIT190178
    [12] 周围. 北斗导航自适应抗干扰算法研究及FPGA实现[D]. [硕士论文], 电子科技大学, 2020.

    ZHOU Wei. Research and FPGA implementation of BD navigation adaptive anti-jamming algorithm[D]. [Master dissertation], University of Electronic Science and Technology of China, 2020.
    [13] 黄淼. 动态心电信号自适应干扰消除算法的研究与实现[D]. [硕士论文], 电子科技大学, 2020.

    HUANG Miao. Research and implementation of adaptive interference elimination algorithm for dynamic ECG signals[D]. [Master dissertation], University of Electronic Science and Technology of China, 2020.
    [14] 丁玉美, 阔永红, 高新波. 数字信号处理: 时域离散随机信号处理[M]. 西安: 西安电子科技大学出版社, 2002: 123–126.

    DING Yumei, KUO Yonghong, and GAO Xinbo. Digital Signal Processing: Time Domain Discrete Random Signal Processing[M]. Xi’an: Xidian University Press, 2002: 123–126.
    [15] 信息产业部(电子). GB/T 12752-1991 船用罗兰C接收设备通用技术条件[S]. 北京: 国家技术监督局, 1991: 8.

    GB/T 12752-1991 General specification for marine Loran-C receiving equipment[S]. Beijing: The State Bureau of Quality and Technical Supervision, 1991: 8.
