优化参考图谱发育指征的CHN智能骨龄评估方法研究

毛科技; 武坤秀; 陆伟; 陈立建; 毛家发

doi:10.11999/JEIT211577

优化参考图谱发育指征的CHN智能骨龄评估方法研究

doi: 10.11999/JEIT211577

毛科技^1, ,,
武坤秀¹,
陆伟¹,
陈立建^{1, 2},
毛家发¹

1.
浙江工业大学计算机科学与技术学院杭州 310032
2.
浙江广播电视大学萧山学院杭州 311200

基金项目: 国家自然科学基金(62072410)，浙江省基础公益研究计划(LGG22F020014)

详细信息

作者简介:
毛科技：男，副教授，研究方向为医学图像处理、智能计算、大数据分析

武坤秀：女，硕士生，研究方向为医学图像处理

陆伟：男，硕士生，研究方向为医学图像处理

陈立建：男，博士生，研究方向为医学图像处理

毛家发：男，教授，研究方向为医学图像处理

通讯作者:
毛科技　maokeji@zjut.edu.cn

中图分类号: TP391.41
计量
- 文章访问数: 670
- HTML全文浏览量: 378
- PDF下载量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-27
- 修回日期: 2022-07-26
- 录用日期: 2022-08-02
- 网络出版日期: 2022-08-04
- 刊出日期: 2023-03-10

A Study of the CHN Intelligent Bone Age Assessment Method with Reference to Atlas Developmental Indications

MAO Keji^{1
, ,},
WU Kunxiu¹,
LU Wei¹,
CHEN Lijian^{1, 2},
MAO Jiafa¹

1.
College of Computer Science and Technology, Zhejiang University of Technology, Hangzhou 310032, China
2.
College of Xiaoshan, Zhejiang Radio Broadcasting and Television University, Hangzhou 311200, China

Funds: The National Natural Science Foundation of China(62072410), The Basic Public Welfare Research Project of Zhejiang Province (LGG22F020014)

摘要

摘要: 骨龄(BA)是评估儿童生长发育是否正常的重要指标之一。中国人手腕骨发育标准-CHN计分法是目前中国儿童生长发育中骨龄评估(BAA)最常用的方法之一。但是在CHN计分法中，某些参照骨图谱的发育指征跨度较大，导致专家依据个人经验主观判断它的发育分期而影响评估准确度。在利用深度学习对该类图谱的发育分期进行评估时，会导致它的评估结果产生随机性。该文基于专家评估过的2万余张儿童手腕部X线片，在CHN计分法的基础上，在相邻发育分期间隔跨度较大的参照骨标准图谱之间勾绘新的成熟度指征，产生细化图谱，并利用层次分析法为其分配对应的成熟度得分，提高骨龄评价的准确率。该文在AlexNet网络的基础上融合Harris特征和卷积注意力模块，对各参照骨的发育分期进行评估。在自制的年龄分布为5-11岁的数据集上，采用优化后的CHN法得到的骨龄在容忍度为0.5岁和1岁时的准确率分别达到了94.6%和99.13%。实验结果表明所提方法可以更加精细地分辨儿童手腕骨发育程度，大幅提高骨龄评估的准确率，辅助临床应用。
- 骨龄智能评估 /
- CHN计分法 /
- 卷积神经网络 /
- 注意力机制 /
- 层次分析法
Abstract: Bone Age (BA) is one of the most important indicators in evaluating children's growth. The Bone Age Assessment (BAA) based on Chinese wrist bone development standard-CHN (CHN) scoring method is widely used in the evaluation of children's growth and development and height prediction. However, the adjacent developmental levels of some reference bones last longer, leading to the subjective judgment of developmental levels by experts based on personal experience, which affects the accuracy of predictions. When deep learning is used to evaluate the developmental levels of these atlases, the prediction results will be random. In this paper, based on more than 20000 X-ray images evaluated by experts, a new mature indicator with a large interval with a large interval is drawn to generate exquisite atlas to perform some reference bones. Additionally, the corresponding maturity score is determined by analyzing the level structure process to maximize the impact of error -level prediction on BAA. Combining Harris features and convolutional blocks of the convolutional neural network of the attention module is designed to evaluate automatically the level of bone maturity. In addition, an annotated database with an age distribution of 5-11 years is built to train and evaluate the method. The accuracy of predictions obtained by adding a new standard atlas to the CHN method reaches 94.6% and 99.13% when the tolerance is 0.5 years and 1 year, respectively. The experimental results show that the method proposed in this paper can distinguish the development degree of reference bones more precisely, and improve greatly the accuracy of BAA, proving the potential for practical clinical application.
- Bone age intelligence assessment /
- Chinese wrist bone development standard (CHN) /
- Convolutional neural network /
- Attention mechanism /
- Analytic hierarchy process

HTML全文

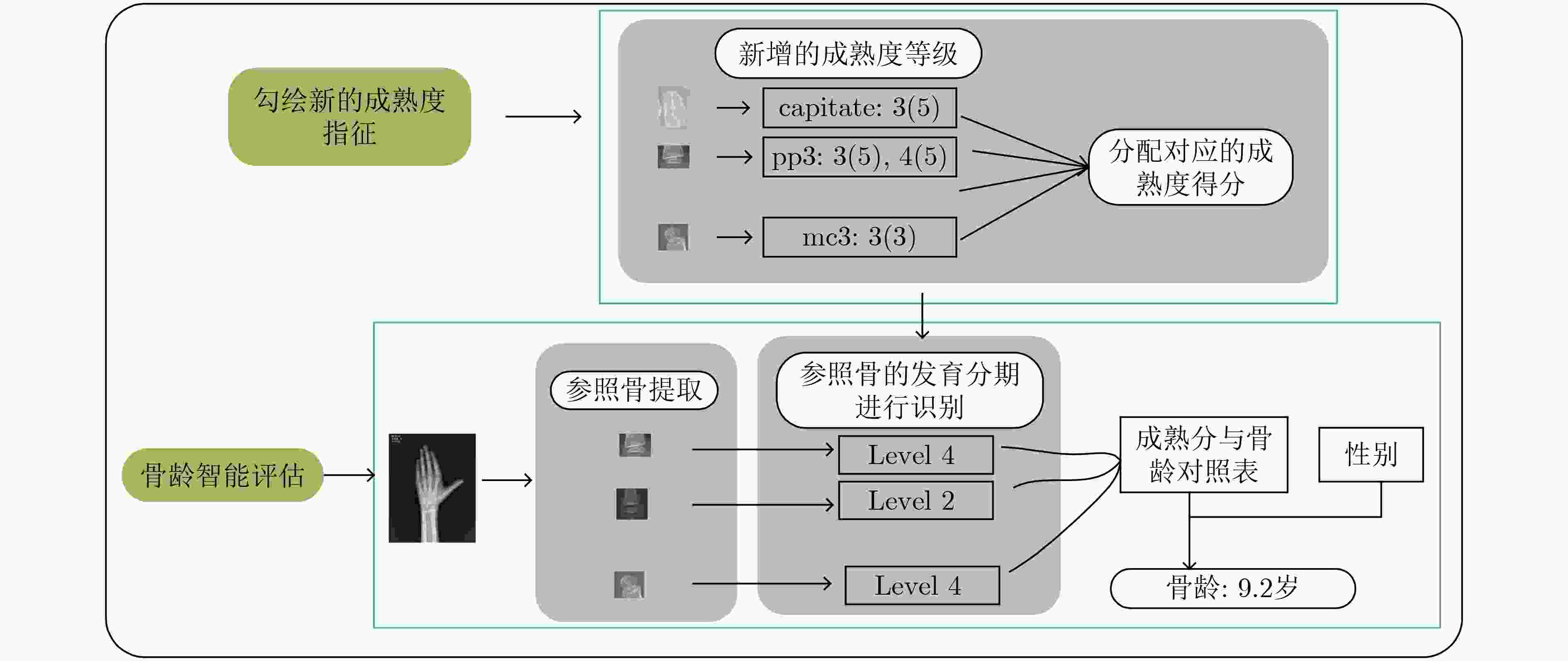

图 1 基于CHN法的骨龄智能评估系统结构图

下载: 全尺寸图片幻灯片

图 2 近节指骨Ⅴ介于3期与4期之间的图谱

下载: 全尺寸图片幻灯片

图 3 近节指骨Ⅴ的3期、3(5)期和4期对应的标准图谱

下载: 全尺寸图片幻灯片

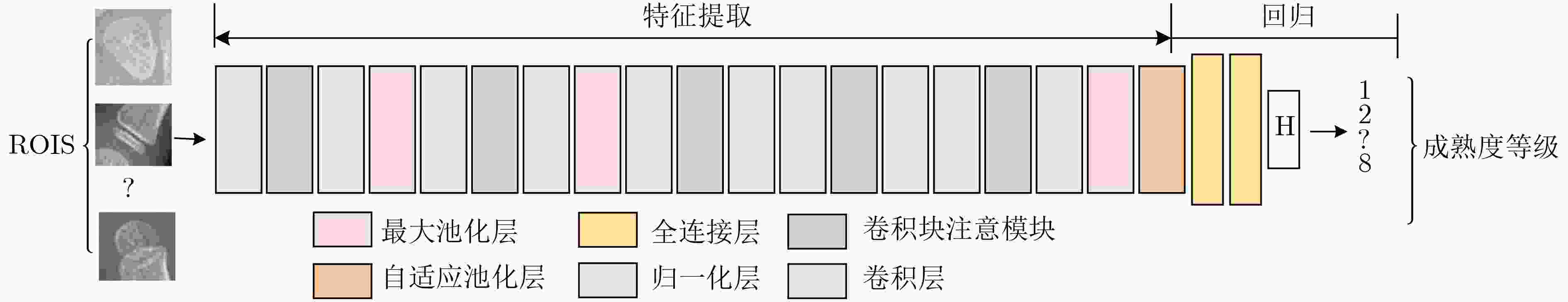

图 4 ROI区域发育分期等级分类网络结构图

下载: 全尺寸图片幻灯片

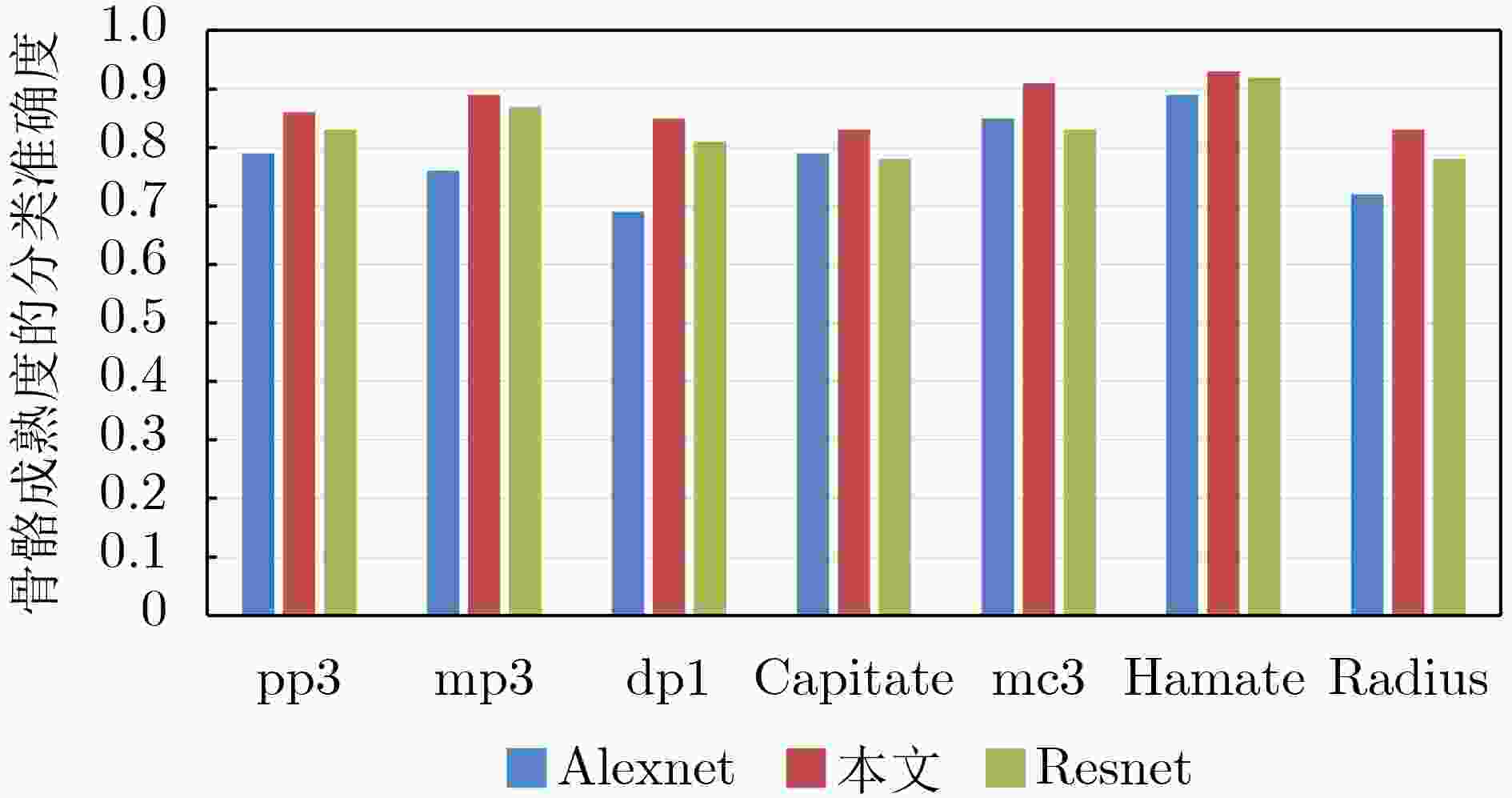

图 5 不同方法下各ROI区域的发育分期等级分类准确率

下载: 全尺寸图片幻灯片

表 1 近节指骨Ⅴ各发育分期等级数量分布表

发育分期等级	多位专家意见是否全部一致	图片数量	在该分期图像中的占比(%)
3	一致	431	38.14
3	不一致	699	61.86
4	一致	830	59
4	不一致	577	41

下载: 导出CSV

表 2 CHN法近节指骨Ⅴ不同发育分期得分表

	1	2	3	4	5	6	7	8
男	19	24	34	45	57	64	67	71
女	21	29	43	53	65	73	77	80

下载: 导出CSV

表 3 近节指骨Ⅴ的成熟度等级以及发育指征和其对应成熟度得分

发育分期	Level3	Level3(5)	Level4
对应标准图谱
对应发育指征	骨骺最大横径≥干骺端的一半	骨骺近侧缘有凹起的趋势，开始出现致密白线	骨骺近侧缘凹，明显致密
对应得分(男)	34	40	45
对应得分(女)	43	48	53

下载: 导出CSV

表 4 不同长度哈希码下的模型的准确率(%)

	None	12	24	32	48	128
准确率	94.37	71.83	98.35	98.59	97.18	96.20

下载: 导出CSV

表 5 14块参照骨的发育分期分类准确率(%)

	mp3	mp5	pp5	pp3	pp1	dp1	dp3	dp5	Capitate	Hamate	Radius	mc1	mc3	mc5
准确率	89.00	96.70	88.60	86.00	97.87	85.30	98.02	96.42	83.66	93.10	83.72	97.43	91.60	92.38

下载: 导出CSV

表 6 不同年龄组在不同性能指标下的准确率(%)

年龄(岁)	Label1		label2
年龄(岁)	±0.5岁	±1岁	±0.5岁	±1岁
5-6	86.88	99.17	86.58	96.76
6-7	85.78	98.95	84.03	94.18
7-8	86.36	98.73	83.45	97.82
8-9	80.70	97.69	81.38	94.02
9-10	89.92	98.32	88.24	97.70
10-11	88.79	97.43	88.48	98.87

下载: 导出CSV

表 7 分别采用CHN法和Re_CHN法得到的骨龄评估准确率(%)

标准	BAA方法	± 0.5岁	±1岁
label1	Re_CHN	87.93	98.67
label1	CHN	78.27	97.54
label2	Re_CHN	85.62	96.20
label2	CHN	72.78	95.81
label1 or label2	Re_CHN	94.60	99.13
label1 or label2	CHN	85.18	98.50

下载: 导出CSV

表 8 不同方法在本文数据集下的性能指标(%)

方法	±0.5岁	±1岁
Regression CNN^[14]	69.60	93.05
Residual Attention Network^[29]	76.73	91.40
本文方法	94.60	99.13

下载: 导出CSV
