基于三元采样图卷积网络的半监督遥感图像检索

冯孝鑫 王子健 吴奇

冯孝鑫, 王子健, 吴奇. 基于三元采样图卷积网络的半监督遥感图像检索[J]. 电子与信息学报, 2023, 45(2): 644-653. doi: 10.11999/JEIT211478
引用本文: 冯孝鑫, 王子健, 吴奇. 基于三元采样图卷积网络的半监督遥感图像检索[J]. 电子与信息学报, 2023, 45(2): 644-653. doi: 10.11999/JEIT211478
FENG Xiaoxin, WANG Zijian, WU Qi. Semi-supervised Learning Remote Sensing Image Retrieval Method Based on Triplet Sampling Graph Convolutional Network[J]. Journal of Electronics & Information Technology, 2023, 45(2): 644-653. doi: 10.11999/JEIT211478
Citation: FENG Xiaoxin, WANG Zijian, WU Qi. Semi-supervised Learning Remote Sensing Image Retrieval Method Based on Triplet Sampling Graph Convolutional Network[J]. Journal of Electronics & Information Technology, 2023, 45(2): 644-653. doi: 10.11999/JEIT211478

基于三元采样图卷积网络的半监督遥感图像检索

doi: 10.11999/JEIT211478
基金项目: 国家自然科学基金(U1933125)
详细信息
    作者简介:

    冯孝鑫:男,硕士,研究方向为机器学习、计算机视觉

    王子健:男,博士生,研究方向为统计机器学习

    吴奇:男,研究员,研究方向为脑认知、机器学习

    通讯作者:

    吴奇 wuqi7812@sjtu.edu.cn

  • 中图分类号: TN911.73; TP181

Semi-supervised Learning Remote Sensing Image Retrieval Method Based on Triplet Sampling Graph Convolutional Network

Funds: The National Natural Science Foundation of China (U1933125)
  • 摘要: 该文提出了一种基于三元采样图卷积网络的度量学习方法,以实现遥感图像的半监督检索。所提方法由三元图卷积网络(TGCN)和基于图的三元组采样(GTS)两部分组成。TGCN由3个具有共享权重的并行卷积神经网络和图卷积网络组成,用以提取图像的初始特征以及学习图像的图嵌入。通过同时学习图像特征以及图嵌入,TGCN能够得到用于半监督图像检索的有效图结构。接着,通过提出的GTS算法对图结构内隐含的图像相似性信息进行评价,以选择合适的困难三元组(Hard Triplet),并利用困难三元组组成的样本集合对模型进行有效快速的模型训练。通过TGCN和GTS的组合,提出的度量学习方法在两个遥感数据集上进行了测试。实验结果表明,TGCN-GTS具有以下两方面的优越性:TGCN能够根据图像及图结构学习到有效的图嵌入特征及度量空间;GTS有效评估图结构内隐含的图像相似性信息选择合适的困难三元组,显著提升了半监督遥感图像检索效果。

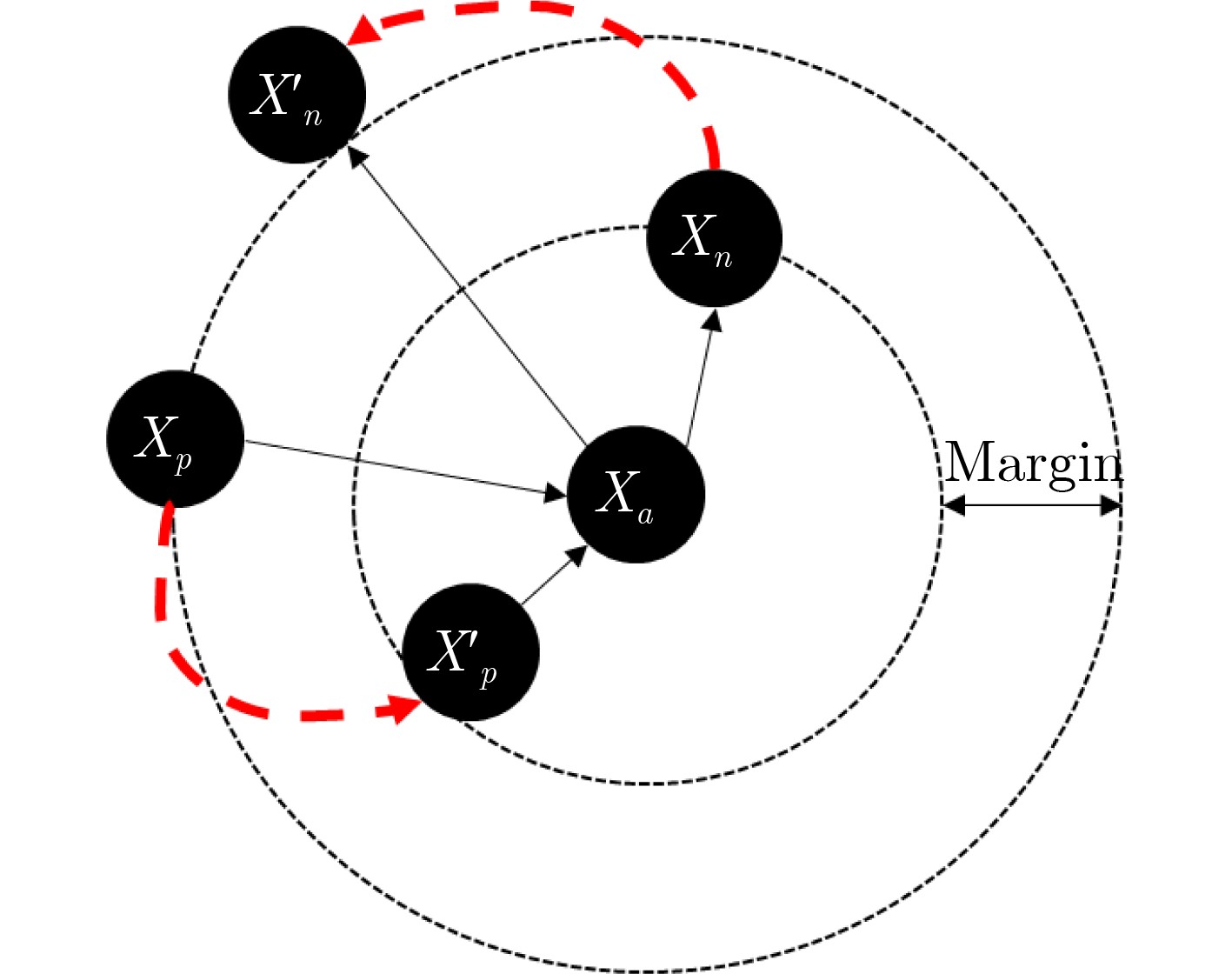

  • 图  1  三元组与度量学习

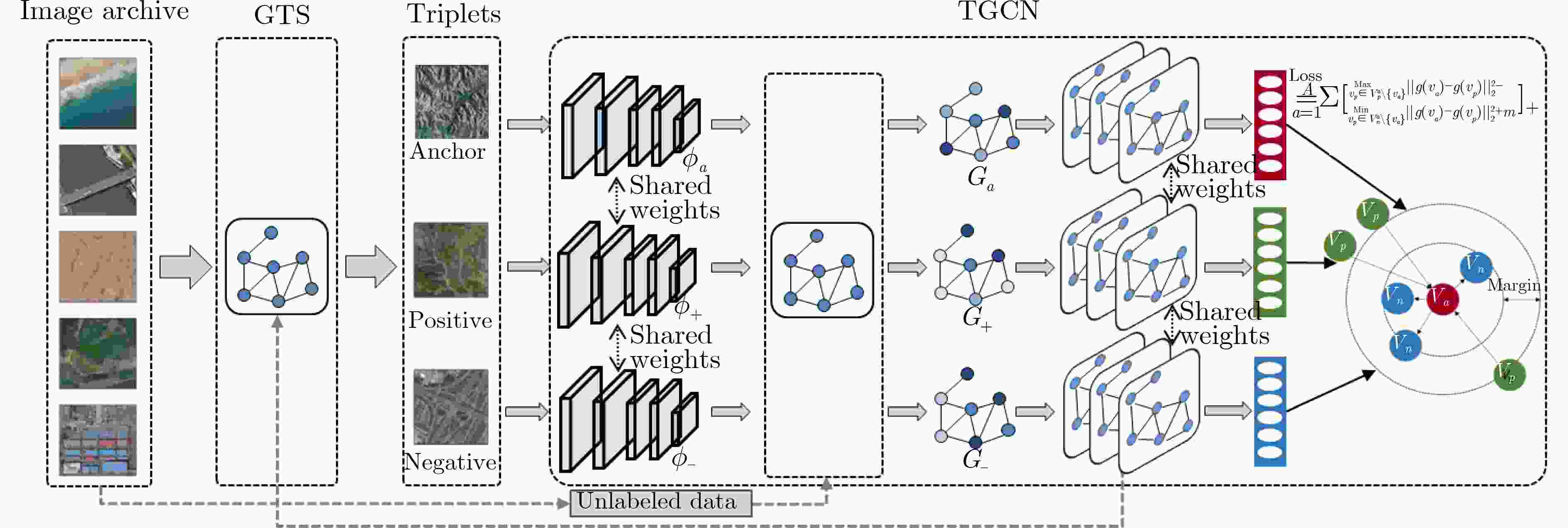

    图  2  三元采样图卷积网络

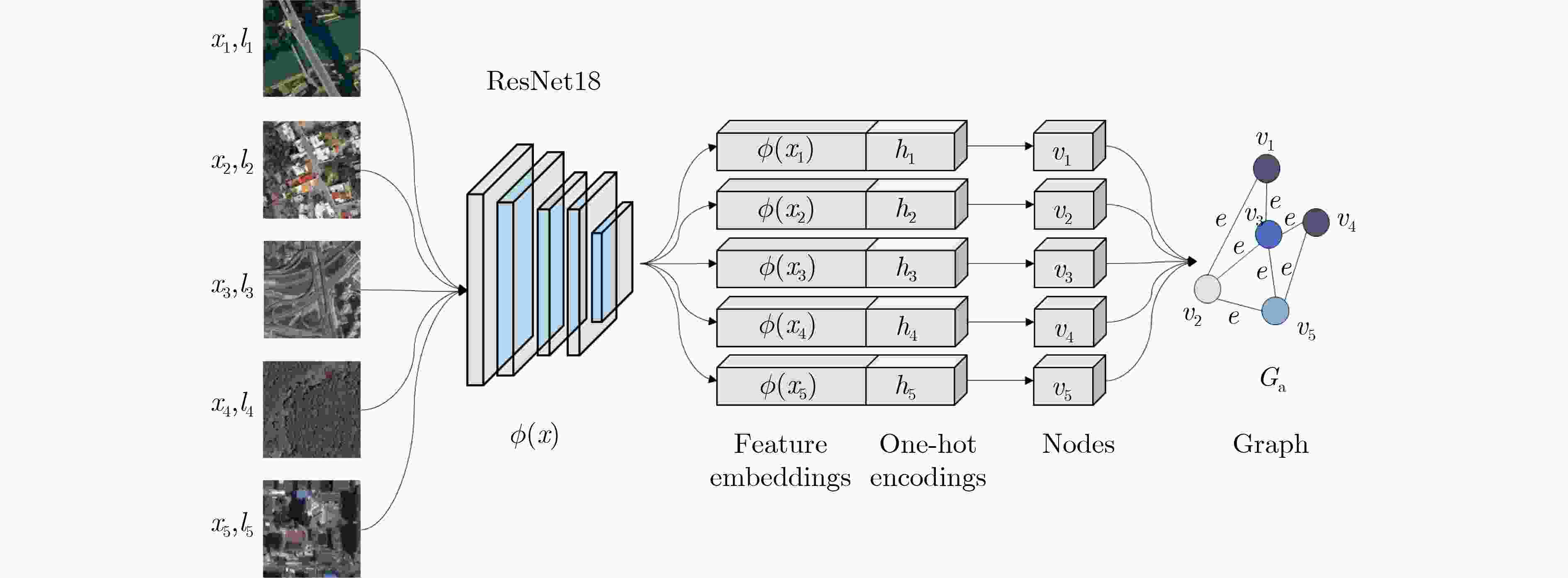

    图  3  图构建方式

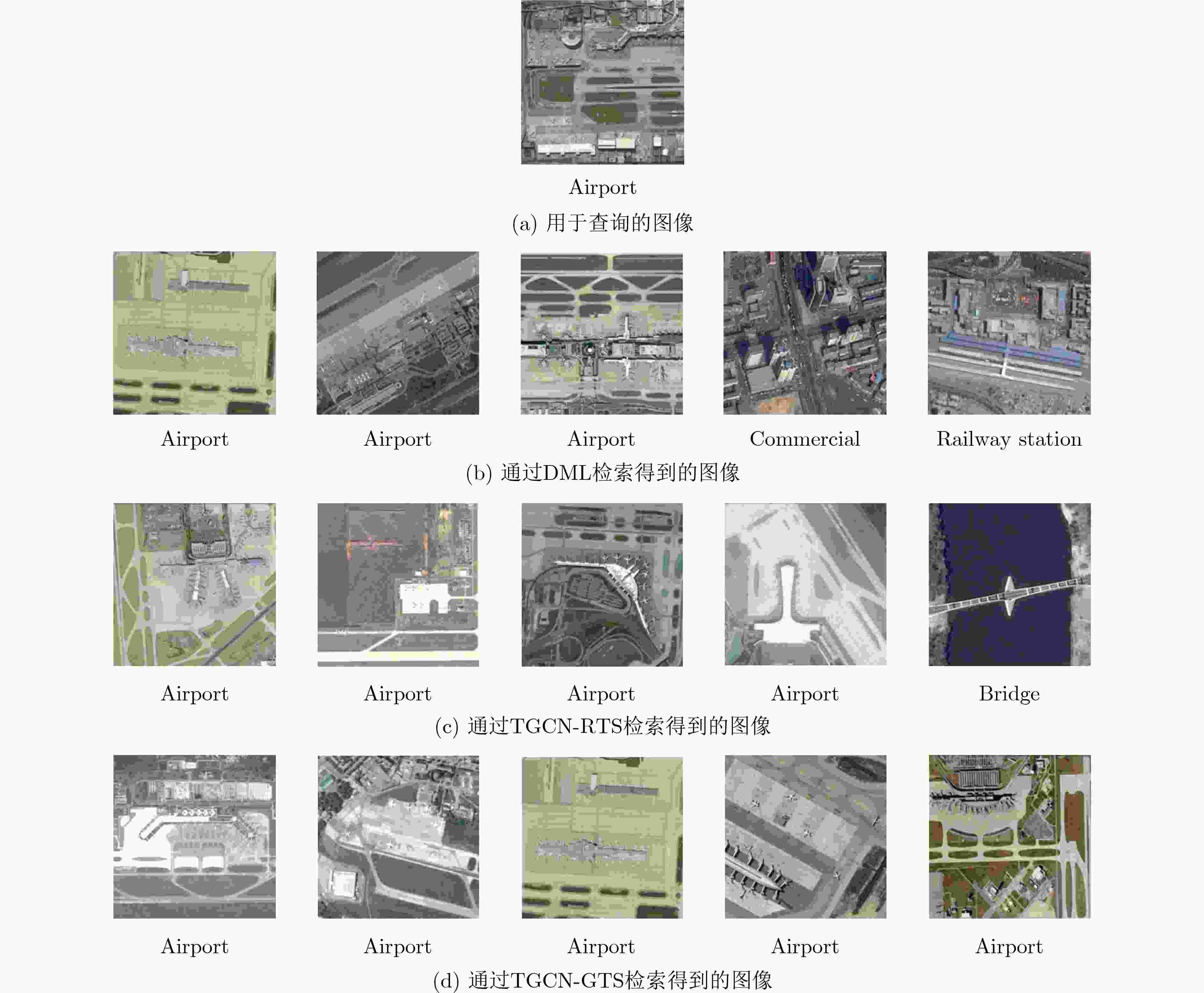

    图  4  图像检索结果对比

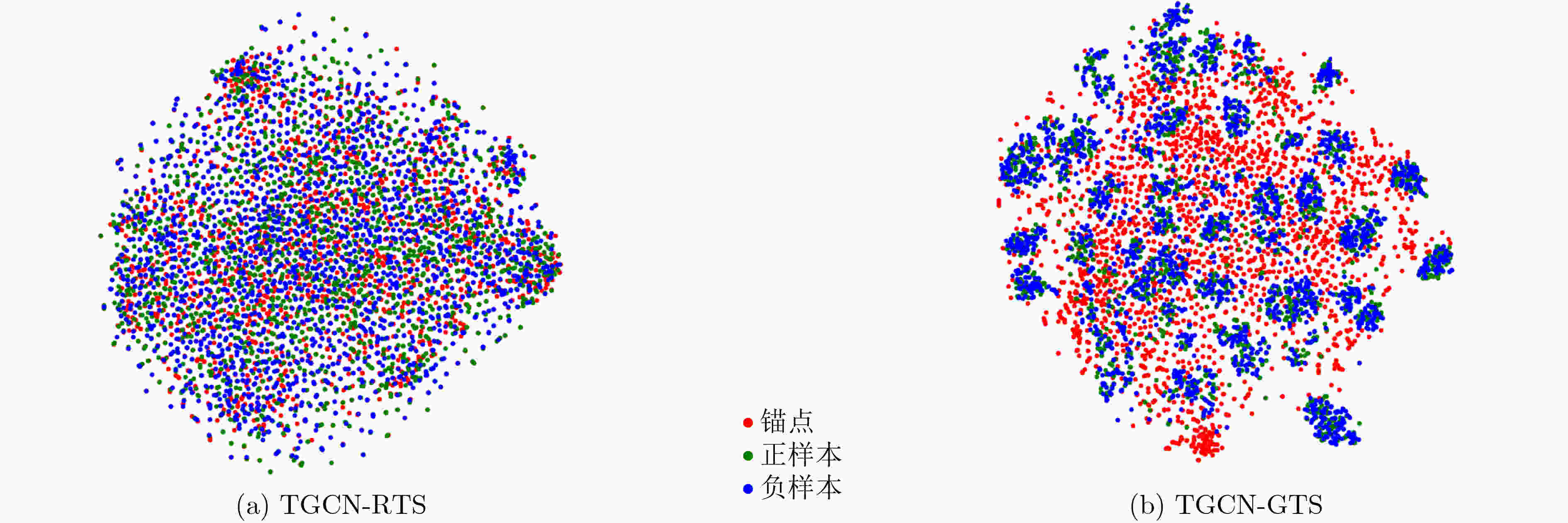

    图  5  triplet样本t-SNE 2维映射图

    表  1  各算法在AID和NWPU-RESISC45数据集上的图像检索mAP@40

    MethodAIDNWPU-RESISC45
    LTDR 5%LTDR 10%LTDR 20%LTDR 5%LTDR 10%LTDR 20%
    DML0.72090.79130.87790.70410.75940.8111
    D-CNN0.75210.82370.91490.75020.82290.8843
    SNCA0.78320.82650.92750.81430.84320.9091
    HRS2DML0.78760.84900.90600.80440.85050.9010
    TGCN-RTS0.79130.85760.89280.83690.88720.9044
    TGCN-GTS0.90210.94370.97120.92410.95800.9648
    下载: 导出CSV

    表  2  算法模型复杂度比较

    方法${\rm{NP}}\left(\times {10}^{6}\right)$${\rm{FLOPS}}(\times {10}^{9})$
    DML11.20937.1258
    TGCN-RTS11.72797.2989
    TGCN-GTS11.72797.7584
    下载: 导出CSV
  • [1] SUMBUL G, KANG Jian, and DEMIR B. Deep learning for image search and retrieval in large remote sensing archives[M]. CAMPS-VALLS G, TUIA D, ZHU Xiaoxiang, et al. Deep Learning for the Earth Sciences: A Comprehensive Approach to Remote Sensing, Climate Science, and Geosciences. Hoboken: John Wiley & Sons Ltd, 2021: 150–160.
    [2] YE Famao, XIAO Hui, ZHAO Xuqing, et al. Remote sensing image retrieval using convolutional neural network features and weighted distance[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15(10): 1535–1539. doi: 10.1109/LGRS.2018.2847303
    [3] ROY S, SANGINETO E, DEMIR B, et al. Metric-learning-based deep hashing network for content-based retrieval of remote sensing images[J]. IEEE Geoscience and Remote Sensing Letters, 2021, 18(2): 226–230. doi: 10.1109/LGRS.2020.2974629
    [4] SCHROFF F, KALENICHENKO D, and PHILBIN J. FaceNet: A unified embedding for face recognition and clustering[C]. Proceedings of 2015 IEEE Conference on Computer Vision and Pattern Recognition, Boston, USA, 2015: 815–823.
    [5] ZHU Panpan, TAN Yumin, ZHANG Liqiang, et al. Deep learning for multilabel remote sensing image annotation with dual-level semantic concepts[J]. IEEE Transactions on Geoscience and Remote Sensing, 2020, 58(6): 4047–4060. doi: 10.1109/TGRS.2019.2960466
    [6] ZHANG Shizhou, ZHANG Qi, WEI Xing, et al. Person re-identification with triplet focal loss[J]. IEEE Access, 2018, 6: 78092–78099. doi: 10.1109/ACCESS.2018.2884743
    [7] KIM S, SEO M, LAPTEV I, et al. Deep metric learning beyond binary supervision[C]. Proceedings of 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, USA, 2019: 2283–2292.
    [8] WANG Xun, HAN Xintong, HUANG Weilin, et al. Multi-similarity loss with general pair weighting for deep metric learning[C]. Proceedings of 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, USA, 2019: 5017–5025.
    [9] WANG Xinshao, HUA Yang, KODIROV E, et al. Ranked list loss for deep metric learning[C]. Proceedings of 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, USA, 2019: 5202–5211.
    [10] ZHANG Maoding, CHENG Qimin, LUO Fang, et al. A triplet nonlocal neural network with dual-anchor triplet loss for high-resolution remote sensing image retrieval[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2021, 14: 2711–2723. doi: 10.1109/JSTARS.2021.3058691
    [11] WU Chaoyuan, MANMATHA R, SMOLA A J, et al. Sampling matters in deep embedding learning[C]. Proceedings of 2017 IEEE International Conference on Computer Vision, Venice, Italy, 2017: 2859–2867.
    [12] ZHANG Dingyi, LI Yingming, and ZHANG Zhongfei. Deep metric learning with spherical embedding[C]. Proceedings of the 34th International Conference on Neural Information Processing Systems, Vancouver, Canada, 2020: 1576.
    [13] XUAN Hong, STYLIANOU A, and PLESS R. Improved embeddings with easy positive triplet mining[C]. Proceedings of 2020 IEEE Winter Conference on Applications of Computer Vision, Snowmass, USA, 2020: 2463–2471.
    [14] YUAN Yuhui, YANG Kuiyuan, and ZHANG Chao. Hard-aware deeply cascaded embedding[C]. Proceedings of 2017 IEEE International Conference on Computer Vision, Venice, Italy, 2017: 814–823.
    [15] YANG Xun, ZHOU Peicheng, and WANG Meng. Person reidentification via structural deep metric learning[J]. IEEE Transactions on Neural Networks and Learning Systems, 2019, 30(10): 2987–2998. doi: 10.1109/TNNLS.2018.2861991
    [16] GE Weifeng, HUANG Weilin, DONG Dengke, et al. Deep metric learning with hierarchical triplet loss[C]. Proceedings of European Conference on Computer Vision, Munich, Germany, 2018: 272–288.
    [17] CAO Rui, ZHANG Qian, ZHU Jiasong, et al. Enhancing remote sensing image retrieval using a triplet deep metric learning network[J]. International Journal of Remote Sensing, 2020, 41(2): 740–751. doi: 10.1080/2150704X.2019.1647368
    [18] JIANG Bo, ZHANG Ziyan, LIN Doudou, et al. Semi-supervised learning with graph learning-convolutional networks[C]. Proceedings of 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, USA, 2019: 11305–11312.
    [19] DUVENAUD D, MACLAURIN D, AGUILERA-IPARRAGUIRRE J, et al. Convolutional networks on graphs for learning molecular fingerprints[C]. Proceedings of the 28th International Conference on Neural Information Processing Systems, Montreal, Canada, 2015: 2224–2232.
    [20] BRUNA J, ZAREMBA W, SZLAM A, et al. Spectral networks and locally connected networks on graphs[C]. Proceedings of the 2nd International Conference on Learning Representations, Banff, Canada, 2013.
    [21] KIPF T N and WELLING M. Semi-supervised classification with graph convolutional networks[C]. Proceedings of the 5th International Conference on Learning Representations, Toulon, France, 2017.
    [22] KANG Jian, FERNANDEZ-BELTRAN R, HONG Danfeng, et al. Graph relation network: Modeling relations between scenes for multilabel remote-sensing image classification and retrieval[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 59(5): 4355–4369. doi: 10.1109/TGRS.2020.3016020
    [23] CHAUDHURI U, BANERJEE B, and BHATTACHARYA A. Siamese graph convolutional network for content based remote sensing image retrieval[J]. Computer Vision and Image Understanding, 2019, 184: 22–30. doi: 10.1016/j.cviu.2019.04.004
    [24] RIBA P, FISCHER A, LLADÓS J, et al. Learning graph edit distance by graph neural networks[J]. Pattern Recognition, 2021, 120: 108132. doi: 10.1016/j.patcog.2021.108132
    [25] XIA Guisong, HU Jingwen, HU Fan, et al. AID: A benchmark data set for performance evaluation of aerial scene classification[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55(7): 3965–3981. doi: 10.1109/TGRS.2017.2685945
    [26] CHENG Gong, HAN Junwei, and LU Xiaoqiang. Remote sensing image scene classification: Benchmark and state of the art[J]. Proceedings of the IEEE, 2017, 105(10): 1865–1883. doi: 10.1109/JPROC.2017.2675998
    [27] HE Kaiming, ZHANG Xiangyu, REN Shaoqing, et al. Deep residual learning for image recognition[C]. Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 770–778.
    [28] CHENG Gong, YANG Ceyuan, YAO Xiwen, et al. When deep learning meets metric learning: Remote sensing image scene classification via learning discriminative CNNs[J]. IEEE Transactions on Geoscience and Remote Sensing, 2018, 56(5): 2811–2821. doi: 10.1109/TGRS.2017.2783902
    [29] KANG Jian, FERNANDEZ-BELTRAN R, YE Zhen, et al. Deep metric learning based on scalable neighborhood components for remote sensing scene characterization[J]. IEEE Transactions on Geoscience and Remote Sensing, 2020, 58(12): 8905–8918. doi: 10.1109/TGRS.2020.2991657
    [30] KANG Jian, FERNÁNDEZ-BELTRÁN R, YE Zhen, et al. High-rankness regularized semi-supervised deep metric learning for remote sensing imagery[J]. Remote Sensing, 2020, 12(16): 2603. doi: 10.3390/rs12162603
  • 加载中
图(5) / 表(2)
计量
  • 文章访问数:  411
  • HTML全文浏览量:  236
  • PDF下载量:  122
  • 被引次数: 0
出版历程
  • 收稿日期:  2019-11-20
  • 修回日期:  2022-04-28
  • 网络出版日期:  2022-06-28
  • 刊出日期:  2023-02-07
