标签分布疏密状态变化情形下超高频天线设计方法研究

佐磊 曹雪兵 朱良帅 丁雨晴 孙梦婷

佐磊, 曹雪兵, 朱良帅, 丁雨晴, 孙梦婷. 标签分布疏密状态变化情形下超高频天线设计方法研究[J]. 电子与信息学报, 2023, 45(1): 158-167. doi: 10.11999/JEIT211281
引用本文: 佐磊, 曹雪兵, 朱良帅, 丁雨晴, 孙梦婷. 标签分布疏密状态变化情形下超高频天线设计方法研究[J]. 电子与信息学报, 2023, 45(1): 158-167. doi: 10.11999/JEIT211281
ZUO Lei, CAO Xuebing, ZHU Liangshuai, DING Yuqing, SUN Mengting. Research on the Design Method of UHF Antenna under the Condition of Changing Tag Distribution Density[J]. Journal of Electronics & Information Technology, 2023, 45(1): 158-167. doi: 10.11999/JEIT211281
Citation: ZUO Lei, CAO Xuebing, ZHU Liangshuai, DING Yuqing, SUN Mengting. Research on the Design Method of UHF Antenna under the Condition of Changing Tag Distribution Density[J]. Journal of Electronics & Information Technology, 2023, 45(1): 158-167. doi: 10.11999/JEIT211281

标签分布疏密状态变化情形下超高频天线设计方法研究

doi: 10.11999/JEIT211281
基金项目: 国家自然科学基金(61971175, 51777050)
详细信息
    作者简介:

    佐磊:男,副教授,硕士生导师,研究方向为射频识别技术、物联网技术、信号处理及智能电网等

    曹雪兵:男,硕士生,研究方向为射频识别技术和抗金属标签天线

    朱良帅:男,硕士生,研究方向为射频识别技术和物联网技术

    丁雨晴:女,硕士生,研究方向为射频识别技术和信号处理

    孙梦婷:女,硕士生,研究方向为射频识别技术和标签天线设计

    通讯作者:

    佐磊 benzl0313@162.com

  • 中图分类号: TN828; TP391.45

Research on the Design Method of UHF Antenna under the Condition of Changing Tag Distribution Density

Funds: The National Natural Science Foundation of China (61971175, 51777050)
  • 摘要: 针对标签分布疏密程度的变化会导致其天线与负载的阻抗匹配关系改变进而影响系统性能的问题。该文结合电磁波传播理论和射频识别(RFID)工作原理,导出了标签分别处于稀疏和密集分布状态下的RFID系统通信链路模型;结合变压器模型和二端口网络分析方法,推导了标签密集分布状态时标签天线的互阻抗表达式;利用功率传输系数和反向散射调制因子,分析了标签分布疏密程度对RFID系统性能的影响;基于加载条匹配原理,提出一种适用于分布疏密状态变化情形的标签天线优化设计方法。仿真实验和实际测量结果表明,标签密集分布时,改进标签的性能较原型标签提升16%;标签稀疏分布时,改进标签的性能达到原型标签的96%。

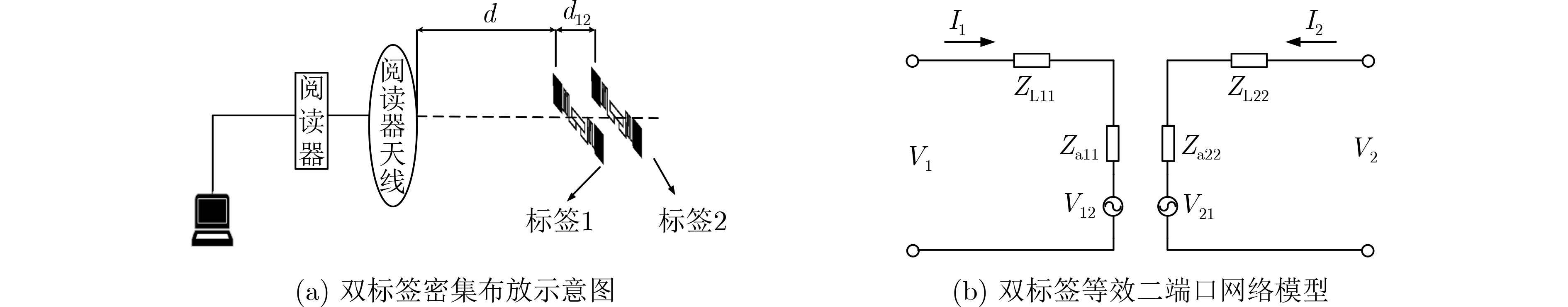

  • 图  1  双标签密集布放及其等效二端口网络模型

    图  2  标签稀疏布放时传输系数与标签间距关系

    图  3  标签密集布放时传输系数与标签间距关系

    图  4  基于加载条匹配的天线模型及等效电路

    图  5  标签天线仿真模型图

    图  6  加载条参数变化对天线的影响

    图  7  双标签仿真模型及仿真结果

    图  8  标签调制因子随标签间距变化图

    图  9  标签性能测试实验场景

    图  10  标签返回信号强度随$ \theta $的变化

    图  11  标签群读实验

    图  12  标签读取率

    表  1  密集环境下标签群读实验

    标签数量n(枚)标签1标签2标签3
    9789
    1281010
    15101112
    18121415
    21131618
    下载: 导出CSV

    表  2  稀疏环境下标签群读实验

    标签数量n(枚)标签1标签2标签3
    9987
    121198
    1513139
    18161512
    21181714
    下载: 导出CSV
  • [1] BUFFI A, NEPA P, and MANARA G. Analysis of near-field coupling in UHF-RFID systems[C]. 2011 IEEE-APS Topical Conference on Antennas and Propagation in Wireless Communications (APWC), Turin, Italy, 2011: 931–934.
    [2] KATAGI T, OHMINE H, MIYASHITA H, et al. Analysis of mutual coupling between dipole antennas using simultaneous integral equations with exact kernels and finite gap feeds[J]. IEEE Transactions on Antennas and Propagation, 2016, 64(5): 1979–1984. doi: 10.1109/TAP.2016.2537384
    [3] LU Feng, CHEN Xiaosheng, and YE T T. Performance analysis of stacked RFID tags[C]. 2009 IEEE International Conference on RFID, Orlando, USA, 2009: 330–337.
    [4] 李忠建, 张雪凡, 叶旸, 等. 多标签环境下RFID系统的受限链路[J]. 电子测量技术, 2016, 39(1): 9–13. doi: 10.19651/j.cnki.emt.2016.01.003

    LI Zhongjian, ZHANG Xuefan, YE Yang, et al. Link constrains in RFID with intensive tags[J]. Electronic Measurement Technology, 2016, 39(1): 9–13. doi: 10.19651/j.cnki.emt.2016.01.003
    [5] 彭章友, 任秀方, 孟春阳, 等. 超高频射频识别小间隔双标签天线增益特性研究[J]. 电子与信息学报, 2015, 37(7): 1774–1778. doi: 10.11999/JEIT141371

    PENG Zhangyou, REN Xiufang, MENG Chunyang, et al. Study on gain characteristics of dual ultra-high-frequency radio frequency identification tag antennas with small interval[J]. Journal of Electronics &Information Technology, 2015, 37(7): 1774–1778. doi: 10.11999/JEIT141371
    [6] 燕怒, 李达, 韩冬桂, 等. 密集环境下无源超高频系统RFID标签识别性能研究[J]. 现代电子技术, 2019, 42(14): 18–21,26. doi: 10.16652/j.issn.1004-373x.2019.14.005

    YAN Nu, LI Da, HAN Donggui, et al. Research on RFID tag recognition performance of passive UHF system in dense environment[J]. Modern Electronics Technique, 2019, 42(14): 18–21,26. doi: 10.16652/j.issn.1004-373x.2019.14.005
    [7] 周春. 基于磁耦合UHF频段RFID近场天线研究[D]. [硕士论文], 南京航空航天大学, 2019.

    ZHOU Chun. Research on near-field RFID antenna based on magnetic coupling in UHF band[D]. [Master dissertation], Nanjing University of Aeronautics and Astronautics, 2019.
    [8] 佐磊, 何怡刚, 李兵, 等. 标签密集环境下天线互偶效应研究[J]. 物理学报, 2013, 62(4): 044102. doi: 10.7498/aps.62.044102

    ZUO Lei, HE Yigang, LI Bing, et al. Theory and measurement for mutual coupling effect of ultra high frequency radio-frequency identification in dense environments[J]. Acta Physica Sinica, 2013, 62(4): 044102. doi: 10.7498/aps.62.044102
    [9] 何怡刚, 佘培亮, 佐磊, 等. 超高频射频识别近场系统互耦效应中频率偏移研究[J]. 电子与信息学报, 2019, 41(3): 602–610. doi: 10.11999/JEIT180375

    HE Yigang, SHE Peiliang, ZUO Lei, et al. Study on frequency shift in mutual coupling effect of ultra-high-frequency radio frequency IDentification near-field system[J]. Journal of Electronics &Information Technology, 2019, 41(3): 602–610. doi: 10.11999/JEIT180375
    [10] MARROCCO G. The art of UHF RFID antenna design: Impedance-matching and size-reduction techniques[J]. IEEE Antennas and Propagation Magazine, 2008, 50(1): 66–79. doi: 10.1109/MAP.2008.4494504
    [11] 何洋. 缝隙结构天线在新型RFID标签设计中的应用研究[D]. [硕士论文], 中国科学技术大学, 2017.

    HE Yang. On the design of novel RFID tags with modified slot antenna[D]. [Master dissertation], University of Science and Technology of China, 2017.
    [12] LI Haotian, CHEN Yikai, XING Zijian, et al. A novel printed dual-log-periodic array antenna for UHF near-field RFID applications[J]. IEEE Transactions on Antennas and Propagation, 2018, 66(12): 7418–7423. doi: 10.1109/TAP.2018.2874202
    [13] 彭章友, 孟春阳, 任秀方, 等. 密集布放环境下的标签互阻设计方法[J]. 电子与信息学报, 2015, 37(6): 1304–1309. doi: 10.11999/JEIT141340

    PENG Zhangyou, MENG Chunyang, REN Xiufang, et al. Design of stacked tags for mutual impedance in intensive distribution environment[J]. Journal of Electronics &Information Technology, 2015, 37(6): 1304–1309. doi: 10.11999/JEIT141340
    [14] DOBKIN D M. The RF in RFID: UHF RFID in Practice[M]. 2nd ed. Boston: Newnes, 2013: 286–300.
    [15] KRAUS J D and MARHEFKA R J. Antennas for All Applications[M]. 3rd ed. New York: The McGraw-Hill Companies, Inc. , 2002: 158–166.
    [16] EBRAHIMI-ASL S, GHASR M T A, and ZAWODNIOK M J. A solution to low read rate problem in RFID scattering networks[J]. IEEE Journal of Radio Frequency Identification, 2017, 1(2): 176–184. doi: 10.1109/JRFID.2017.2768546
    [17] EBRAHIMI-ASL S, AHMAD GHASR M T, and ZAWODNIOK M. Cooperative interference control in neighboring passive scattering antennas[J]. IEEE Journal of Radio Frequency Identification, 2018, 2(3): 152–158. doi: 10.1109/JRFID.2018.2832190
    [18] 赵琦. 超材料无线射频能量收集RFID标签系统[D]. [硕士论文], 西安电子科技大学, 2019.

    ZHAO Qi. Metamaterial RFID tag system with wireless RF power harvesting[D]. [Master dissertation], Xidian University, 2019.
    [19] 钟顺时. 天线理论与技术[M]. 北京: 电子工业出版社, 2011: 96–100.

    ZHONG Shunshi. Antenna Theory and Techniques[M]. Beijing: Publishing House of Electronics Industry, 2011: 96–100.
    [20] ZHU Jixuan, JIN Cheng, and LIU Huan. Mutual inductance modeling of two coaxial solenoid antennas with large ferrite core for underground RFID applications[J]. IEEE Transactions on Magnetics, 2021, 57(8): 9400104. doi: 10.1109/TMAG.2021.3081370
