基于时空压缩特征表示学习的毫米波雷达手势识别算法

韩崇; 韩磊; 孙力娟; 郭剑

doi:10.11999/JEIT211221

基于时空压缩特征表示学习的毫米波雷达手势识别算法

doi: 10.11999/JEIT211221

韩崇^{1, 2, ,},
韩磊¹,
孙力娟^{1, 2},
郭剑^{1, 2}

1.
南京邮电大学计算机学院南京 210003
2.
江苏省无线传感网高技术研究重点实验室南京 210003

基金项目: 国家自然科学基金(61873131, 61872194, 61902237)

详细信息

作者简介:
韩崇：男，1985年生，博士，副教授，硕士生导师，研究方向为计算机网络和无线感知

韩磊：男，1997年生，硕士生，研究方向为无线感知

孙力娟：女，1963年生，教授，博士生导师，研究方向为演化计算、物联网和无线感知等

郭剑：男，1978年生，博士，副教授，硕士生导师，研究方向为无线传感器网络和无线感知

通讯作者:
韩崇　hc@njupt.edu.cn

中图分类号: TN958.94
计量
- 文章访问数: 1697
- HTML全文浏览量: 855
- PDF下载量: 224
- 被引次数: 0
出版历程
- 收稿日期: 2021-11-04
- 修回日期: 2022-02-20
- 录用日期: 2022-02-21
- 网络出版日期: 2022-03-05
- 刊出日期: 2022-04-18

Millimeter Wave Radar Gesture Recognition Algorithm Based on Spatio-temporal Compression Feature Representation Learning

HAN Chong^{1, 2
, ,},
HAN Lei¹,
SUN Lijuan^{1, 2},
GUO Jian^{1, 2}

1.
College of Computer, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
2.
Jiangsu High Technology Research Key Laboratory for Wireless Sensor Networks, Nanjing 210003, China

Funds: The National Natural Science Foundation of China (61873131, 61872194, 61902237)

摘要

摘要: 针对现有无线射频信号的手势识别研究中的数据预处理和特征利用问题，该文提出一种用于调频连续波(FMCW)雷达的时空压缩特征表示学习的手势识别算法。首先对手部反射的毫米波雷达回波信号的距离-多普勒(RD)图进行静态干扰去除和动目标点筛选，减少杂波对手势信号的干扰，同时减少计算数据量；然后提出一种压缩手势时空特征的表示方法，利用动目标点的主导速度来表示手势的运动特征，实现多维特征的压缩映射，并保留手势运动的关键特征信息；最后设计了一个单通道的卷积神经网络(CNN)来学习和分类多维手势特征信息并应用于多用户和多位置的手势识别。实验结果表明，与现有其他手势识别算法相比，该文提出的手势识别方法在识别精度、实时性以及泛化能力上都具有明显的优势。
- 毫米波雷达 /
- 手势识别 /
- 特征压缩 /
- 卷积神经网络
Abstract: To solve the problems of data preprocessing and feature utilization in the existing work of gesture recognition of radio frequency signals, a gesture recognition algorithm for spatio-temporal compressed feature representation learning of Frequency Modulated Continuous Wave (FMCW) millimeter wave radar is proposed. First, static interference removal and moving target point filtering are performed on the Range-Doppler (RD) image of the FMCW radar echo reflected by the hand, which could reduce the interference of clutter on the gesture signal, and also reduce greatly the calculation of the data. Then, a method for compressing the spatial-temporal features of gesture is adopted to realize the compression mapping of multidimensional features using the dominant velocity of the moving target point to represent the motion characteristics of the gesture, which includes the key feature information of the gesture motion. Finally, a single channel Convolutional Neural Network (CNN) is designed to learn and classify multidimensional gesture feature information in multi-user and multi-location gesture application scenes. Experimental results show that the proposed gesture recognition method has significant performance in recognition accuracy, real-time performance and generalization ability.
- Millimeter wave radar /
- Gesture recognition /
- Feature compression /
- Convolutional Neural Network(CNN)

HTML全文

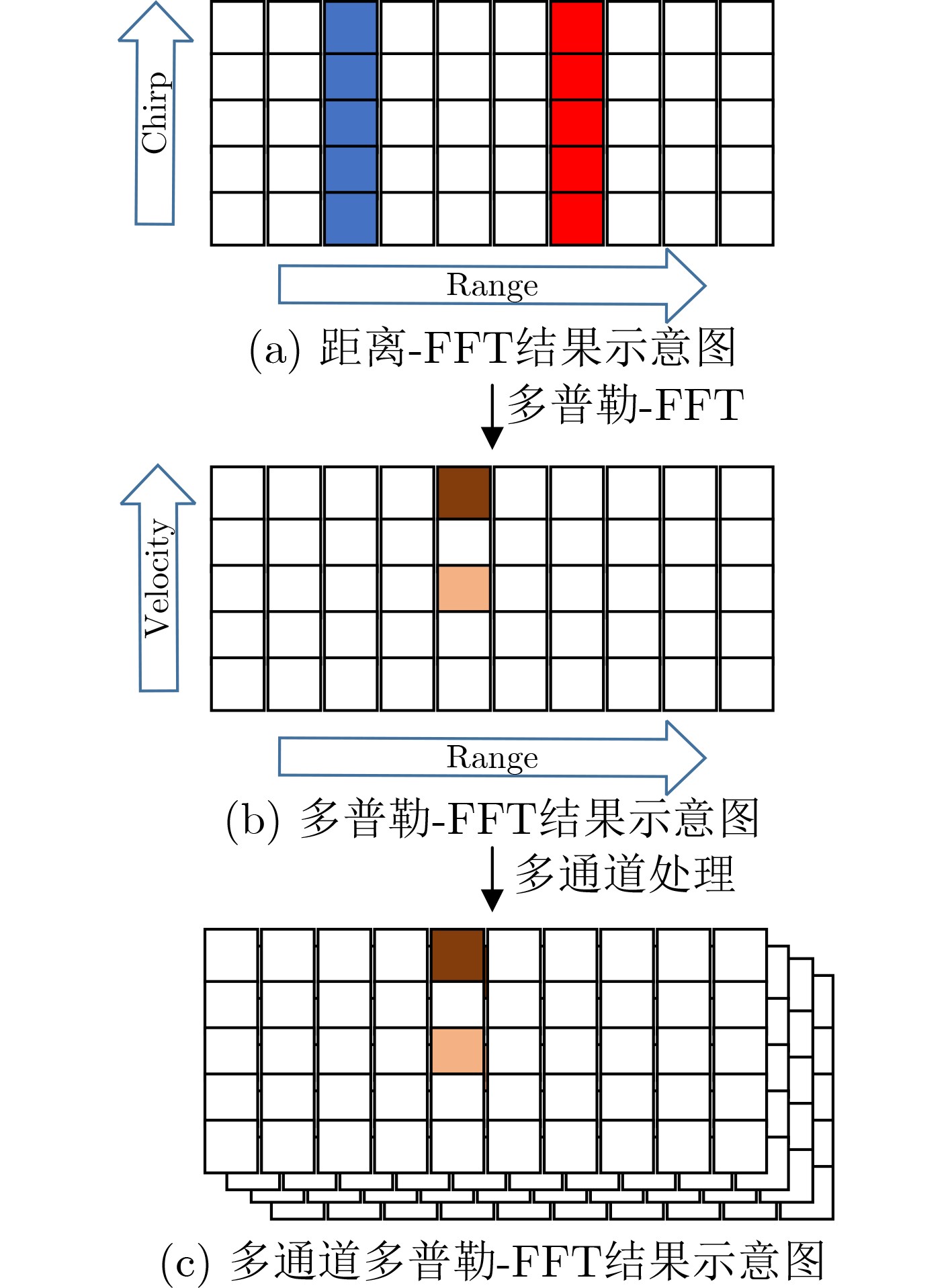

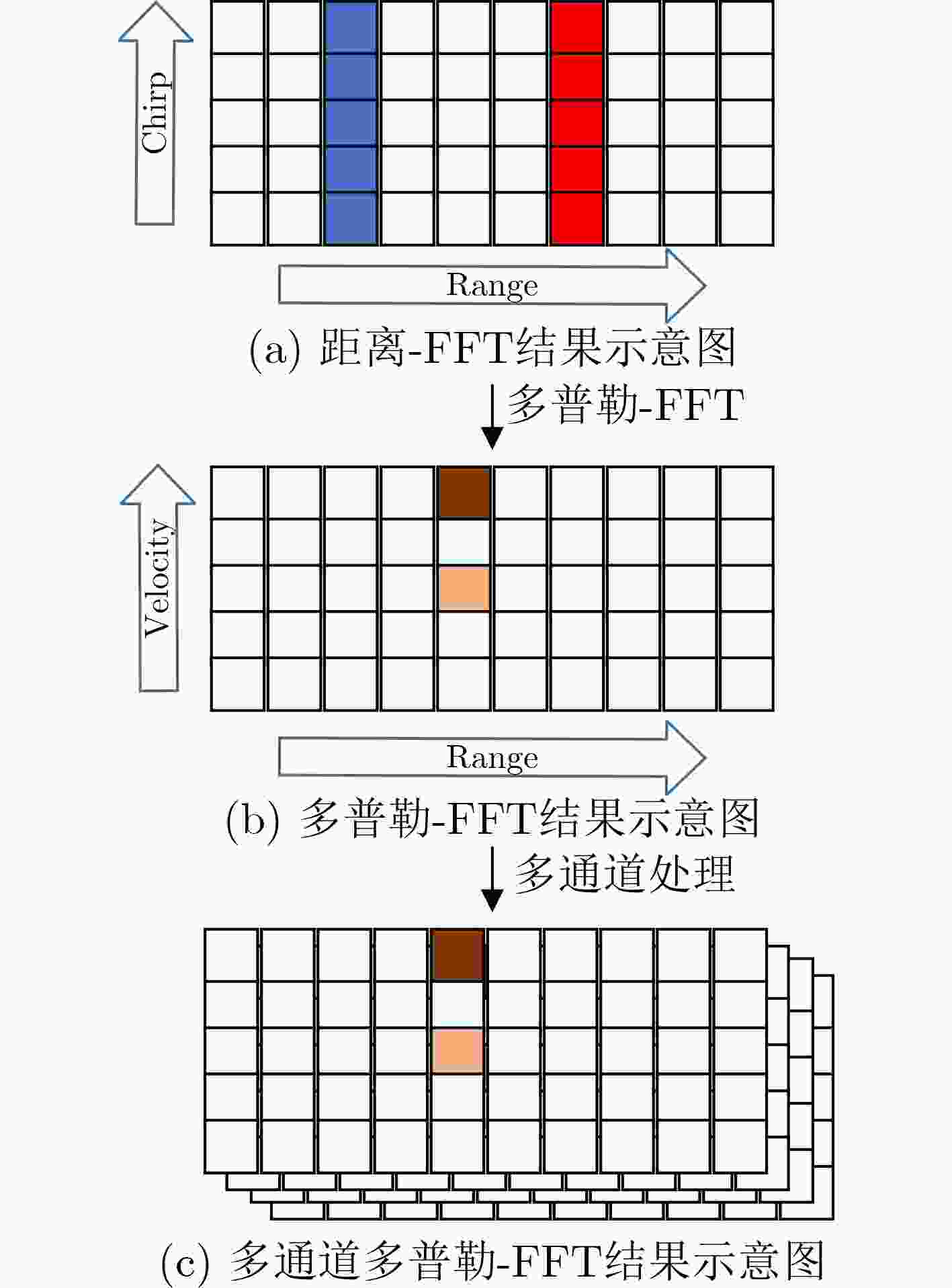

图 1 手势信号处理原理图

下载: 全尺寸图片幻灯片

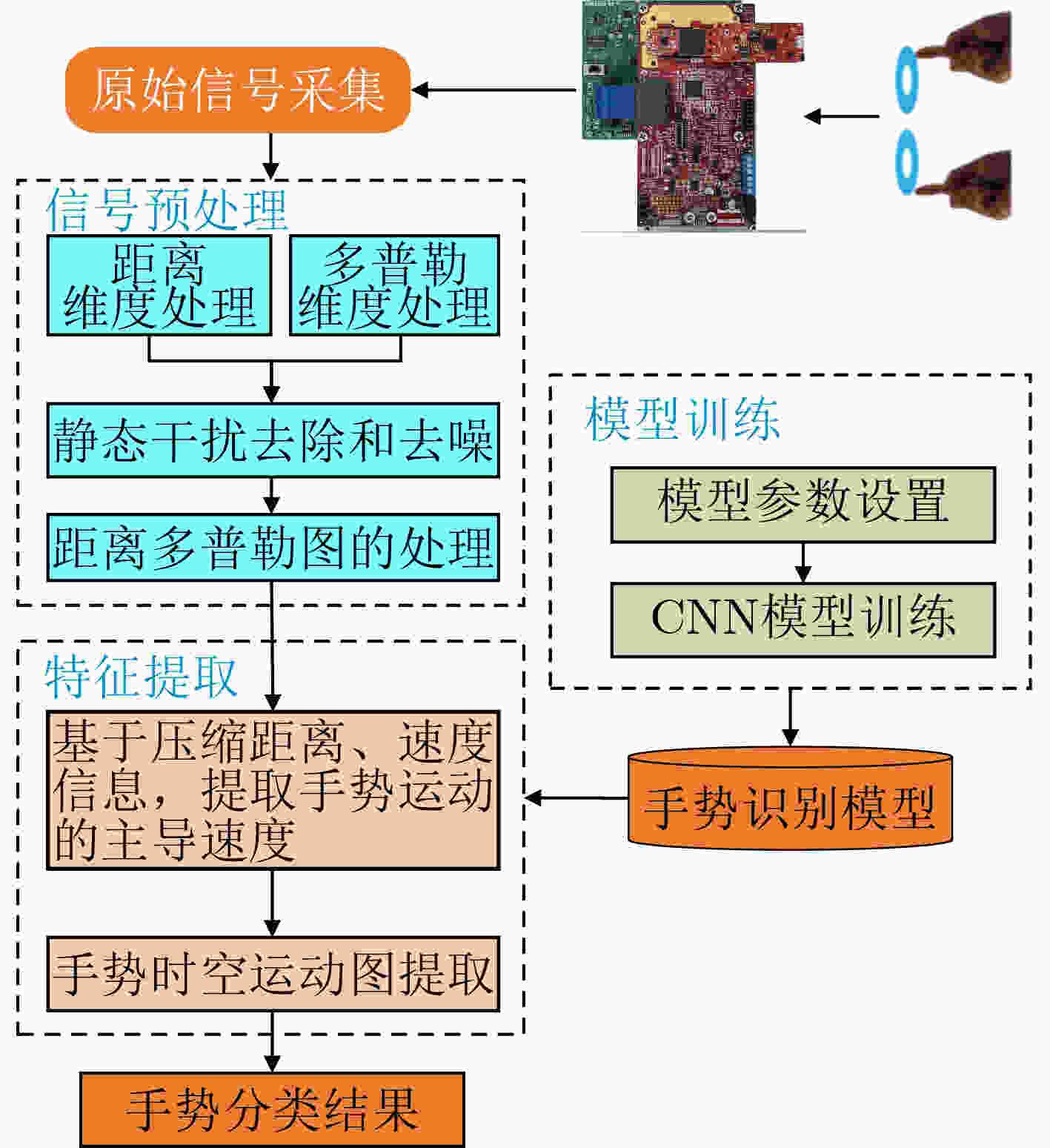

图 2 系统整体框架图

下载: 全尺寸图片幻灯片

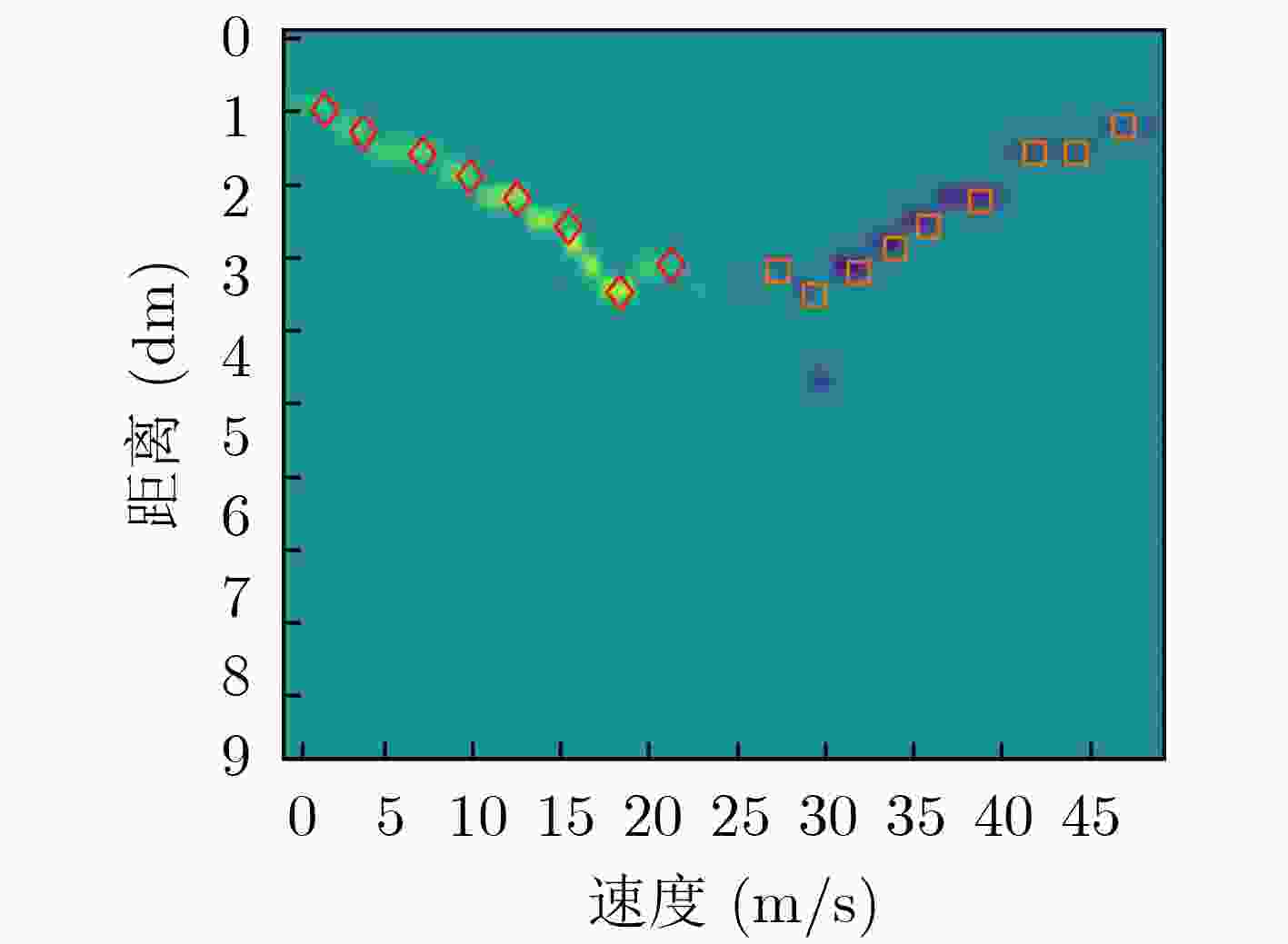

图 3 先远离雷达后靠近雷达手势信号特征图(第3帧)

下载: 全尺寸图片幻灯片

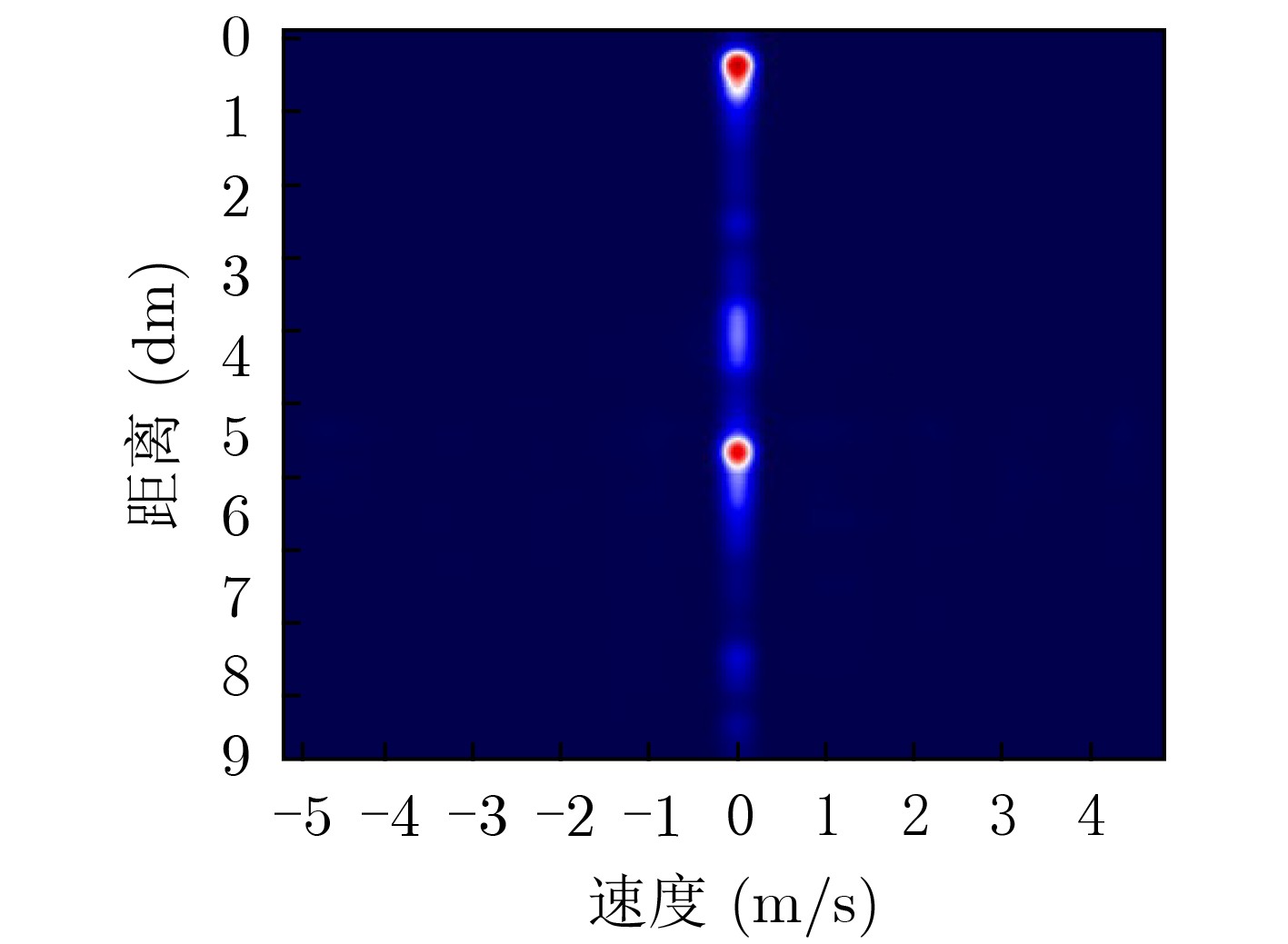

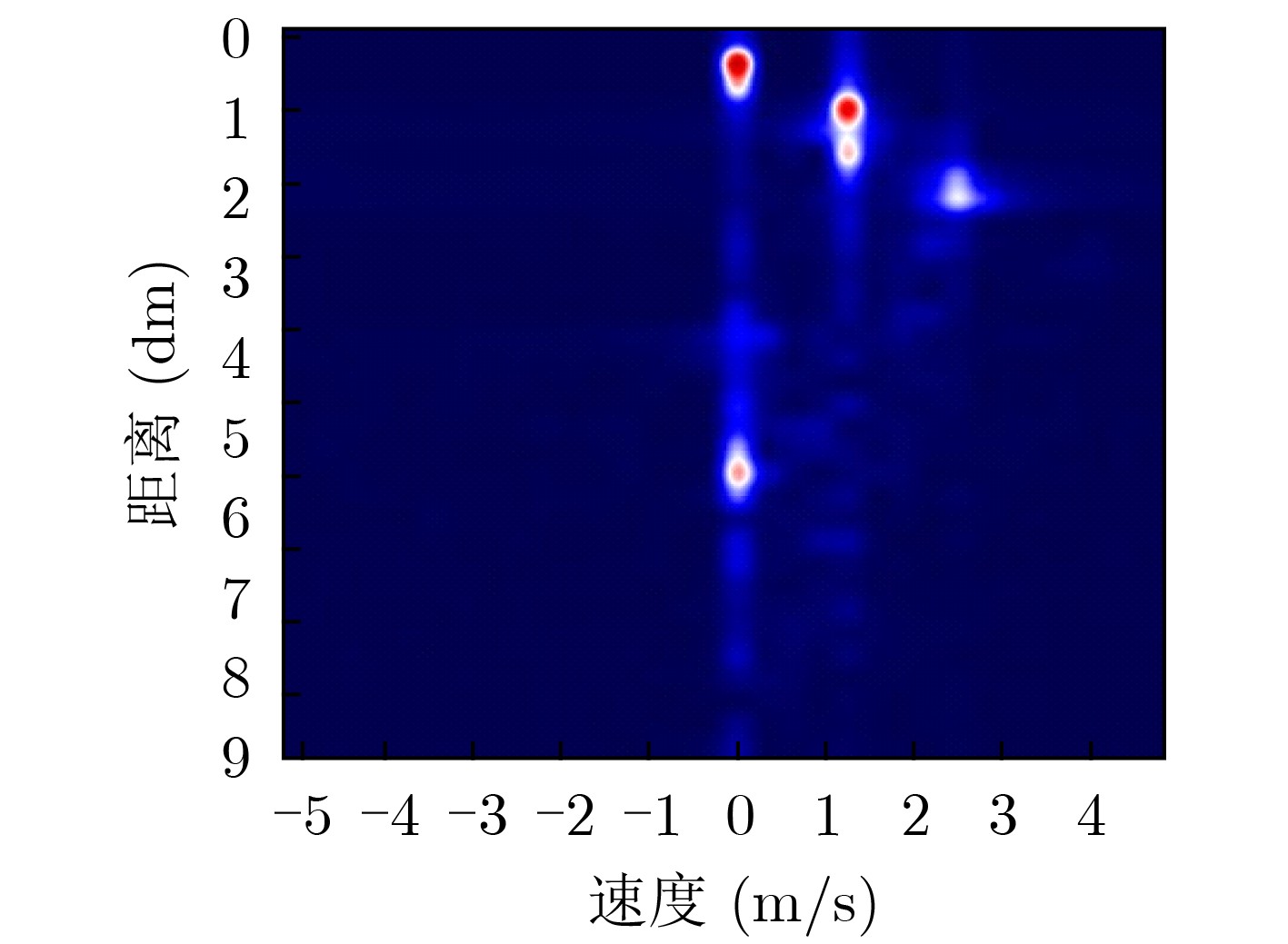

图 4 静态干扰分布图

下载: 全尺寸图片幻灯片

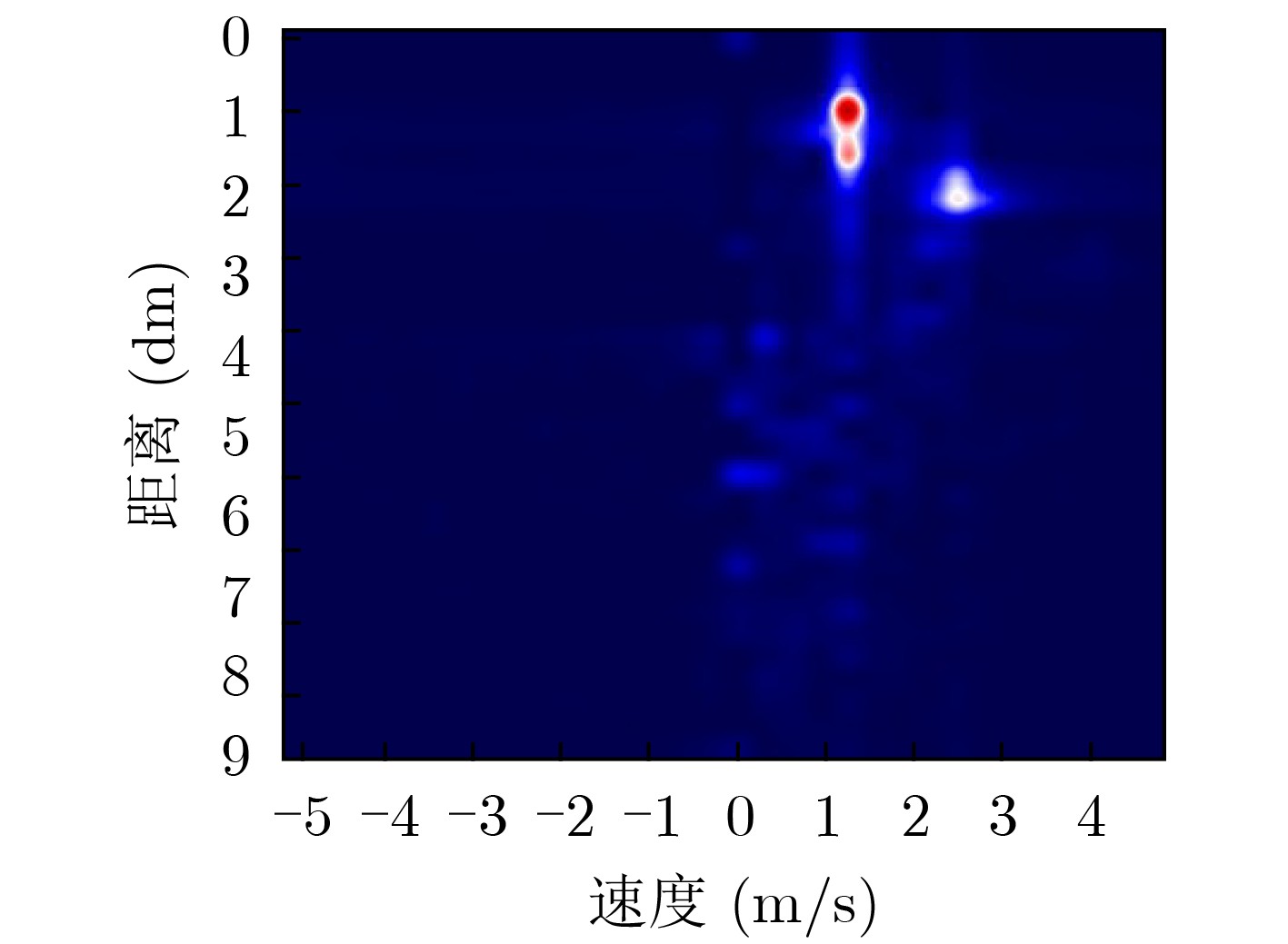

图 5 去除静态干扰后的距离-多普勒图

下载: 全尺寸图片幻灯片

图 6 动目标筛选后的距离-多普勒图

下载: 全尺寸图片幻灯片

图 7 手势时空压缩特征图

下载: 全尺寸图片幻灯片

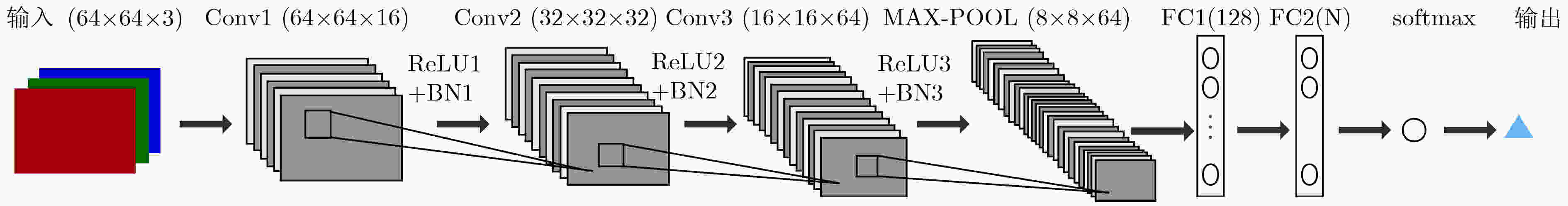

图 8 卷积神经网络结构图

下载: 全尺寸图片幻灯片

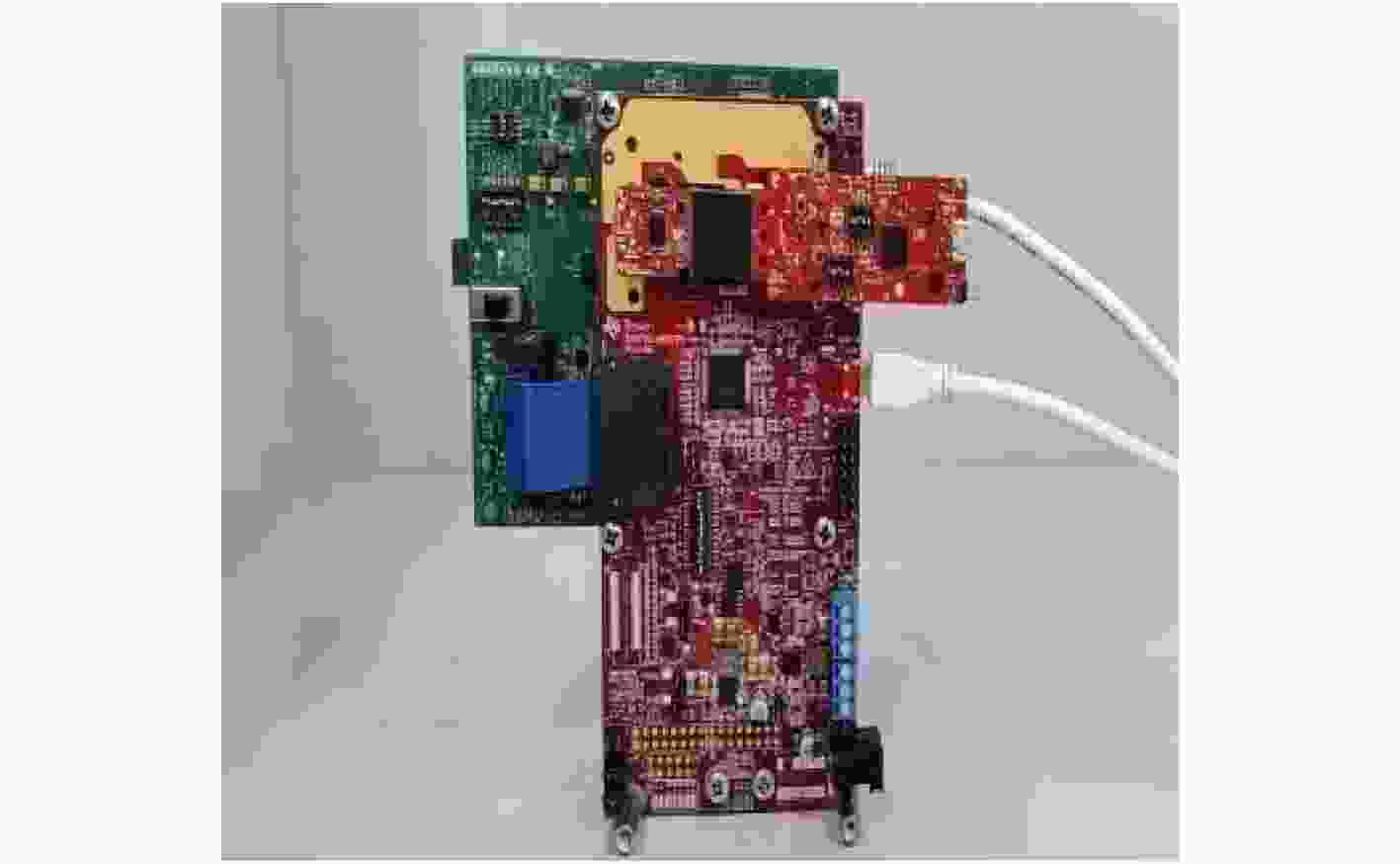

图 9 FMCW毫米波雷达平台

下载: 全尺寸图片幻灯片

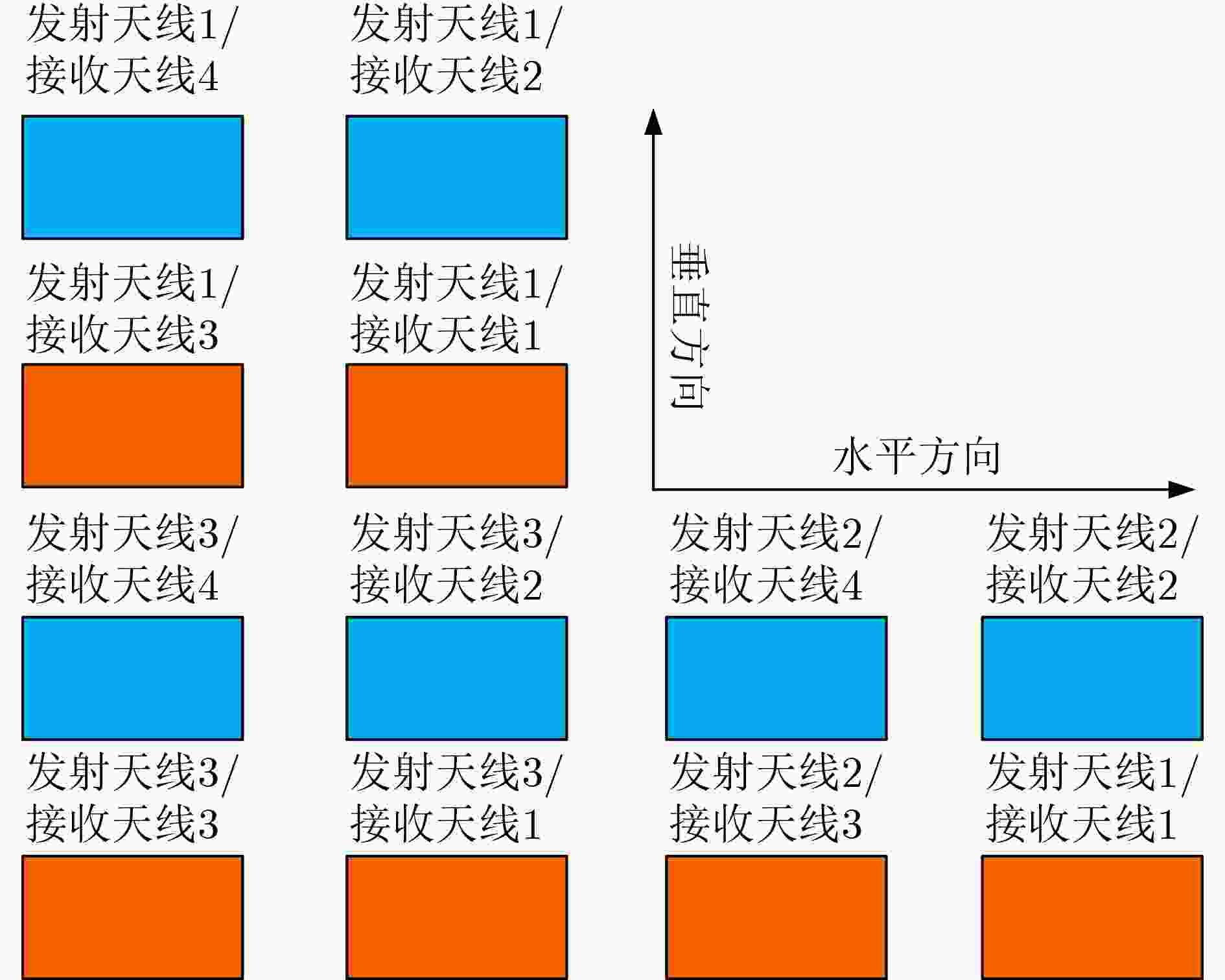

图 10 多输入输出虚拟天线阵元

下载: 全尺寸图片幻灯片

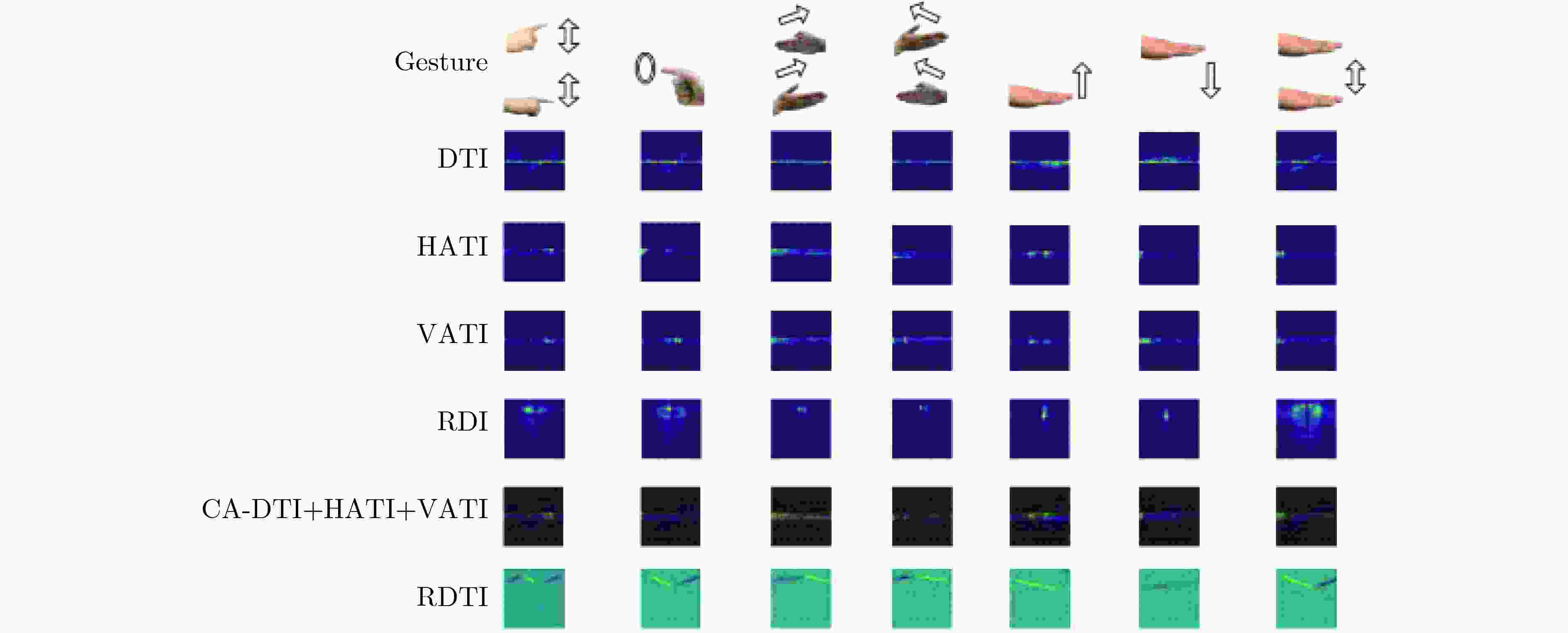

图 11 手势图和特征图

下载: 全尺寸图片幻灯片

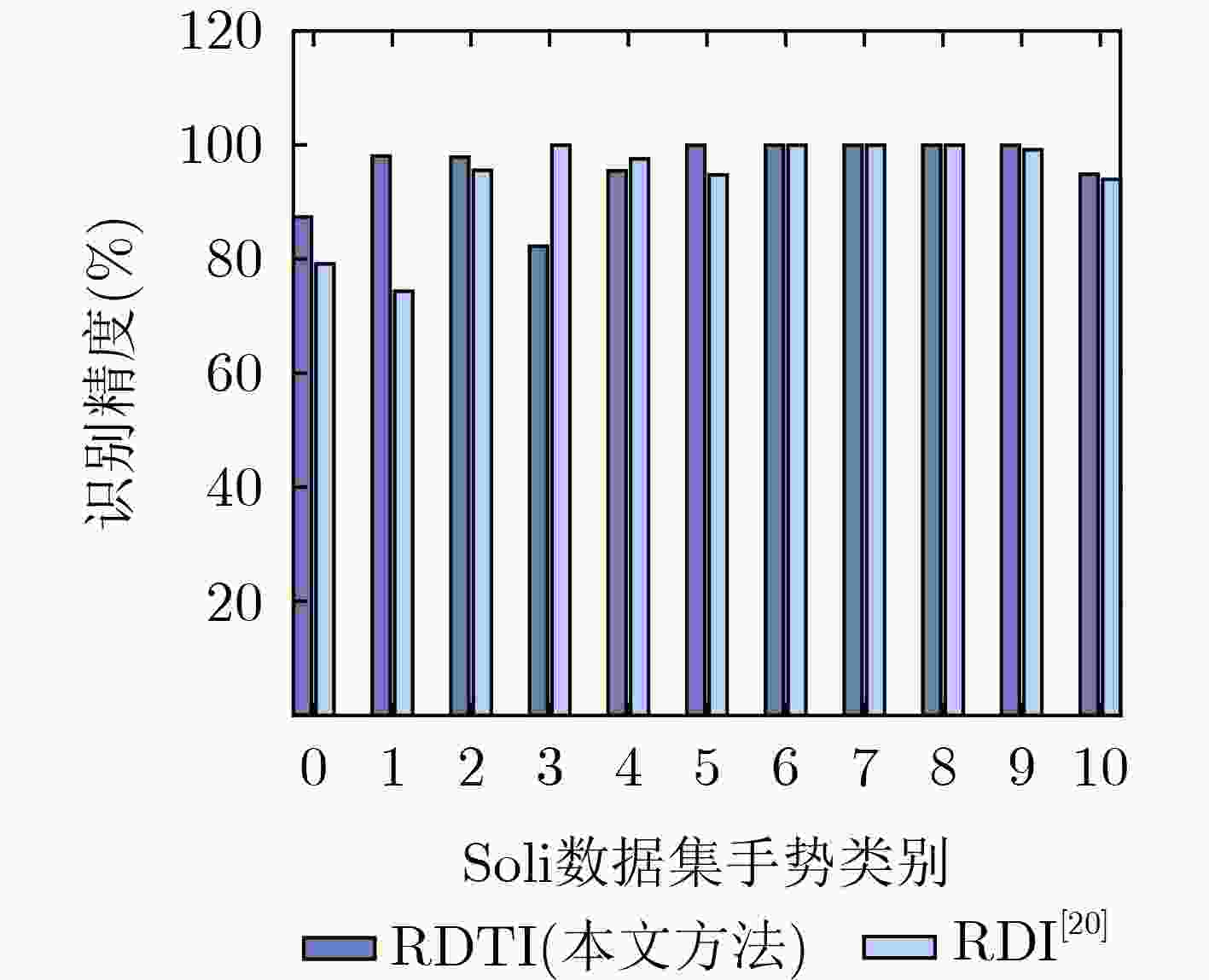

图 12 RDI与RDTI算法在Soli手势数据集的实验对比

下载: 全尺寸图片幻灯片

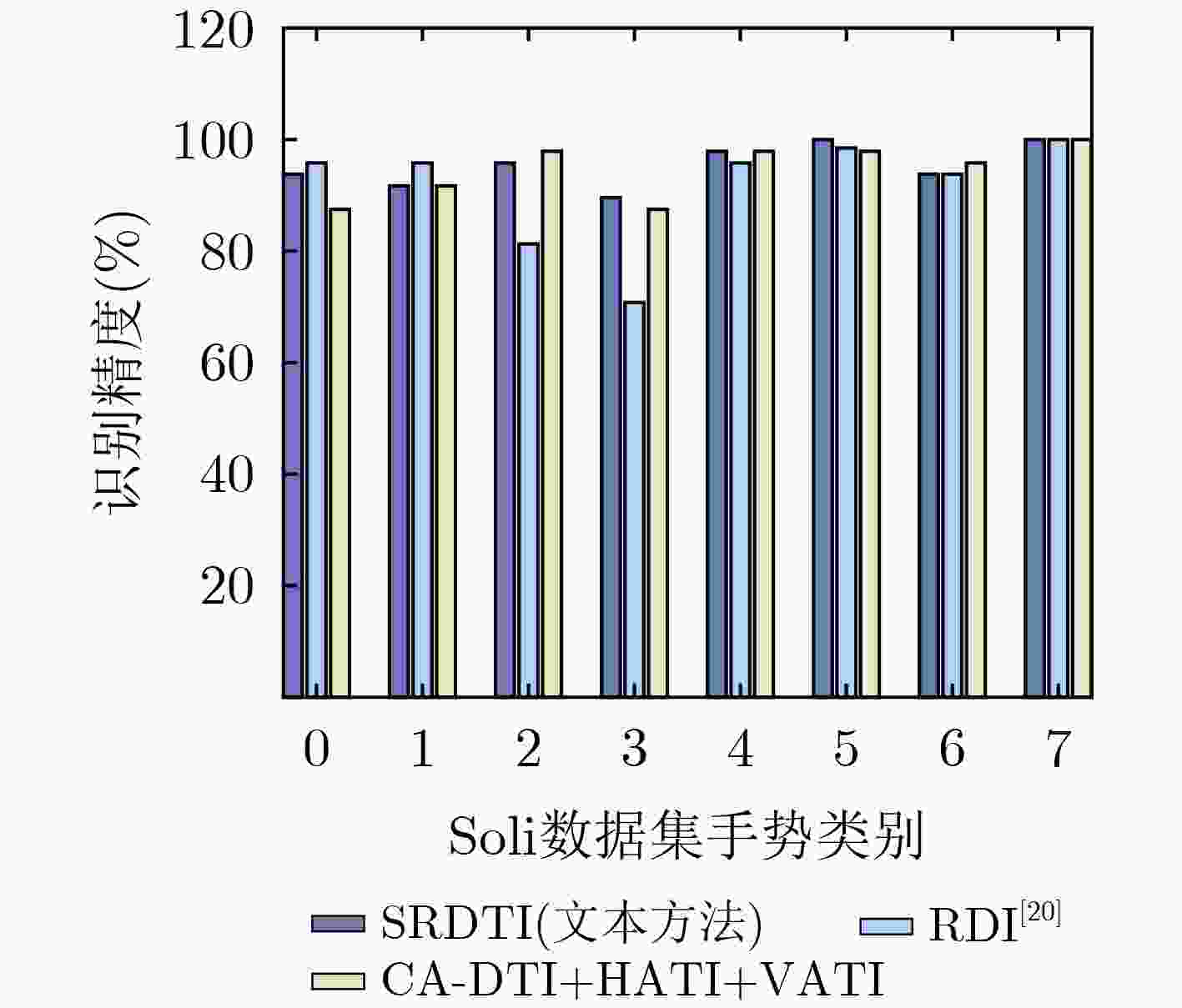

图 13 3种不同算法的手势特征预测准确率

下载: 全尺寸图片幻灯片

表 1 手势识别系统中雷达的参数设置

参数	值	参数	值
扫频范围	60～64 GHz	帧率	25 帧/s
带宽	4 GHz	距离分辨率	3.75 cm
扫频信号斜率	29.9 MHz/μs	最大探测距离	10.9 m
采样率	1 Msps	距离精度	5.54 mm
采样点数	256	速度分辨率	4.4 cm/s
采样间隔	100 μs	最大探测速度	6.08 m/s
帧周期	40 ms	速度精度	1.4 mm/s
chrips	32	发射天线数	3
帧数	50	接收天线数	4

下载: 导出CSV

表 2 RDI与RDTI网络结构参数模型大小对比

手势识别方法	网络模型	参数模型大小
RDI^[20]	CNN+LSTM	27952k
RDTI(本文方法)	CNN	6458k

下载: 导出CSV

表 3 3种不同手势特征的泛化能力(%)

特征方法	未参与训练的用户手势识别精度
特征方法	用户4	用户9
RDI^[20]	71.3	76.3
CA-DTI+HATI+VATI^[15]	75.8	78.7
RDTI(本文方法)	79.6	83.3

下载: 导出CSV
