Atrial Fibrillation Detection Based on Hilbert-Huang Transform and Deep Convolutional Neural Network
-
摘要: 房颤是一种常见的心律失常，其发病率会随着年龄增长而升高。因此，从心电(ECG)信号中尽早识别出房颤，有助于降低中风风险和心源性死亡率。为有效提高其检测准确率，该文提出一种基于希尔伯特黄变换(HHT)和深度卷积神经网络的房颤检测方法。1维的时域心电信号通过希尔伯特黄变换，转换为时频域信号，旨在通过时频分析，丰富原始信号的特征。进而，采用DenseNet深度卷积神经网络来处理精细的时频图，并在迭代过程中选出最佳检测模型。该方法获得的最佳检测模型在麻省理工学院-贝斯以色列医院(MIT-BIH)和2017年生理信号竞赛(2017 PhysioNet Challenge)的房颤数据集上分别取得了99.11%和97.25%的检测准确率。此外，该文将希尔伯特黄变换与其他时频分析方法以及稠密网络(DenseNet)与其他卷积神经网络进行了对比。相比于其他检测方法，实验结果表明希尔伯特黄变换和深度卷积神经网络(DCNN)为房颤检测提供了更加准确的识别方式。Abstract: Atrial fibrillation is a common arrhythmia and its morbidity increases with age. Thus, stroke risk and cardiogenic mortality can be significantly reduced by early atrial fibrillation detection from ElectroCardioGram (ECG). In order to improve effectively detection accuracy, a novel approach is proposed to detect atrial fibrillation based on Hilbert-Huang Transform(HHT) and deep convolutional neural network. HHT is employed to transform electrocardiogram from time domain to time-frequency domain so as to enrich the feature of original data. Following that, DenseNet is introduced to deal with the detailed graph and the best model is selected during the iteration. The optimal model obtained by the proposed method achieves 99.11% and 97.25% accuracy respectively on the Massachusetts Institute of Technology - Beth Israel Hospital(MIT-BIH) and 2017 PhysioNet Challenge atrial fibrillation databases. In addition, HHT and DenseNet are compared with other time-frequency analysis and convolutional neural networks, respectively. Compared with some existing methods, the results proved that atrial fibrillation detection by HHT and Deep Convolutional Neural Network(DCNN) obtains a high detection performance.
-
表 1 EMD算法步骤
步骤 1 $r(t) = x(t)$ 步骤 2 $ s(t) = r(t) $ 步骤 3 求$ s(t) $的极大值和极小值。 步骤 4 根据极大极小值分别计算上包络线$ {e_{\max }}(t) $和下包络线$ {e_{\min }}(t) $。 步骤 5 计算两个包络线的均线$ m(t) = $$ [{e_{\max }}(t){\text{ + }}{e_{\min }}(t)]/2 $。 步骤 6 计算$ h(t) = r(t) - m(t) $。如果$ h(t) $满足上述两个限制，则$ h(t) $为其中一个IMF，否则令$ s(t) = r(t) - h(t) $返回步骤3。 步骤 7 计算$ r(t) = r(t) - s(t) $，如果${{r}}(t)$有超过两个极值点，返回步骤2去计算另一个IMF，否则分解结束。
下载: 导出CSV
表 2 DenseNet结构

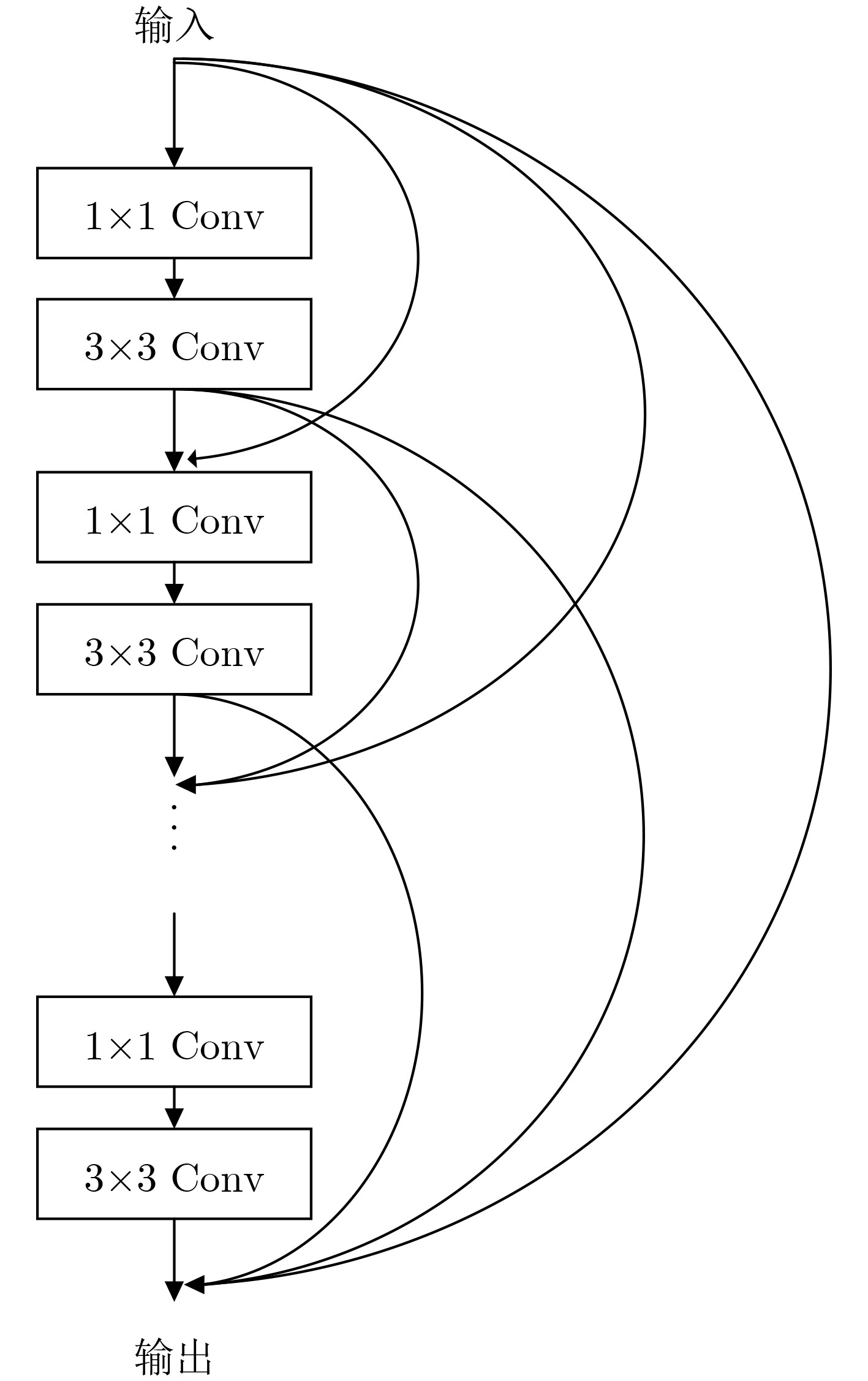

层 输出特征图 结构 Conv1 48×623 7×7 conv, 64, stride=2, padding=1 Pool1 24×312 2×2 max pool Dense Block1 24×312 $\left[ {\begin{array}{*{20}{c}} {{\text{1}} \times {\text{1}}\;{\text{conv}},\;128} \\ {3 \times 3\;{\text{conv,}}\;32,{\text{ padding = 1}}} \end{array}} \right] \times 6$ Conv2 24×312 1×1 conv, 128 Pool2 12×156 2×2 avg pool Dense Block2 12×156 $ \left[ {\begin{array}{*{20}{c}} {{\text{1}} \times {\text{1}}\;{\text{conv}},\;128} \\ {3 \times 3\;{\text{conv,}}\;32,{\text{ padding = 1}}} \end{array}} \right] \times 12 $ Conv3 12×156 1×1 conv, 256 Pool3 6×78 2×2 avg pool Dense Block3 6×78 $\left[ {\begin{array}{*{20}{c}} {{\text{1}} \times {\text{1}}\;{\text{conv}},\;128} \\ {3 \times 3\;{\text{conv,}}\;32,{\text{ padding = 1}}} \end{array}} \right] \times 32$ Conv4 6×78 1×1 conv, 640 Pool4 3×39 2×2 avg pool Dense Block4 3×39 $\left[ {\begin{array}{*{20}{c}} {{\text{1}} \times {\text{1}}\;{\text{conv}},\;128} \\ {3 \times 3\;{\text{conv,}}\;32,{\text{ padding = 1}}} \end{array}} \right] \times 32$ Pool1 1×1 3×39 avg pool flatten 1×1664 Fully connected layer 1×2
下载: 导出CSV
表 4 2017 PhysioNet Challenge数据集
训练集 验证集 测试集 总计 房颤 4383 548 548 5479 窦性节律 30012 3752 3751 37515 总计 34395 4300 4299 42994
下载: 导出CSV
表 5 运动伪迹时模型鲁棒性验证(%)
对比算法 ACC SP SE 本文 77.40 84.62 70.37 随机森林 60.38 57.69 62.96 支持向量机 56.60 53.85 59.26 Adaboost 62.26 61.54 62.96
下载: 导出CSV
表 6 电磁干扰时模型鲁棒性验证(%)
对比算法 ACC SP SE 本文 97.85 98.04 97.62 随机森林 93.91 93.46 94.44 支持向量机 87.81 89.29 86.33 Adaboost 91.40 92.86 89.93
下载: 导出CSV
-
