基于深度神经网络的收发同时系统中自干扰数字对消算法

蒋伊琳; 王林森; 李金鑫

doi:10.11999/JEIT211103

基于深度神经网络的收发同时系统中自干扰数字对消算法

doi: 10.11999/JEIT211103

蒋伊琳^{1, 2},
王林森¹,
李金鑫^{1, 2, ,}

1.
哈尔滨工程大学信息与通信工程学院哈尔滨 150001
2.
先进船舶通信与信息技术工业和信息化部重点实验室哈尔滨 150001

基金项目: 国防基础科研重点项目(JCKY2017203B060)

详细信息

作者简介:
蒋伊琳：男，副教授，研究方向为图像处理与电子对抗、基于压缩感知的无源定位、基于机器学习的信号识别与信号处理

王林森：男，硕士生，研究方向为基于机器学习的干扰消除

李金鑫：女，副教授，研究方向为微波毫米波电路及系统、微波及毫米波天线设计、天线理论、超材料、智能表面

通讯作者:
李金鑫　lijinxin@hrbeu.edu.cn

中图分类号: TN974
计量
- 文章访问数: 381
- HTML全文浏览量: 307
- PDF下载量: 92
- 被引次数: 0
出版历程
- 收稿日期: 2021-10-11
- 修回日期: 2022-06-12
- 网络出版日期: 2022-06-21
- 刊出日期: 2022-12-16

Self-interference Digital Cancellation Algorithm in Simultaneous Transceiver System Based on Deep Neural Network

JIANG Yilin^{1, 2},
WANG Linsen¹,
LI Jinxin^{1, 2
, ,}

1.
College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China
2.
Key Laboratory of Advanced Marine Communication and Information Technology, Ministry of Industry and Information Technology, Harbin 150001, China

Funds: Key Projects of National Defense Basic Scientific Research (JCKY2017203B060)

摘要

摘要: 为了解决转发式干扰机收发同时系统中的自干扰难以对消问题，该文设计一种基于深度神经网络(DNN)的自干扰对消算法。在自干扰信号与目标信号强相关且混叠的情况下该算法可以有效地消除自干扰信号。在此基础上，该文利用分段侦收的信号快速生成干扰的方法，验证了该算法在收发同时系统中自干扰信号对消的可行性，实现了基于本脉冲的雷达干扰信号构建，对敌方雷达快速做出反应，在电子对抗中占据有利地位。该文利用典型的线性调频(LFM)和二进制相移键控(BPSK)雷达信号生成数据集训练深度神经网络，用测试集去测试网络输出的模型。实验结果表明：在收发同时系统中目标信号与自干扰信号混叠的情况下，基于DNN的自干扰对消算法可以有效消除自干扰信号，在信干比–8 dB的情况下，对消比可达到26 dB以上。
- 收发同时系统 /
- 深度神经网络 /
- 数字对消 /
- 自干扰
Abstract: In order to solve the problem that the self-interference is difficult to eliminate in the transceiver system of the repeater jammer, a self-interference cancellation algorithm based on Deep Neural Network(DNN) is presented in this paper. This proposed algorithm can effectively eliminate the self-interference signal when the self-interference signal is correlated and mixed with the target signal. On this basis, the interference generation method of segmenting interception is used in this paper, which verifies the feasibility of jamming signal cancellation in the simultaneous transceiver system. It realizes the construction of radar jamming signal considering the pulse, which can quickly respond to enemy radars and occupy a favorable position in electronic countermeasures. In this paper, a typical Linear Frequency Modulation(LFM) and Binary Phase Shift Keying (BPSK) radar signal are used to generate a data set to train the DNN network, and the test set is used to test the output model of the network. The experimental results show that the self-interference cancellation algorithm based on DNN can effectively eliminate the self-interference signal when the target signal and self-interference signal are mixed in the simultaneous transceiver system, and the cancellation ratio can reach more than 26 dB when the signal to interference ratio is –8 dB.
- Simultaneous transceiver system /
- Deep Neural Network(DNN) /
- Digital cancellation /
- Self-interference

HTML全文

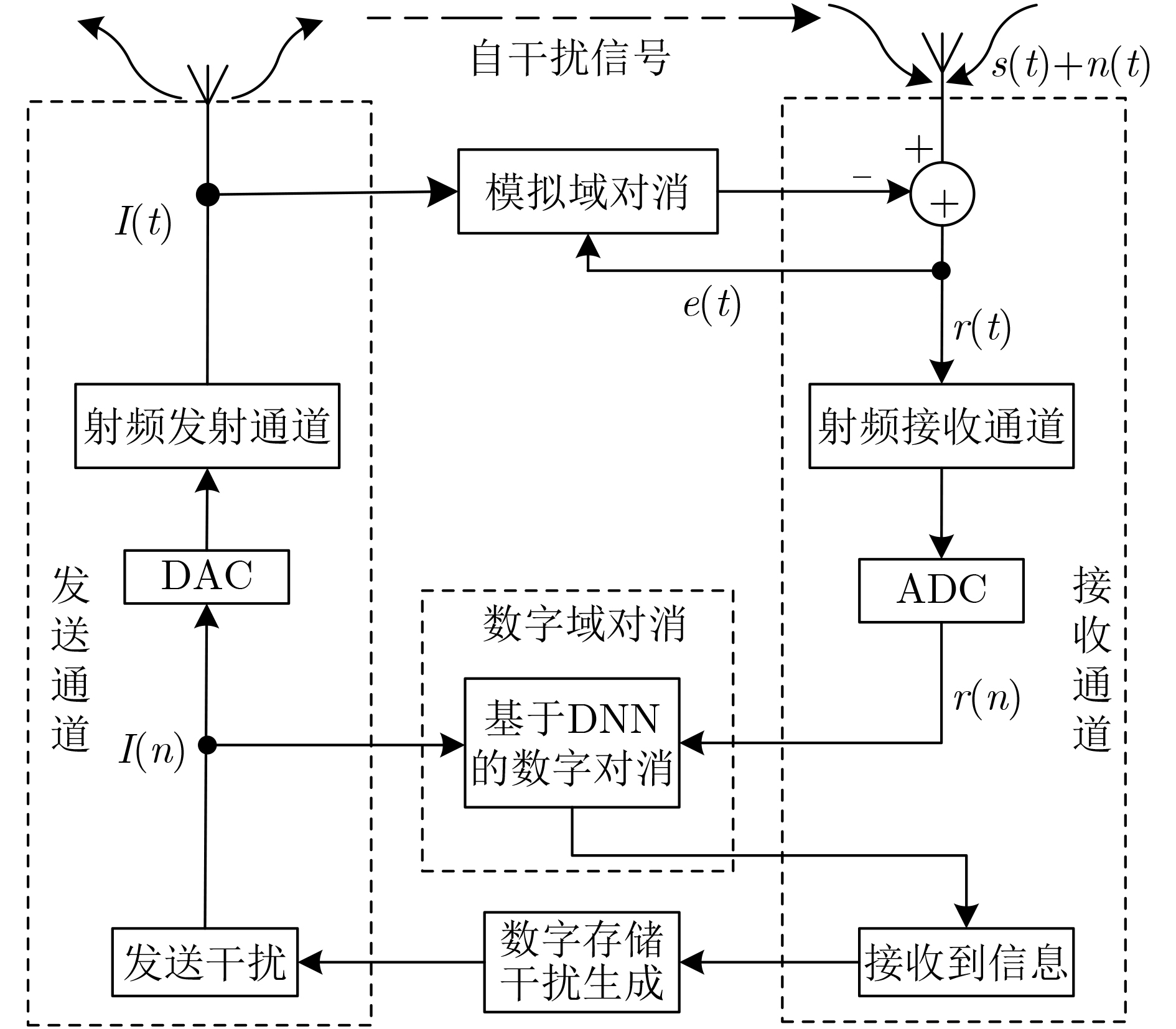

图 1 转发式干扰机系统基本流程框图

下载: 全尺寸图片幻灯片

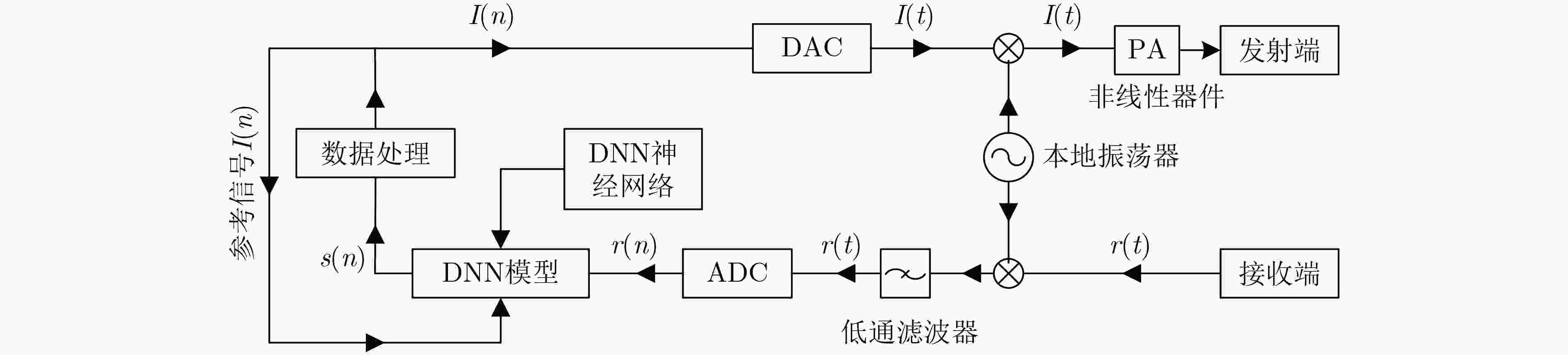

图 2 基于DNN的自干扰对消方案

下载: 全尺寸图片幻灯片

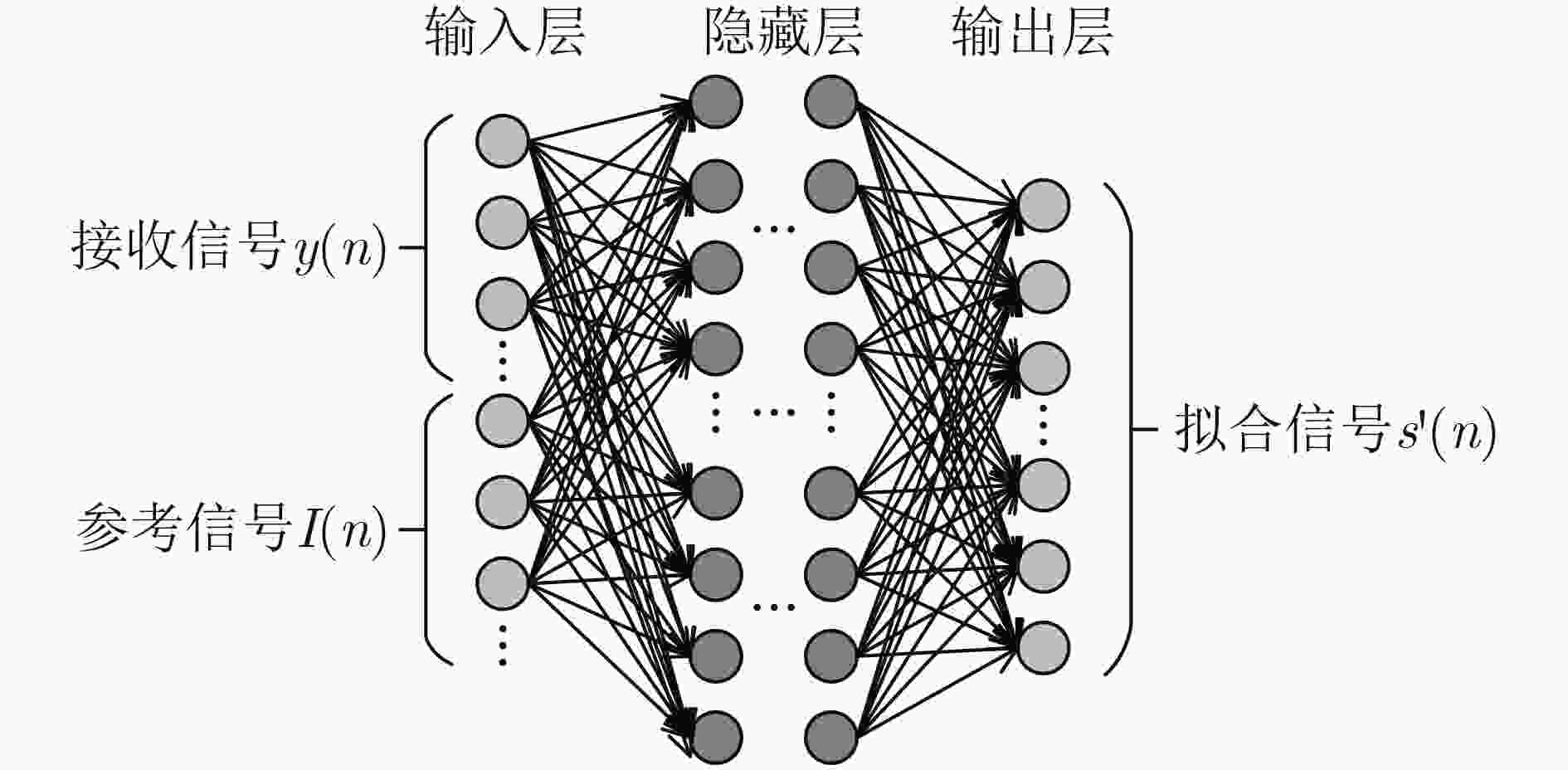

图 3 DNN网络结构

下载: 全尺寸图片幻灯片

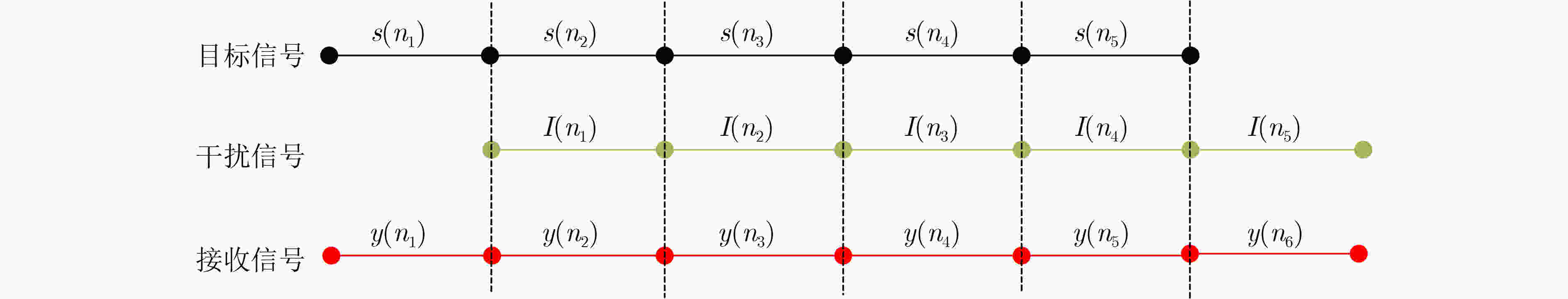

图 4 干扰信号生成原理

下载: 全尺寸图片幻灯片

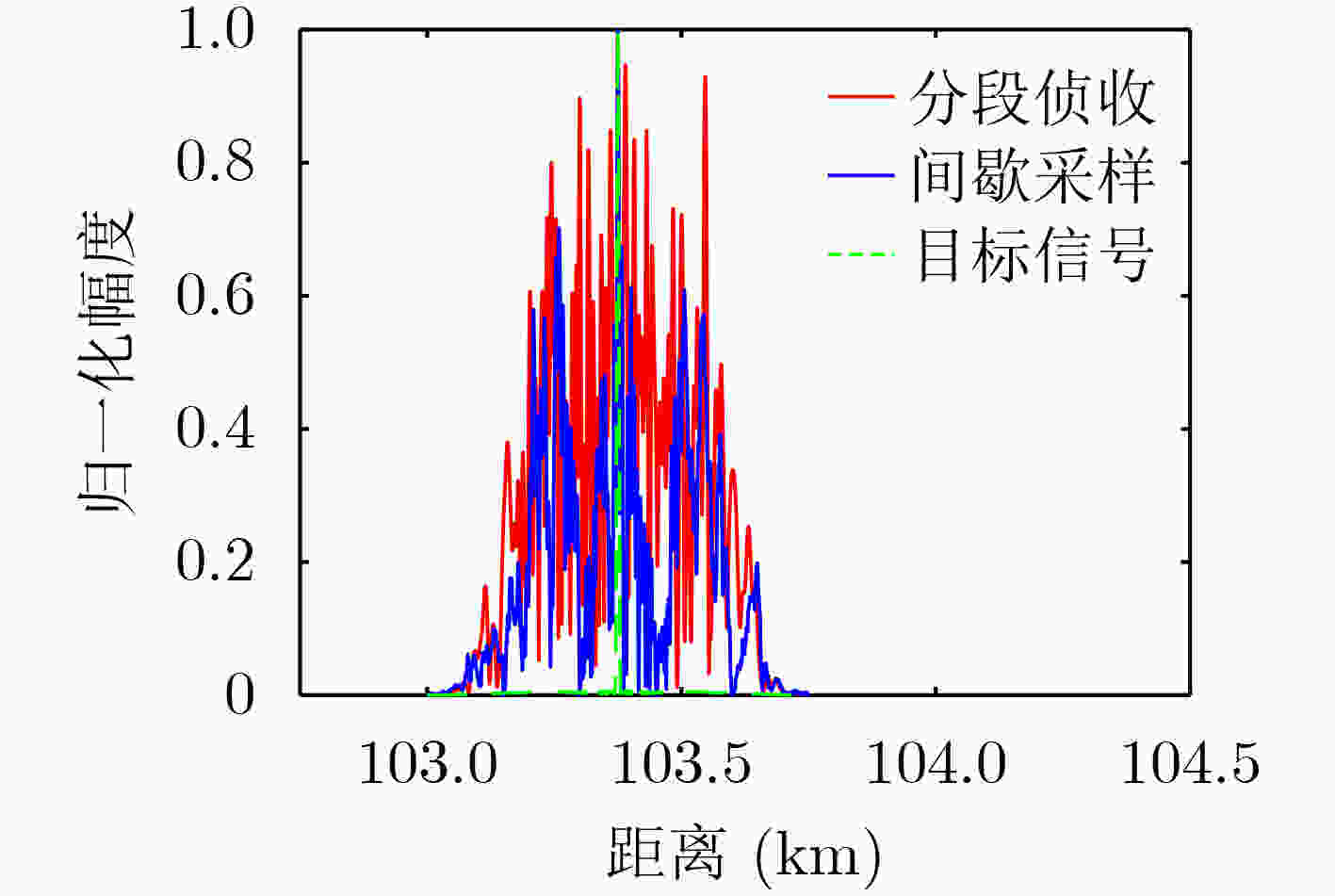

图 5 脉冲压缩后时域波形

下载: 全尺寸图片幻灯片

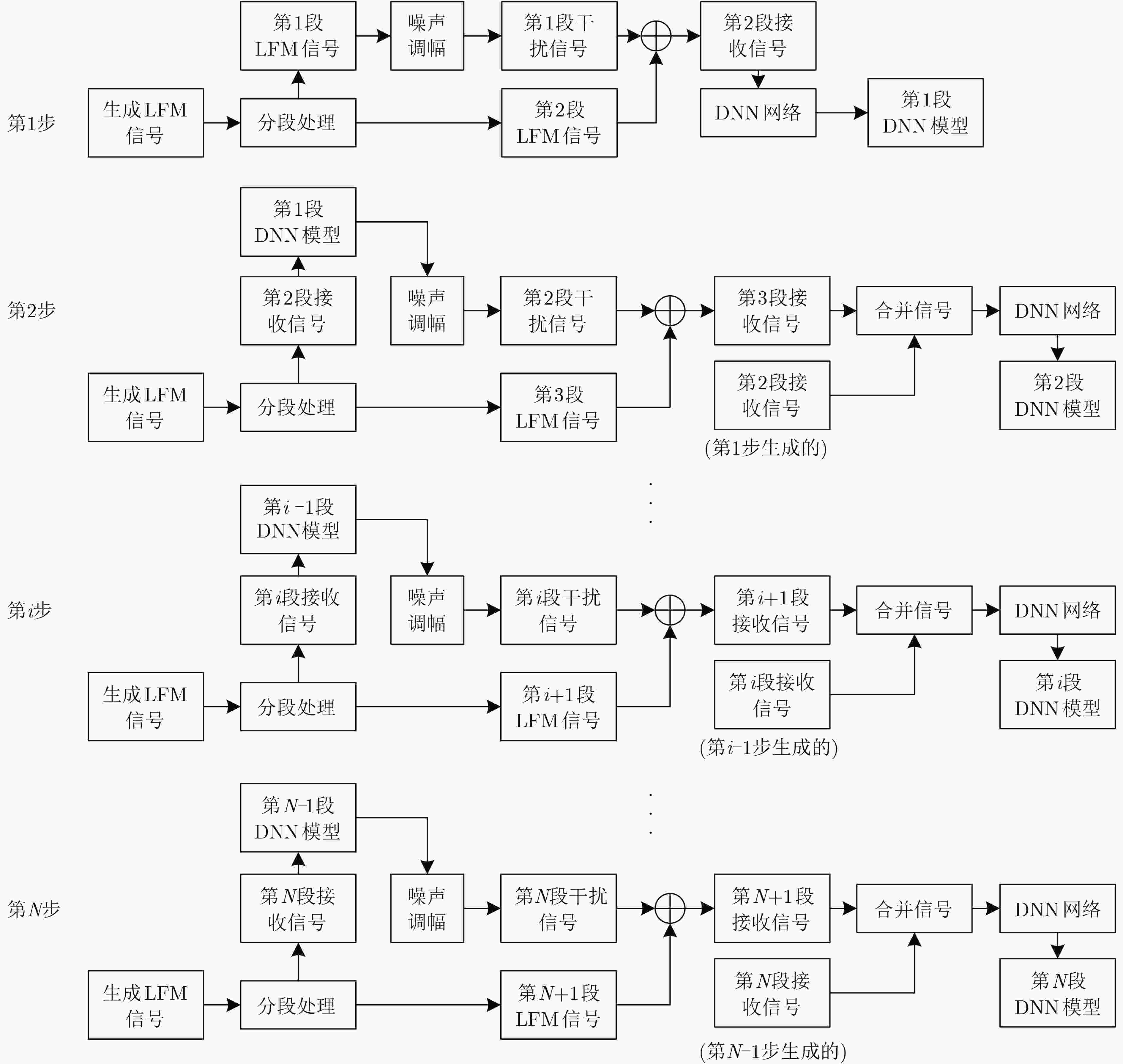

图 6 数据集生成及训练框图

下载: 全尺寸图片幻灯片

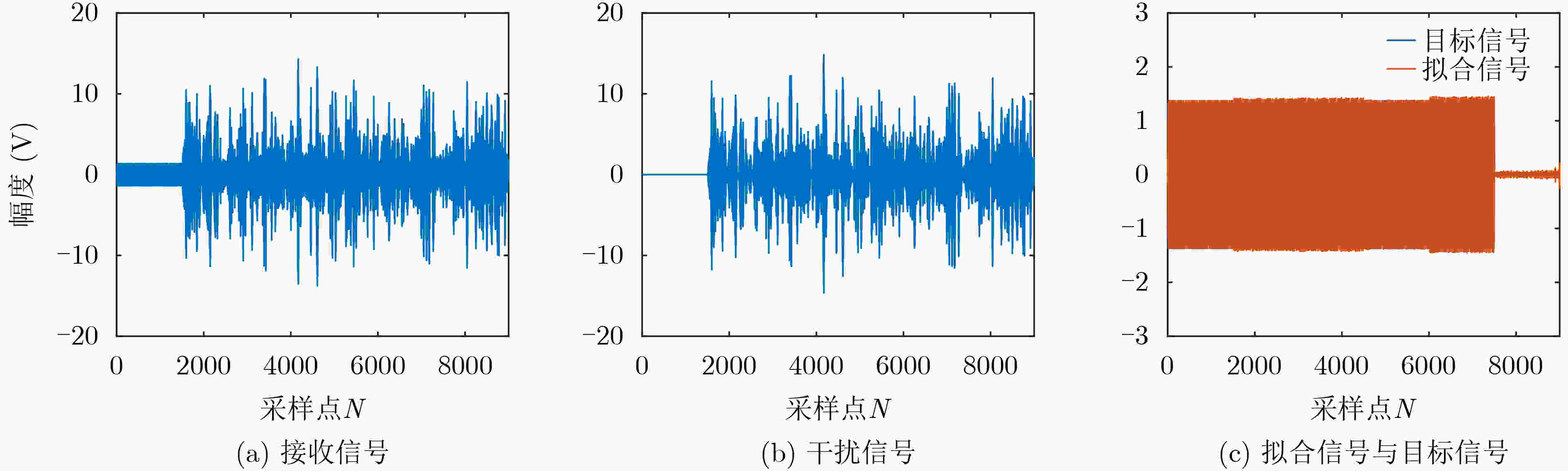

图 7 BPSK信号干扰对消前后时域对比图

下载: 全尺寸图片幻灯片

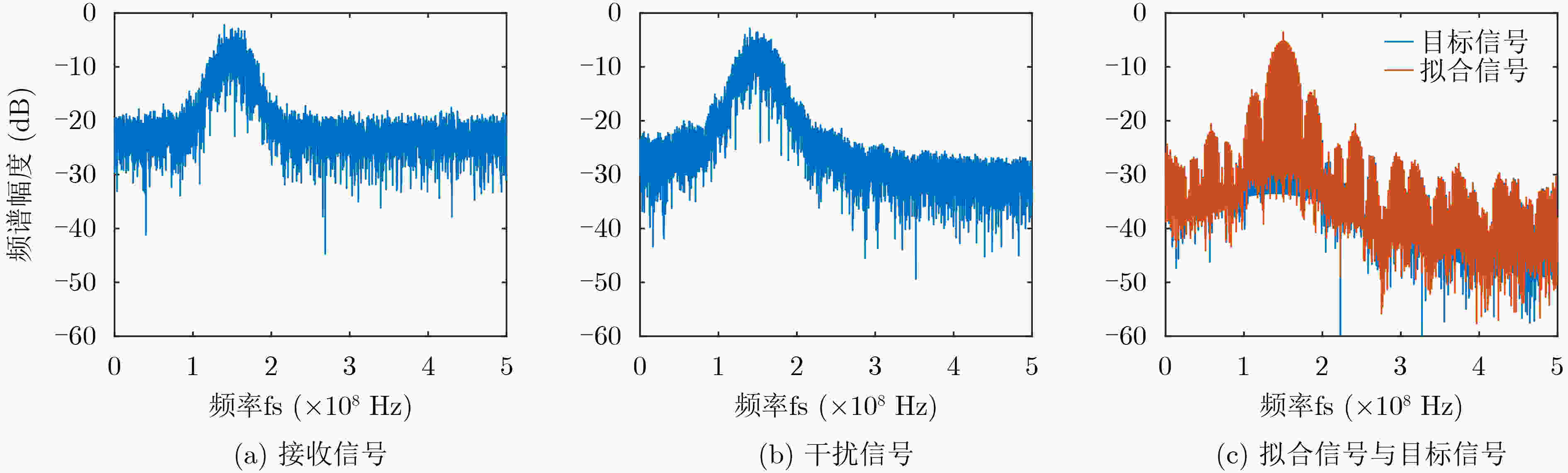

图 8 BPSK信号干扰对消前后频谱对比图

下载: 全尺寸图片幻灯片

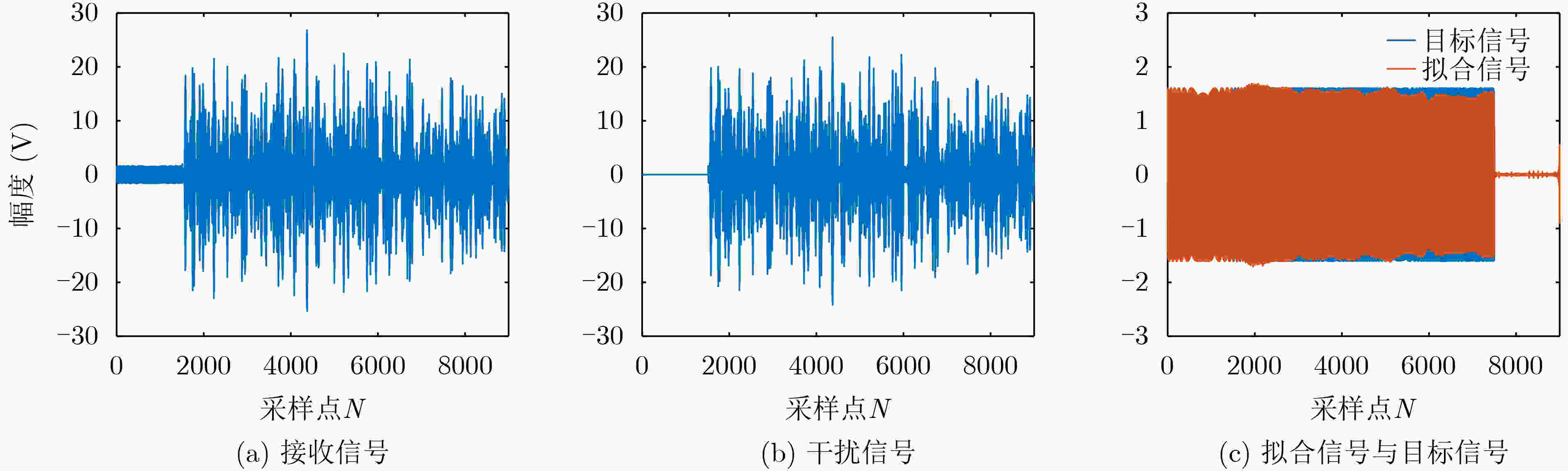

图 9 LFM信号干扰对消前后时域对比图

下载: 全尺寸图片幻灯片

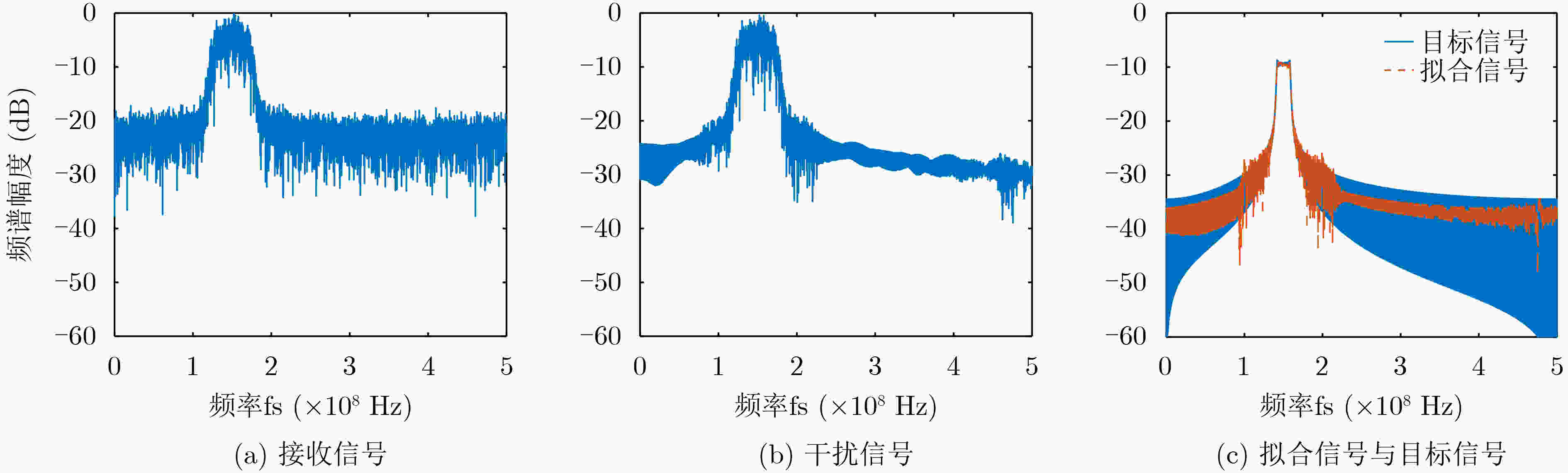

图 10 LFM信号干扰对消前后频谱对比图

下载: 全尺寸图片幻灯片

表 1 信号的调制参数

	信号形式	载频${f_c}$(MHz)	带宽$B$(MHz)	初相位$\varphi $	幅度$A$	信干比(dB)
训练集	LFM信号	100～200	20～40	0～2π	1～2	–7～–11
训练集	BPSK信号	100～200	无	无	1～2	–7～–11
测试集	LFM信号	100/150/200	20/25/30	0～2π	1～2	–6～–12 (步进–2 dB)
测试集	BPSK信号	100/150/200	无	无	1～2	–6～–12 (步进–2 dB)

下载: 导出CSV

表 2 LMS算法与DNN算法在不同信干比下的对消比(LMS算法/DNN算法)(dB)

中心频率(MHz)	信干比(dB)	LFM信号带宽			BPSK信号
中心频率(MHz)	信干比(dB)	20 MHz	25 MHz	30 MHz	BPSK信号
100	–6	2.51/30.26	2.47/28.80	2.46/27.43	7.20/35.43
	–8	4.33/30.95	4.07/30.60	4.13/27.98	5.99/35.78
	–10	6.09/31.22	5.64/32.97	5.52/30.81	8.53/38.76
	–12	6.83/30.47	8.04/31.60	8.32/28.93	9.68/38.57
150	–6	2.46/30.74	2.48/30.07	2.52/28.24	4.23/33.75
	–8	4.47/31.99	4.42/30.12	4.25/29.06	7.73/36.23
	–10	5.00/30.52	6.03/31.64	5.85/27.93	8.14/37.18
	–12	6.36/28.06	8.27/28.59	7.98/27.60	8.67/39.09
200	–6	2.55/29.54	2.54/27.56	2.10/28.65	5.34/35.07
	–8	4.10/32.34	4.54/30.95	4.28/26.01	6.71/35.13
	–10	5.94/30.29	6.03/29.10	5.83/26.74	9.28/37.89
	–12	7.39/30.10	7.89/28.95	7.40/26.84	8.51/38.15

下载: 导出CSV
