6D Pose Estimation Network in Complex Point Cloud Scenes

Hebei University of Technology , Tianjin 300130, China

Funds: The National Natural Science Foundation of China (U21A20482, 62073117), The Central Leading Local Science and Technology Development Fund Project (206Z1701G)

摘要

摘要: 针对工业上常见的弱纹理、散乱摆放复杂场景下点云目标机器人抓取问题，该文提出一种6D位姿估计深度学习网络。首先，模拟复杂场景下点云目标多姿态随机摆放的物理环境，生成带真实标签的数据集；进而，设计了6D位姿估计深度学习网络模型，提出多尺度点云分割网络(MPCS-Net)，直接在完整几何点云上进行点云实例分割，解决了对RGB信息和点云分割预处理的依赖问题。然后，提出多层特征姿态估计网(MFPE-Net)，有效地解决了对称物体的位姿估计问题。最后，实验结果和分析证实了，相比于传统的点云配准方法和现有的切分点云的深度学习位姿估计方法，所提方法取得了更高的准确率和更稳定性能，并且在估计对称物体位姿时有较强的鲁棒性。
- 点云 /
- 深度学习 /
- 位姿估计
Abstract: Focusing on the robot grasping problem of point cloud targets in complex scenes with weak texture and scattered placement, a 6D pose estimation deep learning network is proposed. First, the complex scenes of the physical environment are simulated, where point cloud targets are randomly placed in multiple poses to generate a dataset with real labels; Further, a 6D pose estimation deep learning network model is designed, and a Multiscale Point Cloud Segmentation Net (MPCS-Net) is proposed to segment point cloud instances directly on the complete geometric point cloud, solving the dependence on RGB information and point cloud segmentation pre-processing. Then, the Multilayer Feature Pose Estimation Net (MFPE-Net) is proposed, which addresses effectively the pose estimation problem of symmetrical objects. Finally, the experimental results and analysis confirm that, compared with the traditional point cloud registration methods and the existing deep learning pose estimation methods of the segmented point cloud, the proposed method achieves higher accuracy and more stable performance. The preferable robustness in estimating the pose of symmetrical objects also proves its efficacy.
- Point clouds /
- Deep learning /
- Pose estimation

HTML全文

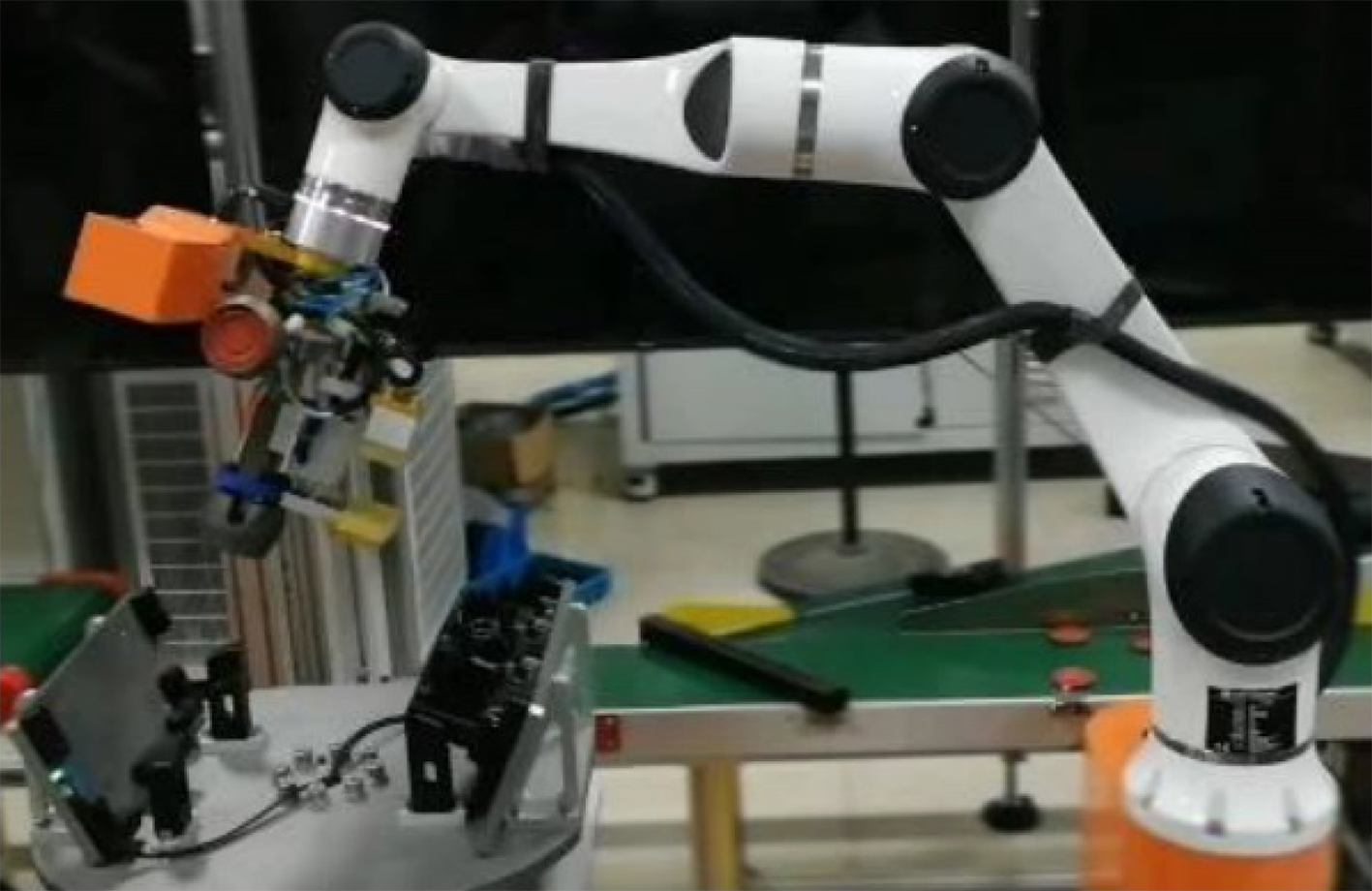

图 1 机器人抓取装配系统

下载: 全尺寸图片幻灯片

图 2 数据集生成流程图

下载: 全尺寸图片幻灯片

图 3 工件CAD模型图及仿真场景点云样本示例

下载: 全尺寸图片幻灯片

图 4 网络整体架构图

下载: 全尺寸图片幻灯片

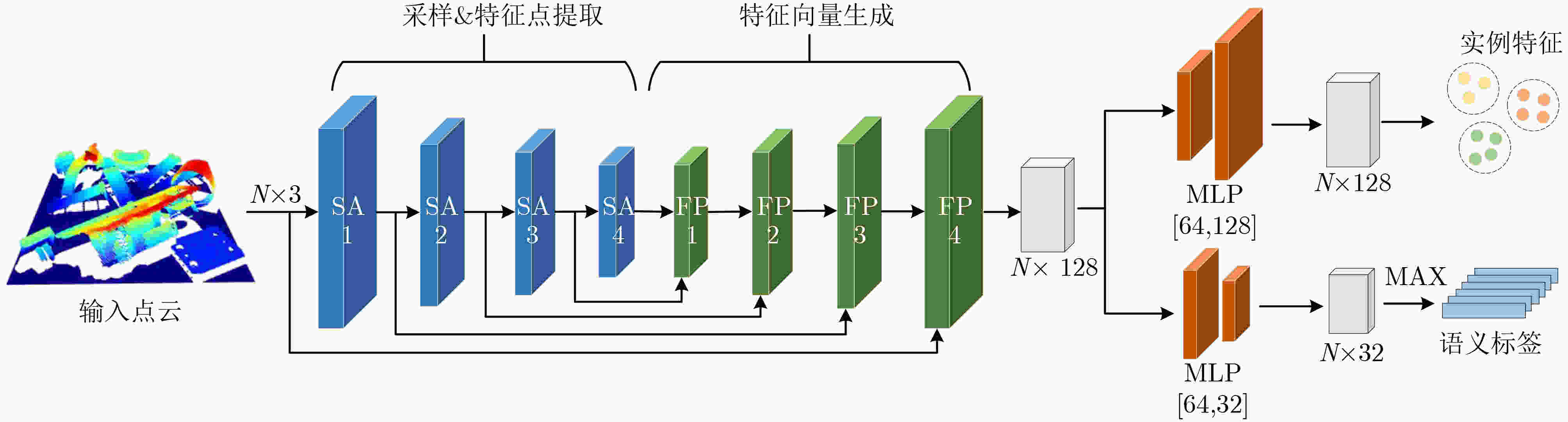

图 5 MPCS-Net 网络图

下载: 全尺寸图片幻灯片

图 6 特征聚类与采样模块流程图

下载: 全尺寸图片幻灯片

图 7 MFPE-Net结构图

下载: 全尺寸图片幻灯片

图 8 姿态特征提取模块结构图

下载: 全尺寸图片幻灯片

图 9 点云实例分割网络效果图

下载: 全尺寸图片幻灯片

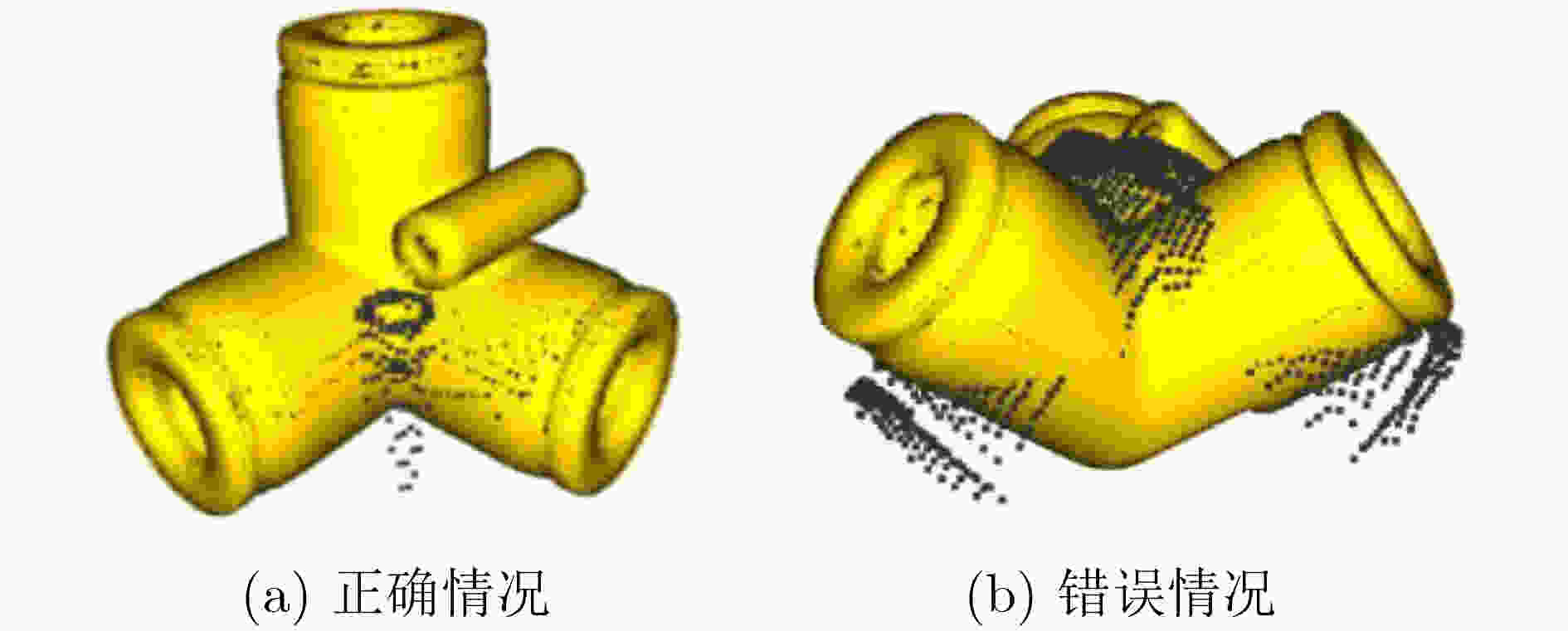

图 10 实例预测出现错误情况图

下载: 全尺寸图片幻灯片

图 11 高维实例特征降维结果

下载: 全尺寸图片幻灯片

图 12 待抓取物体位姿估计效果

下载: 全尺寸图片幻灯片

图 13 物体C配准的情况

下载: 全尺寸图片幻灯片

表 1 训练基本配置表

配置项目	项目值	配置项目	项目值
数据集总量	10000个	平均点距(水平)	1 mm
单场景物体数	4～7个	优化器	SGD
训练集数量	9000个	训练迭代次数	500
测试集数量	1000个	BatchSize	16
初始学习率	0.01	学习率衰减步数	50

下载: 导出CSV

表 2 语义分割精度(%)和平均时间(s)

方法	精度(%)	平均时间(s)	物体A	物体B	物体C	物体D	物体E	物体F	物体G
PointNet++	82.93	0.286	86.74	80.23	83.33	78.53	83.51	85.74	88.73
MT-PNet	89.79	0.305	89.74	87.97	84.69	92.42	88.05	87.21	95.50
MV-CRF	91.03	2.973	91.27	92.03	89.65	89.02	92.78	89.95	94.47
本文	99.02	0.324	98.79	99.28	98.99	98.93	98.61	98.97	99.67

下载: 导出CSV

表 3 实例分割精度(%)和平均时间(s)

方法	精度(%)	平均时间(s)	物体A	物体B	物体C	物体D	物体E	物体F	物体G
MT-PNet	80.84	4.973	78.87	75.55	83.48	86.99	75.06	87.85	84.25
MV-CRF	84.45	8.934	83.03	80.21	85.77	88.96	80.57	89.11	89.48
本文	94.35	5.312	92.74	96.85	93.53	95.06	94.67	93.83	93.51

下载: 导出CSV

表 4 不同实例聚类方法精度(%)

方法	精度(%)	物体A	物体B	物体C	物体D	物体E	物体F	物体G
HAC	72.05	54.87	83.68	72.08	75.06	78.84	67.19	79.48
DBSCAN	89.75	83.51	92.06	94.05	80.83	85.47	92.59	90.64
MeanShift	94.35	92.74	96.85	93.53	95.06	94.67	93.83	93.51

下载: 导出CSV

表 5 姿态估计精度(%)

	FPFH+ICP		PPF+ICP		CloudPose+ICP		本文+ICP
	AD	AD-S	AD	AD-S	AD	AD-S	AD	AD-S
物体A	88.13	99.88	97.72	99.77	88.53	97.21	98.32	100
物体B	77.86	96.47	71.67	72.07	85.82	93.66	96.30	97.68
物体C	61.02	96.36	93.17	99.80	71.86	96.73	96.51	98.91
物体D	87.83	97.23	98.04	98.54	97.53	98.36	97.85	99.25
物体E	3.72	94.82	10.89	99.02	12.54	96.73	12.24	99.08
物体F	48.17	97.80	42.44	99.21	53.36	92.63	49.56	98.91
物体G	28.04	96.54	23.82	96.76	32.02	91.36	17.07	97.25

下载: 导出CSV

表 6 单个实例识别时间(s)

	FPFH+ICP	PPF+ICP	MPCS-Net+CloudPose+ICP	本文+ICP
平均计算时间(单个实例)	3.72	4.43	0.62	0.58

下载: 导出CSV
