射频集成电路校准技术综述

李松亭; 颜盾

doi:10.11999/JEIT210886

射频集成电路校准技术综述

doi: 10.11999/JEIT210886

李松亭^1, ,,
颜盾²

1.
国防科技大学空天科学学院长沙 410073
2.
湖南大学信息科学与工程学院长沙 410082

基金项目: 国家自然科学基金(61804182)，湖南省自然科学基金(2019JJ50741)

详细信息

作者简介:
李松亭：男，副研究员，研究方向为模拟、射频及混合信号集成电路设计

颜盾：男，博士，研究方向为模拟、射频及混合信号集成电路设计

通讯作者:
李松亭　songtingl@sina.com

中图分类号: TN43
计量
- 文章访问数: 2381
- HTML全文浏览量: 1307
- PDF下载量: 388
- 被引次数: 0
出版历程
- 收稿日期: 2021-08-27
- 修回日期: 2021-10-28
- 网络出版日期: 2021-11-04
- 刊出日期: 2022-11-14

An Overview on Calibration Techniques for Radio Frequency Integrated Circuits

LI Songting^{1
, ,},
YAN Dun²

1.
College of Aerospace Science and Engineering, National University of Defense Technology, Changsha 410073, China
2.
Colleage of Information Science and Engineering, Hunan University, Changsha 410082, China

Funds: The National Natural Science Foundation of China(61804182), The Natural Science Foundation of Hunan Province(2019JJ50741)

摘要

摘要: 射频集成电路(RFICs)对工艺偏差、器件失配、器件非线性等引入的静态非理想因素以及温度变化、增益改变、输入/输出频率变动等引入的动态非理想因素所表现出的鲁棒性较差。该文深入挖掘影响射频集成电路性能的关键因素，并对典型的校准算法进行归纳和总结，为高性能射频集成电路设计提供理论支撑。
- 射频集成电路 /
- 校准技术 /
- 射频收发链路 /
- 频率综合器 /
- 多片同步
Abstract: Radio Frequency Integrated Circuits (RFICs) show poor robustness to static non-ideal factors introduced by process deviations, device mismatches, device nonlinearities, and dynamic non-ideal factors introduced by temperature changes, gain changes, and input/output frequency changes. The key factors that affect the performance of RFICs are excavated deeply, and typical calibration algorithms are summarized to provide theoretical support for the design of high-performance RFICs.
- Radio Frequency Integrated Circuits (RFICs) /
- Calibration techniques /
- Radio frequency transceiver link /
- Frequency synthesizer /
- Multi-chip synchronization

HTML全文

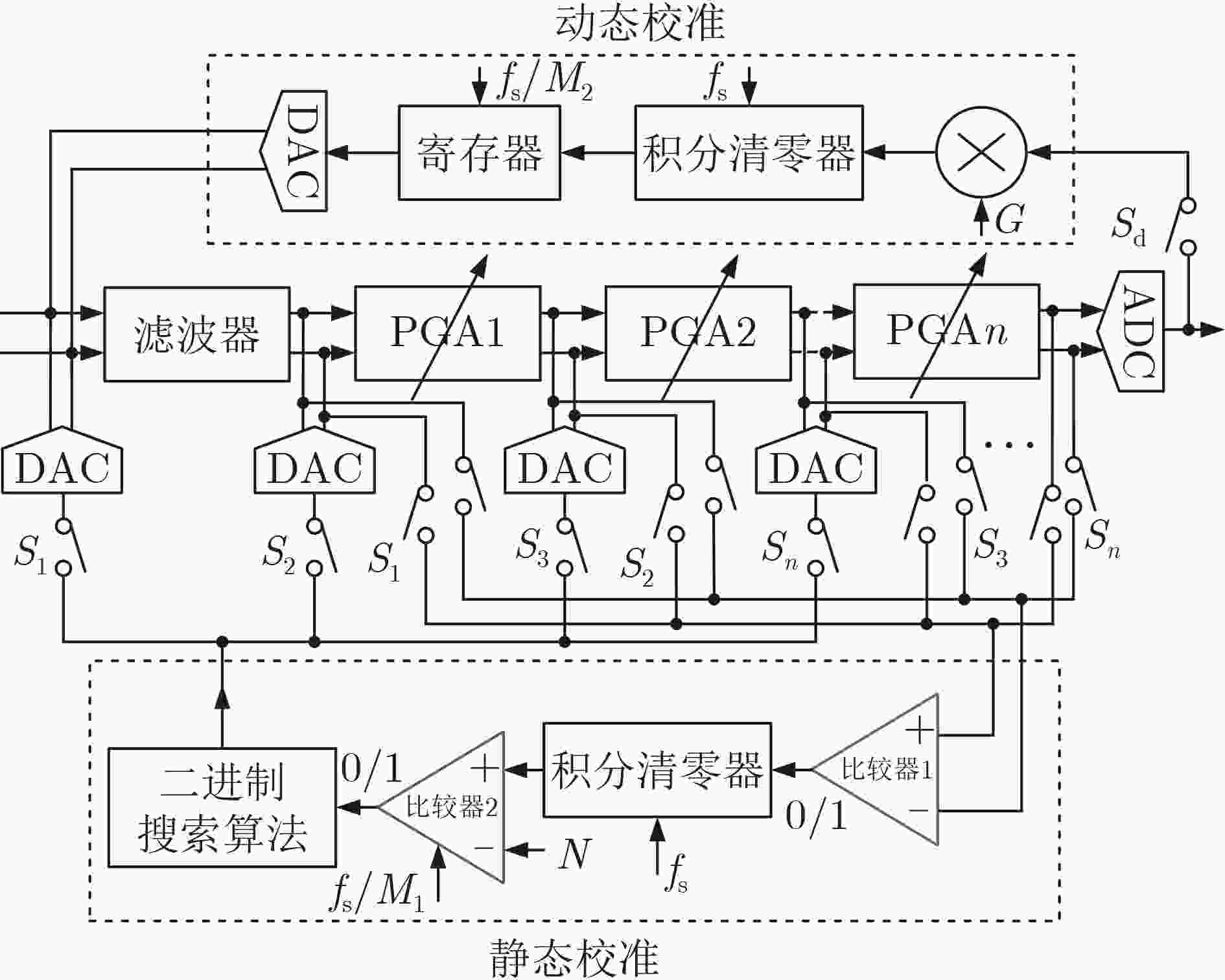

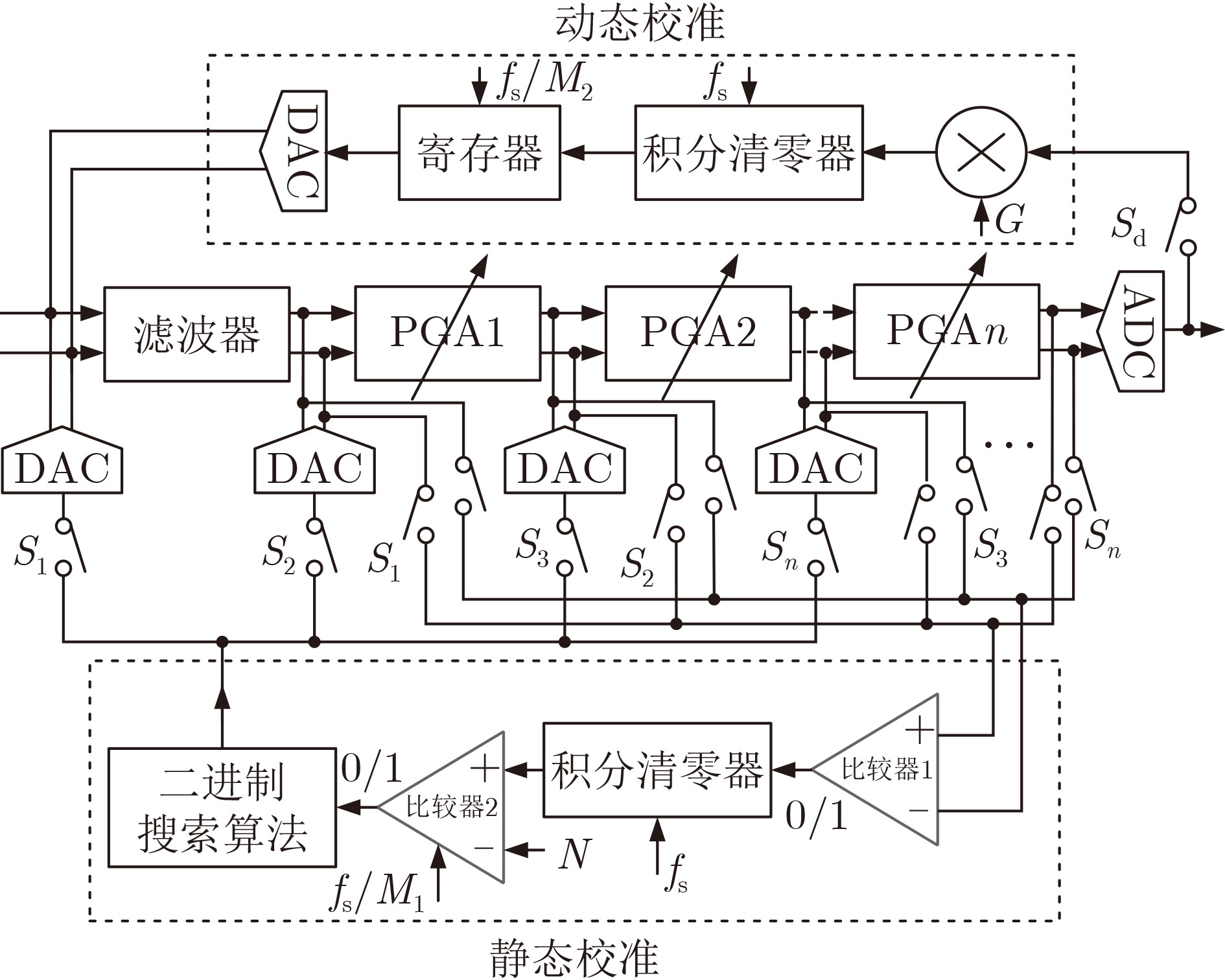

图 1 适用于零中频接收机的数字辅助DCOC

下载: 全尺寸图片幻灯片

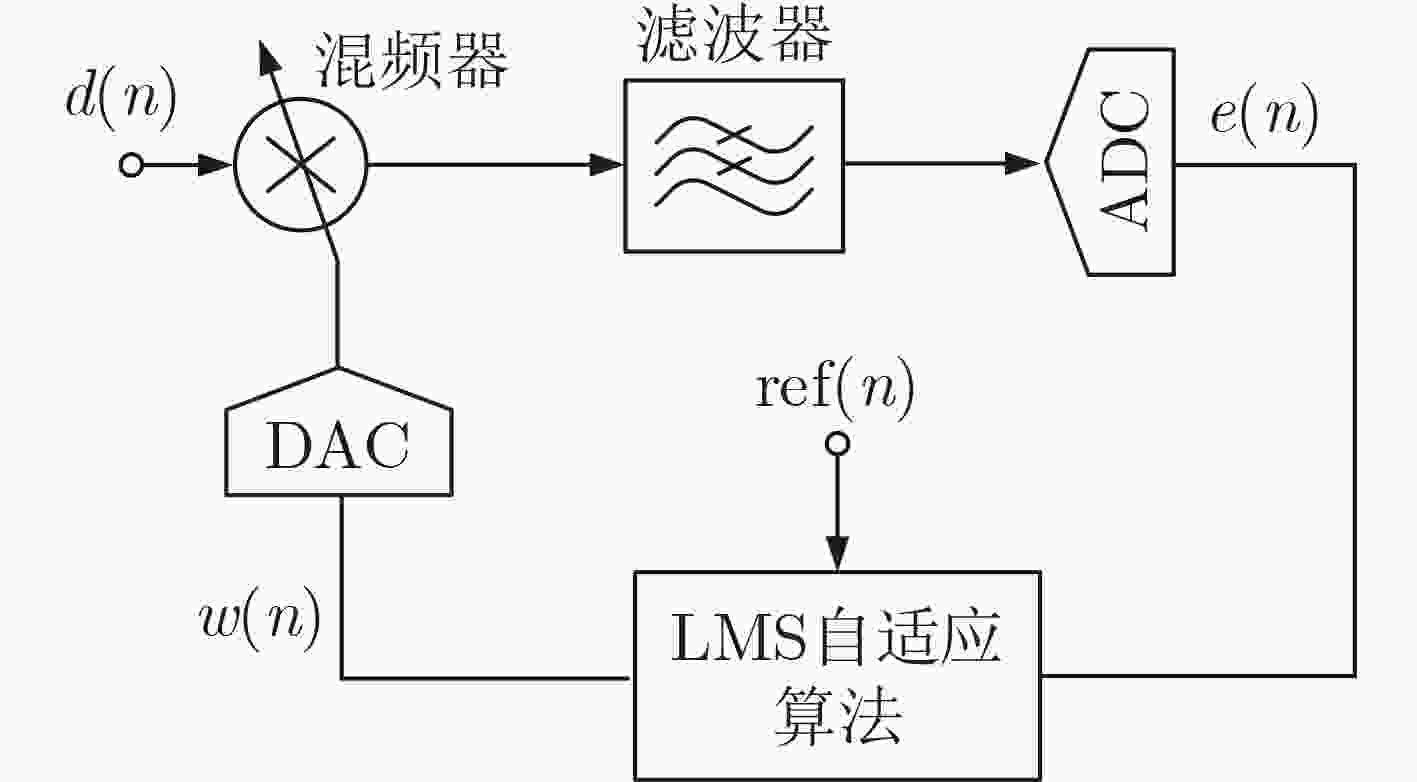

图 2 基于LMS算法的自适应偶次非线性失真校准电路

下载: 全尺寸图片幻灯片

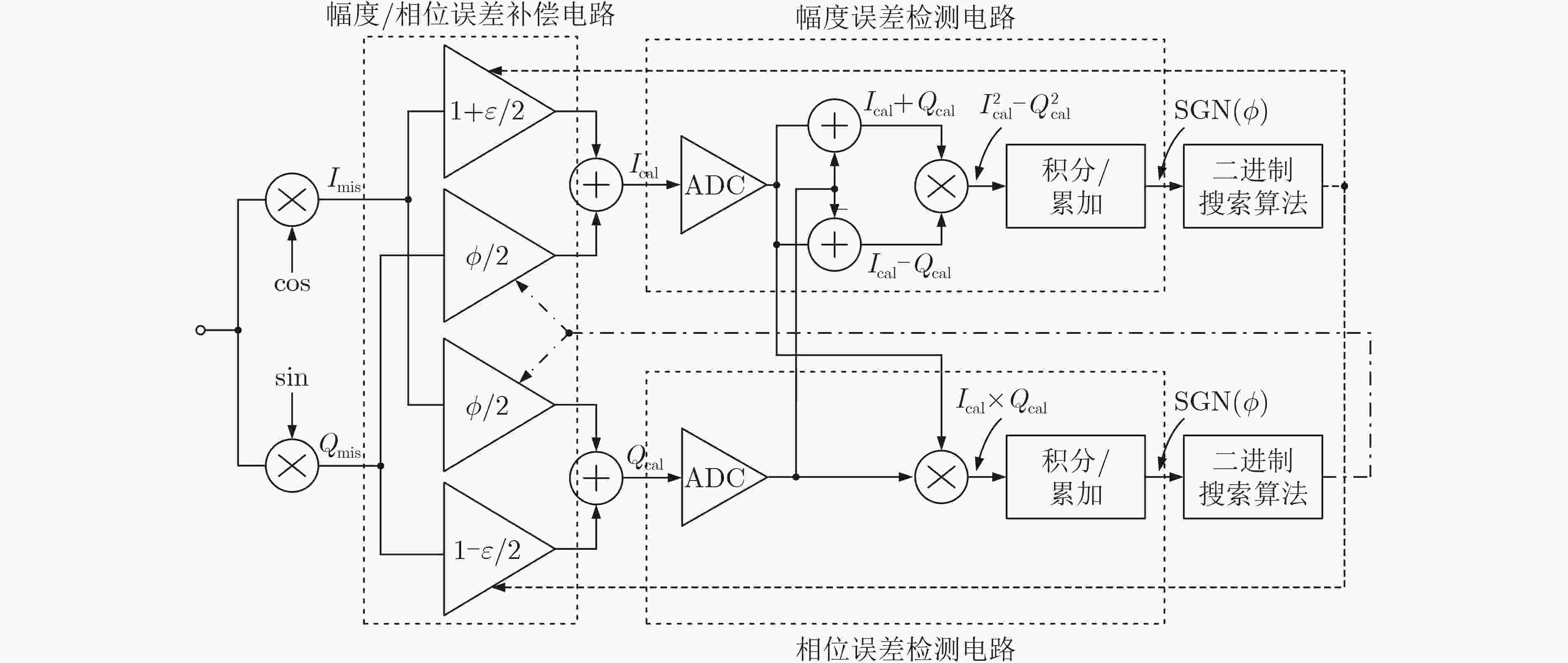

图 3 适用于低中频接收机的正交失配校准电路

下载: 全尺寸图片幻灯片

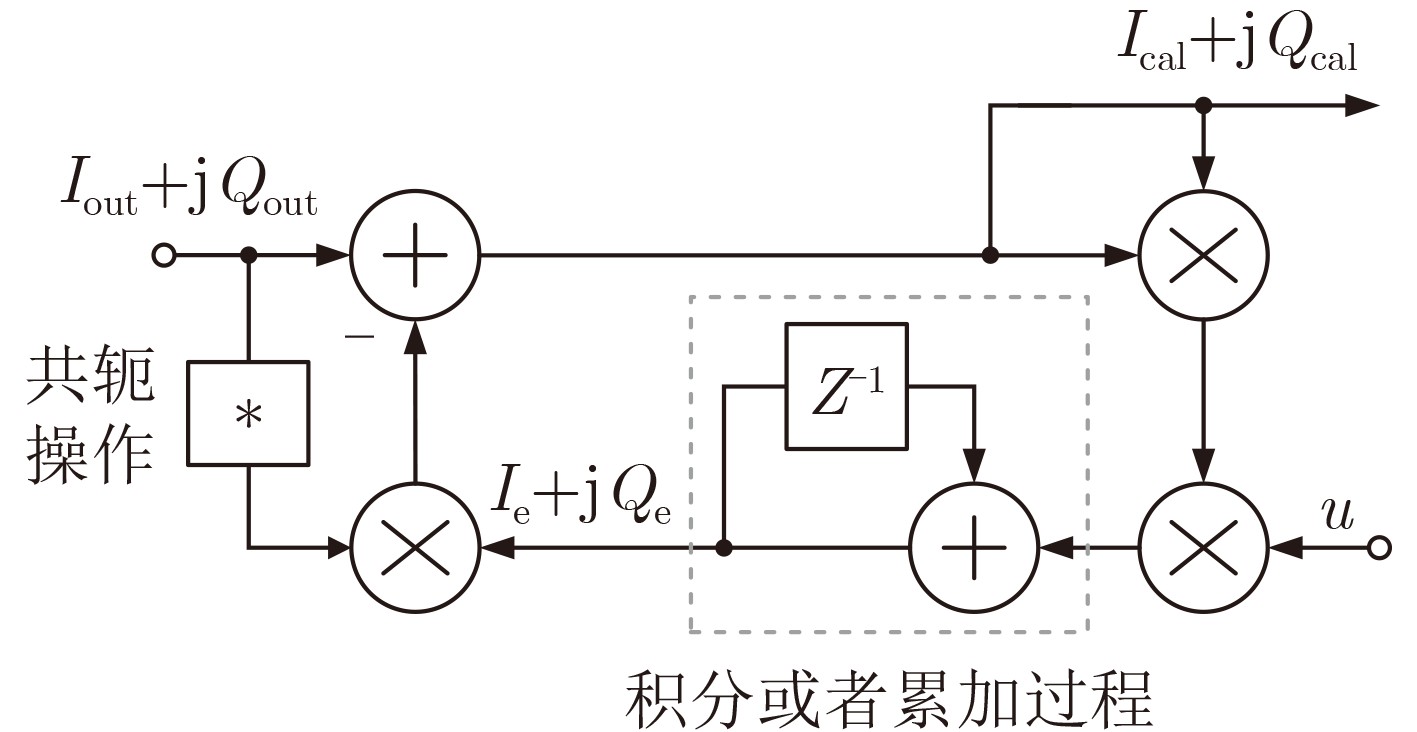

图 4 I/Q失配基带自适应LMS校准电路

下载: 全尺寸图片幻灯片

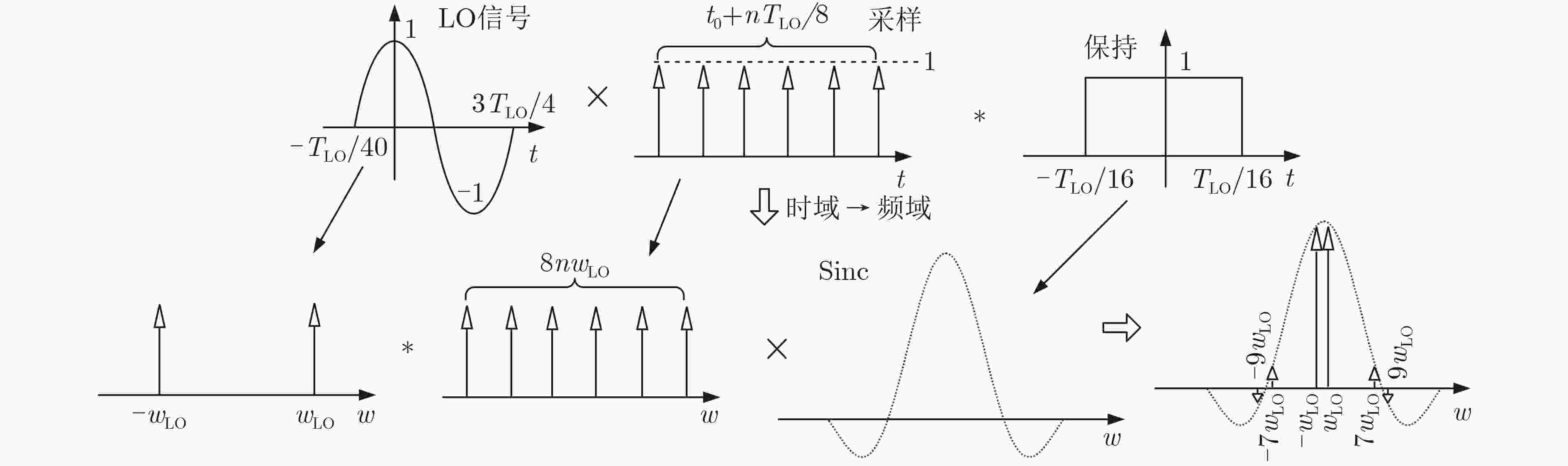

图 5 八相混频器本振信号频域等效图

下载: 全尺寸图片幻灯片

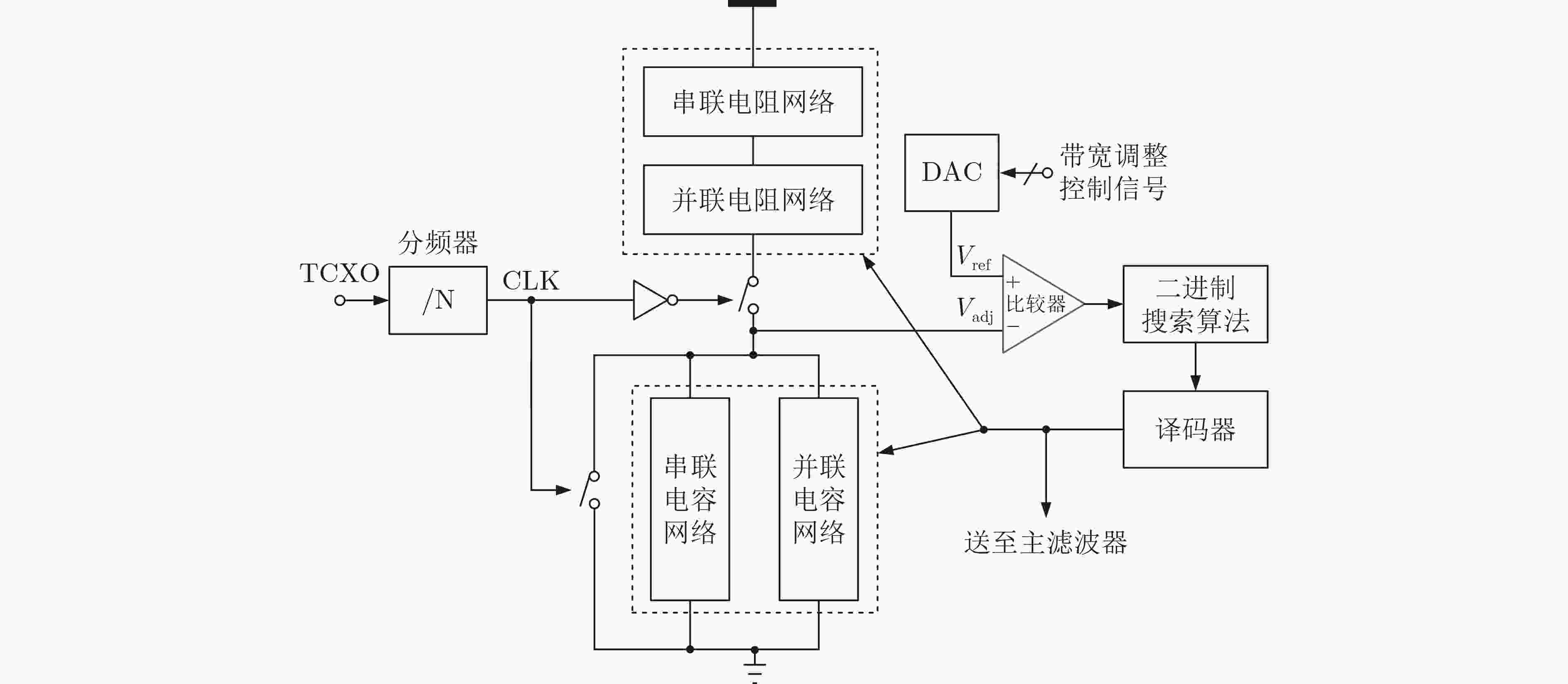

图 6 宽带滤波器带宽校准电路

下载: 全尺寸图片幻灯片

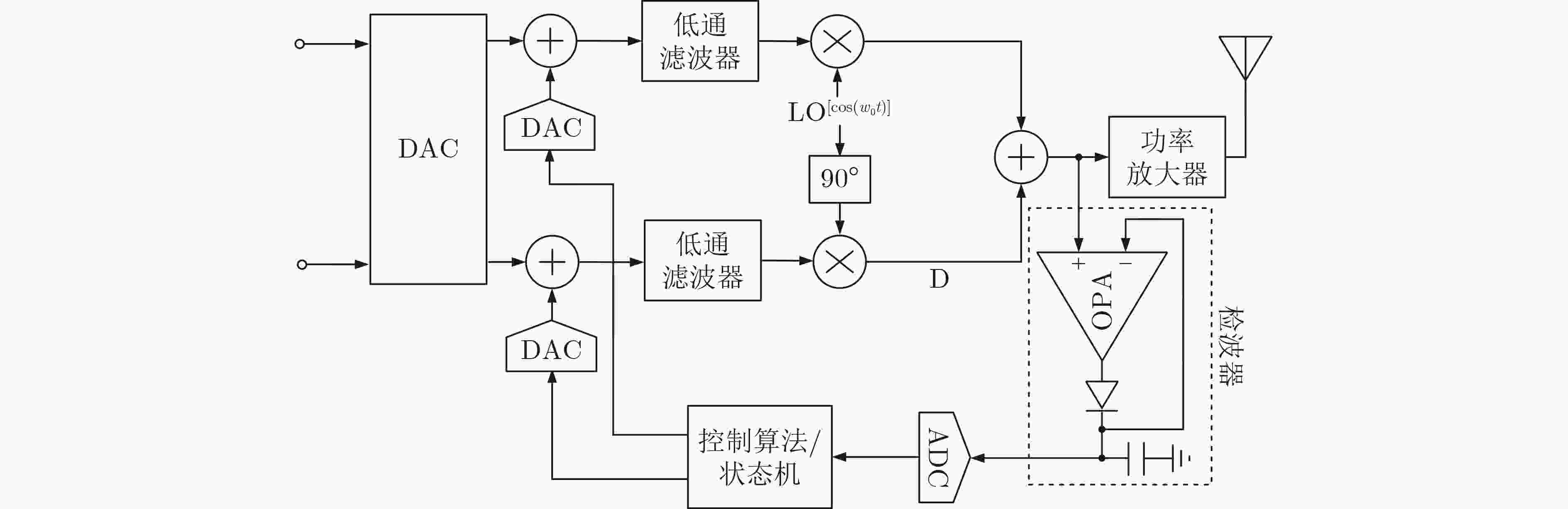

图 7 发射端载波泄露校准电路

下载: 全尺寸图片幻灯片

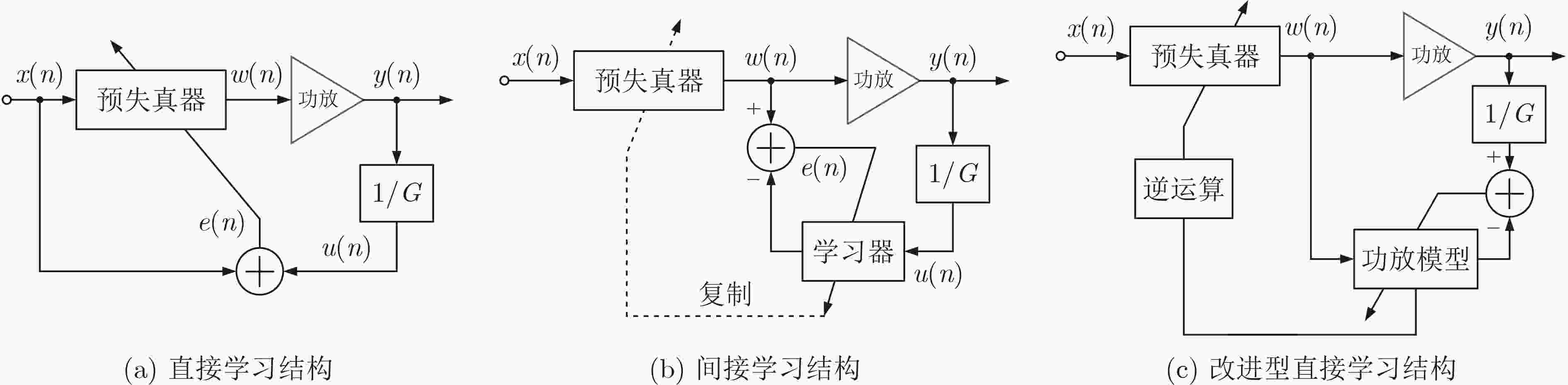

图 8 DPD学习结构

下载: 全尺寸图片幻灯片

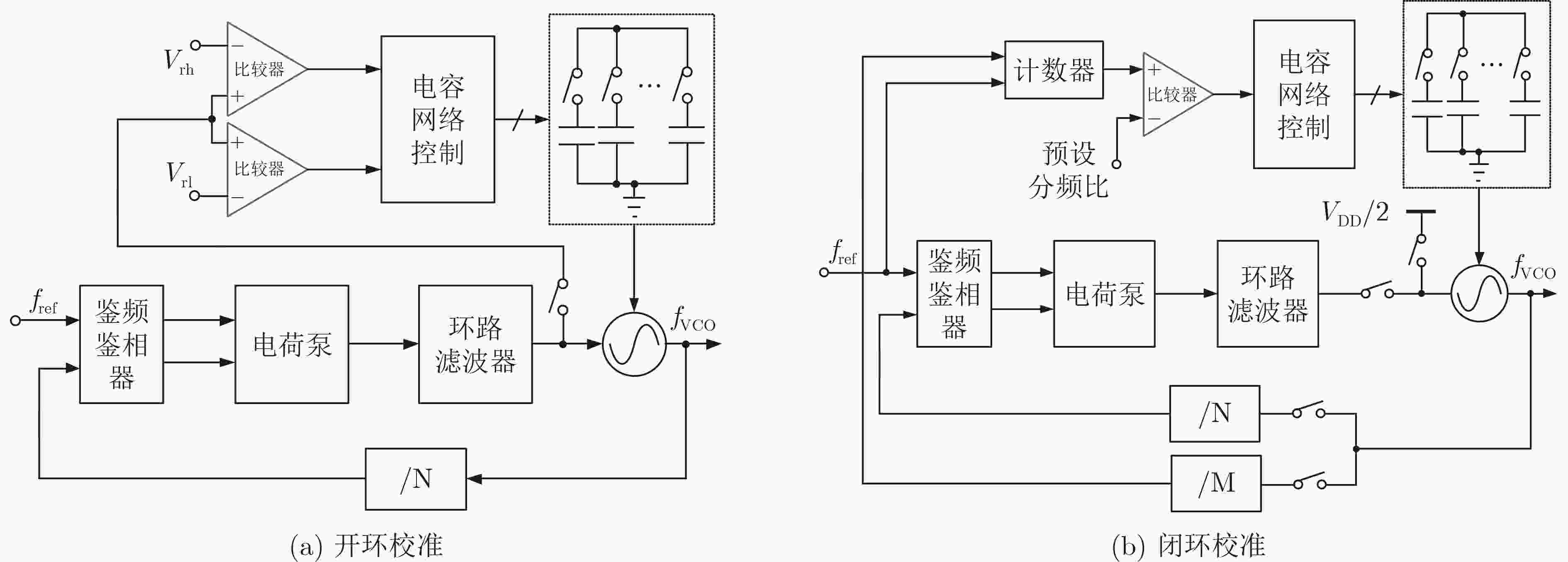

图 9 AFC校准方法

下载: 全尺寸图片幻灯片

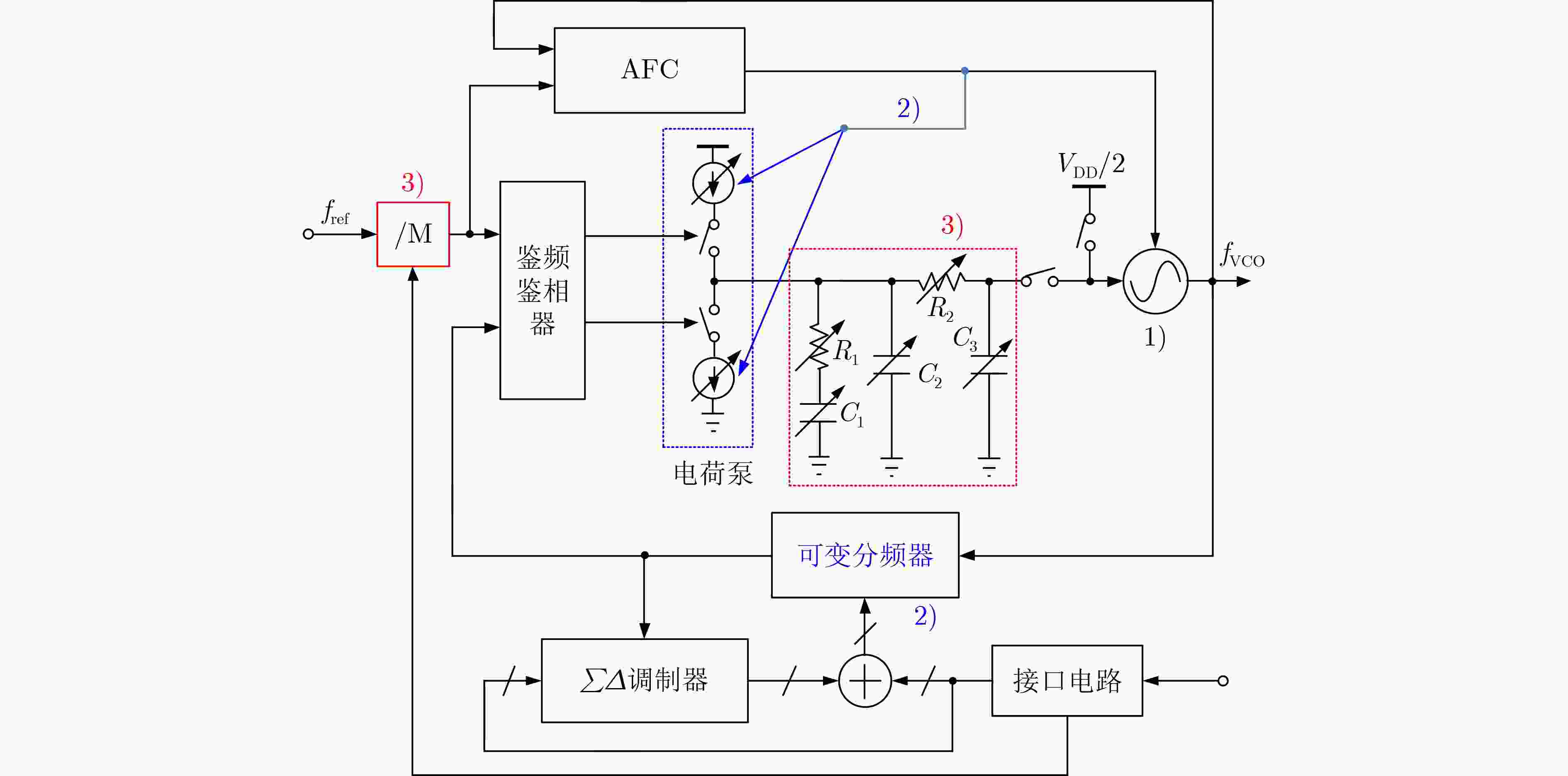

图 10 频率综合器稳定型校准示意图

下载: 全尺寸图片幻灯片

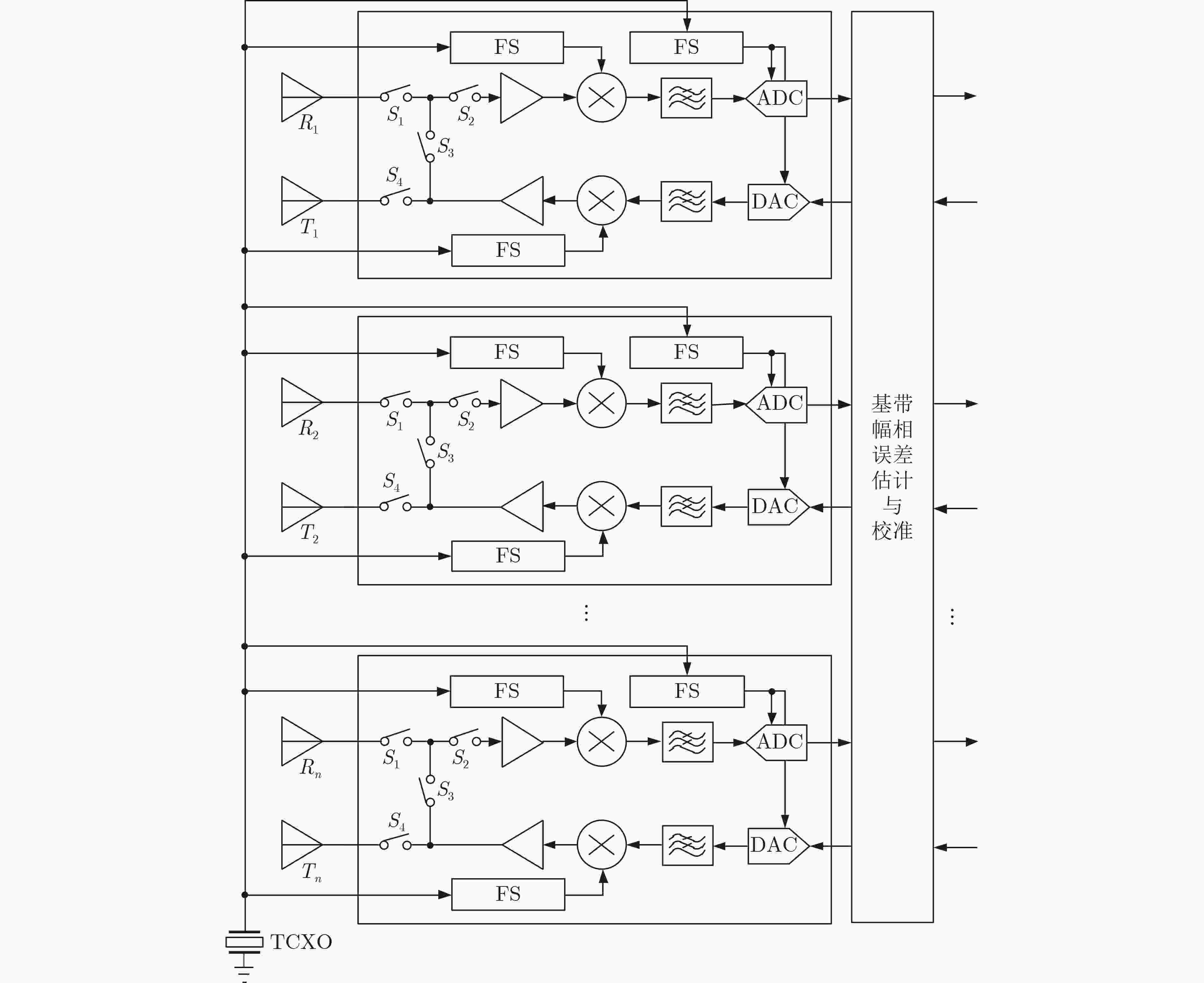

图 11 多通道幅相校准图

下载: 全尺寸图片幻灯片

表 1 本文校准技术总结

降级原因		降级现象	产生原因	校准技术	出现场景
射频收发链路	直流偏移	接收链路饱和	自混频/外部强干扰/ 工艺偏差、温度变化	直流偏移校准	接收链路
	偶次非线性失真	降低信号信噪比	器件非线性、器件失配	偶次非线性失真校准	零中频接收链路
	I/Q失配	星座图旋转	工艺偏差、温度变化	I/Q失配校准	收发链路
	谐波干扰	降低信号信噪比	混频器开关效应的奇次谐波	谐波抑制技术	超宽带接收链路
	滤波器带宽偏移	信号混叠效应或者抑制周期性频谱能力减弱	工艺偏差、温度变化	滤波器带宽偏移校准	收发链路
	本振泄露	星座图水平/垂直移动	器件失配	本振泄露校准	发射链路
	PA非线性	发射频谱增生	器件非线性	数字预失真	发射链路
频率综合器	K_VCO过大	本振杂散增强、锁定时间长	频率综合器固有属性	自动频率校准	频率综合器
频率综合器	稳定性降级	环路自激	外部输入/输出频率变化	稳定性校准	频率综合器
多通道射频收发	多通道幅相失配	波束畸形成形	器件失配导致多通道幅相失配	多片同步校准技术	相控阵等多通道应用场景

下载: 导出CSV
