可信设计技术的脆弱性分析与防御

崔晓通; 秦蔚蓉; 程克非; 吴渝

doi:10.11999/JEIT210624

可信设计技术的脆弱性分析与防御

doi: 10.11999/JEIT210624

崔晓通^{1, 2, ,},
秦蔚蓉¹,
程克非¹,
吴渝¹

1.
重庆邮电大学网络空间安全与信息法学院重庆 400065
2.
汽车噪声振动和安全技术国家重点实验室重庆 401122

基金项目: 重庆市教委科学技术项目(KJQN201900641)，计算机体系结构国家重点实验室开放课题(CARCH201902)，汽车噪声振动和安全技术国家重点实验室开放课题(NVHSKL-202114)

详细信息

作者简介:
崔晓通：男，1991年生，博士，讲师，研究方向为硬件安全、容错计算

秦蔚蓉：女，1997年生，硕士生，研究方向为硬件安全、无线电测试

程克非：男，1974年生，博士，教授，研究方向为网络安全、嵌入式系统

吴渝：女，1970年生，博士，教授，研究方向为网络舆情与管控

通讯作者:
崔晓通　xiaotong.sd@gmail.com

中图分类号: TP309.5; TN402
计量
- 文章访问数: 719
- HTML全文浏览量: 550
- PDF下载量: 51
- 被引次数: 0
出版历程
- 收稿日期: 2021-06-28
- 修回日期: 2021-08-12
- 网络出版日期: 2021-08-27
- 刊出日期: 2021-09-16

The Vulnerability Analysis of Design-for-trust Technique and Its Defense

Xiaotong CUI^{1, 2
, ,},
Weirong QIN¹,
Kefei CHENG¹,
Yu WU¹

1.
School of Cyber Security and Information Law, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
State Key Laboratory of Vehicle NVH and Safety Technology, Chongqing, 401122 China

Funds: The Science and Technology Research Program of Chongqing Municipal Education Commission (KJQN201900641), The State Key Laboratory of Computer Architecture Research Fund (CARCH201902), The State Key Laboratory of Vehicle NVH and Safety Technology Research Fund (NVHSKL-202114)

摘要

摘要: 片上系统 (SoC) 设计人员通常使用第三方知识产权 (3PIP) 核来实现特定功能。由于这些 3PIP 核不受信任，所搭建的 SoC受到了硬件木马 (HT) 的威胁。作为可信设计技术的一个子集，多样性冗余机制在使用不可信3PIP建立可信计算方面具有较好的应用前景。然而，该文发现通过探索激活序列所设计的硬件木马能够破坏多样性冗余机制的安全性。鉴于此，该文提出一种改进的基于检查点的多样性冗余机制来防御此类攻击。
- 硬件木马 /
- 可信设计 /
- 检查点 /
- 序列提取
Abstract: System-on-Chip (SoC) designers typically use third Party Intellectual Property(3PIP) cores to implement target functions. As these 3PIP cores are not trusted, the underlying SoC suffers from the threat of Hardware Trojans(HTs). As a subset of design-for-trust techniques, the diversified redundancy is promising in establishing trustworthy computings of SoCs. However, It is shown that the diversified redundancy can be defeated by HTs that explores triggering patterns. Therefore, an adapted diversified redundancy technique is proposed to defend against such kind of attacks.
- Hardware Trojans(HTs) /
- Design-for-trust /
- Checkpoints /
- Sequence extraction

HTML全文

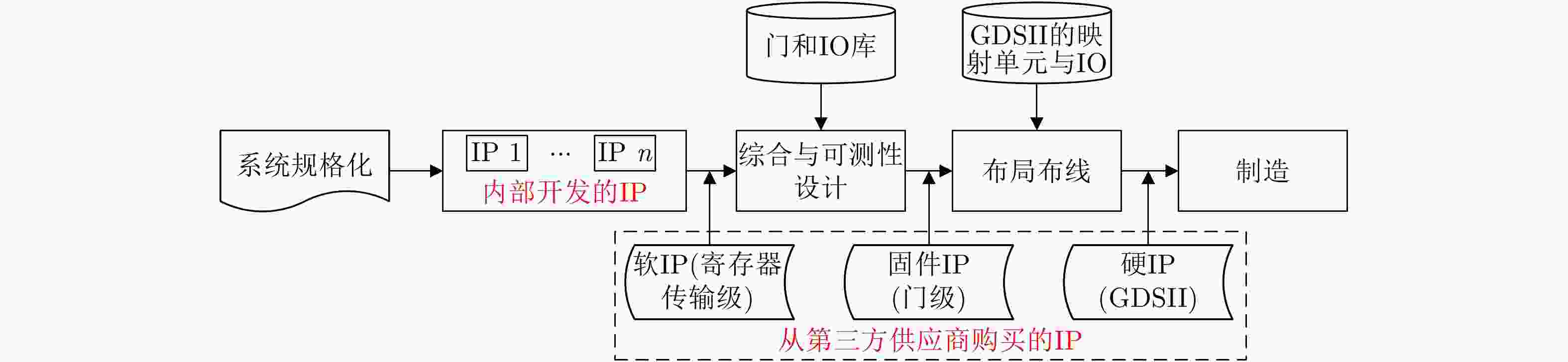

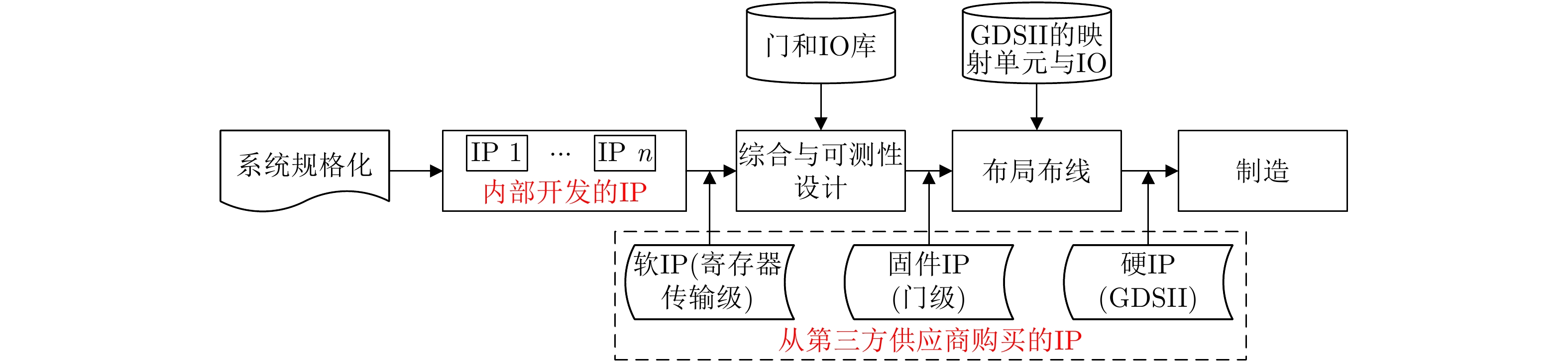

图 1 基于IP的SoC设计开发流程

下载: 全尺寸图片幻灯片

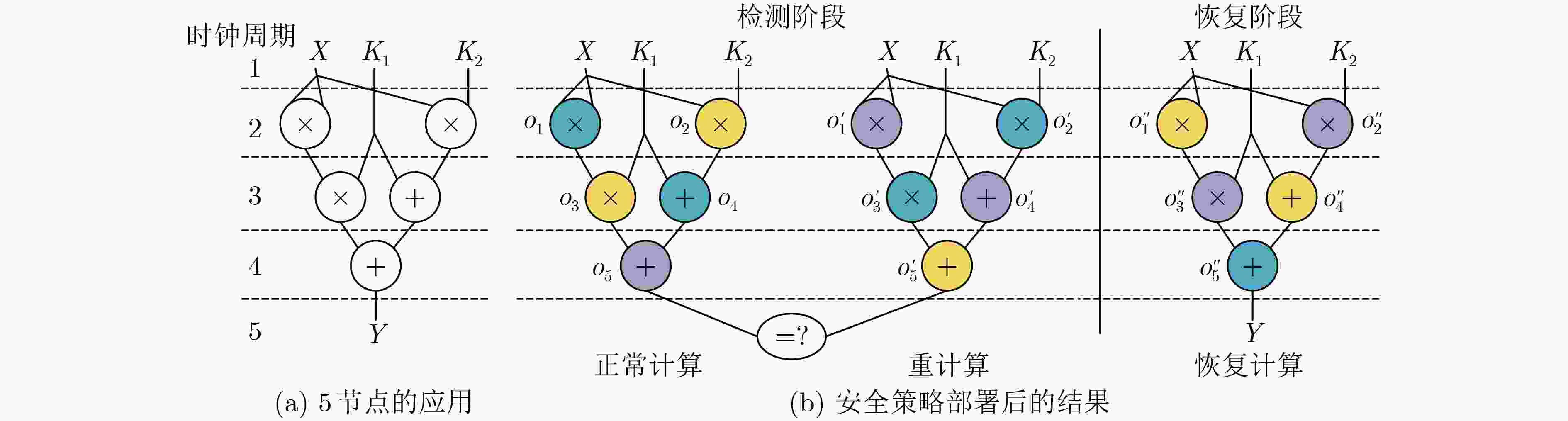

图 2 多样性冗余机制中的安全策略部署

下载: 全尺寸图片幻灯片

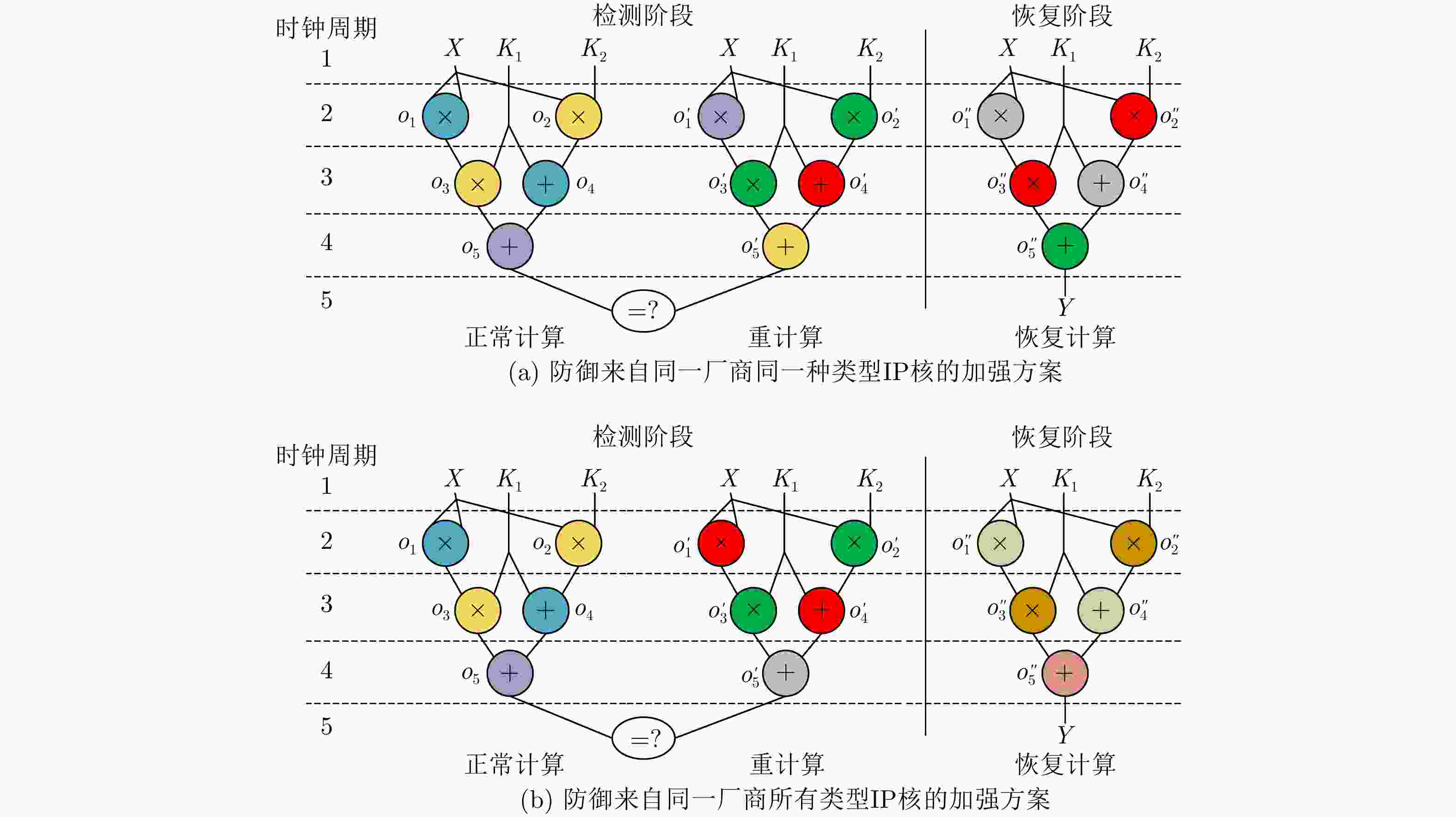

图 3 通过IP核多样性增强防御方案

下载: 全尺寸图片幻灯片

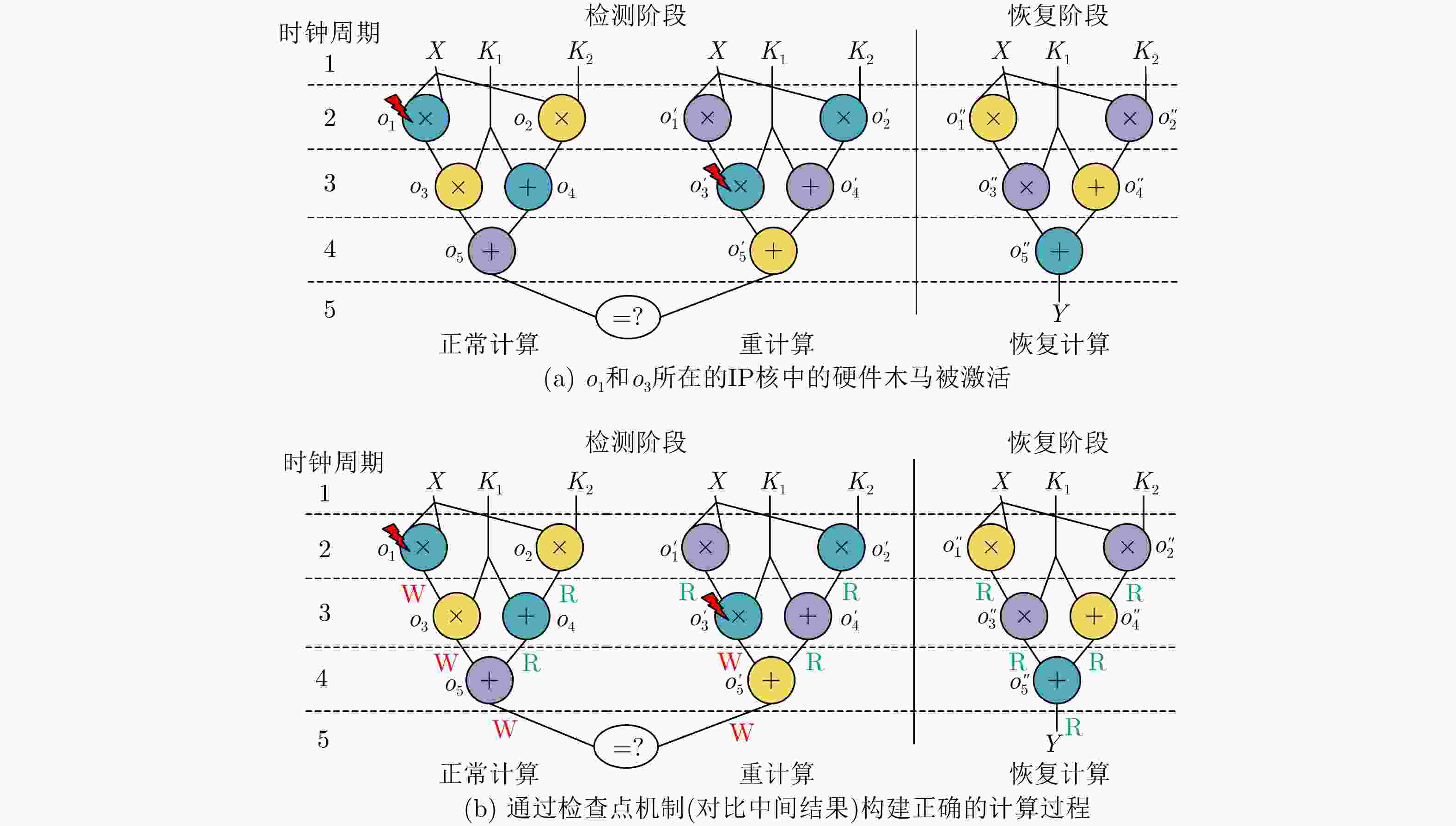

图 4 通过检查点机制增强防御方案

下载: 全尺寸图片幻灯片

表 1 当1个硬件木马被激活时计算中的中间结果展示

时钟周期	正常计算					重计算					恢复计算
时钟周期	o₁	o₂	o₃	o₄	o₅	$o'_1 $	$o'_2 $	$o'_3 $	$o'_4 $	$o'_5 $	$o''_1 $	$ o''_2$	$o''_3 $	$o''_4 $	$o''_5 $
1(6)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	25	15	N/A	N/A	N/A
2(7)	25	15	N/A	N/A	N/A	25	15	N/A	N/A	N/A	25	15	50	17	N/A
3(8)	25	15	30	17	N/A	25	15	50	17	N/A	25	15	50	17	67
4	25	15	30	17	47	25	15	50	17	67
5	o₅≠$o'_5 $时进入恢复计算

下载: 导出CSV

表 2 基于检查点的多样性冗余机制算法

算法1 基于检查点的多样性冗余机制
设置恢复计算切换标志位flag=0
(1)在检测阶段，对于每对正常计算、重计算中对应的任务节点，比较并存储其运算结果；
(2)如果存在运算结果不一致的情况，则将flag置为1
(3)当检测阶段结束时，如果flag=0，则正常计算的最终输出为正确输出，否则进入恢复阶段。
(4)对于恢复计算中的每个任务节点，将其结果与检测阶段存储的结果进行比较，根据多数投票原则构建正确计算，并获取最终计算结果。

下载: 导出CSV
