结合头部和整体信息的多特征融合行人检测

陈勇; 谢文阳; 刘焕淋; 汪波; 黄美永

doi:10.11999/JEIT210268

结合头部和整体信息的多特征融合行人检测

doi: 10.11999/JEIT210268

1.
重庆邮电大学工业物联网与网络化控制教育部重点实验室重庆 400065
2.
重庆邮电大学通信与信息工程学院重庆 400065

基金项目: 国家自然科学基金(51977021)

详细信息

作者简介:
陈勇：男，1963年生，博士，教授，主要研究方向为图像处理与模式识别

谢文阳：男，1994年生，硕士生，研究方向为深度学习及图像处理

刘焕淋：女，1970年生，博士生导师，教授，研究方向为信号处理

汪波：男，1995年生，硕士生，研究方向为图像处理

黄美永：女，1997年生，硕士生，研究方向为图像处理

通讯作者:
陈勇　chenyong@cqupt.edu.cn

中图分类号: TN911.73; TP391.41
计量
- 文章访问数: 912
- HTML全文浏览量: 771
- PDF下载量: 146
- 被引次数: 0
出版历程
- 收稿日期: 2021-04-02
- 修回日期: 2021-08-21
- 网络出版日期: 2021-09-09
- 刊出日期: 2022-04-18

Multi-feature Fusion Pedestrian Detection Combining Head and Overall Information

1.
Key Laboratory of Industrial Internet of Things & Network Control, Ministry of Education, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (51977021)

摘要

摘要: 尺度过小或被遮挡是造成行人检测准确率降低的主要原因。由于行人头部不易被遮挡且其边界框包含的背景干扰较少，对此，该文提出一种结合头部和整体信息的多特征融合行人检测方法。首先，设计了一种具有多层结构的特征金字塔以引入更丰富的特征信息，融合该特征金字塔不同子结构输出的特征图从而为头部检测和整体检测提供有针对性的特征信息。其次，设计了行人整体与头部两个检测分支同时进行检测。然后，模型采用无锚框的方式从特征图中预测中心点、高度及偏移量并分别生成行人头部边界框和整体边界框，从而构成端到端的检测。最后，对非极大值抑制算法进行改进使其能较好地利用行人头部边界框信息。所提算法在CrowdHuman数据集和CityPersons数据集Reasonable子集上的漏检率分别为50.16%和10.1%，在Caltech数据集Reasonable子集上的漏检率为7.73%，实验表明所提算法对遮挡行人的检测效果以及泛化性能与对比算法相比得到一定的提升。
- 行人检测 /
- 特征金字塔 /
- 特征融合 /
- 中心点检测
Abstract: The decrease in accuracy of pedestrian detection mainly caused by occlusion and too small scale. Since the pedestrian head is not easily occluded and it’s bounding box contains less background interference, a multi-feature fusion pedestrian detection method combines head and overall information is proposed. Firstly, a feature pyramid with multi-layer structure is designed to introduce richer information, feature maps output from different substructures of the feature pyramid are fused to provide targeted information for head and overall detection. Secondly, two branches are designed to perform the detection simultaneously. Then, the model generates pedestrian head and overall bounding boxes respectively from predicted centers, heights and offsets thus constituting end-to-end detection. Finally, non-maximum suppression algorithm is improved to make better use of the pedestrian head information. The experimental results show that the proposed algorithm has 50.16% miss rate on CrowdHuman dataset and 10.1% miss rate on the Reasonable subset of CityPersons dataset, and 7.73% miss rate on the Reasonable subset of Caltech dataset. Experimental results show the detection efficiency and generalization performance of the proposed algorithm are improved compared with the contrast algorithms.
- Pedestrian detection /
- Feature pyramid /
- Feature fusion /
- Center detection

HTML全文

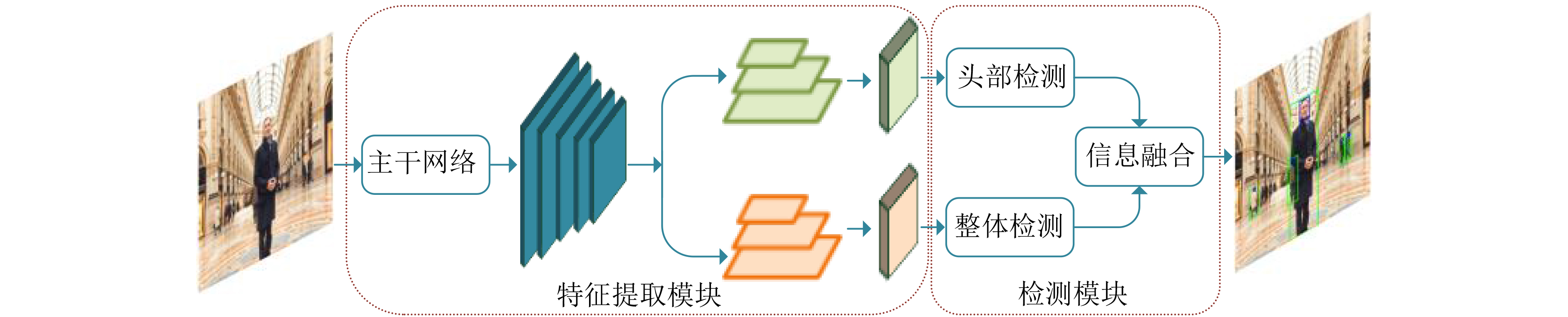

图 1 模型总体结构

下载: 全尺寸图片幻灯片

图 2 特征提取模块结构

下载: 全尺寸图片幻灯片

图 3 检测模块结构

下载: 全尺寸图片幻灯片

图 4 行人头部区域

下载: 全尺寸图片幻灯片

图 5 检测效果对比

下载: 全尺寸图片幻灯片

图 6 实际检测效果

下载: 全尺寸图片幻灯片

表 1 Caltech数据集中部分子集划分标准

子集	行人高度	遮挡程度
Reasonable	>50 PXs	遮挡比例<0.35
Partial	>50 PXs	0.1<遮挡比例≤0.35
Heavy	>50 PXs	0.35<遮挡比例≤0.8

下载: 导出CSV

表 2 CityPersons数据集中部分子集划分标准

子集	行人高度	遮挡程度
Bare	>50 PXs	0.1≤遮挡比例
Reasonable	>50 PXs	遮挡比例<0.35
Partial	>50 PXs	0.1<遮挡比例≤0.35
Heavy	>50 PXs	0.35<遮挡比例≤0.8

下载: 导出CSV

表 3 CrowdHuman数据集实验结果(%)

方法	AP	MR	Recall
RetinaNet^[7]	80.83	63.33	93.80
FPN^[9]	84.95	50.42	90.24
Adaptive NMS^[16]	79.67	63.03	94.77
JED^[24]	85.90	53.59	91.90
本文方法	87.31	50.16	93.55

下载: 导出CSV

表 4 CityPersons数据集漏检率(MR)的实验结果(%)

方法	Bare	Reasonable	Partial	Heavy	Small	Medium	Large
FRCNN^[6]	–	15.4	–	–	25.6	7.2	7.9
OR-CNN^[12]	6.7	12.8	15.3	55.7	–	–	–
FRCNN+Seg^[22]	–	14.8	–	–	22.6	6.7	8.0
CSP^[15]	7.3	11.0	10.4	49.3	16.0	3.7	6.5
ALFNet^[25]	8.4	12.0	11.4	51.9	19.0	5.7	6.6
LBST^[10]	–	12.8	–	–	–	–	–
CAFL^[14]	7.6	11.4	12.1	50.4	–	–	–
本文方法(City训练)	7.5	10.6	10.2	49.5	15.0	4.4	7.0
本文方法(Crowd训练)	7.9	10.1	9.8	50.2	14.3	3.5	7.2

下载: 导出CSV

表 5 Caltech数据集漏检率MR和速度的实验结果

方法	Reasonable MR(%)	Partial MR(%)	Heavy MR(%)	速度(s/帧)
F-DNN^[16]	8.65	15.41	55.13	0.3
F-DNN+SS^[16]	8.18	15.11	53.76	2.5
Faster R-CNN+ATT^[26]	10.33	22.29	45.18	–
MS-CNN^[27]	9.95	19.24	59.94	0.4
本文方法	7.73	14.55	48.31	0.4

下载: 导出CSV
