Research on Material Emergency Scheduling Based on Discrete Whale Swarm Algorithm
-

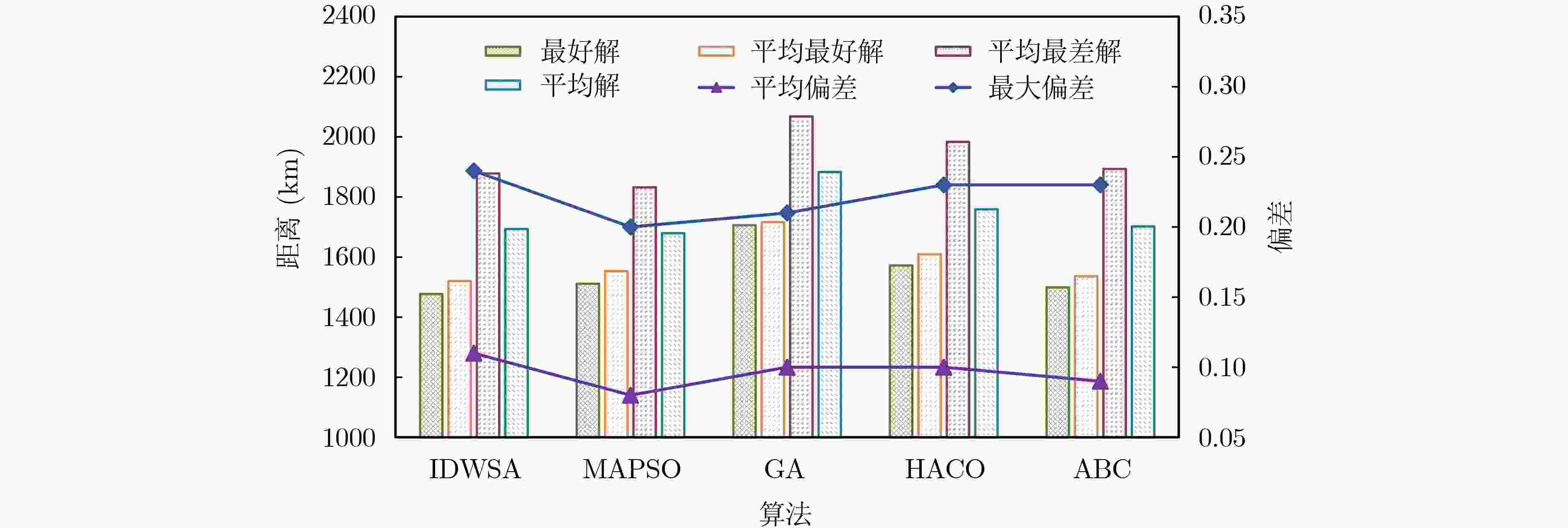

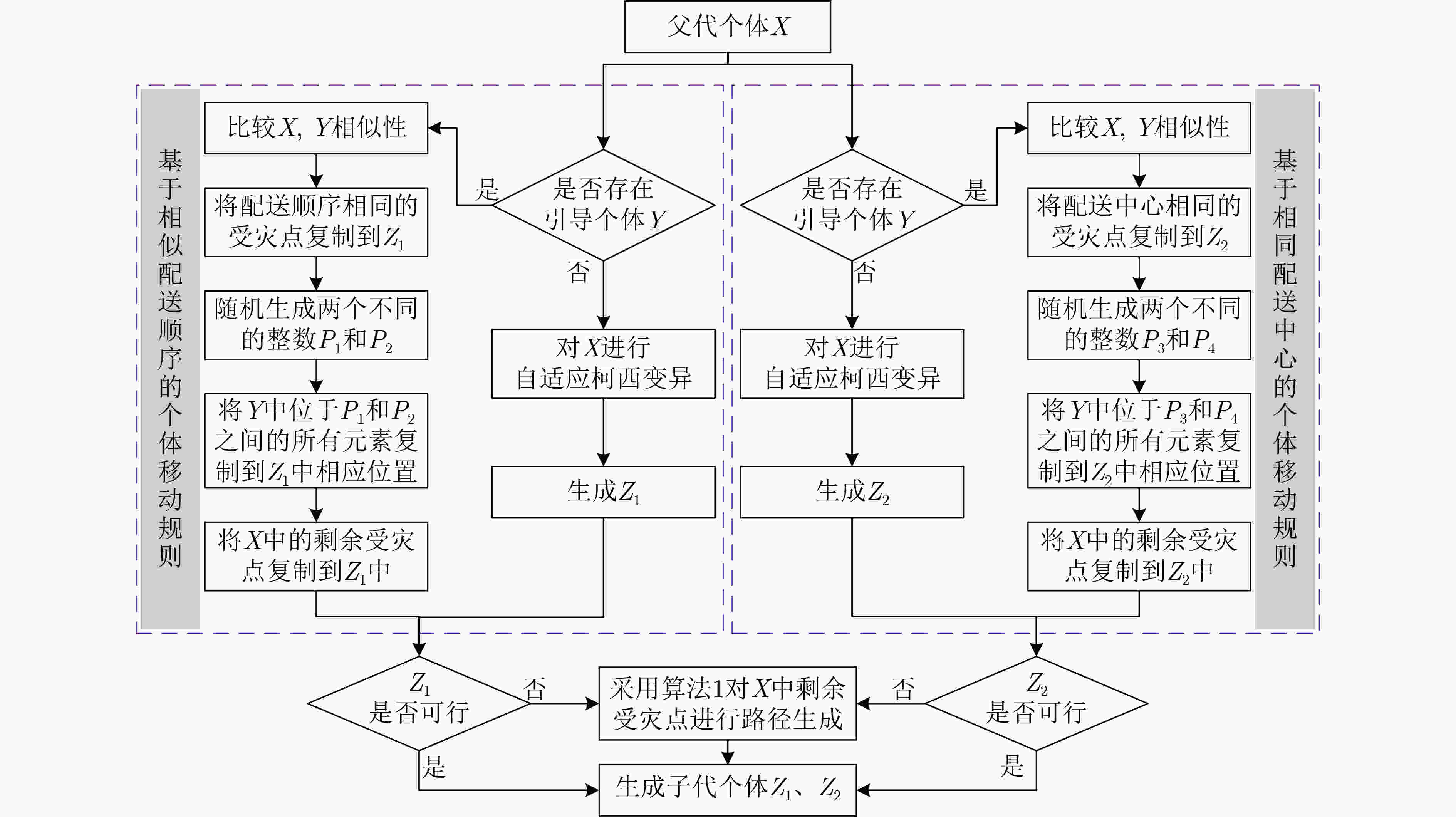

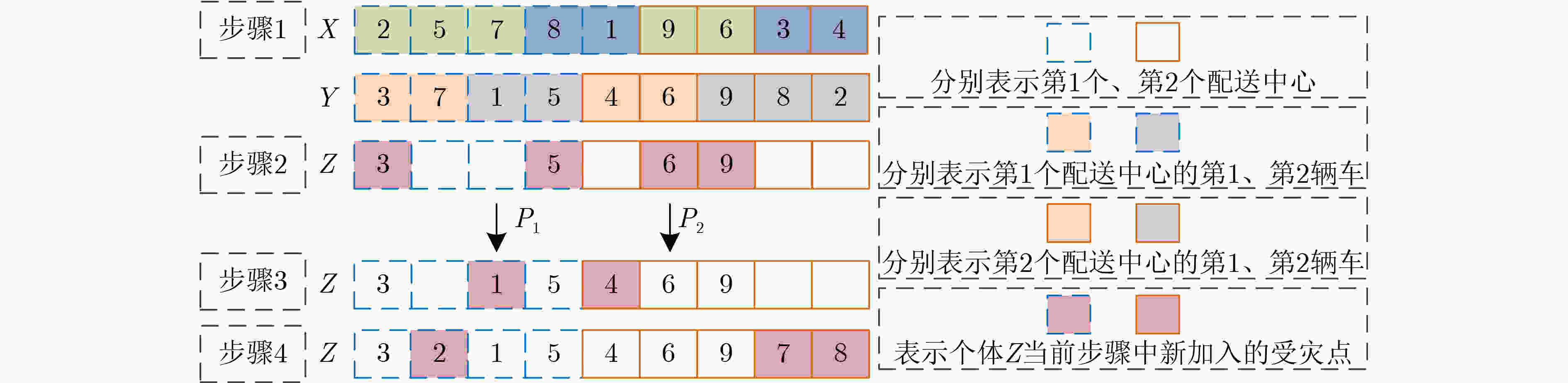

摘要: 针对鲸鱼群算法求解多配送中心带时间窗的物资应急调度问题时存在的易陷入局部极值等缺点，该文提出一种改进离散鲸鱼群算法(IDWSA)。首先采用混合初始化策略提高初始种群的质量；然后构建以相似配送顺序和相同配送中心为比较项的两种移动规则，并设计自适应柯西变异算子和路径选择策略对个体进行移动；最后构造全局评价函数用于选择个体以维持种群多样性。在Solomon标准测试集上，IDWSA所求最好解的距离与MAPSO, GA, HACO, ABC相比分别减少了2.25%, 13.4%, 6%, 1.46%，有效缩短了车辆的行驶距离。Abstract: To overcome the problem of easily falling into local extreme values of the whale swarm algorithm when it solves the material emergency scheduling problem with time windows in multiple distribution centers, an Improved Discrete Whale Swarm Algorithm (IDWSA) is proposed. First, a hybrid initialization strategy is used to improve the quality of the initial population. Then two moving rules with similar distribution order and the same distribution center are constructed as comparison items, and an adaptive Cauchy mutation operator and path selection strategy are designed to move individuals. Finally, a global evaluation function is constructed to select individuals to maintain population diversity. On the Solomon standard test set, the distance of the best solution obtained by IDWSA is reduced by 2.25%,13.4%,6% and 1.46% compared with MAPSO,GA,HACO and ABC, respectively, which shortens effectively the driving distance of the vehicle.
-
表 1 路径选择策略
输入：路径权值矩阵W，未被访问受灾点集合S 输出：可行路径L (1) p=0，L=[0] (2) while len(S)!=0 (3) max=W[p][0], max_index=0 (4) for i=1 to len(S) do (5) if max<W[p][i] then (6) max=W[p][i], max_index=i (7) end if (8) end for (9) L.append(max_index) (10) S.remove(max_index) (11) end while
下载: 导出CSV
表 3 评价指标及含义
评价指标 含义 最好解/车辆数 不同求解次数中求得的车辆行驶路径的最短总距离/当前解的所用总车辆数 最差解/车辆数 不同求解次数中求得的车辆行驶路径的最长总距离/当前解的所用总车辆数 种群平均解/车辆数 当前种群中所有个体表示的车辆行驶距离的平均值/当前种群所有解的平均总车辆数 平均最好解 所有实验中最好解的平均值 平均最差解 所有实验中最差解的平均值 平均解 所有实验中所求平均解的平均值 平均偏差 (平均解–最好解)/最好解 最大偏差 (最差解–最好解)/最好解 运算时间 每一次实验所耗费的时间 平均运算时间 所有实验次数下算法的平均运行时间
下载: 导出CSV

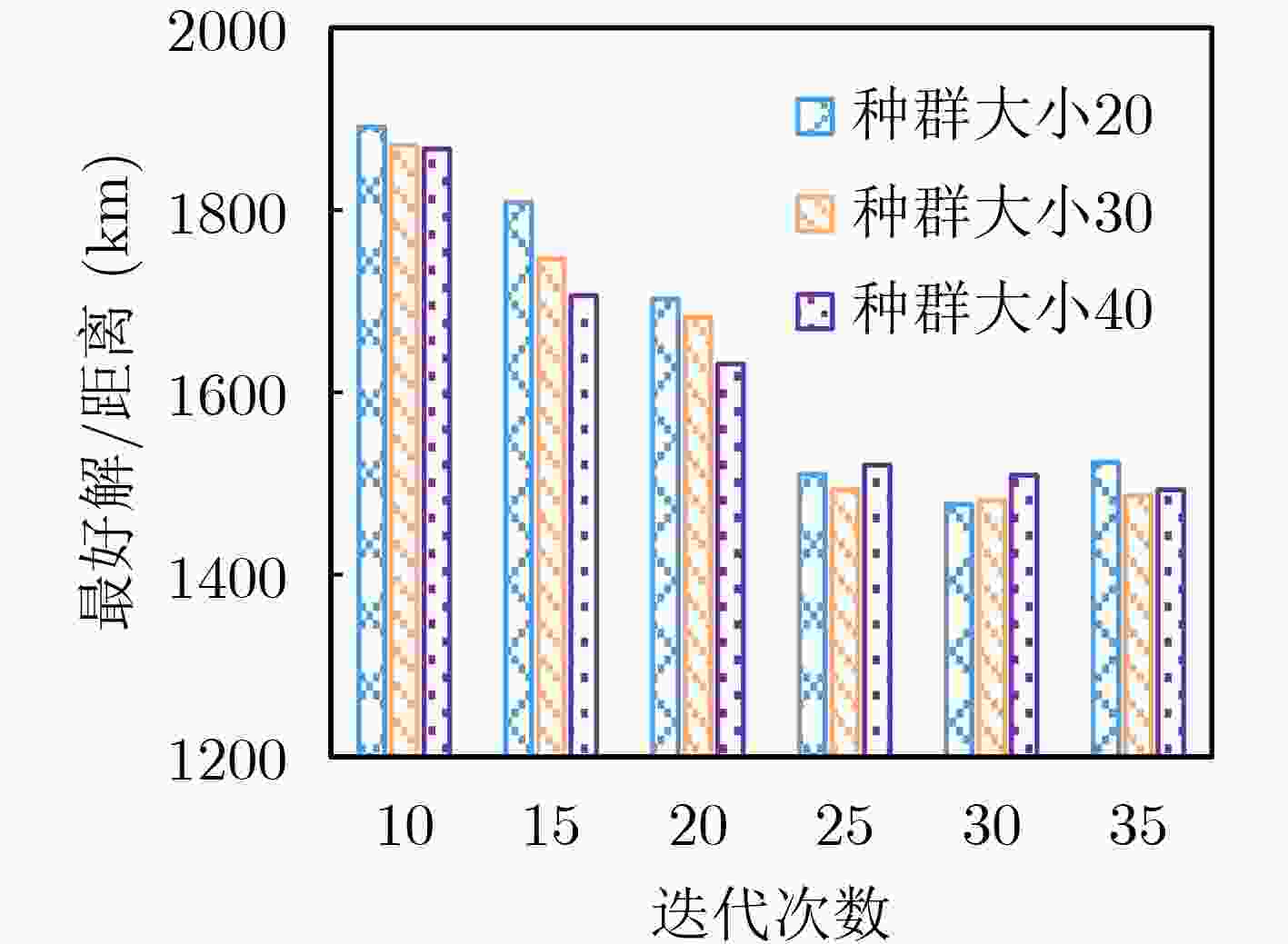

表 4 不同参数下算法所求解的质量
种群大小 迭代次数 平均最好解(km) 平均最差解(km) 平均解(km) 20 10 1966.8 2231.4 2011.35 15 1902.6 2092.2 1944.6 20 1854 2051.2 1907.68 25 1627 2022 1890.43 30 1520 1878 1692.96 35 1579 1927 1743.6 30 10 1881 2051.2 1907.68 15 1752.71 2239.7 1869.97 20 1621.3 1855 1655.52 25 1501.6 2001.95 1713.41 30 1496.2 1956.17 1709.3 35 1499 2016.5 1756.9 40 10 1895 2089 1965.34 15 1723.1 2003.6 1867.6 20 1689 1929 1735.55 25 1534.2 2009.6 1796.5 30 1571.6 2011.2 1801.26 35 1509.32 1967.51 1839.3
下载: 导出CSV

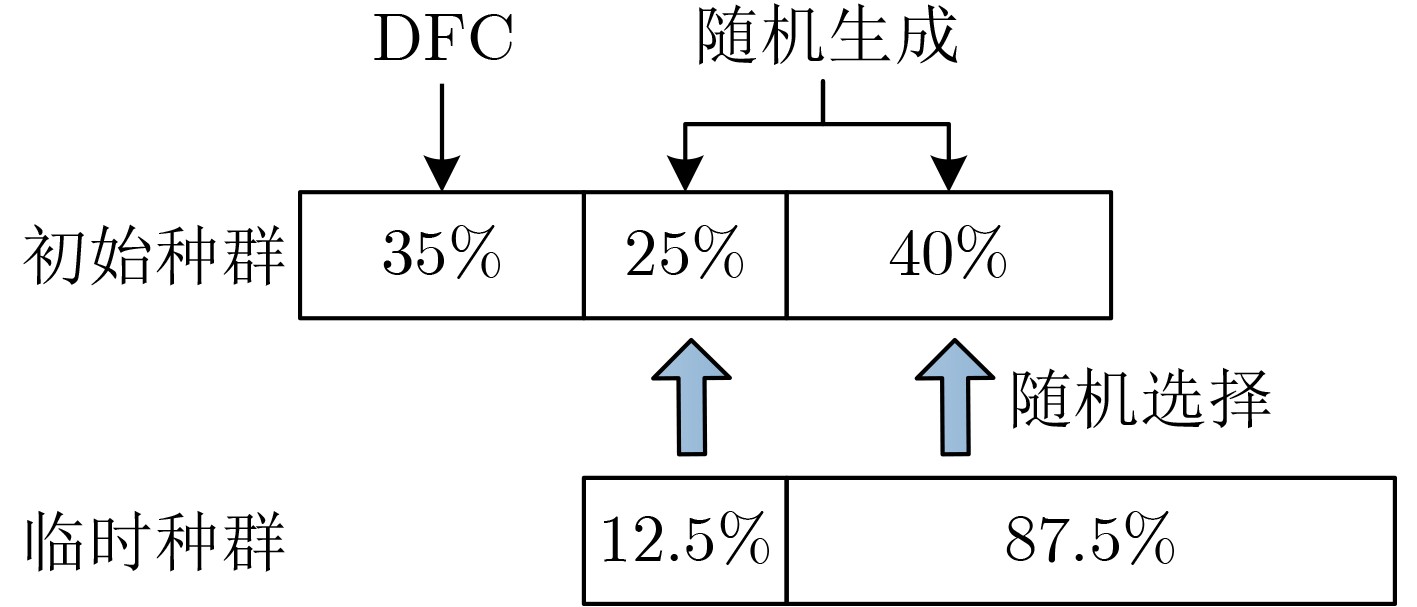

表 5 3种种群初始化方式结果对比
混合初始化策略 DFC 随机生成 初始种群 种群多样性 0.105 0.09 0.12 平均最好解(km) 2172 2333.55 2959.36 平均最差解(km) 3703.13 2685.35 3643.74 平均解(km) 3069.48 2526.38 3407.23 最终解 种群多样性 0.0319 0.02643 0.02943 平均最好解(km) 1520 1794.95 2171.68 平均最差解(km) 1878 1911.77 2461.23 平均解(km) 1692.96 1809.34 2296.54
下载: 导出CSV

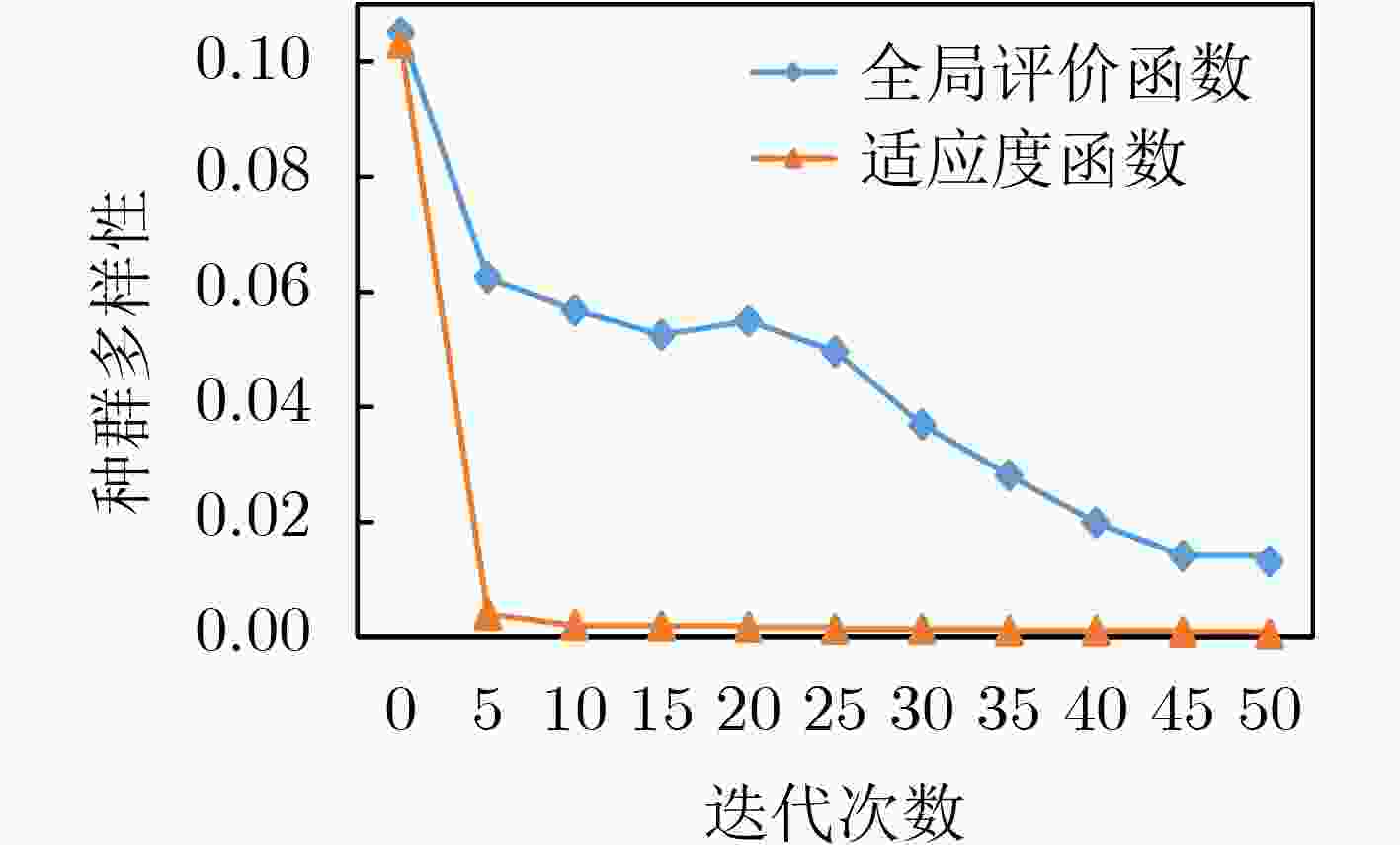

表 6 两种函数求得可行解
全局评价函数 适应度函数 最好解/车辆数 1477/9 1576/9 最差解/车辆数 1868/10 1927/11 种群平均解/车辆 1672.96/10 1743.6/10 最大偏差 0.26 0.22 平均偏差 0.13 0.10 平均运算时间 46.16 46.31
下载: 导出CSV
-
