A Microwave Photonic Channelizer Based on Dual-output Image-reject Mixer
-

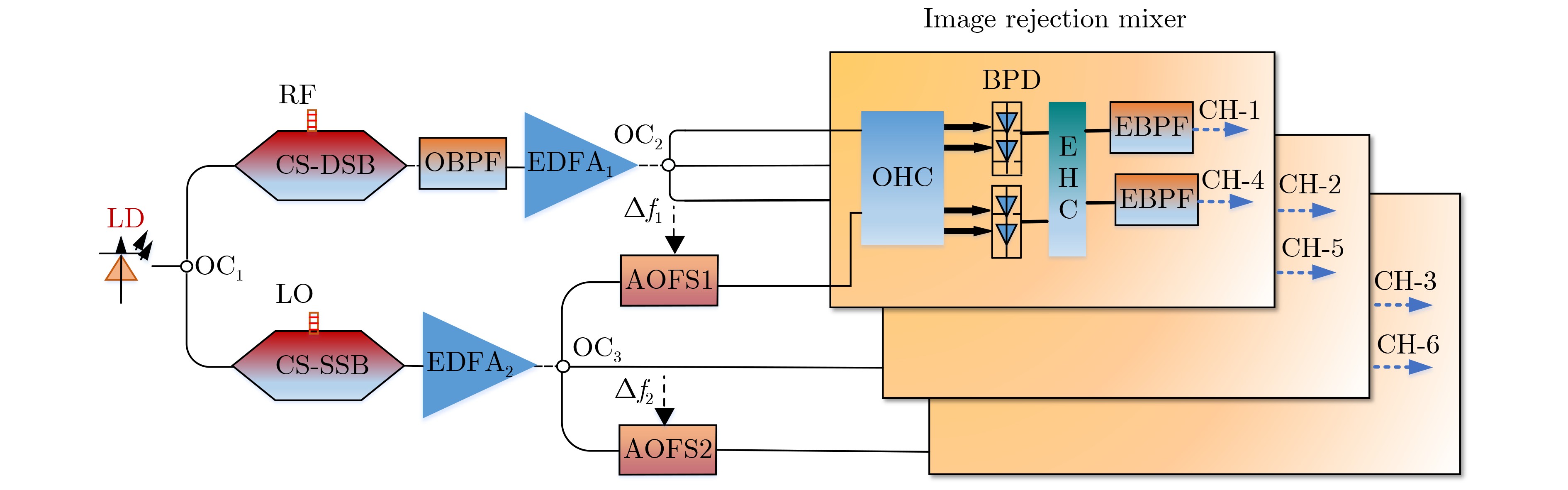

摘要: 微波光子信道化接收机可将待接收的射频信号转化到光域进行传输和处理，有效避免了电子瓶颈的限制，可实现超大带宽信号或多频点信号的瞬时接收，非常适用于雷达系统和电子战。该文提出一种镜像抑制双输出的微波光子信道化接收机，信号路和本振路都采用光分路器分为3路，光本振利用声光移频器实现左右移频后与信号路进入镜像抑制混频器，最终可将一个6 GHz带宽的射频信号划分到6个带宽为1 GHz的子信道完成接收。该方案无须用到光频梳且信道化效率提高1倍，子信道的信道串扰均超过22 dB，镜像抑制比约为24 dB左右，系统的无杂散动态范围可达到106.7 dB·Hz 2∕3。Abstract: The microwave photonic channelizer can convert the Radio Frequency (RF) signal into the optical domain for transmission and procession, avoiding effectively the limitation of electronic bottleneck, and realizing the instantaneous reception of ultra-wideband signal or multi-frequency signals, which can be perfectly applied to radar system and electronic warfare. In this paper, a microwave photonic channelizer based on dual-output image-reject mixer is proposed, both the signal path and the local oscillator path are divided into three paths by using an optical coupler. An acousto-optic frequency shifter is used by the optical local oscillator to shift the frequency to the left and right and then enters the image rejection mixer with the signal path. Finally, a 6 GHz bandwidth RF signal is divided into 6 subchannels with a bandwidth of 1 GHz to achieve simultaneous reception. This scheme needs no optical frequency comb and doubles the channelization efficiency, the image rejection ratio of the sub-channels all exceeds 22 dB, and the spurious-free dynamic range of the system can reach 91.4 dB·Hz 2∕3.
-
[1] XIE Xiaojun, DAI Yitang, XU Kun, et al. Broadband photonic RF channelization based on coherent optical frequency combs and I/Q demodulators[J]. IEEE Photonics Journal, 2012, 4(4): 1196–1202. doi: 10.1109/JPHOT.2012.2207380 [2] XIE Chenxu, ZHU Dan, CHEN Wenjuan, et al. Microwave channelizer based on polarization multiplexing and photonic image-reject mixing[C]. Proceedings of 2019 International Topical Meeting on Microwave Photonics, Ottawa, Canada, 2019: 1–4. [3] WO Jianghai, WANG Anle, ZHANG Jin, et al. Dual-passband microwave photonic filter for fiber axial strain measurement[C]. Proceedings of the 2017 16th International Conference on Optical Communications and Networks, Wuzhen, China, 2017: 1–3. [4] WANG Qiang, LI Huo, XING Yanfei, et al. Ultra-flat optical frequency comb generator using a single-driven dual-parallel Mach-Zehnder modulator[J]. Optics Letters, 2014, 39(10): 3050–3053. doi: 10.1364/OL.39.003050 [5] WANG Lixian, ZHU Ninghua, LI Wei, et al. Polarization division multiplexed photonic radio-frequency channelizer using an optical comb[J]. Optics Communications, 2013, 286: 282–287. doi: 10.1016/j.optcom.2012.08.054 [6] FAULKNER S, HERFURTH S, LAMAHEWA T A, et al. GPU synthesis of RF channeliser outputs for a variable bandwidth microwave digital receiver[C]. Proceedings of the 2018 12th International Conference on Signal Processing and Communication Systems, Cairns, Australia, 2018: 1–8. [7] WANG Xudong, ZHANG Jinglan, CHAN E H W, et al. Ultra-wide bandwidth photonic microwave phase shifter with amplitude control function[J]. Optics Express, 2017, 25(3): 2883–2894. doi: 10.1364/OE.25.002883 [8] MENG Xianshuai, ZHENG Jilin, PU Tao, et al. Tunable photonic microwave frequency down-converter using opto-electronic oscillator based on integrated three-section laser[C]. Proceedings of the 2020 IEEE 20th International Conference on Communication Technology, Nanning, China, 2020: 998–1001. [9] 崇毓华, 杨春, 李向华, 等. 种中频相同的微波光子信道化接收机[J]. 光电子▪激光, 2014, 25(12): 2294–2299.CHONG Yuhua, YANG Chun, LI Xianghua, et al. A microwave photonic channelization device with common intermediate frequency[J]. Journal of Optoelectronics·Laser, 2014, 25(12): 2294–2299. [10] HAO Wenhui, DAI Yitang, YIN Feifei, et al. Chirped-pulse-based broadband RF channelization implemented by a mode-locked laser and dispersion[J]. Optics Letters, 2017, 42(24): 5234–5237. doi: 10.1364/OL.42.005234 [11] TANG Zhenzhou and PAN Shilong. Image-reject mixer with large suppression of mixing spurs based on a photonic microwave phase shifter[J]. Journal of Lightwave Technology, 2016, 34(20): 4729–4735. doi: 10.1109/jlt.2016.2550180 [12] XU Xingyuan, TAN Mengxi, WU Jiayang, et al. Broadband photonic RF channelizer with 92 channels based on a soliton crystal microcomb[J]. Journal of Lightwave Technology, 2020, 38(18): 5116–5121. doi: 10.1109/JLT.2020.2997699 [13] TANG Zhenzhou and PAN Shilong. A reconfigurable photonic microwave mixer using a 90° optical hybrid[J]. IEEE Transactions on Microwave Theory and Techniques, 2016, 64(9): 3017–3025. doi: 10.1109/TMTT.2016.2594278 [14] TANG Zhenzhou, ZHU Dan, and PAN Shilong. Coherent optical RF channelizer with large instantaneous bandwidth and large in-band interference suppression[J]. Journal of Lightwave Technology, 2018, 36(16): 4219–4226. doi: 10.1109/JLT.2018.2857500 [15] LIPKOWITZ S T, HORTON T U, and MURPHY T E. Wideband microwave electro-optic image rejection mixer[J]. Optics Letters, 2019, 44(19): 4710–4713. doi: 10.1364/OL.44.004710 [16] GAO Yongsheng, WEN Aijun, ZHANG Wu, et al. Ultra-wideband photonic microwave I/Q mixer for zero-IF receiver[J]. IEEE Transactions on Microwave Theory and Techniques, 2017, 65(11): 4513–4525. doi: 10.1109/TMTT.2017.2695184 [17] GAO Yongsheng, WEN Aijun, JIANG Wei, et al. All-optical and broadband microwave fundamental/sub-harmonic I/Q down-converters[J]. Optics Express, 2018, 26(6): 7336–7350. doi: 10.1364/OE.26.007336 -
