一种具有多对称同质吸引子的四维混沌系统的超级多稳定性研究

黄丽莲; 姚文举; 项建弘; 王霖郁

doi:10.11999/JEIT201095

一种具有多对称同质吸引子的四维混沌系统的超级多稳定性研究

doi: 10.11999/JEIT201095

1.
哈尔滨工程大学信息与通信工程学院哈尔滨 150001
2.
哈尔滨工程大学先进船舶通信与信息技术重点实验室哈尔滨 150001

基金项目: 国家自然科学基金(61203004)，黑龙江省自然科学基金(F201220)，黑龙省自然科学基金联合引导项目(LH2020F022)

详细信息

作者简介:
黄丽莲：女，1972年生，教授，硕士生导师，副博士生导师，研究方向为非线性系统的混沌控制与同步

姚文举：男，1994年生，硕士生，研究方向为非线性系统的混沌控制与同步

项建弘：男，1977年生，副教授，研究方向为5G无线通信、人工智能与深度学习、自适应信号处理等

王霖郁：女，1977年生，副教授，研究方向为电路与系统

通讯作者:
项建弘　xiangjianhong@hrbeu.edu.cn

中图分类号: TP271
计量
- 文章访问数: 976
- HTML全文浏览量: 649
- PDF下载量: 105
- 被引次数: 0
出版历程
- 收稿日期: 2020-12-30
- 修回日期: 2021-06-02
- 网络出版日期: 2021-08-26
- 刊出日期: 2022-01-10

Extreme Multi-stability of a Four-dimensional Chaotic System with Infinitely Many Symmetric Homogeneous Attractors

1.
College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China
2.
The Key Laboratory of Advanced Ship Communication and Information Technology, Harbin Engineering University, Harbin 150001, China

Funds: The National Natural Science Foundation of China (61203004), The Natural Science Foundation of Heilongjiang Province (F201220)，The Heilongjiang Natural Science Foundation Joint Guide Project (LH2020F022)

摘要

摘要: 该文在一个经典3维混沌系统的基础上提出一个新的具有超级多稳定性的4维混沌系统。新系统具有一个线平衡点，可以产生无限多对称的同质吸引子。通过相轨图和庞加莱截面等方法分析了系统的混沌特性。重点利用相轨图、分岔图和Lyapunov指数谱等方法分析了初始条件对系统超级多稳定性的影响，分析表明该系统具有很大的初值变化范围，除零点外恒定的Lyapunov指数谱，中心对称的离散分岔图。进一步地，该文研究了系统初值对称性与吸引子对称性的关系，不同于现有混沌系统中的对称吸引子，该系统可以产生无限多对称的同质吸引子。最后，利用电路仿真软件搭建模拟电路捕捉该系统的混沌吸引子，其结果验证了数值仿真的正确性。
- 超级多稳定性 /
- 无限多对称的同质吸引子 /
- 中心对称的离散分岔图
Abstract: A new four-dimensional chaotic system with extreme multi-stability based on a classic three-dimensional chaotic system is proposed. The new system has a line equilibrium point, which can generate an infinite number of symmetrical homogeneous attractors. The chaotic characteristics of the system are analyzed by phase orbit diagram and Poincaré section methods. Using phase orbit diagrams, bifurcation diagrams and Lyapunov exponent spectrum methods, the influence of initial conditions on the extreme multi-stability of the system is analyzed. The analysis shows that the system has a large initial value variation range, and the Lyapunov exponent spectrum is constant except for the zero point. In addition, the system also has centrally symmetrical discrete bifurcation diagrams. Furthermore, the relationship between the initial symmetry of the system and the symmetry of the attractor is studied, which is different from the symmetrical attractor in the existing chaotic system, which can generate an infinite number of symmetrical homogeneous attractors. Finally, circuit simulation software is used to build an analog circuit to capture the chaotic attractor of the system, and the result verifies the correctness of the numerical simulation.
- Extreme multi-stability /
- An infinite number of symmetrical homogeneous attractors /
- Centrally symmetrical discrete bifurcation diagrams

HTML全文

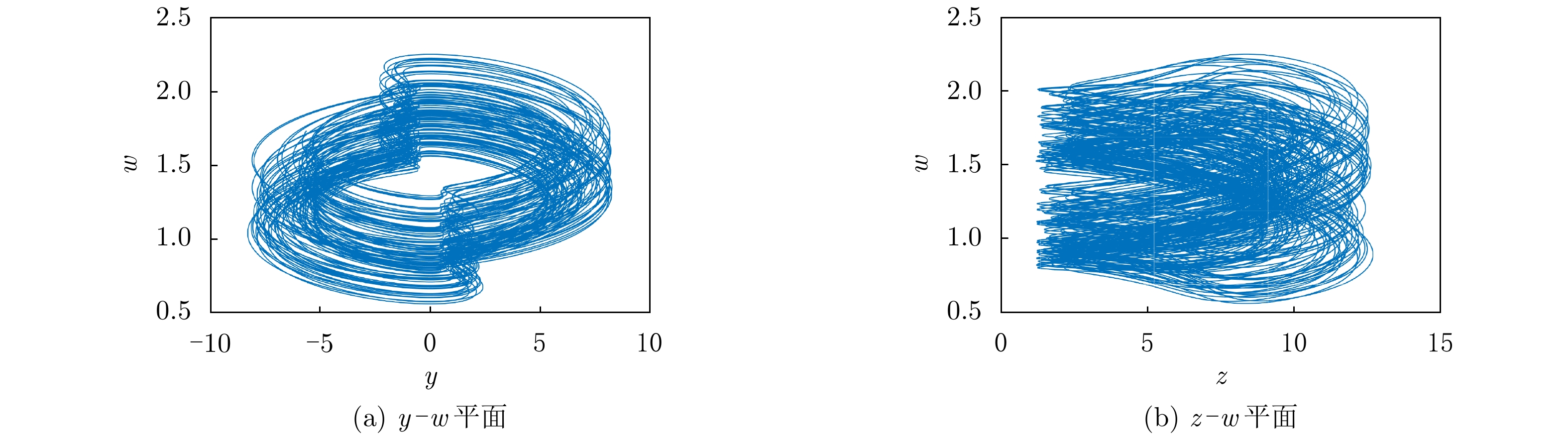

图 1 混沌吸引子的相轨图

下载: 全尺寸图片幻灯片

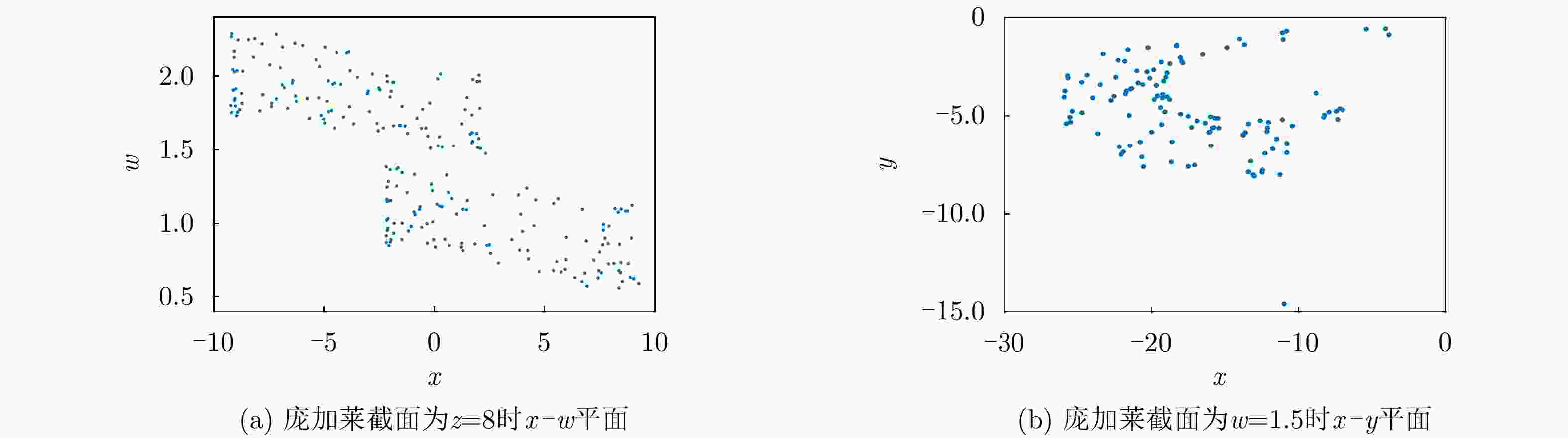

图 2 混沌吸引子的庞加莱截面

下载: 全尺寸图片幻灯片

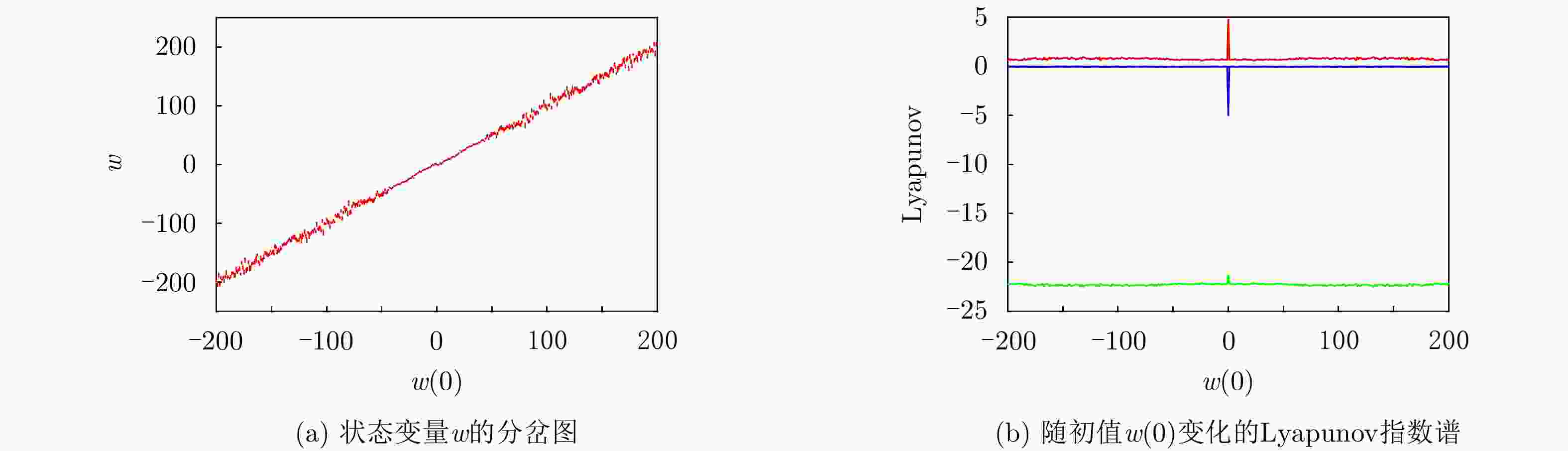

图 3 初值$w(0)$在$[ - {\rm{200}},{\rm{200}}]$区间内变化的分岔图和Lyapunov指数谱

下载: 全尺寸图片幻灯片

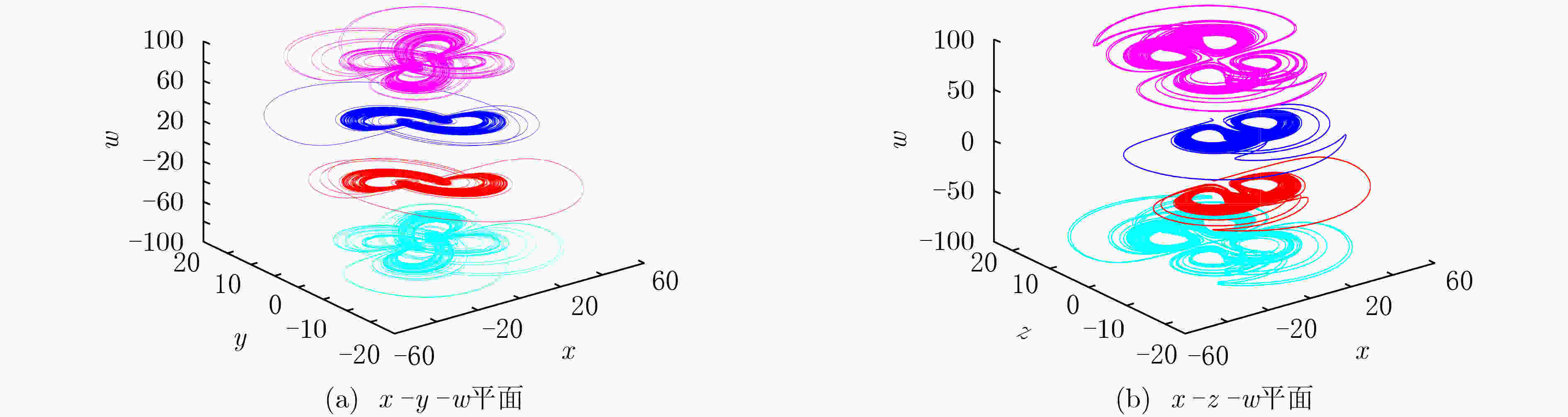

图 4 无限多共存吸引子的相图

下载: 全尺寸图片幻灯片

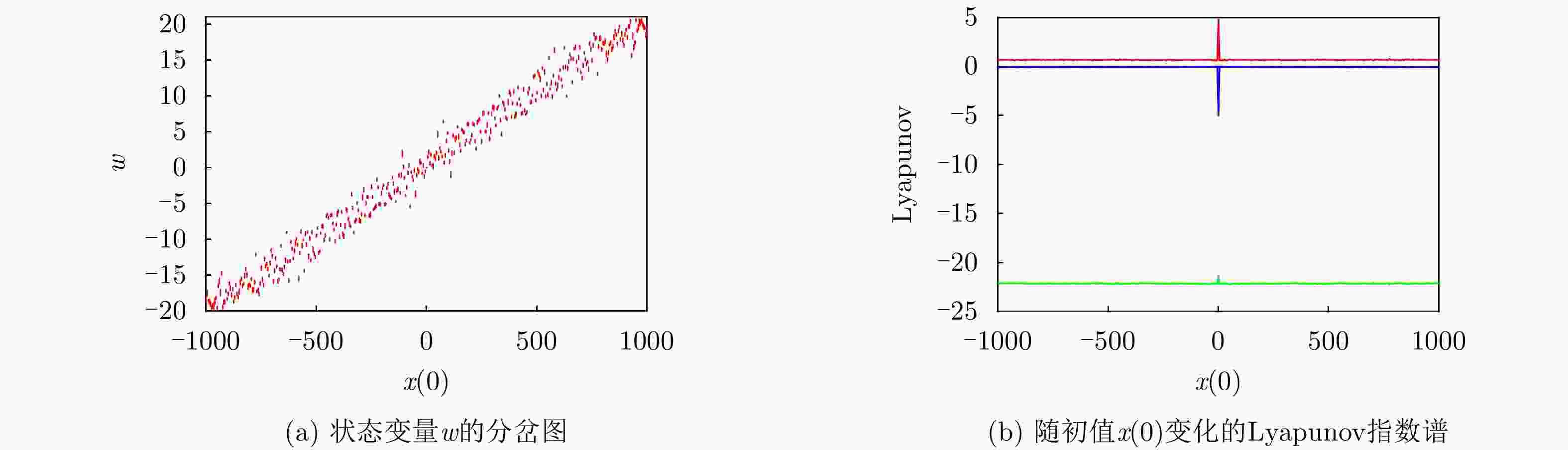

图 5 初值$x(0)$在$[ - {10^3},{10^3}]$区间内变化的分岔图和Lyapunov指数谱

下载: 全尺寸图片幻灯片

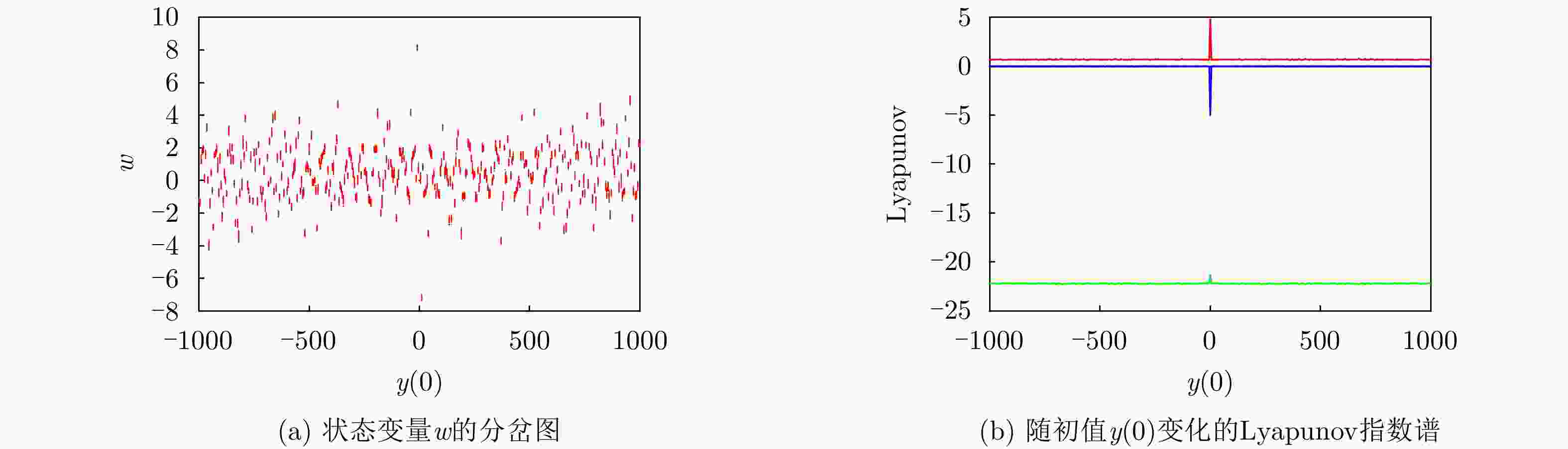

图 6 初值$y(0)$在$[ - {10^3},{10^3}]$区间内变化的分岔图和Lyapunov指数谱

下载: 全尺寸图片幻灯片

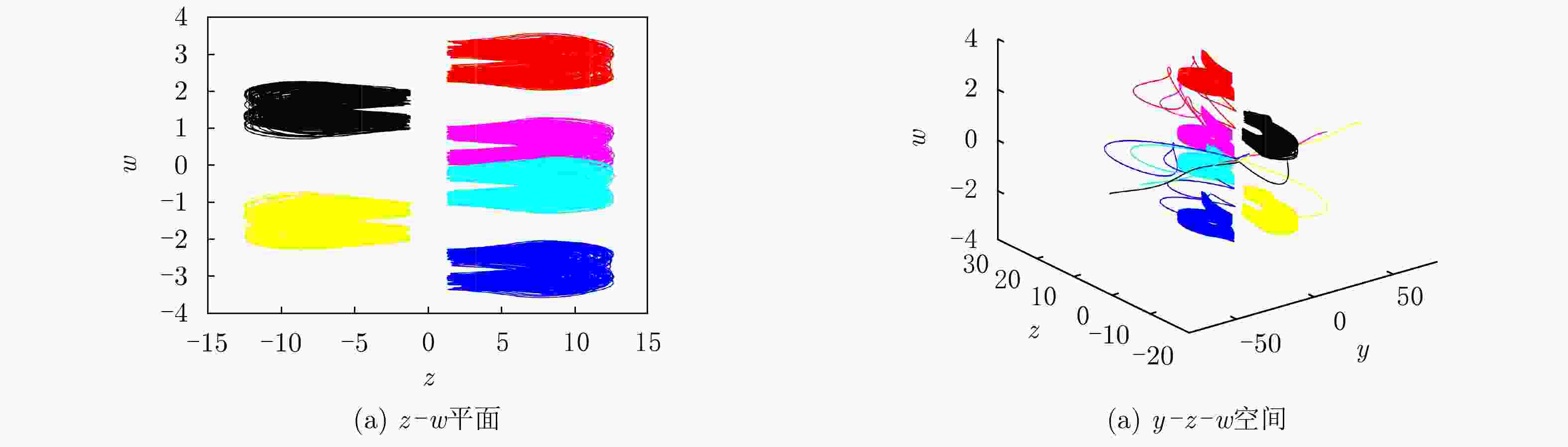

图 7 无限多同质吸引子的相图

下载: 全尺寸图片幻灯片

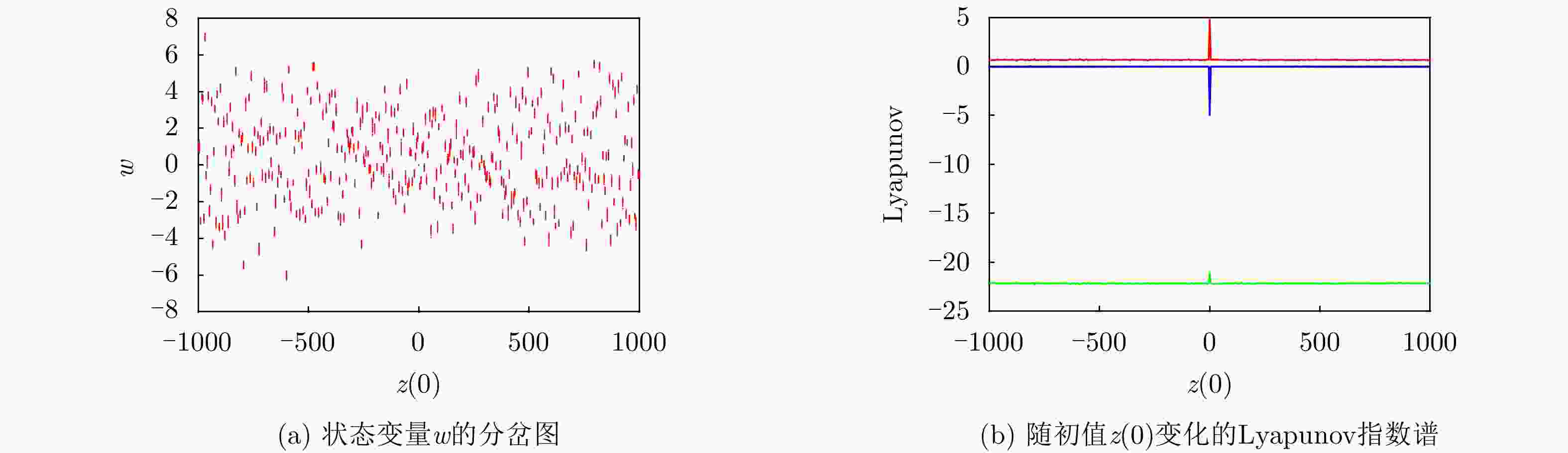

图 8 初值$z(0)$在$[ - {10^3},{10^3}]$区间内变化的分岔图和Lyapunov指数谱

下载: 全尺寸图片幻灯片

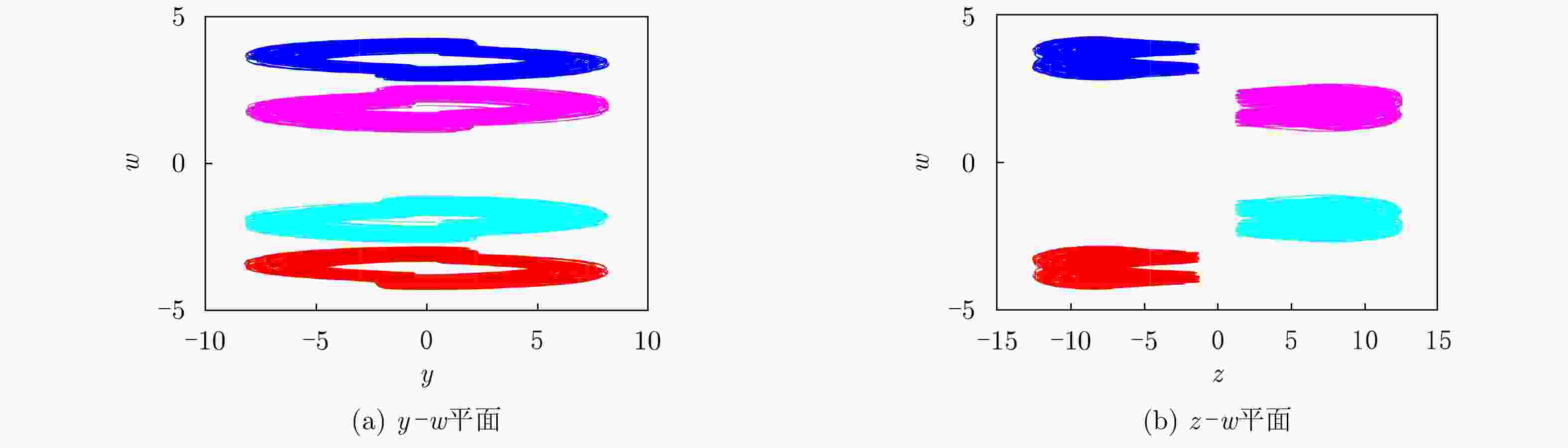

图 9 对称的同质吸引子的相图

下载: 全尺寸图片幻灯片

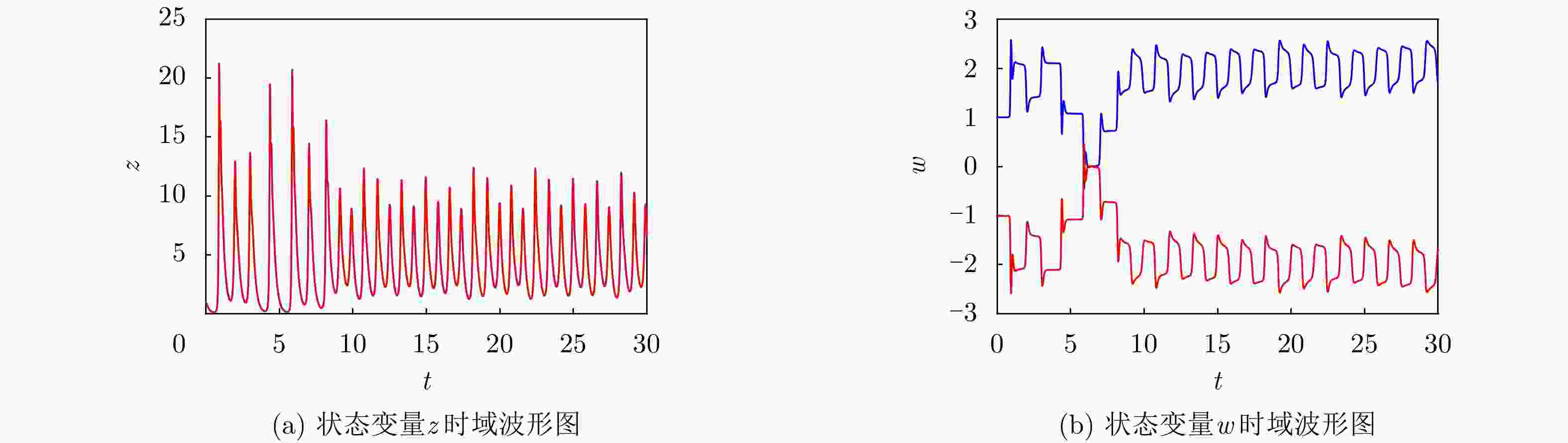

图 10 对称吸引子在$t = 30\;{\rm{s}}$内的时域波形图

下载: 全尺寸图片幻灯片

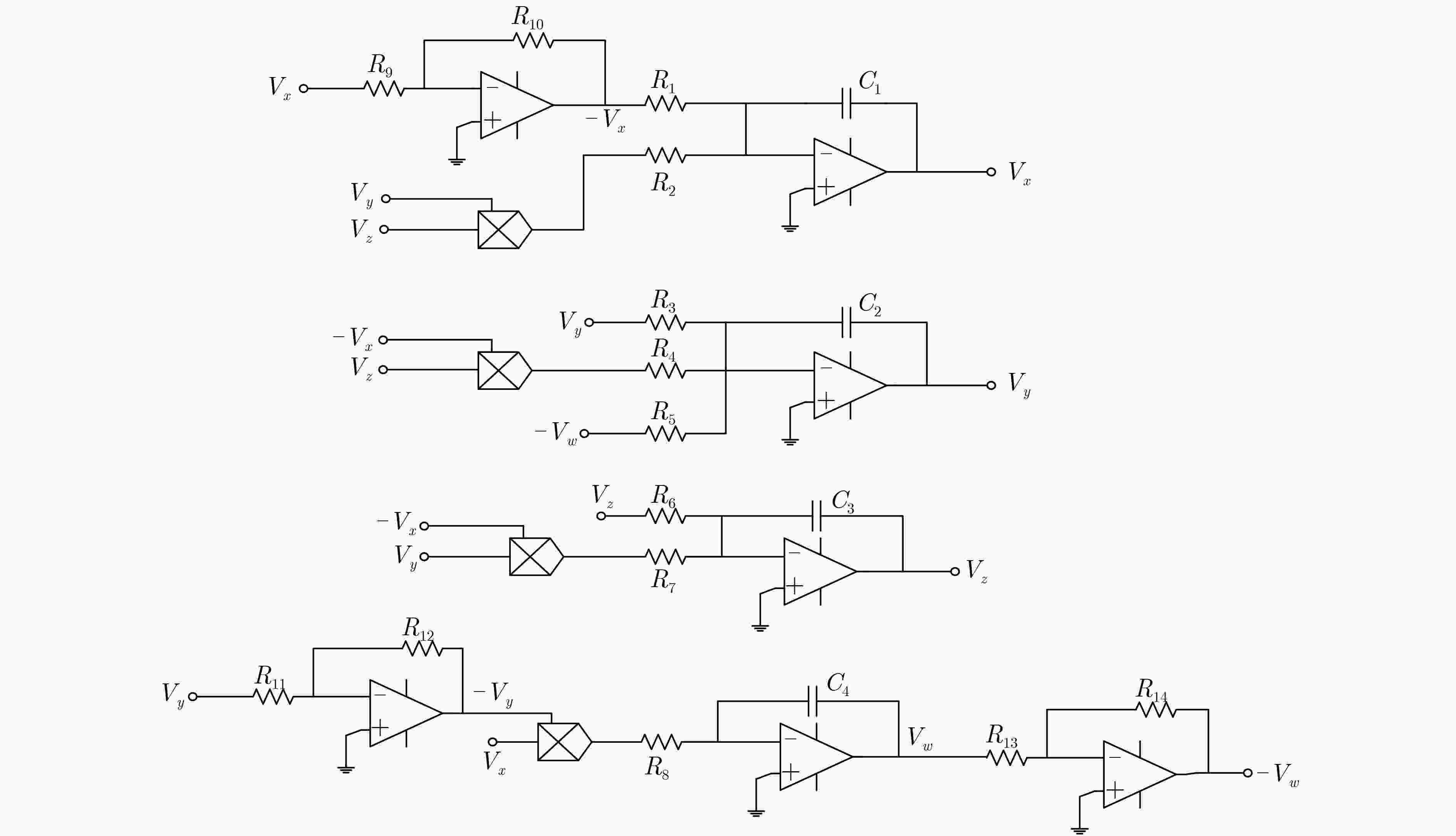

图 11 系统式(2)的模拟电路图

下载: 全尺寸图片幻灯片

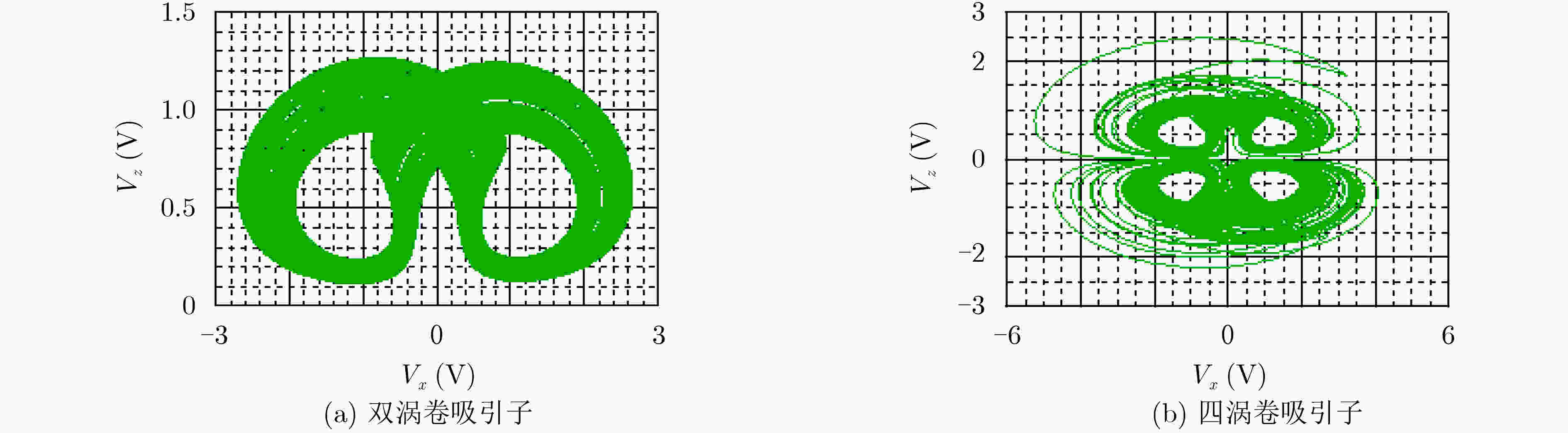

图 12 混沌吸引子的V_x–V_z平面电路仿真结果

下载: 全尺寸图片幻灯片
