Wide-IF-bandwidth CMOS Down-conversion Mixer MMIC
-

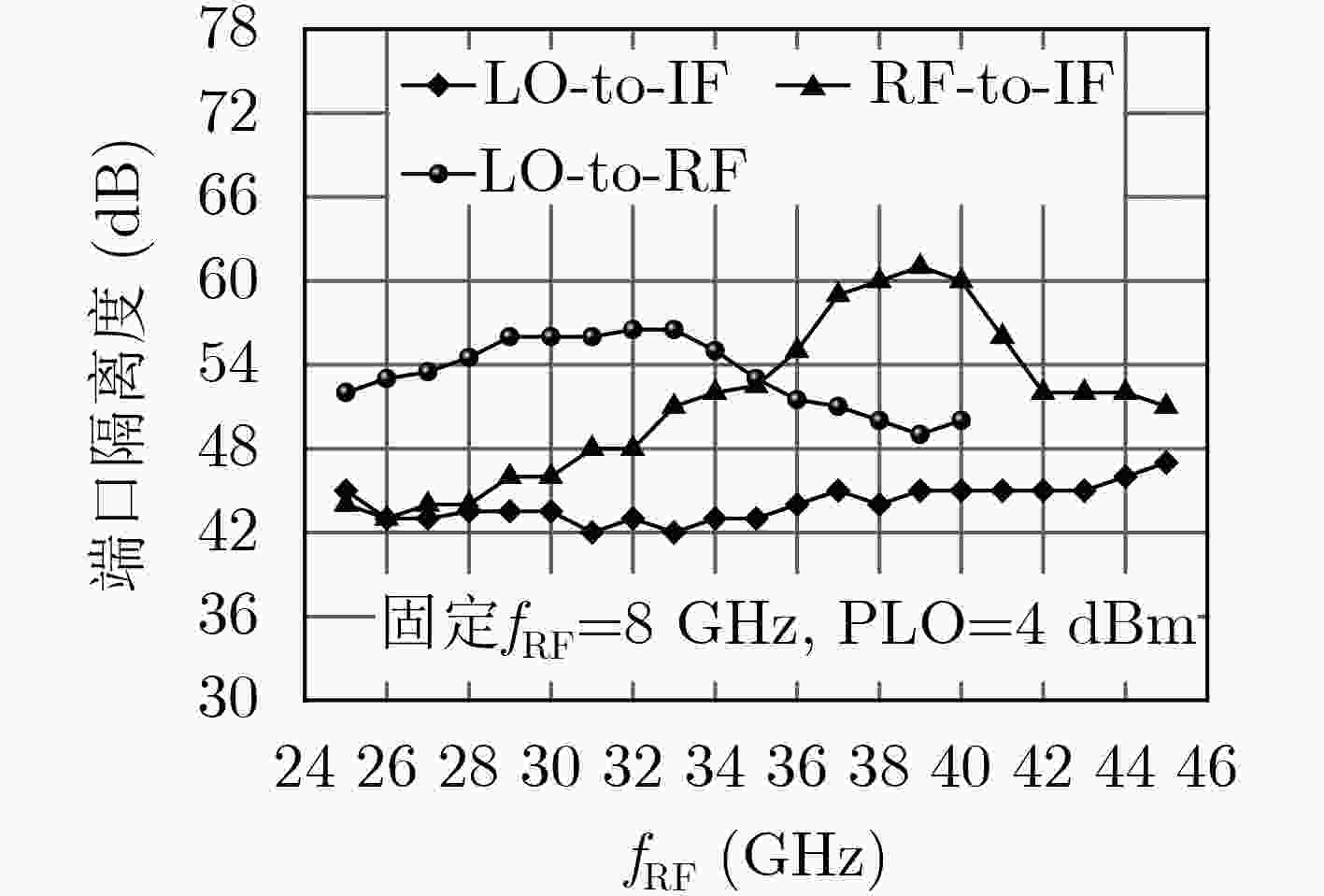

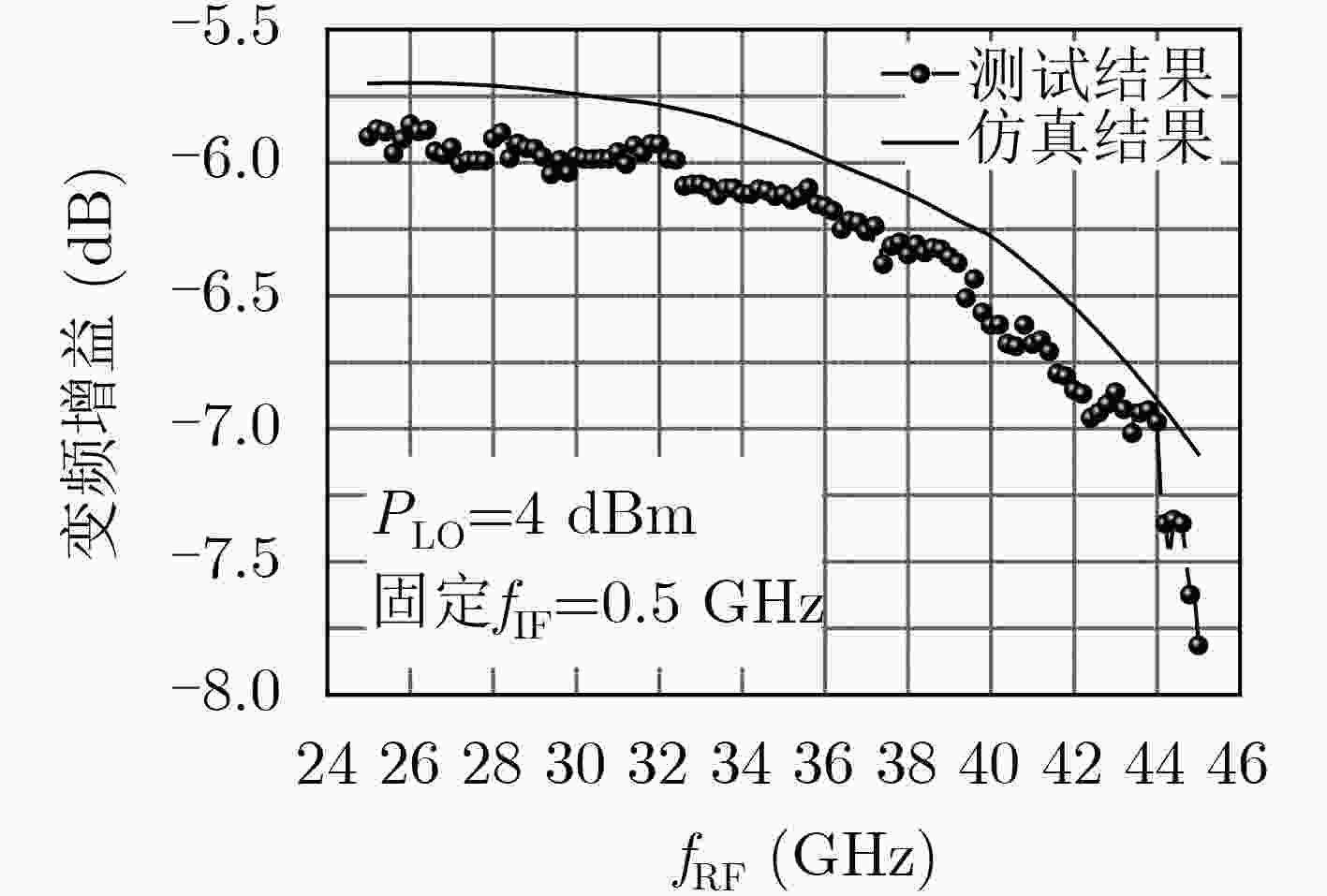

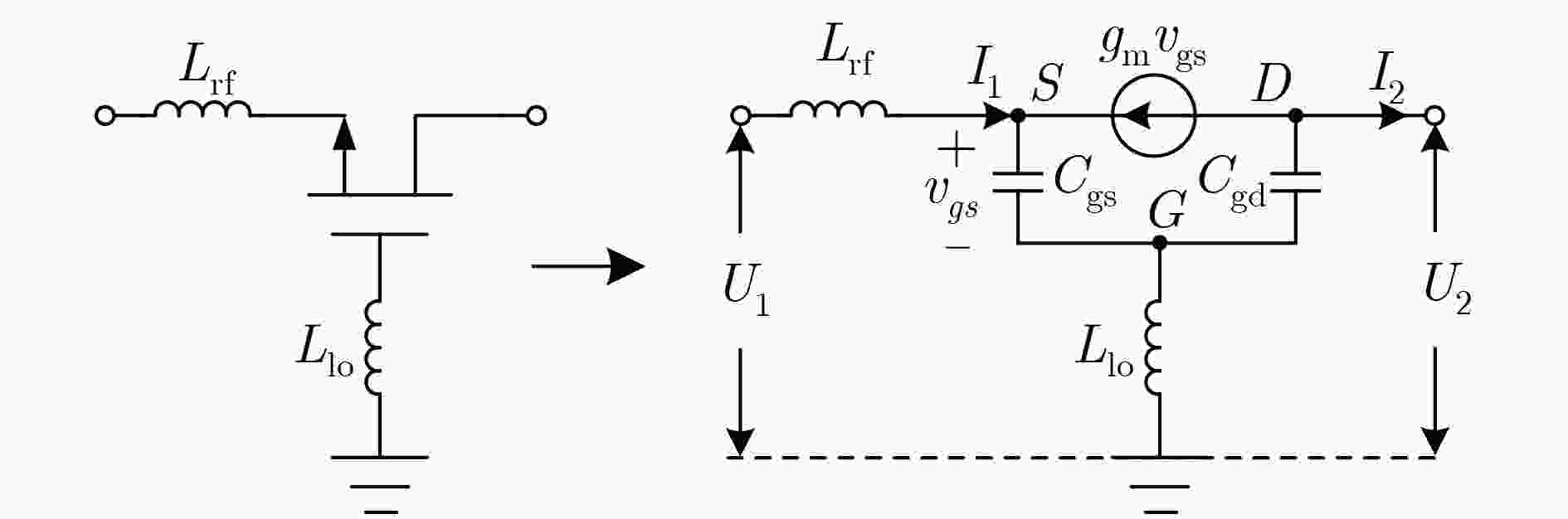

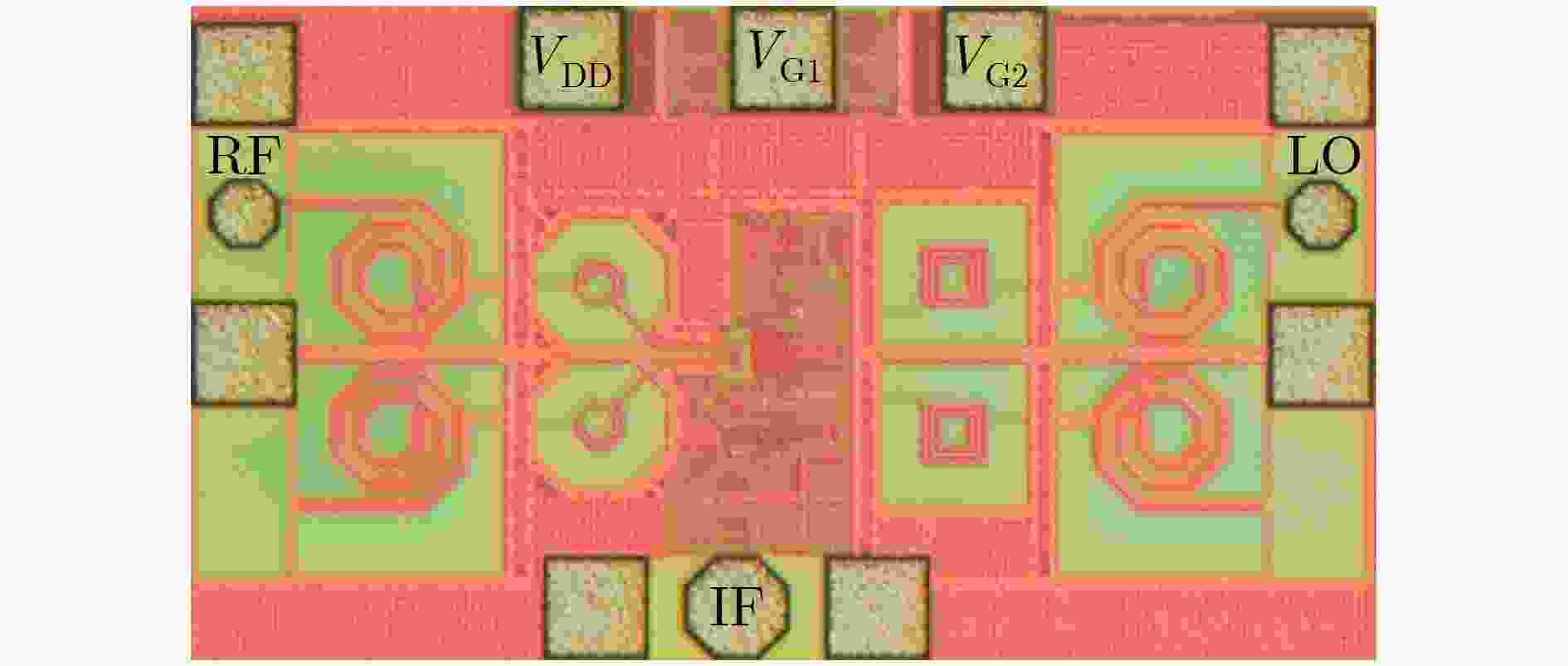

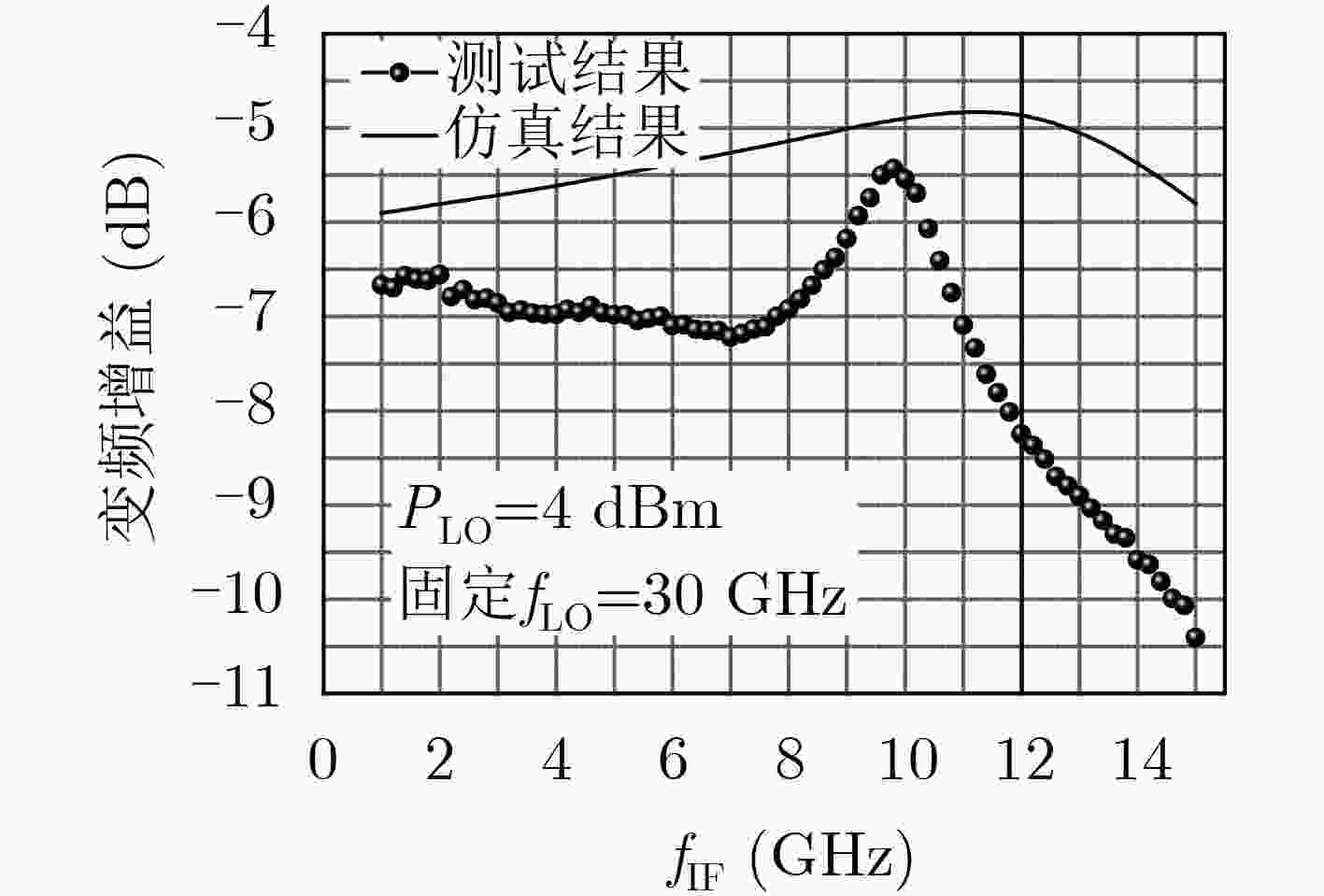

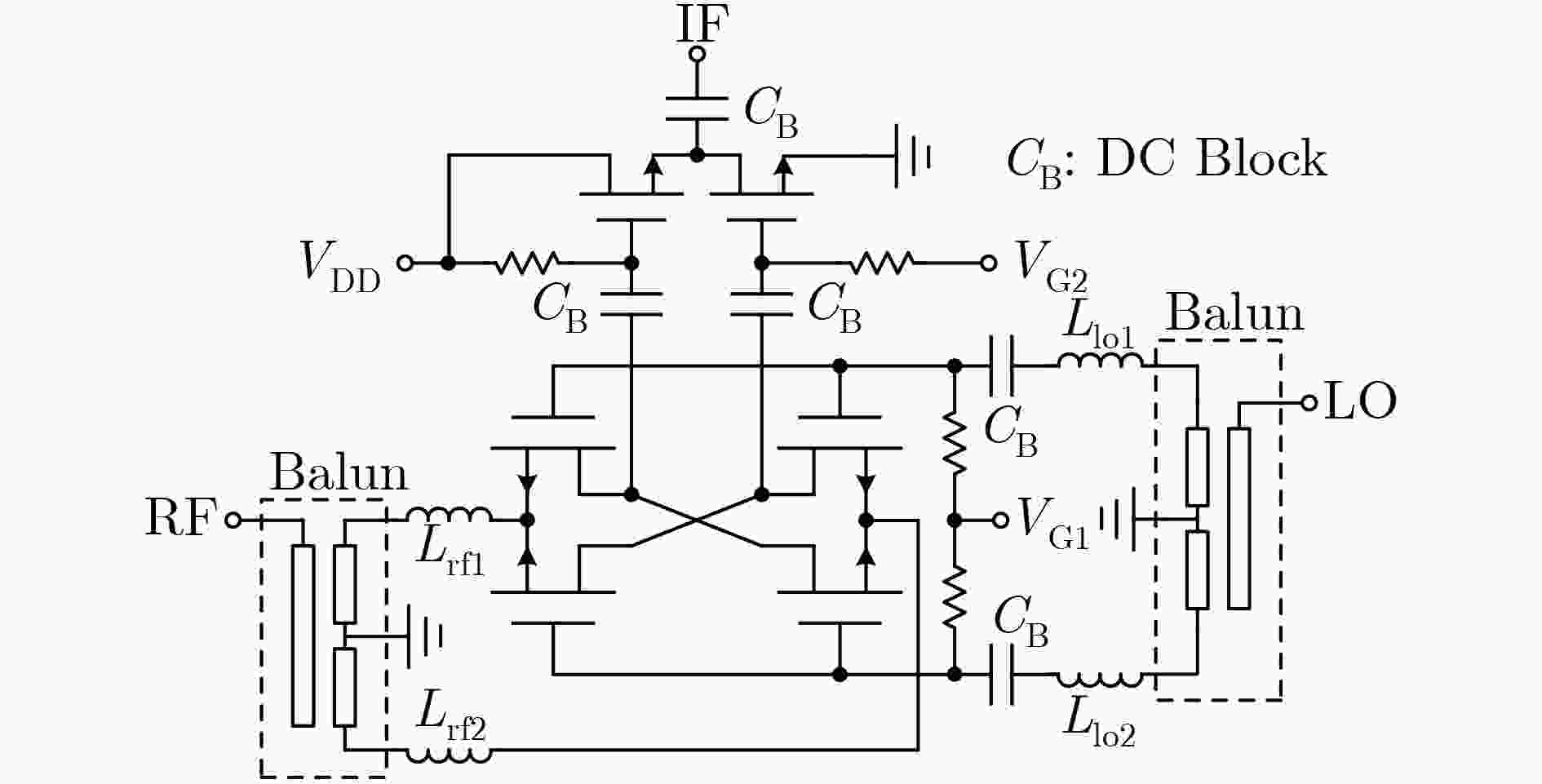

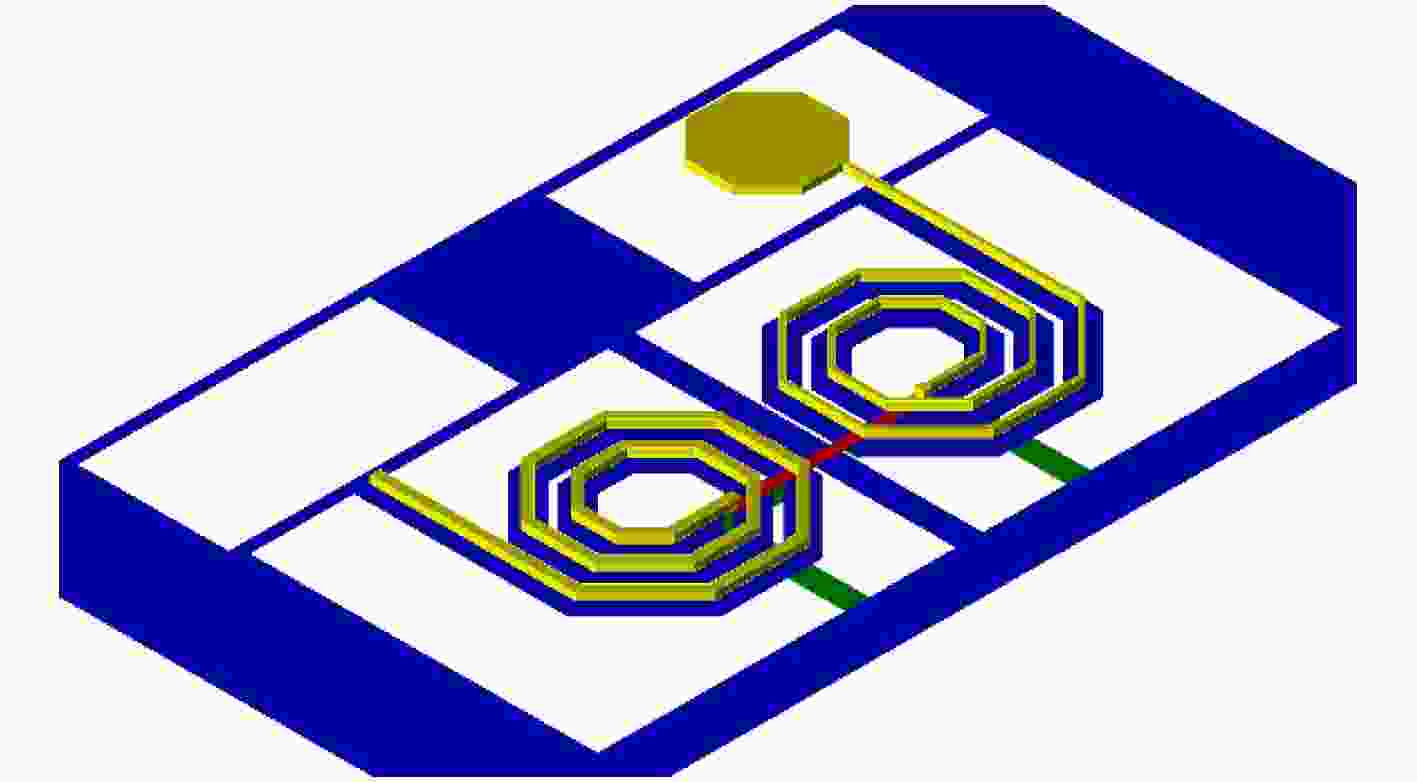

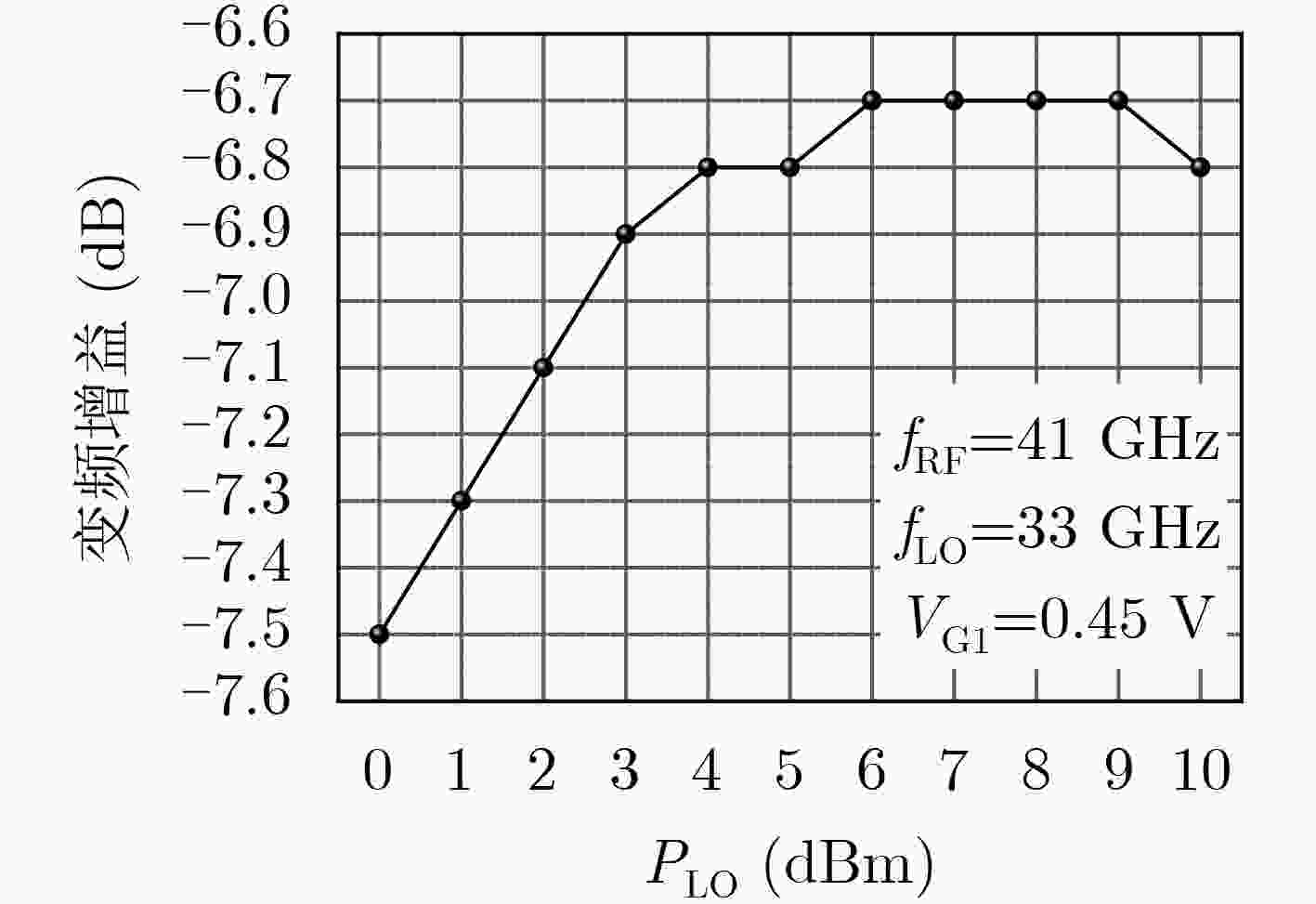

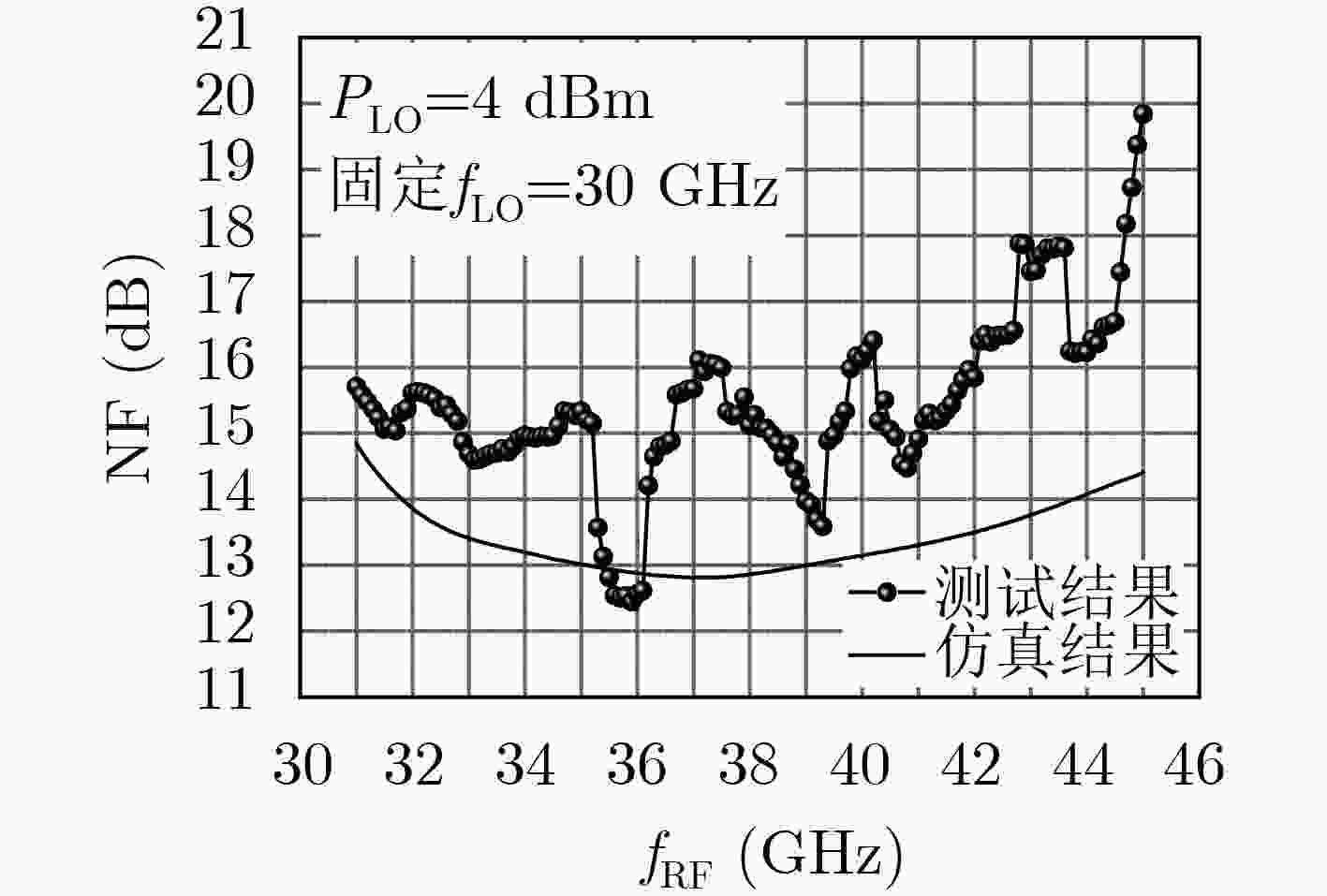

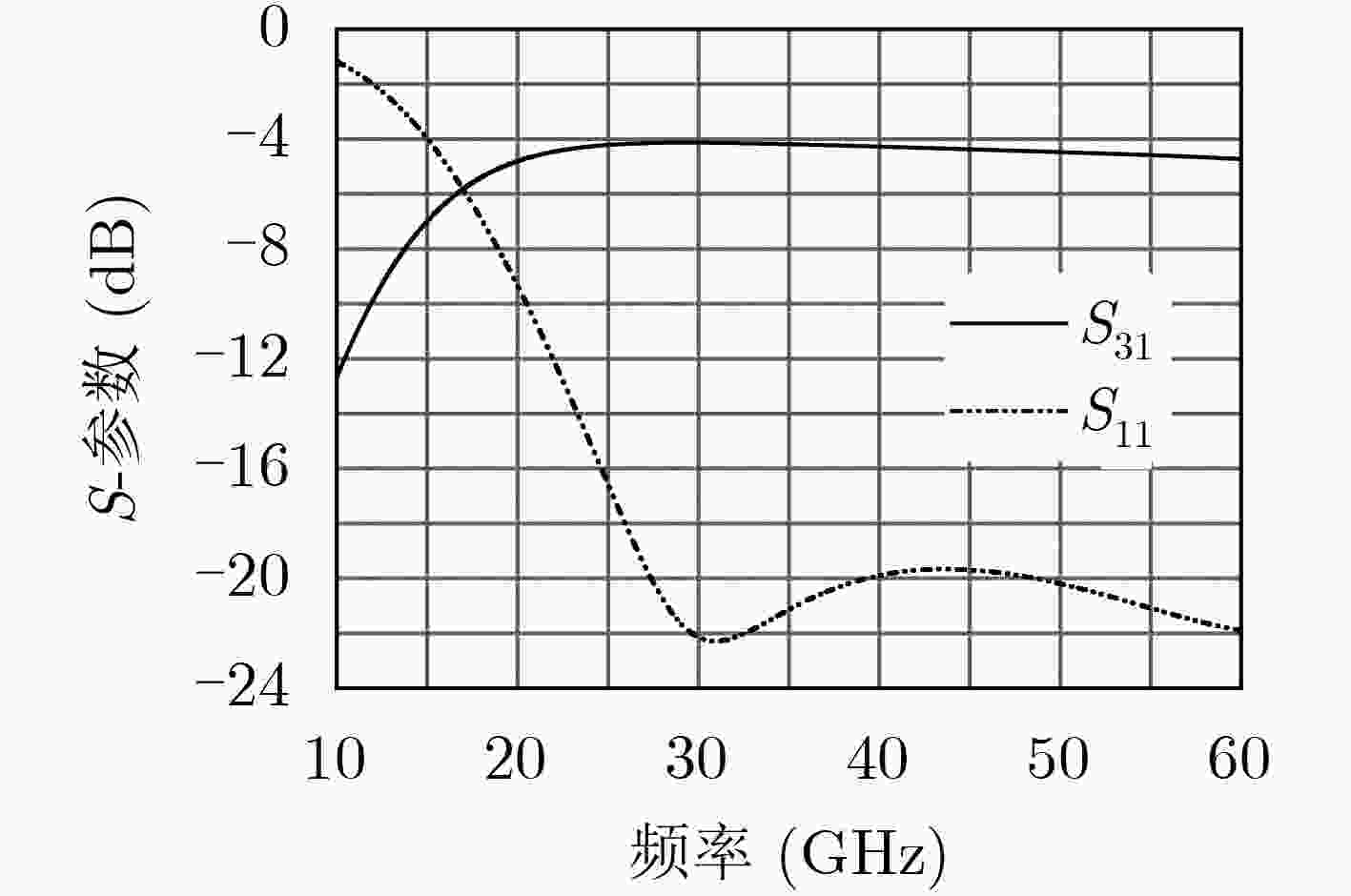

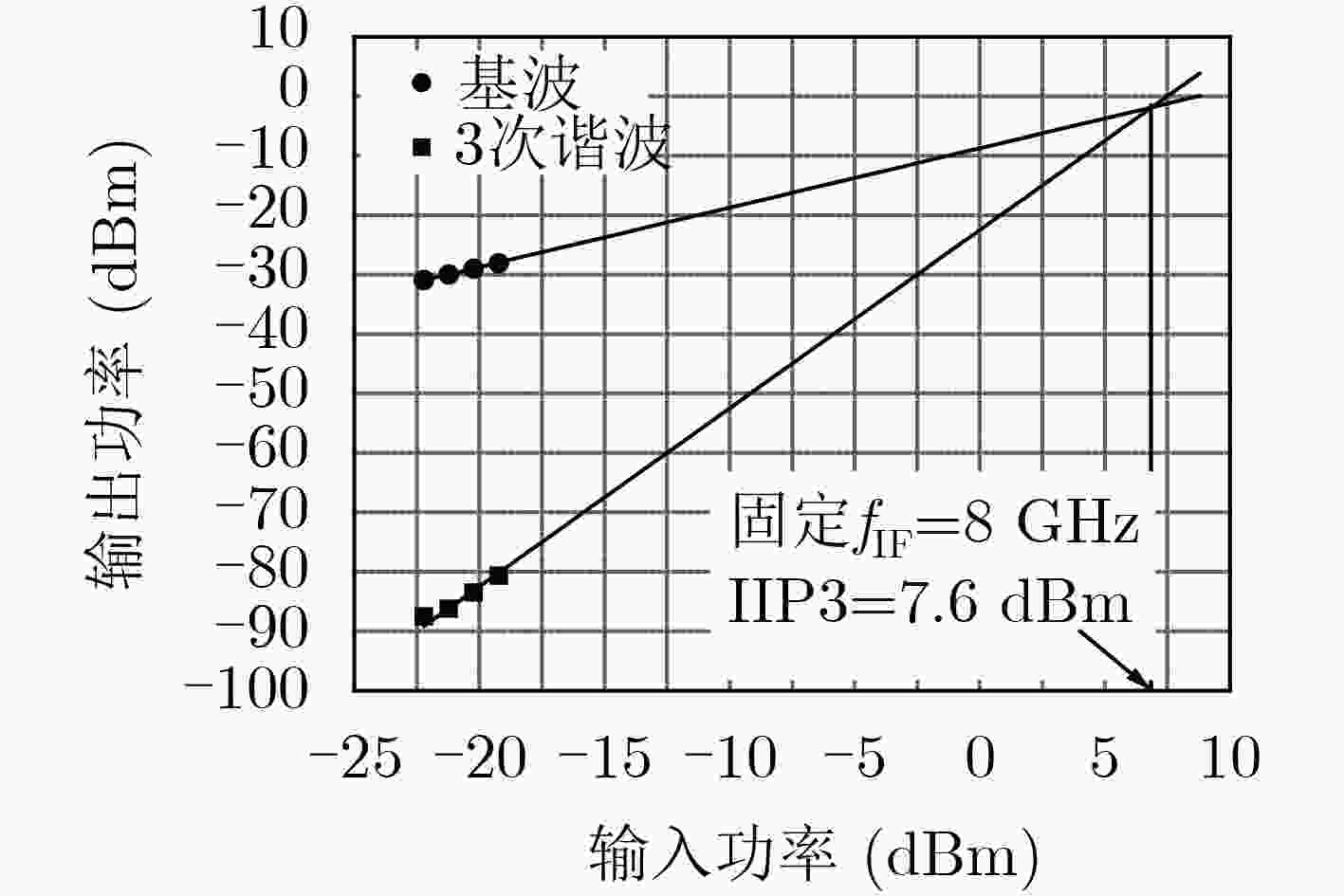

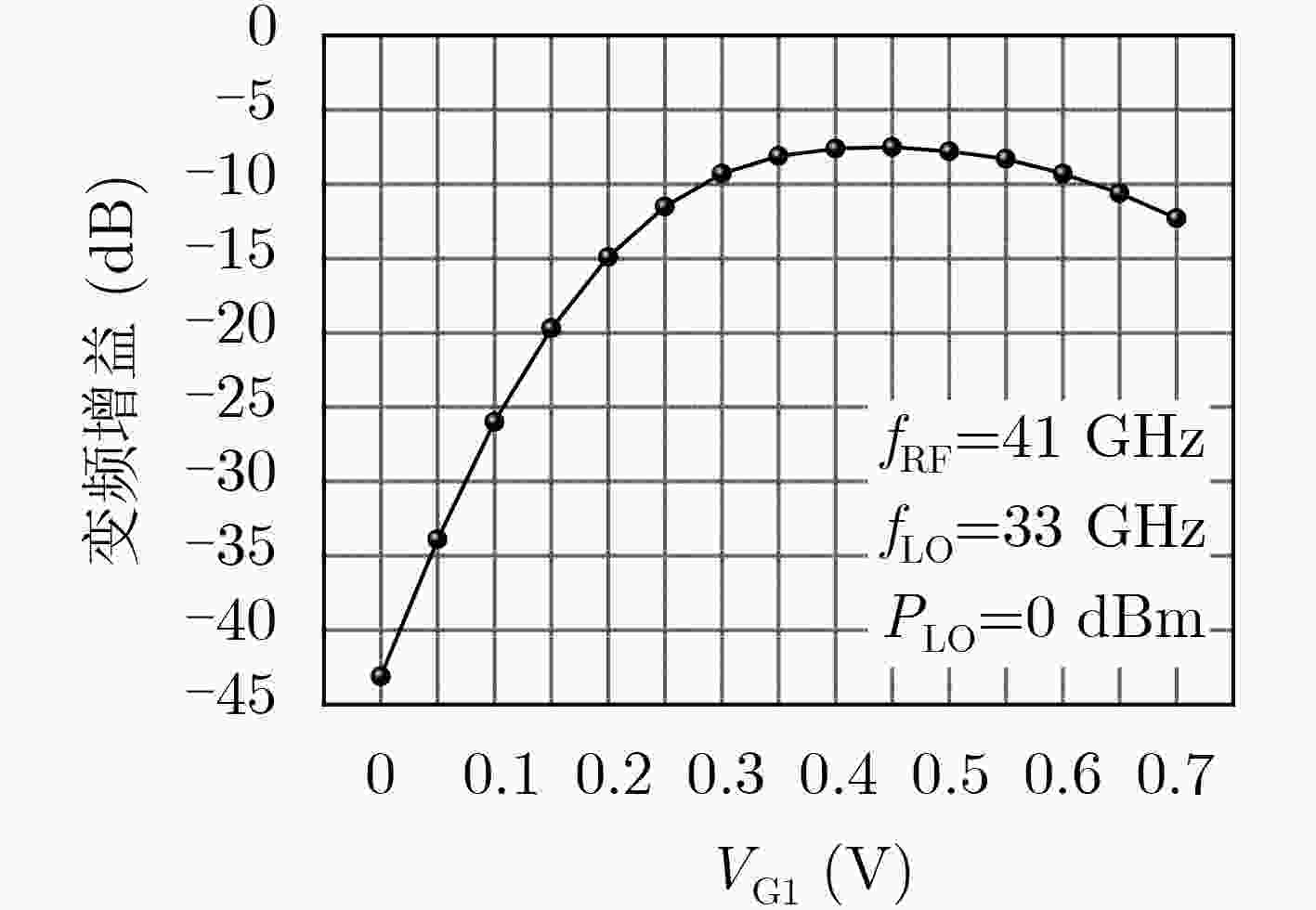

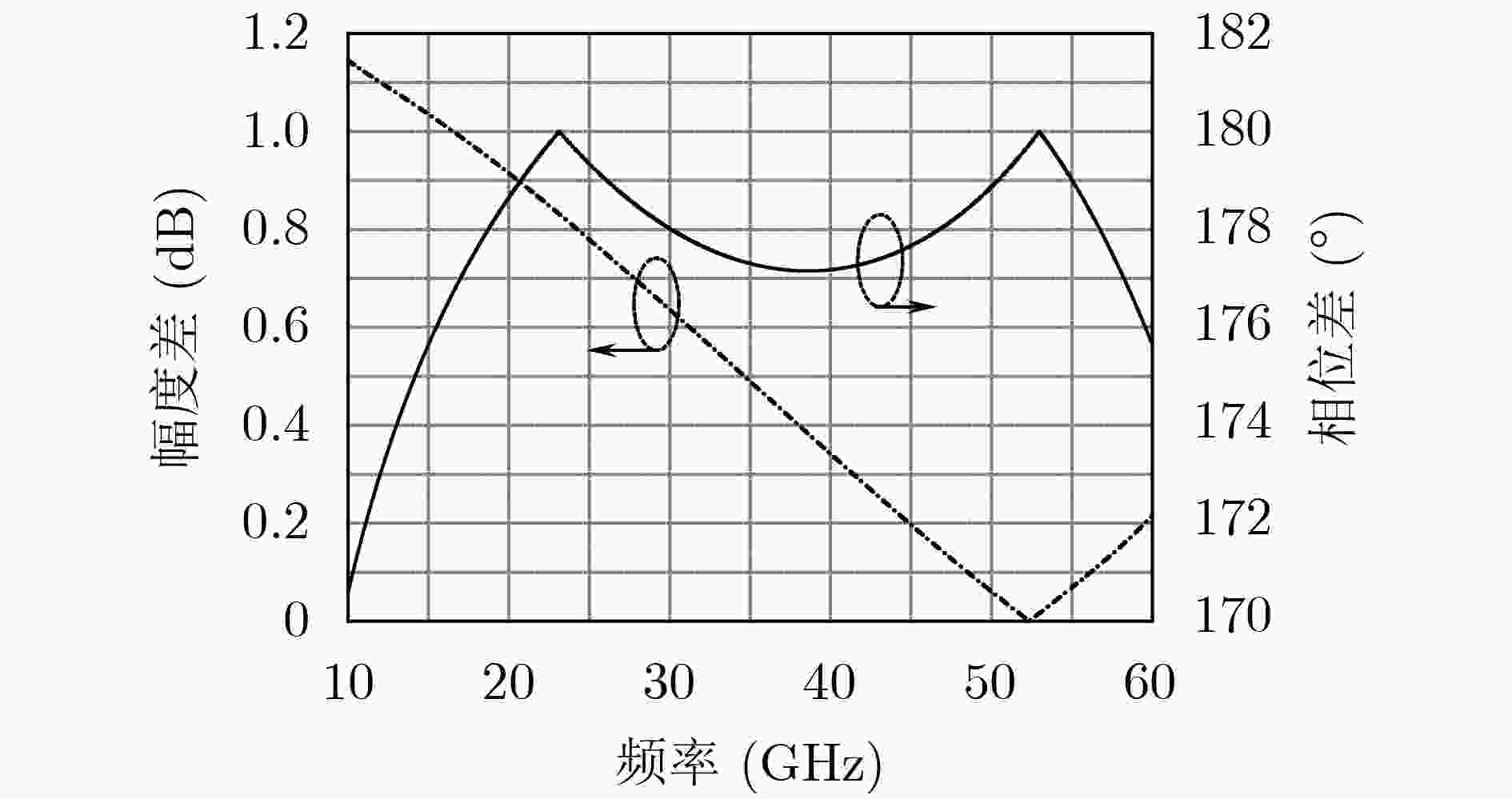

摘要: 该文介绍了一种工作于毫米波频段的宽中频(IF)下变频器。该下变频器基于无源双平衡的设计架构，片上集成了射频(RF)和本振(LO)巴伦。为了优化无源下变频器的增益、带宽和隔离度性能，电路设计中引入了栅极感性化技术。测试结果表明，该下变频器的中频带宽覆盖0.5～12 GHz。在频率为30 GHz、幅度为4 dBm的LO信号驱动下，电路的变频增益为–8.5～–5.5 dB。当固定IF为0.5 GHz、LO幅度为4 dBm时，变频增益随25～45 GHz的RF信号在–7.9～–5.9 dB范围内变化，波动幅度为2 dB。LO-IF, LO-RF, RF-IF的隔离度测试结果分别优于42, 50, 43 dB。该下变频器芯片采用TSMC 90 nm CMOS工艺设计，芯片面积为0.4 mm2。Abstract: A wide-Intermediate-Frequency (IF) down-conversion mixer operating in millimeter-wave band is proposed. The mixer is designed based on a passive double-balanced structure integrating Radio-Frequency (RF) and Local-Oscillator (LO) baluns. To optimize the performances in terms of the Conversion Gain (CG), bandwidth and isolations of the mixer, the gate-inductive technique is employed. The measured results show that the mixer features a wide IF bandwidth from 0.5 to 12 GHz. A measured CG of –8.5～–5.5 dB is achieved within such a wide IF band at a LO power (PLO) of 4 dBm and a LO frequency (fLO) of 30 GHz. The proposed mixer also achieves a CG with a ripple of 2 dB from –7.9 to –5.9 dB in a wide RF band (fRF) from 25 to 45 GHz at a PLO of 4 dBm and a fixed IF frequency (fIF) of 0.5 GHz. The measured LO-to-IF, LO-to-RF and RF-to-IF isolations are better than 42, 50 and 43 dB, respectively. The chip is fabricated in TSMC 90 nm CMOS process with an area of 0.4 mm2.
-
Key words:
- CMOS integrated circuit /
- Millimetre-wave /
- Mixer /
- Wide IF
-
[1] WANG Keping, WANG Zhigong, LEI Xuemei, et al. A low-loss image-reject mixer using source follower isolation method for DRM/DAB tuner applications[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2011, 58(11): 729–733. doi: 10.1109/TCSII.2011.2168014 [2] WANG Keping, QIU Lei, KOO J, et al. Design of 1.8-mW PLL-free 2.4-GHz receiver utilizing temperature-compensated FBAR resonator[J]. IEEE Journal of Solid-State Circuits, 2018, 53(6): 1628–1639. doi: 10.1109/JSSC.2018.2801829 [3] WANG Keping, OTIS B, and WANG Zhigong. A 580-μW 2.4-GHz ZigBee receiver front end with transformer coupling technique[J]. IEEE Microwave and Wireless Components Letters, 2018, 28(2): 174–176. doi: 10.1109/LMWC.2017.2787064 [4] 吴大正. 信号与线性系统分析[M]. 3版. 北京: 高等教育出版社, 2000: 28–33. [5] LIN C M, LIN H K, LAI Y A, et al. A 10–40 GHz broadband subharmonic monolithic mixer in 0.18 μm CMOS technology[J]. IEEE Microwave and Wireless Components Letters, 2009, 19(2): 95–97. doi: 10.1109/LMWC.2008.2011330 [6] ISSAKOV V, THIEDE A, VERWEYEN L, et al. 0.5–25 GHz inductorless single-ended resistive mixer in 0.13 μm CMOS[J]. Electronics Letters, 2009, 45(2): 108–110. doi: 10.1049/el20092599 [7] LEE J G, PARK G H, BYEON C W, et al. 60 GHz Up-conversion mixer with wide IF bandwidth using transformer-based negative feedback in 65-nm CMOS[C]. 2019 IEEE Asia-Pacific Microwave Conference, Singapore, 2019: 732–734. doi: 10.1109/APMC46564.2019.9038419. [8] HUANG C Y, WU K L, HU R, et al. Analysis of wide-IF-band 65 nm-CMOS mixer for 77–110 GHz radio-astronomical receiver design[J]. IET Circuits, Devices & Systems, 2019, 13(3): 406–413. doi: 10.1049/iet-cds.2018.5269 [9] CHIANG P Y, SU C W, LUO S Y, et al. Wide-IF-band CMOS mixer design[J]. IEEE Transactions on Microwave Theory and Techniques, 2010, 58(4): 831–840. doi: 10.1109/TMTT.2010.2041575 [10] TSAI H T, TSENG P L, CHANG Chewei, et al. Design of wide-IF-Band CMOS mixer with LO multiplier[C]. 2013 Asia-Pacific Microwave Conference Proceedings, Seoul, 2013: 176–178. doi: 10.1109/APMC.2013.6695085. [11] NGUYEN T T, RIDDLE A, FUJII K, et al. Development of wideband and high IIP3 millimeter-wave mixers[J]. IEEE Transactions on Microwave Theory and Techniques, 2017, 65(8): 3071–3078. doi: 10.1109/TMTT.2017.2669042 [12] ZHANG Tiedi, LIU Xiansuo, WANG Yuehang, et al. Mixing it up: A double-balanced mixer with wide RF and IF bandwidth[J]. IEEE Microwave Magazine, 2018, 19(1): 106–111. doi: 10.1109/MMM.2017.2759659 [13] YANG Geliang, CHEN Rui, and WANG Keping. A CMOS Balun with common ground and artificial dielectric compensation achieving 79.5% fractional bandwidth and <2° phase imbalance[C]. 2020 IEEE/MTT-S International Microwave Symposium, Los Angeles, USA, 2020: 1319–1322. doi: 10.1109/IMS30576.2020.9223981. [14] YANG Geliang, TANG Kai, and WANG Zhigong. 3.6–8.1 GHz CMOS balun with 1.8° in-band phase difference by using capacitive balance compensation technique[J]. Microwave and Optical Technology Letters, 2020, 62(4): 1548–1551. doi: 10.1002/mop.32228 [15] YANG Geliang, WANG Zhigong, LI Zhiqun, et al. Balance-compensated asymmetric marchand baluns on silicon for MMICs[J]. IEEE Microwave and Wireless Components Letters, 2014, 24(6): 391–393. doi: 10.1109/LMWC.2014.2313719 [16] YU Y H, YANG Y S, and CHEN Y J E. A compact wideband CMOS low noise amplifier with gain flatness enhancement[J]. IEEE Journal of Solid-State Circuits, 2010, 45(3): 502–509. doi: 10.1109/JSSC.2010.2040111 -
