认知雷达抗干扰中的博弈论分析综述

赫彬; 苏洪涛

doi:10.11999/JEIT200843

认知雷达抗干扰中的博弈论分析综述

doi: 10.11999/JEIT200843

赫彬,
苏洪涛^,

西安电子科技大学雷达信号处理国家重点实验室西安 710071

基金项目: 国家自然科学基金(61372134)

详细信息

作者简介:
赫彬：男，1988年生，博士生，研究方向为雷达信号处理、博弈优化理论等

苏洪涛：男，1974年生，教授，博士生导师，研究方向为雷达信号处理、抗干扰、博弈优化理论等

通讯作者:
苏洪涛　suht@xidian.edu.cn

中图分类号: TN953
计量
- 文章访问数: 2736
- HTML全文浏览量: 2224
- PDF下载量: 550
- 被引次数: 0
出版历程
- 收稿日期: 2020-09-29
- 修回日期: 2021-03-19
- 网络出版日期: 2021-04-16
- 刊出日期: 2021-05-18

A Review of Game Theory Analysis in Cognitive Radar Anti-jamming

Bin HE,
Hongtao SU^,

National Laboratory of Radar Signal Processing, Xidian University, Xi’an 710071, China

Funds: The National Natural Sciences Foundation of China (61372134)

摘要

摘要: 雷达对抗的核心研究内容主要是干扰策略与抗干扰策略之间的对抗博弈，其作为电子战研究领域的热点一直备受学者们关注。该文综述了学者们利用合作与非合作博弈方法来分析雷达在进行目标探测和干扰抑制时所使用的策略，主要通过不同体制的雷达利用认知技术感知和学习外界复杂的电磁环境，合理地分配发射功率、控制编码序列、设计波形、研究检测和跟踪方法以及分配雷达通信资源等。这样雷达既节约发射所消耗的功率，又可以自适应地搜索和跟踪目标而不被敌方所发现，从而使雷达在复杂多变的现代战场环境中达到自身最优的性能。最后，对认知雷达抗干扰中的博弈论分析研究进行总结和展望，并指出了一些博弈论在认知雷达抗干扰策略应用中所面临的潜在问题和挑战。
- 认知雷达 /
- 雷达对抗 /
- 博弈论 /
- 资源分配 /
- 纳什均衡
Abstract: The core research contents of radar countermeasures are the games of countermeasures between jamming strategies and anti-jamming strategies. As a hotspot in the field of electronic warfare, radar countermeasures have been paid much attention by scholars. This paper summarizes that the scholars employ the cooperative and non-cooperative game methods to analyze the radar against jamming while probing targets. Different radar systems make use of cognitive techniques perceive and learn the complex electromagnetic environment, and reasonably allocate transmitting power, control coding sequence, design waveform, investigate detection and tracking methods and allocate resources of radar communication etc. In this way, radar can not only reduce power consumption, but also search and track the target without being detected by the enemy. Thus, radar can achieve its optimal performance in the complex and changeable modern battlefield environment. Finally, game theory in cognitive radar anti-jamming is summarized and prospected, and it also points out some potential problems and challenges of game theory in cognitive radar anti-jamming.
- Cognitive radar /
- Radar countermeasures /
- Game theory /
- Resource allocation /
- Nash equilibrium

HTML全文

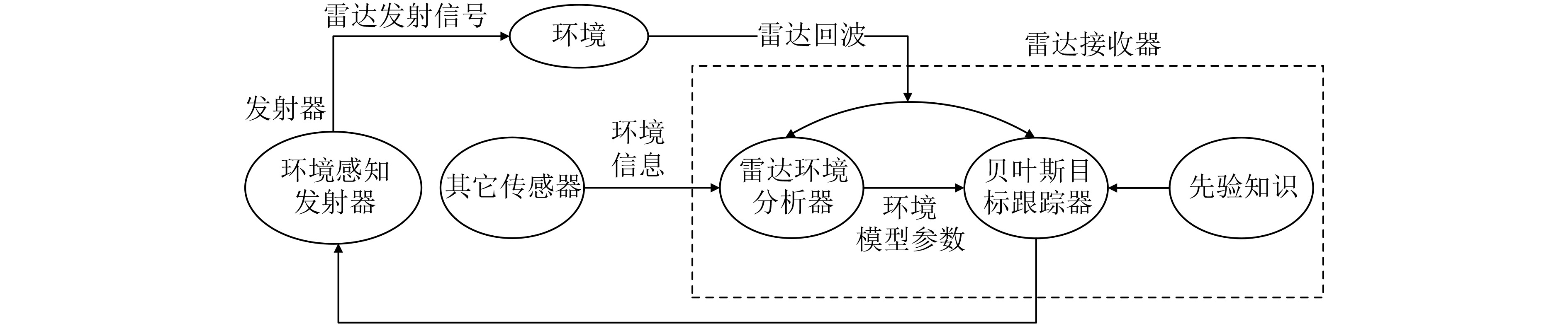

图 1 Haykin的认知雷达闭环反馈系统图
