Object Contour Partition Model with Consistent Properties

Jinguang SUN^{1, 2
, ,},
Tao LI¹,
xiangjun DONG³

1.
Liaoning University of Engineering and Technology, Huludao 125105, China
2.
Liaoning Mine Safely Data Engineering Technology Research Center, Huludao 125105, China
3.
Qilu University of Technology(Shandong Academy of Sciences), Jinan 250353, China

Funds: The National Natural Science Foundation of China(61702241, 61602226)，The National Key R&D Program of China (2018YFB1402902, 2018YFB1403303)

摘要

摘要: 该文提出一种基于全卷积深度残差网络、结合生成式对抗网络思想的基于属性一致的物体轮廓划分模型。采用物体轮廓划分网络作为生成器进行物体轮廓划分；该网络运用结构相似性作为区域划分的重构损失，从视觉系统的角度监督指导模型学习；使用全局和局部上下文判别网络作为双路判别器，对区域划分结果进行真伪判别的同时，结合对抗式损失提出一种联合损失用于监督模型的训练，使区域划分内容真实、自然且具有属性一致性。通过实例验证了该方法的实时性、有效性。
- 区域划分 /
- 矿石粒度分析 /
- 扩张卷积 /
- 跳跃连接 /
- 对抗式损失
Abstract: A new object contour partition model based on the fully convolutional network, combined with the idea of generative counter network and consistent attributes is proposed. Firstly, the image region partition network is used as a generator to divide the image region. Then the structural similarity is used as the reconstruction loss of regional division to supervise and guide model learning from the perspective of visual system. Finally, the global and local context discrimination networks are used as double-path similarity to supervise the reconstruction loss of regional division and guide model learning from the discriminators to distinguish the truth and falsity of the results of regional division, and a joint loss is proposed to train the supervision model in combination with the adversarial loss, so as to make the content of regional division true, natural and with attribute consistency. The instantaneity and effectiveness of the method are verified by living examples.
- Region division /
- Rock granularity analyze /
- Dilated convolution /
- Skip connection /
- Adversarial loss

HTML全文

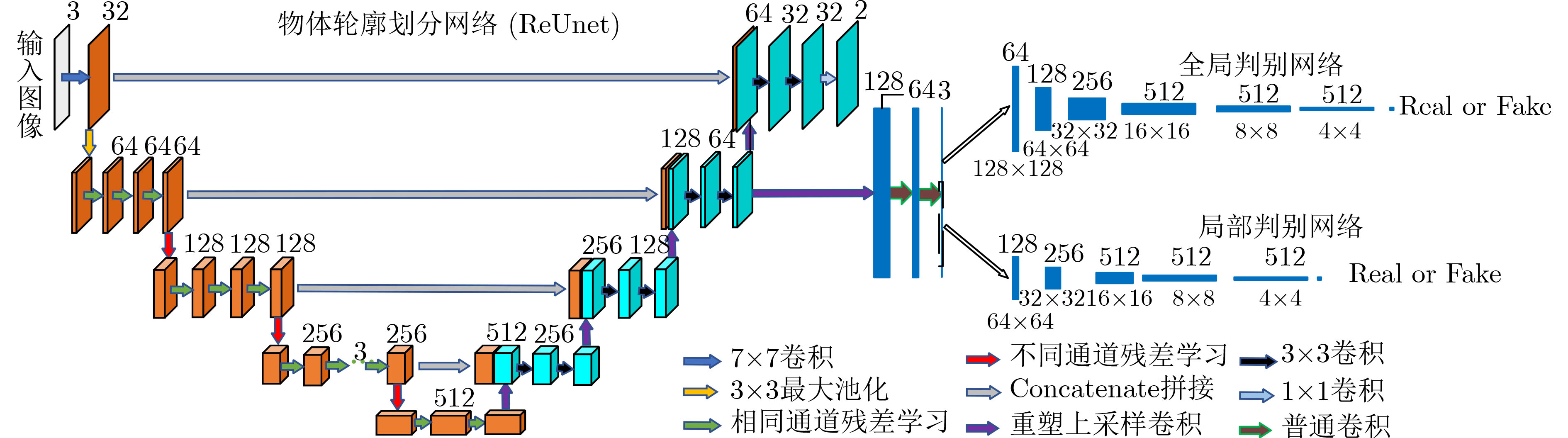

图 1 属性一致的物体轮廓划分模型框架

下载: 全尺寸图片幻灯片

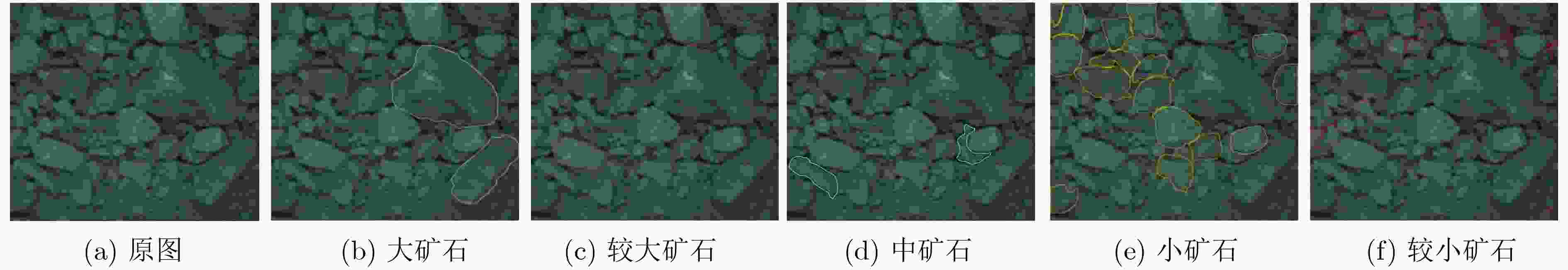

图 2 不同等级的样本制作图

下载: 全尺寸图片幻灯片

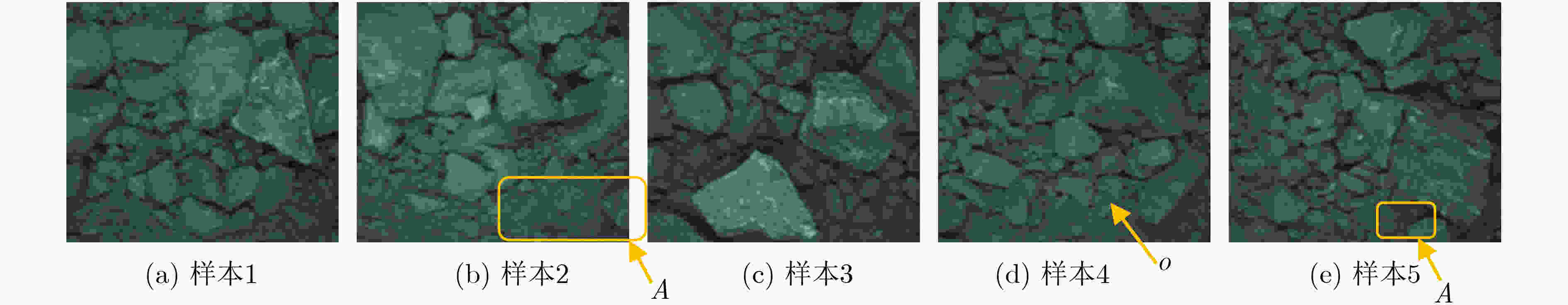

图 3 原图片

下载: 全尺寸图片幻灯片

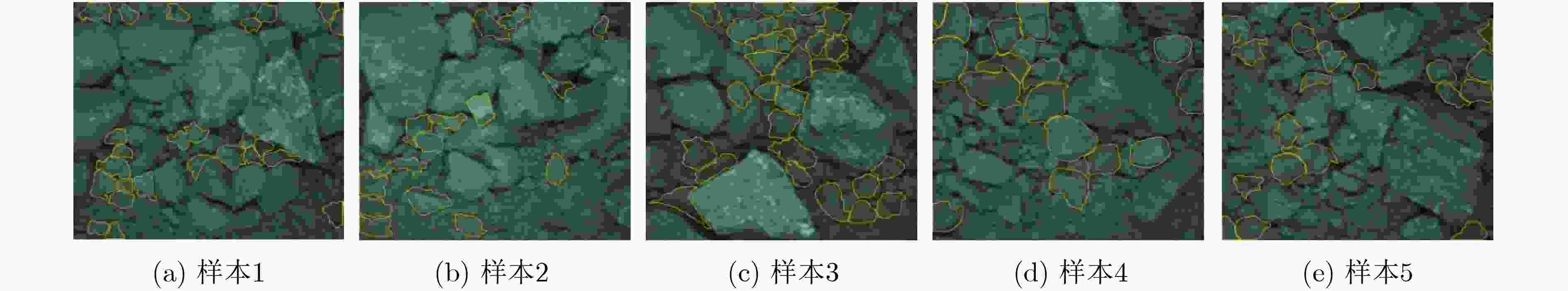

图 4 传统方法的矿石轮廓划分图

下载: 全尺寸图片幻灯片

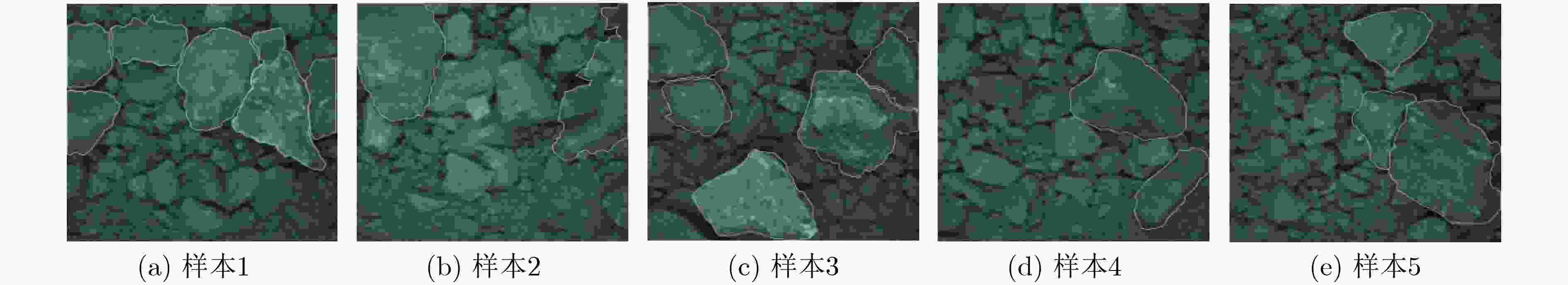

图 5 ReUnet大矿石轮廓划分图

下载: 全尺寸图片幻灯片

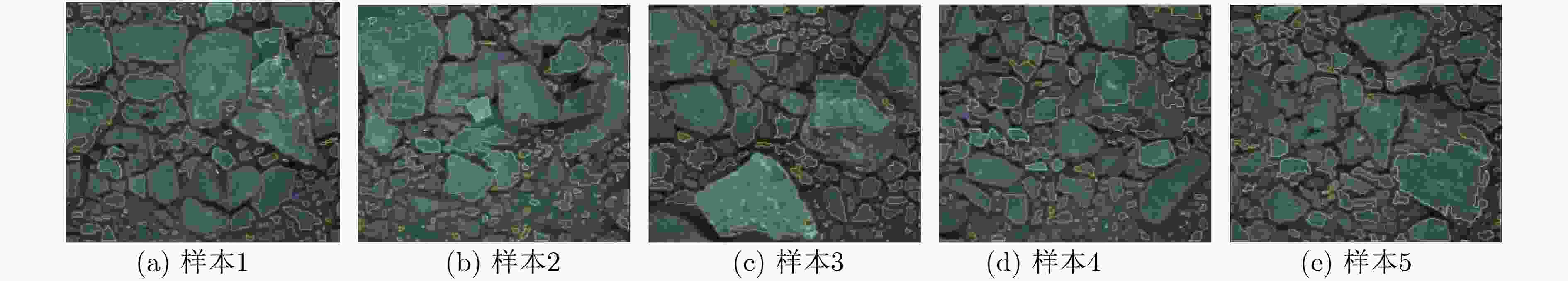

图 6 小矿石轮廓划分图

下载: 全尺寸图片幻灯片

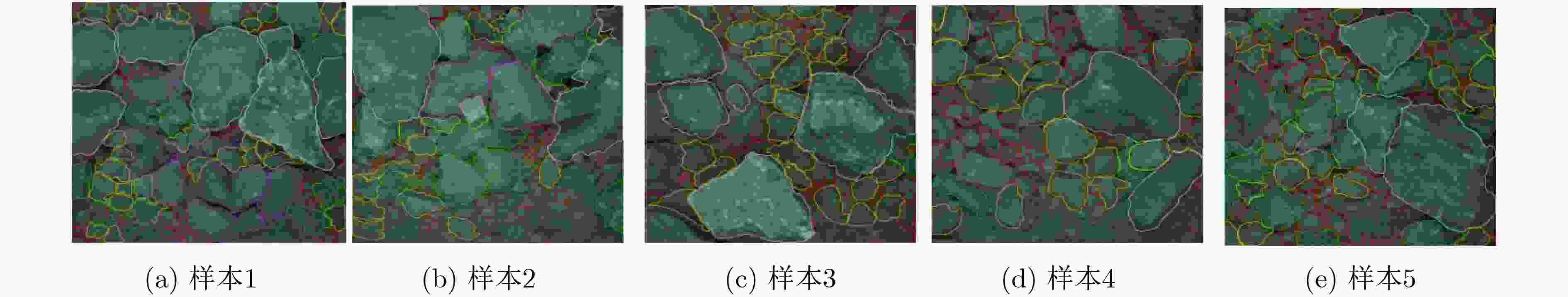

图 7 矿石轮廓划分图

下载: 全尺寸图片幻灯片

表 1 物体区域划分网络结构

类别层	卷积核	池化	残差	膨胀	重塑	步长	输出
conv1	7×7	max	–	–	–	2	64×64×64
residual conv	3×3	–	4	–	–	2	8×8×512
dilated conv	3×3	–	–	3	–	2	8×8×512
reshape conv	1×1	–	–	–	4	1	256×256×256
conv2	3×3					2	256×256×256
conv3	1×1	–	–	–	–	1	256×256×1

下载: 导出CSV

表 2 全局上下文判别网络结构

类别层	卷积核	步长	输出
conv	5×5	2×2	64
conv	5×5	2×2	128
conv	5×5	2×2	256
conv	5×5	2×2	512
conv	5×5	2×2	512
conv	5×5	2×2	512
FC	–	–	1024

下载: 导出CSV

表 3 局部上下文判别网络结构

类别层	卷积核	步长	输出
conv	5×5	2×2	128
conv	5×5	2×2	256
conv	5×5	2×2	512
conv	5×5	2×2	512
conv	5×5	2×2	512
FC	–	–	1024

下载: 导出CSV

表 4 大矿石轮廓划分准确率

方法	识别总数	准确度		误判度		轮廓区域的准确率(%)
方法	识别总数	数量	准确率(%)	数量	误判率(%)	>90	80～90	70～80	60～70
传统方法^[16]	2370	1650	69.62	120	5.06	53.16	7.59	7.59	1.27
ReUnet	2370	2364	99.75	5	0.21	97.34	2.66	–	–

下载: 导出CSV

表 5 小矿石轮廓划分结果

方法	识别总数	准确度		误判度		轮廓区域的误识率(%)
方法	识别总数	数量	准确率(%)	数量	误判率(%)	小变大	大变小
传统方法^[16]	28812	13230	45.92	9114	68.89	6.67	62.22
ReUnet	28812	28518	98.98	294	1.02	–	1.02

下载: 导出CSV
