一种基于Casorati-奇异值分解的超快平面波超声多普勒自适应时空域杂波抑制算法

徐依雯; 杨晨; 徐杰; 焦阳; 崔崤峣

doi:10.11999/JEIT200618

一种基于Casorati-奇异值分解的超快平面波超声多普勒自适应时空域杂波抑制算法

doi: 10.11999/JEIT200618

徐依雯¹,
杨晨^{2, 3},
徐杰^{2, 4},
焦阳^2, ,,
崔崤峣²

1.
苏州国科昂卓医疗科技有限公司苏州 215163
2.
中国科学院苏州生物医学工程技术研究所苏州 215163
3.
中国科学技术大学电信学院合肥 230031
4.
复旦大学工程与应用技术研究院上海 200433

基金项目: 国家自然科学基金(51805529)，江苏省重点研发计划(BE2017601, BE2017661)

详细信息

作者简介:
徐依雯：女，1993年生，硕士，研究方向为医用超声图像处理

杨晨：男，1993年生，博士生，研究方向为医用超声图像处理

徐杰：男，1990年生，副研究员，研究方向为超声系统设计、电子电路分析与设计

焦阳：男，1988年生，副研究员，研究方向为医学超声成像和系统设计

崔崤峣：女，1974年生，研究员，博士生导师，研究方向为超声成像、超声生物效应和光声效应

通讯作者:
焦阳　jiaoy@sibet.ac.cn

中图分类号: TN911.7; R445.1
计量
- 文章访问数: 1213
- HTML全文浏览量: 562
- PDF下载量: 119
- 被引次数: 0
出版历程
- 收稿日期: 2020-07-24
- 修回日期: 2021-03-19
- 网络出版日期: 2021-04-13
- 刊出日期: 2021-08-10

Adaptive Spatiotemporal Clutter Rejection Based on Casorati-Singular Value Decompositionfor Ultrafast Plane-wave Doppler Imaging

Yiwen XU¹,
Chen YANG^{2, 3},
Jie XU^{2, 4},
Yang JIAO^{2
, ,},
Yaoyao CUI²

1.
Suzhou GuoKe Ultra Medical Technology Co. Ltd, Suzhou 215163, China
2.
Suzhou Institute of Biomedical Engineering and Technology, Chinese Academy of Sciences, Suzhou 215163, China
3.
Department of Electronic Engineering and Information Science, University of Science and Technology of China, Hefei 230031, China
4.
Academy for Engineering and Technology, Fudan University, Shanghai 200433, China

Funds: The National Natural Science Foundation of China (51805529); Jiangsu Provincial Key Research and Development Plan (BE2017601, BE2017661)

摘要

摘要: 超快超声平面波成像技术实现了超声的高帧频大视野同步采集，捕捉到更多有效原始信息，而传统滤波器在处理这种大视野数据方面有诸多不足。该文基于Casorati奇异值分解(Casorati-SVD)技术提出一种改进的自适应杂波抑制算法：首先，选取一个区域的原始平面波数据构建Casorati数据矩阵并进行奇异值分解；其次，根据分解后分量的多普勒频率和能量自适应匹配合适的滤波截止参数，抑制组织杂波和噪声并提取血流信号；最后，对每个区域重复前面的步骤并统计所有输出获取最终图像。该文分别在仿体、人体手臂动脉和家兔脑血流的回波信号上验证该算法抑制杂波的能力，这些实验结果表明，相比全局Casorati奇异值分解滤波器，这种改进的分区域自适应滤波算法将信噪比(SNR)提高4.4%～50%，对比信噪比(CNR)提高4.7%～55.9%。该技术实现了多普勒血流成像的空间自适应滤波，对临床血流成像的发展有重要意义。
- 超快超声平面波 /
- 功率多普勒 /
- Casorati奇异值分解 /
- 自适应杂波抑制
Abstract: By using compounded plane wave, it enables the high-frame-rate acquisition of synchronous ultrasonic samples in the all field of view. However, classical clutter filters fail to deal with these big synchronous imaging datasets. In this study, an improved adaptive clutter rejection algorithm based on Casorati Singular Value Decomposition (Casorati-SVD) is proposed to take full advantage of synchronous datasets. The first step is to construct a Casorati matrix based on a block of plane-wave data and perform singular value decomposition on this Casorati matrix. Then the key point is to adaptively determine the cufoff thresholds according to Doppler frequency and energy of component signals and the blood flow signal is extracted through auto-generated filter. Finally, adaptive SVD filtering on each block is performed and the final flow signals are reconstructed from all blocks. To assess its ability in noise suppression, the proposed method is applied to blood flow echos obtained from phantom, arm artery and rabbit brain. These results demonstrate the improved method has 4.4% to 50% higher Signal-to-Noise-Ratio (SNR) and 4.7% to 55.9% Contrast-to-Noise-Ratio (CNR) than conventional Casorati-SVD methods. In conclusion, this method realizes spatial adaptive filtering and can be significant for development of clinical blood flow imaging.
- Ultrafast ultrasound plane wave /
- Power Doppler /
- Casorati Singular Value Decomposition (SVD) /
- Adaptive clutter suppression

HTML全文

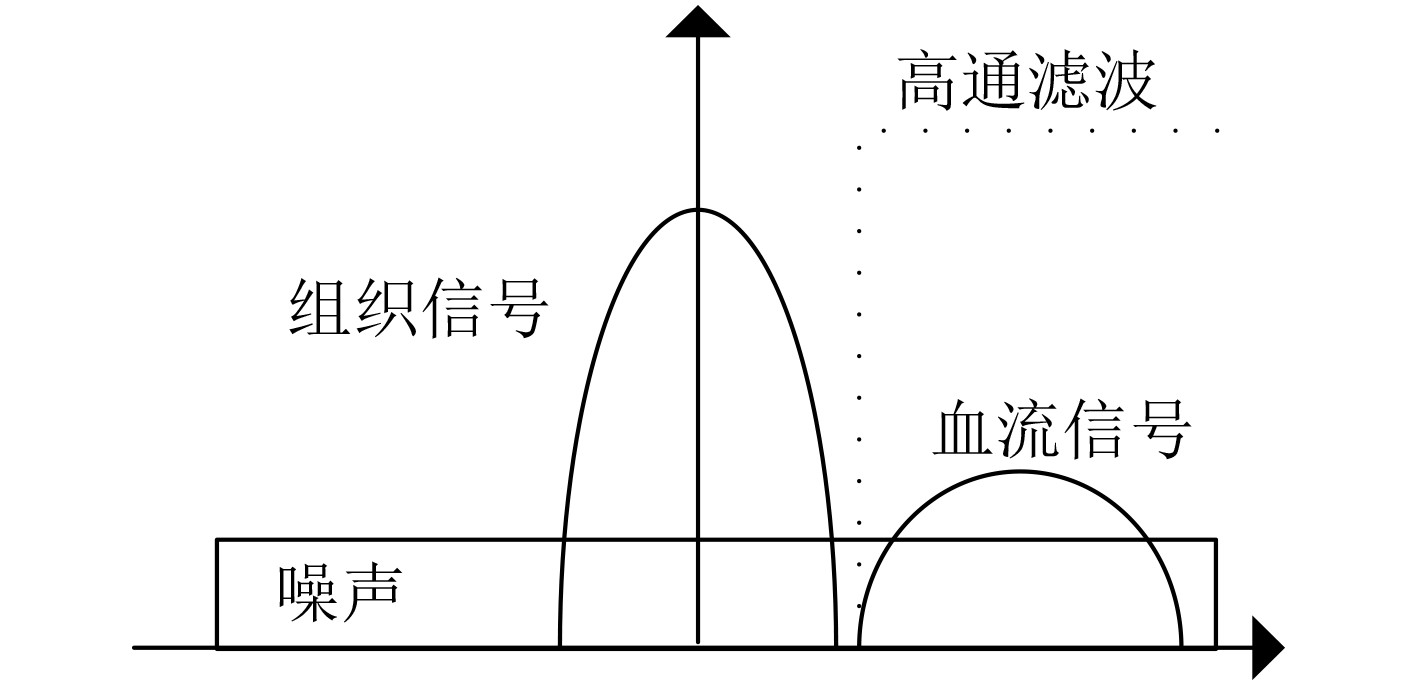

图 1 理想高通滤波器示意图

下载: 全尺寸图片幻灯片

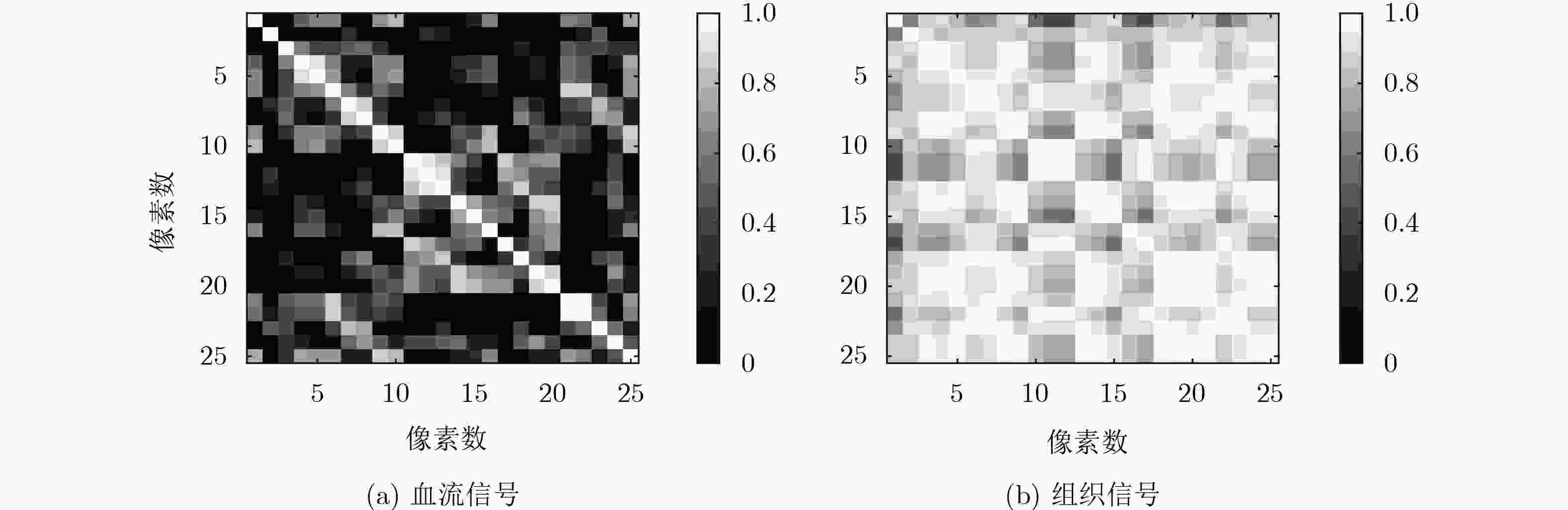

图 2 相邻25个像素点慢时信号相关矩阵

下载: 全尺寸图片幻灯片

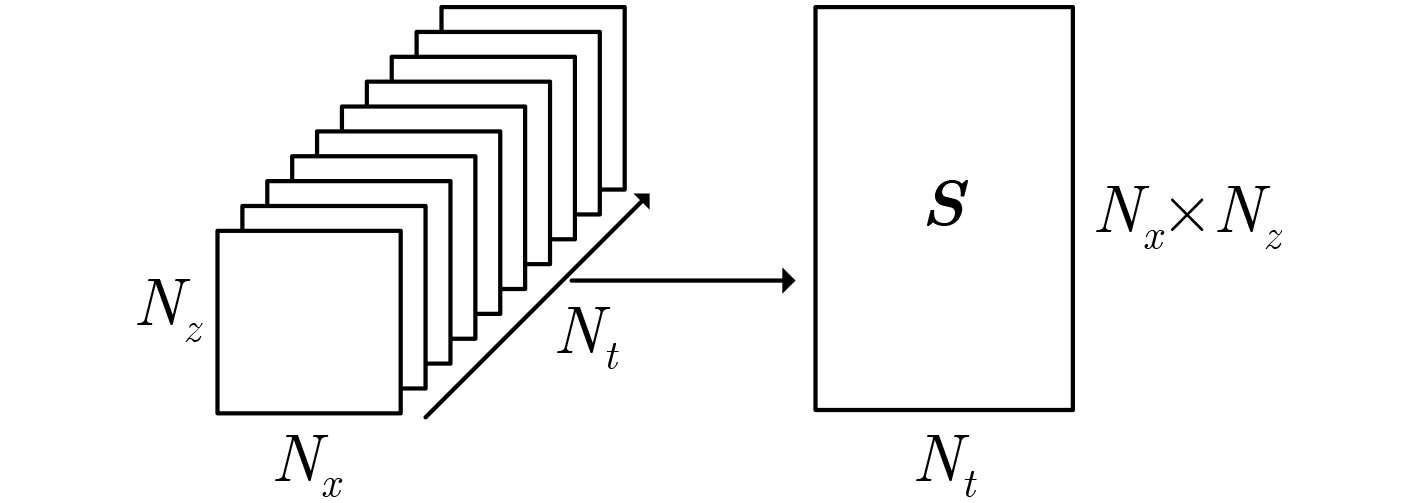

图 3 Casorati数据矩阵重构

下载: 全尺寸图片幻灯片

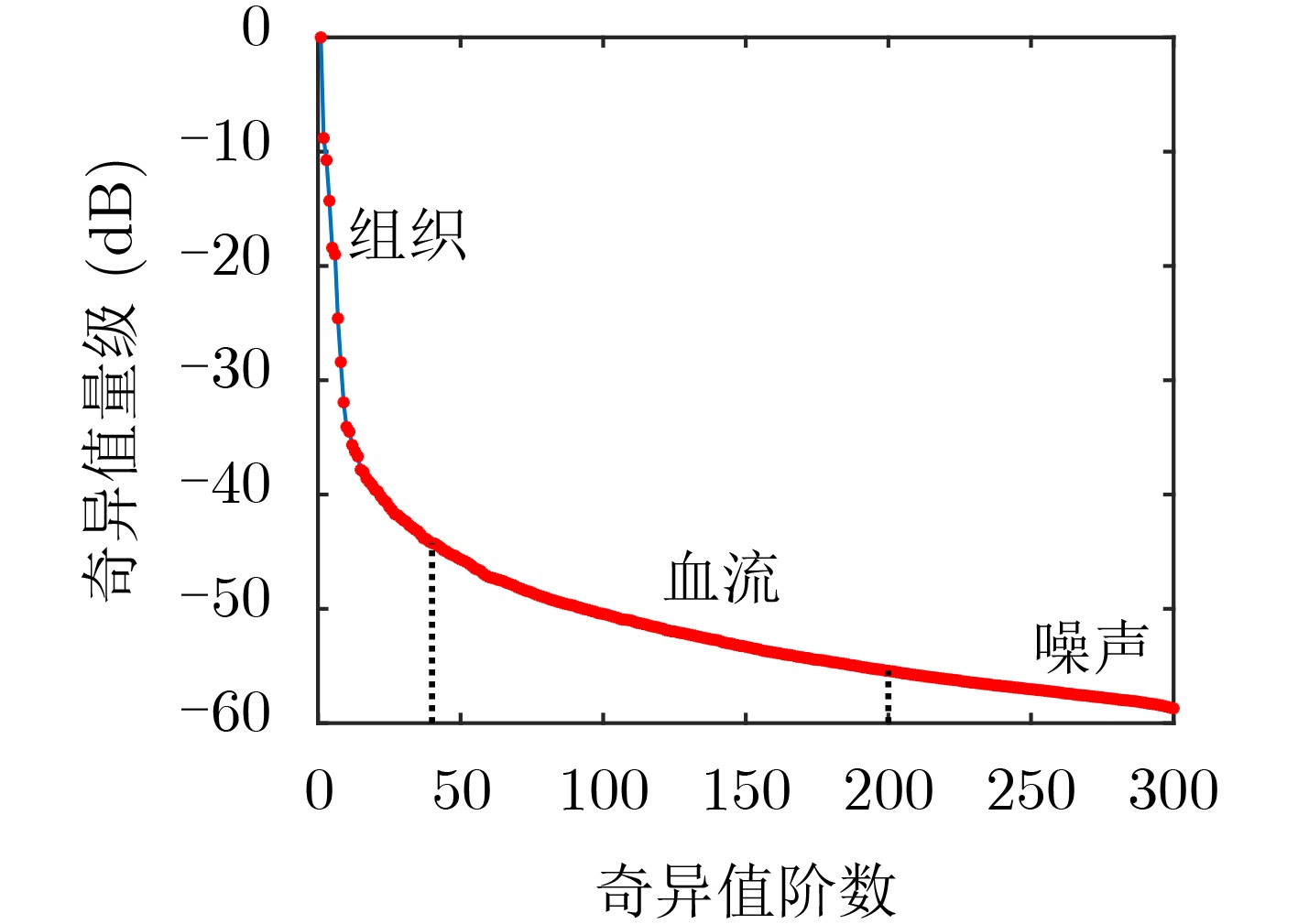

图 4 SVD奇异值分布示意图

下载: 全尺寸图片幻灯片

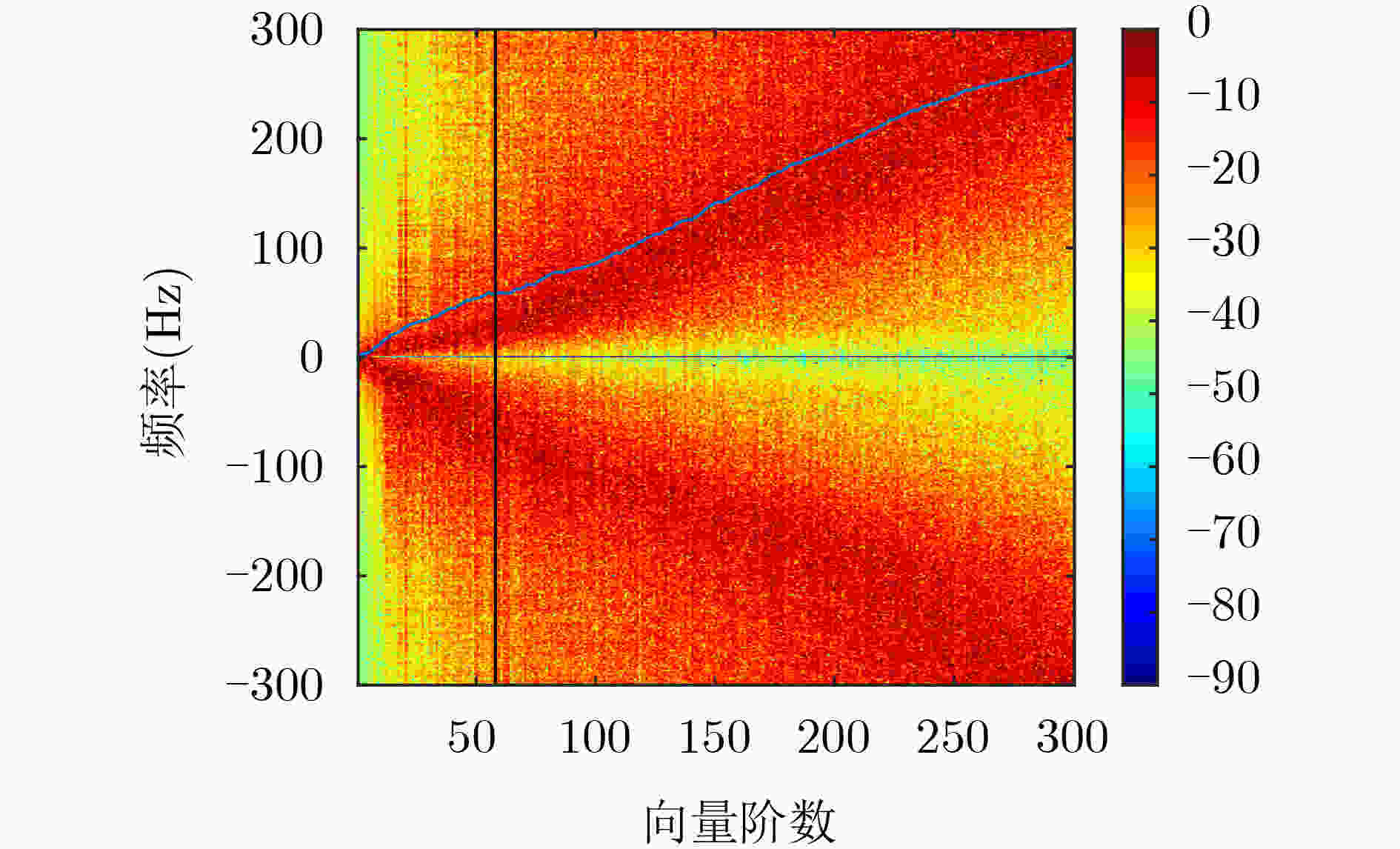

图 5 时间奇异向量频谱图

下载: 全尺寸图片幻灯片

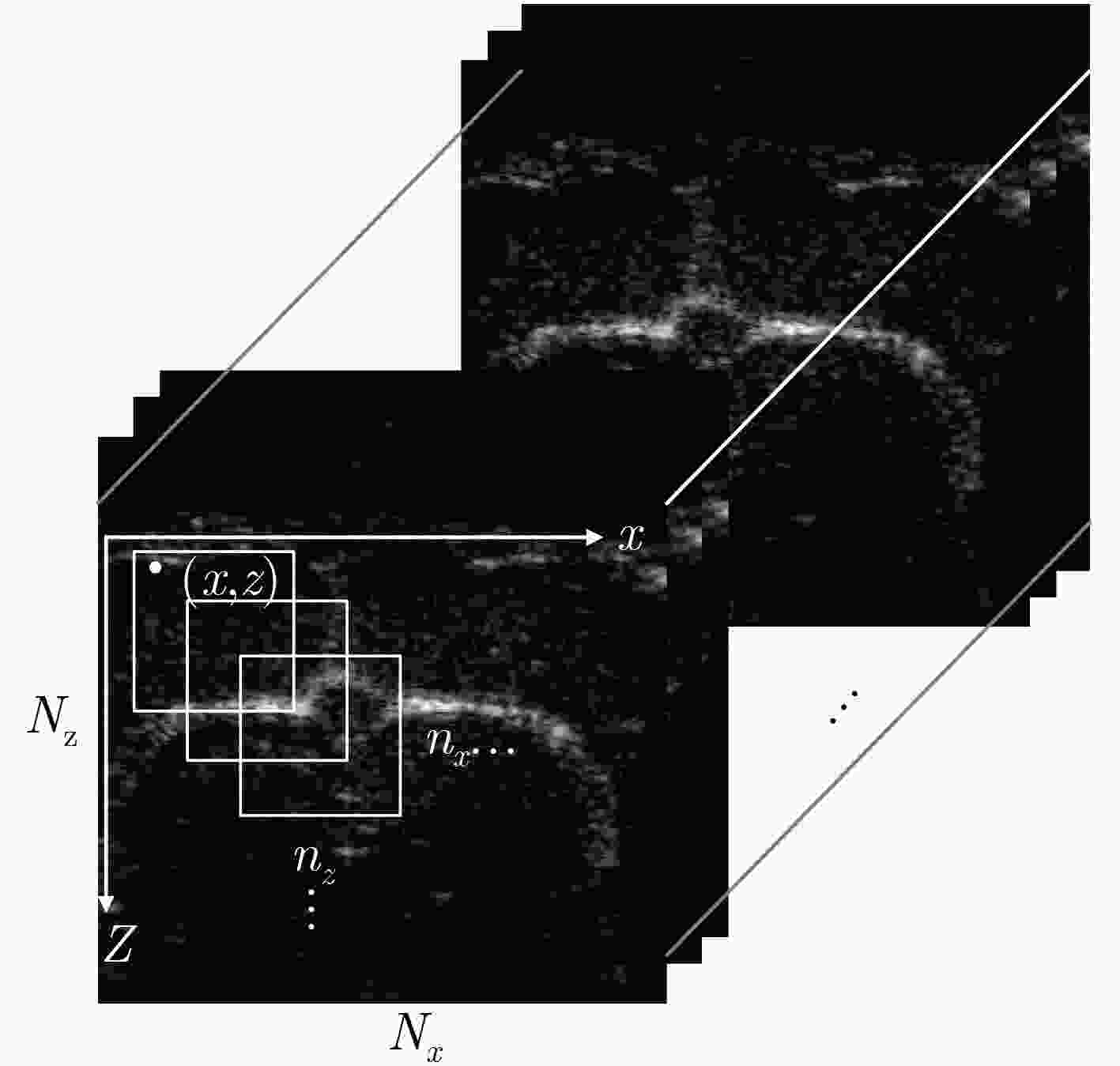

图 6 分区域滤波方法示意图

下载: 全尺寸图片幻灯片

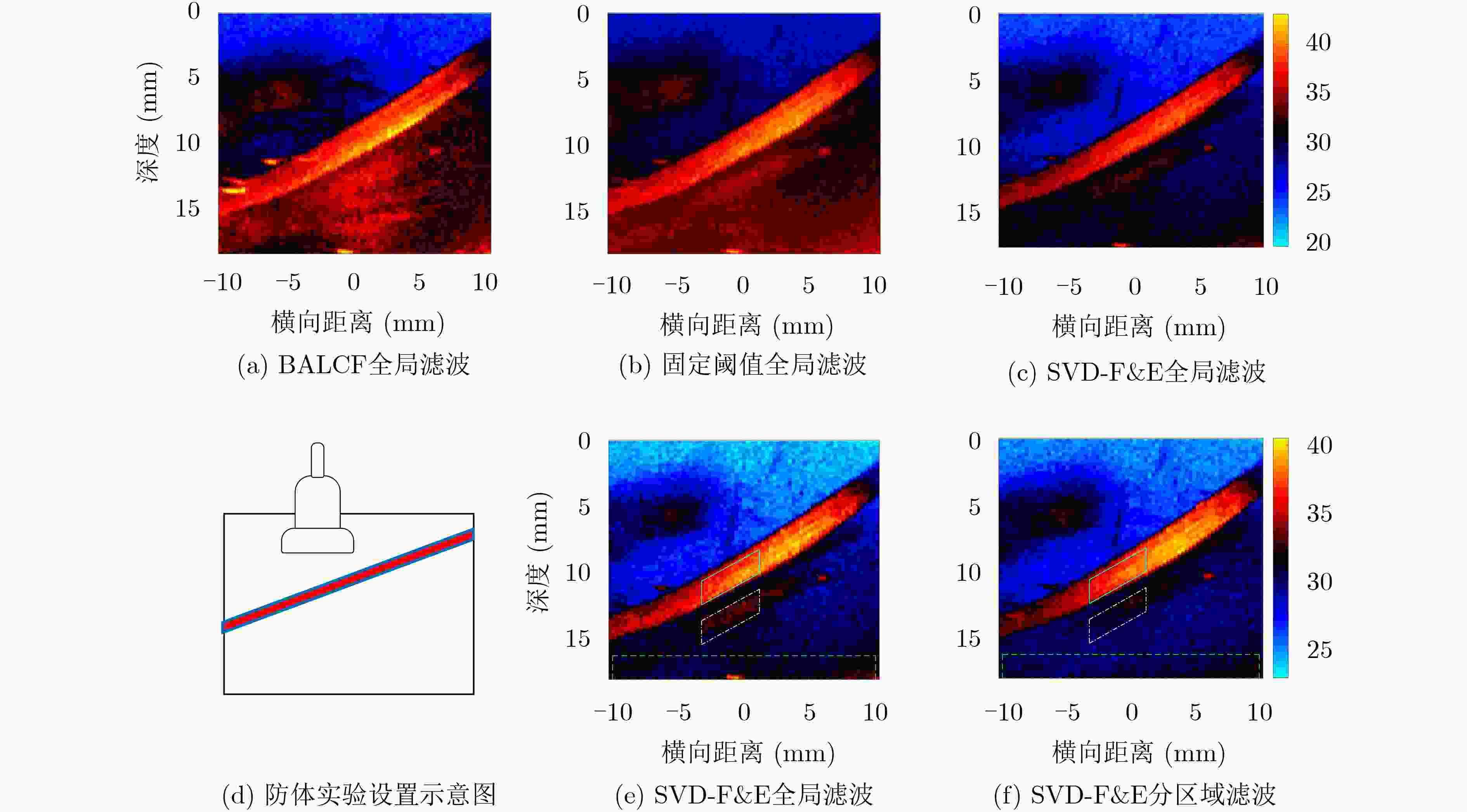

图 7 仿体实验与功率多普勒图像

下载: 全尺寸图片幻灯片

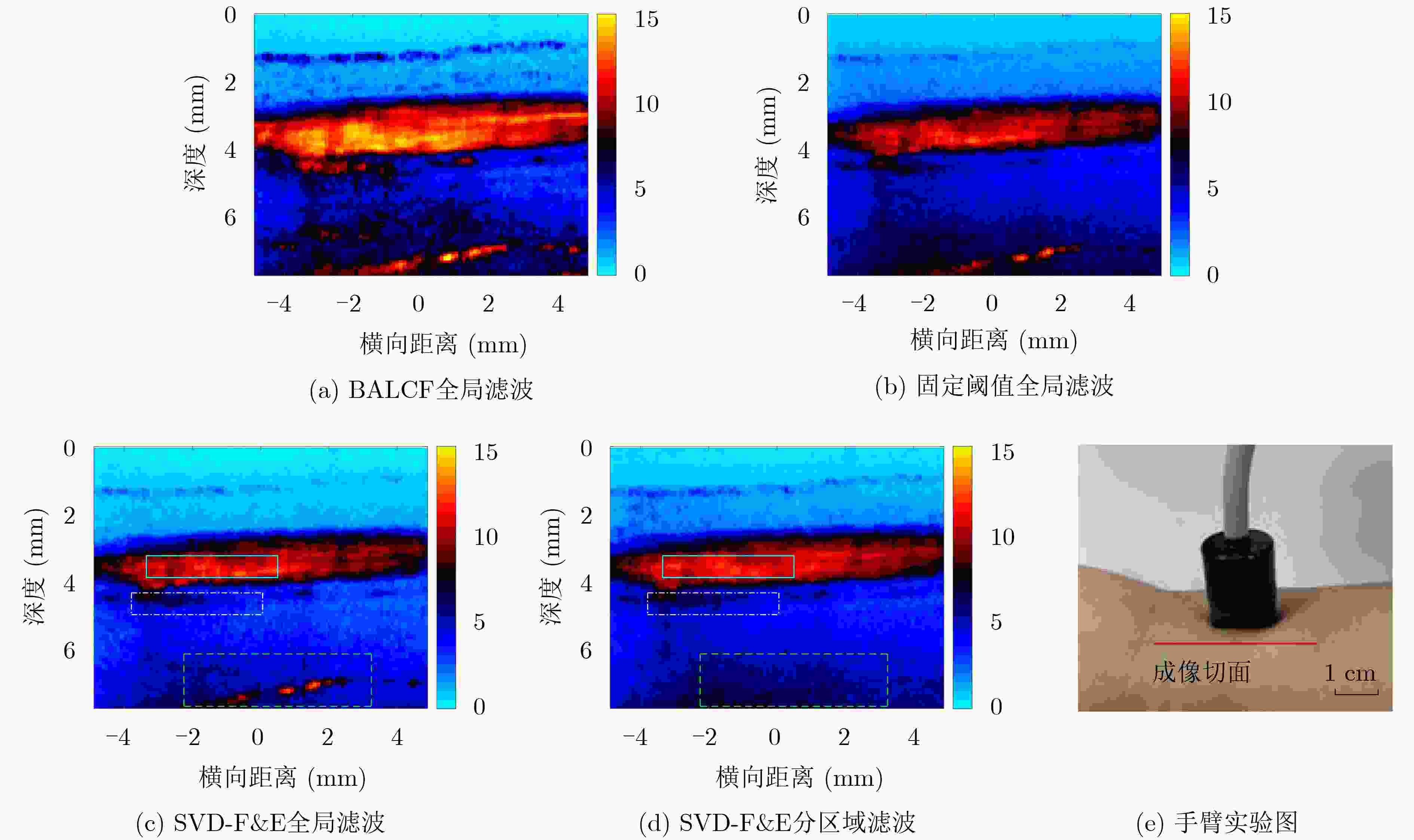

图 8 手臂动脉实验与功率多普勒图像

下载: 全尺寸图片幻灯片

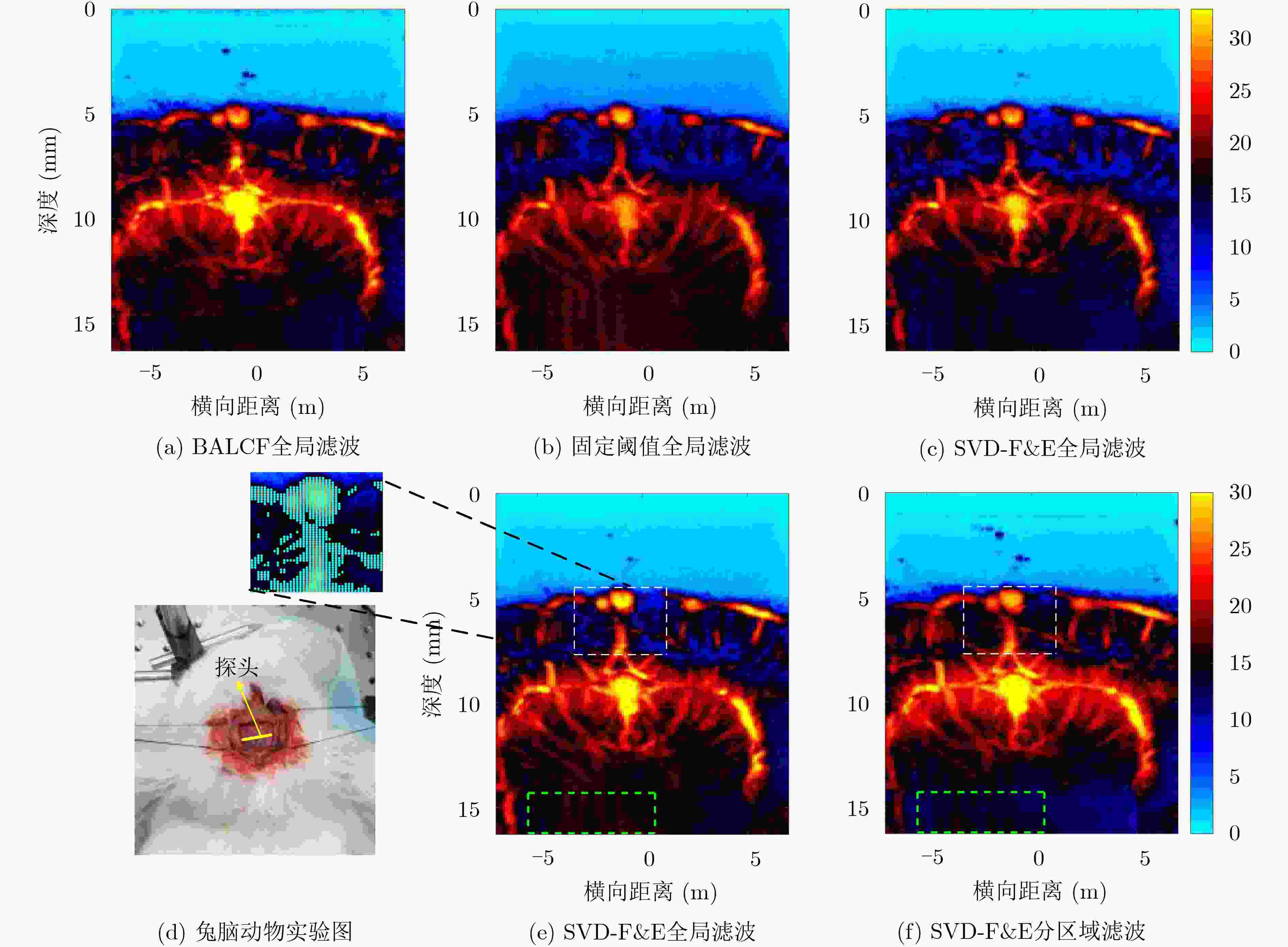

图 9 家兔大脑功率多普勒图像

下载: 全尺寸图片幻灯片

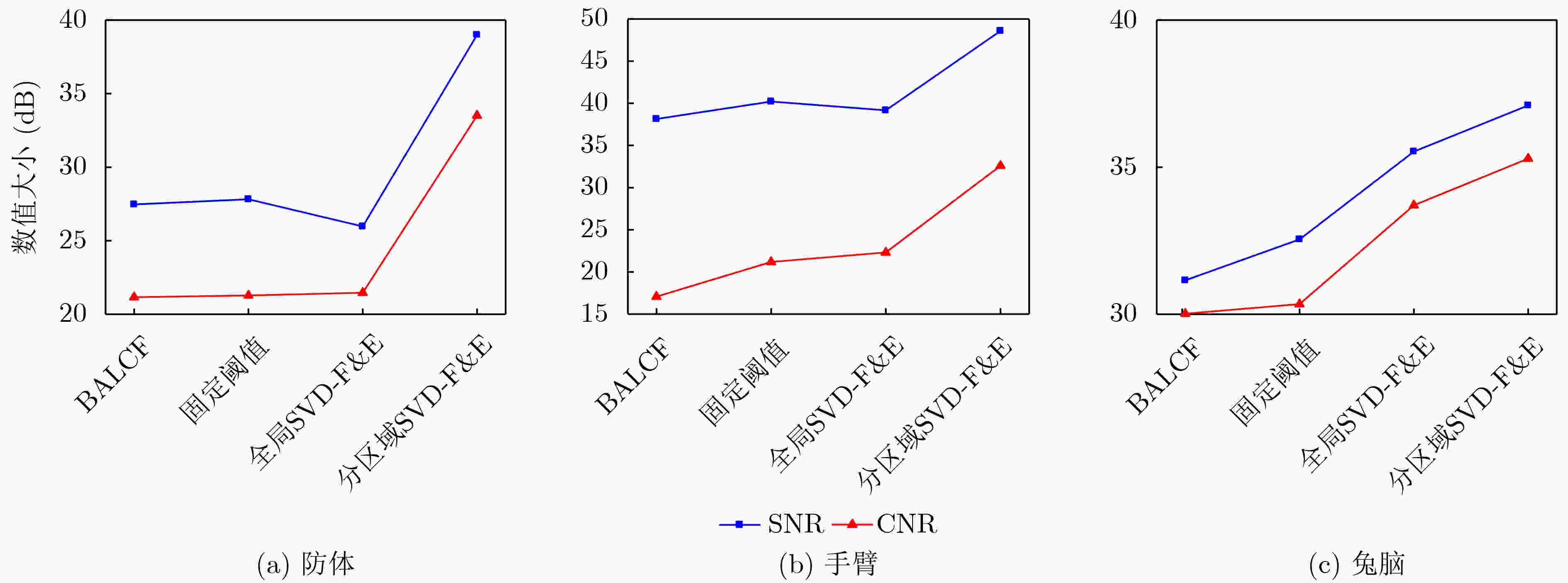

图 10 信噪比曲线

下载: 全尺寸图片幻灯片
