基于形态特征提取的急性下壁心肌梗死BiLSTM网络辅助诊断算法

徐文畅; 何文明; 游斌权; 郭宇; 洪凯程; 陈雨行; 许素玲; 陈晓禾

doi:10.11999/JEIT200480

基于形态特征提取的急性下壁心肌梗死BiLSTM网络辅助诊断算法

doi: 10.11999/JEIT200480

1.
中国科学院苏州生物医学工程技术研究所苏州 215163
2.
宁波大学医学院附属医院宁波 315211
3.
上海交通大学医学院附属苏州九龙医院苏州 215021

基金项目: 国家重点研发计划(2017YFC1001803)，浙江省医药卫生重大科技计划项目(WKJ-ZJ-2012)

详细信息

作者简介:
徐文畅：女，1993年生，研究实习员，研究方向为信号处理、人工智能

何文明：男，1981年生，副主任医师，研究方向为冠状动脉粥样硬化性心脏病的诊治

游斌权：男，1970年生，主任医师，研究方向为心血管内科

郭宇：男，1989年生，助理研究员，研究方向为电磁兼容

洪凯程：男，1994年生，研究实习员，研究方向为信号处理、电路设计方向

陈雨行：女，1996年生，博士生，研究方向为信号处理

许素玲：女，1966年生，主任医师，研究方向为过敏性疾病

陈晓禾：男，1976年生，研究员，研究方向为电磁兼容、人工智能

通讯作者:
陈晓禾　chenxh@sibet.ac.cn

中图分类号: TP183
计量
- 文章访问数: 1446
- HTML全文浏览量: 897
- PDF下载量: 105
- 被引次数: 0
出版历程
- 收稿日期: 2020-06-15
- 修回日期: 2020-12-16
- 网络出版日期: 2021-01-05
- 刊出日期: 2021-09-16

Acute Inferior Myocardial Infarction Detection Algorithm Based on BiLSTM Network of Morphological Feature Extraction

1.
Suzhou Institute of Biomedical Engineering and Technology Chinese Academy of Science, Suzhou 215163, China
2.
The Affiliated Hospital of Medical School, Ningbo University, Ningbo 315211, China
3.
Suzhou Kowloon Hospital, Shanghai Jiao Tong University School of Medicine, Suzhou 215021, China

Funds: The National Key Research and Development Project (2017YFC1001803), The Major Science and Technology Program for Medicine and Health in Zhejiang Province (WKJ-ZJ-2012)

摘要

摘要: 急性下壁心肌梗死是一种病发急、进展快、致死率高的心脏疾病，该文提出一种新颖的基于形态特征提取的BiLSTM神经网络分类的急性下壁心肌梗死辅助诊断算法，可大幅度提高医生对急性下壁心肌梗死疾病的诊断效率并有助于及时确诊。算法包括：对胸痛中心数据库心拍信号进行降噪及心拍分割；根据临床心内科医学诊断指南提取了12导联波形距离特征和分导联波形幅值特征；依据提取的特征搭建LSTM与BiLSTM神经网络进行心拍的分类识别；使用PTB公开数据库和胸痛中心数据库多临床中心进行交叉验证。实验结果表明，加入胸痛中心真实临床数据后，基于形态特征提取BiLSTM神经网络的急性下壁心肌梗死辅助诊断算法准确率达到99.72%，精度达到99.53%，灵敏度达到100.00%，同时F1-Score达到99.76。该算法比其他现有算法准确率提高至少1%，该项研究具有非常重要的临床应用价值。
- 心电图 /
- 人工智能 /
- 双向长短期记忆神经网络 /
- 形态特征 /
- 心肌梗死
Abstract: Acute inferior myocardial infarction is a kind of heart disease with rapid progression and high mortality. In order to improve the diagnosis efficiency for inferior myocardial infarction, a novel algorithm for automatic detection of inferior myocardial infarction based on Bi-directional Long Short-Term Memory (BiLSTM) network of morphological feature extraction is proposed. Based on the clinical ECG signals of the cardiology center, noise is reduced and every heartbeat is segmented. According to the cardiology clinical guidelines and signal analysis, 12 lead waveform distance features and single lead waveform amplitude features are extracted. Additionally, the neural network structure of Long Short-Term Memory (LSTM) and BiLSTM are built from to the extracted features. It is cross-validated by Physikalisch-Technische Bundesanstalt (PTB) public database and chest pain center database, the accuracy reaches 99.72%, the precision and sensitivity reach 99.53% and 100%. At the same time, the F1-Score reaches 99.76. Furthermore, experimental results demonstrated that the accuracy of the novel algorithm is still 1% higher than that of other existing algorithms after adding the chest pain center database.
- Electrocardiogram /
- Artificial intelligence /
- Bidirectional Long Short-Term Memory (LSTM) neural network /
- Morphological feature /
- Miocardial infarction

HTML全文

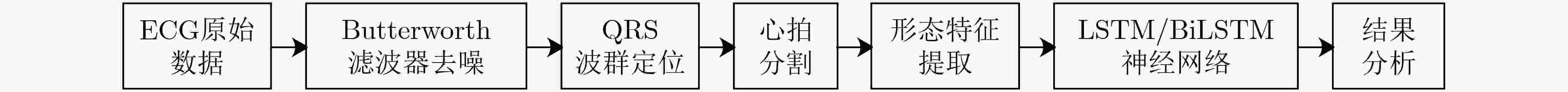

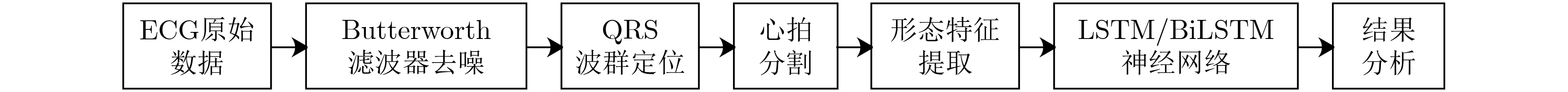

图 1 算法整体流程图

下载: 全尺寸图片幻灯片

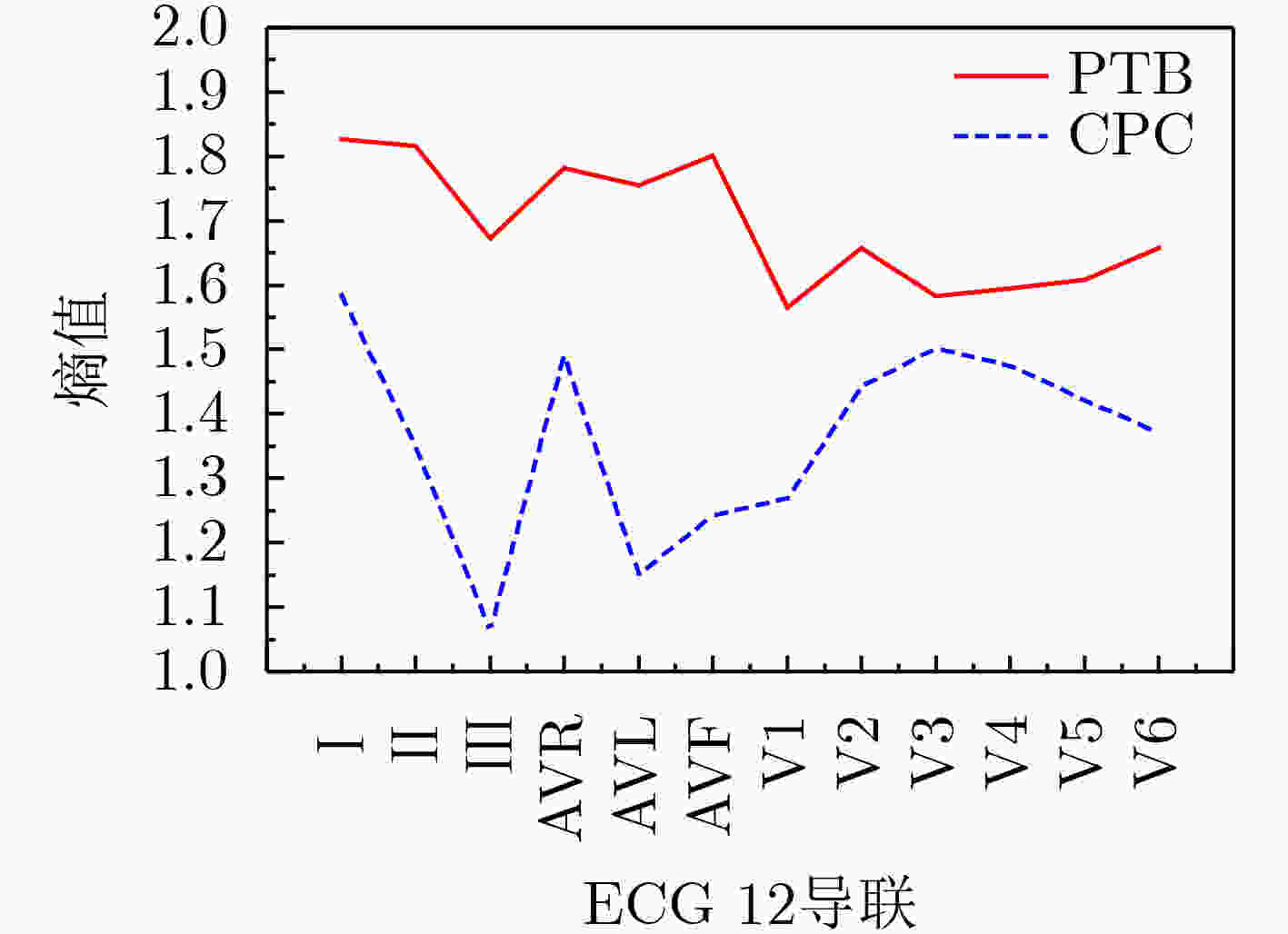

图 2 异源数据信息熵值对比图

下载: 全尺寸图片幻灯片

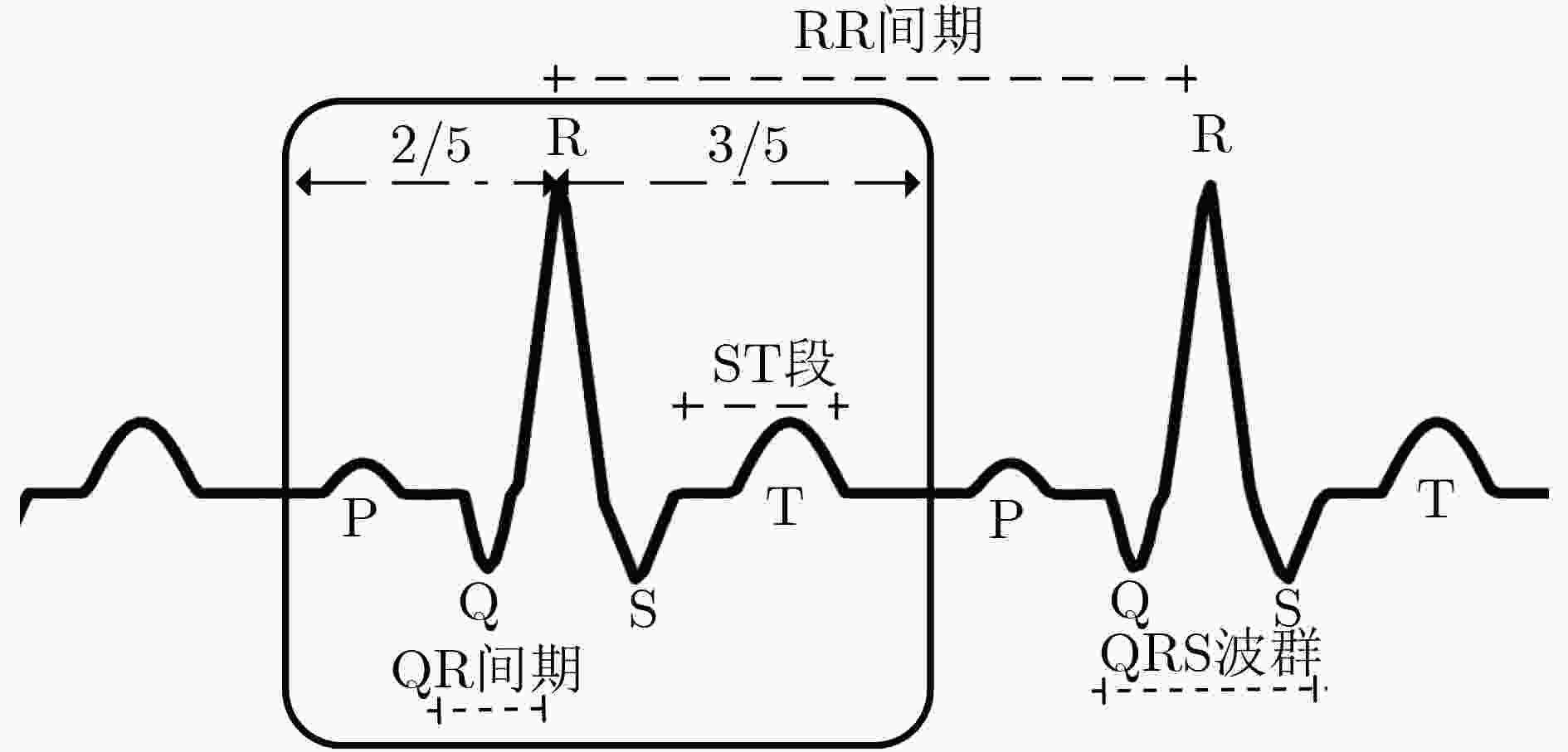

图 3 标准心拍示意图

下载: 全尺寸图片幻灯片

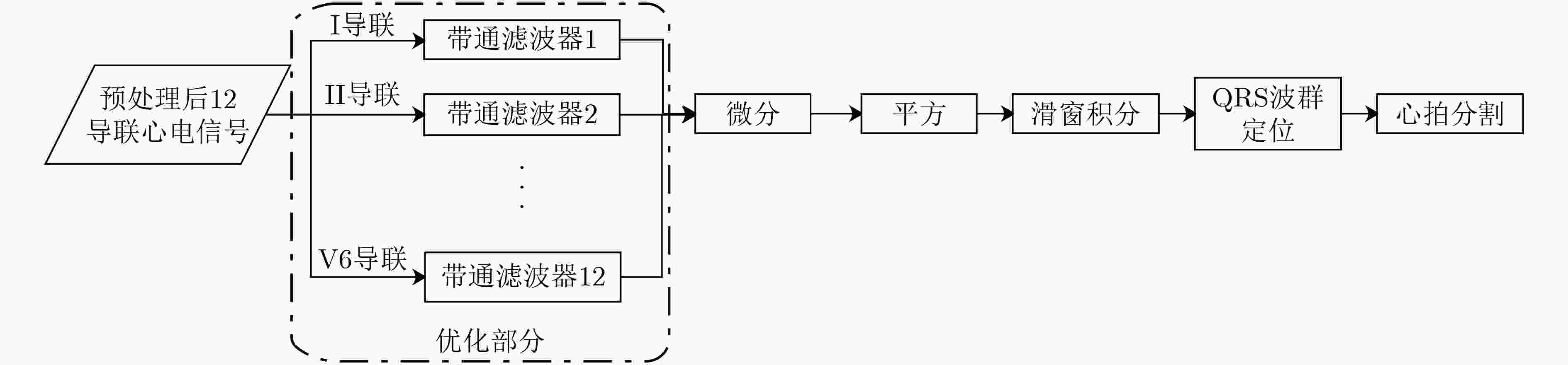

图 4 分导联QRS波群定位与心拍分割算法框图

下载: 全尺寸图片幻灯片

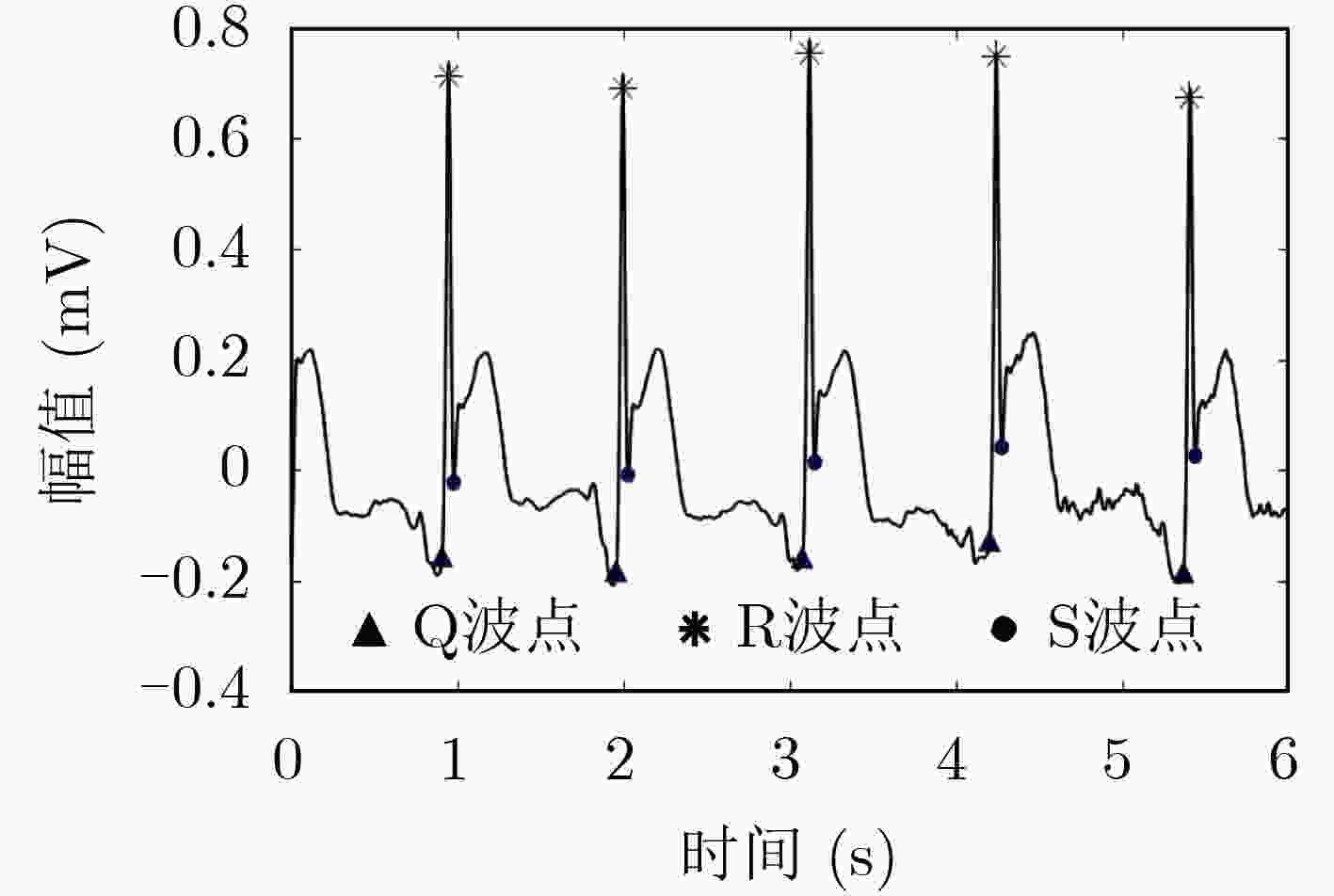

图 5 下壁心肌梗死病例AVF导联Q波、R波、S波定位结果

下载: 全尺寸图片幻灯片

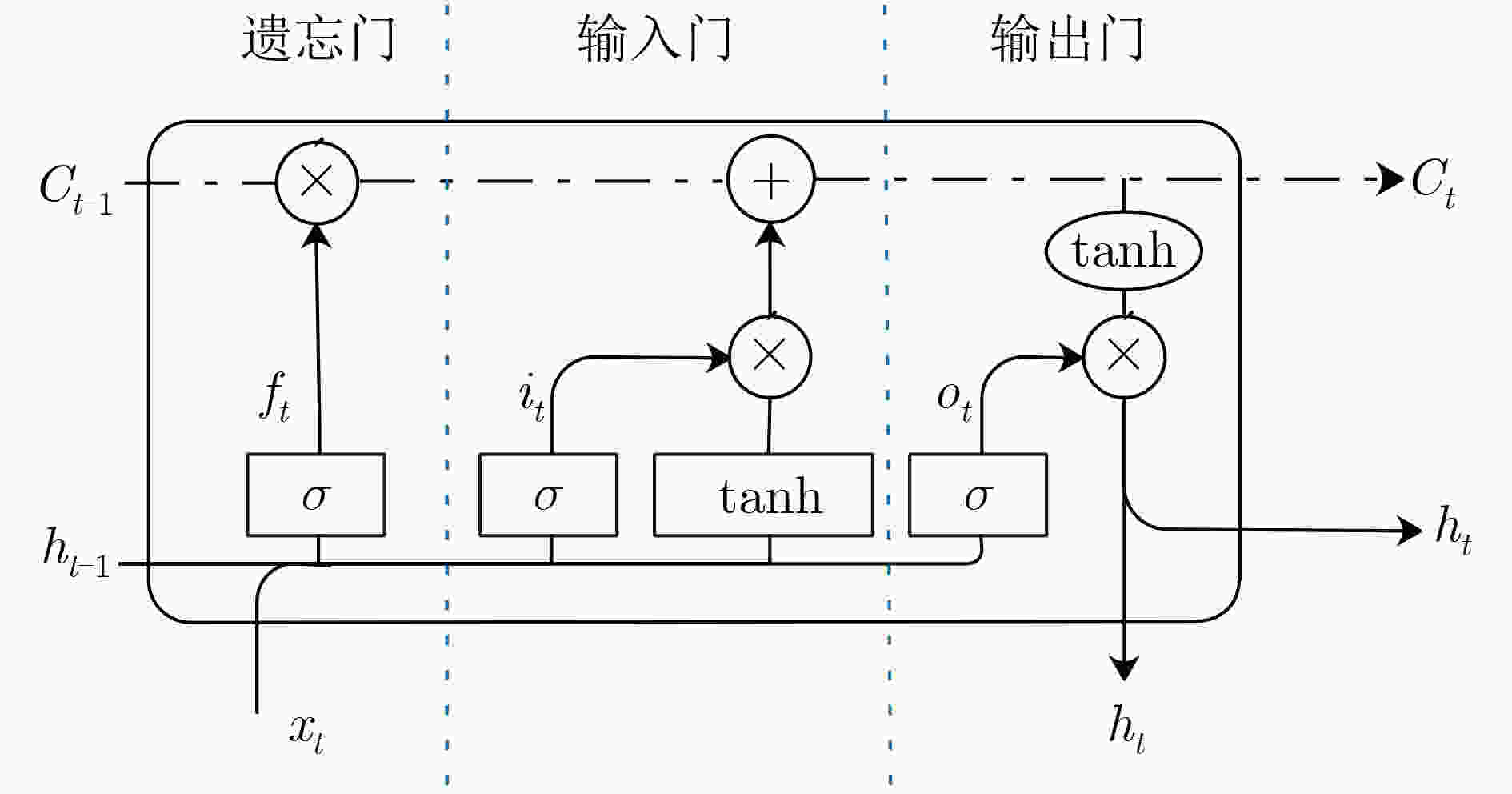

图 6 LSTM模型结构模块示意图

下载: 全尺寸图片幻灯片

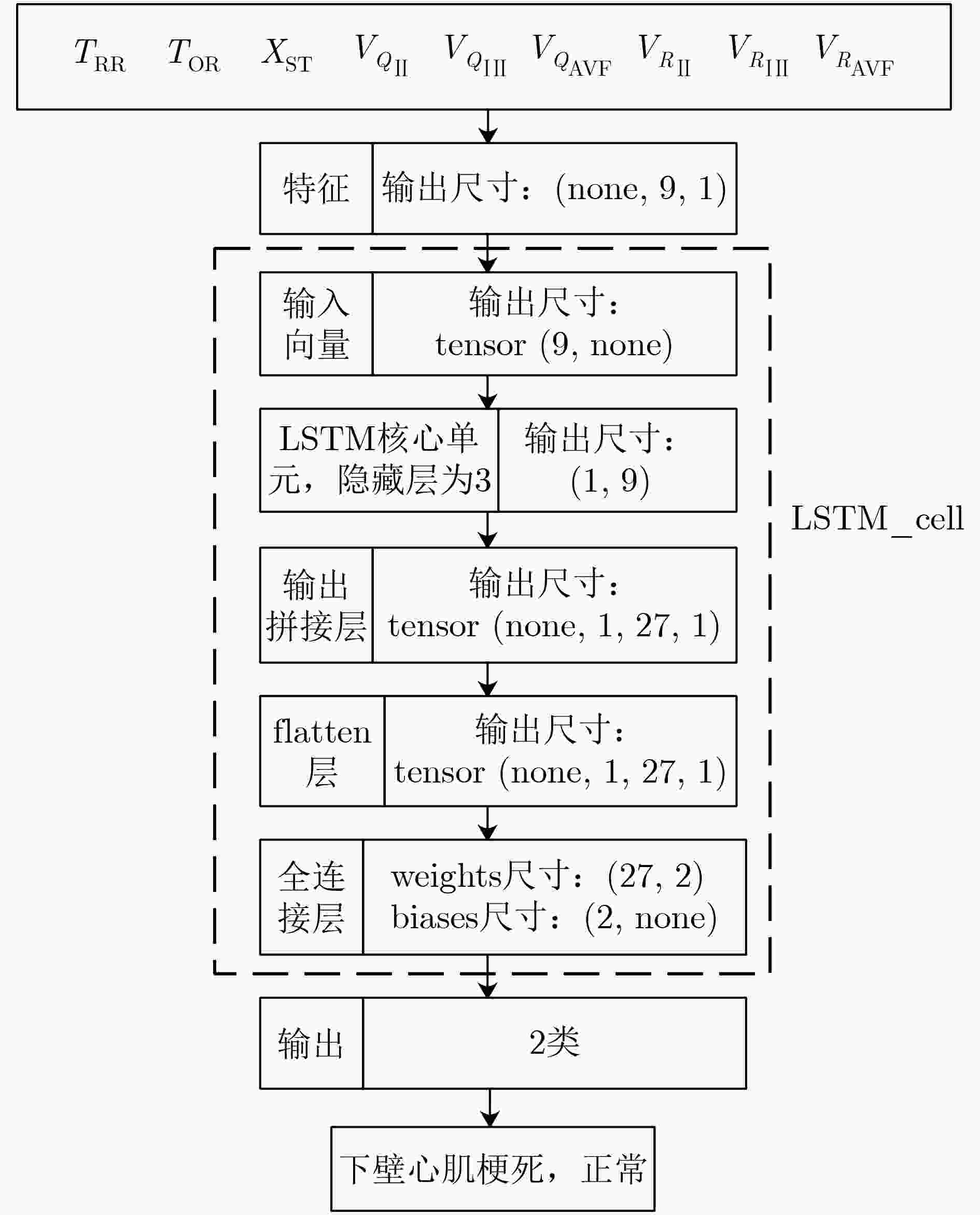

图 7 LSTM网络结构图

下载: 全尺寸图片幻灯片

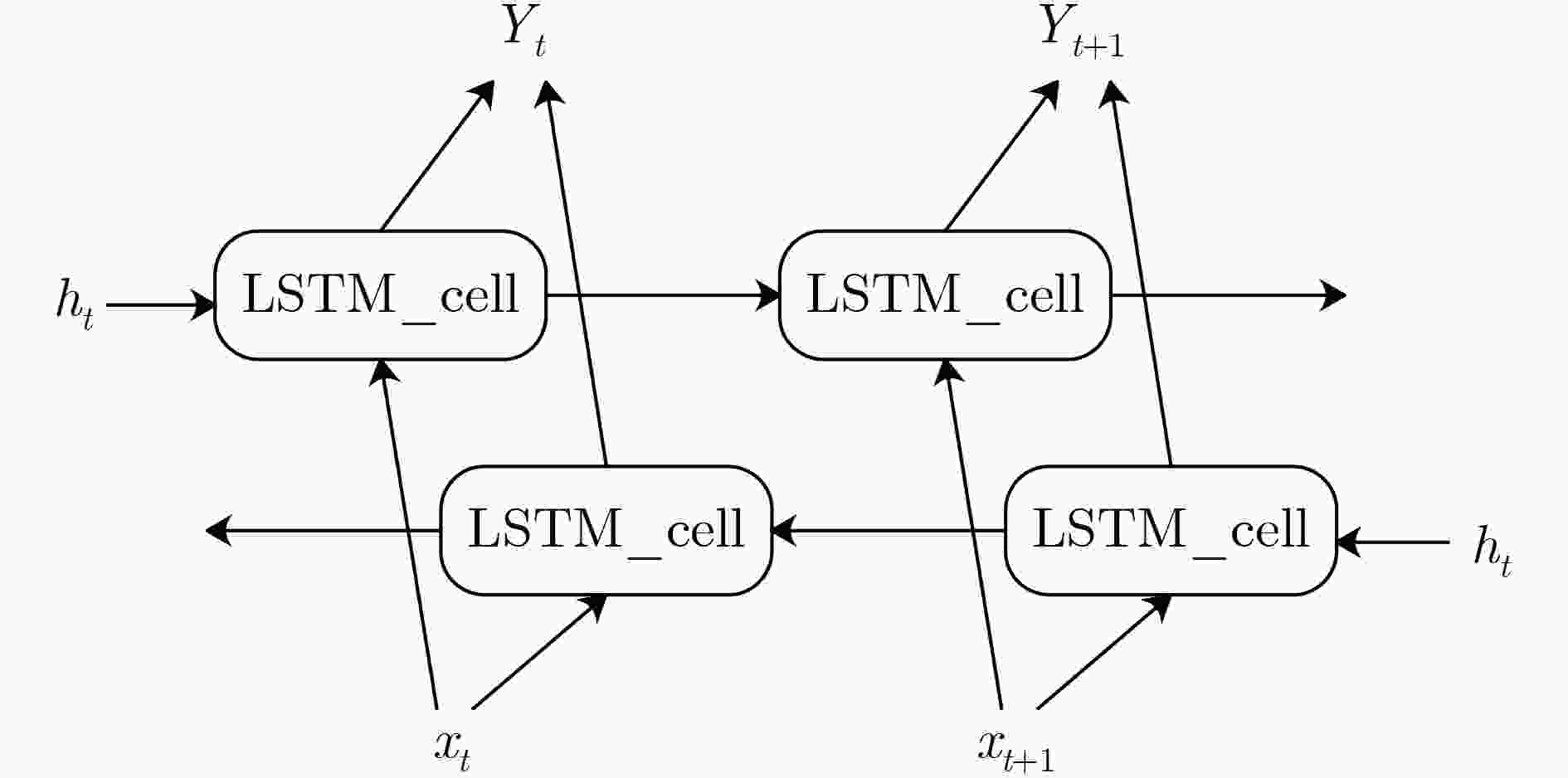

图 8 双向LSTM网络结构示意图

下载: 全尺寸图片幻灯片

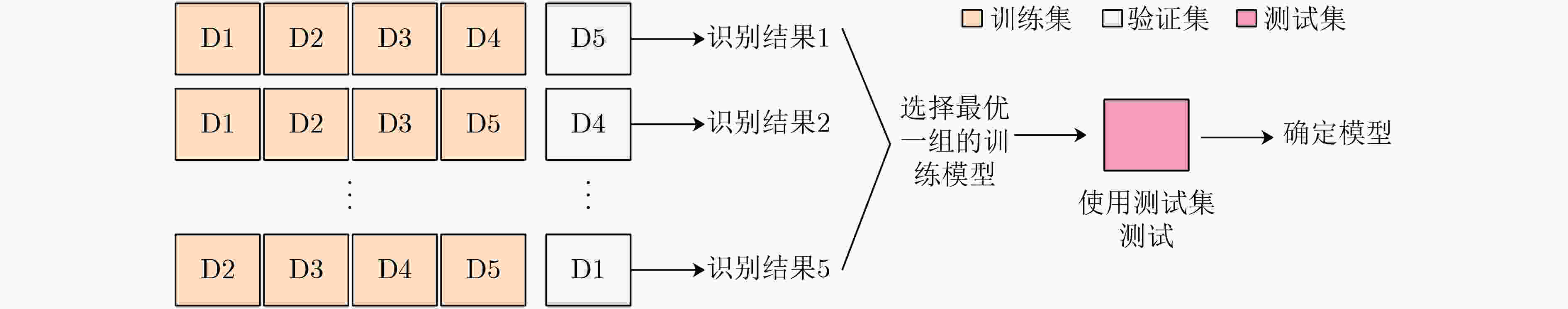

图 9 5折交叉验证过程

下载: 全尺寸图片幻灯片

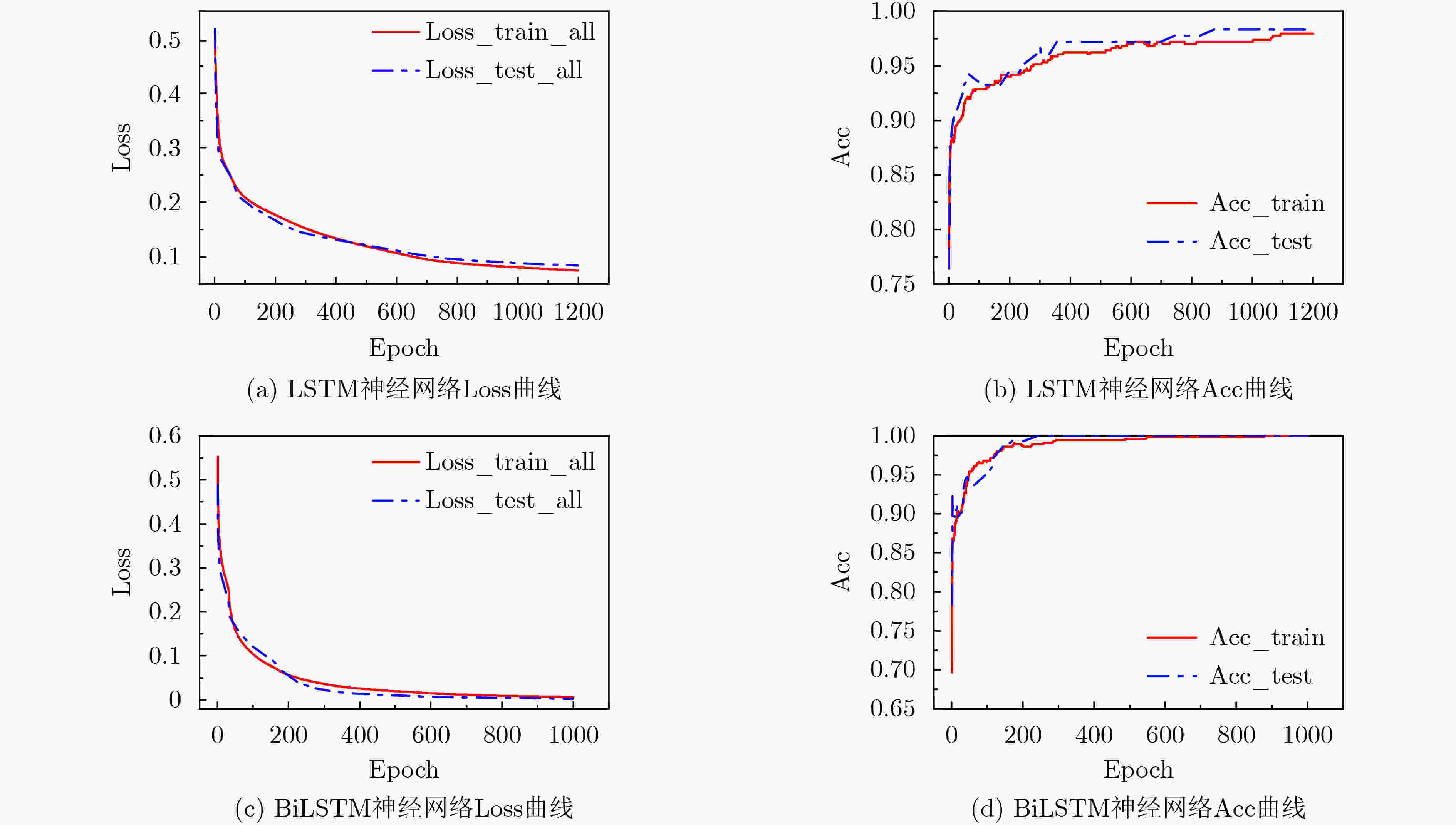

图 10 LSTM与BiLSTM神经网络的Loss曲线与Acc曲线

下载: 全尺寸图片幻灯片

表 1 特征提取说明表

特征类型	特征说明	特征表示
12导联波形距离特征	RR间期	${T_{{\rm{RR}}}}$
	QR间期	${T_{{\rm{QR}}}}$
	ST段电位起测点	${X_{{\rm{ST}}}}$
分导联波形幅值特征	Q波幅值：II, III与 AVF导联	${V_{ {{\rm{Q}}_{ {\rm{II} } } } } },{V_{ {{\rm{Q}}_{ {\rm{III} } } } } },{V_{ {{\rm{Q}}_{ {\rm{AVF} } } } } }$
分导联波形幅值特征	R波幅值：II, III与 AVF导联	${V_{ {{\rm{R}}_{ {\rm{II} } } } } },{V_{ {{\rm{R}}_{ {\rm{III} } } } } },{V_{ {{\rm{R}}_{ {\rm{AVF} } } } } }$

下载: 导出CSV

表 2 数据集分布情况

数据来源	心拍数/个	总计	训练集(80%)/个(5折交叉验证)		测试集(20%)/个
数据来源	心拍数/个	总计	训练集(80%)/个	验证集(20%)/个	测试集(20%)/个
CPC	811	1811	1159	289	363
PTB	1000	1811	1159	289	363

下载: 导出CSV

表 3 网络模型参数

网络模型	参数
LSTM	Epoch=1200
	Maxiters=1000
	Learining rate=0.00035
	Forget bias=1.0
BiLSTM	Epoch=1000
	Maxiters=1000
	Learining rate=0.001
	Forget bias=0.6

下载: 导出CSV

表 4 5折交叉验证分类评估指标值

本文算法	评估指标			验证集D1		验证集D2		验证集D3		验证集D4		验证集D5		平均值
形态特征提取+LSTM	混淆矩阵	TN	FN	123	1	125	3	117	1	128	1	111	1	NA
	混淆矩阵	FP	TP	1	165	3	159	1	171	2	158	1	176	NA
	Acc(%)			99.31		97.93		99.31		98.96		99.31		98.96
	precision(%)			99.40		98.15		99.42		98.75		99.44		99.03
	sensitivity(%)			99.40		98.15		99.42		99.37		99.44		99.16
	F1-Score($\beta = 1$)			99.40		98.15		99.42		99.06		99.44		99.09
形态特征提取+BiLSTM	混淆矩阵	TN	FN	129	0	114	1	117	2	131	1	116	0	NA
	混淆矩阵	FP	TP	0	161	1	174	3	168	1	156	0	173	NA
	Acc(%)			100.00		99.31		98.28		99.31		100.00		99.38
	precision(%)			100.00		99.43		98.25		99.36		100.00		99.41
	sensitivity(%)			100.00		99.43		98.82		99.36		100.00		99.52
	F1-Score($\beta = 1$)			100.00		99.43		98.53		99.36		100.00		99.46

下载: 导出CSV

表 5 模型测试集分类评估指标值

本文算法	混淆矩阵		Acc(%)	precision(%)	sensitivity(%)	F1-Score($\beta = 1$)
形态特征提取+LSTM	152	3	98.90	99.52	98.57	99.04
形态特征提取+LSTM	1	207	98.90	99.52	98.57	99.04
形态特征提取+BiLSTM	152	0	99.72	99.53	100.00	99.76
形态特征提取+BiLSTM	1	210	99.72	99.53	100.00	99.76

下载: 导出CSV

表 6 急性心肌梗死智能诊断方法比较

作者，年份	分类方法	导联数量	结果
Dohare et al., 2018^[7]	形态特征提取，SVM分类	12	心梗检测：Acc = 96.66%, sensitivity= 96.6%
Acharya et al., 2016^[8]	离散小波变换，非线性特征提取，KNN分类	12	心梗部位检测：Acc = 98.74%, sensitivity= 99.55%
Safdarian N, 2014^[18]	ANN, PNN, KNN, 多层感知器分类	12	心梗部位检测：Acc = 76%
Sharma L D, 2018^[19]	平稳小波变换，KNN分类	3	心梗部位检测：下壁Acc = 98.69%, sensitivity= 98.67%
Sharma L D, 2018^[19]	平稳小波变换，SVM分类	3	心梗部位检测：下壁Acc = 98.84%, sensitivity= 99.35%
本文所提	多导联形态特征提取，LSTM网络分类	3	心梗部位检测：下壁Acc = 98.90%, sensitivity= 98.57%
本文所提	多导联形态特征提取，BiLSTM网络分类	3	心梗部位检测：下壁Acc = 99.72%, sensitivity= 100.00%

下载: 导出CSV
