NDA-EVM Based Co-channel Interference Control Method and Performance Analysis in D2D Communication

1.
College of Communication Engineering, Chongqing University, Chongqing 400044, China
2.
School of Electrical and Electronic Engineering, Chongqing University of Technology, Chongqing 400054, China
3.
Chongqing General Aviation Co., Ltd (CQGA), Chongqing 401135, China

Funds: The National Natural Science Foundation of China (61501065, 61571069, 61601067, 61701054), The Chongqing Research Program of Basic Research and Frontier Technology (cstc2016jcyjA0021), The Fundamental Research Funds for the Central Universities (106112016CDJXY160001), The Chongqing Technology Innovation and Application Development Key Project (cstc2019jscx-zdztzxX0045, cstc2019jscx-zdztzxX0029, cstc2019jscx-zdztzxX0051)

摘要

摘要: 针对D2D通信系统中广泛存在的同信道干扰问题，该文提出一种基于非数据辅助误差矢量幅度(NDA-EVM)进行同信道干扰分析的方法。以NDA-EVM作为信道质量评估参量，推导信号在M-QAM调制下的NDA-EVM统一计算模型，利用信道增益建立NDA-EVM同信道干扰分布模型，并进一步求解该模型的性能上限，从而量化同信道干扰。理论分析和仿真实验表明，相对于传统算法，该文所提上限的计算时间复杂度由$O({M^2})$降为$O({M})$，提高了信道评估时效性；推导性能上限与理论值吻合度高，特别是在低SNR时为紧上界，两者最小均方根误差RMSE低至0.2615。
- 同信道干扰 /
- D2D通信 /
- 非数据辅助 /
- 误差矢量幅度
Abstract: In view of the widely exist co-channel interference in D2D communication system, a novel method to quantify the co-channel interference based on NonDate Aided Error Vector Magnitude (NDA-EVM) is proposed. NDA-EVM is considered as a new metric to evaluate the change of the channels. The NDA-EVM of M-QAM modulated signal is analytically derived. Moreover, the model of NDA-EVM under co-channel interference is established. Specifically, the upper bound of NDA-EVM is calculated when co-channel interferences exist, so co-channel interferences can be quantified. Theoretical analysis and simulation experiments indicate that, when compared with traditional NDA-EVM algorithm, the proposed upper bound of NDA-EVM reduces the time complexity of algorithm from O(M²) to O(M), the effectiveness of channel estimation is improved. Besides, the derived upper bound closely matches with the theoretical value, especially at low SNR, the RMSE is as low as 0.2615.
- Co-channel interference /
- D2D communication /
- NonDate-Aided (NDA) /
- Error Vector Magnitude (EVM)

HTML全文

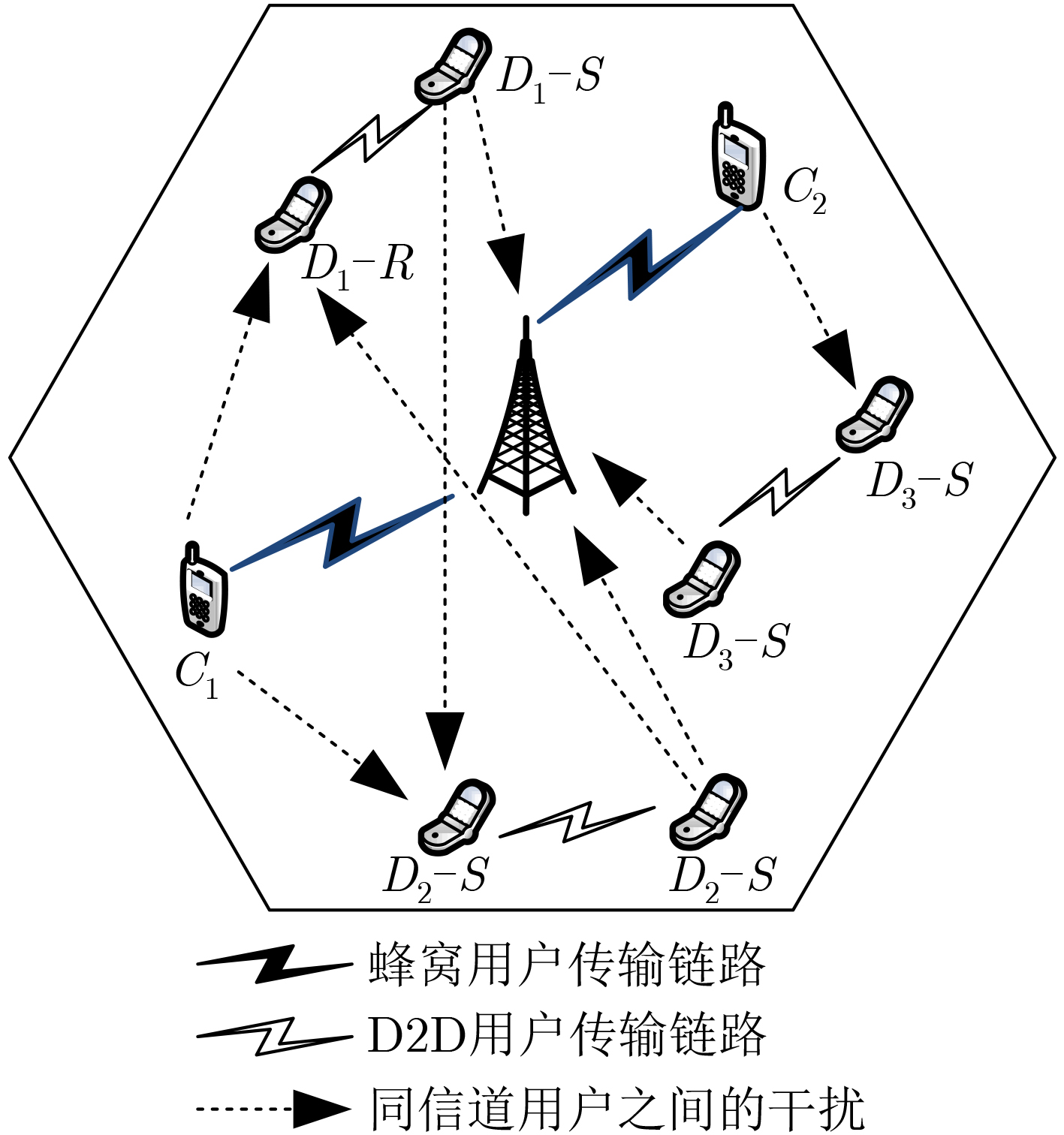

图 1 D2D通信系统模型

下载: 全尺寸图片幻灯片

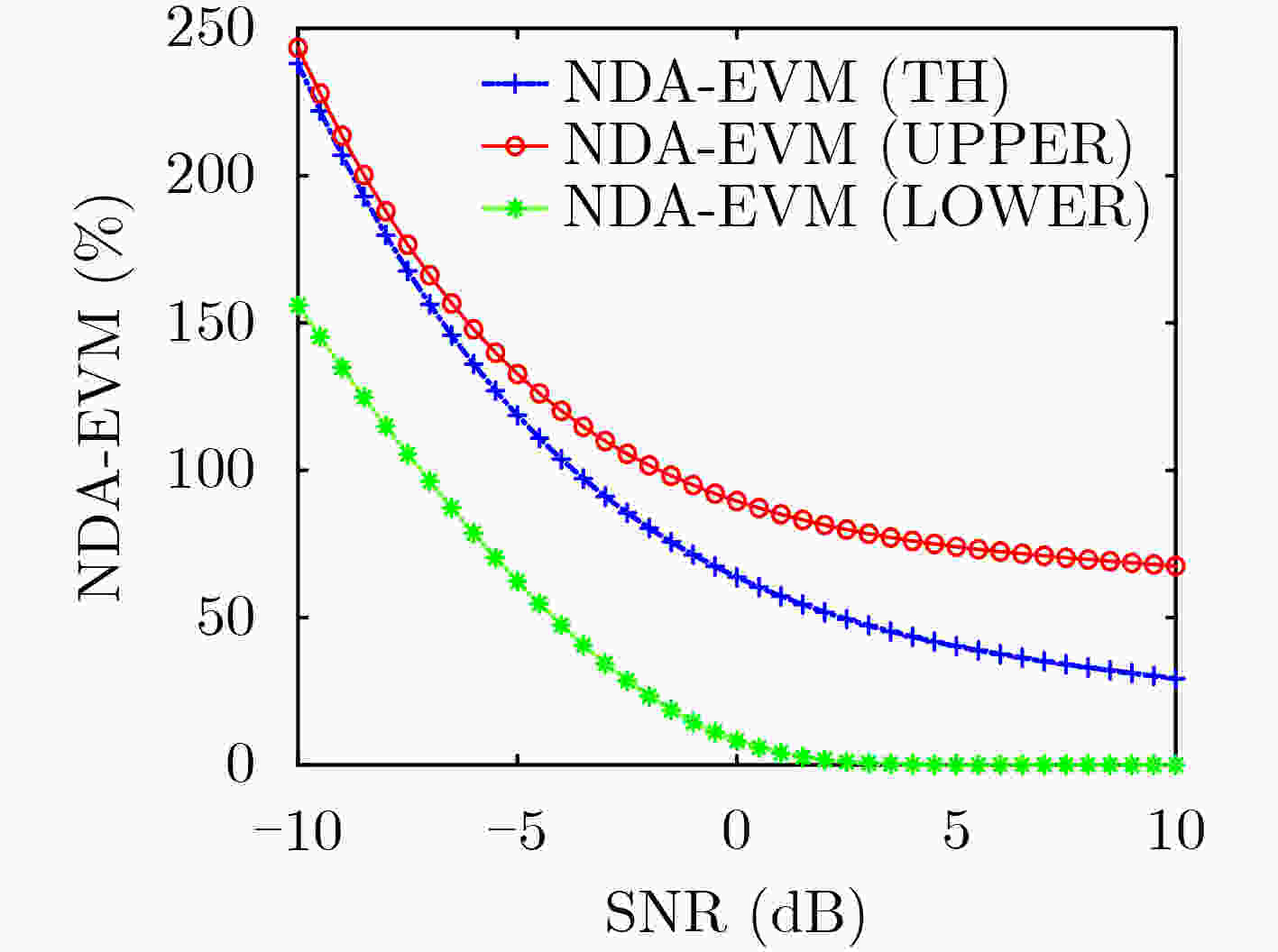

图 2 $\alpha {\rm{ = 1}}$时NDA-EVM理论值与上限、下限值对比(16QAM)

下载: 全尺寸图片幻灯片

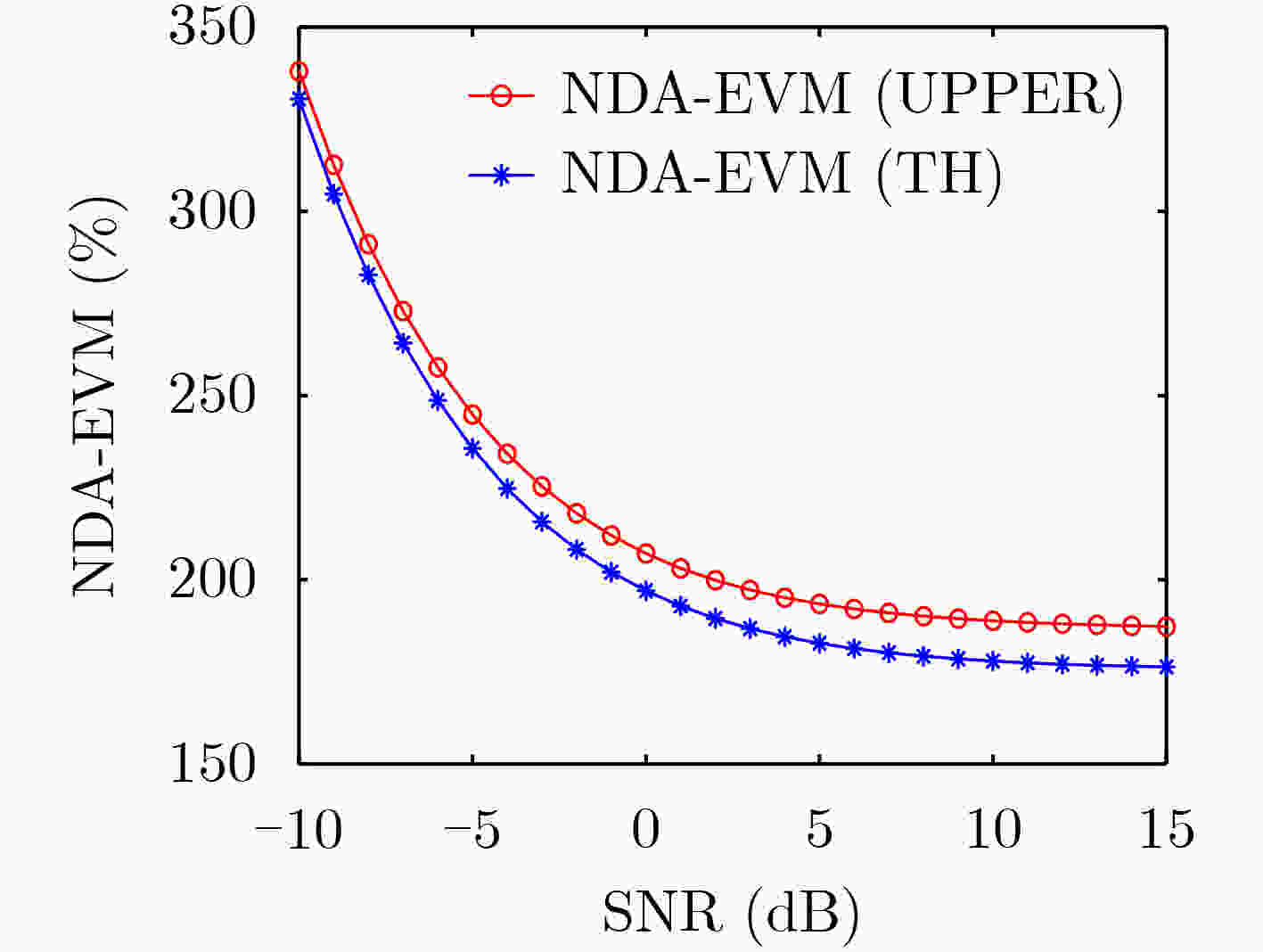

图 3 L=2时的NDA-EVM上限(4QAM)

下载: 全尺寸图片幻灯片

图 4 L=2时的NDA-EVM上限(256QAM)

下载: 全尺寸图片幻灯片

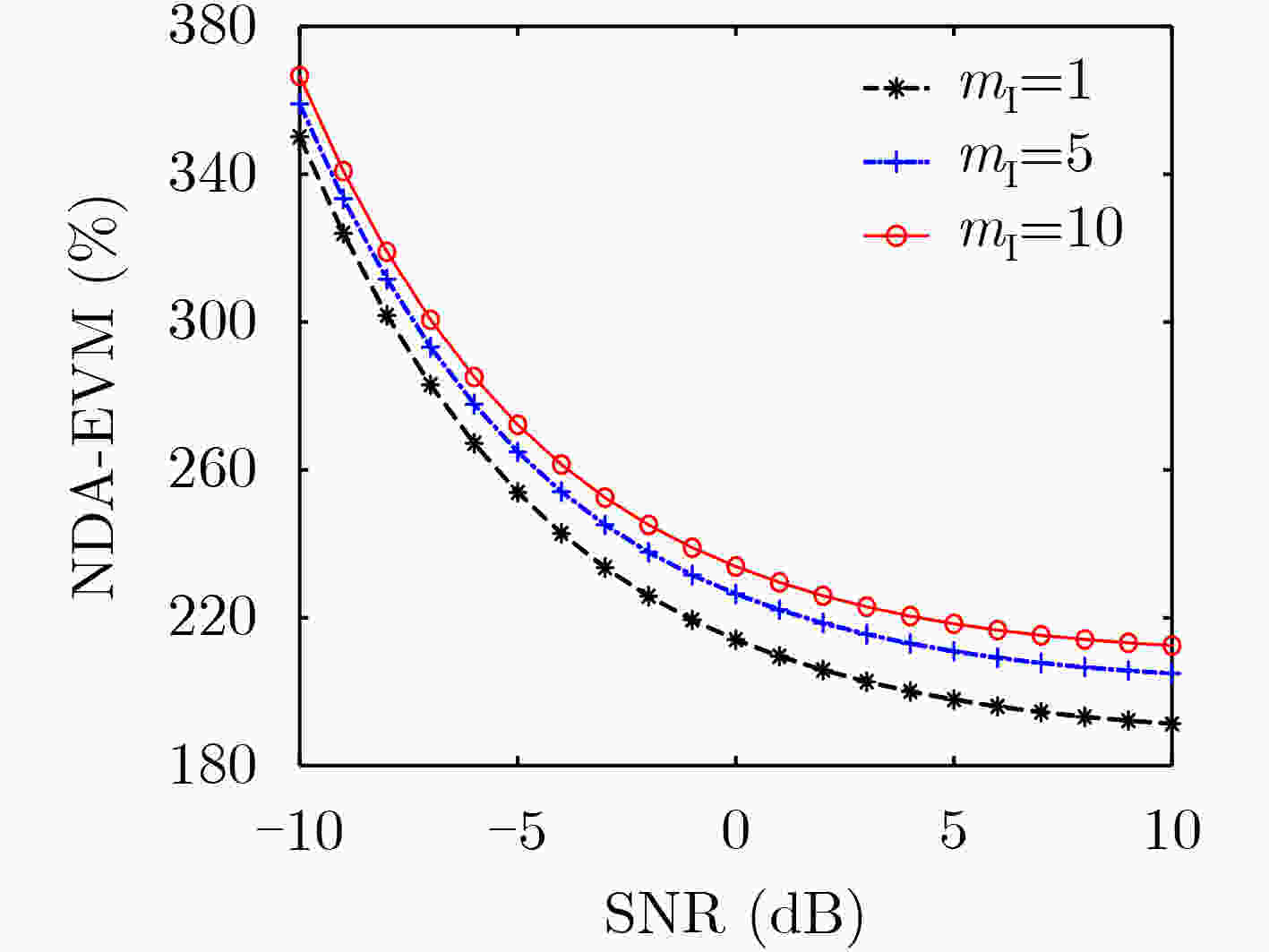

图 5 L=2时不同${m_{\rm{I}}}$的NDA-EVM上限

下载: 全尺寸图片幻灯片

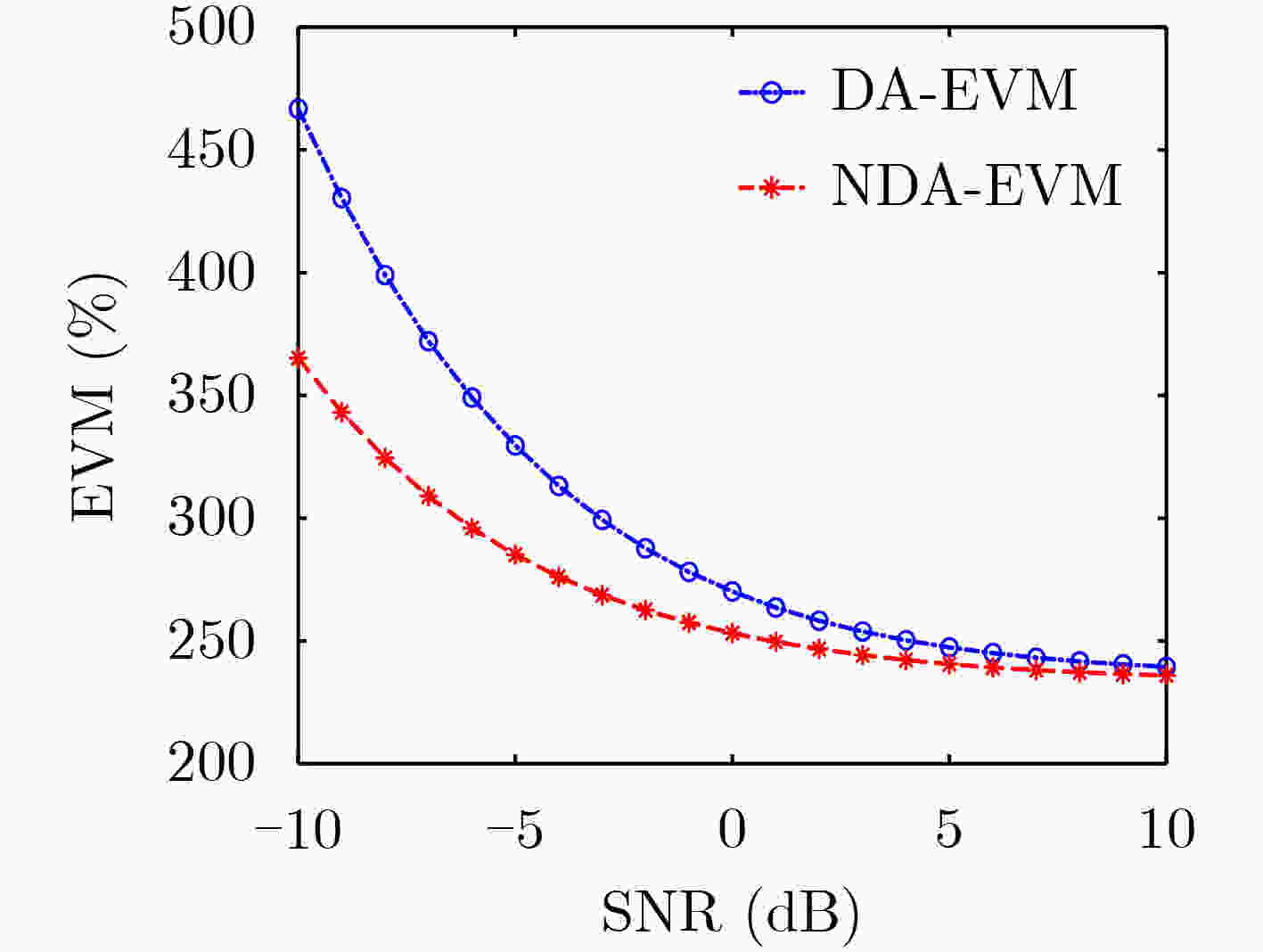

图 6 L=2时NDA-EVM与DA-EVM对比

下载: 全尺寸图片幻灯片

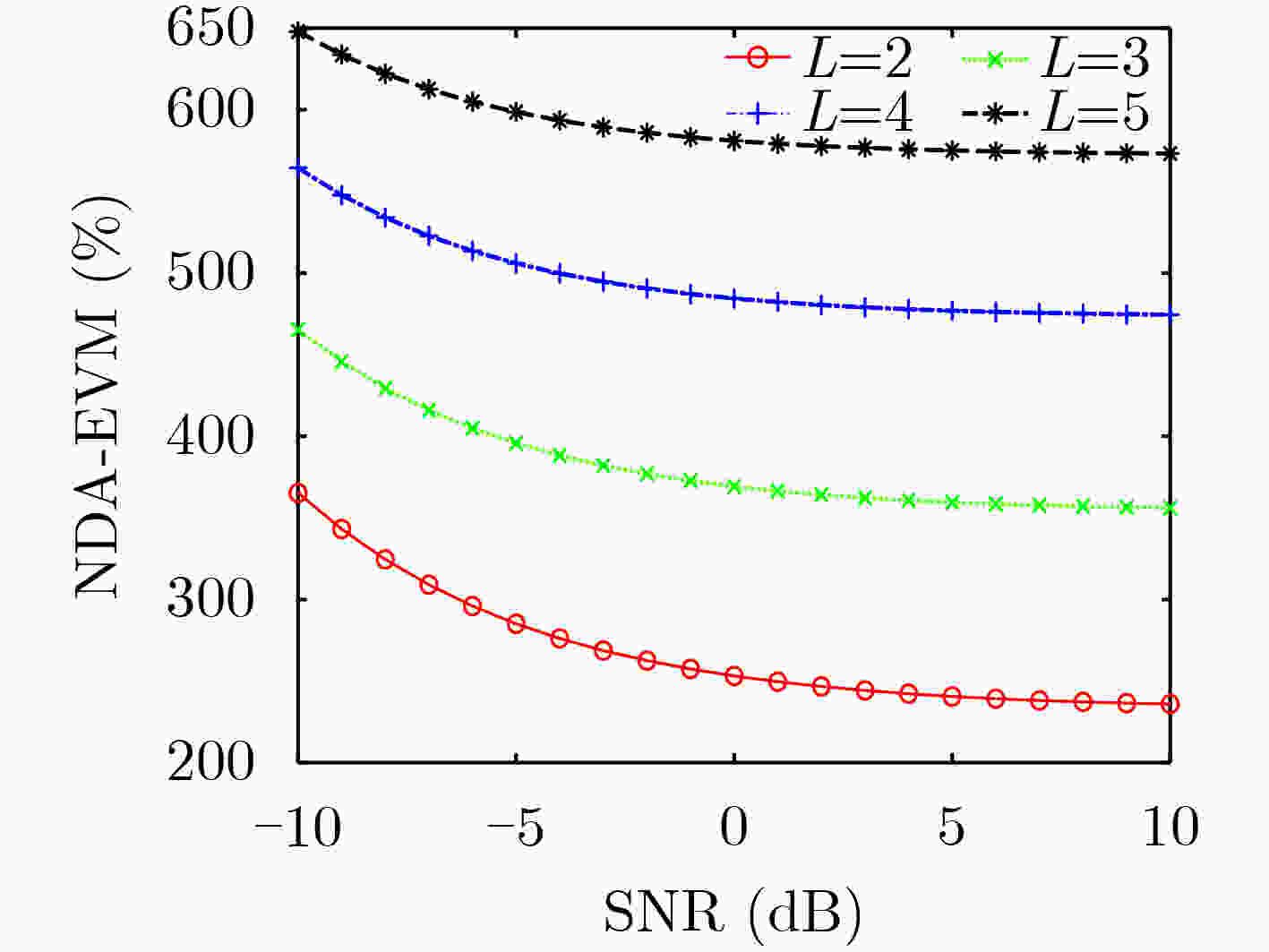

图 7 不同干扰信道数量时的NDA-EVM上限

下载: 全尺寸图片幻灯片

表 1 算法时间复杂度

计算式	循环次数	时间复杂度
$\begin{aligned} \frac{2}{{k + 1}}&\bigg\{ \sum\limits_{j = 0}^k {\bigg[\sigma ( - b + {\lambda _{jk,{\rm{R}}}})\varphi \bigg(\frac{{ - b - {\lambda _{jk,{\rm{R}}}}}}{\sigma }\bigg) + ({\lambda _{jk,R}}^2 + {\sigma ^2})Q\bigg(\frac{{ - b - {\lambda _{jk,{\rm{R}}}}}}{\sigma }\bigg)} \bigg] \\ & + \sum\limits_{j = 0}^k {\bigg[\sigma (b + {\lambda _{jk,{\rm{R}}}})\varphi \bigg(\frac{{b - {\lambda _{jk,{\rm{R}}}}}}{\sigma }\bigg) + \bigg({\lambda _{jk,{\rm{R}}}}^2 + {\sigma ^2}\bigg)Q\bigg(\frac{{b - {\lambda _{jk,{\rm{R}}}}}}{\sigma }\bigg)} \bigg] \\ & + \sum\limits_{i = 1}^{k - 1} {\sum\limits_{j = 0}^k {\bigg[\sigma ( - b + {\lambda _{ji,{\rm{R}}}})\varphi \bigg(\frac{{ - b - {\lambda _{ji,{\rm{R}}}}}}{\sigma }\bigg) + ({\lambda _{ji,{\rm{R}}}}^2 + {\sigma ^2})Q\bigg(\frac{{ - b - {\lambda _{ji,{\rm{R}}}}}}{\sigma }\bigg)} \bigg]} {\rm{ }} \\ & - \sum\limits_{i = 1}^{k - 1} \sum\limits_{j = 0}^k \bigg[\sigma (b + {\lambda _{ji,{\rm{R}}}})\varphi \bigg(\frac{{b - {\lambda _{ji,{\rm{R}}}}}}{\sigma }\bigg) + ({\lambda _{ji,{\rm{R}}}}^2 + {\sigma ^2})Q\bigg(\frac{{b - {\lambda _{ji,{\rm{R}}}}}}{\sigma }\bigg) \bigg] \bigg\} \end{aligned} $	$2{M_m} + ({M_m} - 2) \times {M_m}$	$O(M_m^2)$
$\dfrac{{\rm{4}}}{{k + 1}}\left\{ C + 4kb\sigma \displaystyle\sum\limits_{j = 0}^{\dfrac{{k - 1}}{2}} {\left[\alpha {\beta _j} - \sqrt {\dfrac{1}{{2\pi }}} \exp \left(\sqrt {\dfrac{\pi }{2}} \alpha {\beta _j} - \dfrac{{{\alpha ^2}{\beta _j}^2}}{2}\right) \right]}\right\} $	$\dfrac{{{M_m}}}{2}$	$O({M_m})$

下载: 导出CSV

表 2 仿真参数

仿真参数	数值
载频${f_c}$(GHz)	2.2
发送功率${P_{\rm{0}}}$(W)	1
符号周期${T_{{\rm{sym}}}}$(μs)	66.7
循环前缀(CP)类型	${\rm{Normal}}$
${\rm{MQAM}}$星座类型	${\rm{QAM/16QAM/64QAM/256QAM}}$

下载: 导出CSV
