A Novel Method for Location Ambiguity Mitigation of High Pulse Repetition Frequency Radar Signal in Low Earth Orbit Dual-satellite Geolocation System
-

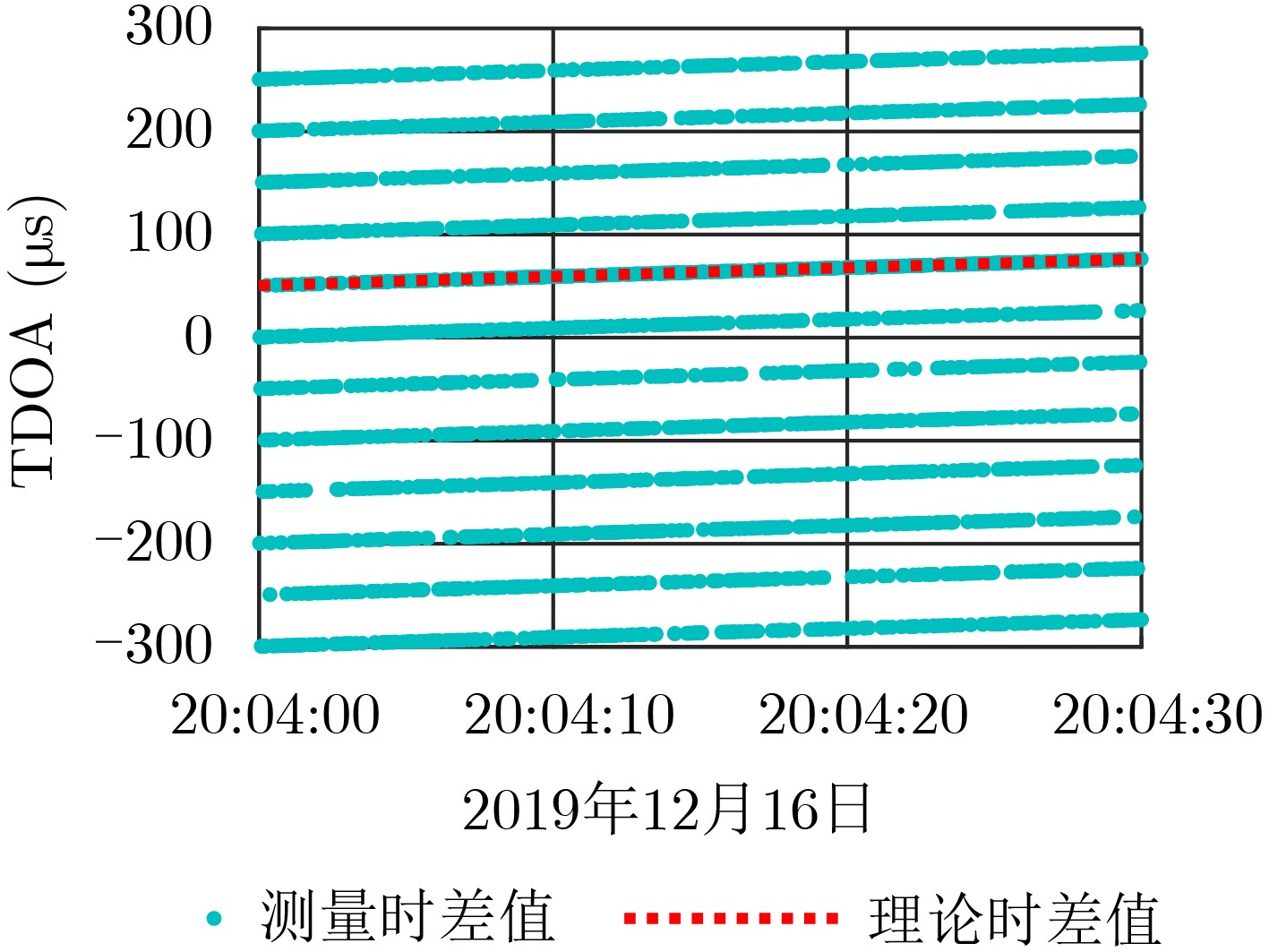

摘要: 针对低轨(LEO)双星到达时间差(TDOA)定位系统中雷达信号的定位模糊问题，该文分析了高重频信号的模糊特性，演示了虚假定位点的产生过程，提出一种基于时差序列变化趋势匹配(VTMT)的定位模糊消除算法。在测量时差序列与定位结果对应的理论时差序列之间的残差近似服从正态分布的条件下，通过两个序列的欧式距离作为相似程度衡量依据，筛选出测量时差线与理论时差线最为接近的定位点作为目标辐射源真实位置。校验台测试信号验证了该算法的有效性。仿真结果表明，该算法能够显著提高无模糊定位概率，对长基线时差定位系统中雷达信号的定位具有较高的应用价值。Abstract: In order to mitigate the location ambiguity of radar signal in Low Earth Orbit (LEO) dual-satellite Time Difference Of Arrival (TDOA) location system, the ambiguous characteristics of high PRF signal are analyzed, the process of ghost location generating by ambiguous TDOA is introduced, and a method for location ambiguity mitigation by Variation Trendline Matching of TDOA (VTMT) is proposed. If the condition that the residuals between the measured TDOA series and the theoretical TDOA series corresponding to the positioning results approximately obey normal distribution is satisfied, the location where the measured TDOA line is closest to the theoretical TDOA line can be selected as the real position of radar emitter with the Euclidean distance being used to measure the similarity between the two series. Test signal of calibration station validates the effectiveness of the proposed method. Numerical simulations demonstrate that the proposed method can increase the probability of unambiguous location significantly, reduce the requirements of TDOA measurement accuracy and observation time. The proposed method has good prospect for applications to TDOA location of radar signal in long base line location systems.
-
LEVANON N and MOZESON E. Radar Signals[M]. New York: John Wiley & Sons, 2004: 100–164. 贲德, 韦传安, 林幼权. 机载雷达技术[M]. 北京: 电子工业出版社, 2006: 80–95.BEN De, WEI Chuan’an, and LIN Youquan. Airborne Radar[M]. Beijing: Publishing House of Electronics Industry, 2006: 80–95. LIN Fengling and STEINER M. New techniques for radar coherent range ambiguity resolution[C]. Proceedings of 2001 IEEE Radar Conference, Atlanta, USA, 2001: 99–104. doi: 10.1109/NRC.2001.922959. LEVANON N. Mitigating range ambiguity in high PRF radar using inter-pulse binary coding[J]. IEEE Transactions on Aerospace and Electronic Systems, 2009, 45(2): 687–697. doi: 10.1109/TAES.2009.5089550 ROUFFET T, GRIVEL E, VALLET P, et al. Combining two phase codes to extend the radar unambiguous range and get a trade-off in terms of performance for any clutter[C]. Proceedings of 2015 IEEE International Conference on Acoustics, Speech and Signal Processing, Brisbane, Australia, 2015: 1822–1826. doi: 10.1109/ICASSP.2015.7178285. 李健, 孙光才, 景国彬, 等. 基于两维相位编码的距离模糊抑制方法[J]. 电子与信息学报, 2017, 39(9): 2190–2196. doi: 10.11999/JEIT161056LI Jian, SUN Guangcai, JING Guobin, et al. Range ambiguity suppression based on two-dimensional phase coding[J]. Journal of Electronics &Information Technology, 2017, 39(9): 2190–2196. doi: 10.11999/JEIT161056 JIN Guodong, DENG Yunkai, WANG R, et al. Mitigating range ambiguities with advanced nonlinear frequency modulation waveform[J]. IEEE Geoscience and Remote Sensing Letters, 2019, 16(8): 1230–1234. doi: 10.1109/LGRS.2019.2895111 DENG Hai, HIMED B, and WICKS M C. Concurrent extraction of target range and Doppler information by using orthogonal coding waveforms[J]. IEEE Transactions on Signal Processing, 2007, 55(7): 3294–3301. doi: 10.1109/TSP.2007.894397 梁景修. 高重频雷达精确快速定位的方法[J]. 电子对抗技术, 2005, 20(5): 19–22. doi: 10.3969/j.issn.1674-2230.2005.05.005LIANG Jingxiu. Quick and accurate location of high PRF radar[J]. Electronic Warfare Technology, 2005, 20(5): 19–22. doi: 10.3969/j.issn.1674-2230.2005.05.005 钟珲, 陈守稳. 时差与测向结合解高重频信号定位模糊的方法[J]. 现代防御技术, 2008, 36(5): 108–112, 124. doi: 10.3969/j.issn.1009-086X.2008.05.022ZHONG Hui and CHEN Shouwen. Approach combining with radar direction finding of solving ambiguous location with high PRF signal[J]. Modern Defence Technology, 2008, 36(5): 108–112, 124. doi: 10.3969/j.issn.1009-086X.2008.05.022 任文娟, 胡东辉, 丁赤飚, 等. 利用测向信息消除高重复频率信号的时差定位模糊[J]. 电子与信息学报, 2010, 32(12): 3003–3007. doi: 10.3724/SP.J.1146.2009.01618REN Wenjuan, HU Donghui, DING Chibiao, et al. Eliminating TDOA location ambiguity of high PRF signal based on direction information acquired[J]. Journal of Electronics &Information Technology, 2010, 32(12): 3003–3007. doi: 10.3724/SP.J.1146.2009.01618 LI Zhenqiang, GE Ning, HUANG Zhen, et al. A method to eliminate TDOA ambiguity based on FDOA and FDOA-rate[C]. Proceedings of 2015 International Conference on Wireless Communications & Signal Processing, Nanjing, China, 2015: 1–5. doi: 10.1109/WCSP.2015.7341154. 张宏元, 穆贺强. 基于相关算法消除高重信号的时差定位模糊[J]. 系统工程与电子技术, 2008, 30(5): 816–818. doi: 10.3321/j.issn:1001-506X.2008.05.010ZHANG Hongyuan and MU Heqiang. Eliminating TDOA location ambiguity about HPRF signal based on correlation algorithm[J]. Systems Engineering and Electronics, 2008, 30(5): 816–818. doi: 10.3321/j.issn:1001-506X.2008.05.010 任文娟, 胡东辉, 丁赤飚. 一种新的利用时差相关性的时差分选配对方法[J]. 西安电子科技大学学报: 自然科学版, 2011, 38(6): 89–96. doi: 10.3969/j.issn.1001-2400.2011.06.014REN Wenjuan, HU Donghui, and DING Chibiao. New method for TDOA sorting and pairing using TDOAs’ correlation[J]. Journal of Xidian University, 2011, 38(6): 89–96. doi: 10.3969/j.issn.1001-2400.2011.06.014 李涛, 姜文利, 周一宇. 高重频信号三星座时差定位研究[J]. 电子对抗技术, 2004, 19(4): 7–11. doi: 10.3969/j.issn.1674-2230.2004.04.002LI Tao, JIANG Wenli, and ZHOU Yiyu. TDOA location with high PRF signals based on three satellites[J]. Electronic Warfare Technology, 2004, 19(4): 7–11. doi: 10.3969/j.issn.1674-2230.2004.04.002 钱剑勋. 长基线时差定位中定位模糊问题[J]. 四川兵工学报, 2010, 31(5): 138–140. doi: 10.3969/j.issn.1006-0707.2010.05.045QIAN Jianxun. Location ambiguity in long-base-line TDOA location[J]. Journal of Sichuan Ordnance, 2010, 31(5): 138–140. doi: 10.3969/j.issn.1006-0707.2010.05.045 班书生, 胡进, 饶起. 时差定位中解高重频信号定位模糊研究[J]. 现代雷达, 2014, 36(4): 51–55. doi: 10.3969/j.issn.1004-7859.2014.04.011BAN Shusheng, HU Jin, and RAO Qi. A study on eliminating location ambiguity of high PRF signals in time-difference location system[J]. Modern Radar, 2014, 36(4): 51–55. doi: 10.3969/j.issn.1004-7859.2014.04.011 孙光才, 王裕旗, 高昭昭, 等. 一种基于短合成孔径的双星干涉精确定位方法[J]. 电子与信息学报, 2020, 42(2): 472–479. doi: 10.11999/JEIT180940SUN Guangcai, WANG Yuqi, GAO Zhaozhao, et al. A dual satellite interferometric precise localization method based on short synthetic aperture[J]. Journal of Electronics &Information Technology, 2020, 42(2): 472–479. doi: 10.11999/JEIT180940 -
