循环相关熵谱密度估计高效算法研究

李辉

江若宜, 季薇, 郑宝玉. 无线传感器网络中协作通信的能耗优化方法研究[J]. 电子与信息学报, 2010, 32(6): 1475-1479. doi: 10.3724/SP.J.1146.2009.00521
引用本文: 李辉. 循环相关熵谱密度估计高效算法研究[J]. 电子与信息学报, 2021, 43(2): 310-318. doi: 10.11999/JEIT200113
Jiang Ruo-yi, Ji Wei, Zheng Bao-yu. Joint Optimization of Energy Consumption in Cooperative Wireless Sensor Networks[J]. Journal of Electronics & Information Technology, 2010, 32(6): 1475-1479. doi: 10.3724/SP.J.1146.2009.00521
Citation: Hui LI. Study on High Efficient Algorithm for Cyclic Correntropy Spectral Analysis[J]. Journal of Electronics & Information Technology, 2021, 43(2): 310-318. doi: 10.11999/JEIT200113

循环相关熵谱密度估计高效算法研究

doi: 10.11999/JEIT200113
基金项目: 国家自然科学基金(51375319)
详细信息
    作者简介:

    李辉:男,1968年生,教授,研究方向为非平稳信号处理及机电设备故障诊断

    通讯作者:

    李辉 huili68@163.com

  • 中图分类号: TN911

Study on High Efficient Algorithm for Cyclic Correntropy Spectral Analysis

Funds: The National Natural Science Foundation of China (51375319)
  • 摘要: 针对循环相关熵谱估计循环周期图检测(CPD)算法存在计算效率低、频谱分辨率低和易产生“频谱泄漏”的问题,该文提出一种循环相关熵谱估计的Correntrogram算法。Correntrogram算法借鉴Wigner-Ville 分布(WVD)时频分辨率高的优势,将WVD算法中瞬时自相关函数替换为时变自相关熵函数,即可得到一种循环相关熵谱密度估计算法,称为Correntrogram。首先计算信号的时变自相关熵函数矩阵,再计算时变自相关熵函数矩阵各行的FFT,得到循环自相关熵函数矩阵,最后计算循环自相关熵函数矩阵各列的FFT,得到循环相关熵谱密度。通过仿真调幅信号的处理结果证明:Correntrogram算法有效提高了循环相关熵谱估计效率,避免了“频谱泄漏”,提高了频谱分辨率,该算法程序运行可靠。

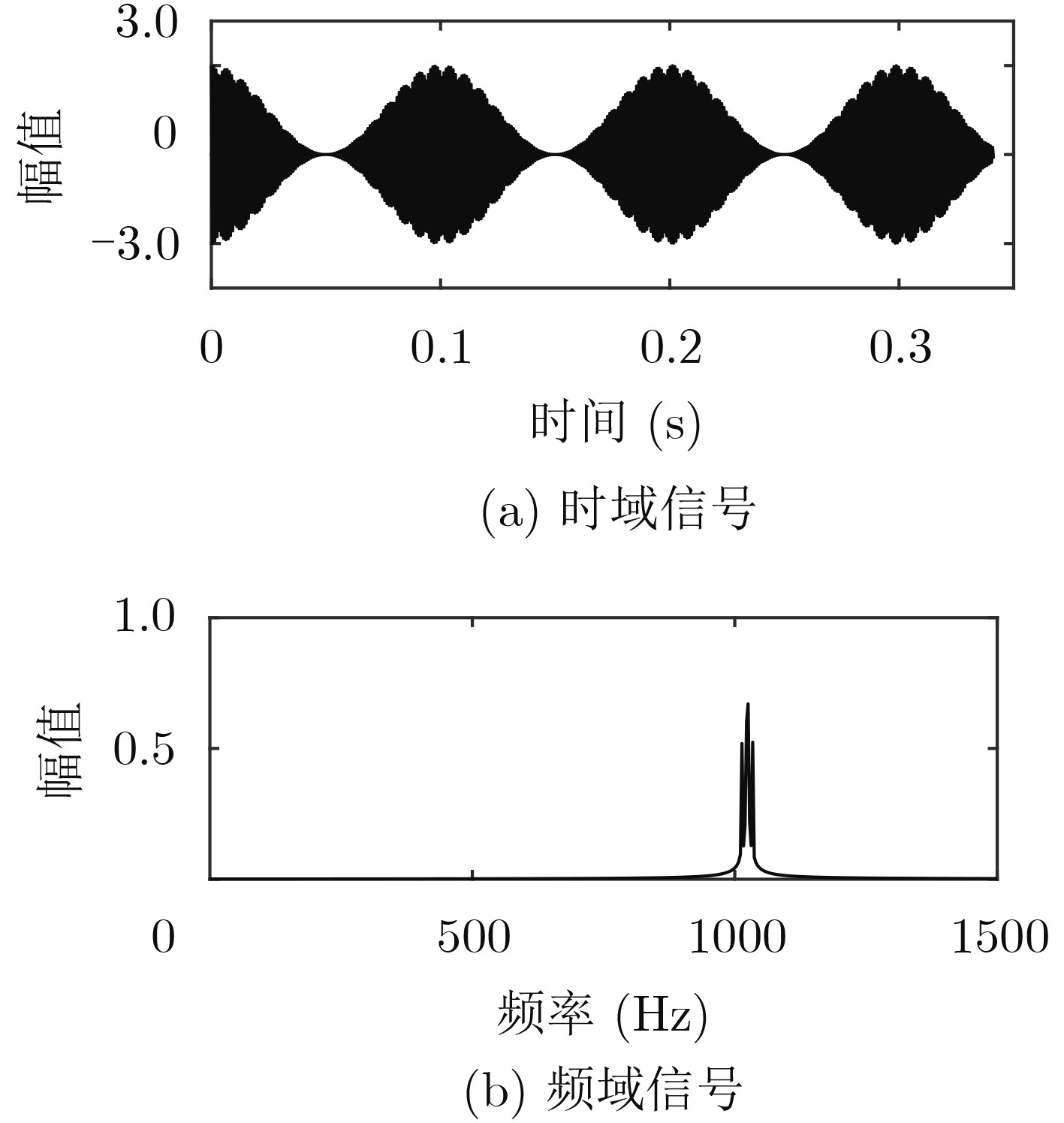

  • 图  1  仿真调幅信号

    图  2  调幅信号循环相关熵谱(Contour图)

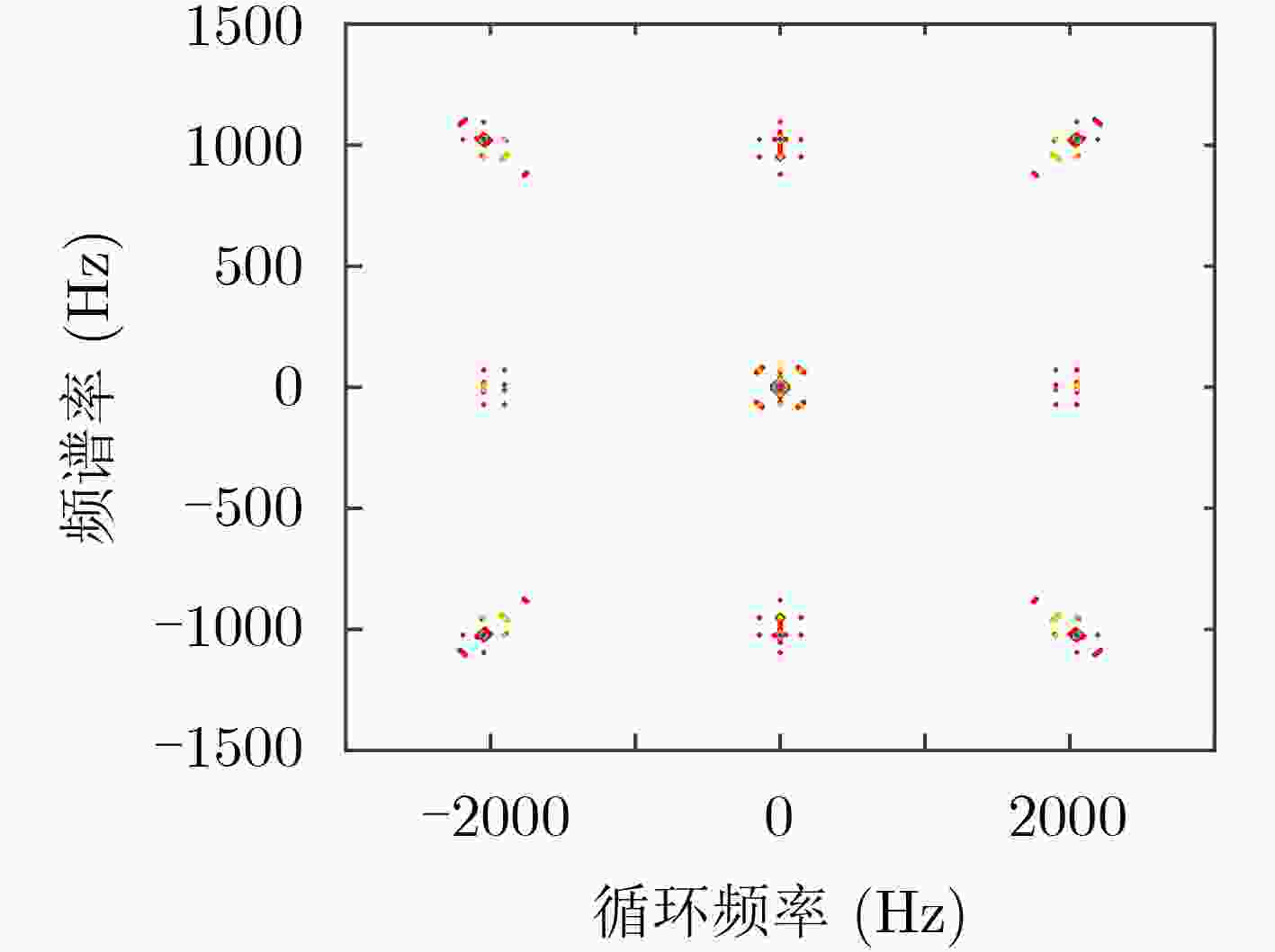

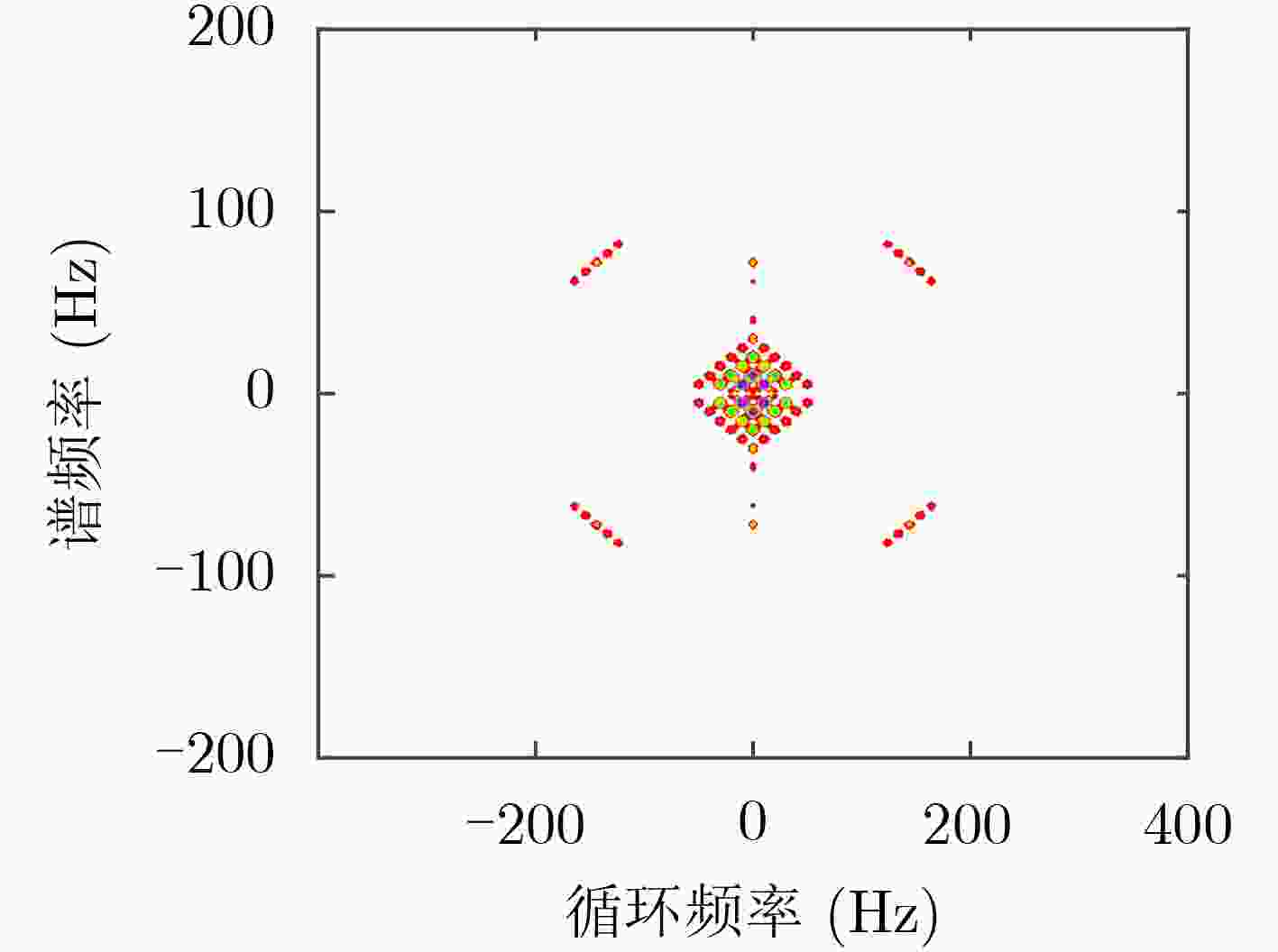

    图  3  调幅信号循环相关熵谱局部放大图

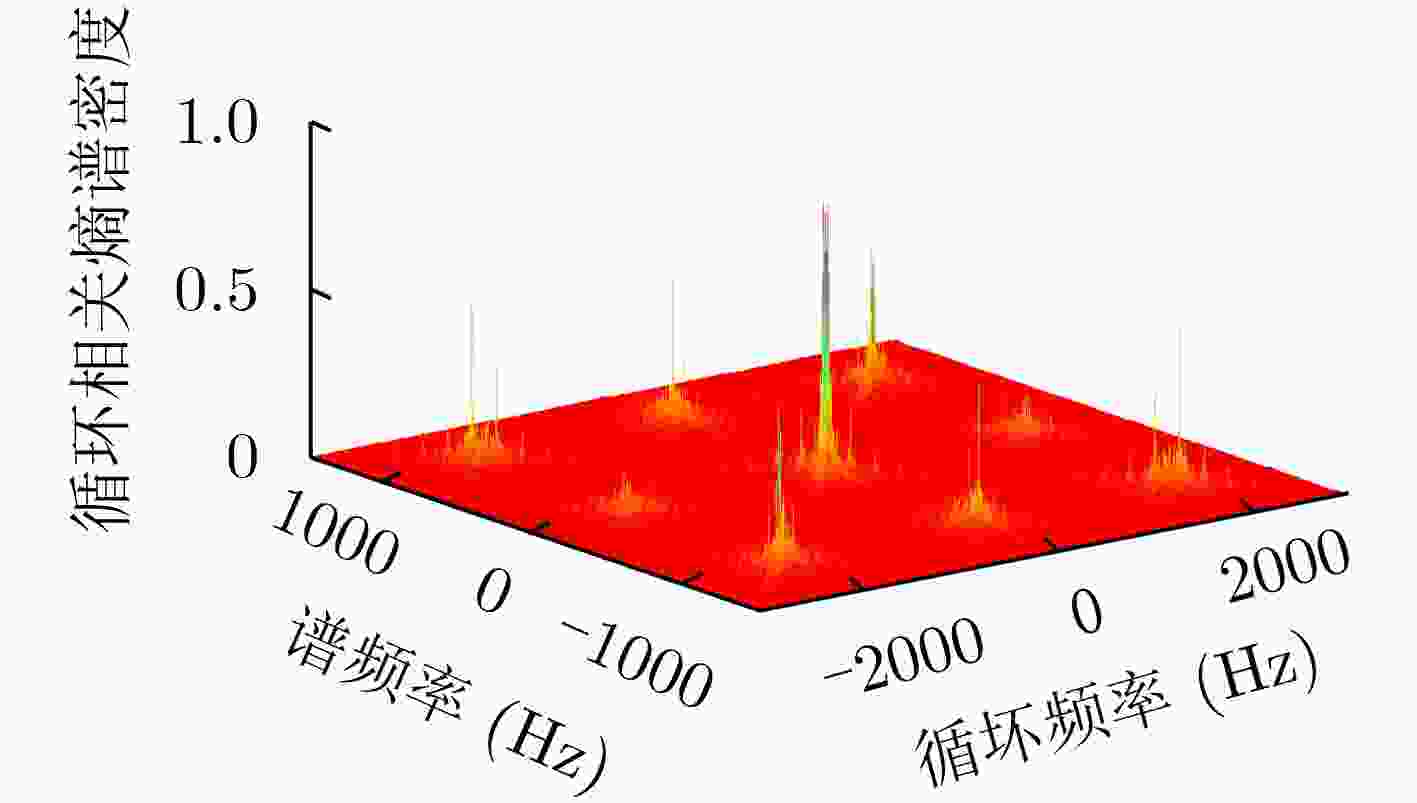

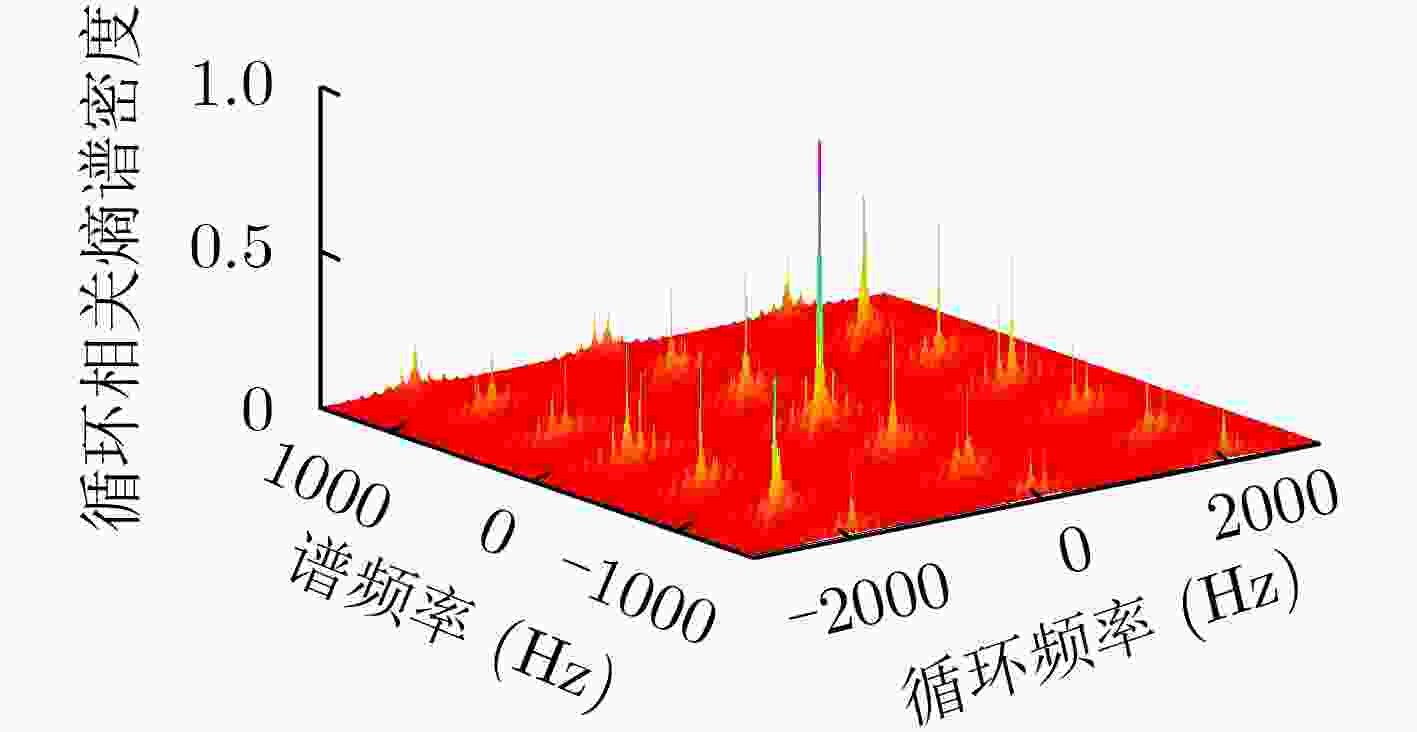

    图  4  调幅信号循环相关熵谱3维图

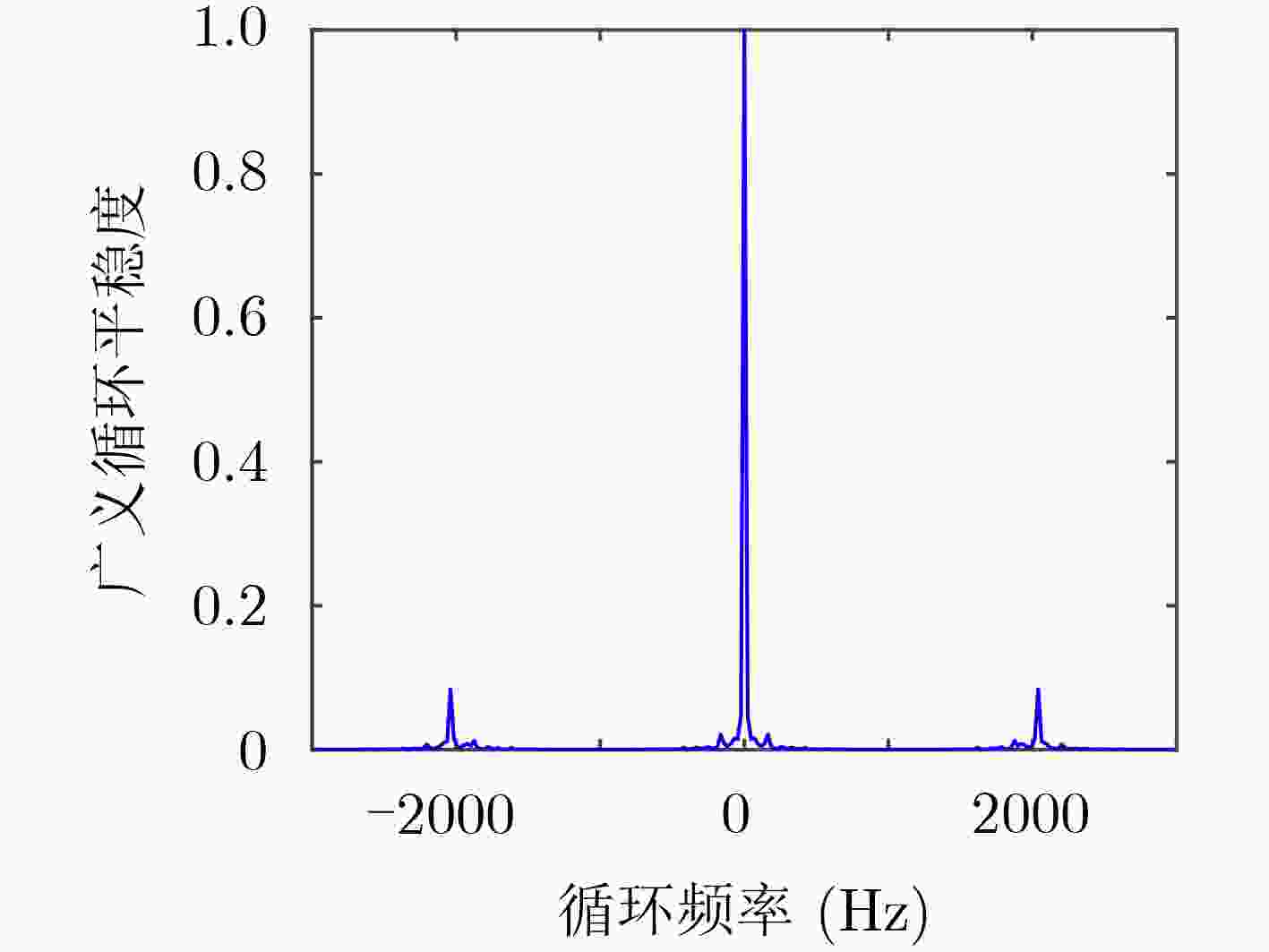

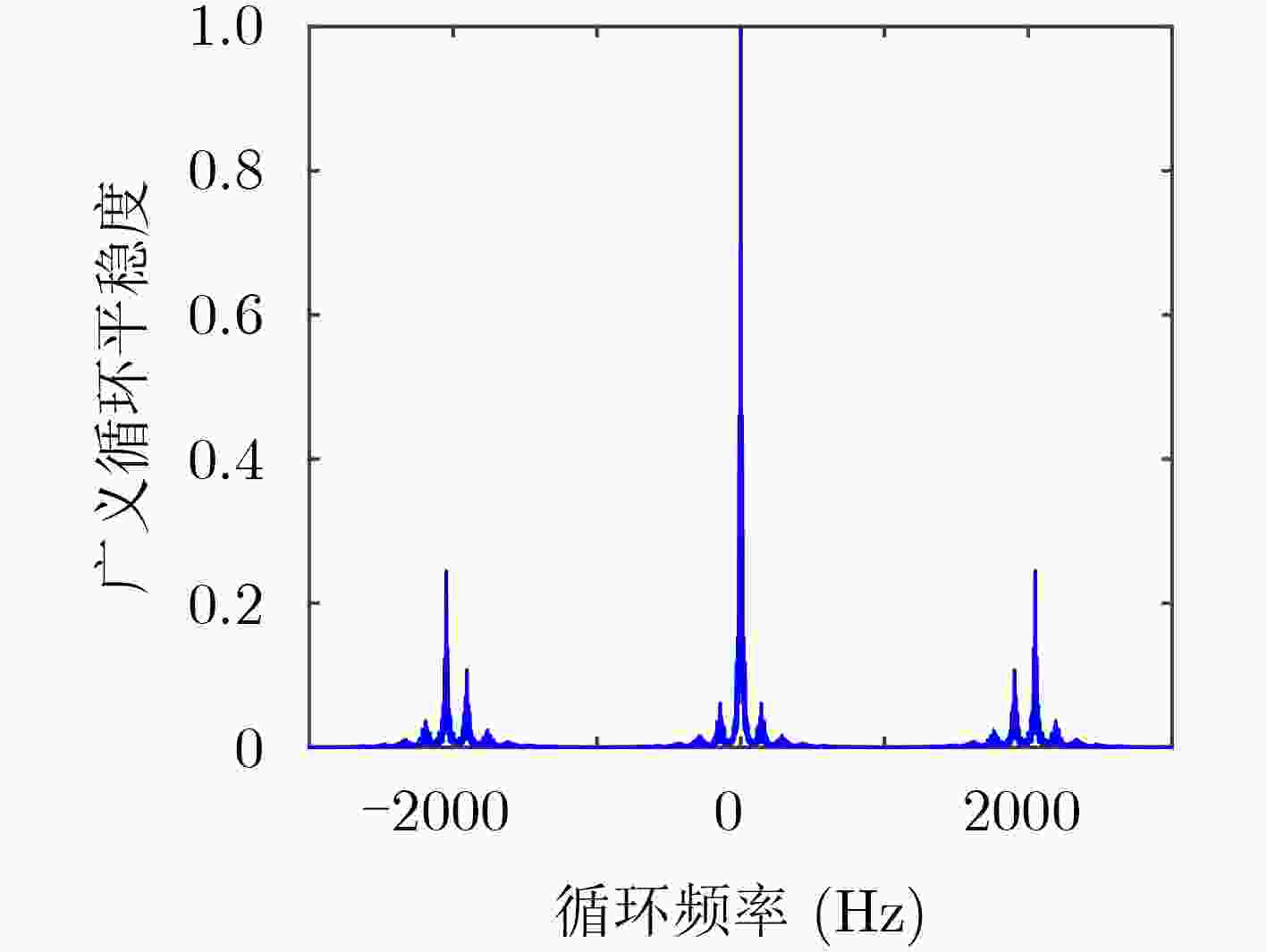

    图  5  广义循环平稳度

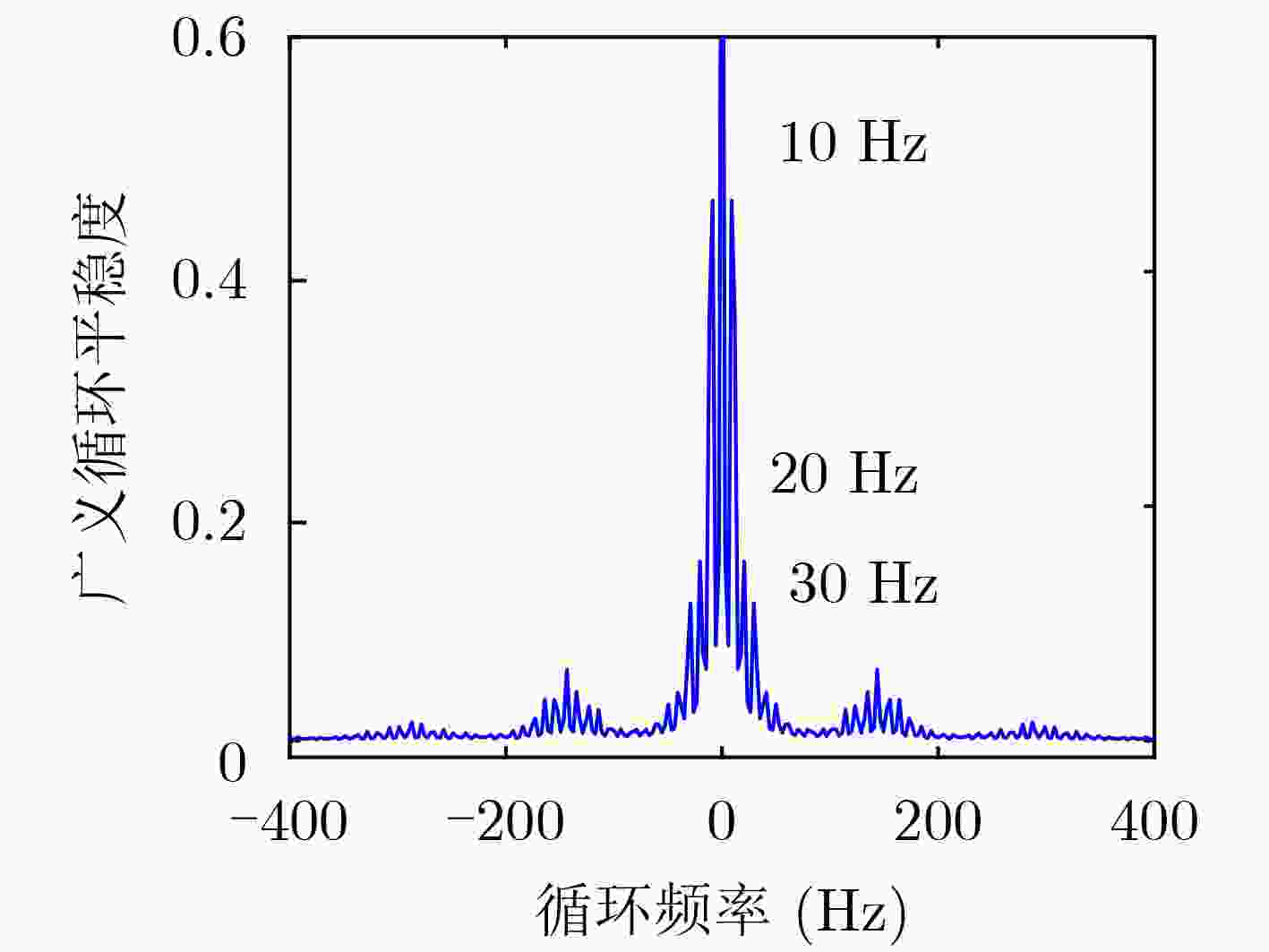

    图  6  广义循环平稳度(局部放大)

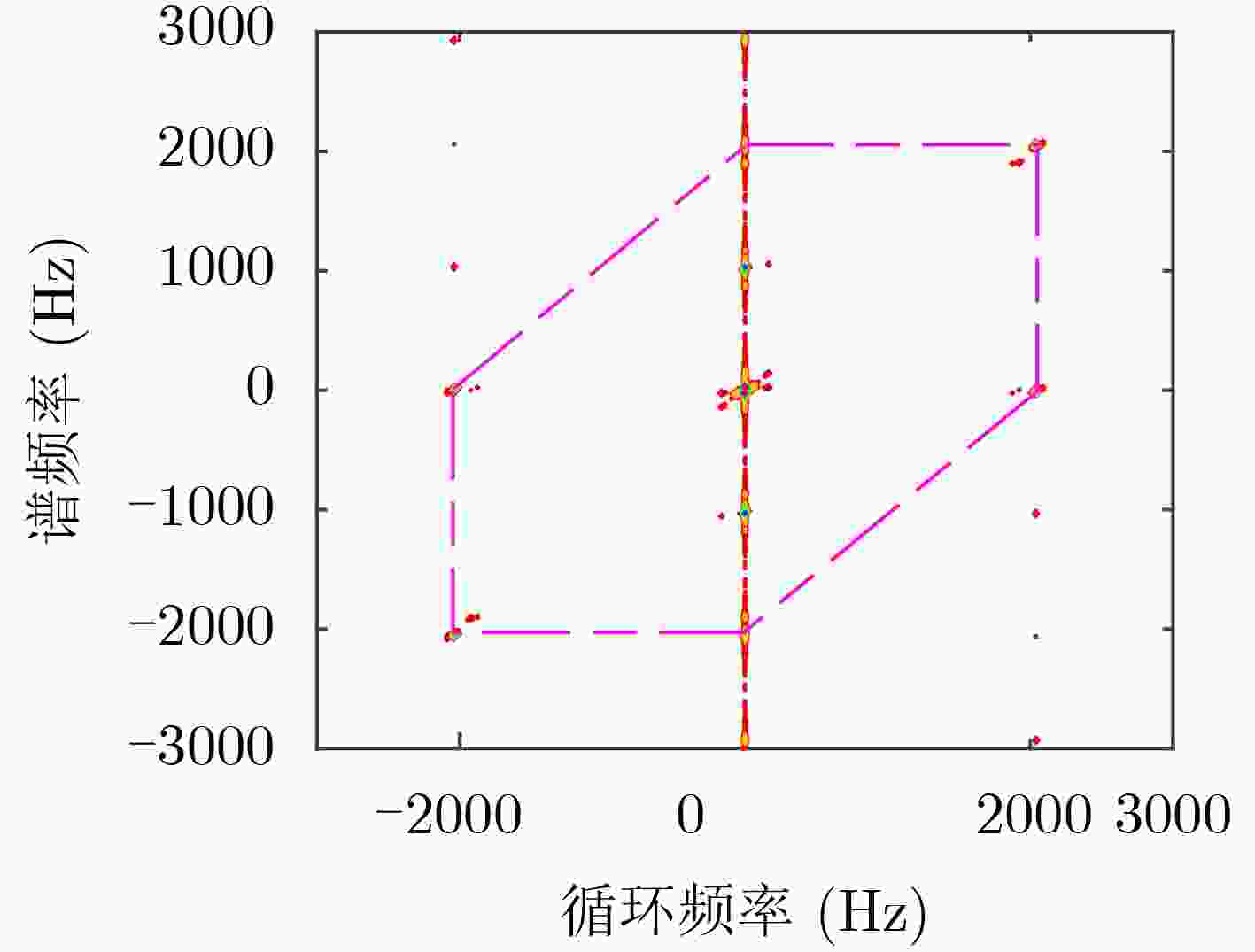

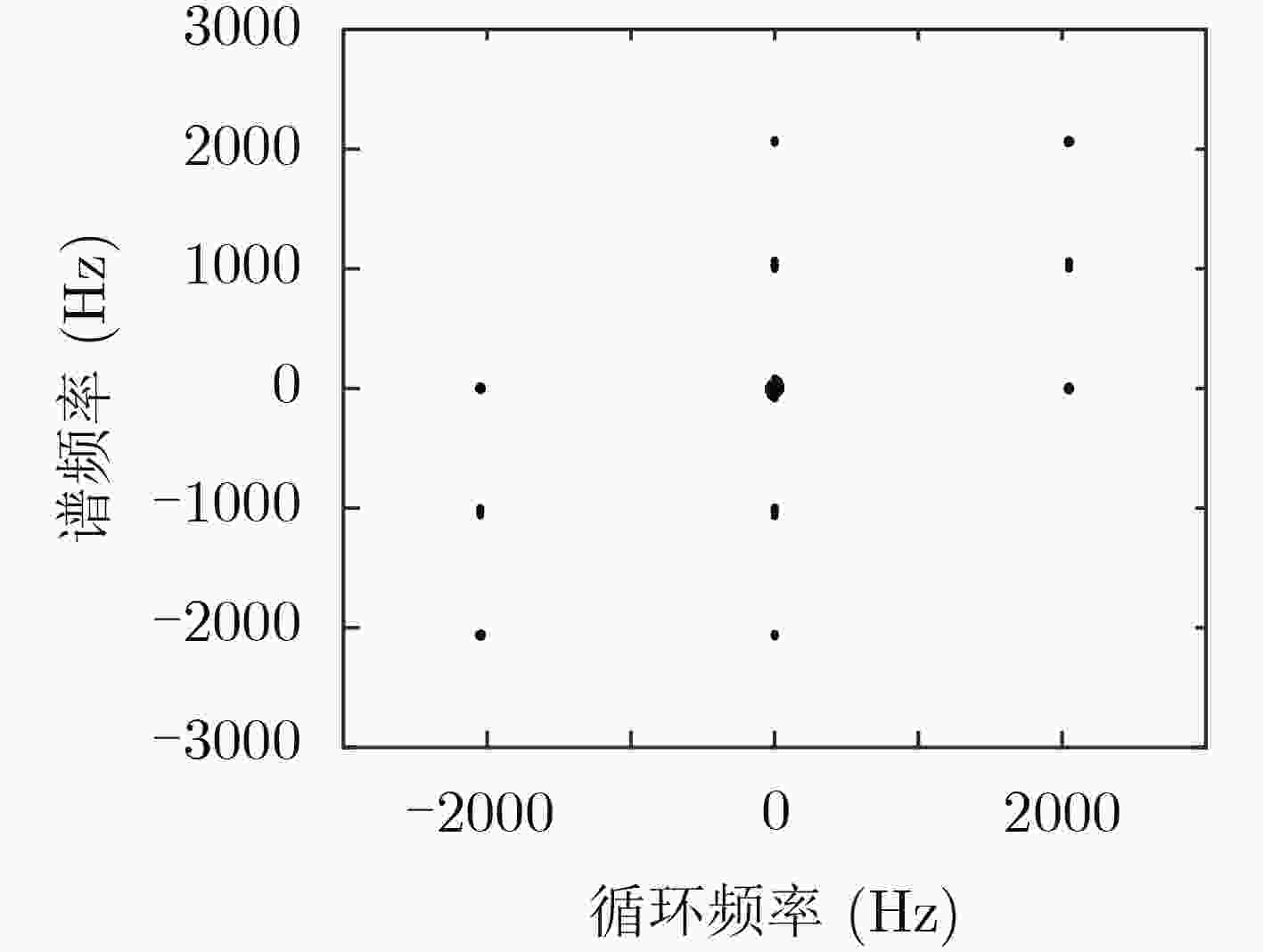

    图  7  调幅信号循环相关熵谱Contour图(CPD算法)

    图  8  调幅信号循环相关熵谱3维图(CPD算法)

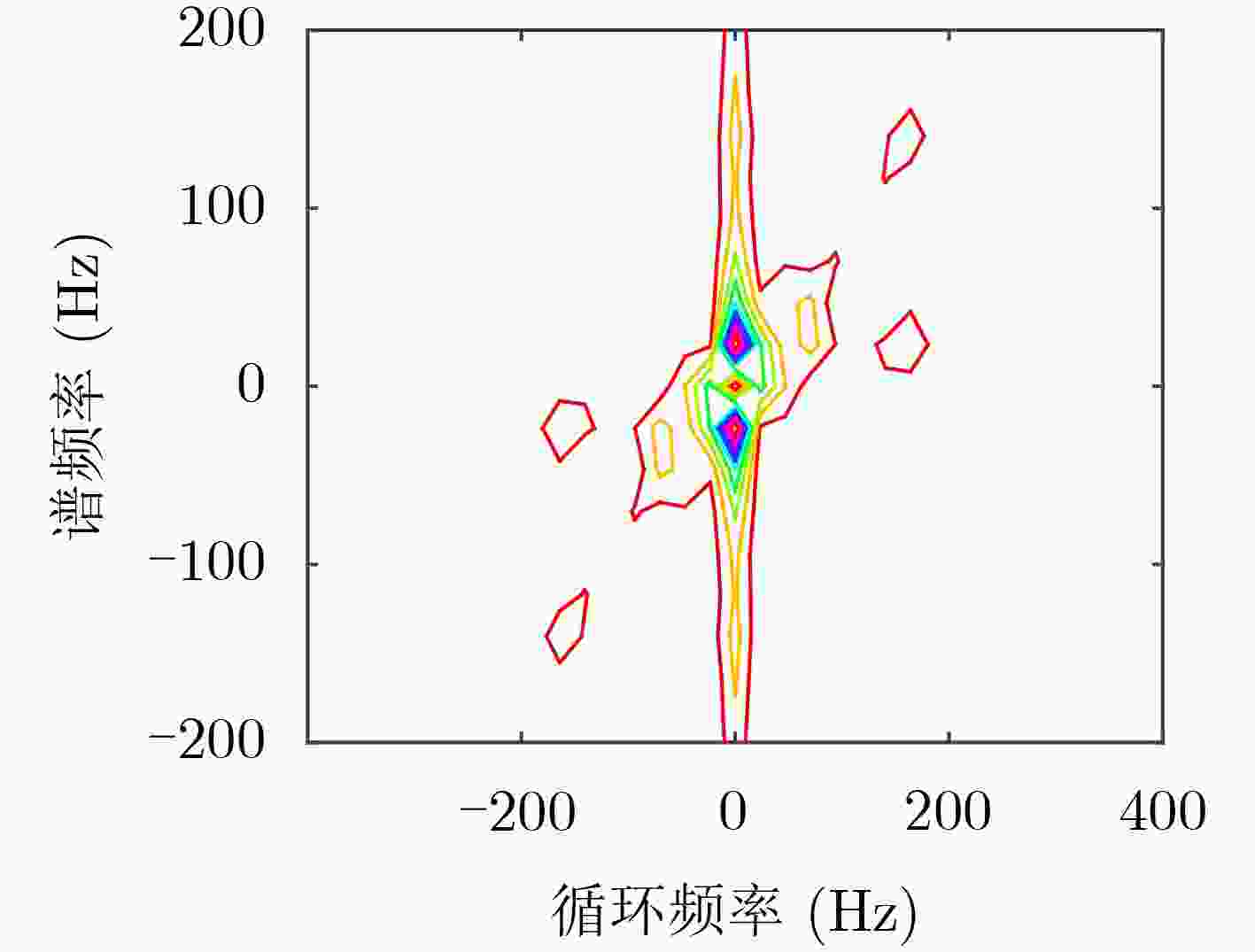

    图  9  调幅信号循环相关熵谱(局部放大图)

    图  10  广义循环平稳度

    图  11  调幅信号循环相关熵谱(Contour图)

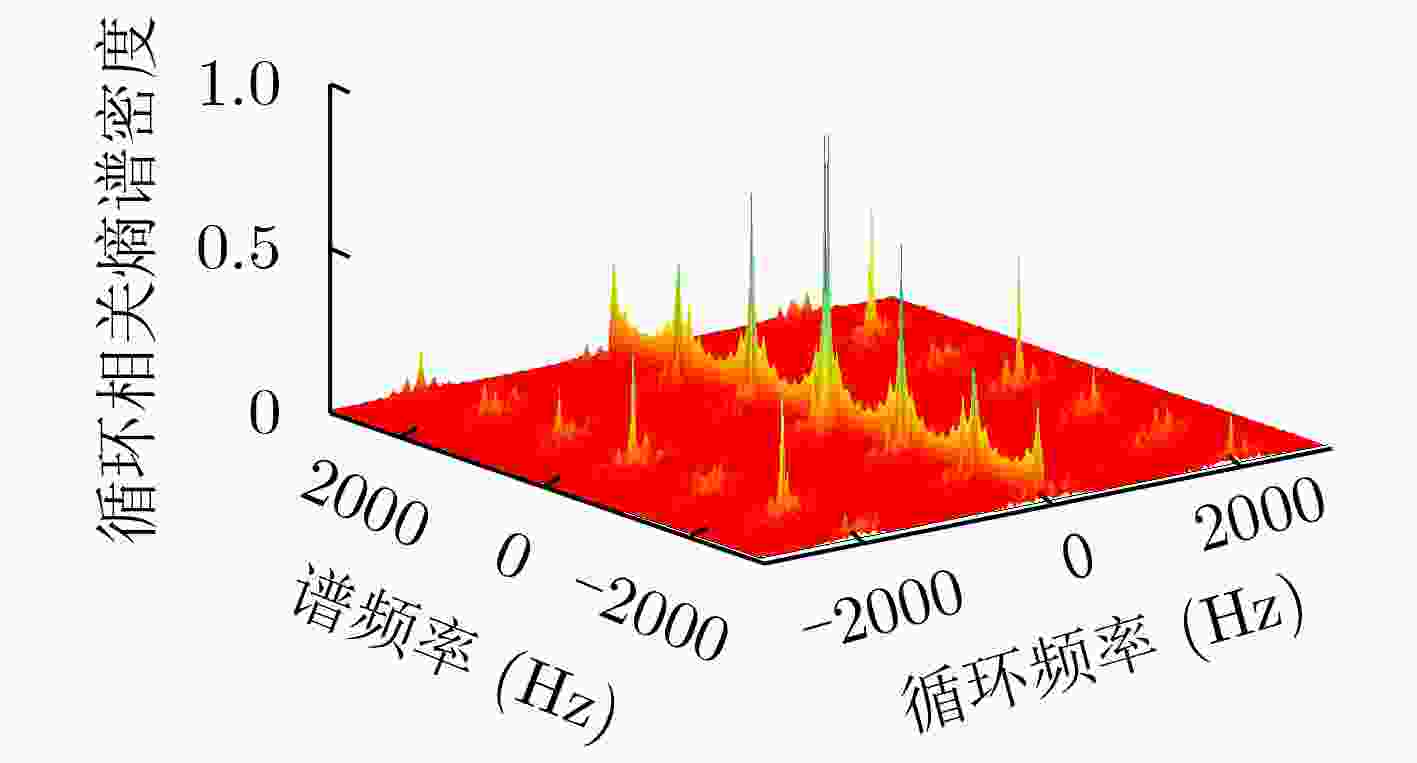

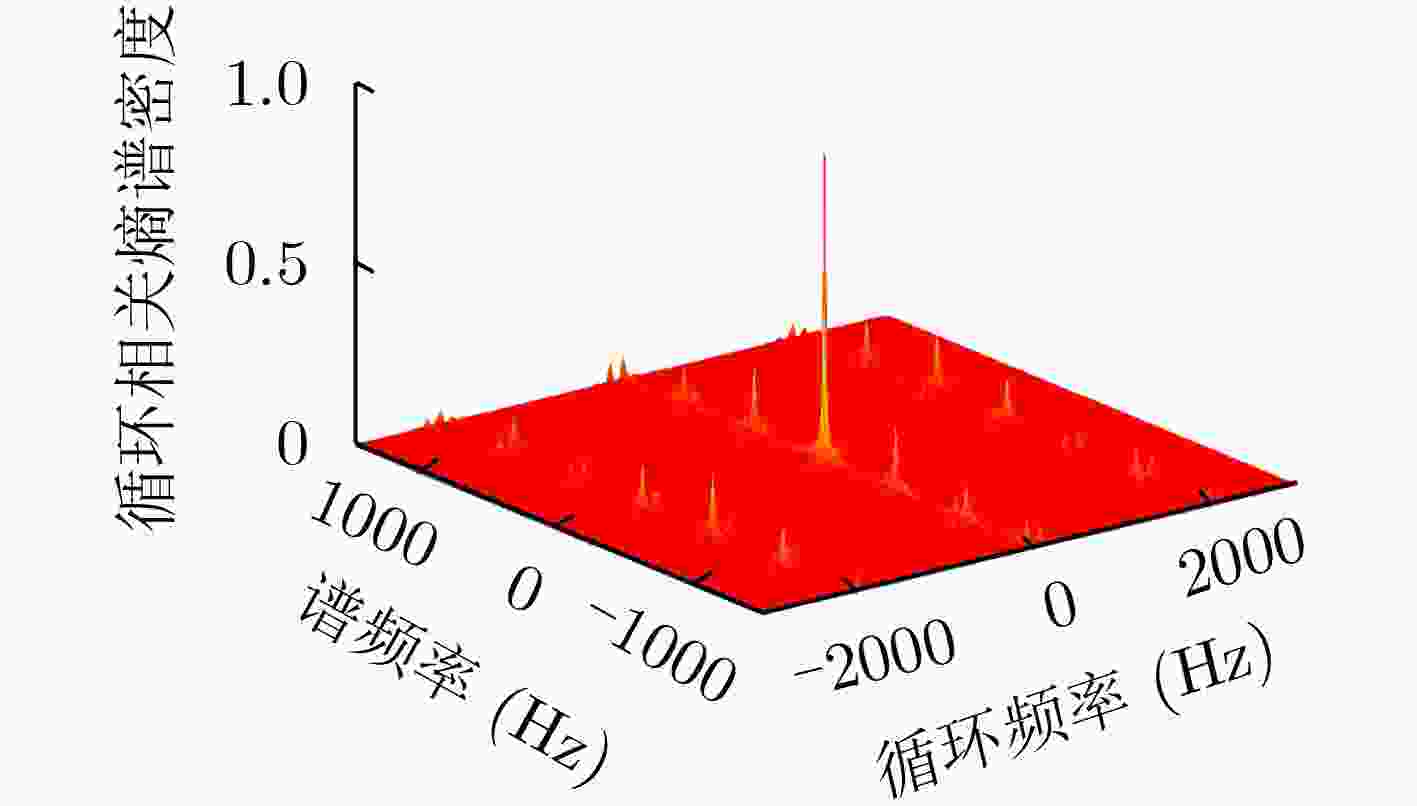

    图  12  调幅信号循环相关熵谱3维图(直接算法)

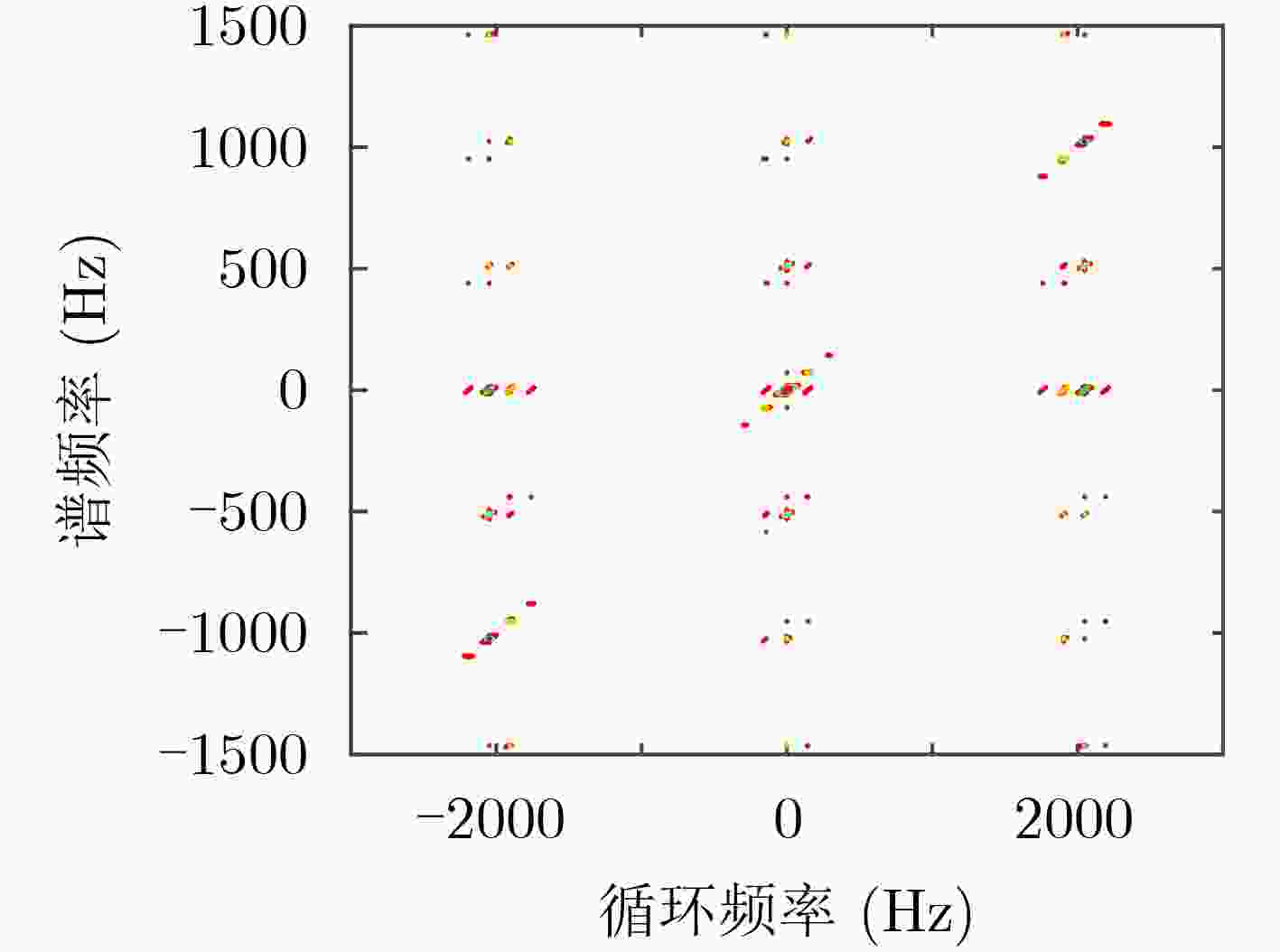

    图  13  调幅信号循环相关熵谱(非对称1)

    图  14  调幅信号循环相关熵谱3维图(非对称1)

    图  15  调幅信号循环相关熵谱(非对称2)

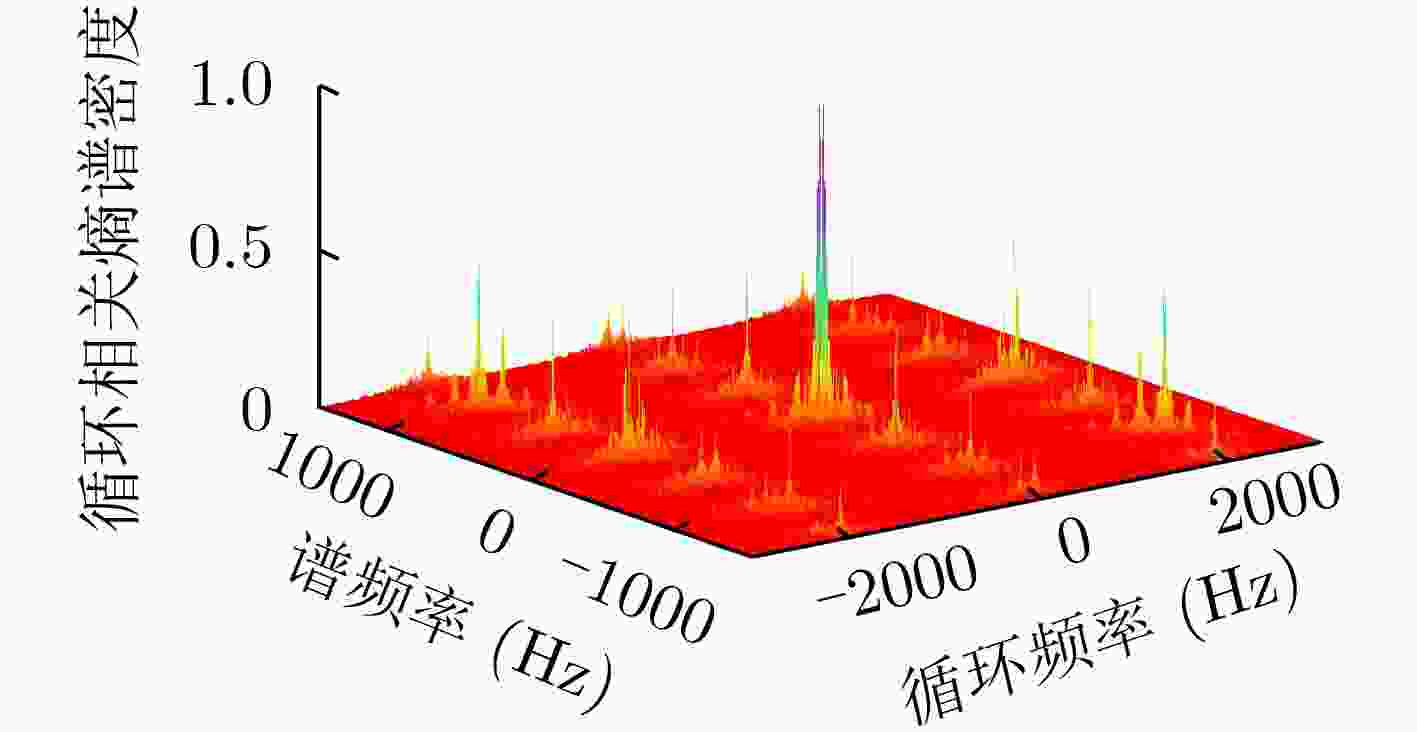

    图  16  调幅信号循环相关熵谱3维图(非对称2)

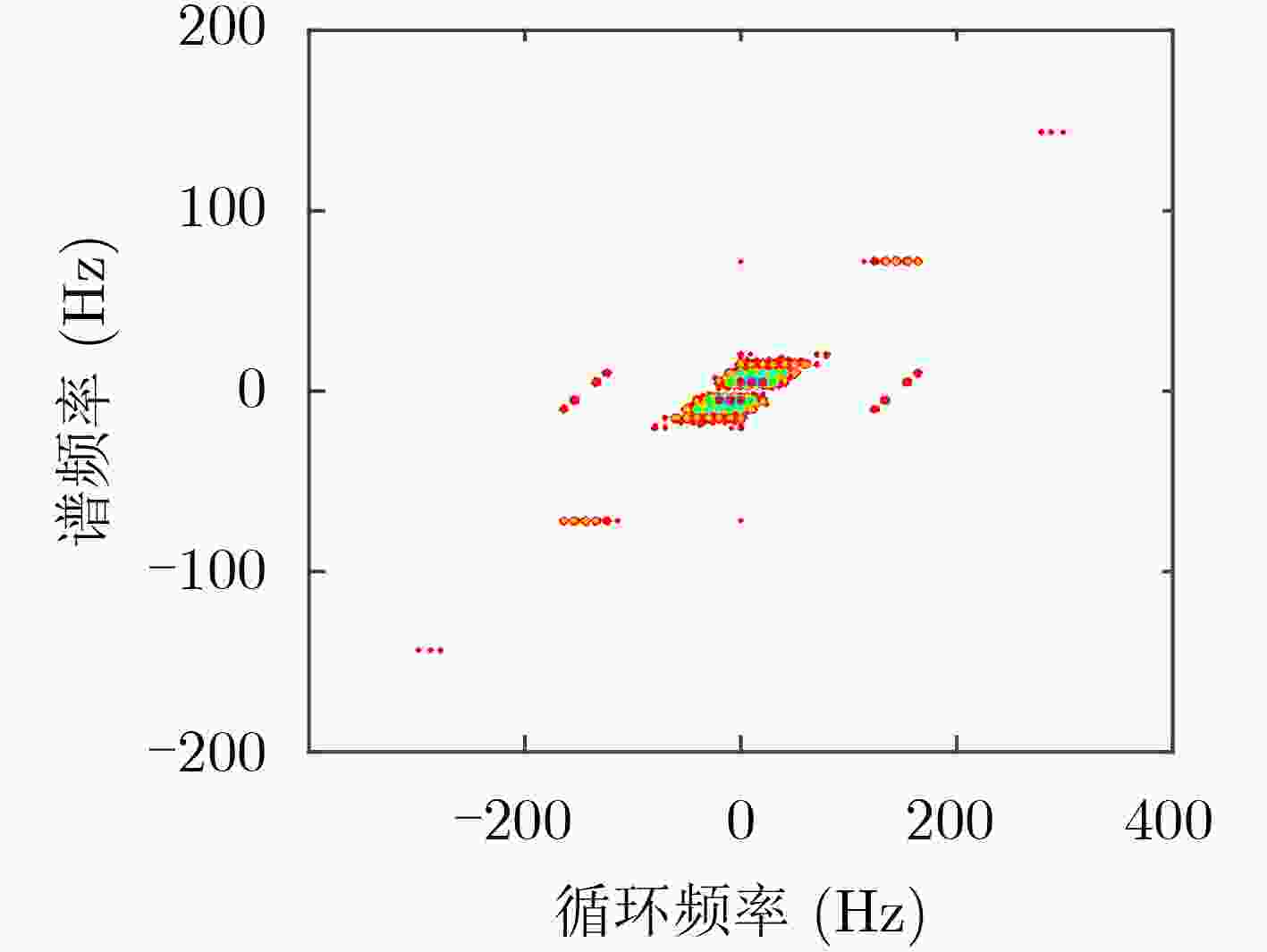

    图  17  调幅信号循环相关熵谱(非对称1局部放大图)
