无线物理层密钥生成技术发展及新的挑战

黄开枝; 金梁; 陈亚军; 楼洋明; 周游; 马克明; 许晓明; 钟州; 张胜军

doi:10.11999/JEIT200002

无线物理层密钥生成技术发展及新的挑战

doi: 10.11999/JEIT200002

黄开枝^{1, 2},
金梁¹,
陈亚军¹,
楼洋明¹,
周游¹,
马克明¹,
许晓明^1, ,,
钟州¹,
张胜军¹

1.
中国人民解放军战略支援部队信息工程大学郑州 450002
2.
移动互联网安全技术国家工程实验室北京 100876

基金项目: 国家自然科学基金(61521003, 61701538, 61871404, 61801435, 61601514)，国家科技重大专项“新一代宽带无线移动通信网”(2018ZX03002002)

详细信息

作者简介:
黄开枝：女，1973年出生，教授、博士生导师，研究方向为移动通信网络及信息安全

金梁：男，1969年出生，教授、博士生导师，研究方向为移动通信网络及信息安全

许晓明：男，1988年出生，副研究员，研究方向为移动通信网络及信息安全

通讯作者:
许晓明　ee_xiaomingxu@sina.com

中图分类号: TN918; TN915.81
计量
- 文章访问数: 2498
- HTML全文浏览量: 1074
- PDF下载量: 346
- 被引次数: 0
出版历程
- 收稿日期: 2020-01-02
- 修回日期: 2020-08-07
- 网络出版日期: 2020-08-21
- 刊出日期: 2020-10-13

Development of Wireless Physical Layer Key Generation Technology and New Challenges

1.
PLA Strategic Support Force Information Engineering University, Zhengzhou 450002, China
2.
National Engineering Laboratory for Mobile Network Security, Beijing 100876, China

Funds: The National Natural Science Foundation of China (61521003, 61701538,61871404, 61801435, 61601514), The National Science and Technology Major Project (2018ZX03002002)

摘要

摘要: 物理层安全技术从信息论安全理论出发，保障通信安全，是实现安全与通信一体化的关键手段，逐渐成为国内外研究热点。该文围绕无线通信物理层密钥生成技术研究，主要聚焦在物理层密钥生成技术的理论模型，机制机理和研究现状，重点对比分析了两种不同类型密钥生成算法，即源型密钥生成算法和信道型密钥生成算法的区别和联系，揭示了物理层密钥技术利用通信信道内在安全属性促进通信安全的实质。特别地，该文给出了一种可行的物理层密钥生成5G工程实现框架。最后，该文展望了物理层密钥生成技术未来可能的研究方向。
- 物理层密钥生成技术 /
- 源型密钥生成算法 /
- 信道型密钥生成算法 /
- 5G工程实现框架
Abstract: Physical layer security technology secures wireless communications based on information security theory, which is the key means to realize the integration of security and communication, and has become gradually a research hotspot at home and abroad. The research of key generation technology in the physical layer of wireless communication is studied, mainly focusing on the theoretical model, mechanism and research status of key generation technologies. Through the comparison and analysis of the two different types of key generation algorithms, that is, the source key generation algorithm and the channel key generation algorithm, the essence of physical layer key technologies using communication channel’s inherent security attributes to promote communication security is revealed. In particular, a feasible physical layer key generation 5G engineering implementation framework is presented. Finally, the possible future research directions of physical layer key generation technologies is prospected.
- Physical layer key generation technology /
- Source-type key generation algorithm /
- Channel-type key generation algorithm /
- 5G engineering implementation framework

HTML全文

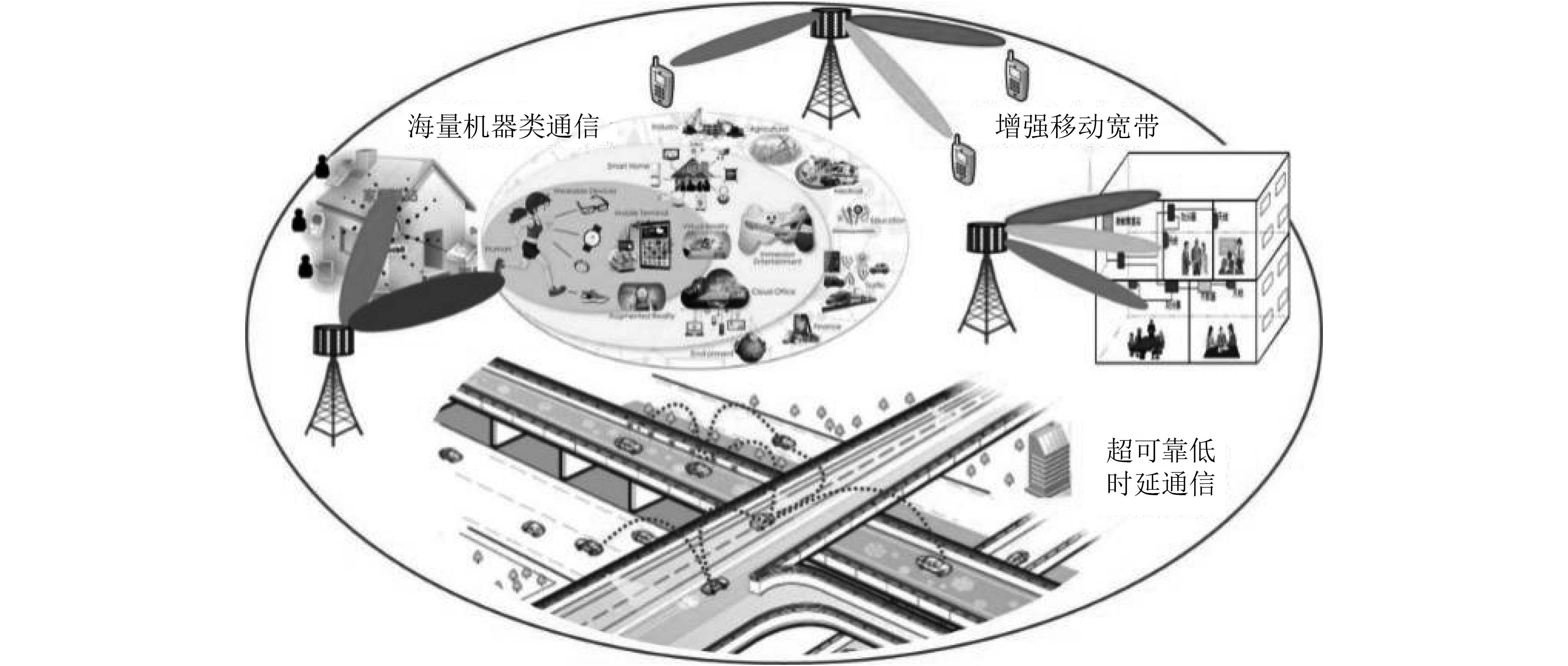

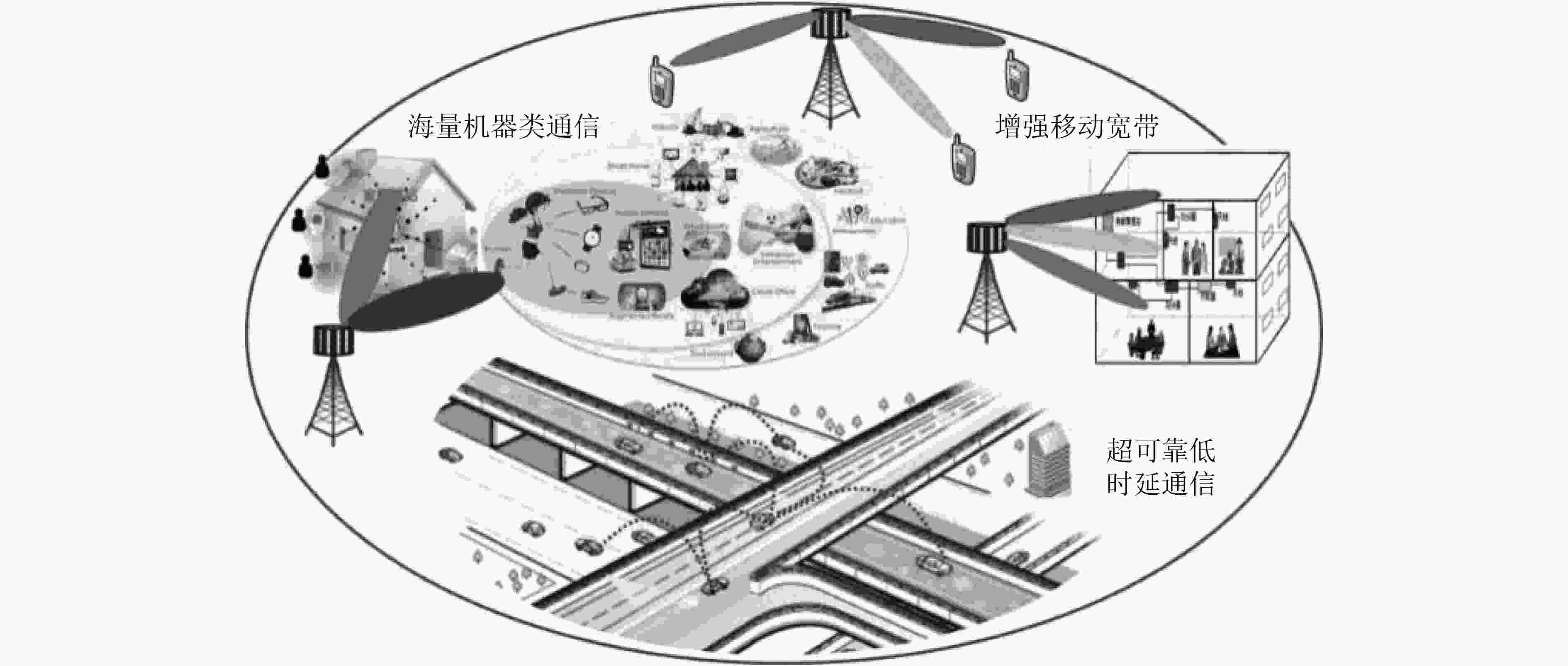

图 1 5G三大典型应用场景

下载: 全尺寸图片幻灯片

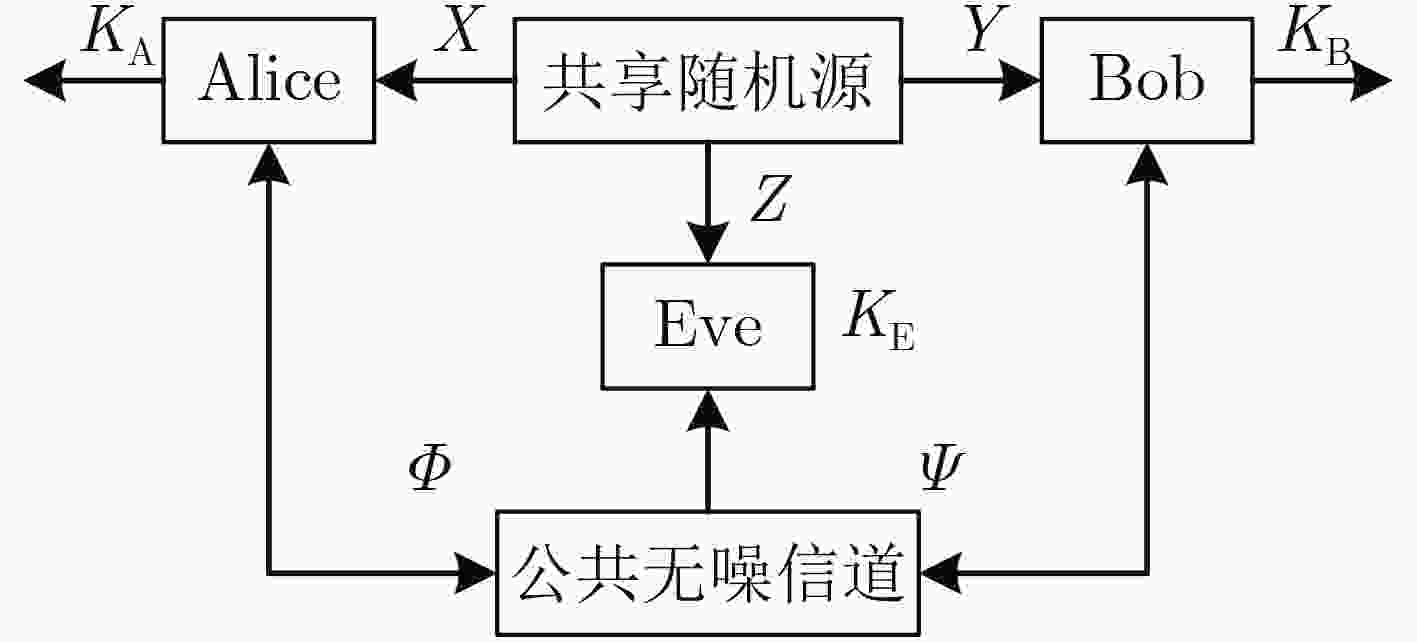

图 2 源型密钥生成模型

下载: 全尺寸图片幻灯片

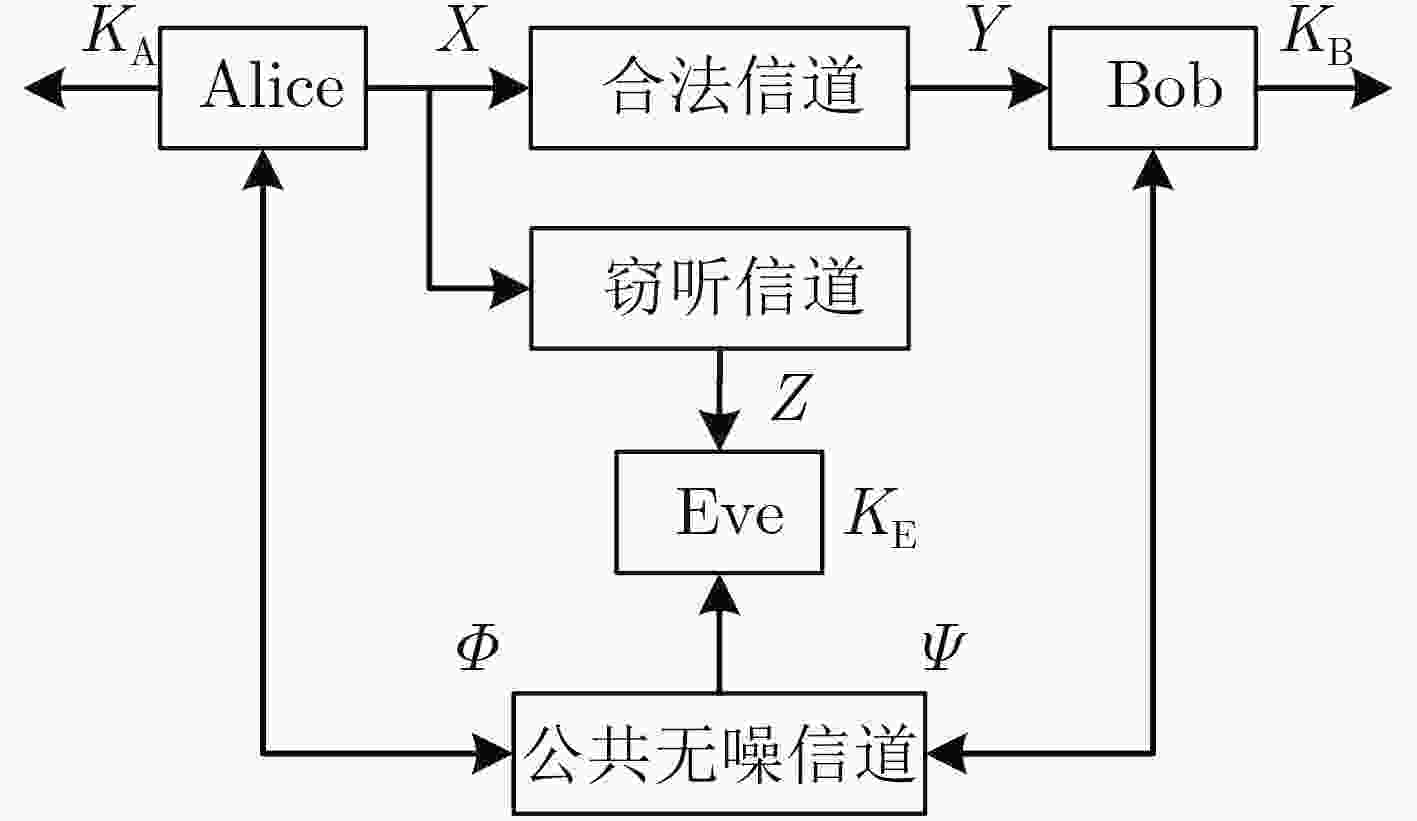

图 3 信道型密钥生成模型

下载: 全尺寸图片幻灯片

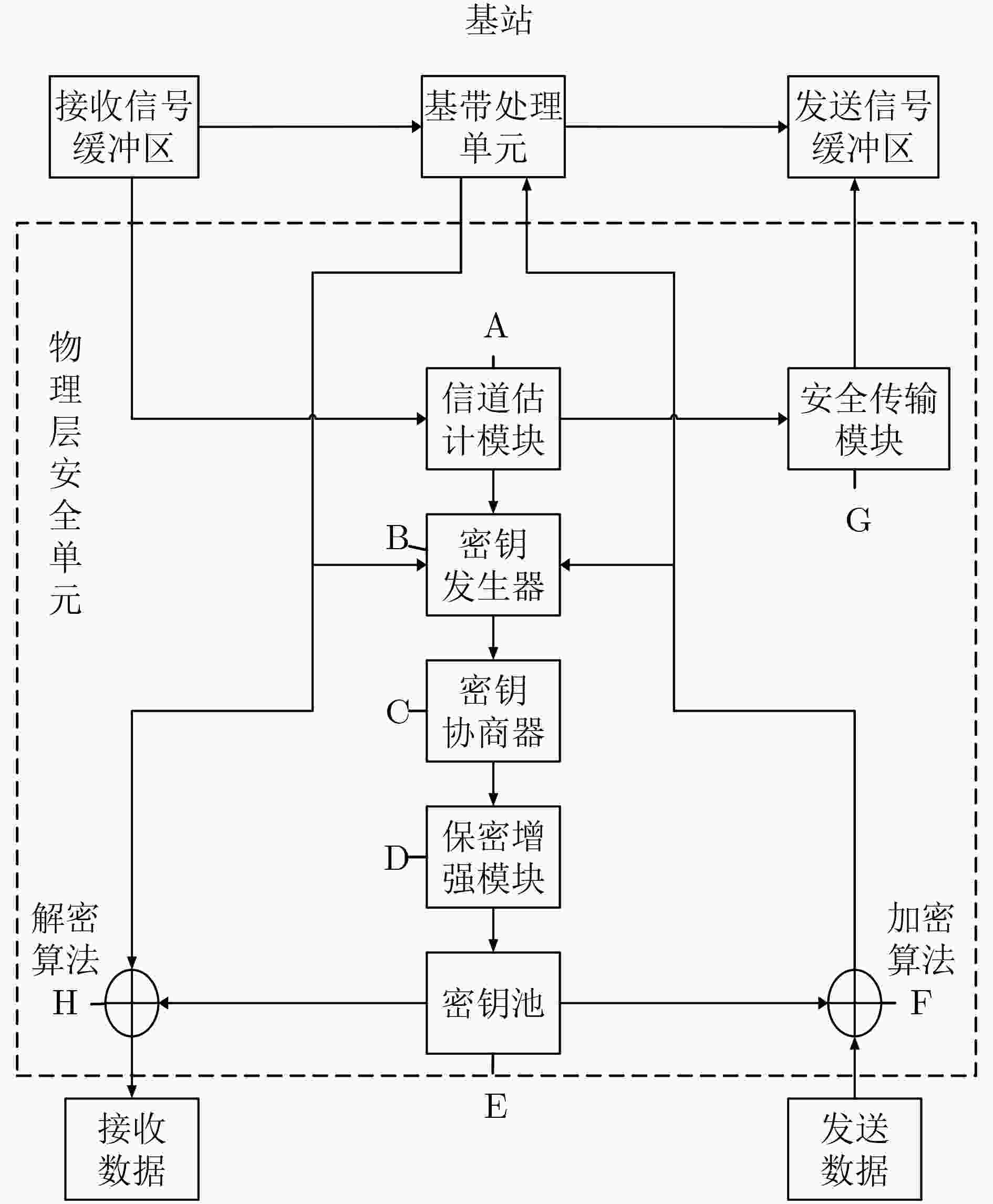

图 4 面向集中化处理无线接入网的PLSU在基站侧的实现框图

下载: 全尺寸图片幻灯片

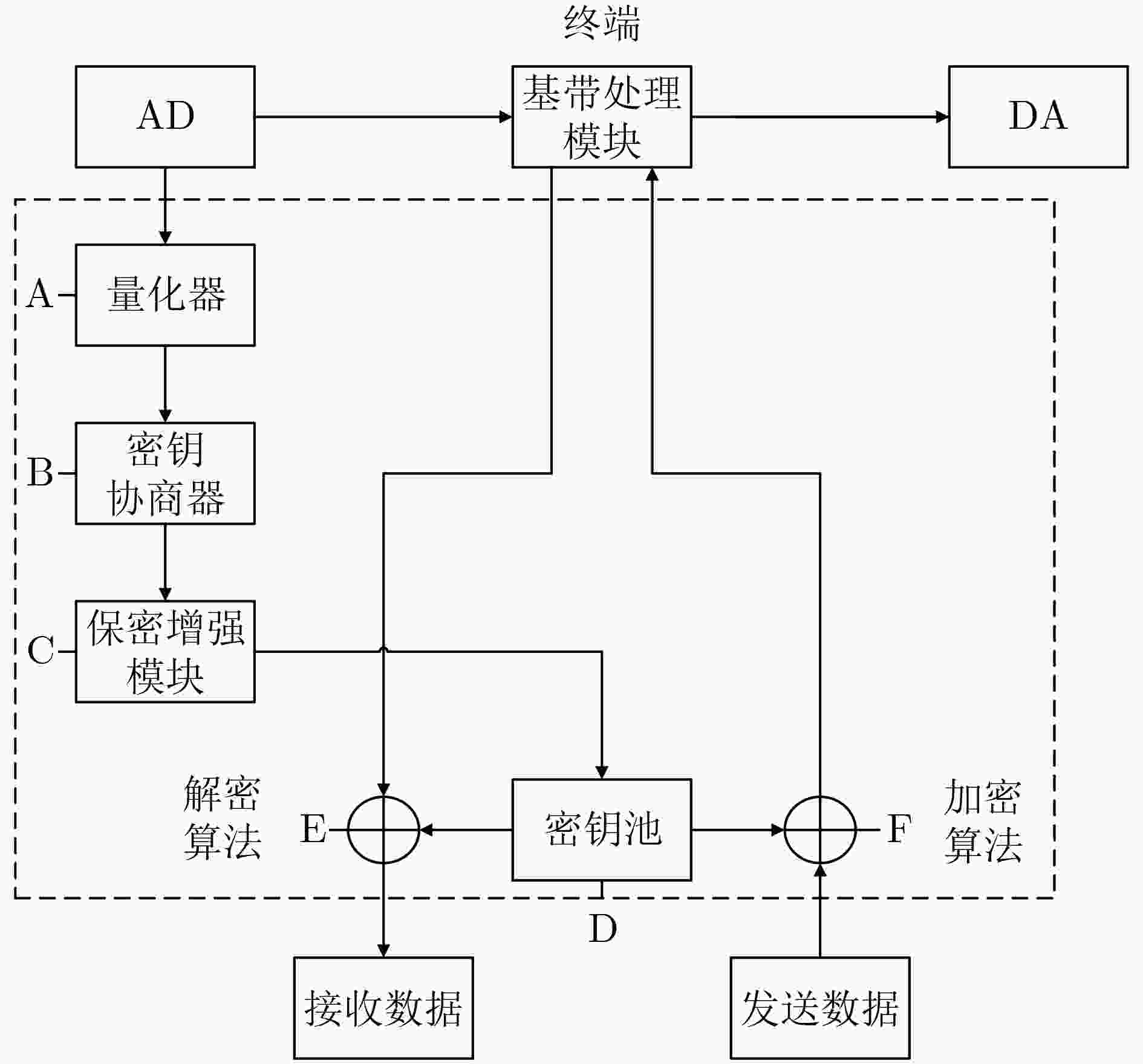

图 5 PLSU在终端侧的实现框图

下载: 全尺寸图片幻灯片

表 1 源型密钥生成的相关实验总结

测试环境	共享随机源	实验床	相关文献
WiFi(IEEE 802.11)	CSI,RSS	Intel5300NIC, USRP, WARP	[14,16-18]
IoT(IEEE 802.15)	RSS	MICAz^[25], TelosB^[26]	[19,27]
Bluetooth	RSS	智能手机	[20]
LTE	RSS	智能手机	[21]

下载: 导出CSV

表 2 源型密钥生成步骤

步骤	功能	方法	目标
共享随机源获取	为密钥生成提供密钥源	互易信道接收信号	一致安全高效
量化	将共享随机源量化为序列	等概量化均匀量化双门限量化矢量量化	量化比特数量多量化误比特率小量化序列随机性好
信息协商	删除或纠正错误比特	Cascade方法纠错编码方法	纠错能力强协商效率高信息泄露少
隐私放大	保证密钥安全性和随机性	私密信息抽取器通用Hash函数	破解概率低于密钥强度通过NIST测试

下载: 导出CSV
