基于深度强化学习的服务功能链可靠部署算法

唐伦 曹睿 廖皓 王兆堃

唐伦, 曹睿, 廖皓, 王兆堃. 基于深度强化学习的服务功能链可靠部署算法[J]. 电子与信息学报, 2020, 42(12): 2931-2938. doi: 10.11999/JEIT190969
引用本文: 唐伦, 曹睿, 廖皓, 王兆堃. 基于深度强化学习的服务功能链可靠部署算法[J]. 电子与信息学报, 2020, 42(12): 2931-2938. doi: 10.11999/JEIT190969
Lun TANG, Rui CAO, Hao LIAO, Zhaokun WANG. Reliable Deployment Algorithm of Service Function Chain Based on Deep Reinforcement Learning[J]. Journal of Electronics & Information Technology, 2020, 42(12): 2931-2938. doi: 10.11999/JEIT190969
Citation: Lun TANG, Rui CAO, Hao LIAO, Zhaokun WANG. Reliable Deployment Algorithm of Service Function Chain Based on Deep Reinforcement Learning[J]. Journal of Electronics & Information Technology, 2020, 42(12): 2931-2938. doi: 10.11999/JEIT190969

基于深度强化学习的服务功能链可靠部署算法

doi: 10.11999/JEIT190969
基金项目: 国家自然科学基金(6157073),重庆市教委科学技术研究项目(KJZD-M201800601)
详细信息
    作者简介:

    唐伦:男,1973年生,教授,博士生导师,研究方向为新一代无线通信网络、异构蜂窝网络、软件定义无线网络等

    曹睿:男,1994年生,硕士生,研究方向为5G网络切片中的资源分配、可靠性

    廖皓:男,1993年生,硕士生,研究方向为5G网络故障检测、自愈合、机器学习

    王兆堃:男,1995年生,硕士生,研究方向为5G网络故障检测、自愈合、机器学习

    通讯作者:

    曹睿 1280139234@qq.com

  • 中图分类号: TN929.5

Reliable Deployment Algorithm of Service Function Chain Based on Deep Reinforcement Learning

Funds: The National Natural Science Foundation of China (61571073), The Science and Technology Research Program of Chongqing Municipal Education Commission (KJZD-M201800601)
  • 摘要:

    针对当前关于服务功能链(SFC)的部署问题都未考虑到虚拟网络功能(VNF)的失效重要度,该文提出了基于深度强化学习的SFC可靠部署算法。首先建立VNF和虚拟链路可靠映射模型,为重要的VNF设置高可靠性需求,并通过链路部署长度限制尽可能保证虚拟链路可靠性需求。其次,以负载均衡为资源协调原则,与VNF可靠性联合优化,最终使用深度强化学习得到服务功能链部署策略。另外,提出了基于重要度的节点备份和链路备份策略,用于应对部署过程中VNF/链路可靠性难以满足的情况。仿真结果表明,该文的可靠部署算法在保证可靠性需求的基础上能够有效减少SFC失效损失,同时使虚拟网络更加稳定可靠。

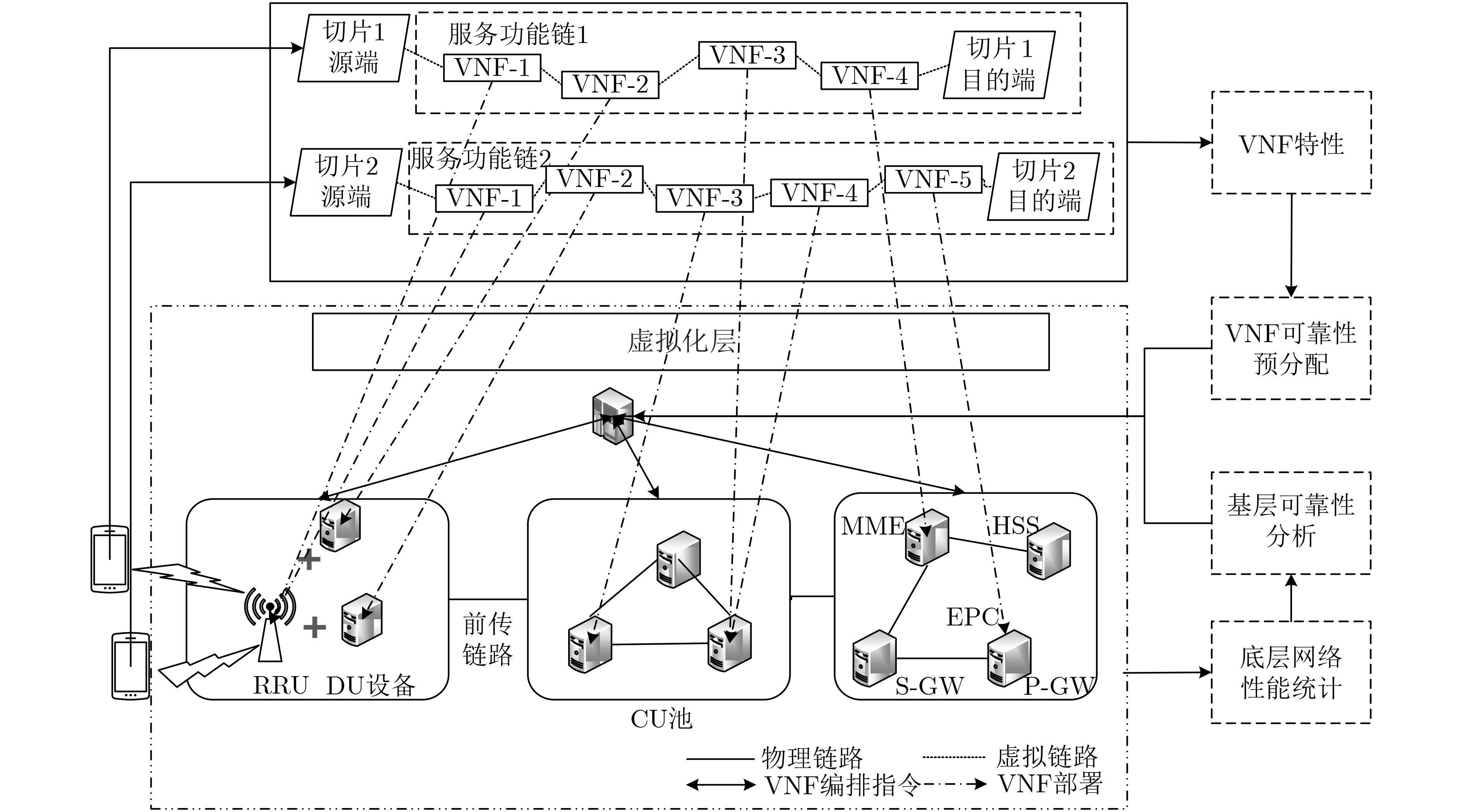

  • 图  1  系统场景图

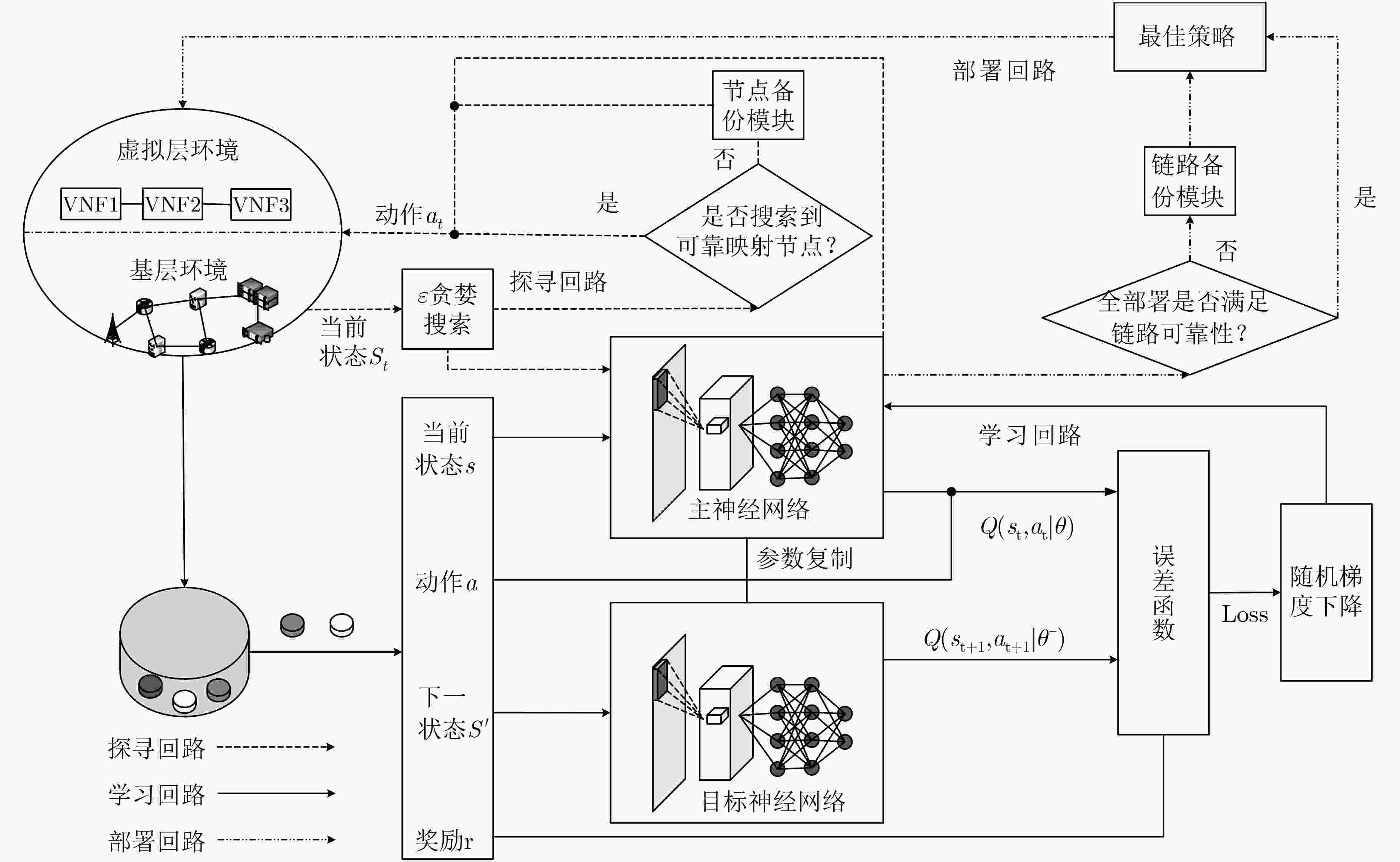

    图  2  深度强化算法示意图

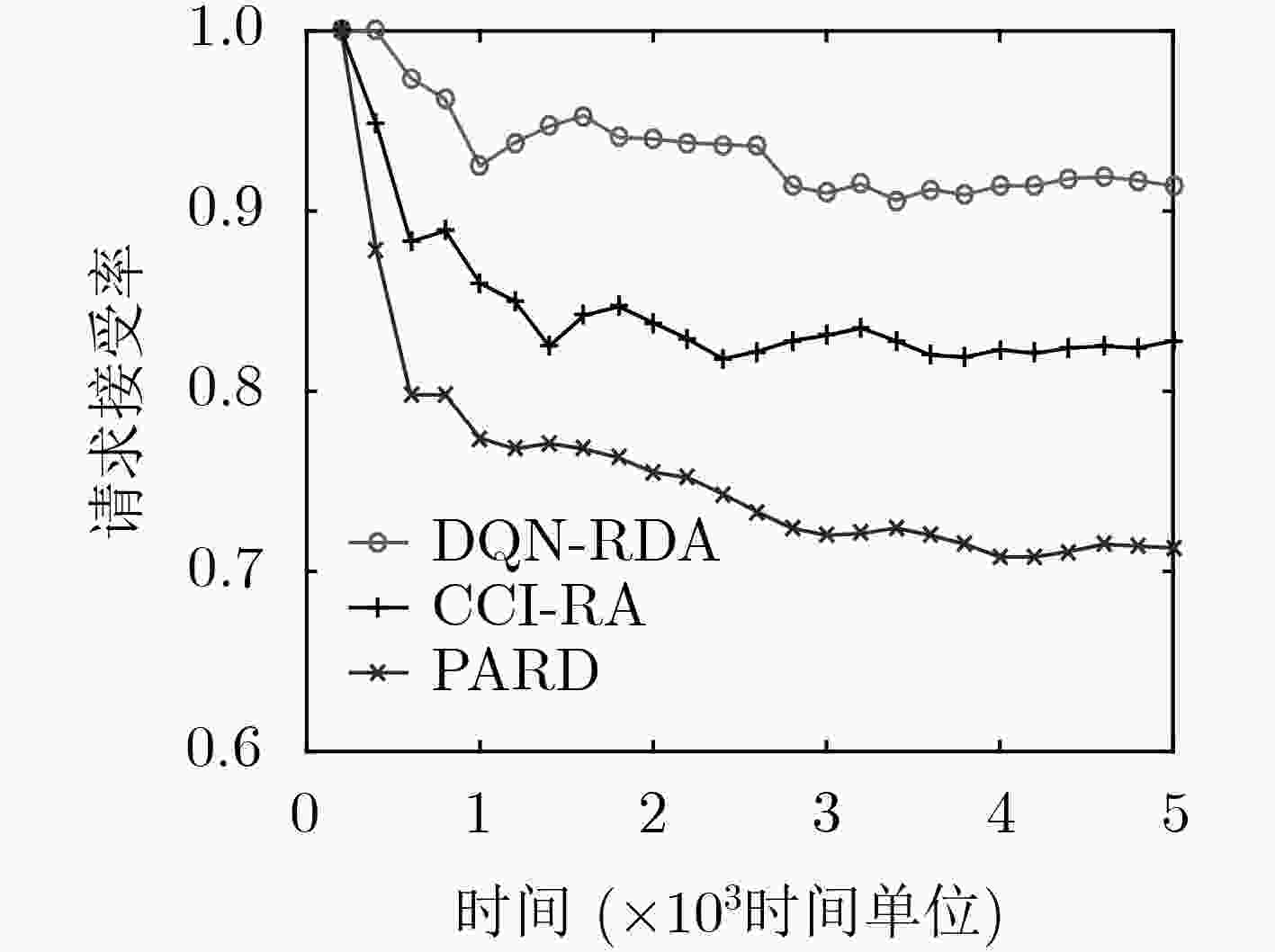

    图  3  SFC请求接受率对比

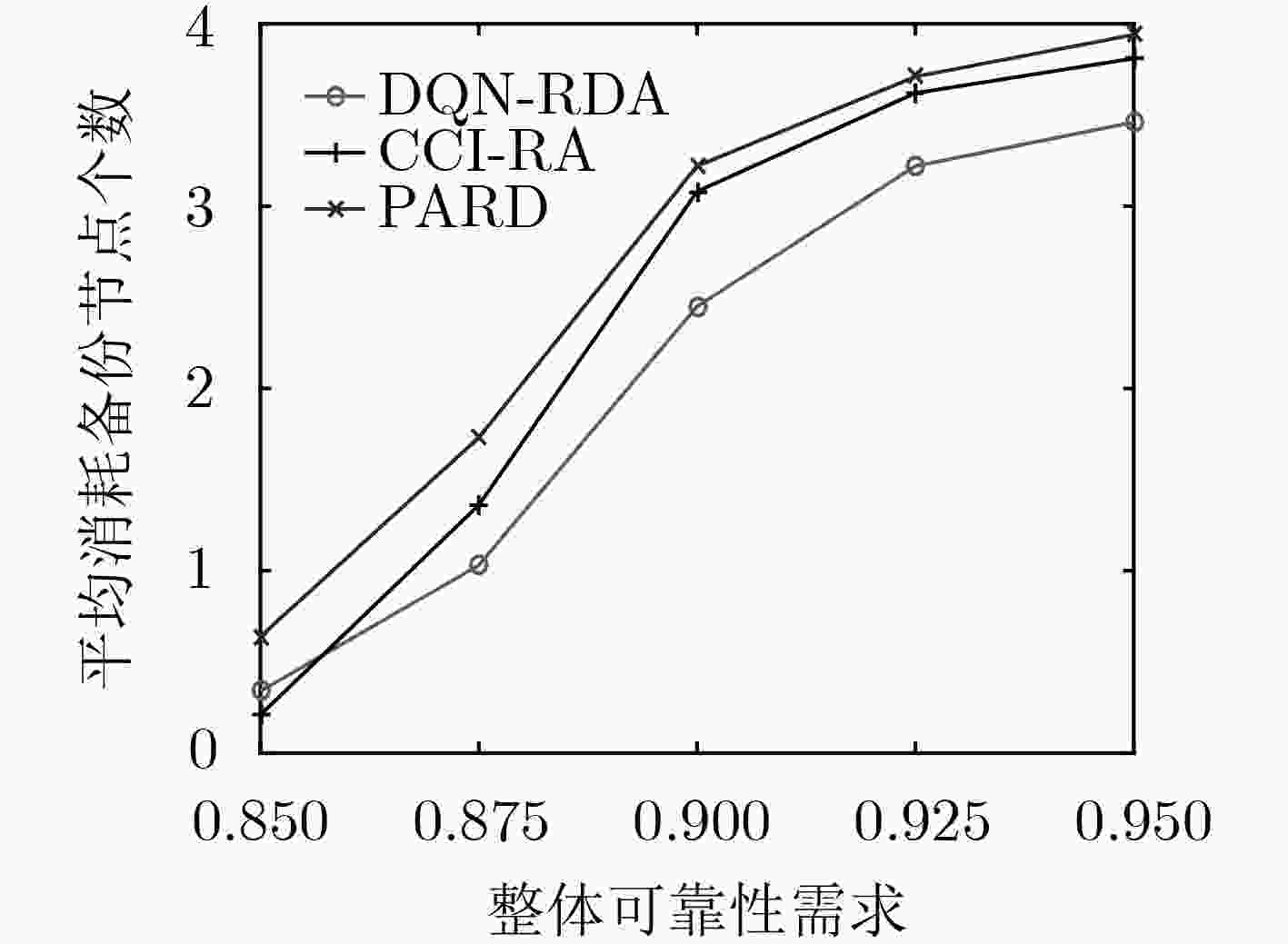

    图  4  SFC备份消耗对比

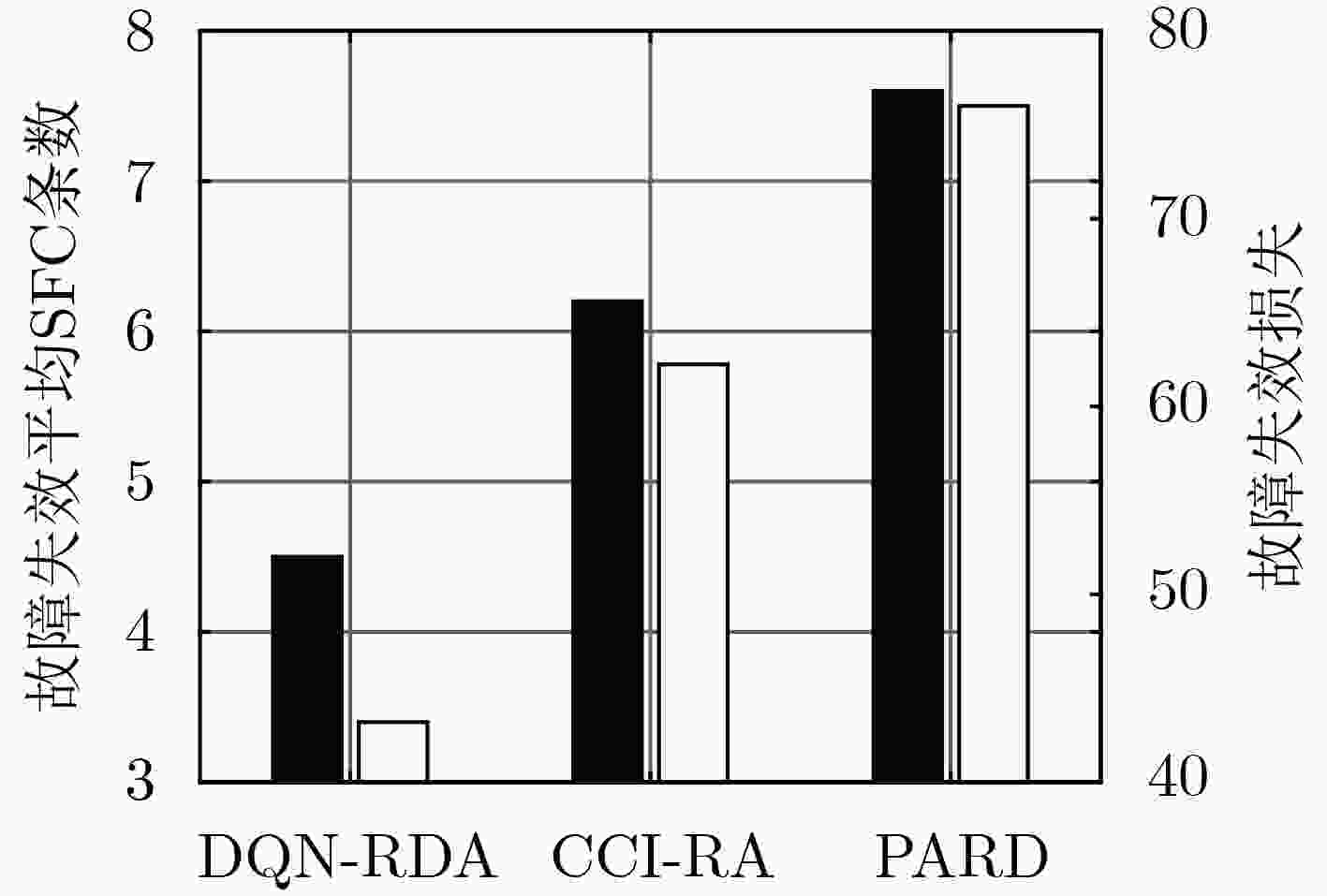

    图  5  SFC失效损失对比

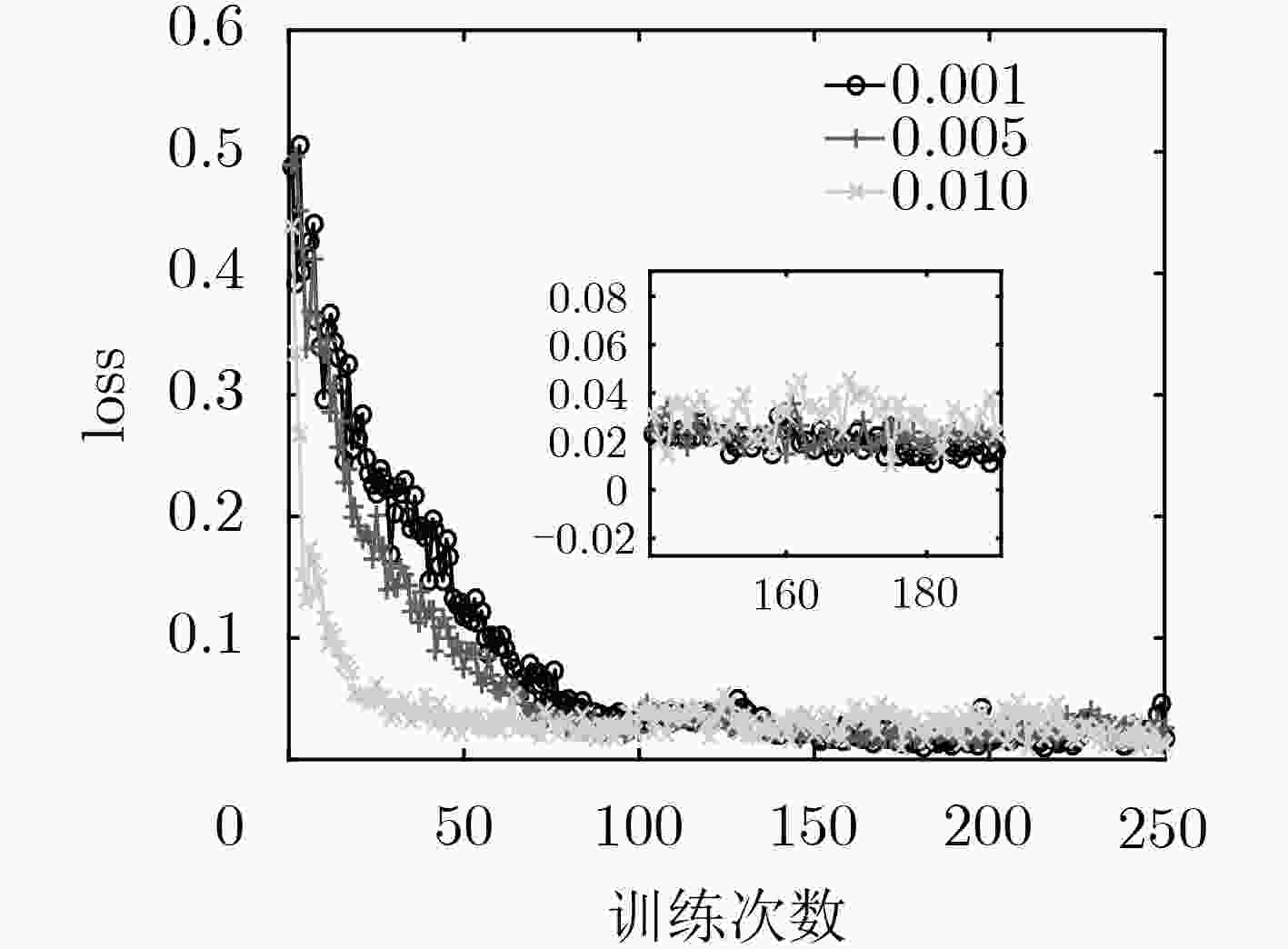

    图  6  学习率对收敛效果的影响

    表  1  基于深度强化学习的服务功能链可靠部署算法

     算法1 基于深度强化学习的服务功能链可靠部署算法
     经验回放池初始化为空,随机初始化主网络的参数,并复制给目标网络,探寻环境信息基于式(6)~式(9)得到${w_I}$,${u'_k}$
     for episode=1, 2, ···, E do
     初始化状态为${{{s}}_1} = \{ {{{B}}_{{\rm{left}}}}{{,}}{{{C}}_{{\rm{left}}}}{{,}}{{{b}}_{{\rm{map}}}}{{,}}{{{c}}_{{\rm{map}}}}\} $, ${{{b}}_{{\rm{map}}}}{{,}}{{{c}}_{{\rm{map}}}}$为空
     for t=1,2…D do
     确定可选动作集${N'_{k{n_i}}}$, ${N''_{k{n_i}}}$随机产生0到1的数$\tau $
     if $\tau < \varepsilon $:先从${ {{N'} }_{k{n_i} } }$中选择动作${a_t}$,若为空则根据算法2在${ {{N''} }_{k{n_i} } }$中选择${a_t}$,都无动作选择则${a_t}$为空
     else:依据主神经网络估值${\pi ^*}(s) = {{\arg }}\max\limits_{a'} Q({{{s}}_t},{{{a'}}_t})$选取动作。end if
     执行动作${{{a}}_t}$,获得奖励${r_t}$、下一状态${{{s}}_{t + 1}}$,将向量$[{{{s}}_t},{{{a}}_t},{r_t},{{{s}}_{t + 1}}]$放入经验回放池。
     随机取出小批量样本向量$[{{{s}}_t},{{{a}}_t},{r_t},{{{s}}_{t + 1}}]$组成样本向量集${\upsilon _t}$
     for $[{{{s}}_t},{{{a}}_t},{r_t},{{{s}}_{t + 1}}]$ in ${\upsilon _t}$ do
     $L{{(}}\theta {{)}} = {(\tilde Q({{{s}}_t},{{{a}}_t}|{\theta ^ - }) - Q({{{s}}_t},{{{a}}_t}|\theta ))^2}$,$\theta \leftarrow \theta - {\lambda _{{\rm{SGD}}}}\nabla L(\theta )$ end for
     在θ更新T次后将主网络参数复制给目标网络。end for end for
     通过主网络得到每个VNF的策略${\pi ^*}(s)$
     if累计奖励$Q({s_t},{a_t}) < - 100$:拒绝该请求
     else if 部署结果不满足链路可靠性需求:执行算法3 end if
    下载: 导出CSV

    表  2  基于虚拟网络功能重要度节点备份算法

     算法2:基于虚拟网络功能重要度的节点备份算法
     初始化节点部署方案$g'(v_I^k)$为空
     repeat:
     if ${\omega _I} < 1/D$:搜寻${N''_{k{n_i}}}$已作为备份节点的节点集$V_{I'}^k$
     if $V_{I'}^k$非空:$g'(v_I^k)$←从$V_{I'}^k$中寻找备份节点,从${{{N''}}_{k{n_i}}}/V_{I'}^k$中寻
     找部署节点
     else:$g'(v_I^k)$←从${N''_{k{n_i}}}$中选出2个节点。可靠性最高的为部署节
     点,另一备份。endif
     else:$g'(v_I^k)$←从${N''_{k{n_i}}}$中选出2个节点。可靠性最高的为部署节
     点,另一备份。endif
     until $RN(g'(v_I^k)) > {(R_k^{{\rm{req}}})^{{w_I}}}$or 已遍历所有组合
     return 节点部署方案$g'(v_I^k)$
    下载: 导出CSV

    表  3  基于链路备份重要度的链路备份算法

     算法3:基于链路备份重要度的链路备份算法
     基于$\gamma _{I,J}^k$对虚拟链路链路$l_{I,J}^k \in L_v^k$排序
     for 排过序的链路链路$l_{I,J}^k \in L_v^k$
     if 链路可靠性不满足:
     确定$l_{I,J}^k$映射的段物理起始节点${n_i}$和终止节点${n_j}$:${p_{I,J}}$
     $p{{ = \{ }}{\ell _{i,j}}|{L'_{k{l_{i,j}}}}/{p_{I,J}}\} $,部署方案增加链路P
     else: break
     end for
     return 部署方案
    下载: 导出CSV
  • AYOUBI S, ZHANG Yanhong, and ASSI C. A reliable embedding framework for elastic virtualized services in the cloud[J]. IEEE Transactions on Network and Service Management, 2016, 13(3): 489–503. doi: 10.1109/TNSM.2016.2581484
    汤红波, 邱航, 游伟, 等. 基于联合备份的服务功能链可靠性保障的部署方法[J]. 电子与信息学报, 2019, 41(12): 3006–3013. doi: 10.11999/JEIT190013

    TANG Hongbo, QIU Hang, YOU Wei, et al. A reliability-guarantee method for service function chain deployment based on joint backup[J]. Journal of Electronics &Information Technology, 2019, 41(12): 3006–3013. doi: 10.11999/JEIT190013
    季新生, 赵硕, 艾健健, 等. 异构备份式的虚拟网映射方法研究[J]. 电子与信息学报, 2018, 40(5): 1087–1093. doi: 10.11999/JEIT170730

    JI Xinsheng, ZHAO Shuo, AI Jianjian, et al. Research on heterogeneous-backup virtual network embedding[J]. Journal of Electronics &Information Technology, 2018, 40(5): 1087–1093. doi: 10.11999/JEIT170730
    POURVALI M, BAI Hao, CRICHIGNO J, et al. Multicast virtual network services embedding for improved disaster recovery support[J]. IEEE Communications Letters, 2018, 22(7): 1362–1365. doi: 10.1109/LCOMM.2018.2822739
    SUN Jian, ZHU Guangyang, SUN Gang, et al. A reliability-aware approach for resource efficient virtual network function deployment[J]. IEEE Access, 2018, 6: 18238–18250. doi: 10.1109/ACCESS.2018.2815614
    DINH N T and KIM Y. An efficient reliability guaranteed deployment scheme for service function chains[J]. IEEE Access, 2019, 7: 46491–46505. doi: 10.1109/ACCESS.2019.2908185
    刘光远, 安秀芳, 苏森. 基于节点可靠性感知和共享路径保护的虚拟网映射算法研究[J]. 通信学报, 2016, 37(8): 51–57. doi: 10.11959/j.issn.1000-436x.2016155

    LIU Guangyuan, AN Xiufang, and SU Sen. Virtual network mapping algorithm with node reliability awareness and shared-path protection[J]. Journal on Communications, 2016, 37(8): 51–57. doi: 10.11959/j.issn.1000-436x.2016155
    European Telecommunications Standards Institute. Network Functions Virtualisation (NFV); Reliability; Report on models and features for end-to-end reliability[R]. ETSI GS NFV-REL 003 V1.1.1, 2016.
    TANG Xiaoyong, LI Kenli, QIU Meikang, et al. A hierarchical reliability-driven scheduling algorithm in grid systems[J]. Journal of Parallel and Distributed Computing, 2012, 72(4): 525–535. doi: 10.1016/j.jpdc.2011.12.004
    BIJWE S, MACHIDA F, ISHIDA S, et al. End-to-End reliability assurance of service chain embedding for network function virtualization[C]. 2017 IEEE Conference on Network Function Virtualization and Software Defined Networks (NFV-SDN), Berlin, Germany, 2017: 1–4. doi: 10.1109/NFV-SDN.2017.8169853.
    KUO Tungwei, LIOU B Hheng, LIN K C J, et al. Deploying Chains of virtual network functions: On the relation between link and server usage[J]. IEEE/ACM Transactions on Networking, 2018, 26(4): 1562–1576. doi: 10.1109/TNET.2018.2842798
    魏亮, 黄韬, 张娇, 等. 基于强化学习的服务链映射算法[J]. 通信学报, 2018, 39(1): 90–100. doi: 10.11959/j.issn.1000-436x.2018002

    WEI Liang, HUANG Tao, ZHANG Jiao, et al. Service Chain mapping algorithm based on reinforcement learning[J]. Journal on Communications, 2018, 39(1): 90–100. doi: 10.11959/j.issn.1000-436x.2018002
    CAO Haotong, ZHU Yongxu, ZHENG Gan, et al. A novel optimal mapping algorithm with less computational complexity for virtual network embedding[J]. IEEE Transactions on Network and Service Management, 2018, 15(1): 356–371. doi: 10.1109/TNSM.2017.2778106
    ZHANG Xin, QIAN Zhuzhong, ZHANG Sheng, et al. Pattern-aware reliable virtual network function chain deployment[C]. 2017 IEEE International Symposium on Parallel and Distributed Processing with Applications and 2017 IEEE International Conference on Ubiquitous Computing and Communications (ISPA/IUCC), Guangzhou, China, 2017: 335–342. doi: 10.1109/ISPA/IUCC.2017.00055.
    SHAHRIAR N, AHMED R, CHOWDHURY S R, et al. Generalized recovery from node failure in virtual network embedding[J]. IEEE Transactions on Network and Service Management, 2017, 14(2): 261–274. doi: 10.1109/TNSM.2017.2693404
