A Track Correlation Algorithm Based on New Space-time Cross-point Feature
-
摘要: 为有效解决实际工程中的航迹关联问题，该文定义了广义时空交叉点，并提出了以航迹对时空交叉点为特征，通过特征匹配来实现航迹抗差关联的新方法。实测数据验证结果表明：在雷达航迹不完全匹配且存在时空差异误差的情况下，该方法可有效实现雷达航迹的抗差关联，并且几乎不受时空差异误差大小的影响，具有强鲁棒性和稳定性，可有效解决实际工程中的航迹关联问题，消除冗余航迹，提供统一态势。
-
关键词:
- 航迹关联 /
- 时空交叉点 /
- 特征匹配 /
- 假设检验 /
- Hausdorff距离

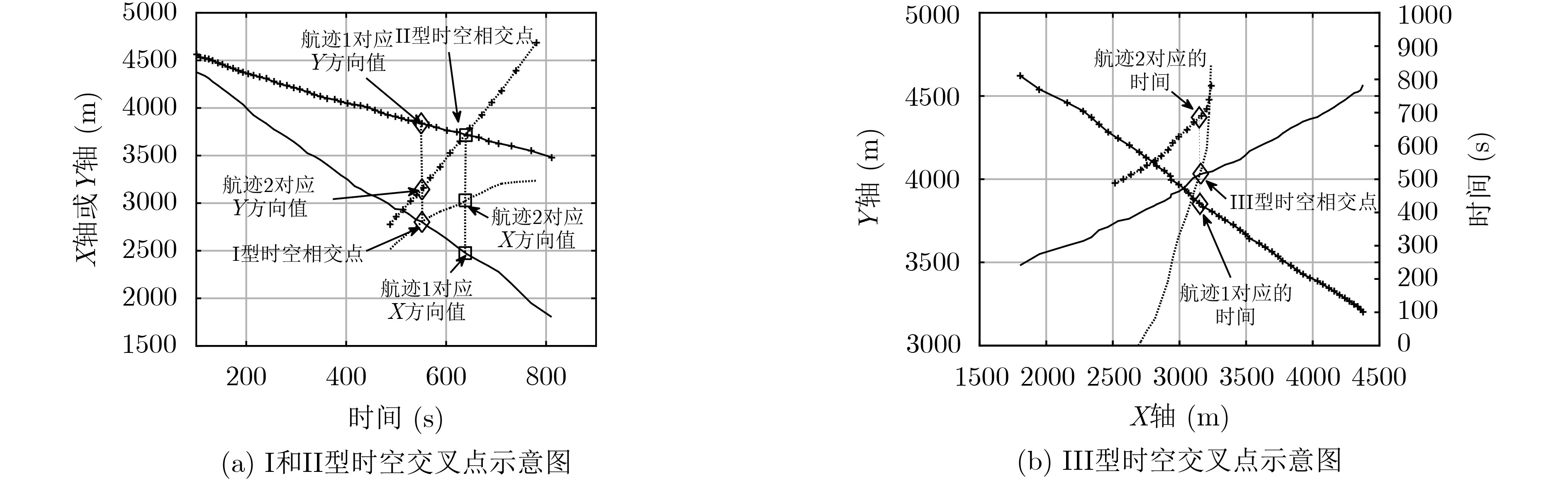

Abstract: To solve the problem of track correlation in practical engineering effectively, a new concept of generalized space-time cross point of track pair is defined in this paper. Then a new algorithm which utilize space-time cross-point as feature points and realizes the track correlation through feature point matching is proposed in this paper. The test experiments with measured data illustrate the proposed algorithm of which the performance is effective, stable and robust, can eliminate redundant tracks and provide a unified situation. -
表 2 测试数据1下交叉点算法关联结果
雷达1批号 15 13 11 12 雷达2批号 25 23 21 22 关联系数 0.657 0.657 0.648 0.503 时间误差估计(s) 30.31 30.31 25.42 29.57 空间误差估计(m) 525.22 819.61 525.22 819.61 571.18 813.87 468.00 825.56
下载: 导出CSV
表 4 测试环境2下交叉点算法关联结果
雷达1批号 13 15 14 雷达2批号 23 25 24 关联系数 0.845 0.845 0.835 时间误差估计 89.03 89.03 86.17 空间误差估计 4876.42 7953.41 4876.42 7953.41 5053.34 8036.30
下载: 导出CSV
-
何友, 修建娟, 张晶炜, 等. 雷达数据处理及应用[M]. 2版. 北京: 电子工业出版社, 2009: 220–223.HE You, XIU Jianjuan, ZHANG Jingwei, et al. Radar Data Processing with Applications[M]. 2nd ed. Beijing: Publishing House of Electronics Industry, 2009: 220–223. 李保珠, 关键, 董云龙. 基于航迹矢量检测的雷达与电子支援设施抗差关联算法[J]. 电子与信息学报, 2019, 41(1): 123–129. doi: 10.11999/JEIT180303LI Baozhu, GUAN Jian, and DONG Yunlong. Anti-bias track association algorithm of radar and electronic support measurements based on track vectors detection[J]. Journal of Electronics &Information Technology, 2019, 41(1): 123–129. doi: 10.11999/JEIT180303 李保珠, 董云龙, 李秀友, 等. 基于t分布混合模型的抗差关联算法[J]. 电子与信息学报, 2017, 39(7): 1774–1778. doi: 10.11999/JEIT161084LI Baozhu, DONG Yunlong, LI Xiuyou, et al. Anti-bias track association algorithm based on t-distribution mixture model[J]. Journal of Electronics &Information Technology, 2017, 39(7): 1774–1778. doi: 10.11999/JEIT161084 李保珠, 张林, 董云龙, 等. 基于航迹矢量分级聚类的雷达与电子支援措施抗差关联算法[J]. 电子与信息学报, 2019, 41(6): 1310–1316. doi: 10.11999/JEIT180714LI Baozhu, ZHANG Lin, DONG Yunlong, et al. Anti-bias track association algorithm of radar and electronic support measurements based on track vectors hierarchical clustering[J]. Journal of Electronics &Information Technology, 2019, 41(6): 1310–1316. doi: 10.11999/JEIT180714 田威, 黄高明. 非理想关联下多传感器系统误差的稳健估计[J]. 电子与信息学报, 2018, 40(3): 641–647. doi: 10.11999/JEIT170579TIAN Wei, HUANG Gaoming. Robust Multisensor Bias Estimation Under Nonideal Association[J]. Journal of Electronics and Information Technology, 2018, 40(3): 641–647. doi: 10.11999/JEIT170579 关欣, 彭彬彬, 衣晓. 修正极坐标系下雷达与ESM航迹对准关联[J]. 航空学报, 2017, 38(5): 221–232. doi: 10.7527/S1000-6893.2016.0287GUAN Xin, PENG Binbin, and YI Xiao. Track alignment-association of radar and ESM in MPC[J]. Acta Aeronautica ET Astronautica Sinica, 2017, 38(5): 221–232. doi: 10.7527/S1000-6893.2016.0287 齐林, 崔亚奇, 熊伟, 等. 基于距离检测的自动识别系统和对海雷达航迹抗差关联算法[J]. 电子与信息学报, 2015, 37(8): 1855–1861. doi: 10.11999/JEIT141472QI Lin, CUI Yaqi, XIONG Wei, et al. Anti-bias association algorithm for automatic identification system and radar based on bias detection[J]. Journal of Electronics &Information Technology, 2015, 37(8): 1855–1861. doi: 10.11999/JEIT141472 柳向, 李东生. 对分布式组网雷达的航迹欺骗偏差补偿技术[J]. 系统工程与电子技术, 2018, 40(6): 1255–1264. doi: 10.3969/j.issn.1001-506X.2018.06.10LIU Xiang and LI Dongsheng. Deviation compensation for phantom tracks jamming against distributed radar network[J]. Systems Engineering and Electronics, 2018, 40(6): 1255–1264. doi: 10.3969/j.issn.1001-506X.2018.06.10 宋强, 熊伟, 何友. 基于复数域拓扑描述的航迹对准关联算法[J]. 宇航学报, 2011, 32(3): 560–566. doi: 10.3873/j.issn.1000-1328.2011.03.017SONG Qiang, XIONG Wei, and HE You. A track alignment-correlation algorithm based on topological description of complex number field[J]. Journal of Astronautics, 2011, 32(3): 560–566. doi: 10.3873/j.issn.1000-1328.2011.03.017 宋强, 熊伟, 马强. 基于目标不变信息量的模糊航迹对准关联算法[J]. 系统工程与电子技术, 2011, 33(1): 190–195. doi: 10.3969/j.issn.1001-506X.2011.01.39SONG Qiang, XIONG Wei, and MA Qiang. Fuzzy track alignment-correlation algorithm based on target invariable information[J]. Systems Engineering and Electronics, 2011, 33(1): 190–195. doi: 10.3969/j.issn.1001-506X.2011.01.39 何友, 宋强, 熊伟. 基于傅里叶变换的航迹对准关联算法[J]. 航空学报, 2010, 31(2): 356–362.HE You, SONG Qiang, and XIONG Wei. A track registration-correlation algorithm based on Fourier transform[J]. Acta Aeronautica ET Astronautica Sinica, 2010, 31(2): 356–362. 吴泽民, 任姝婕, 刘熹. 基于拓扑序列法的航迹关联算法[J]. 航空学报, 2009, 30(10): 1937–1942. doi: 10.3321/j.issn:1000-6893.2009.10.024WU Zemin, REN Shujie, and LIU Xi. Topology sequence based track correlation algorithm[J]. Acta Aeronautica et Astronautica Sinica, 2009, 30(10): 1937–1942. doi: 10.3321/j.issn:1000-6893.2009.10.024 董凯, 王海鹏, 刘瑜. 基于拓扑统计距离的航迹抗差关联算法[J]. 电子与信息学报, 2015, 37(1): 50–55. doi: 10.11999/JEIT140244DONG Kai, WANG Haipeng, and LIU Yu. Anti-bias track association algorithm based on topology statistical distance[J]. Journal of Electronics &Information Technology, 2015, 37(1): 50–55. doi: 10.11999/JEIT140244 齐林, 刘瑜, 任华龙, 等. 空基多雷达航迹抗差关联算法[J]. 航空学报, 2018, 39(3): 221–229. doi: 10.7527/S1000-6893.2017.21691QI Lin, LIU Yu, REN Hualong, et al. Air-platform multi-radar anti-bias tracks association algorithm[J]. Acta Aeronautica et Astronautica Sinica, 2018, 39(3): 221–229. doi: 10.7527/S1000-6893.2017.21691 鹿强, 吴琳, 陈昭, 等. 海上目标多源轨迹数据关联综述[J]. 地球信息科学学报, 2018, 20(5): 571–581. doi: 10.12082/dqxxkx.2018.180024LU Qiang, WU Lin, CHEN Zhao, et al. A review of multi-source trajectory data association for marine targets[J]. Journal of Geo-information Science, 2018, 20(5): 571–581. doi: 10.12082/dqxxkx.2018.180024 董凯, 关欣, 王海鹏, 等. 基于序贯修正灰关联度的全局最优航迹关联算法[J]. 电子与信息学报, 2014, 36(8): 1939–1945. doi: 10.3724/SP.J.1146.2013.01455DONG Kai, GUAN Xin, WANG Haipeng, et al. Global optimal track association algorithm based on sequential modified grey association degree[J]. Journal of Electronics &Information Technology, 2014, 36(8): 1939–1945. doi: 10.3724/SP.J.1146.2013.01455 ZHU Hongyan, WANG Wei, and WANG Chen. Robust track-to-track association in the presence of sensor biases and missed detections[J]. Information Fusion, 2016, 27: 33–40. doi: 10.1016/j.inffus.2015.05.002 QI Lin, DONG Kai, LIU Yu, et al. Anti-bias track-to-track association algorithm based on distance detection[J]. IET Radar, Sonar & Navigation, 2017, 11(2): 269–276. doi: 10.1049/iet-rsn.2016.0139 -
图(7) / 表(6)
