No-reference Image Quality Evaluation for Multiply-distorted Images Based on Spatial Domain Coding
-

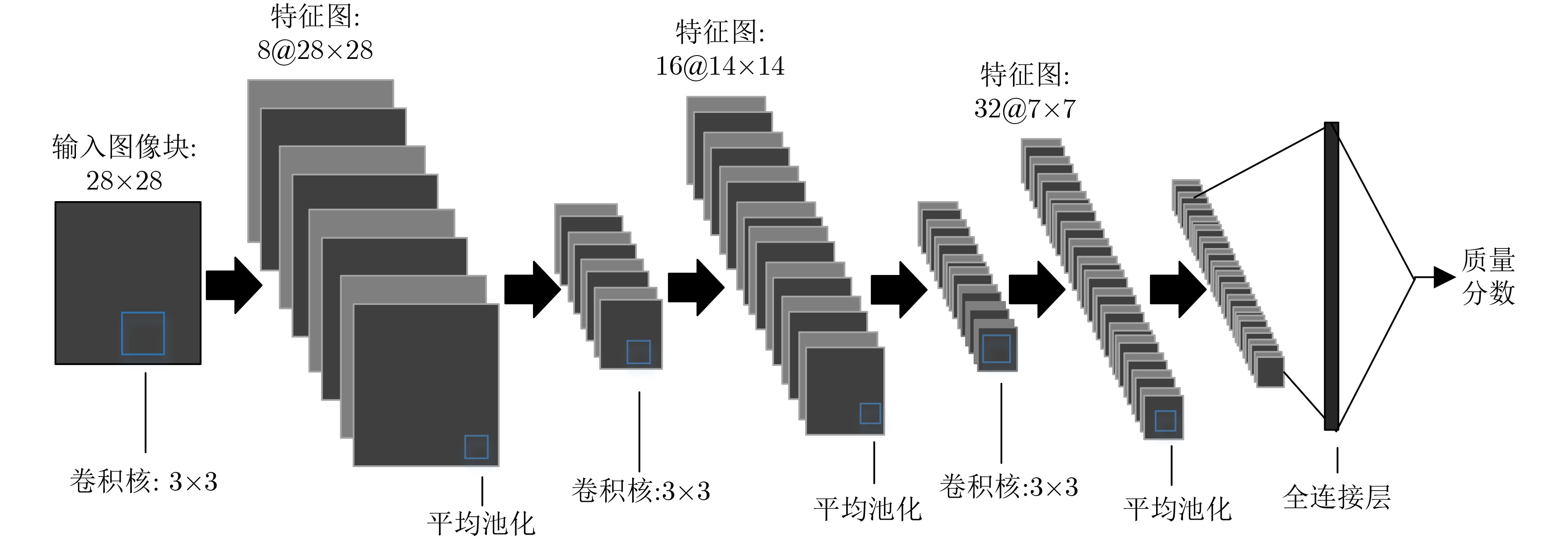

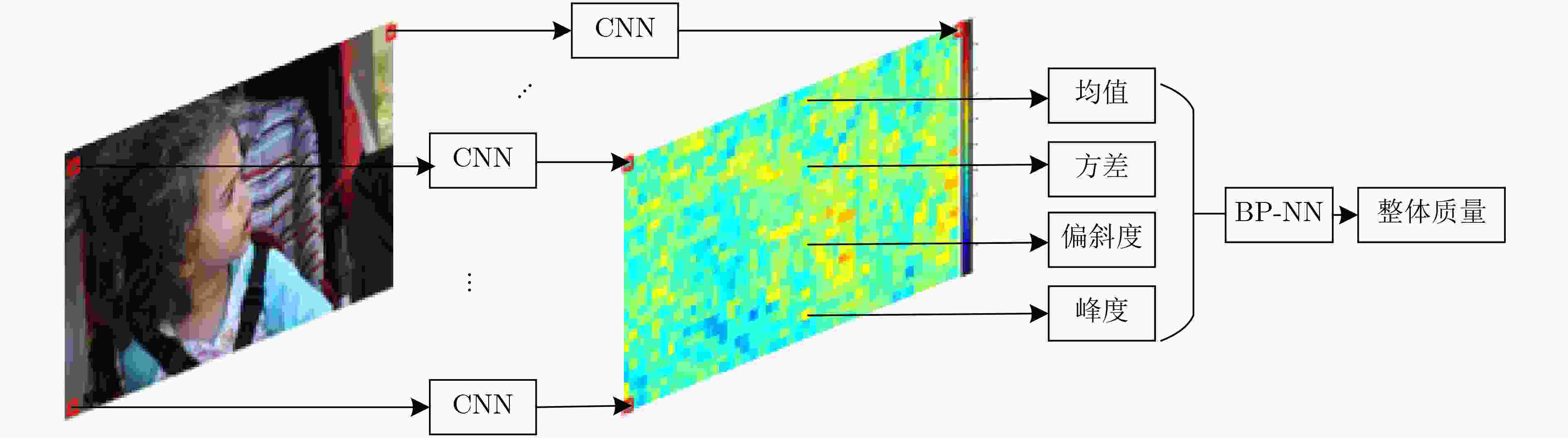

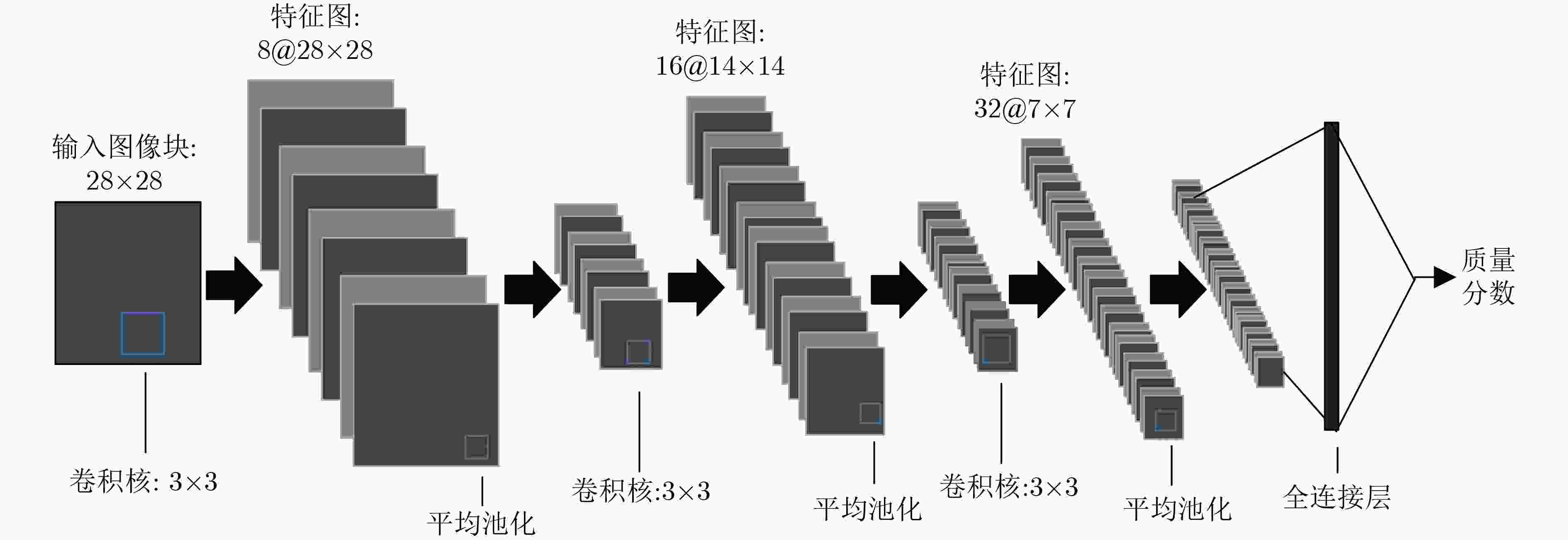

摘要: 针对难以准确有效地提取混合失真图像质量特征的问题,该文提出一种基于空间分布分析的图像质量评价方法。首先将图像进行亮度系数归一化处理,然后将图像进行分块,利用卷积神经网络(CNN)进行端对端的深度学习,采用多层次卷积核堆叠的方法获取图像的质量感知特征,并通过全连接层将特征映射到图像块的质量分数。再将块质量分数汇总获取质量池,通过对质量池中局部质量的空间分布情况进行分析,提取能够表征其空间分布情况的特征,然后采用神经网络建立局部质量到整体质量的映射模型,将图像的局部质量进行汇总。最后在MLIVE, MDID2013, MDID2016混合失真图像库中进行性能测试以及与相关的对比算法进行比较,验证了该算法的有效性。Abstract: Considering the problem that it is difficult to accurately and effectively extract the quality features of mixed distortion image, an image quality assessment method based on spatial distribution analysis is proposed. Firstly, the brightness coefficients of the image are normalized, and the image is divided into blocks. While the Convolutional Neural Network (CNN) is used for end-to-end depth learning, the multi-level stacking of convolution cores is applied to acquire image quality perception features. The feature is mapped to the mass fraction of the image block through the full connection layer, then the quality pool is obtained by aggregating the quality of the block. Through the analysis of the spatial distribution of local quality in the quality pool, the features that can represent its spatial distribution are extracted, and then the mapping model from local quality to overall quality is established by the neural network to aggregate the local quality of the image. Finally, the effectiveness of the algorithm is verified by the performance tests in MLIVE, MDID2013 and MDID2016 mixed distortion image databases.
-
表 1 混合失真图像库描述
图像库 参考图像 失真类型 图像数 主观评分 MLIVE 15 模糊+噪声/模糊+JPEG压缩 450 0-100(DMOS) MDID2013 12 模糊+噪声+JPEG压缩 324 0-1(DMOS) MDID2016 20 模糊+噪声+对比度+JPEG压缩+JP2K压缩 1600 0-8(MOS) 表 2 MLIVE图像库中各特征性有效性实验
特征 PLCC SROCC KROCC 均值 0.951 0.941 0.753 方差 0.795 0.740 0.625 偏斜度 0.570 0.472 0.334 峰度 0.461 0.493 0.348 整体评价 0.961 0.951 0.781 表 3 不同图像库中算法性能测试
图像库 PLCC SROCC KROCC RMSE MLIVE(Part1) 0.969 0.956 0.822 4.502 MLIVE(Part2) 0.957 0.942 0.784 4.944 MLIVE(All) 0.961 0.951 0.781 4.831 MDID2013 0.935 0.922 0.755 0.017 MDID2016 0.921 0.917 0.749 0.756 表 4 算法性能对比实验
算法 MLIVE(450 images) MDID2013(324 images) PLCC SROCC RMSE PLCC SROCC RMSE PSNR FR 0.740 0.677 12.724 0.561 0.560 0.042 SSIM FR 0.926 0.902 6.797 0.457 0.450 0.045 VIF[18] FR 0.932 0.915 6.761 0.915 0.905 0.020 BRISQUE[5] NR 0.924 0.900 7.143 0.833 0.819 0.027 NFERM[6] NR 0.917 0.898 7.459 0.871 0.855 0.024 GWH-LBP[7] NR 0.949 0.944 8.873 0.913 0.908 0.019 HOSA[8] NR 0.926 0.902 6.974 0.892 0.872 0.021 Zhou[10] NR 0.951 0.943 5.747 0.919 0.907 0.019 CORNIA[11] NR 0.916 0.900 7.586 0.904 0.898 0.020 NIQE[19] NR 0.839 0.775 10.294 0.563 0.545 0.042 SISBLM[20] NR 0.895 0.878 8.439 0.814 0.808 0.030 本文算法 NR 0.961 0.951 4.831 0.935 0.922 0.017 表 5 各算法时间复杂度对比实验(s)
算法 SSIM VIF GWH-LBP SISBLM 本文算法 时间 0.102 5.236 0.657 2.486 0.842 -
